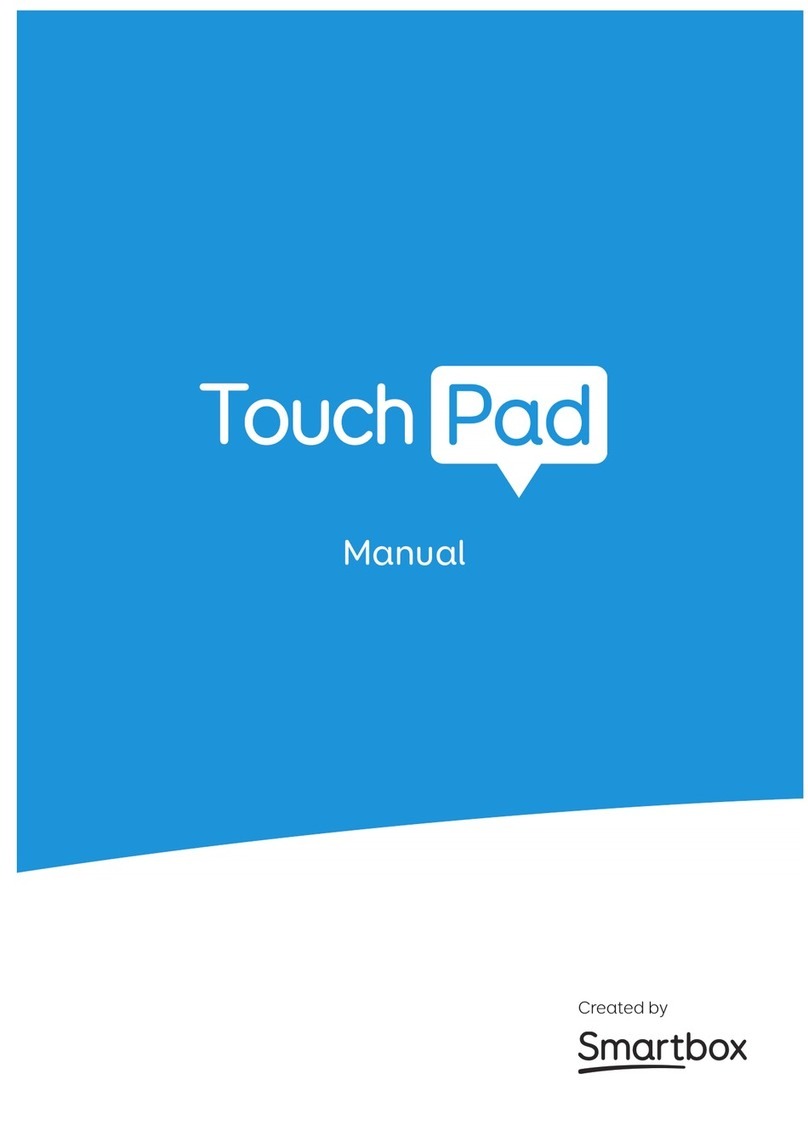

Smartbox Touch Pad User manual

Created by
Manual

Document: Touch Pad - Manual - UK - K
Language: English
Date of issue: Decmeber 2023
Copyright © 2023 Smartbox Assistive Technology
This guide provides the basics for getting
started with your Touch Pad.
hub.thinksmartbox.com/TouchPad

1. Starting Grid 3 4
2. Power 6
3. Device guide 8
4. Charging 10
5. Mounting 12
6. Shoulder strap 14
Manual

1Starting Grid 3
Grid 3 will automatically start when the device is
switched on by default. However, you can start Grid 3
from icon on the desktop.
Grid 3

For more resources and guides on how to get started
with Grid visit the Smartbox Hub.
• Get started with Grid
• Access methods and setup
• Troubleshooting guides
• Videos and webinars
• Resources for grid sets
• ...and much more.
hub.thinksmartbox.com/grid3

6
Before switching on your Touch Pad for the first time, it
is best to plug in the power lead and charge the battery
fully. Press the power button to turn the device on.
The device will boot into Windows, and Grid 3 will
automatically start.
While the device boots, also press the Speaker power
button to turn on the bluetooth speaker.
Power
Power
2
Speaker
power
button

7
When not in use, it is good practice to shut down your
Touch Pad completely. This will give any automatic
updates a chance to be applied. We also recommend
that your device is shut down before it is stored for
transit.
Open the Start menu and tap the power icon. From here
you can select Sleep, Shut down and Restart. Selecting
Shut down will power the device down completely.
You can also turn off your device from within Grid 3, by
using the Turn off computer command. This command
can be added to any grid set.
Force shut down
If you press and hold the power button for ten seconds,
your Touch Pad will shut down. Please note that this
is only recommended when the Touch Pad is non-
responsive. Any unsaved work will be lost.

8
Device guide
Touch screen
Front camera
Handle
Volume up
and down
Power
3

9
Rear camera
Charging port
Headphone port
USB C
Strap rings
Speaker
Speaker
charging
port
Speaker
power
button
Stand

10
To charge your Touch Pad, plug the power lead into the
charging port on the left side of the device.
To charge both the Touch Pad and the speaker at the
same time use the provided charging lead with USB C.
A full charge will take up to 3 hours.
Charging4
Charging port

11
5Mounting
Using a desk, floor, or wheelchair mount
To mount your Touch Pad, you will need the optional
dual mounting plate that will attach to either Daessy or
ReHadapt.
Attaching the mounting plate
To attach the mounting plate, lay your Touch Pad with
the screen facing down on a flat surface. To prevent
damage to the screen, place the device on something
soft like a towel, cloth or newspaper. You will need the
supplied Allen key, mounting plate and the three screws.
Remove the stickers covering the three screw holes.
Use the supplied Allen key to remove the three screws
located on the back of the Touch pad, as shown below.

12
Mounting your Touch Pad on a desk or floor
stand
With the correct mounting plate attached, you can fit
the Touch Pad to your wheelchair mount, floor stand or
desk stand. As you attach the device to the stand, be
sure to hold the Touch Pad securely until the head of the
stand is firmly docked with the mounting plate.
For further instructions on positioning see the
documentation provided with your stand.

13
Shoulder strap
Your Touch Pad is supplied with a shoulder strap. These
clip to the rings on the back of the device and can be
easily attached and removed as you need.
First loop the clips to the case of the Touch Pad.
Then you can attach the longer strap.
The strap can be adjusted to a suitable length.
6

14
