SMARTFLOOR 15013390 User manual

Manual nr 15013834
Rev 0 Loyds Industri AS 2017-10-25
SMARTFLOOR
VW T6 w Heater Se Installation Manual

2
Contents
15013390 Smart Floor T5 / T6 Long w Heater 1SLD Se
15013350 Smart Floor T5 / T6 Short w Heater 1SLD Se
15013394 Smart Floor T5 / T6 Long w Heater 2SLD Se
15013393 Smart Floor T5 / T6 Short w Heater 2SLD Se
Left hand side
Right hand side
Left and right side
1 slide door
2 slide doors
Short
Long
L&R
1SLD
2SLD
L2
L1
RH
LH

3

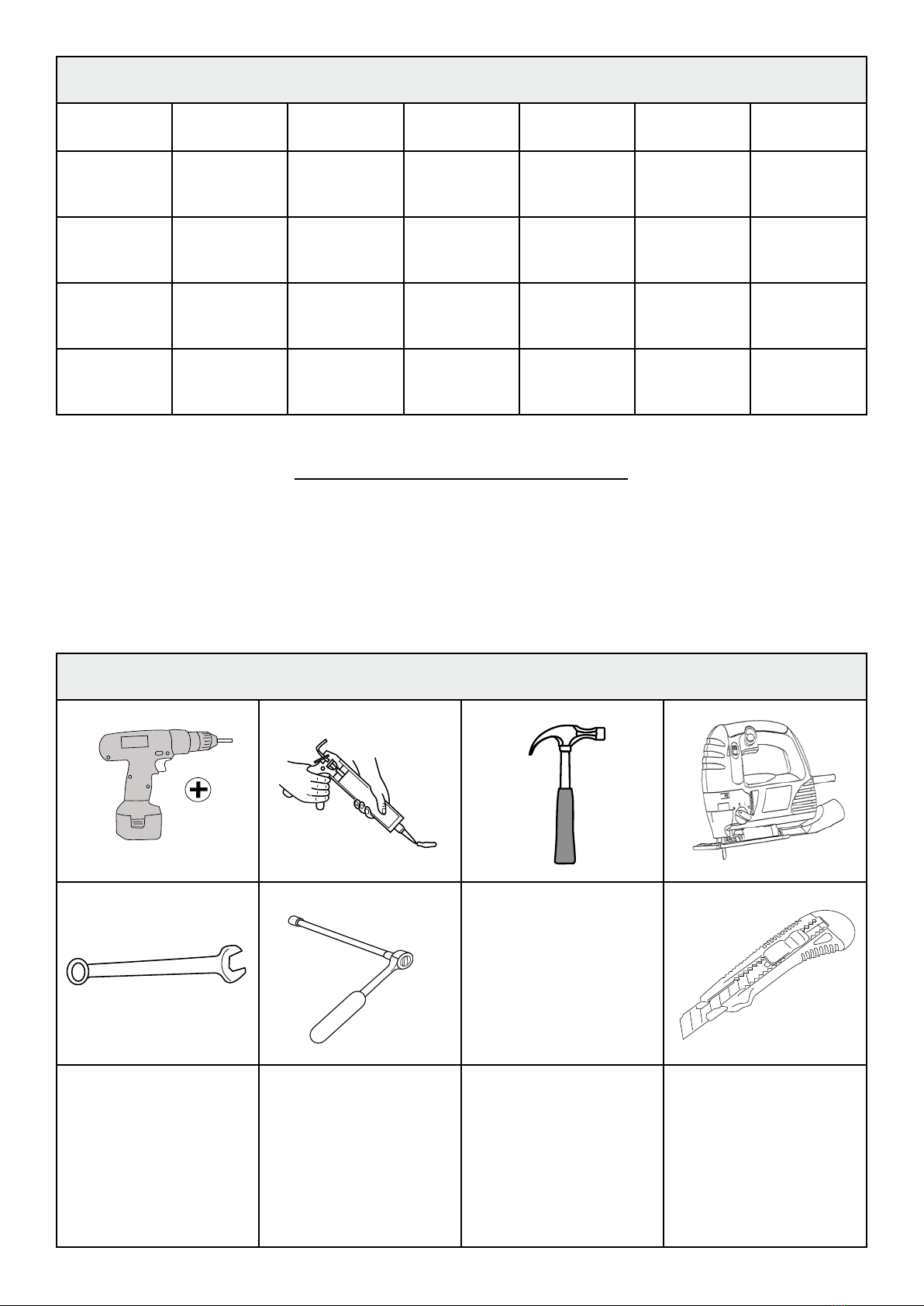

10-13 mm 10,13, 16, 17 mm Bits
PH2
Torx T20
T25
T30
T45
6-kant 10 mm
Revision Record
Rev nr Date Page Picture Update New Deleted
steps
Tools
Recomended attractrion moments screws:
4,2mm Selfdrilling: 3,6 NM
6mm: 6 NM
8mm: 10 NM
10mm: 42 NM

4
15013390 Smart Floor T5 / T6 Long w Heater 1SLD Se
15013350 Smart Floor T5 / T6 Short w Heater 1SLD Se
15013390 Smart Floor T5 / T6 Long w Heater 1SLD Se
Item Quantity Part Number Description
A 1 15009300 RD Rear Drawer Complete Assy
B 1 15009580 FD1 Front Drawer Complete Assy
C 1 15013389 Steelbracket Set T6 Long w heater Se
D 1 15013388 Floor Kit Long w Heater 2SLD Se
E 1 15010248 Supplement Set T5 1SLD
15013350 Smart Floor T5 / T6 Short w Heater 1SLD Se
Item Quantity Part Number Description
A 1 15009300 RD Rear Drawer Complete Assy
B 1 15009580 FD1 Front Drawer Complete Assy
C 1 15013344 Steelbracket Set T6 Short w heater Se
D 1 15013349 Floor Kit T6 Short w Heater 2SLD Se
E 1 15010248 Supplement Set T5 1SLD
D
D
E
E
B
B
A
C
A
C

5
15013394 Smart Floor T5 / T6 Long w Heater 2SLD Se
15013393 Smart Floor T5 / T6 Short w Heater 2SLD Se
15013394 Smart Floor T5 / T6 Long w Heater 2SLD Se
Item Quantity Part Number Description
A 1 15009300 RD Rear Drawer Complete Assy
B 1 15009190 FD2 Front Drawer Complete Assy
C 1 15013389 Steelbracket Set T6 Long w heater Se
D 1 15013388 Floor Kit Long w Heater 2SLD Se
15013393 Smart Floor T5 / T6 Short w Heater 2SLD Se
Item Quantity Part Number Description
A 1 15009300 RD Rear Drawer Complete Assy
B 1 15009190 FD2 Front Drawer Complete Assy
C 1 15013344 Steelbracket Set T6 Short w heater Se
D 1 15013349 Floor Kit T6 Short w Heater 2SLD Se
D
D
B
C
C
B
A
A

6
D4
D3
D2
D1
D6
D7
D8
D5
15013388 Floor Kit Long w Heater 2SLD Se
15013388 Floor Kit Long w Heater 2SLD Se

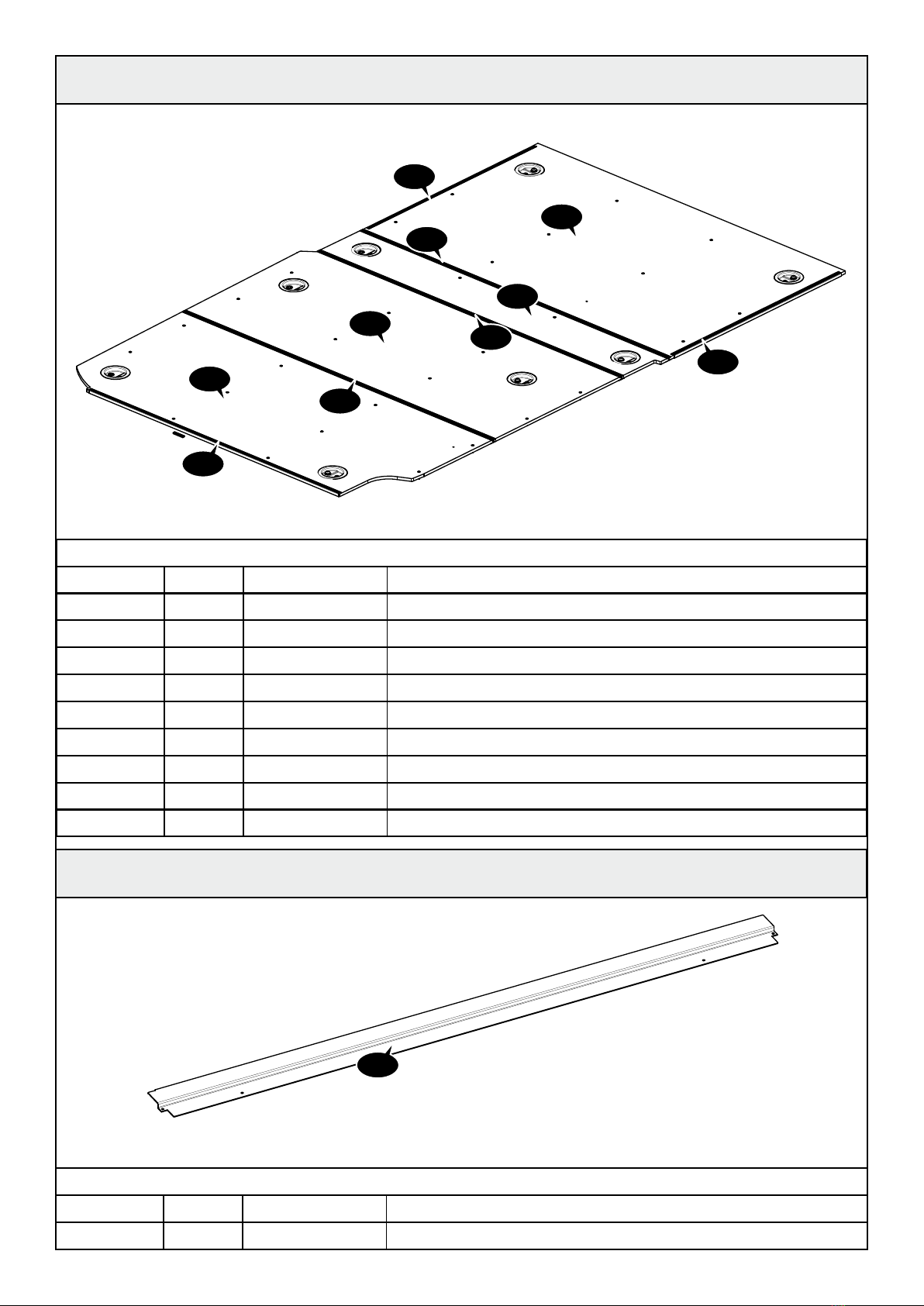

Item Quantity Part Number Description
D1 1 15010232 Wooden Floor Rear T5 Long w heater
D2 1 15010233 Wooden Floor Middle T5 Long w heater
D3 1 15010231 Wooden Floor Middle L1&L2 T5 w heater
D4 1 15013213 Front Floor T6 Se ASSY
D5 1 15009326 U-prole 12mm L=1278
D6 1
15009327
H-prole 12mm L=1576 (front) T5
D7 1
15010237
H-prole 12mm L=1553
D8 1
15010244
H-prole 12mm L=1587
D10 2 15013196 U-prole 12mm L=932
115011275 Front Angle Floor Original Sep Se
115011275 Front Angle Floor Original Sep Se
Item Quantity Part Number Description
E3 1 15011275 Front Angle Floor Original Sep Se
E3
D10
D10

7
D4
D3
D9
D6
D7
D5
15013349 Floor Kit T6 Short w Heater 2SLD Se
15013349 Floor Kit T6 Short w Heater 2SLD Se
Item Quantity Part Number Description
D3 1 15010231 Wooden Floor Middle L1&L2 T5 w heater
D4 1 15013213 Front Floor T6 Se ASSY
D5 1 15009326 U-prole 12mm L=1278
D6 1 15009327 H-prole 12mm L=1576 (front) T5
D7 1 15010237 H-prole 12mm L=1553
D9 1 15010230 Rear Floor T5 Short w Heater
D10 2 15013196 U-prole 12mm L=932
15010248 Supplement Set T5 1SLD
15010248 Supplement Set T5 1SLD
Item Quantity Part Number Description
E1 1 15010245 Floor Prole Left T5 1SLD
E2 1 15010246 Cover Rear Left FD T5 1SLD
E2
E1
D10
D10

8
15013389 Steelbracket Set T6 Se Long w heater Se
Item Quantity Part Number Description
C1 1
15009323
Bracket Side Rear Left T5 ASSY
C2 1
15010228
Bracket Lower Rear Right T5 w heater Assy
C3 1
15009321
Bracket Side Middle Left T5 ASSY
C4 1
15010239
Bracket Side Front Right w heater ASSY
C5 1
15009319
Bracket Side Front Left T5 ASSY
C6 1
15013395
Cover Right Rear FD T6 w heater Se
C7 1
15009445
Rear Cover Lower Prole Assy T5
C8 1
15009291
Rear Cover Side T5
C9 1
15010235
Bracket Fix FD RD T5 w heater
C10 1
15009292
Stiffener Floor Longitude T5 Long
C11 1
15010225
Bracket Stiffener Middle Right T5 w heater
C12 2 15009293 Stiffener Rear Front Drawer T5 Long
C13 1 15009915 Bracket El-connector T5
C14 4 05-99626 Avstandskloss 300x40x9
C15 1 15010241 Fix Bracket RD FD Right T5 Long w heater
C16 1 15010234 Air-block Foam SideT5 w heater
C17 1 15012673 Cover Slide Door Rear FD T6 Se
C18 1 15009579 Bracket Fix FD RD T5
C19 2 15011033 Bracket Latchcup M10 Multi Right ASSY
C20 2 15011034 Bracket Latchcup M10 Multi Left ASSY
C21 1 15011273 Bracket Front Right T6 Se
C22 1 15011274 Bracket Front Left T6 Se
C23 1 15013195 Cover Front Right FD T6 Se ASSY
C24 1 15013194 Cover Front Left FD T6 Se ASSY
C1
C2
C4
C5
C12
C7
C20
15013389 Steelbracket Set T6 Long w heater Se
C19
C17
C15
C10
C3
C6
C16
C11
C8
C12
C14
C18
C21
C22 C23
C24
C20
C19
C13
C1
C9

9
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
larsi 09.10.2017
Designed by Checked by Approved by Date
1 / 1
Edition Sheet
Date
C1
C5
C18
C19
C17
C7
15013344 Steelbracket Set T6 Short w heater Se
C4 C6
C8
C14
C16
C11
C2
15013344 Steelbracket Set T6 Short w heater Se
Item Quantity Part Number Description
C1 1 15009323 Bracket Side Rear Left T5 ASSY
C2 1 15010228 Bracket Lower Rear Right T5 w heater Assy
C4 1 15010239 Bracket Side Front Right w heater ASSY
C5 1 15009319 Bracket Side Front Left T5 ASSY
C6 1 15013395 Cover Right Rear FD T6 w heater Se
C7 1 15009445 Rear Cover Lower Prole Assy T5
C8 1 15009291 Rear Cover Side T5
C9 1 15010235 Bracket Fix FD RD T5 w heater
C11 1 15010225 Bracket Stiffener Middle Right T5 w heater ASSY
C13 1 15009915 Bracket El-connector T5
C14 4 05-99626 Avstandskloss 300x40x9
C16 1 15010234 Air-block Foam SideT5 w heater
C17 1 15012673 Cover Slide Door Rear FD T6 Se
C18 1 15009579 Bracket Fix FD RD T5
C19 2 15011033 Bracket Latchcup M10 Multi Right ASSY
C20 1 15011034 Bracket Latchcup M10 Multi Left ASSY
C21 1 15011273 Bracket Front Right T6 Se
C22 1 15011274 Bracket Front Left T6 Se
C23 1 15013195 Cover Front Right FD T6 Se ASSY
C24 1 15013194 Cover Front Left FD T6 Se ASSY
C25 1 15009294 Stiffener Floor Longitude T5 Short
C20
C19
C21
C22
C23
C24
C25
C9
C13
C1

10
15010236 Handle Assy
15010236 Handle Assy
Item Quantity Part Number Description
A7 1 15009441 Handle Tube 25x15x286
A8 2 15009442 Spacer Ø8,3x18x30 Nylon Black
A9 2 15009443 Spacer Ø8,1x13x6mm Galv
A10 2 15009444 Screw M8x50 Cylinderh Hex
A11 2 8 NMU Mutter M8 Nyloc DIN985
A12 2 8,4x17x2 Rear Floor T5 Short w heater
A13 2 15009438 M8 Washer, DIN 125
A7
A9
A12
A13
A12
A9
A8
A11
A11
A10
A10
A8 A13

11

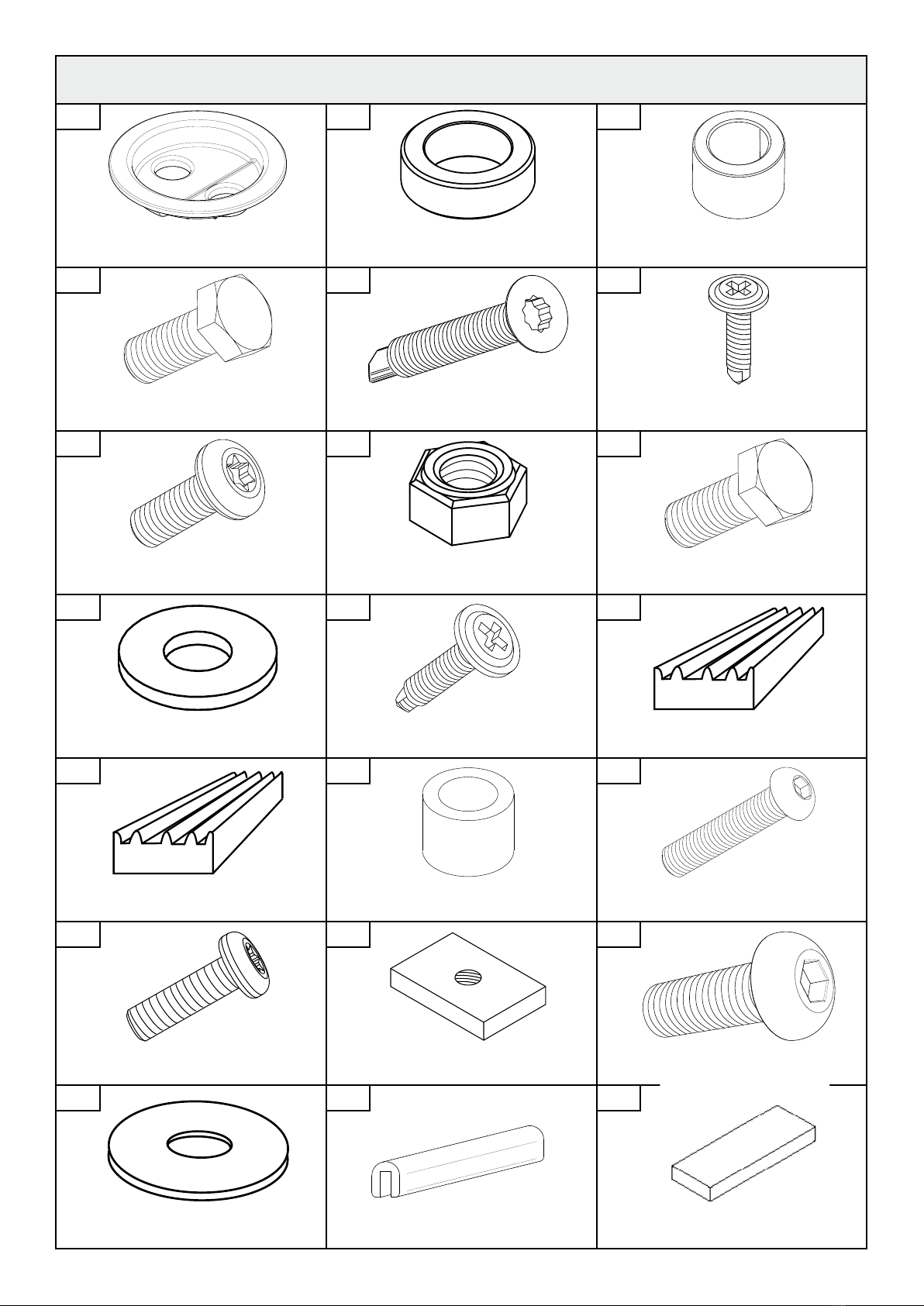

Fitting kit
F2
F11
F3
F12
F4
F1
F13
F10
F7
F16
F19
F8
F17
F20
F9
F18
F21
F5
F14
F6
F15
15006240
Plastic Cover Latchcup
13X20X6,4
Spacer, U-709
13X20X10
Spacer, U-710
7/16X25
Bolt S-82 6K (7/16x1)(12,6x25) elz
15009568
4,8x32 Selfdrill CS Torx Elz
4,2x19 FL Screw 4,2x19, ath, selfdrill,
elzn
15003551
M6x16 TX30 pan (DIN 7985)
6 NMU
M6 Self locking nut, DIN 985-8
10X25 6K
Bolt, M10x25 Din933 6K , ElZn
15009916
Washer 30x13x3 Elz
4,2x19 Black
Selftapping screw, Black, 45761
36.721004
Rubber Prole Sindby (L: 3300 mm)
36.721004
Rubber Prole Sindby (L: 1200 mm)
15001584
Distansehylse D20 d13 h15
15001595
Screw M10x50 Panh UNB Black
15009762
Screw M6x20 Panh Torx Elz
02-01794 6MM
Threaded M6 metalblock 5x20x30
10x30 UNB
M10x30 Panh UNB Black
6,4X18X1,5
M6 Washer, DIN 9021
15009991 Edge Prole
461 00 28 L=1575
15001755 Avstandskloss
110x40x12mm

12
E1
RH
LH
C21
RH
C22
LH
F9 4x
F10
6x
C22 LH
C21 RH
F2
L&R
F21 2x
L&R
E1
1. 2.
3. 4.
5. 6.
2x

13

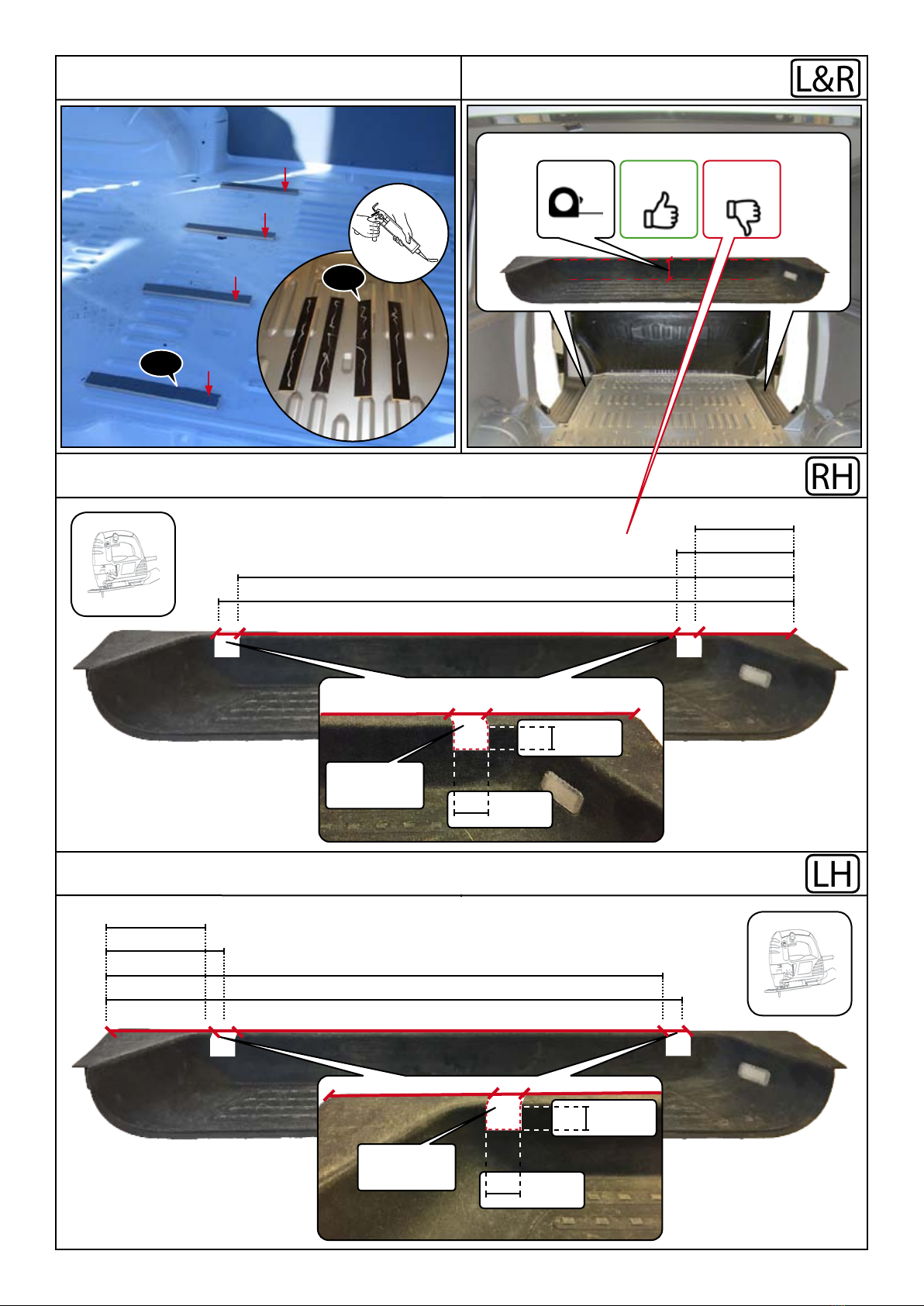

C17
C17
165 mm
210 mm
865 mm
910 mm
25 mm
CUT OUT
70 mm 85 mm
RH
L&R
165 mm
210 mm
865 mm
910 mm
25 mm
LH
CUT OUT
45 mm
45 mm
7. 8.
8.A
8.B

14
B25
F10
F9 2x
C2
RH
C7
C7
F9 2x
LH
F7 4x
F8 4x
C22
4x
F7
C19
C20
L&R
B
C7
F8
4x
9. 10.
11. 12.
13. 14.

15

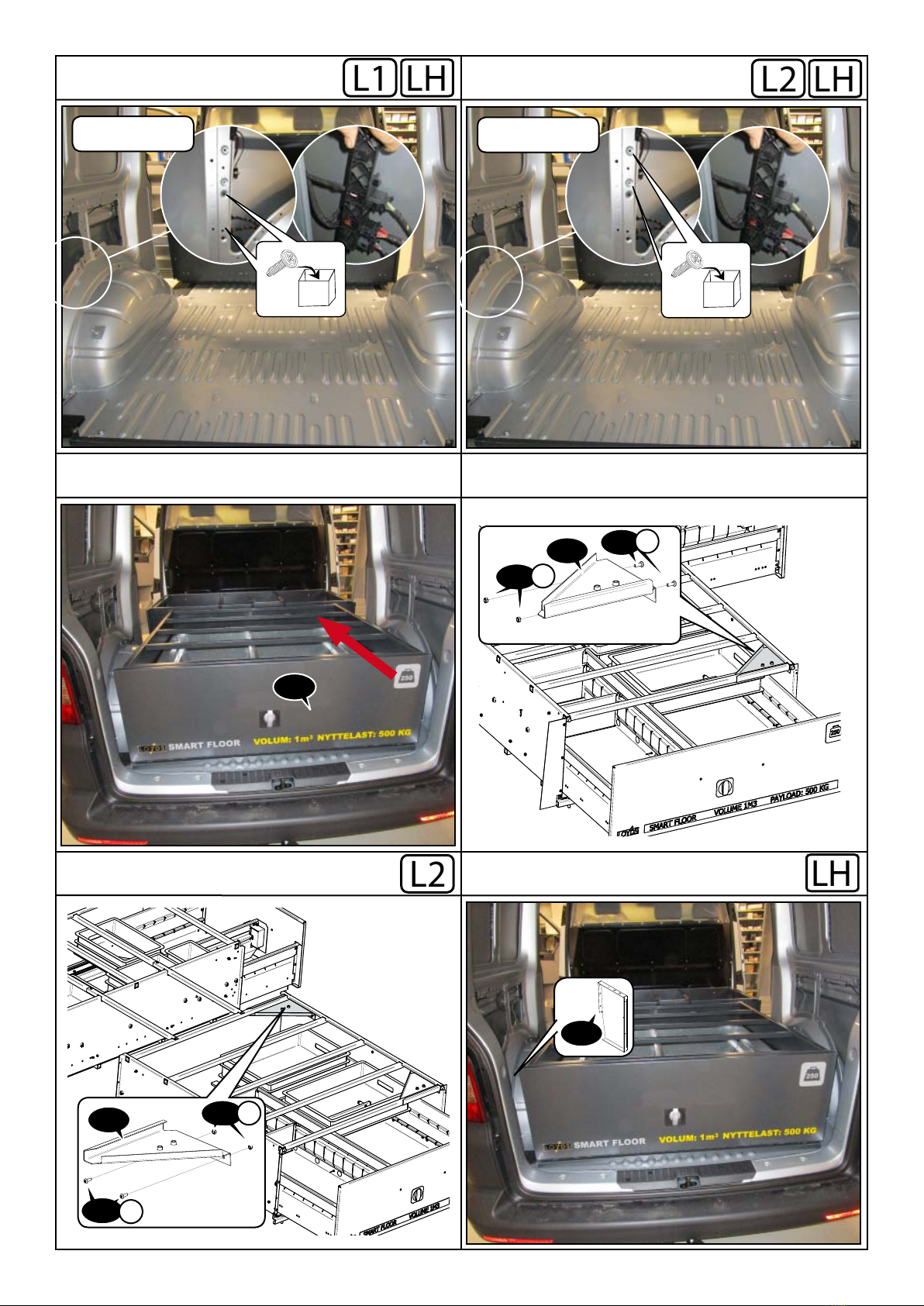

E1
2x
El-connector
LH
L1
E1
2x
El-connector
L2
LH
A
L2
C1
LH
15. 16.
17.
C19 F7
F8
C20 F8
F7
19. 20.
18.
2x
2x
2x
2x

16

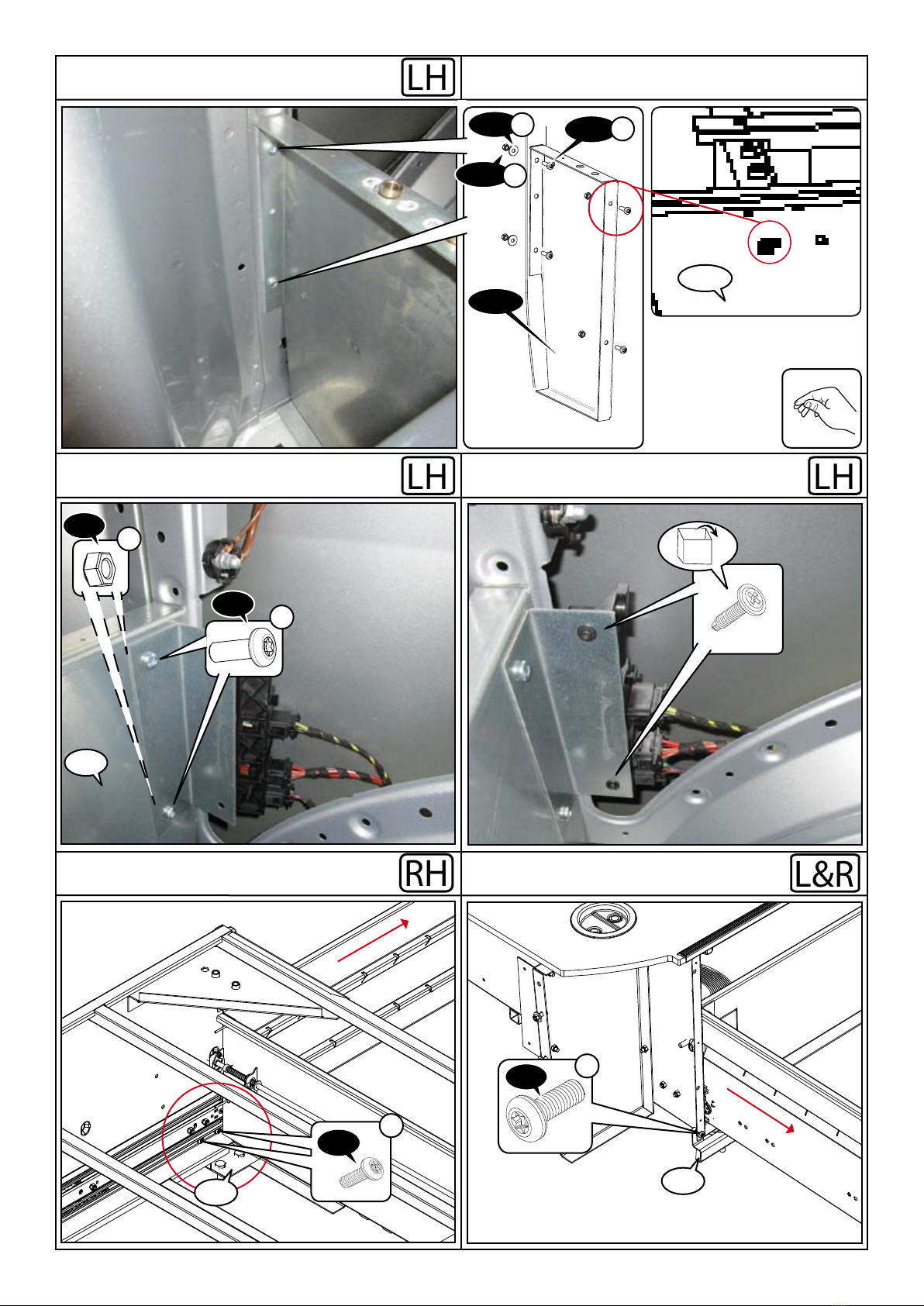

A
F8
F19
F16
C1
4x 4x
2x
2x
F8 2x
C1
E1
F7
LH
LH
L&R
LH
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Drawing number
Sheet size:
Approved by LOYDS
Revision
Loyds Industri AS
Creation date Designer / Constructor
Project
Description
SARPSBORG
Approved by customer
Gen. Tol.:
ISO 128
15014509
EGL
04.01.2018
A
Loyds MS 001
Smart Floor
Kit Complete T6 D-cab Se w Heater
Drafter
A3
Sheet thickness:
Material:
Colour:
Weight:
2x
C2
F7
1
1
2
2
3
3
4
4
5
5
6
6
A A
B B
C C
D D
Drawing number
Sheet size:
Approved by LOYDS
Revision
Loyds Industri AS
Creation date Designer / Constructor
Project
Description
SARPSBORG
Approved by customer
Gen. Tol.:
ISO 128
15014509
EGL
04.01.2018
A
Loyds MS 001
Smart Floor
Kit Complete T6 D-cab Se w Heater
Drafter
A3
Sheet thickness:
Material:
Colour:
Weight:
C7
F7 2x
RH
24. 25.
21.
22. 23.

17

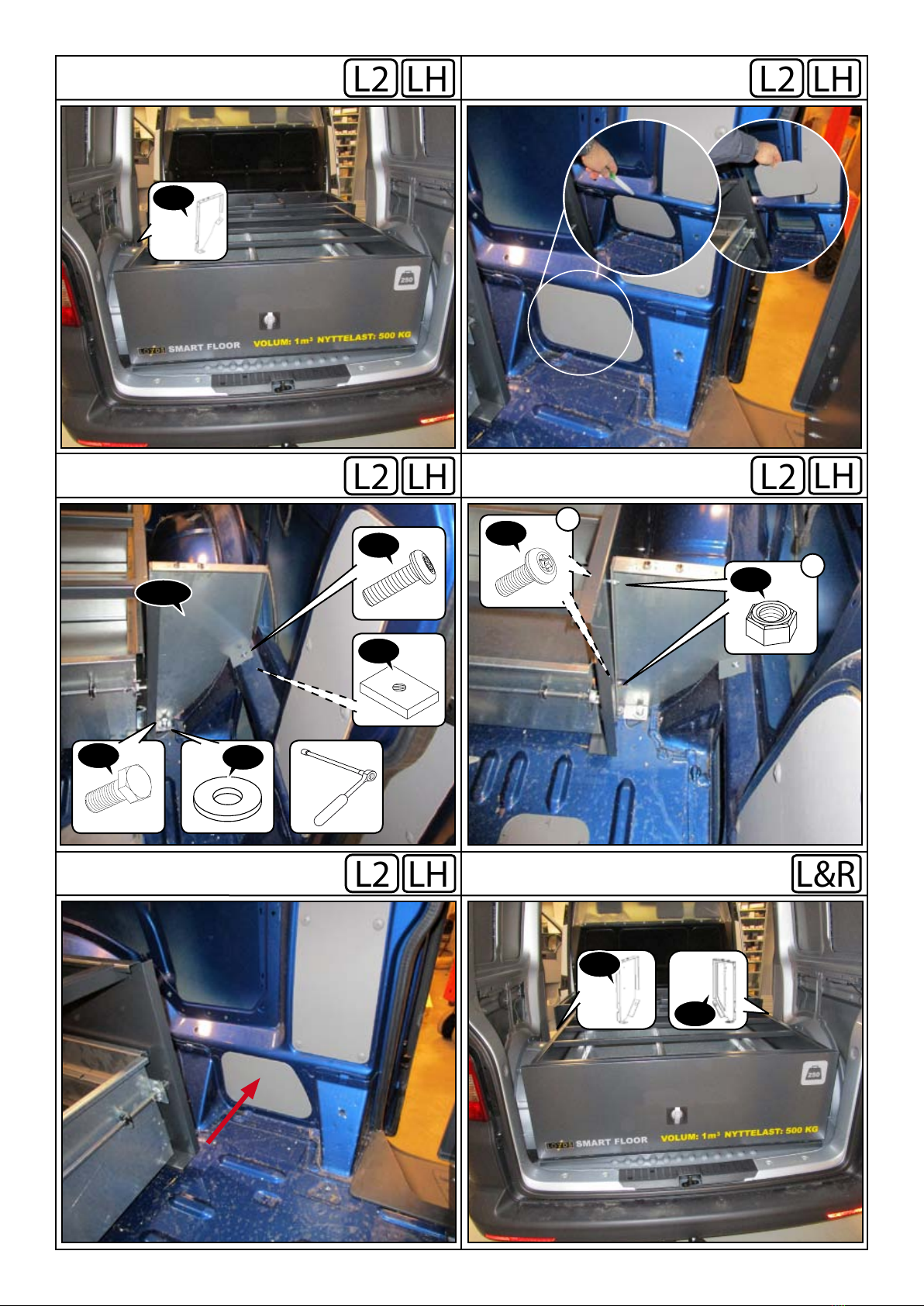

C3
LH
C3
F9 F10
F17
F16
2x
F7
2x
F8
C4
C5
L&R
L2
LH
L2
LH
L2
LH
L2
LH
L2
27.26.D
26. 26.A
26.B 26.C

18
C4
F9
C4
F10
F4
F9
F4
C5
2x
F8
2x
F8
2x
F7
F10 2x
C5
L1
RH
L1
LH
L1
LH
L1
RH
F4
E1
F7 2x
2x
28.
28.A
28.B 28.C

19
B
A
C15
F7
F8
3x
3x
F4
F9
F10 2x
C5
F10
F4
F9
C4
F7 2x
F8
2x
C17 F12 C6
LH
L2
L2
RH
L2
RH
L2
RH
E1
29. 29.A
29.B 29.C
30.

20
C5
C5
C18
C17
F7 4x
F8 4x
12
C5
C4
C9
C6
F8 4x
F7 4x
C4
1
2
LH
RH
E2
C18
C5
F7 4x
F8 4x
1
2
1SLD
LH
31.
32.
33.
F7 4x C4
F8 4x
C9
C6
C5
F7 4x
F8 4x
C18 C17
