smartheart 01-518 User manual

Automatic Digital
Blood Pressure Wrist Monitor
Model # 01-518
Please read this instruction manual
completely before operating this unit.
INSTRUCTION MANUAL
ENGLISH AND SPANISH
mmHg
/
3-YEAR 2-YEAR
3-YEAR 2-YEAR
1-YEAR
1-YEAR

2 • ENGLISH
Digital Monitor Storage
Case
2 AAA
Batteries
Instruction Manual
Quick Start Guide
Blood Pressure Reading Tracking Log
FAQ Information Sheet
STOP!
PLEASE ENSURE YOU HAVE ALL OF THE
FOLLOWING COMPONENTS BEFORE USING
YOUR DIGITAL BLOOD PRESSURE MONITOR.
IF YOU ARE MISSING ANY PARTS, INCLUDING
INSERTS OR INSTRUCTION MANUALS, DO NOT
RETURN TO PLACE OF PURCHASE. CONTACT
CUSTOMER CARE AT 866-326-1313.

ENGLISH • 3
Care & Safety Information...........................................4-5
Introduction & Indications for Use.................................6
Digital Blood Pressure Monitor Features ........................7
Getting Started ..........................................................8
Battery Installation .....................................................9
Setting Date/Time ......................................................10-11
Applying Your Wrist Cuff ............................................12-13
User Selection............................................................14
Taking Your Blood Pressure Reading .............................15-17
Interpreting Your Results ..............................................18-19
Memory Functions .....................................................20-21
Care & Maintenance..................................................22-23
Device & Labels Symbols ............................................24
Display Symbols ........................................................25
Troubleshooting .........................................................26-27
FCC Statement...........................................................28-29
Electromagnetic Compatibility......................................30-33
Specications ............................................................34
Warranty ..................................................................35-36
Instrucciones en Español .............................................37-72
INDEX
Made in China
#93-1249 12/18
©2018 Veridian Healthcare, LLC
SmartHeart™
Manufactured for
Veridian Healthcare
1175 Lakeside Drive
Gurnee, IL 60031
Toll-Free Customer Care Help Line: 1-866-326-1313
Monday – Friday 8:30 a.m. – 4:30 p.m. CST

4 • ENGLISH
CARE & SAFETY INFORMATION
NOTE: Read all instructions carefully before use. The following basic
precautions are needed when using an electrical product.
CAUTION: Failure to read and observe all precautions could result
in personal injury or equipment damage.
Improper care or use of your blood pressure monitor may result in injury,
damage to the unit or ineffective treatment. Following these instructions
will ensure the blood pressure monitor’s efcacy and long life.
GENERAL CAUTIONS AND WARNINGS
• Measurement results should be discussed with your physician or
healthcare professional; never self-diagnose or attempt treatment
as this may be dangerous.
• Intended for adult use only; this device is not approved for infant
or child use.
• Keep out of reach of children.
• Do not use the unit if it has any damaged parts (including power
cord or plug and cuff), if it has been submersed in water or
dropped.
• If any abnormality occurs, discontinue use until the unit has been
examined and repaired.
• Only use included attachments and parts; do not use
attachments from other brands or models as these may not be
properly calibrated for use with this device and may result in
measurement error.
• Do not disassemble the unit or attempt to repair it; substitution
of a component different from that supplied may result in
measurement error and will void manufacturer warranty.
• Always follow local regulations for proper disposal of the
monitor, cuff and batteries.

ENGLISH • 5
CARE & SAFETY INFORMATION
OPERATING CAUTIONS AND WARNINGS
• Prolonged overination may cause congestion, swelling or
bruising in some people.
• If you experience any discomfort or an abnormality occurs,
stop using the device immediately; to stop the device during
operation, press the START/STOP button and the cuff will
automatically deate.
• Operation outside of stated operating temperature may result in
measurement error or device malfunction; operation environment
temperature is:
50°F – 104°F (10°C – 40°C); Humidity: 15~90% RH.
• Never use this unit while operating a vehicle or in the bathtub or
shower.
STORAGE CAUTIONS AND WARNINGS
• Storage outside of stated storage temperature may result in
measurement error or device malfunction; storage environment
temperature is: -4°F – 131°F (-20°C – 55°C); Humidity: 15~90%
RH.
• Keep the unit out of reach of children.
• Always keep the unit unplugged while not in use; remove the
batteries if the unit will not be used for an extended period of
time.
CLEANING CAUTIONS AND WARNINGS
• Never immerse the unit in water to clean as it may damage the
unit.
• Follow the ‘Cleaning & Maintenance’ portion of this manual for
instruction on how to clean and care for your monitor.

6 • ENGLISH
It is recommended that you rst seek the advice and recommendation
of your physician or healthcare professional when using home
diagnostic devices, including blood pressure monitors.
Automatic digital blood pressure monitors use the oscillometric method
to electronically measure your blood pressure. The monitor detects
your blood’s movement through the artery in your arm and converts
the movements into a digital reading. The oscillometric method does
not require a stethoscope, making the monitor ideal for home use.
Blood pressure readings determined with this device are equivalent
to measurements obtained by a trained healthcare professional using
the cuff/stethoscope auscultation method, within the limits prescribed
by the American National Standard for Electronic or Automated
Sphygmomanometers.
Thank you for purchasing a SmartHeart Automatic Digital Blood
Pressure Monitor. With proper care and use, your monitor will
provide you with many years of reliable readings.
PLEASE READ THIS INSTRUCTION MANUAL
COMPLETELY BEFORE OPERATING THIS UNIT.
INTRODUCTION

ENGLISH • 7
DETAILS OF THE DIGITAL DISPLAY AND
INTERPRETATION OF THE SYMBOLS ARE
INCLUDED THROUGHOUT THIS MANUAL.
Wrist Cuff
Hypertension
Indicator
Color Bar
Battery
Compartment
(underside)
Digital Display
MEMORY
Recall
Button
START/STOP
Button
(power)
SET
Button
MONITOR FEATURES

8 • ENGLISH
Before Taking a Measurement
1. Your readings should only be interpreted by your physician or
healthcare professional with access to your individual medical
history. Regular use of a home blood pressure monitor will allow
you to track and record your readings for discussion with your
physician.
2. Conduct your measurement in a quiet place while seated in a
relaxed position. Rest for 15 minutes before taking your reading.
If an error occurs or you desire to take a second reading, allow
15 minutes between readings for your blood vessels to return to
normal.
3. Avoid smoking, eating, taking medication, alcohol, physical
activity or any other stressful activity for 30 minutes prior to
taking a reading.
4. Always remove any jewelry or constrictive clothing that may
interfere with the cuff placement.
5. Keep yourself and the monitor still during measuring; do not talk
during the reading.
6. It is recommended that you take your readings as the same time
each day to better monitor any indications in your results.
7. Record your daily measurement on the included chart or some
other written document to share with your physician.
GETTING STARTED

ENGLISH • 9
This unit comes complete with 2 AAA batteries.
Replace the batteries when any of the following occur:
• Low Battery symbol appears on the display
• The display numerals are dim
• Monitor does not turn on after the
START/STOP button is pressed
1. The battery compartment is located on the underside of
the monitor as shown in the below illustration; take care
when opening the batter
compartment.
2. Insert or replace 2 AAA
batteries into the battery
compartment, ensuring to
match the indicated polarity
symbols. Always use new
batteries.
3. Replace the battery cover.
4. Dispose of batteries
according to local disposal
and recycling regulations.
It is recommended to remove the
batteries if the unit will not be used
for an extended period of time.
BATTERY INSTALLATION

10 • ENGLISH
IT IS NECESSARY TO SET THE DATE AND TIME FOR THE
UNIT EVERY TIME BATTERIES ARE INITIALLY INSTALLED OR
REPLACED.
IF YOU CHOOSE NOT TO SET THE DATE AND TIME, YOU
MAY PRESS THE START/STOP BUTTON TO FORWARD
THROUGH THE TIME AND DATE FEATURE WITHOUT SETTING
A PREFERENCE.
The date/time feature is on the lower left of the
display screen. This unit stores the date and time,
including year, allowing for a date/time stamp on
all readings in the memory recall function.
1. When the unit is off (a blank display screen),
press the SET button 2x to activate the display.
The YEAR will ash.
2. YEAR—the year will ash on the display.
Repeatedly press and release the Mbutton to
advance the display to the desired year, press
the SET button to conrm your selection and
advance to the date settings.
To advance the numbers quickly, press and
hold the Mbutton.
3. MONTH / DATE —repeat the same sequence
of step 2 to conrm the MONTH and DATE
setting.
/
/
mmHg
/
SETTING DATE/TIME

ENGLISH • 11
/
/
4. HOUR / MINUTES—repeat the same
sequence of step 2 to conrm the HOUR and
MINUTE setting.
5. TIME FORMAT—this device allows for your
time and date view in common U.S. or
European (EU) standard. The default is U.S.
time.
Press SET to conrm U.S. time; if you desire EU/
military time, press the Mbutton to toggle between
your selection.
Press the START/STOP button to turn the unit off
and exit the SETTING DATE/TIME mode. Your
monitor is ready for use.
SETTING DATE/TIME

12 • ENGLISH
Before applying your blood
pressure cuff, be sure your wrist
is within the appropriate cuff
range: Wrist Circumference
Range Suitable for 5.3” – 8.5”
(13.5 – 21.5 cm).
Reminder, it is important
to avoid smoking, eating,
taking medication, alcohol
consumption or physical activity
30 minutes prior to taking a
reading.
If for any reason you are unable to or should not use your left wrist,
please modify the instructions for cuff application to your right wrist.
Your physician can help you identify which wrist is best for you to take
measurements from.
PROPER CUFF FIT AND PLACEMENT IS CRITICAL
IN OBTAINING ACCURATE BLOOD PRESSURE
MEASUREMENTS. PLEASE READ THESE INSTRUCTIONS
CAREFULLY AND CONSIDER CONSULTING WITH YOUR
PHYSICIAN FOR FURTHER DIRECTION.
APPLYING YOUR WRIST CUFF

ENGLISH • 13

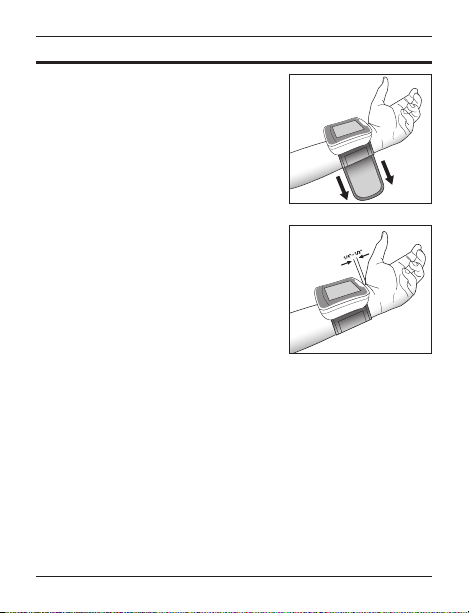

1. Remove any constrictive clothing or
jewelry that may interfere with cuff
placement.
2. Be seated at a table or desk with your
feet at on the oor.
3. Hold your left arm in front of you with
your palm facing upward.
4. Apply the preformed cuff to your left
wrist so that the digital display face is
positioned on the inside area of your
wrist facing you, Fig. 1.
5. Adjust the cuff 1/4” - 1/2” from the
edge of the head of the ulna bone,
Fig. 2.
6. The cuff should t comfortably, yet
snugly around your wrist.
If you are not comfortable with applying
your cuff, please seek the assistance of
another member of your household or work
with your physician to practice the cuff
application. Incorrectly applied cuffs may
result in inaccurate readings.
Fig. 1
Fig. 2
APPLYING YOUR WRIST CUFF

14 • ENGLISH
This monitor supports two unique users and stores up to 60
measurements in each memory bank. You may select a specic
user bank before each reading, allowing for individuals to track
their personal history and measurement averages.
The selected user will remain the default user each time the monitor
is used unless the user is changed as indicated in the following
steps.
1. When the unit is off (a blank display screen),
press the SET button to activate the display. The
current user will ash.
2. Press the Mbutton to toggle between
User 1 and User 2.
3. When the desired user is displayed, press the
START/STOP button to turn the unit off and exit
the user selection function.
Your monitor is ready for use.
USER SELECTION

ENGLISH • 15
TAKING YOUR MEASUREMENTS
Please read the preceding portions of this manual prior to taking your
rst reading.
Reminder, it is important to avoid smoking, eating, taking medication,
alcohol consumption or physical activity 30 minutes prior to taking a
reading.
1. Rest your elbow on a solid
surface with your palm
facing upward. Elevate
your arm so that the cuff is
at the same level as your
heart, Fig 1. Be certain
that the cuff is elevated to
the proper level; you may
choose to support your
hand with a folded towel
or book. Relax your hand.
2. Firmly press the START/STOP button to turn
the unit on. The display will briey ash a test
display, Fig 2.
3. The display will show the selected user in the
upper left corner, user (1 or 2).
4. A ashing down arrow may briey appear.
The down arrow indicates that the cuff is
ensuring that there is no air in the cuff from
previous measurements that may affect the
results.
5. The cuff will automatically begin inating; the user will feel the
cuff tightening on the wrist.
AVG
mmHg kPa
No
(
( )
)
/
Fig. 2
Fig. 1

16 • ENGLISH
6. The top numbers on the display screen will
begin to go up; the heart icon will ash
in-time with the pulse rate detected.
7. When the measurement is complete, your
blood pressure and pulse reading results
will show on the display screen at the same
time, Fig 3.
8. The colored bars on the outside of the
display screen correspond with the
hypertension indicator chart on page 19;
the triangle that appears on the display
indicates the hypertension
classication for your reading,
Fig 4.
See page 19 for information
regarding interpreting the
Hypertension Indicator results.
mmHg
/
Fig. 3
mmHg
/
Fig. 4
TAKING YOUR MEASUREMENTS
YOU CAN STOP THE INFLATION OR DEFLATION
PROCESS AT ANY TIME BY PRESSING THE START/
STOP BUTTON.

ENGLISH • 17
9. If an irregular heartbeat was detected
during the reading, the Irregular Heartbeat
Detector icon will appear ashing on
the display, Fig 5. See page 18 for more
information on the Irregular Heartbeat
Detector feature.
10. The reading will automatically be stored in
memory, up to 60 readings.
11. Select START/STOP to turn the unit off
and conserve energy and battery life.
The unit will automatically shut-off after
approximately 3 minutes.
mmHg
(
( )
)
/
Fig. 5
TAKING YOUR MEASUREMENTS
(
( )
)

18 • ENGLISH
INTERPRETING YOUR RESULTS
Irregular Heartbeat Detector
An irregular heartbeat is dened as a heartbeat rhythm that is more
than 25% slower or 25% faster than the average measurement
detected while the monitor is conducting the measurement. When
this device detects an irregular rhythm two or more times during the
reading, the IHB symbol will appear on the display screen.
This monitor will operate if the icon appears, but the results may be
compromised, especially if this symbol appears often. Please consult
with your physician or trained healthcare professional for further
information regarding an irregular heartbeat and if this symbol
appears frequently.
Pulse
Pulse
Irregular Heartbeat
Normal Heartbeat
Blood
Pressure
Blood
Pressure
Short
Beat Long Beat
(
( )
)

ENGLISH • 19
INTERPRETING YOUR RESULTS

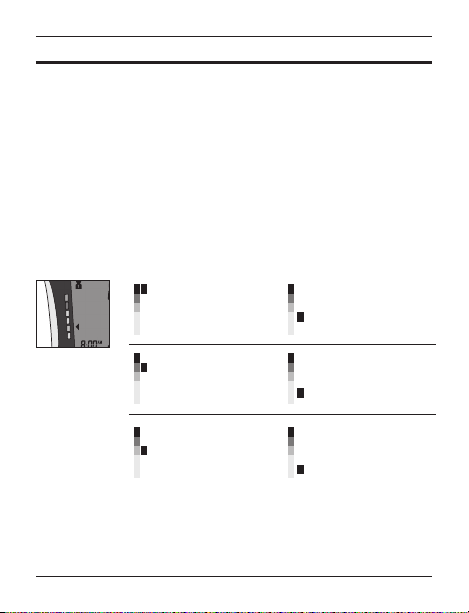

Hypertension Indicator
This unit features our unique Hypertension Indicator. The World Health
Organization has established globally accepted standards for the
assessment of high or low blood pressure.
This chart can help you identify where a given blood pressure
measurement falls according to World Health Organization
standards. This chart should only be considered as a guideline;
always consult with your physician to interpret your individual results.
Never adjust your medication(s) dosage, or severely alter your diet or
exercise routine without consulting with your physician.
Stage 3 Hypertension
(red bar)
Systolic pressure: ≥ 180 mmHg
or
Diastolic pressure: ≥ 110 mmHg
The Hpertention
Indicator is located
on the left side of
the display window
High Normal
(green bar)
Systolic pressure: ≥ 130-139 mmHg
or
Diastolic pressure: ≥ 85-89 mmHg
Stage 2 Hypertension
(orange bar)
Systolic pressure: ≥ 160-179 mmHg
or
Diastolic pressure: ≥ 100-109 mmHg
Normal
(green bar)
Systolic pressure: ≥ 120-129 mmHg
or
Diastolic pressure: ≥ 80-84 mmHg
Stage 1 Hypertension
(yellow bar)
Systolic pressure: ≥ 140-159 mmHg
or
Diastolic pressure: ≥ 90-99 mmHg
Optimal
(green bar)
Systolic pressure: < 120 mmHg
or
Diastolic pressure: < 80 mmHg
mmHg
/

20 • ENGLISH
MEMORY FUNCTIONS
Recalling Measurements in Memory
This monitor stores and recalls up to 60 measurements per user,
plus an average of the last three measurements in memory. These
measurements can be shared with your physician or trained
healthcare professional for use in evaluating your overall health.
Select the user you wish to review
following the steps on page 14 of this
manual.
1. When the unit is off (a blank display screen),
rmly press the Mbutton to activate the
display.
2. The rst view will be the average of the
last 3 measurements in memory, Fig 1, the
AVG icon will appear on the screen.
3. Press and release the Mbutton to scroll
through the memory bank from most current
to oldest measurement in memory. The display
will briey ash ‘No’ and the memory number
in sequence (i.e. 04), Fig 2, and then show
the corresponding reading, Fig 3.
The display will include the date/time the
measurement was recorded, the Hypertension
Indicator and the number in memory
sequence.
AVG
mmHg
/
mmHg
(
( )
)
/
No
/
Fig. 1
Fig. 3
Fig. 2
