BPM Core
Smart blood pressure monitor, with ECG &digital
stethoscope
Installation and Operating Instructions

EN-2
BPM Core
v1.0 | July 2019
Table of contents
Minimum requirements��������������������������������������������������������������������� 5
Internet access......................................................................................................................................5
Smartphone or device ......................................................................................................................5
OS version...............................................................................................................................................5
Health Mate app version..................................................................................................................5
BPM Core description �����������������������������������������������������������������������6
Overview..................................................................................................................................................6
Box contents..........................................................................................................................................6
Product description ...........................................................................................................................7
Setting up BPM Core������������������������������������������������������������������������� 8
Installing the Health Mate app ......................................................................................................8
Installing BPM Core ............................................................................................................................8
Using BPM Core����������������������������������������������������������������������������������17
Positioning myself before and during the measurement ...............................................17
Taking a measurement.................................................................................................................... 18
Electrocardiogram recording (ECG) ������������������������������������������21
Frequently asked questions about electrocardiogram....................................................21
Frequently asked questions about Atrial Fibrillation (AFib) ........................................21
Recording my electrocardiogram (ECG).............................................................................. 22
Analysing my ECG recordings ................................................................................................... 24
Digital stethoscope ��������������������������������������������������������������������������26
Frequently asked questions about digital stethoscope................................................ 26
Frequently asked questions about valvular heart disease (VHD)............................ 26
Understanding my blood pressure measurements �������������27
Viewing the history of my measurements ........................................................................... 29
Getting more insights about my blood pressure (iOS only).......................................30
Managing my data����������������������������������������������������������������������������33
Sharing my data with my doctor.............................................................................................. 33
Sharing my data with Apple Health........................................................................................ 37
Sharing my data with Google Fit ............................................................................................. 38

EN-3
BPM Core
v1.0 | July 2019
Deleting data...................................................................................................................................... 39
Dissociating BPM Core ������������������������������������������������������������������40
Cleaning and maintenance����������������������������������������������������������� 42
Cleaning BPM Core.......................................................................................................................... 42
Recharging BPM Core.................................................................................................................... 42
Factory resetting BPM Core........................................................................................................ 42
User guide copyright���������������������������������������������������������������������� 44
Medical device ...................................................................................................................................44
Personal data......................................................................................................................................44
Safety instructions��������������������������������������������������������������������������� 45
Use and storage................................................................................................................................45
Safety .....................................................................................................................................................45
Service and maintenance .............................................................................................................45
Cautions����������������������������������������������������������������������������������������������� 46
Specifications �������������������������������������������������������������������������������������47
Document release overview �������������������������������������������������������� 49
Warranty���������������������������������������������������������������������������������������������� 50
Regulatory statements ��������������������������������������������������������������������51

EN-4
BPM Core
v1.0 | July 2019
Important notice
By using your BPM Core you expressly agree to the Withings Services
Terms and Conditions available on our website.

EN-5
BPM Core
v1.0 | July 2019
Minimum requirements
Internet access
Access to the Internet is required to:
• Download the Health Mate app,
• Set up your BPM Core,
• Upgrade the firmware.
For more details, refer to "Specifications" on page64.
Smartphone or device
An iOS device or an Android device (with operational Bluetooth Low Energy and
Wi-Fi or 3G/4G) is required to:
• Set up your BPM Core,
• Retrieve data from your BPM Core,
• Interact with your BPM Core,
• Interact with people.
For more details, refer to “"Specifications" on page64.
OS version
You need iOS 10 (or higher) or Android 6 (or higher) on your device to install and
run the Health Mate App.
For any device, BLE (Bluetooth Low Energy) compatibility is required to install
your BPM Core.
Health Mate app version
You always need the latest version of the Health Mate app to have all the latest
features available.

EN-6
BPM Core
v1.0 | July 2019
BPM Core description
Overview
BPM Core is not only a highly accurate smart blood pressure and heart rate
monitor, it is the first connected device that can detect, in the comfort of your
home, certain valvular heart diseases and atrial fibrillation, both a variety of
cardiovascular diseases frequent amongst people suering from high blood
pressure, which can help prevent serious complications from progressing.
BPM Core is our most advanced health device to date, combining medical data
traditionally only available in a clinical setting with a seamless design. Along with
blood pressure and heart rate monitoring, the three-in-one device records ECG,
which is used to identify atrial fibrillation (AFib), a serious form of irregular heart
rhythm that can lead to heart failure, fatigue and shortness of breath and is a
major risk for stroke.
In addition, it provides an integrated digital stethoscope that can provide early
detection of valvular heart disease, characterized by damage to one of the four
heart valves that may require surgical intervention to avoid heart failure. Using
the form factor of a blood pressure monitor, users can check their results in just
90 seconds along with color-coded feedback directly on the device, and they can
view their complete history in the free Health Mate app via Wi-Fi or Bluetooth
connection. Data can then be easily shared with doctors. BPM Core features a
long battery life of up to 6 months and is rechargeable via micro USB cable.
Box contents
• BPM Core
• Charging cable
• Instructions manual

EN-7
BPM Core
v1.0 | July 2019
Product description

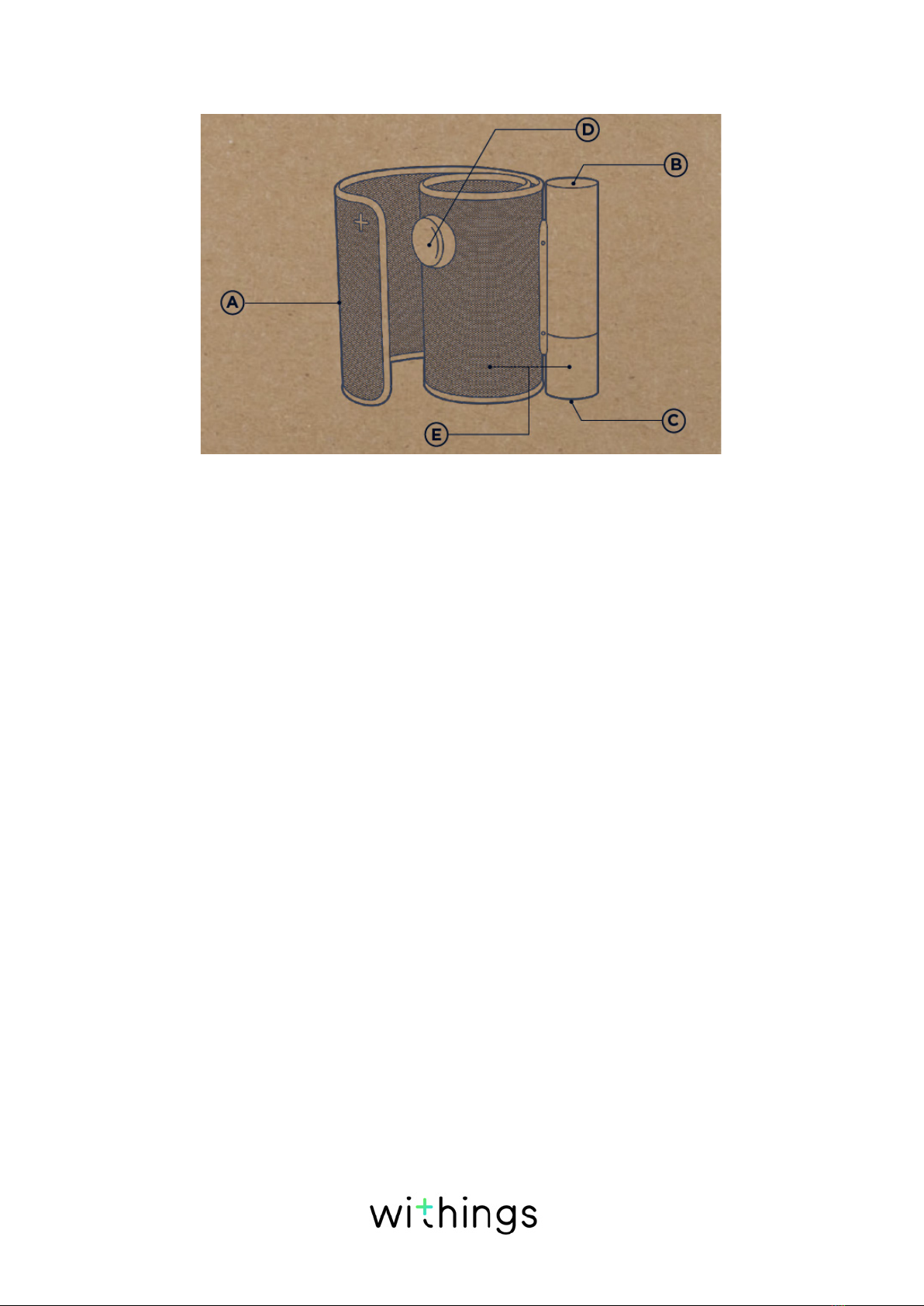

(A)Cu (B)Button (C)USB plug
(D) Digital stethoscope (E) Electrodes

EN-8
BPM Core
v1.0 | July 2019
Setting up BPM Core
Installing the Health Mate app
If the Health Mate app is not already installed on your device, perform the
following steps:
1. Type go.withings.com in your device’s web browser.
2. Tap Download on the App Store or on the Play Store.
3. Tap Get.
The installation process starts.
When a new version of the Health Mate app is available, you will automatically be
prompted to update it.
Installing BPM Core
I’m new to Health Mate
If you don’t already have a Health Mate account, you have to create one in order
to set up and use your BPM Core.
If you already have an account, refer to "I already have a Health Mate account" on
page12.
To install BPM Core, perform the following steps:
1. Open the Health Mate app.
2. Tap Sign up.

EN-9
BPM Core
v1.0 | July 2019

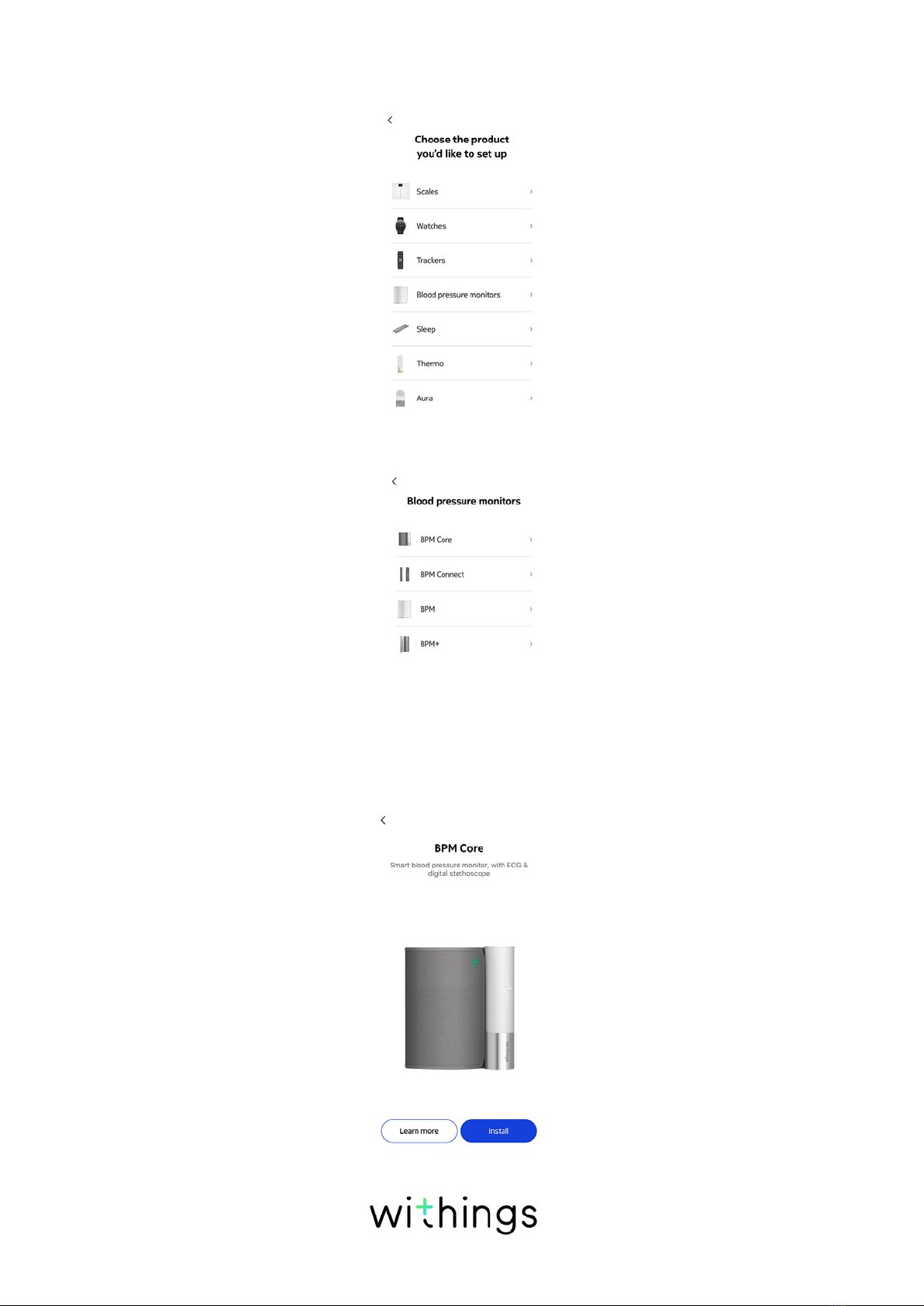

3. Tap Blood Pressure Monitors.
4. Tap BPM Core.
5. Tap Install.

EN-10
BPM Core
v1.0 | July 2019

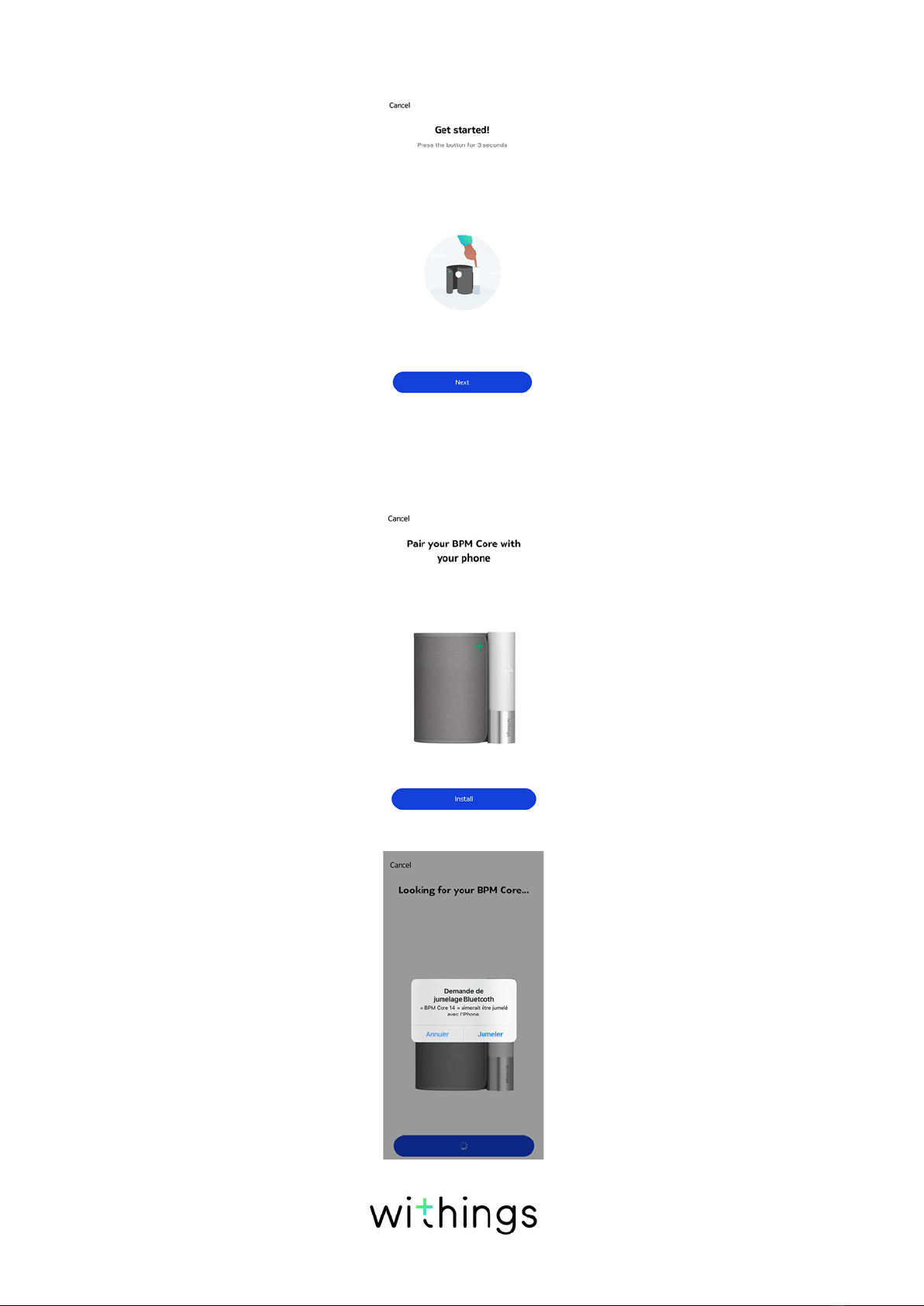

6. Press and hold the button of BPM Core.
The LED of BPM Core lights up blue and "SETUP" appears on the screen.
7. Tap Next.
8. Tap Pair.
9. Tap Pair again

EN-11
BPM Core
v1.0 | July 2019
10. Tap Next.
11. Enter your email address, password, and then confirm your password. Tap
Next.
12. Enter your first name, surname (last name) and birthday. Tap Next.
13. Select your gender and enter your current height and weight. Tap Create.

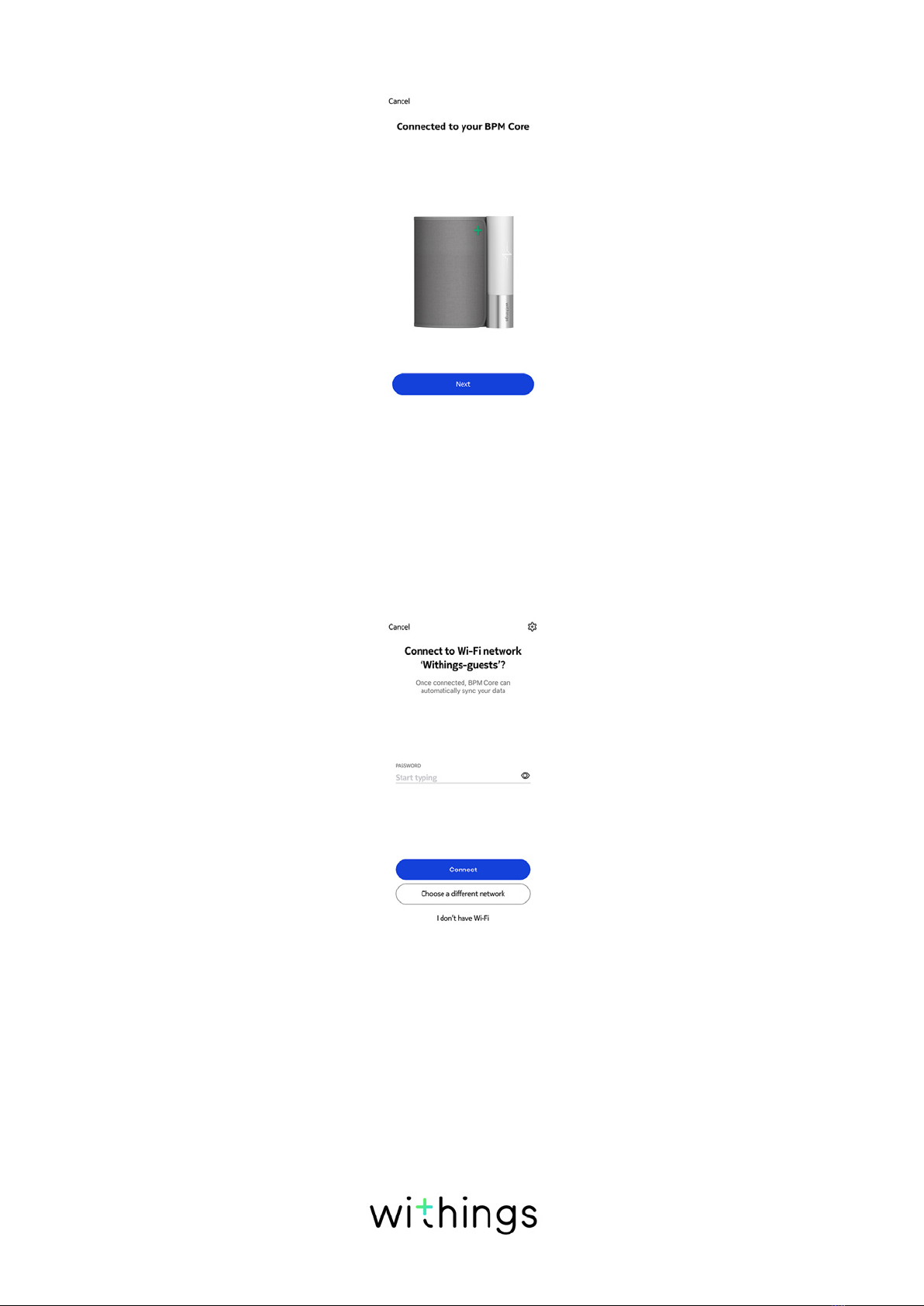

14. Enter the password of your Wi-Fi network and tap Connect if you want to
install your BPM Core in Wi-Fi.
You can also tap Choose a dierent network to use another one.
15. Tap I don't have Wi-Fi if you want to install BPM Core in Bluetooth.

EN-12
BPM Core
v1.0 | July 2019

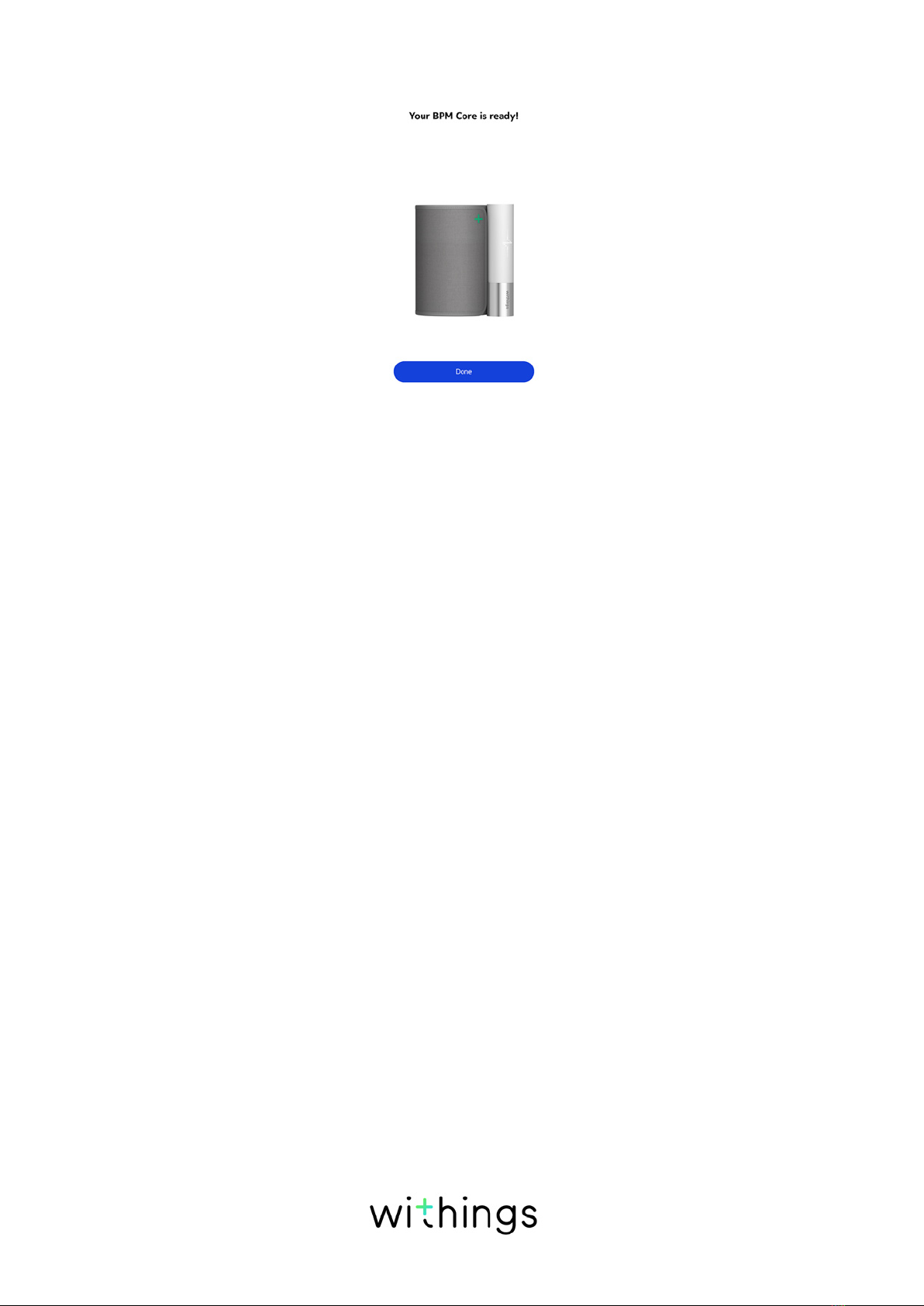

16. Tap Done.
I already have a Health Mate account
If you already have a Health Mate account, you can get started on the installation
process. To do so, perform the following steps:
1. Open the Health Mate app.
2. Log in to your account, if you already have one, or create one.
3. Tap Devices.
4. Tap +.

EN-13
BPM Core
v1.0 | July 2019
5. Tap Blood Pressure Monitors.
6. Tap BPM Core.
7. Tap Install.

EN-14
BPM Core
v1.0 | July 2019

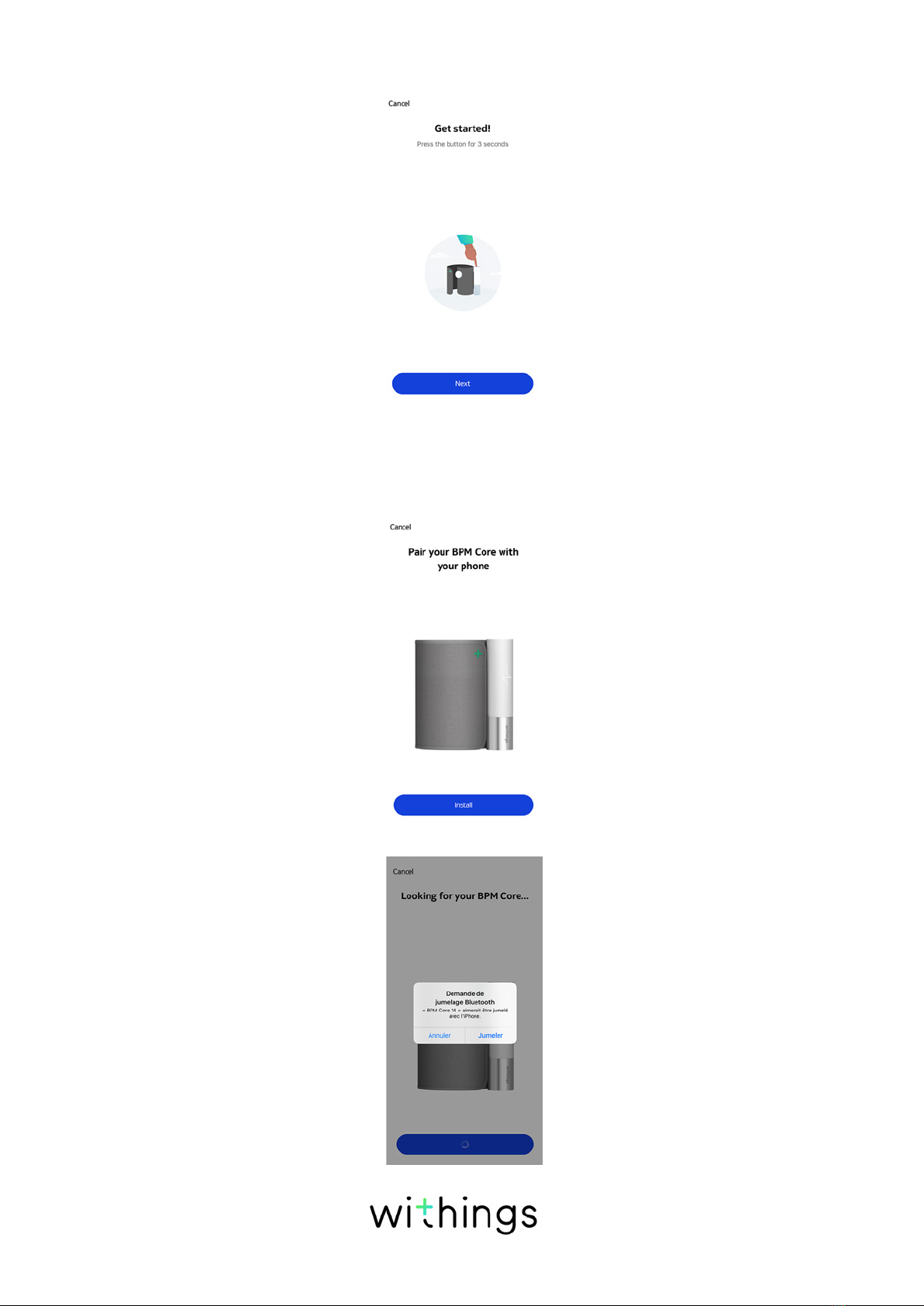

8. Press and hold the button of BPM Core.
The LED of BPM Core lights up blue and "SETUP" appears on the screen.
9. Tap Next.
10. Tap Pair.
11. Tap Pair again.

EN-15
BPM Core
v1.0 | July 2019
12. Tap Next.
13. Enter the password of your Wi-Fi network and tap Connect if you want to
install BPM Core in Wi-Fi.
You can also tap Choose a dierent network to use another one.
14. Tap I don't have Wi-Fi if you want to install BPM Core in Bluetooth.

EN-16
BPM Core
v1.0 | July 2019
15. Tap Done.

EN-17
BPM Core
v1.0 | July 2019
Using BPM Core
Positioning myself before and during the measurement
Make sure you follow these guidelines when taking a measurement. Failing to do
so may lead to inaccurate results or cause the measurements to fail.
1. Use BPM Core on the left upper arm
2. Rest 5 minutes before the measurement.
3. Sit down in a comfortable position, legs uncrossed, feet flat or on the floor,
arm and back supported.
4. Do not speak or move during the measurement.
5. You can wear one layer of clothes but it should not cover your left arm. The
electrodes should be in contact with the skin.
6. Take the measurement in a calm and quiet area.

EN-18
BPM Core
v1.0 | July 2019
Taking a measurement
To take a measurement, perform the following steps:
1. Wrap the cu around your left arm. The tube should be positioned against
your inner arm.
For more information on how to position BPM Core, refer to "Positioning
myself before and during the measurement" on page17.
2. The stethoscope should be placed so that its flat surface is in contact with
your chest. The electrodes should be in contact with the skin of your left arm.

EN-19
BPM Core
v1.0 | July 2019
3. Place your arm on a table and keep it level with your heart.
4. Press the button to start the BPM Core.
The screen displays "START".
5. Press the button again to start a measurement.
Note: When you start a measurement, you can also select "Start x3" or
"ECG" by swiping the light trail on the right part of the screen. "Start x3" will
launch 3 blood pressure measurements in a row. "ECG" will only record your
electrocardiogram and stethoscope signal.

EN-20
BPM Core
v1.0 | July 2019
6. When BPM Core. displays the pictogram below, you need to place your hand
on the metal tube and the stethoscope against your chest. Adjust your arm
position to ensure an accurate measurement.
7. At the end of the measurement, select the user by swiping the light trail on the
right part of the screen.
8. Press the button of BPM Core to validate.
Results are displayed on the screen of BPM Core and sent via Wi-Fi or
Bluetooth in the Health Mate app.
Note: If you don't place your hand on the electrode, BPM Core can't record
ECG and stethoscope signal. BPM Core will only display blood pressure
readings.
