smartheart 01-517 User manual

Automatic Digital
Wrist Blood Pressure Monitor
Model # 01-517
INSTRUCTION MANUAL
ENGLISH AND SPANISH
Please read this instruction manual
completely before operating this unit.
1-YEA R

2 • English

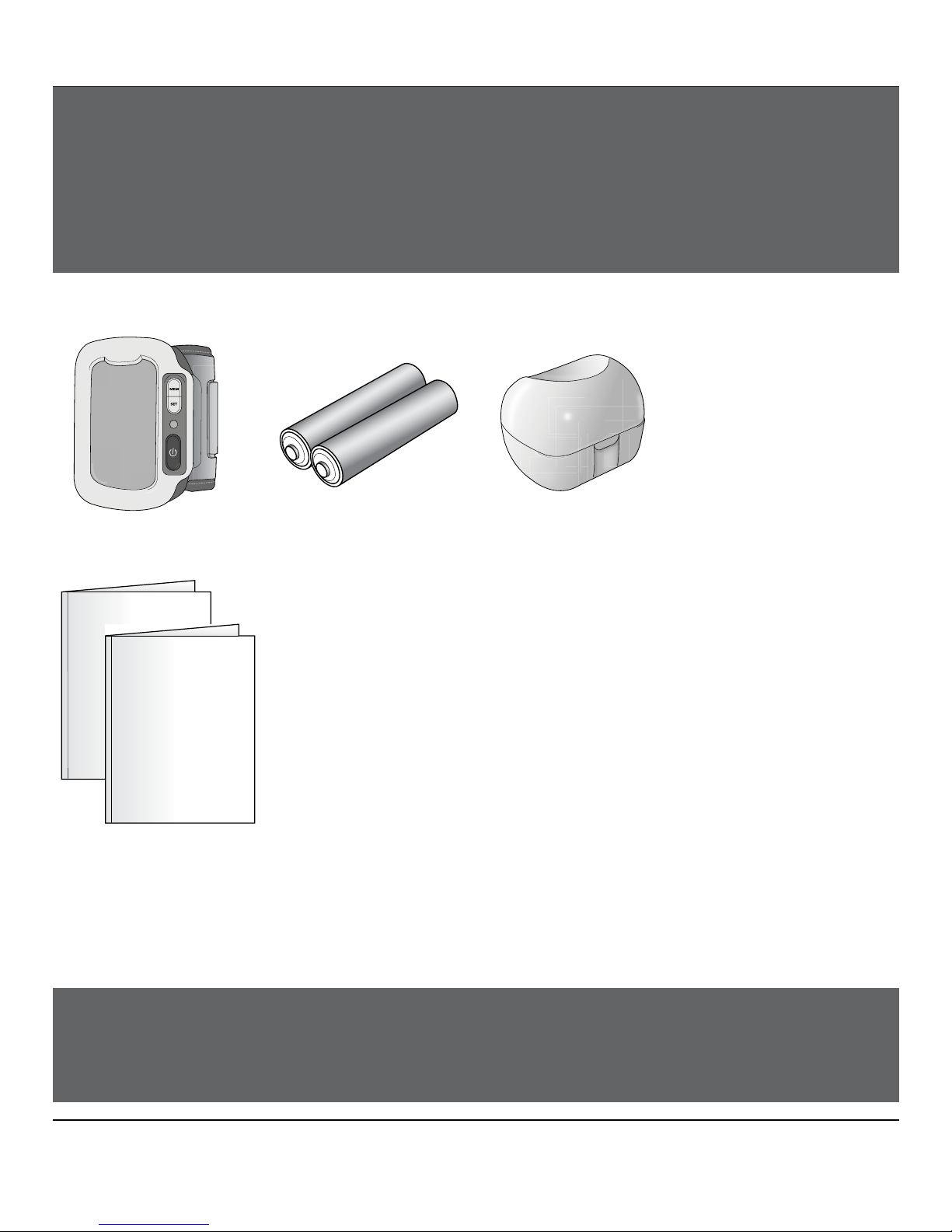

Digital Monitor 2 AAA Batteries Storage Case
Instruction Manual
Quick Start Guide
Blood Pressure Reading Tracking Log
FAQ Information Sheet
STOP!
PLEASE ENSURE YOU HAVE ALL OF THE
FOLLOWING COMPONENTS BEFORE USING
YOUR DIGITAL BLOOD PRESSURE MONITOR
IF YOU ARE MISSING ANY PARTS, INCLUDING INSERTS OR
INSTRUCTION MANUALS, DO NOT RETURN TO PLACE OF
PURCHASE. CONTACT CUSTOMER CARE AT 866-326-1313.

English • 3
Care & Safety Information.................................................. 4-5
Introduction & Indications for Use........................................... 6
Digital Blood Pressure Monitor Features .................................. 7
Getting Started .................................................................... 8
Battery Installation ............................................................... 9
Setting Date and Time......................................................... 10
Applying Your Blood Pressure Cuff .................................. 11-12
Taking Your Blood Pressure Reading ................................ 13-14
Interpreting your Results ................................................. 15-16
Memory Functions ............................................................. 17
Care and Maintenance....................................................... 18
Device and Label Symbols................................................... 19
Description of Symbols .................................................. 20-21
Troubleshooting ................................................................. 22
Error Codes....................................................................... 23
FCC Statement................................................................... 24
Electromagnetic Compatibility......................................... 25-28
Specications .................................................................... 29
Warranty .......................................................................... 30
Instrucciones en Español ................................................ 31-60
INDEX
SmartHeart™
Manufactured for
Veridian Healthcare
1175 Lakeside Drive
Gurnee, IL 60031
Made in China
#93-1109 09/14
©2014 Veridian Healthcare, LLC
Toll-Free Customer Care Help Line: 1-866-326-1313
Monday – Friday 8:30 a.m. – 4:30 p.m. CST

4 • English
CARE & SAfETy INfORMATION
NOTE: Read all instructions carefully before use. The following basic precautions
are needed when using an electrical product.
CAUTION: Failure to read and observe all precautions could result in personal
injury or equipment damage.
Improper care or use of your blood pressure monitor may result in injury, damage
to the unit or ineffective treatment. Following these instructions will ensure the
blood pressure monitor’s efcacy and long life.
GENERAL CAUTIONS AND WARNINGS
• Measurement results should be discussed with your physician or healthcare
professional; never self-diagnose or attempt treatment as this may be
dangerous
• Intended for adult use only; this device is not approved for infant or child use
• Keep out of reach of children
• Do not use the unit if it has any damaged parts (including power cord or plug
and cuff), if it has been submersed in water or dropped
• If any abnormality occurs, discontinue use until the unit has been examined
and repaired
• Only use included attachments and parts; do not use attachments from other
brands or models as these may not be properly calibrated for use with this
device and may result in measurement error
• Do not disassemble the unit or attempt to repair it; substitution of a component
different from that supplied may result in measurement error and will void
manufacturer warranty
• Always follow local regulations for proper disposal of the monitor, cuff and
batteries

English • 5
CARE & SAfETy INfORMATION
OPERATING CAUTIONS AND WARNINGS
• Prolonged over-ination may cause congestion, swelling or bruising in some
people
• If you experience any discomfort or an abnormality occurs, stop using the
device immediately; to stop the device during operation, press the POWER
button and the cuff will automatically deate
• Operation outside of stated operating temperature may result in measurement
error or device malfunction; operation environment temperature is: 50°F –
104°F (10°C – 40°C); Humidity: 15% to ≤85%RH (non-condensing)
• Never use this unit while operating a vehicle or in the bathtub or shower
STORAGE CAUTIONS AND WARNINGS
• Storage outside of stated storage temperature may result in measurement
error or device malfunction; storage environment temperature is: -4°F – 122°F
(-20°C – 50°C); Humidity: 15% to ≤85%RH (non-condensing)
• Keep the unit out of reach of small children
• Always keep the unit unplugged while not in use; remove the batteries if the
unit will not be used for an extended period of time
CLEANING CAUTIONS AND WARNINGS
• Never immerse the unit in water to clean as it may damage the unit
• Follow the ‘Cleaning and Maintenance’ portion of this manual for instruction
on how to clean and care for your monitor

6 • English
INTRODUCTION & INDICATIONS fOR USE
It is recommended that you rst seek the advice and recommendation of your
physician or healthcare professional when using home diagnostic devices,
including blood pressure monitors.
Automatic digital blood pressure monitors use the oscillometric method to
electronically measure your blood pressure. The monitor detects your blood’s
movement through the artery in your arm and converts the movements into a
digital reading. The oscillometric method does not require a stethoscope, making
the monitor ideal for home use.
Blood pressure readings determined with this device are equivalent to
measurements obtained by a trained healthcare professional using the cuff/
stethoscope auscultation method, within the limits prescribed by the American
National Standard for Electronic or Automated Sphygmomanometers.
Thank you for purchasing a SmartHeart Automatic Digital Blood Pressure Monitor.
With proper care and use, your monitor will provide you with many years of
reliable readings.
PLEASE READ THIS INSTRUCTION MANUAL
COMPLETELY BEFORE OPERATING THIS UNIT.

English • 7
BLOOD PRESSURE MONITOR fEATURES
DETAILS OF THE DIGITAL DISPLAY SCREEN AND INTERPRETATION OF
THE SYMBOLS ARE INCLUDED THROUGHOUT THIS MANUAL.
Wrist Cuff
Battery
Compartment
(underside)
Digital Display
MEMORY
Recall Button
SET
Button
POWER/START
Button
(On/off)

8 • English
GETTING STARTED
Before Taking a Measurement
1. Your readings should only be interpreted by your physician or healthcare
professional with access to your individual medical history. Regular use of a
home blood pressure monitor will allow you to track and record your readings
for discussion with your physician.
2. Conduct your measurement in a quiet place while seated in a relaxed position.
Rest for 15 minutes before taking your reading. If an error occurs or you desire
to take a second reading, allow 15 minutes between readings for your blood
vessels to return to normal.
3. Avoid smoking, eating, taking medication, alcohol, physical activity or any
other stressful activity for 30 minutes prior to taking a reading.
4. Always remove any jewelry or constrictive clothing that may interfere with the
cuff placement.
5. Keep yourself and the monitor still during measuring; do not talk during the
reading.
6. It is recommended that you take your readings as the same time each day to
better monitor any indications in your results.
7. Record your daily measurement on the included chart or some other written
document to share with your physician.

English • 9
BATTERy INSTALLATION
This unit comes complete with 2 AAA batteries.
It is necessary to replace the batteries when the Low Battery
symbol appears on the display, Fig 1, or when the display
does not turn on after the POWER button is pressed.
The battery compartment is located on the underside of this
monitor.
1. Carefully slide the cover away from the housing and the
cover will open. Note this cover will stay attached to the
monitor, Fig 2.
2. Insert or replace 2 AAA batteries into the battery
compartment, ensuring to match the indicated polarity
symbols, Fig 2. Always use new batteries.
3. Replace the battery cover.
4. Dispose of batteries according to local disposal and
recycling regulations.
It is recommended to remove the batteries if the unit will not be
used for an extended period of time.
Fig. 1
Fig. 2
The ‘Low Battery’
symbol will appear
in the lower left side
of the display.

10 • English
SETTING DATE/TIME
IT IS NECESSARY TO SET THE DATE AND TIME FOR THE UNIT EVERY
TIME BATTERIES ARE INITIALLY INSTALLED OR REPLACED.
The date/time feature is on the top of the display screen, Fig 1.
This unit stores the date and time, including year.

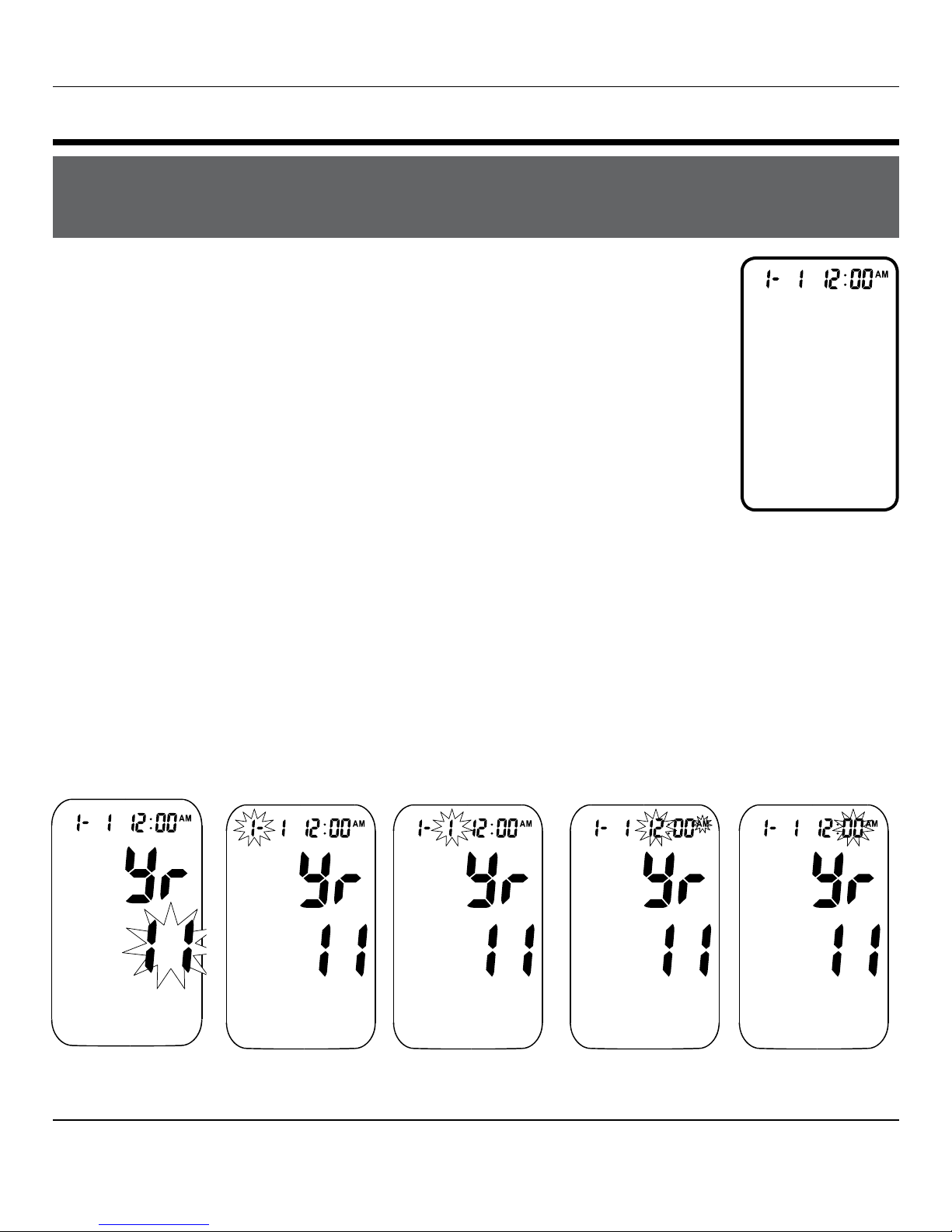

1. When the unit is off (a blank display screen), press and
release the SET button; the year will begin to ash on the
center of the display.
2. Press the MEM button to advance the display to the desired
month, press SET to conrm the year.
3. Next, the month will blink on the upper left of the display.
Repeat steps 1 and 2 to set the month, date, then hours, then
minutes.
4. After setting the minutes, the unit will automatically exit out of
the date/time setting mode and briey show the word OFF
before shutting down.
Year ––> Month ––> Date ––> Hour ––> Minute ––>
Fig. 1

English • 11
fITTING AND APPLyING yOUR CUff
PROPER CUFF FIT AND PLACEMENT IS CRITICAL IN OBTAINING
ACCURATE BLOOD PRESSURE MEASUREMENTS. PLEASE READ THESE
INSTRUCTIONS CAREFULLY AND CONSIDER CONSULTING WITH
YOUR PHYSICIAN FOR FURTHER DIRECTION.
Before applying your blood pressure cuff, be sure your wrist is within the
appropriate cuff range: Wrist Circumference Range Suitable for 5” – 8-1/4” (12.5
– 21 cm)
Reminder, it is important to avoid smoking, eating, taking medication, alcohol
consumption or physical activity 30 minutes prior to taking a reading.
If for any reason you are unable to or should not use your left wrist, please modify
the instructions for cuff application to your right wrist. Your physician can help you
identify which wrist is best for you to take measurements from.
Applying Your Cuff
1. Remove any constrictive clothing or
jewelry that may interfere with cuff
placement.
2. Be seated at a table or desk with your
feet at on the oor.
3. Hold your left arm in front of you with
your palm facing upward.

12 • English
fITTING AND APPLyING yOUR CUff
Fig. 1
Fig. 2

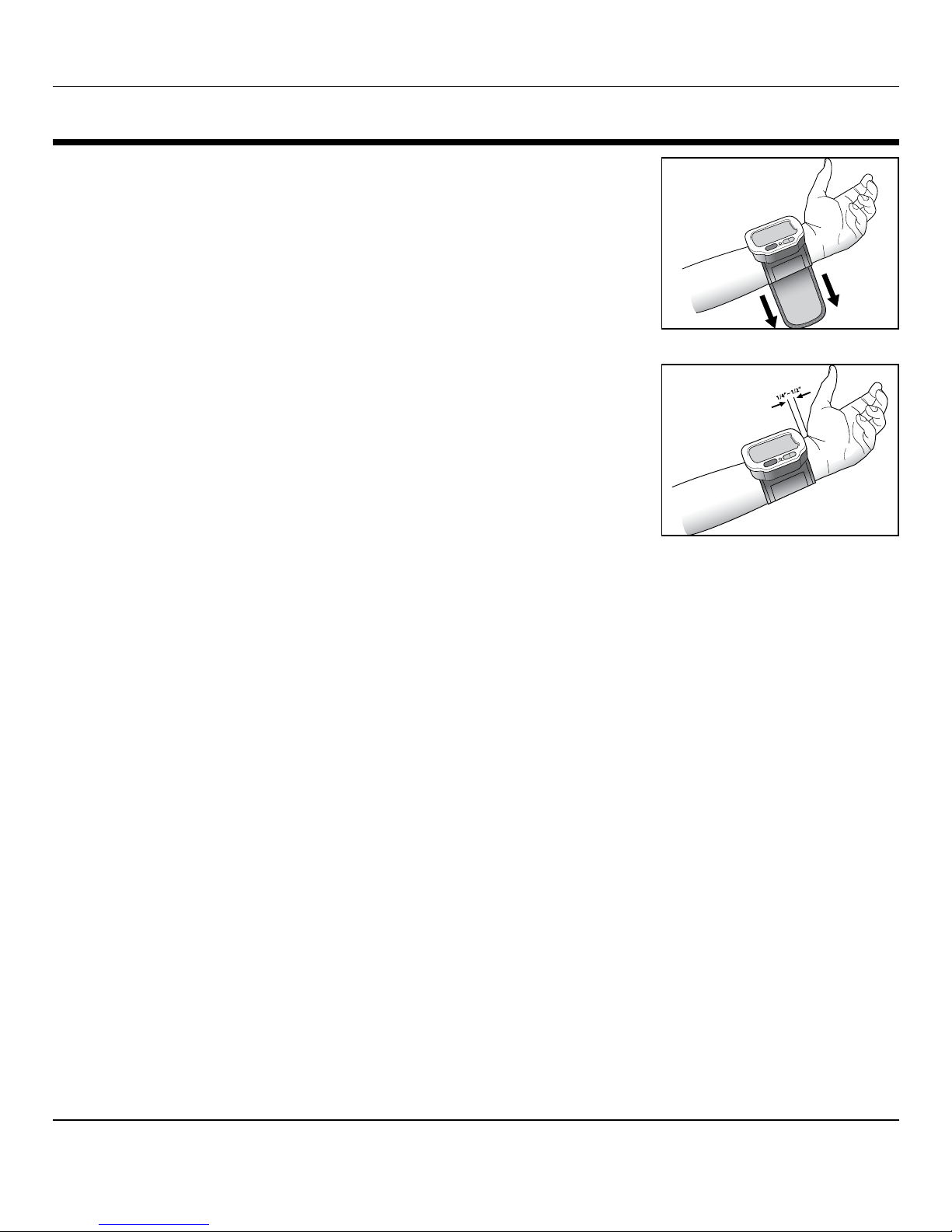

4. Apply the preformed cuff to your left wrist so that the
digital display face is positioned on the inside area
of your wrist facing you, Fig. 1.
5. Adjust the cuff 1/4” - 1/2” from the edge of the
head of the ulna bone, Fig. 2.
6. The cuff should t comfortably, yet snugly around
your wrist.
If you are not comfortable with applying your cuff,
please seek the assistance of another member of your
household or work with your physician to practice the
cuff application. Incorrectly applied cuffs may result in
inaccurate readings.

English • 13
TAKING yOUR BLOOD PRESSURE READING

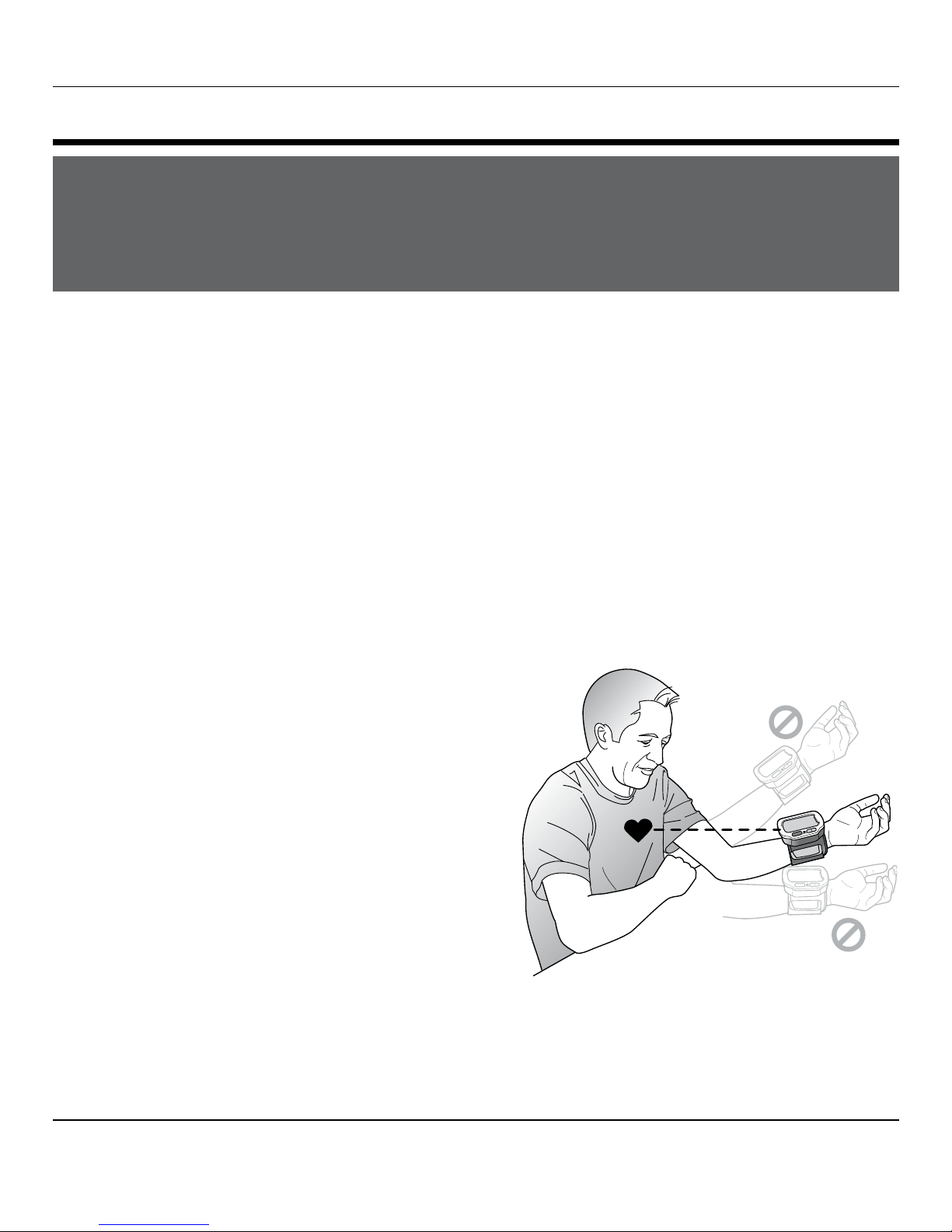

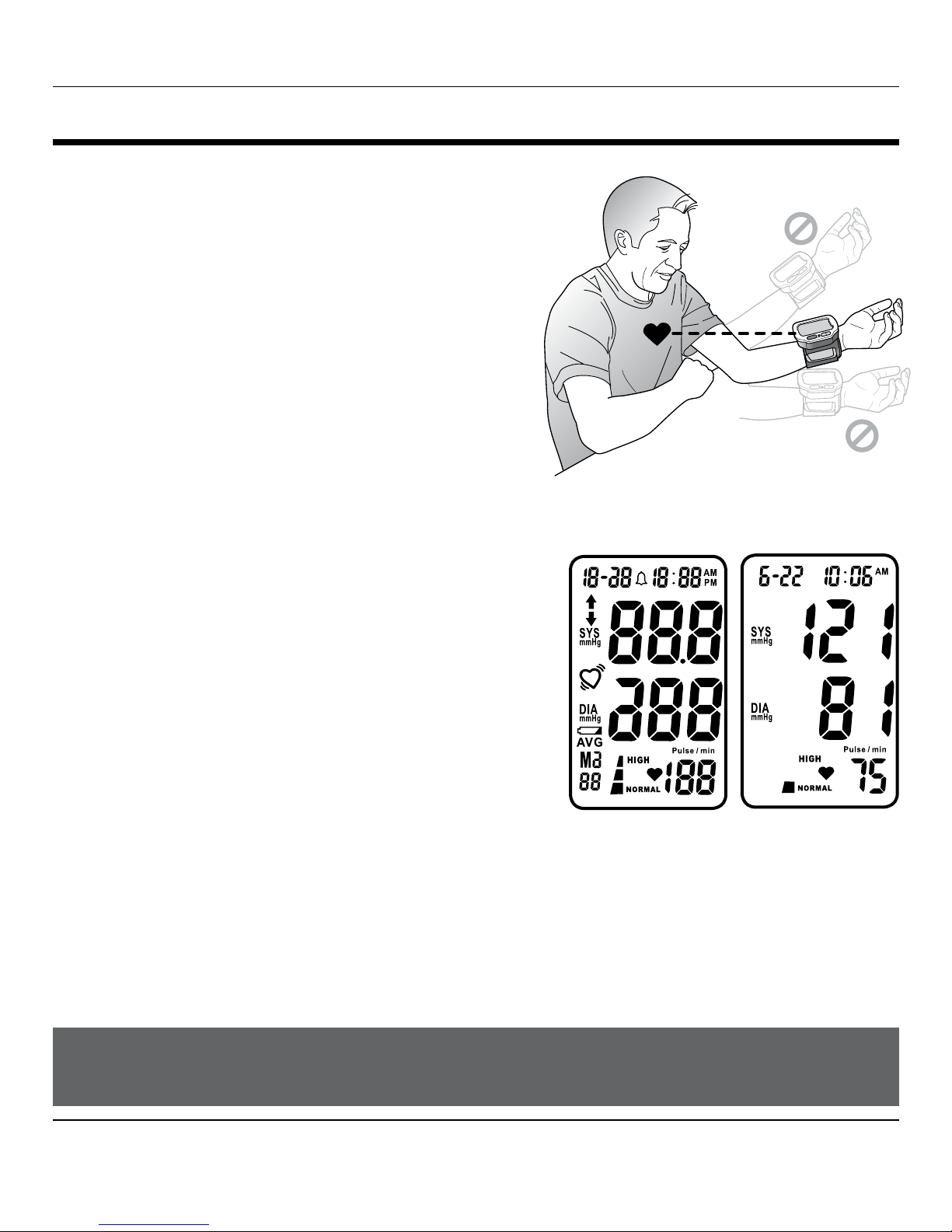

1. Rest your elbow on a solid surface with
your palm facing upward. Elevate your arm
so that the cuff is at the same level as your
heart, Fig 1. Be certain that cuff is elevated
to the proper level; you may choose to
support your hand with a folded towel or
book. Relax your left hand.
2. Press the POWER button to turn the unit on;
the unit will run a self test, Fig 2.

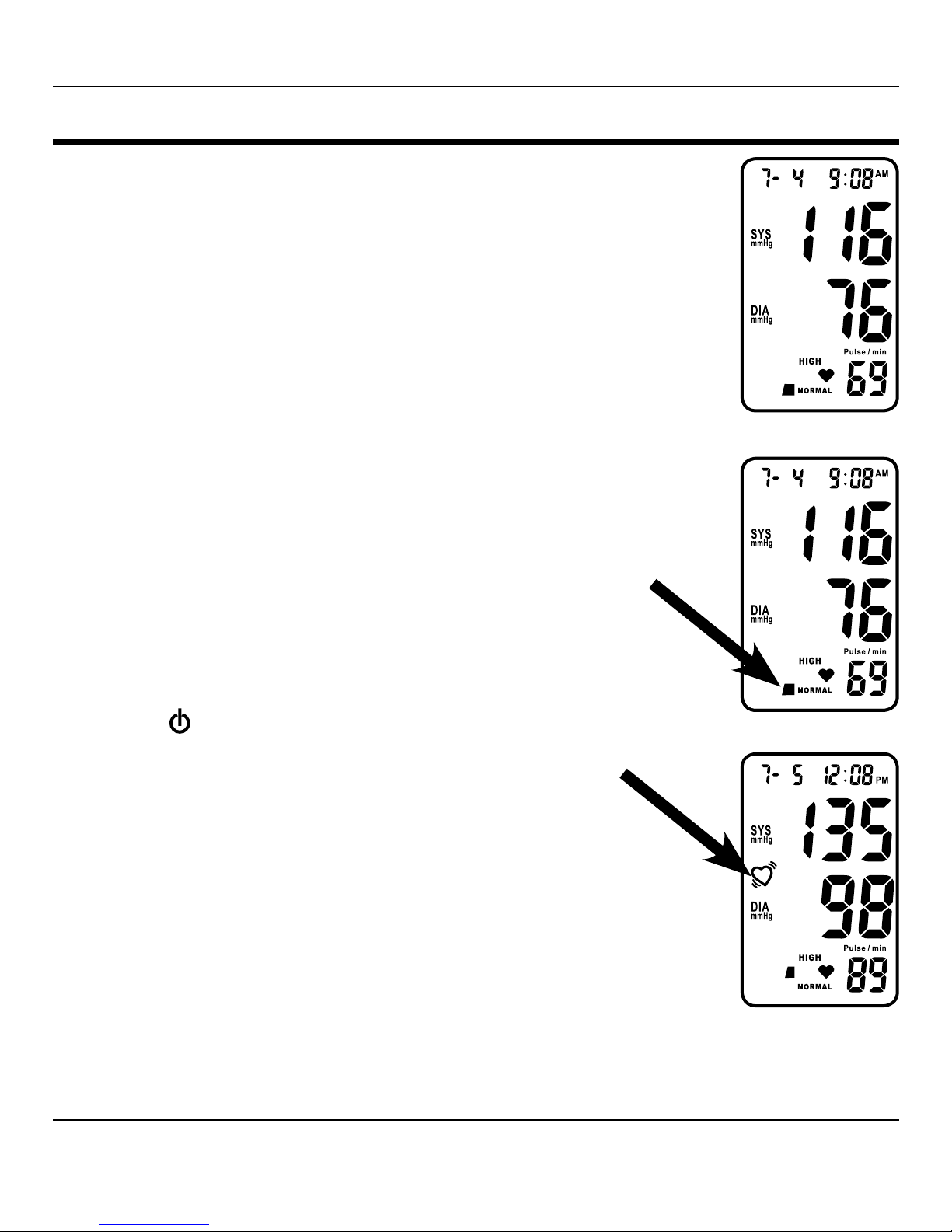

3. The display will briey show the last
measurement results, Fig 3.
4. The cuff will automatically inate.
Fig. 1
Please read the preceding portions of this manual
prior to taking your rst reading.
Reminder, it is important to avoid smoking, eating,
taking medication, alcohol consumption or physical
activity 30 minutes prior to taking a reading.
Fig. 2 Fig. 3
YOU CAN STOP THE INFLATION OR DEFLATION PROCESS AT ANY
TIME BY PRESSING THE START/POWER BUTTON.

14 • English
TAKING yOUR BLOOD PRESSURE READING
5. When the measurement is complete, your
blood pressure measurement and pulse
reading results will show on the display
screen at the same time, Fig 4.
6. The Hypertension Indicator will indicate
your reading range on the display, Fig 5.
See page 16 for information regarding
interpreting the Hypertension Indicator
results.
7. If an irregular heartbeat was detected
during the reading, the Irregular Heartbeat
Detector indicator will appear on the
display for both the measurement results
and pulse results screens, Fig 6. See page
15 for more information on the Irregular
Heartbeat Detector feature.
8. The reading will automatically be stored in
memory, up to 90 readings.
9. Select POWER to turn the unit off and
conserve energy and battery life. The unit
will automatically shut-off.
Fig. 4
Fig. 5
Fig. 6

English • 15
Irregular Heartbeat Detector
An irregular heartbeat is dened as a heartbeat rhythm that is more than 25%
slower or 25% faster than the average measurement detected while the monitor is
conducting the measurement. When this device detects an irregular rhythm two or
more times during the reading, the IHB symbol will appear on the display screen.
This monitor will operate if the icon appears, but the results may be compromised,
especially if this symbol appears often. Please consult with your physician or
trained healthcare professional for further information regarding an irregular
heartbeat and if this symbol appears frequently.
INTERPRETING yOUR BLOOD PRESSURE READING

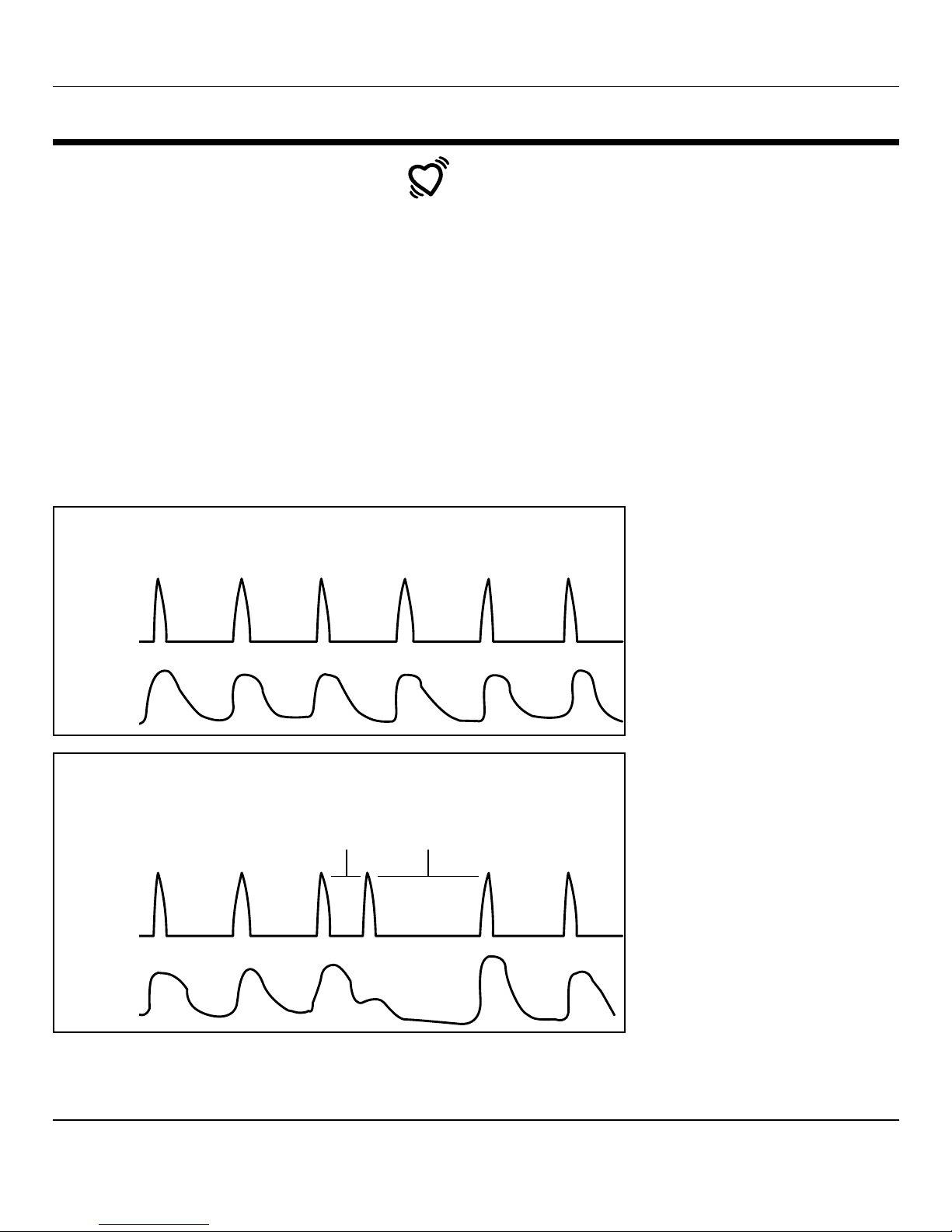

Pulse
Pulse
Irregular Heartbeat
Normal Heartbeat
Blood
Pressure
Blood
Pressure
Short
Beat Long Beat

16 • English
INTERPRETING yOUR BLOOD PRESSURE READING
Hypertension Indicator - WHO Classications
This unit features our unique Hypertension Indicator. The World Health
Organization has established globally accepted standards for the assessment of
high or low blood pressure readings. The below chart should be considered only
as a guideline, always consult with your physician or health care professional to
interpret your individual results.
Category Systolic (mmHg) Diastolic (mmHg)
Optimal <120 <80
Normal <130 <85
High-Normal 130-139 85-89
Mild Hypertension 140-159 90-99
Moderate Hypertension 160-179 100-109
Severe Hypertension >180 >100
WHO (World Health Organization Chart)

English • 17
MEMORy fUNCTIONS
Recalling Measurements in Memory
This monitor stores and recalls up to 90 measurements,
in memory. These measurements can be shared with
your physician or trained healthcare professional.

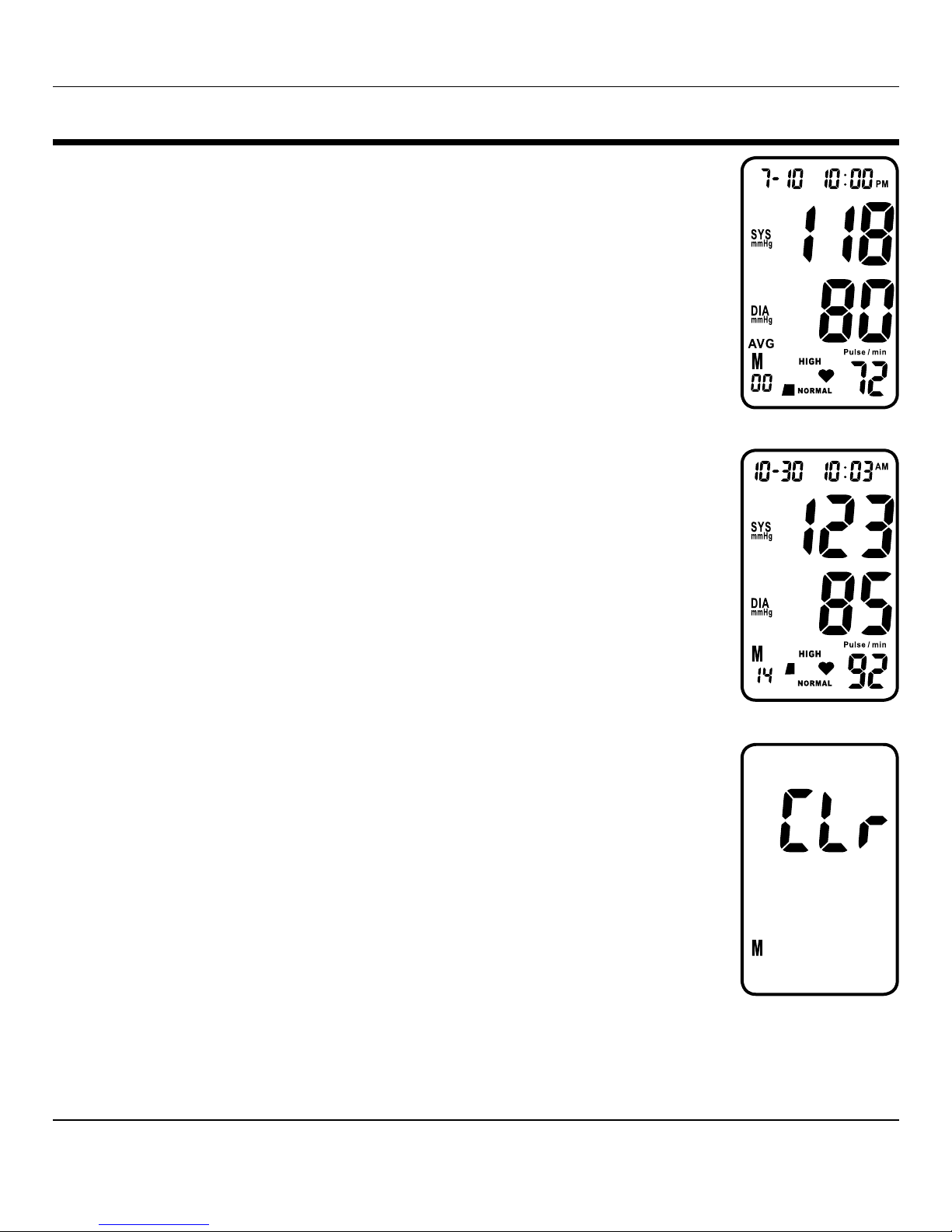

1. Press and release the MEM button. The unit will rst
display the average of the last three measurements,
Fig 1.
2. Press the MEM button again to begin scrolling
through the saved measurements. Measurements will
appear on the display from most current to oldest;
the memory number will appear on the lower left
corner. All results for a given measurement will
display, including measurement results, pulse rate,
Hypertension Indicator, Irregular Heartbeat alert (if
applicable), and date/time stamp, Fig 2.
3. When the number of readings exceeds 90, the
oldest data will be replaced with the new record.
4. Press POWER to turn the monitor off at any time
during review of the stored measurements.
Clearing Measurements from Memory
From power display off, press and hold down the MEM
button until the display shows Clr, Fig. 3. This indicates
that all measurements have been erased.
Fig. 1
Fig. 2
Fig. 3

18 • English
CARE AND MAINTENANCE
Proper care and maintenance of your blood pressure monitor will help ensure long
life for the product; improper use of the monitor may void the included warranty.
Monitor Care and Maintenance
• Do not use any liquids on the monitor; use a soft, dry cloth to clean the monitor
as needed
• Storage outside of stated storage temperature may result in measurement
error or device malfunction; storage environment temperature is: -4°F – 122°F
(-20°C – 50°C); Humidity: 15% to ≤85%RH (non-condensing)
• Remove the batteries if the unit will not be used for an extended period of time
• Do not attempt to disassemble your monitor; disassembling your monitor may
void the manufacturers warranty
• Do not subject the monitor to strong shocks; take care not to drop the monitor
Cuff Care and Maintenance
• The cuff should not be submerged or washed in a washing machine, but may
be spot cleaned with a mild-detergent as needed
• Never attempt to iron or dry the cuff; if the cuff becomes wet, allow the cuff to
air dry completely before use or storage
• To disinfect the cuff, wipe the inside (skin contact side) of the cuff using a cloth
lightly moistened with 70% - 90% ethyl rubbing alcohol and allow to air dry;
it is suggested to disinfect the cuff frequently when used in clinical sittings or if
the cuff is contaminated in any way.

English • 19
DEvICE & LABEL SyMBOLS
These symbols may appear on your device, instructions or packaging and may
vary by make and model.
Read This Manual—All included manuals should be read prior to rst
use
Warning—Symbol indicates a warning, prohibition or mandatory action
that mitigates a risk that is not necessarily obvious to the device operator
Type BF Applied Parts—Indicates that a part of this unit comes in contact
with the patient in order to carry out it’s intended function; in the case of
this device the cuff is the Type BF Applied Part
Environment Protection—dispose of this product properly; consult with
your local recycling ordinances for proper recycling and disposal
Keep Dry—This device should be kept dry; never submerge the unit or
cuff. Consult with the Care and Maintenance section of this manual for
information on cleaning your monitor
Symbol Meaning

2012

2012

20 • English
DESCRIPTION Of DISPLAy SyMBOLS
SYMBOL MEANING
SYS
DIA
PULSE/MIN
Systolic Blood Pressure—The ‘top’ blood pressure result
Diastolic Blood Pressure—The ‘bottom’ blood pressure result
Pulse Rate—Pulse rate per minute during the measurement
Milligrams of Mercury—Unit of blood pressure measurement
for this device
Low Battery—Battery life indicator
Pluse Reading—Appears when pulse reading is displayed.
Irregular Heartbeat Icon—An irregular heartbeat was detected
during the measurement
Inating—Appears when cuff is inating
Deating—Appears when cuff is deating
Memory Bank—For memory storage or recall
