smartheart 01-508 User manual

Blood Pressure Monitor
with Adult Wrist Cuff
Model # 01-508, 01-508EM, 01-508RB, 01-508SP
INSTRUCTION MANUAL
ENGLISH AND SPANISH
Please read this instruction manual
completely before operating this unit.

2 • ENGLISH
Digital Monitor 2 AAA Batteries Storage Case
Instruction Manual
Quick Start Guide
Blood Pressure Reading Tracking Log
FAQ Information Sheet
STOP!
PLEASE ENSURE YOU HAVE ALL OF THE
FOLLOWING COMPONENTS BEFORE USING
YOUR DIGITAL BLOOD PRESSURE MONITOR
IF YOU ARE MISSING ANY PARTS, INCLUDING
INSERTS OR INSTRUCTION MANUALS, DO NOT
RETURN TO PLACE OF PURCHASE. CONTACT
CUSTOMER CARE AT 866-326-1313.

ENGLISH • 3
INDEX
Toll-Free Customer Care Help Line: 1-866-326-1313
Monday – Friday 8:30 a.m. – 4:30 p.m. CST
SmartHeart™
Manufactured for
Veridian Healthcare
1175 Lakeside Drive
Gurnee, IL 60031
Made in China
#93-1401 07/19
©2019 Veridian Healthcare, LLC
Care & Safety Information...............................................................4-6
Introduction & Indications for Use........................................................7
Digital Blood Pressure Monitor Features ...............................................8
Getting Started .................................................................................9
Battery Installation ..........................................................................10
Setting Date/Time ...........................................................................11
Fitting & Applying Your Cuff ........................................................12-13
Taking Your Blood Pressure Reading .............................................14-15
Interpreting Your Results .............................................................. 16-17
Memory Functions .....................................................................18-19
Care & Maintenance..................................................................20-21
Device & Label Symbols...................................................................22
Description of Display Symbols.........................................................23
Troubleshooting ..............................................................................24
Error Codes....................................................................................25
FCC Statement................................................................................26
Electromagnetic Compatibility......................................................27-32
Specications ............................................................................33-34
Complied Standards........................................................................35
Warranty ..................................................................................36-37
Instrucciones en Español ............................................................. 39-75

4 • ENGLISH
CARE & SAFETY INFORMATION
NOTE: Read all instructions carefully before use. The following basic
precautions are needed when using an electrical product.
CAUTION: Failure to read and observe all precautions could result in
personal injury or equipment damage.
Improper care or use of your blood pressure monitor may result in injury,
damage to the unit or ineffective treatment. Following these instructions will
ensure the blood pressure monitor’s efcacy and long life.
GENERAL CAUTIONS AND WARNINGS
• Measurement results should be discussed with your physician or
healthcare professional; never self-diagnose or attempt treatment as this
may be dangerous.
• Intended for adult use only; this device is not approved for infant or child.
• Keep out of reach of children.
• Do not use the unit if it has any damaged parts (including power cord or
plug and cuff), if it has been submersed in water or dropped.
• If any abnormality occurs, discontinue use until the unit has been
examined and repaired.
• Only use included attachments and parts; do not use attachments from
other brands or models as these may not be properly calibrated for use
with this device and may result in measurement error.
• Do not share the cuff with an infected person.

ENGLISH • 5
CARE & SAFETY INFORMATION
• Do not disassemble the unit or attempt to repair it; substitution of a
component different from that supplied may result in measurement error
and will void manufacturer warranty.
• Always follow local regulations for proper disposal of the monitor, cuff
and batteries.
OPERATING CAUTIONS AND WARNINGS
• Prolonged over-ination may cause congestion, swelling or bruising in
some people.
• Wait a minimum of 2 minutes between measurements (20-minutes is
recommended); excessive frequent measurements may restrict blood
circulation.
• Do not use this device while connected to any monitoring equipment on
the same limb.
• Consult with your healthcare professional for guidance for use if you
have any of the following: intravascular shunt; mastectomy on the arm
corresponding to the measurement side of the body.
• Consult with your healthcare professional before using the device in
pregnancy including pre-eclampsia, or if diagnosed with arrhythmia or
arteriosclerosis.
• If you experience any discomfort or an abnormality occurs, stop using
the device immediately; to stop the device during operation, press the
START/STOP button and the cuff will automatically deate.

6 • ENGLISH
• Operation outside of stated operating temperature may result in
measurement error or device malfunction; operation environment
temperature is: 41°F – 104°F (5°C – 40°C); Humidity: 15% to 90% RH
(non-condensing).
• Never use this unit while operating a vehicle or in the bathtub or shower.
STORAGE CAUTIONS AND WARNINGS
• Storage outside of stated storage temperature may result in measurement
error or device malfunction; storage environment temperature is: -4°F –
140°F (-20°C – 60°C); Humidity: ≤93%RH (non-condensing) at water
vapor pressure to 50hPa. An atmospheric pressure range of 700 hPa to
1060hPa.
• Keep the unit out of reach of children.
• Always keep the unit unplugged while not in use; remove the batteries if
the unit will not be used for an extended period of time.
CLEANING CAUTIONS AND WARNINGS
• Never immerse the unit in water to clean as it may damage the unit
• Follow the ‘Cleaning and Maintenance’ portion of this manual for
instruction on how to clean and care for your monitor.
CARE & SAFETY INFORMATION

ENGLISH • 7
INTRODUCTION & INDICATIONS FOR USE
It is recommended that you rst seek the advice and recommendation of
your physician or healthcare professional when using home diagnostic
devices, including blood pressure monitors.
The Blood Pressure Monitor is digital monitors intended for use in
measuring blood pressure and heartbeat rate with wrist circumference
ranging from 5-1/2” to 8-1/4” inches (about 13.5 – 21.5 cm). It is
intended for adult indoor use only.
Automatic digital blood pressure monitors use the oscillometric method
to electronically measure your blood pressure. The monitor detects
your blood’s movement through the artery in your arm and converts the
movements into a digital reading. The oscillometric method does not
require a stethoscope, making the monitor ideal for home use.
Blood pressure readings determined with this device are equivalent
to measurements obtained by a trained healthcare professional using
the cuff/stethoscope auscultation method, within the limits prescribed
by the American National Standard for Electronic or Automated
Sphygmomanometers.
Thank you for purchasing an Automatic Digital Blood Pressure Monitor.
With proper care and use, your monitor will provide you with many years
of reliable readings.
PLEASE READ THIS INSTRUCTION MANUAL
COMPLETELY BEFORE OPERATING THIS UNIT.

8 • ENGLISH

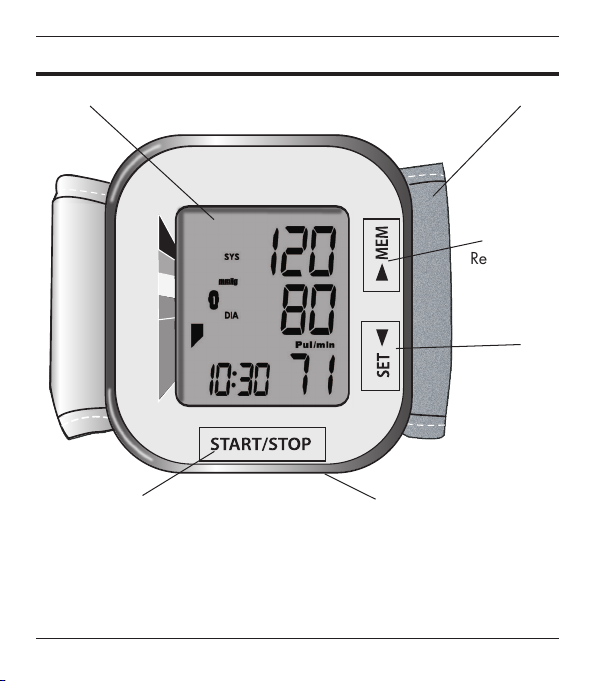

BLOOD PRESSURE MONITOR FEATURES
DETAILS OF THE DIGITAL DISPLAY SCREEN AND
INTERPRETATION OF THE SYMBOLS ARE INCLUDED
THROUGHOUT THIS MANUAL.
Wrist Cuff
Battery
Compartment
(underside)
Digital Display
MEMORY
Recall Button
SET
Button
START/STOP Button
(POWER)

ENGLISH • 9
GETTING STARTED
Before taking a measurement
1. Your readings should only be interpreted by your physician or
healthcare professional with access to your individual medical history.
Regular use of a home blood pressure monitor will allow you to track
and record your readings for discussion with your physician.
2. Conduct your measurement in a quiet place while seated in a relaxed
position. Rest for 15 minutes before taking your reading. If an error
occurs or you desire to take a second reading, allow 15 minutes
between readings for your blood vessels to return to normal.
3. Avoid smoking, eating, taking medication, alcohol, physical activity or
any other stressful activity for 30 minutes prior to taking a reading.
4. Always remove any jewelry or constrictive clothing that may interfere
with the cuff placement.
5. Keep yourself and the monitor still during measuring; do not talk during
the reading.
6. It is recommended that you take your readings as the same time each
day to better monitor any indications in your results.
7. Record your daily measurement on the included chart or some other
written document to share with your physician.

10 • ENGLISH

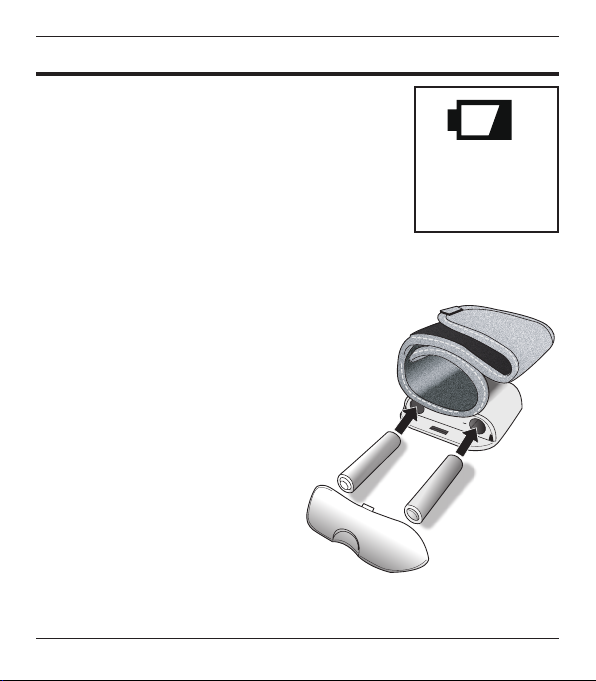

BATTERY INSTALLATION
This unit comes complete with 2 AAA
batteries.
It is necessary to replace the batteries when the Low
Battery symbol appears on the display, Fig 1, or
when the display does not turn on after the START/
STOP button is pressed.
The battery compartment is located on the underside
of this monitor.
1. The cover is located on the bottom of the monitor,
under the START/STOP button.
Carefully release the cover to
open the battery compartment.
2. Insert or replace 2 AAA
batteries into the battery
compartment, ensuring to
match the indicated polarity
symbols, Fig 2. Always use new
batteries.
3. Replace the battery cover.
4. Dispose of batteries according
to local disposal and recycling
regulations.
It is recommended to remove the
batteries if the unit will not be used
for an extended period of time.
Fig. 1
The ‘Low Battery’
symbol will appear
in the upper left side
of the display.
+
Fig. 2

ENGLISH • 11
SETTING DATE/TIME
IT IS NECESSARY TO SET THE DATE AND TIME FOR THE UNIT
EVERY TIME BATTERIES ARE INITIALLY INSTALLED OR REPLACED.
The date/time feature is on the bottom left of the
display screen. This unit stores the date and time,
including year.
1. When the batteries are rst installed, the
device will automatically prompt you to set
the Date/Time feature as indicated by the
ashing YEAR on the display.*
2. Press the MEM button to advance the display
to the desired year, press SET to conrm the
year.
3. Next, the month will blink on the lower left of
the display. Repeat step 2 to set the Month,
Date, Hours, then Minutes.
4. After setting the minutes, the unit will
automatically exit out of the Date/Time setting
mode and briey scroll through the Date/Time
before shutting off.
*NOTE: If the batteries have already been
installed—when the unit is off (a blank display
screen), press and hold the SET button. After
5-seconds, the year will begin to ash; follow the
steps above to set the date and time.
Year
Month
Date
Hour
Minutes

12 • ENGLISH

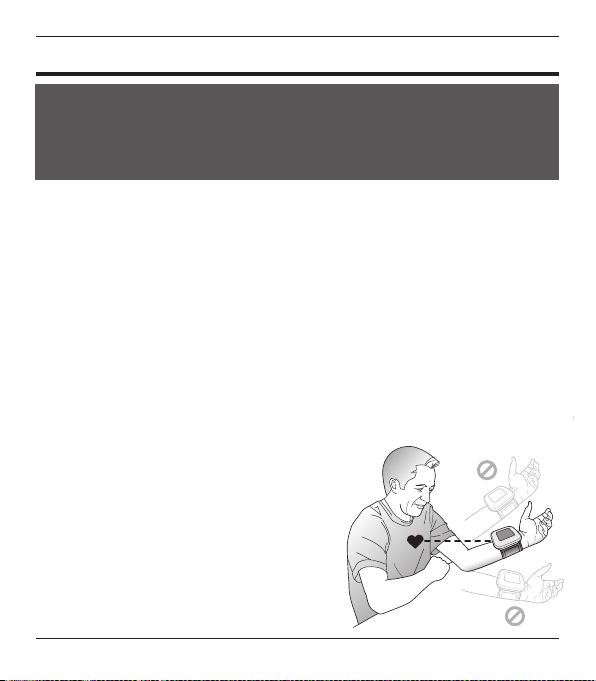

FITTING & APPLYING YOUR CUFF
PROPER CUFF FIT AND PLACEMENT IS CRITICAL IN OBTAINING
ACCURATE BLOOD PRESSURE MEASUREMENTS. PLEASE READ
THESE INSTRUCTIONS CAREFULLY AND CONSIDER CONSULTING
WITH YOUR PHYSICIAN FOR FURTHER DIRECTION.
Before applying your blood pressure cuff, be sure your wrist is within
the appropriate cuff range: Wrist Circumference Range Suitable for
5.3” – 8.4” (13.5 – 21.5 cm).
Reminder, it is important to avoid smoking, eating, taking medication,
alcohol consumption or physical activity 30 minutes prior to taking a
reading.
If for any reason you are unable to or should not use your left wrist,
please modify the instructions for cuff application to your right wrist.
Your physician can help you identify which wrist is best for you to take
measurements from.
Applying Your Cuff
1. Remove any constrictive clothing or
jewelry that may interfere with cuff
placement.
2. Be seated at a table or desk with
your feet at on the oor.

ENGLISH • 13
FITTING & APPLYING YOUR CUFF
Fig. 1
Fig. 2
3. Hold your left arm in front of you with your
palm facing upward.
4. Apply the preformed cuff to your left wrist so
that the digital display face is positioned on the
inside area of your wrist facing you, Fig. 1.
5. Adjust the cuff 1/4” - 1/2” from the edge of
the head of the ulna bone, Fig. 2.
6. The cuff should t comfortably, yet snugly
around your wrist.
If you are not comfortable with applying your cuff,
please seek the assistance of another member of
your household or work with your physician to
practice the cuff application. Incorrectly applied
cuffs may result in inaccurate readings.

14 • ENGLISH
TAKING YOUR BLOOD PRESSURE READING
1. Rest your elbow on a solid surface with your
palm facing upward. Elevate your arm so that
the cuff is at the same level as your heart, Fig
1. Be certain that cuff is elevated to the proper
level; you may choose to support your hand with
a folded towel or book. Relax your left hand.
2. Press the START/STOP button to turn the unit
on; the unit will run a self test, Fig 2.
3. You will see the numbers increase on the screen
and the heart icon ashing during measurement
as the cuff inates.
Fig. 1
Fig. 2
YOU CAN STOP THE INFLATION OR DEFLATION PROCESS
AT ANY TIME BY PRESSING THE START/STOP BUTTON.
Select the desired user, 1 or 2,
before measurement.The user icon
displayed represents the memory bank where
the result will be stored. When the monitor is
OFF, press and hold the MEM button for 4 seconds; the
user icon will appear on the display. Press MEM to toggle
and select the desired uesr. Press SET to conrm.
Please read the preceding portions of this
manual prior to taking your rst reading.
Reminder, it is important to avoid smoking,
eating, taking medication, alcohol consumption
or physical activity 30 minutes prior to use.

ENGLISH • 15
TAKING YOUR BLOOD PRESSURE READING

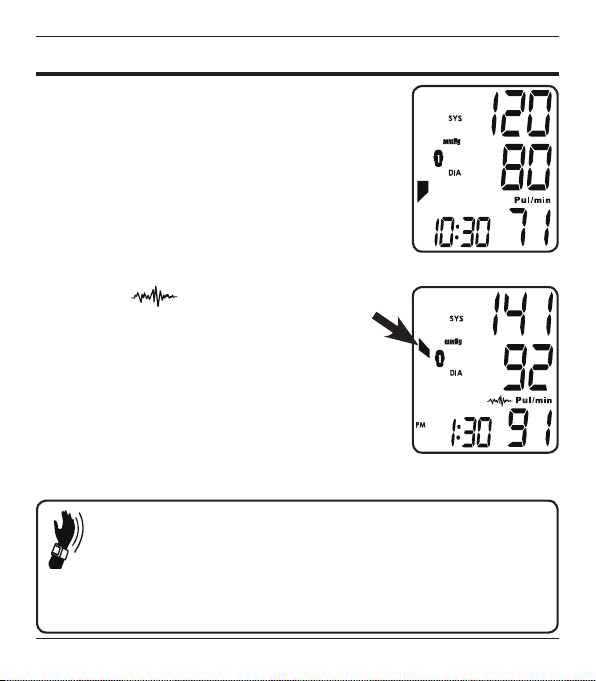

4. When the measurement is complete, your
blood pressure measurement and pulse
reading results will show on the display screen
at the same time, Fig 3.
5. The Hypertension Indicator will indicate your
reading range on the display, Fig 4. See page
17 for information regarding interpreting the
Hypertension Indicator results.
6. If an irregular heartbeat was detected during
the reading, the Irregular Heartbeat Detector
indicator will appear on the display,
Fig 4.
See page 16 for more information on the
Irregular Heartbeat Detector feature.
7. The reading will automatically be stored in
memory, up to 60 readings.
8. Select START/STOP to turn the unit off and
conserve energy and battery life. The unit will
automatically shut-off.
Fig. 3
Excessive Movement
This monitor detects excessive movement during measurement. This
icon appears when the monitor and wrist have moved or shaken
during the reading. Though the screen will still register and display
the measurement results, the results may be compromised and it is
recommended that a new measurement be taken.
Fig. 4

16 • ENGLISH
Irregular Heartbeat Detector
An irregular heartbeat is dened as a heartbeat rhythm that is more than
25% slower or 25% faster than the average measurement detected while
the monitor is conducting the measurement. When this device detects an
irregular rhythm two or more times during the reading, the IHB symbol will
appear on the display screen.
This monitor will operate if the icon appears, but the results may be
compromised, especially if this symbol appears often. Please consult with
your physician or trained healthcare professional for further information
regarding an irregular heartbeat and if this symbol appears frequently.
INTERPRETING YOUR RESULTS
Pulse
Irregular Heartbeat
Blood
Pressure
Pulse
Normal Heartbeat
Blood
Pressure
Short
Beat Long Beat

ENGLISH • 17

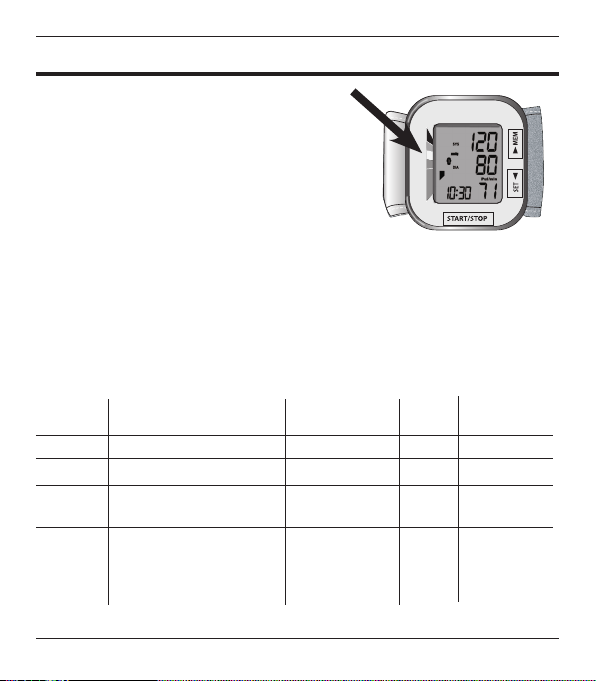

Hypertension Indicator
This unit features our unique Hypertension
Indicator. The color bars on the left side of
the monitor display correspond with an icon
on the digital display, indicating where the
measurement results fall within the American
Heart Association standards.
The American Heart Association has
established globally accepted standards for the assessment of high or low
blood pressure readings. The below chart should be considered only as a
guideline, always consult with your physician or health care professional to
interpret your individual results. Never adjust your medication(s) dosage,
or severely alter your diet or exercise routine without consulting with your
physician.
Bar Category Systolic Diastolic
Color (mmHg) (mmHg)
Green Normal <120 and <80
Green Prehypertension / Elevated 120-129 and <80
Yellow High Blood Pressure, 130-139 or 80-89
Stage 1 Hypertension
Orange High Blood Pressure, ≥140 or ≥90
Stage 2 Hypertension
Red Hypertensive Crisis >180 and/or >120
INTERPRETING YOUR RESULTS

18 • ENGLISH

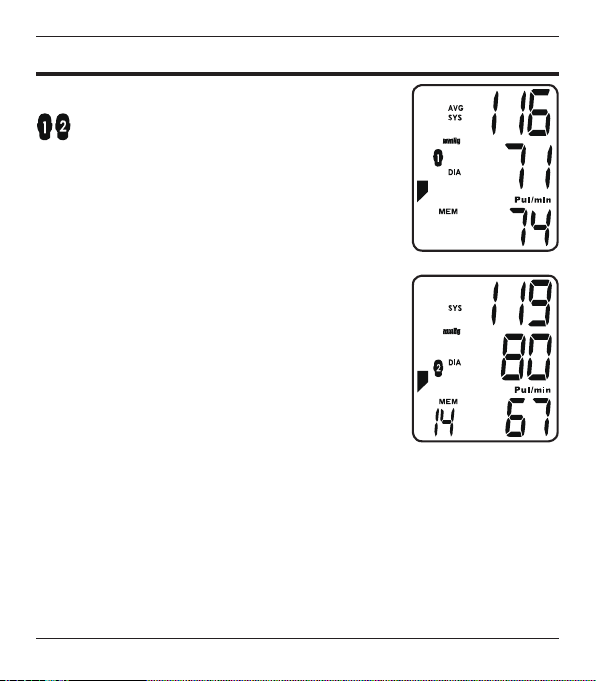

MEMORY FUNCTIONS
Recalling Measurements in Memory
Fig. 1
Select the desired user, 1 or 2, to
review.The user icon displayed represents
the memory bank where the result will be stored.
When the monitor is OFF, press and hold the MEM
button for 4 seconds; the user icon will appear on
the display. Press MEM to toggle and select the
desired uesr. Press SET to conrm.
This monitor stores and recalls up to 60 readings in
per user. These measurements can be shared with
your physician or trained healthcare professional.
1. Press and release the MEM button. The unit
will rst display the average of the last three
measurements, Fig 1.
2. Press the MEM button again to begin scrolling
through the saved measurements. Measurements
will appear on the display from most current to
oldest; the memory number will appear on the lower left corner.
3. All results for a given measurement will display, including measurement
results, pulse rate, Hypertension Indicator and Irregular Heartbeat
alert (if applicable). The date/time stamp will cycle on the lower left—
memory number, time, date, repeat, Fig 2.
4. When the number of readings exceeds 60 , the oldest data will be
replaced with the new record.
Fig. 2

ENGLISH • 19
MEMORY FUNCTIONS
Clearing Measurements From Memory
Fig. 1
Fig. 2
5. Press START/STOP to turn the monitor
off at any time during review of the stored
measurements.
To delete all measurements from either memory
bank, follow these steps:
1. When the monitor is off, press and release
the MEM button to access the memory bank
feature.
2. Press and hold the MEM button for 3–4
seconds; the display will ash ‘dEL ALL’, Fig 1.
3. Press SET to conrm; the display will briey
ash ‘dEL dONE’ and turn off, Fig 2.
If you do not wish to delete the measurement
records, press the START/STOP button at any time
to exit the ‘Clearing Measurement’ mode.

20 • ENGLISH
CARE & MAINTENANCE
Proper care and maintenance of your blood pressure monitor will help
ensure long life for the product; improper use of the monitor may void the
included warranty.
Monitor Care & Maintenance
• Do not use any liquids on the monitor; use a soft, dry cloth to clean the
monitor as needed.
• Storage outside of stated storage temperature may result in measurement
error or device malfunction; storage environment temperature is: -4°F –
140°F (-20°C – 60°C); Humidity: ≤93%RH (non-condensing).
• Remove the batteries if the unit will not be used for an extended period
of time.
• Do not attempt to disassemble your monitor; disassembling your monitor
may void the manufacturers warranty.
• Do not subject the monitor to strong shocks; take care not to drop the
monitor.
• No component of this device can be maintained by the user; the circuit
diagrams, component part lists, descriptions, calibration instruction or
other information which will assist the user’s appropriately qualied
technical personnel to repair those parts of equipment which are
designated repairable can be supplied.
