SmartSafe iSmartEV RT100 User manual

iSmartEV RT100 User Manual
w
ww.newsmartsafe.com
I
Copyright Information
Copyright © 2021 by SHENZHEN SMARTSAFE TECH CO.,LTD.
All rights reserved. No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in any form or by any
means, electronic, mechanical, photocopying, recording or
otherwise, without the prior written permission of SMARTSAFE.
Neither SMARTSAFE nor its affiliates shall be liable to the
purchaser of this unit or third parties for damages, losses, costs,
or expenses incurred by purchaser or third parties as a result of:
Accident, misuse, or abuse of this unit, or unauthorized
modifications, repairs, or alterations to this unit, or failure to
strictly comply with SMARTSAFE operating and maintenance
instructions. SMARTSAFE shall not be liable for any damages or
problems arising from the use of any options or any consumable
products other than those designated as Original SMARTSAFE
Products or SMARTSAFE Approved Products by SMARTSAFE.
All information, specifications and illustrations in this manual are
based on the latest information available at the time of printing.
SMARTSAFE reserves the right to make changes at any time
without prior written or oral notice.
Trademark Information
is a registered trademark of SHENZHEN
SMARTSAFE TECH CO.,LTD. in China and other countries. All
other SMARTSAFE trademarks, service marks, domain names,
logos, and company names referred to in this manual are either
trademarks, registered trademarks, service marks, domain names,
logos, company names of SMARTSAFE or are otherwise the
property of SMARTSAFE or its affiliates. In countries where any
of the SMARTSAFE trademarks, service marks, domain names,
logos and company names are not registered, SMARTSAFE

iSmartEV RT100 User Manual www.newsmartsafe.com
II
claims other rights associated with unregistered trademarks,
service marks, domain names, logos, and company names. Other
products or company names referred to in this manual may be
trademarks of their respective owners. You may not use any
trademark, service mark, domain name, logo, or company name
of SMARTSAFE or any third party without permission from the
owner of the applicable trademark, service mark, domain name,
logo, or company name. You may contact SMARTSAFE by
visiting the website at www.newsmartsafe.com, or writing to
SHENZHEN SMARTSAFE TECH CO.,LTD., 3310, Building 11,
Tianan Cloud Park, Bantian Street, Longgang District, Shenzhen,
Guangdong, China, to request written permission to use Materials
on this manual for purposes or for all other questions relating to
this manual.
To avoid personal injury, property damage, or accidental damage
to the product, please read all the information in this chapter
before using the product.
Safety Warning
The design, manufacture and testing of the tester are up to
IEC61010 safety standards (safety requirements for electrical
measurement products). This manual includes warnings and
safety regulations ensuring the safe use and state of the tester,
which must be followed by users. Please carefully read the
following operating instructions before the use.
Warning:
Please carefully read and understand this instruction manual
before using the tester.
Always comply with the requirements of this user manual and
keep it available for reference.
During testing, incorrect operation can result in accidents and

iSmartEV RT100 User Manual
w
ww.newsmartsafe.com
III
damage to the tester.
Conventions
The following conventions are used in this manual.
Hazards
To avoid possible serious or fatal damage under certain
conditions and operations.
Do not measure circuits with AC/DC voltage above 600V.
Do not test in inflammable places because sparks may cause
explosion.
Do not operate the tester if its surface is wet or the operator's
hand is wet.
When measuring, do not touch the conductive part of the test
pen.
Do not press TEST button when the test clip is short-circuited to
the tester.
Do not touch the circuit to be measured when performing
insulation test.
Warning:
To avoid the danger of electric shock.
If the tester is broken or metal parts are exposed, please stop
using it.
After high resistance measurements, charge storage in the
circuit to be measured must be released.
Ensure that all test clips are securely connected to the tester's
test ports.
The tester is a sealed device without repairable parts inside for
end users. Do not attempt to disassemble it by yourself. All
internal repairs must be performed by an authorized
maintenance organization or technician. Attempts to
disassemble or modify the equipment will void the warranty.

iSmartEV RT100 User Manual www.newsmartsafe.com
IV
Notes
Helpful information is presented to avoid damage to the tester
and to make accurate measurements.
Before measuring resistance, the circuit to be measured must
be completely discharged and isolated from the power circuit.
If the test clip or power adapter needs to be replaced because
of damage, replace it with that of the same model or electrical
specifications.
Do not use the tester if the battery indicator indicates that the
battery is out of power.
Do not store or use the tester in the high temperature, high
humidity, flammable, explosive environment, and strong
electromagnetic field fields.
Please use a damp cloth or cleaner to clean the tester housing.
Do not use friction or solvents.
When the tester is wet, please dry it before storage.

iSmartEV RT100 User Manual
w
ww.newsmartsafe.com
V
Contents
1. Product Introduction ................................................................1
1.1 Overview .................................................................................1
1.2 Packing List ............................................................................ 1
1.3 Composition ............................................................................2
1.4 Technical Parameters ............................................................ 4
2. Operating ...................................................................................6
2.1 Charging and On/Off .............................................................. 6
2.1.1 Charging ......................................................................... 6
2.1.2 Turn On/Off .....................................................................6
2.2 Display .................................................................................... 7
2.3 Measurement ..........................................................................7
2.3.1 AC/ DC voltage measurement ....................................... 8
2.3.2 Insulation Resistance Measurement ........................... 10
2.3.3 Single-point calibration of onboard resistance ............ 13
3. Maintenance ............................................................................16
Warranty ...................................................................................... 17

iSmartEV RT100 User Manual
w
ww.newsmartsafe.com
1
1. Product Introduction
1.1 Overview
With microcomputer technology design as the core, and a
combination of large-scale integrated circuit and digital circuit,
iSmartEV RT100 insulation tester is equipped with powerful
measurement and data processing software; thus, it can
complete measurement of the insulation resistance, voltage, and
other parameters. Its stable performance and easy operation are
suitable for field measurement and maintenance users of power
equipment and power supply line.
It features the following:
Automatic high voltage residual release function.
Support resistance measurement and AC/DC voltage
measurement.
Support insulation resistance measurement modes such as
comparative measurement, continuous measurement, and
fixed-time measurement.
Multiple voltage output of 500V, 1000V, 2500V and 5000V.
Backlight function for working at night or in the dim environment.
Alarm function for test voltage and resistance overrange.
Automatic shutdown function (the tester automatically shuts
down when it is not operated for 15 minutes in the resistance
test mode).
Large display facilitates observation of measurement results.
1.2 Packing List
The following list is for reference only. For details, please consult
your local distributor or check the attached packing list.

iSmartEV RT100 User Manual www.newsmartsafe.com
2
iSmartEV RT100 insulation tester X 1
Switching Power Supply X 1
Test Clip X 3
User Manual X 3
Packing list X 1
1.3 Composition
No. Name Description
1Earth Port Connected to a green single-cord wire.
2GUARD Port Connected to a black single-cord wire.
3LINE Port Connected to a double-cord red wire.
4Display 5-inch display.
5Selection
Buttons
/ : When the insulation resistance measurement is
not started, it is used to adjust the measured output voltage
value.

iSmartEV RT100 User Manual
w
ww.newsmartsafe.com
3
: When the insulation resistance is measured periodically,
it is used to decrease the measurement duration; When the
comparative measurement mode is used to measure the
insulation resistance, it is used to decrease the resistance
comparison value.
: When the insulation resistance is measured periodically,
it is used to increase the measurement duration; When the
comparative measurement mode is used to measures the
insulation resistance, it is used to increase the resistance
comparison value.
6MODE
Switch button for the resistance/voltage measurement
mode.
The insulation resistance measurement mode (continuous
measurement mode) is by default while startup. Press this
button to switch to the DC voltage measurement mode.
Press it again to enter the AC voltage mode, and press it
again to exit the voltage measurement mode and back to
the insulation resistance measurement mode, which is loop
selection.
7TIME Click it to switch between "Fixed-time Measurement" and
"Continuous measurement" modes.
8COMP “Comparative measurement" mode for insulation resistance
measurement.
9TEST Enable and disable measurement (press the button for 1
second to enable measurement).
10 LIGHT Turn on/off the backlight.
11 Power Button
In the shutdown state, long press this button until the TEST
button is lit, and the tester is initialized and powered on.
Press this button for 3 seconds to shut down under the
startup state.
Note: The tester will automatically shut down after no
operation for more than 15 minutes (manual shutdown is
required in the voltage measurement mode).
12 Charging It shows red while charging and green after fully charged.

iSmartEV RT100 User Manual www.newsmartsafe.com
4
Indicator
13 Calibration
Terminal
For tester verification tests and standard resistance
calibration.
14 USB Type-C
Port Reserved expansion port.
15 DC IN
Power Jack
For connection of the power adapter.
Warning: Please use the attached power adapter for
charging. We will not be responsible for any damage or loss
caused by charging with a power adapter not designated by
us.
Note: The tester will not work during charging to ensure
personal safety.
16 Holder For support druing tester operation.
1.4 Technical Parameters
Insulation Test
Test Voltage 500V 1000V 2500V 5000V
Measurement
Range 10MΩ~20GΩ 10MΩ~40GΩ 10MΩ~100GΩ 10MΩ~1000G Ω
Open Circuit
Voltage
DC500V
0~20%
DC1000V
0~20%
DC2500V
0~20%
DC5000V
0~20%
Measurement
Accuracy
1MΩ~99.9MΩ: ± (3%+5)
100MΩ~9.99GΩ: ± (5%+5)
10.0GΩ~100.0GΩ: ± (10%+5)
>100GΩ: ± (20%+5)
Short-Circuit
Current <3.0mA

iSmartEV RT100 User Manual
w
ww.newsmartsafe.com
5
AC/DC Voltage Testing
Voltage Type DC Voltage AC Voltage
Measurement Range ±30~±600V 30~600V
Resolution 1V 1V
Measurement Accuracy ±2% ±2%
Note: Under any test voltage, if the measured resistance is less than 10MΩ,
do not continuously measure for more than 10 seconds.
Display 5-inch display
Battery 3150mAh/11.4V
Working Temperature 0~50℃
Storage Temperature -20℃~ 70℃
Dimension 190*207*72mm

iSmartEV RT100 User Manual www.newsmartsafe.com
6
2. Operating
2.1 Charging and On/Off
2.1.1 Charging
Note: After using the tester for the first time or not using the tester for a long
time, the tester may fail to start up because of low battery. Please charge the
tester for a period before trying to start up.
Please charge as below methods:
Plug one end of the power adapter into the DC IN charging jack
of the tester and connect the other end to the AC power outlet. If
the charging indicator on the tester lights up in red, it indicates
charging, the indicator lights up in green after fullly charging.
2.1.2 Turn On/Off
In the shutdown state, long press the Power button on the tester
until the TEST button is lit, the tester will be initialized and
powered on, and the system will have a buzzer prompt.
To shut down, long press the Power button on the tester for 3
seconds until the screen is off.
The tester will automatically shut down when it is not operated for
more than 15 minutes in the resistance measurement mode. If
the tester is in the voltage measurement mode, it needs to be
shut down manually.
Note: To ensure safety, the tester will automatically shut down when charging.

iSmartEV RT100 User Manual
w
ww.newsmartsafe.com
7
2.2 Display
No. Name No. Name
1 Battery Indicator 10 Continuous Measurement Prompt
2 Scale 11 Negative Pole Symbol
3 High Voltage Prompt 12 DC Voltage Symbol
4 Buzzer Symbol 13 AC Voltage Symbol
5 Output Voltage 14 Timing Display
6 Unit Symbol 15 Pass (Pass the Comparative
Measurement) Prompt
7 Voltage Measurement Prompt 16 Fail (Not Pass the Comparative
Measurement) Prompt
8Comparative Measurement
Prompt 17 Calibration Identifier
9 Fixed-time Measurement Prompt
2.3 Measurement
Preparation before measurement:

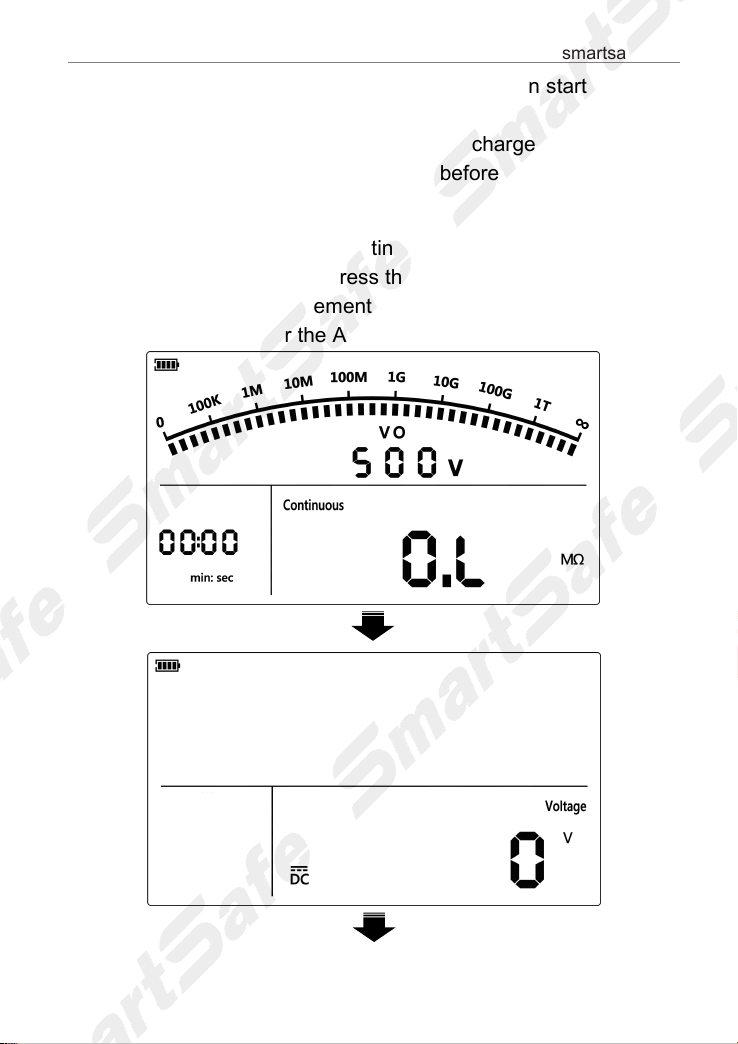

(1) Press the Power button to start up. The insulation resistance

iSmartEV RT100 User Manual www.newsmartsafe.com
8
continuous measurement mode is preset when startup, and
the output voltage is 500V.
(2) Please make sure that the tester is fully charged (if the battery
icon is blank, it needs to be charged before testing).
2.3.1 AC/ DC voltage measurement
(1) The insulation resistance continuous measurement mode is
by default while startup. Press the MODE button to switch to
the DC voltage measurement mode, and press the MODE
button again to enter the AC voltage measurement mode.

iSmartEV RT100 User Manual
w
ww.newsmartsafe.com
9
(2) Insert the red test clip into the LINE port on the tester and the
green test clip into the Earth port on the tester.
(3) Connect the red and green alligator clips to the circuit to be
tested. When measuring DC voltage, if the red test clip is
negative voltage, the negative pole symbol "-" will be
displayed on the screen.

iSmartEV RT100 User Manual www.newsmartsafe.com
10
Note:
Do not input a voltage higher than 600V or 600Vrms. Measuring higher
voltages risks may damage the tester.
Special attention should be paid to avoid electric shock when measuring high
voltages.
After completing all measurement, disconnect the test clip from the circuit to
be tested and remove the test clip from the tester input.
If the voltage measurement exceeds the maximum range, the buzzer will
sound.
2.3.2 Insulation Resistance Measurement
Note: The continuous measurement mode is by default for insulation
resistance measurement during startup.
(1) Before measuring insulation resistance, the circuit to be
measured must be completely discharged and isolated from
the power circuit.
(2) Insert the red test clip into the LINE port, the black test clip
into the GUARD port, and the green test clip into the EARTH
port.
(3) Connect the red and green alligator clips to the measured

iSmartEV RT100 User Manual
w
ww.newsmartsafe.com
11
object and output the voltage from the LINE port.
(4) Select the following insulation resistance measurement mode.
After the system is powered on, the system enters the
insulation resistance continuous measurement mode by
default. Press / to select the output voltage and press
TEST for 1 second to start measurement. At the same time,
the buzzer will sound. The measured insulation resistance
value will be displayed on the screen.
Press the TIME button to select the fixed-time measurement
mode. Fixed-time measurement prompt and timing symbols
will be displayed on the screen. Press the / buttons to
adjust the output voltage and press the / buttons to set the
timing duration (setting range from 00:10 to 15:00). Press the
TEST button for 1 second to start the fixed-time measurement.

iSmartEV RT100 User Manual www.newsmartsafe.com
12
The timer area of the screen starts to display a countdown.
The system will automatically end the measurement at the set
time.
Press the COMP button to enter the insulation resistance
comparative measurement mode, and the comparative
measurement prompt will appear on the screen. Press the
/ buttons to select an output voltage and press the /
buttons to set the comparative resistance (setting range:
10MΩ ~ 900GΩ). Press the TEST button for 1 second to start
the measurement. If the insulation resistance measurement
value is smaller than the resistance comparative value, the
"FAIL" prompt will be displayed in the lower left corner of the
screen; otherwise, the "PASS" prompt will be displayed.
Note:
Before the test, ensure that the circuit to be measured is not electrified. Do
not measure the insulation of electrified equipment or circuit.
The tester has dangerous voltage output. Please be careful while operating.
Never press the TEST button to output the high voltage before ensuring that
the tested circuit is firmly clamped and the hand is off the test clamp.
Do not short circuit two test clips or measure the insulation resistance under
the high voltage output. This operation is easy to spark and cause fire, and
damage the tester.
If the resistance measurement exceeds the maximum range, the buzzer will
sound.

iSmartEV RT100 User Manual
w
ww.newsmartsafe.com
13

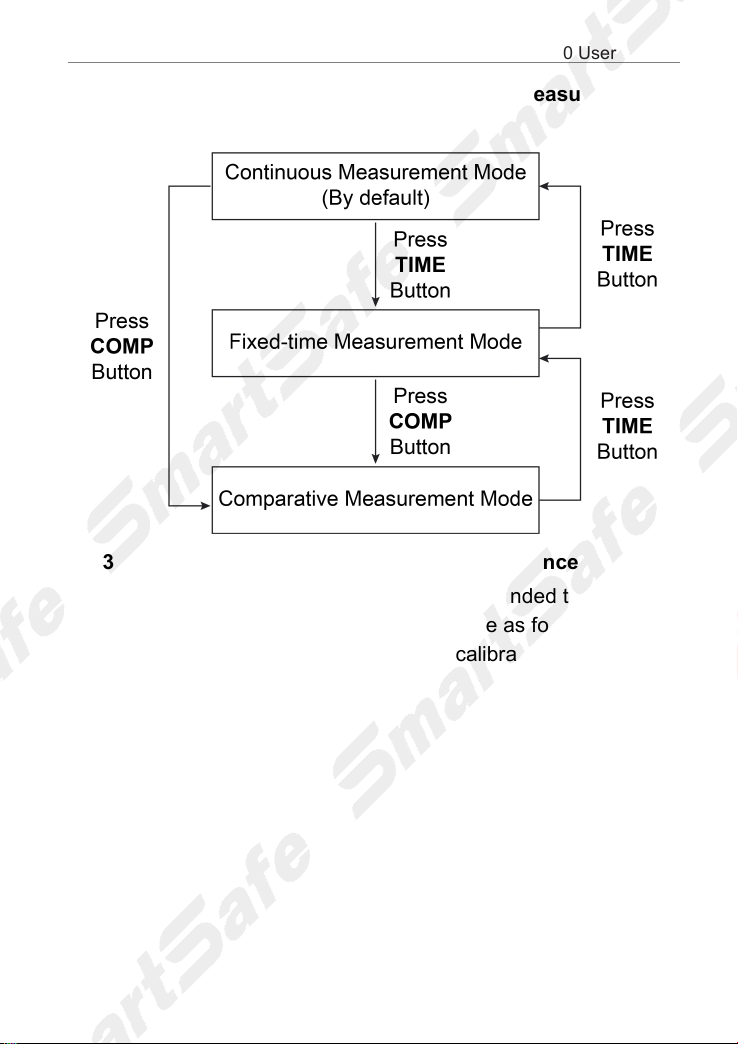

Schematic Diagram of Insulation Resistance Measurement
Mode Switching
2.3.3 Single-point calibration of onboard resistance
After using the tester for a period, it is recommended to calibrate
the onboard resistance. The specific steps are as follows:
(1) Connect the test clip to the resistance calibration terminal on
the tester as shown below.

iSmartEV RT100 User Manual www.newsmartsafe.com
14
(2) Under the startup state, long press the COMP button to enter
the calibration state of 200MΩ resistance. The screen will
display the character of CAL and the resistance value of
200MΩ.
