SmartSafe iSmartIMMO G3 User manual

I
Copyright
Copyright © 2021 by SHENZHEN SMARTSAFE TECH CO.,LTD. All rights
reserved. No part of this publication may be reproduced, stored, or transmitted
in any form without the written permission of the copyright owner.
Trademark
is a registered trademark of SHENZHEN SMARTSAFE TECH CO.,
LTD. in China and other countries. All other marks are trademarks or registered
trademarks of their respective owners.
Disclaimer
The contents of this document are subject to changes without notice due to
continued improvements in design, manufacture, and methodologies.SmartSafe
is not liable for the damage or losses due to the use of this document.
FCC Warnning:
Any Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference.
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruc-
tions, may cause harmful interference to radio communications. However, there
is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

II
-Consult the dealer or an experienced radio/TV technician for help.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
ISED Warnning:
This device contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt
RSS(s). Operation is subject to the following two conditions:
(1) This device may not cause interference.
(2)This device must accept any interference, including interference that may
cause undesired operation of the device.
L'émetteur/récepteur exempt de licence contenu dans le présent appareil est
conforme aux CNR d'Innovation, Sciences et Développement économique
Canada applicables aux appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes :
1)L'appareil ne doit pas produire de brouillage;
2)L'appareil doit accepter tout brouillage radioélectrique subi, même si le
brouillage est susceptible d'en compromettre le fonctionnement.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter. Cet émetteur ne doit pas être colocalisé ou
fonctionner en conjonction avec une autre antenne ou un autre émetteur.
The device has been evaluated to meet general RF exposure requirement.
The device can be used in portable exposure condition without restriction.
Le matériel a été évalué pour répondre aux exigences générales d’exposition
aux radiofréquences.Le dispositif peut être utilisé dans des conditions
d ‘exposition portables illimitées.

Important: Please read this manual carefully and understand the safety
precautions before performing any operation to this product.
Safety Grades
Symbol Usage
Danger
Indicates a hazardous situation which, if not
avoided, will result in death or serious injury to the
operator or to bystanders.
Warning
Indicates a hazardous situation which, if not
avoided, could result in possible injury to the
operator or to bystanders.
Caution
Indicates a hazardous situation which, if not
avoided, could result in serious equipment damage
or property losses.
Safety Precautions
• Never collide, throw, or puncture the test equipment, and avoid falling,
extruding and bending it.
• Do not insert foreign objects into or place heavy objects on your device.
Sensitive components inside might cause damage.
• Do not use the test equipment in exceptionally cold or hot, dusty, damp or
dry environments.
• In places using the test equipment may cause interference or generate a
• The test equipment is a sealed unit. There are no end-user serviceable
parts inside. All internal repairs must be done by an authorized repair facility
• Never place the test equipment into apparatus with strong electromagnetic
III
• Do not attempt to replace the internal rechargeable lithium battery. Contact
the dealer for factory replacement.

• Use the included battery and charger. Risk of explosion if the battery is
replaced with an incorrect type.
• Do not disconnect power abruptly when the test equipment is being
formatted or in process of uploading or downloading. Or else it may result
in program error.
• Do not disconnect battery or any wiring cables in the vehicle when the
ignition switch is on, as this could avoid damage to the sensors or the ECU.
• Do not place any magnetic objects near the ECU. Disconnect the power
supply tothe ECUbefore performingany welding operations on the vehicle.
• Use extreme caution when performing any operations near the ECU or
sensors. Ground yourself when you disassemble PROM, otherwise ECU
and sensors can be damaged by static electricity.
• When reconnecting the ECU harness connector, be sure it is attached
damaged.
Packing List
destinations, the accessories may vary. For details, please consult from the
local dealer or check the packing list supplied with this tool together.
• Main unit
• Power adaptor
• Main diagnostic cable
• The fourth-generation data acquisition cable
• The fourth-generation of EEPROM data acquisition cable(without
dismantling dashboard)
• BENCH mode cable
• MCU converter V1
• MCU converter V2
• MCU cable with multiple leads
• EEPROM chip adaptor
• Benz infrared analog acquisition key
IV
• MCU cable with multiple leads
• EEPROM converter
• User Manual

V
Table of Contents
1 About this Manual...................................................................................1
1.1 Target Reader......................................................................................1
1.2 Typographic Conventions ....................................................................1
1.3 Symbols...............................................................................................1
2 About iSmartIMMO G3
......................................................................................2
2.1 Product Overview ................................................................................2
2.2 Power Source......................................................................................3
.......................................................................4
2.4 Accessories .........................................................................................4
3 Diagnostics.............................................................................................4
3.1 Common Operations ...........................................................................4
3.1.1 Establish Hardware Connection .......................................................4
3.1.2 Establish Wireless Connection.........................................................5
3.1.3 Perform Common Operations...........................................................6
3.2 Diagnostic Operations .........................................................................7
3.2.1 Key Programming.............................................................................7

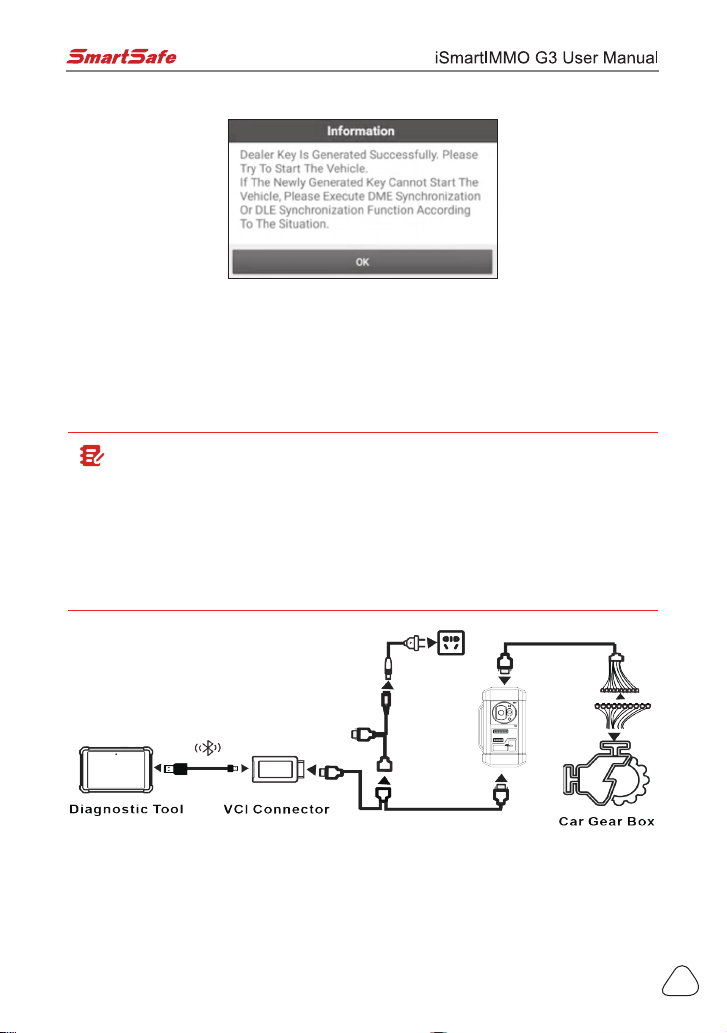

3.2.2 Gear Box Programming..................................................................12
3.2.3 Engine Programming......................................................................17
3.2.4 Return from Diagnostic Function....................................................26
4. Software Upgrade................................................................................26
5. Warranty ..............................................................................................27

1
1 About this Manual
This manual introduces the basic information of iSmartIMMO G3 and instruction
on the product usage. iSmartIMMO G3 is a powerful anti-theft solution and an
ideal choice for professional repair shops and vehicle maintenance businesses.
It has achieved vehicle key, Engine and gearbox programming, featuring
powerful multiple parts reprogramming and wide range of vehicle coverage.
1.1 Target Reader
This document is intended for vehicle owners or repair technicians to perform
various diagnosticprocedures using iSmartIMMO G3; it assumesa basic
knowledge of vehicles.
1.2 Typographic Conventions
the following table:
Item Presentation Example
Cascading Menus -> iSmartIMMO G3->Local Diagnosis
Parameter/value Bold Silde the WLAN switch to “ON”.
Variable/unfamiliar
term Italic Visit us by
http://www.newsmartsafe.com
UI control Bold On the Health Check screen, tap
Enter.
Message “” The “success” message appears.
1.3 Symbols
Following symbols are used in this document:
Symbol Usage
Note Widely used for any supplementary
information.
Tip Refers to easily overlooked tricks that is
necessary for a better user experience.

2
2 About iSmartIMMO G3

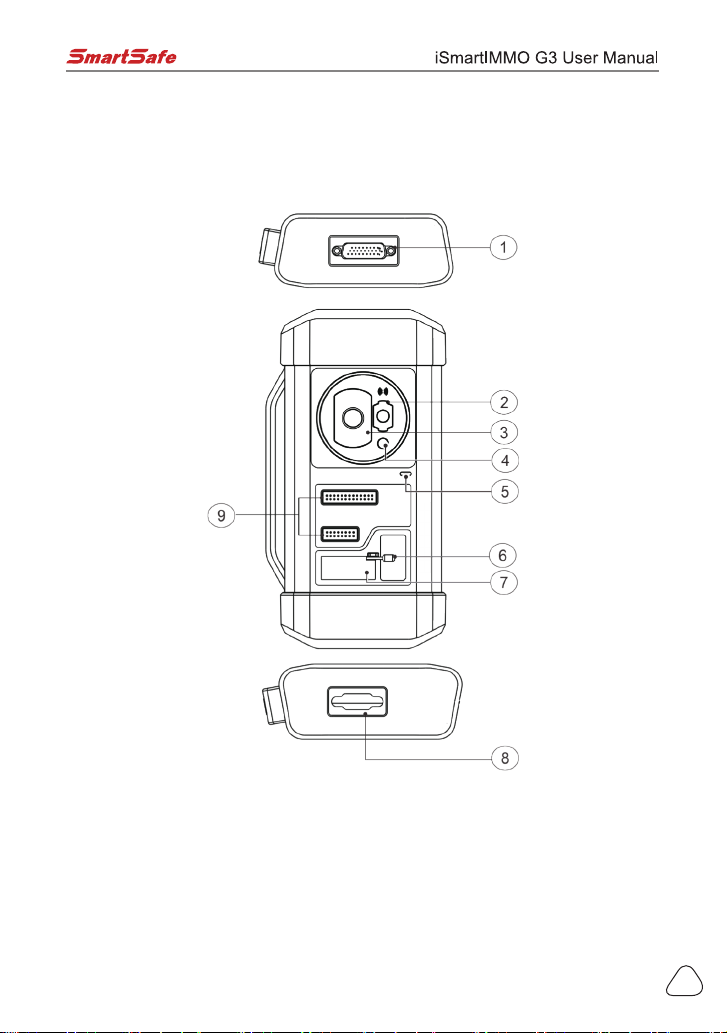

2.1 Product Overview

3
No. Part Name Description
1DB26 diagnostic connector To connect with all anti-theft
cables.
2Benz key slot To place Benz car key.
3Key slot To place car key for RF
defection.
4Key chip slot To place key chip.
5Power indicator
• Red light indicates faults.
• Orange light indicates
functions normally.
6Valve To tighten loose EEPROM board.
7EEPROM slot To insert EEPROM board
8
9
DB15 diagnostic connector To connect with main diagnostic
cable.
DIY slot To insert vehicle DIY board.
Input voltage 12 V DC
Input current 500 mA
Working temperature 0 to 50 ℃
Storage temperature - 20 to 70 ℃
Dimension 39 x 107 x 298 mm

4
2.3 Power Source
The product does not have an independent power supply, you can power it up
via either of the followings ways:
• Use the included power adaptor
• Connect the device through the vehicle’s DLC
2.4 Accessories
Photo Accessory Name Descrption
Main Diagnostic
Cable
To connect vehicle DLC port,
VCI and programmer for
diagnose.
Power adaptor To provide power supply for
the programmer.
The fourth-
generation data
acquisition cable
After removing the vehicle
dashboard, connect
programmer, vehicle
dashboard, and the cable.
The fourth
generation of
EEPROM data
acquisition
cable (without
dismantling
dashboard)
Connect the programmer and
vehicle dashboard,and then
place the probe(the yellow
lead) to the designated area.

5

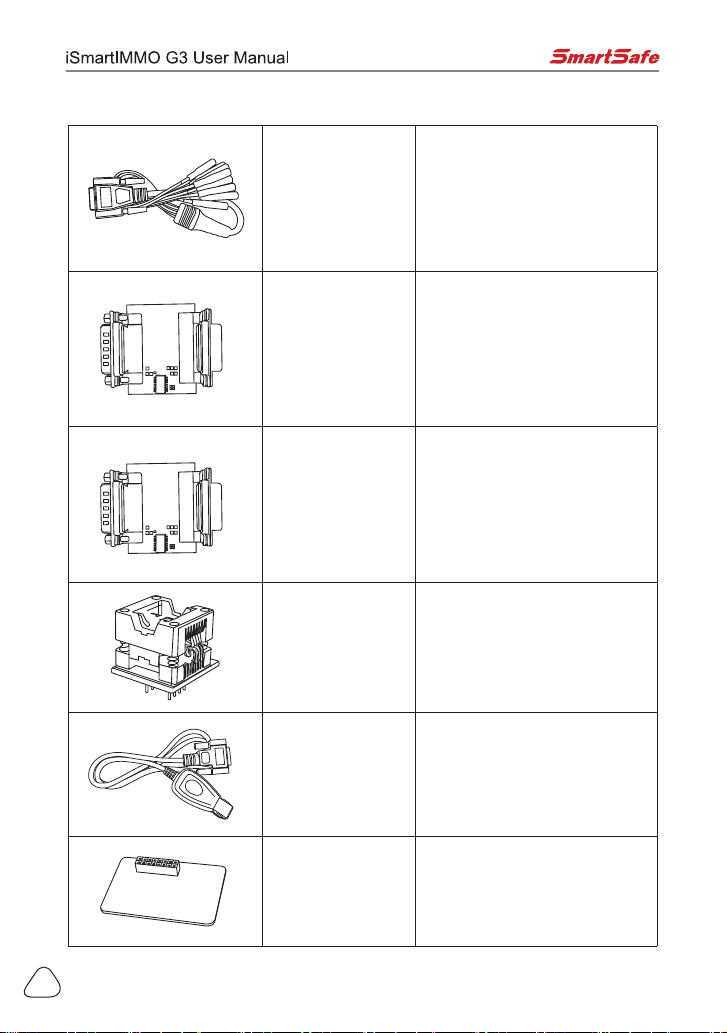

BENCH mode
cable
Connect the programmer and
the engine to read engine or
gearbox ECU (Connect engine
ECU with the BENCH mode
cable based on BENCH mode
diagram).
MCU Converter
V1
Connect the programmer
with MCU(chip soldering is
required in this procedure).
MCU Converter
V2
Connect the programmer
with MCU(chip soldering is
required in this procedure).
EEPROM chip
adaptor
Place the EEFROM chip onto
the adaptor, and then plug it
into the programmer socket.
Benz infrared
analog acquisition
key
To connect the programmer
with the key lock, insert the
key into the programmer for
further key operations.
EEPROM
converter
Solder the desired chip on
the EEPROM converter, and
then plug the board into the
programmer(chip soldering is
required）

6

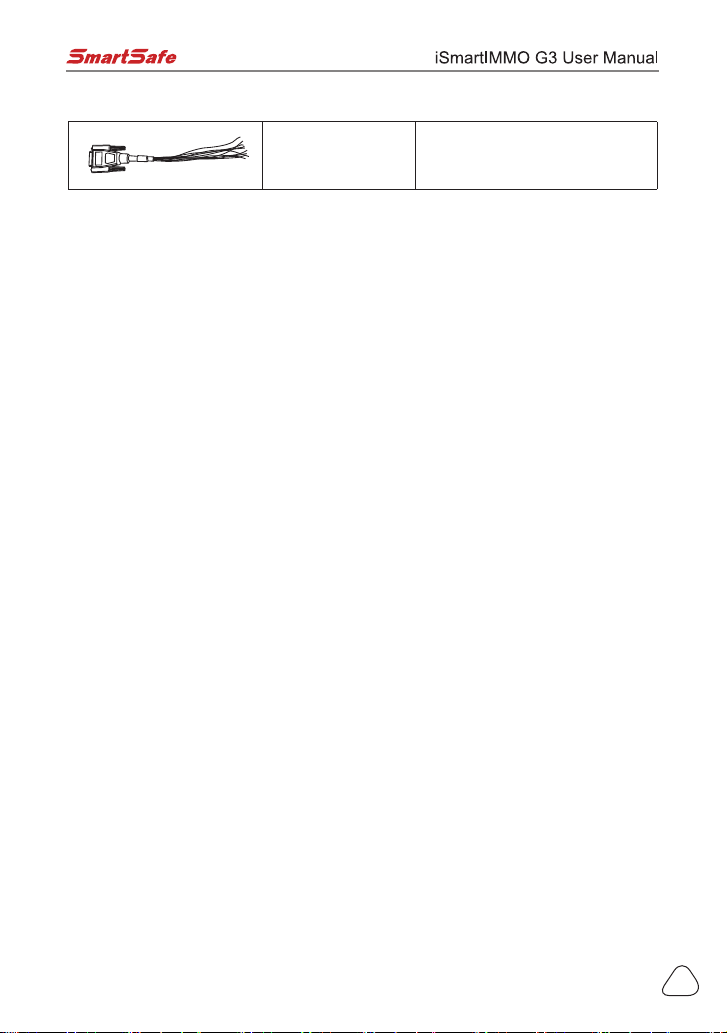

MCU cable with
multiple leads
To connect the programmer
and MCU.

7
3 Diagnostics
iSmartIMMO G3 diagnosticfunction supports key programming, engine and
gearbox replacement for various of vehicles, you can retrieve ECU information,
read, erase, and write in for a range of chips as shown in the product options.
3.1 Common Operations
• 3.1.1 Establish Hardware Connection
You need to turn off the ignition and correctly locate the vehicle Data Link
Connector (DLC) so as to perform hardware connection.

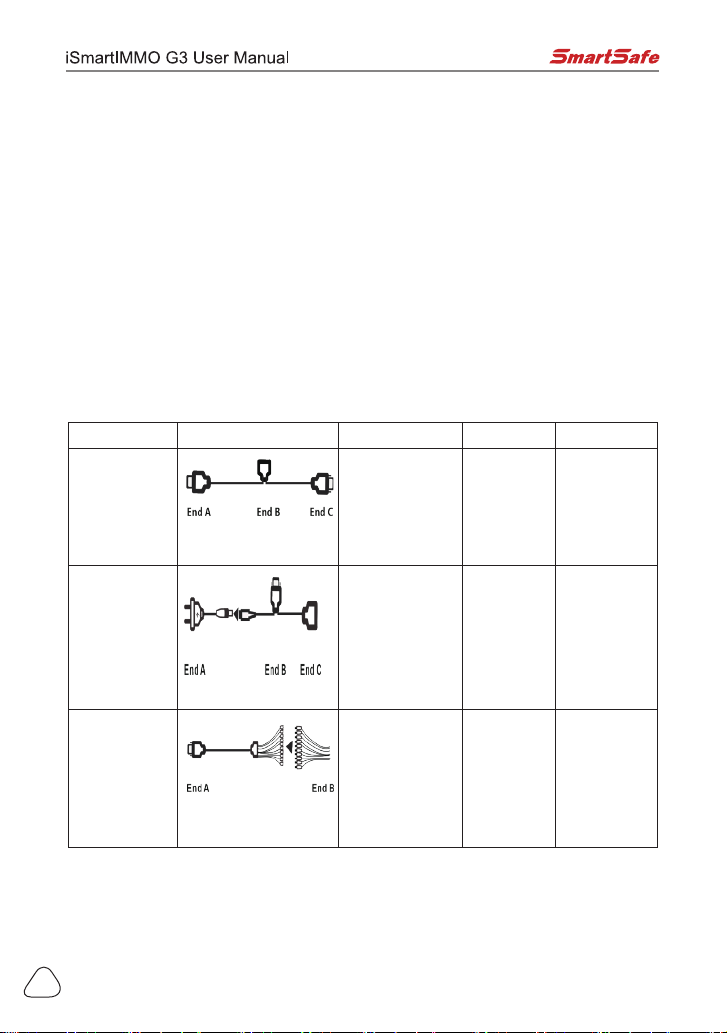

You can refer to the table below for hardware connection:
User Scenario Cable Image End A End B End C
Key
programming
Main diagnostic cable
Connect with
SmartSafe VCI
connector
for data
transmission
Connect
with
vehicle’s
DLC
Connect with
iSmartIMMO
G3
Engine/
Gearbox
programming
Power cable
Connect power
supply N/A
Connect
with end B
the main
diagnostic
cable
Engine/
Gearbox
programming
MCU cable with
mutiple leads
Connect with
iSmartIMMO G3
Connect
with the
engine or
gearbox to
be repaired/
replaced
N/A

8
Engine/
Gearbox
programming
Main diagnostic cable
Connect with
SmartSafe VCI
connector
for data
transmission
Connect
power
supply
cable
Connect with
iSmartIMMO
G3
• 3.1.2 Establish Wireless Connection
You must make sure that your diagnostic tool is well connected with
iSmartIMMO G3, follow steps below to check wireless connection:
Note: It is strongly recommended to connect the diagnostic tool with the
1. Slide down the status bar from the top.
2. Touch , go to Wireless and network -> Bluetooth.
3. Select the iSmartIMMO G3 to be connected, wait until the connection is
successful.
• 3.1.3 Perform Common Operations
You should enter the function interface before using the programmer.
1. Turn on a SmartSafe diagnostic tool, and/or open the diagnostic App on the
home screen.
2. On the main diagnostic screen, enter Anti-theft system either from Local
Diagnose or Reset, touch OK.
3. You will view the connection diagram, touch OK.

9
4. Depending on your requirement, touch any of the following options :
• Gearbox Learning
• Anti-Theft System
• Engine System
3.2 Diagnostic Operations
• 3.2.1 Key Programming
You can use anti-theft system to access key chip programming functions. The
product supports reading, retrieving and writing key information, as well as
other key-related functions.
• Connecting diagnostic system
Note:
The USB cable shown in below diagram is not included in the packing
list for now, using a USB cable could effectively enhance your data
transmission speed.

10
• Operating on key programming
You can use key programming function to backup old key data and write
in data for new keys. Below procedure shows you how to perform key
pukcabsniatnocti,tcudorpcitsongaidSmartSafegnisuWMBrofgnimmargorp
current key data and new key generation.
1. Backup current key data.
a. Touch Intelligent Mode.
b. Touch OK

11
c. Touch Key Operation.
d. Touch Key Learning.
e. Touch OK after reading the the onscreen instruction.

12
f. Touch OK.
g. Touch OK to save the key data.
h. OK.
i. OK

13
2. Generate a new key.
a. Touch the desired blank key position.
b. Place the new key into the programmer key slot and touch OK.
c. YES.
d. If the key generation is done, touch OK t

14
• 3.2.2 Gearbox Programming
You can use gearbox programming function to restore the old gearbox data or
write in new data after a new gearbox is replaced.
• Connecting diagnostic system for gearbox programming
Note:
• The USB cable shown in below diagram is not included in the packing
list for now, using a USB cable could effectively enhance your data
transmission speed.
• Certain Vehicle gearboxes are connected based on the real chassis
type, for information how to connect the gearbox, refer to the onscreen
connection diagram.
• Operating on gearbox programming
Below procedure shows you how to perform gearbox programming for a BMW
using SmartSafe diagnostic product, the procedure contains gearbox
connection and erasure of gearbox data.

15
1. Connecting the gearbox.

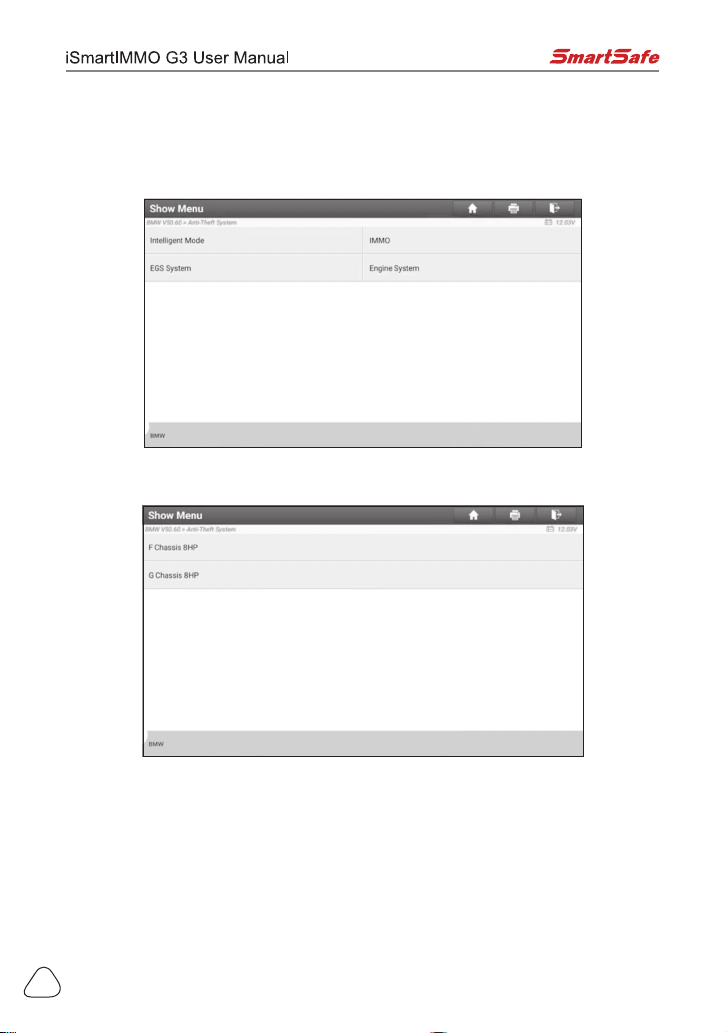

a. On the programmer function interface, touch EGS System to enter gearbox
programming.
b. Touch the correct chassis type.
c. You will then see a corresponding connection diagram. Touch OK.
