Smeed Technologies MERK-EVAC User manual

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.
Instrucon manual
Medical Equipment Rail Kit (MERK) System
MERK-EVAC
P/N ST-MERK-01

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.

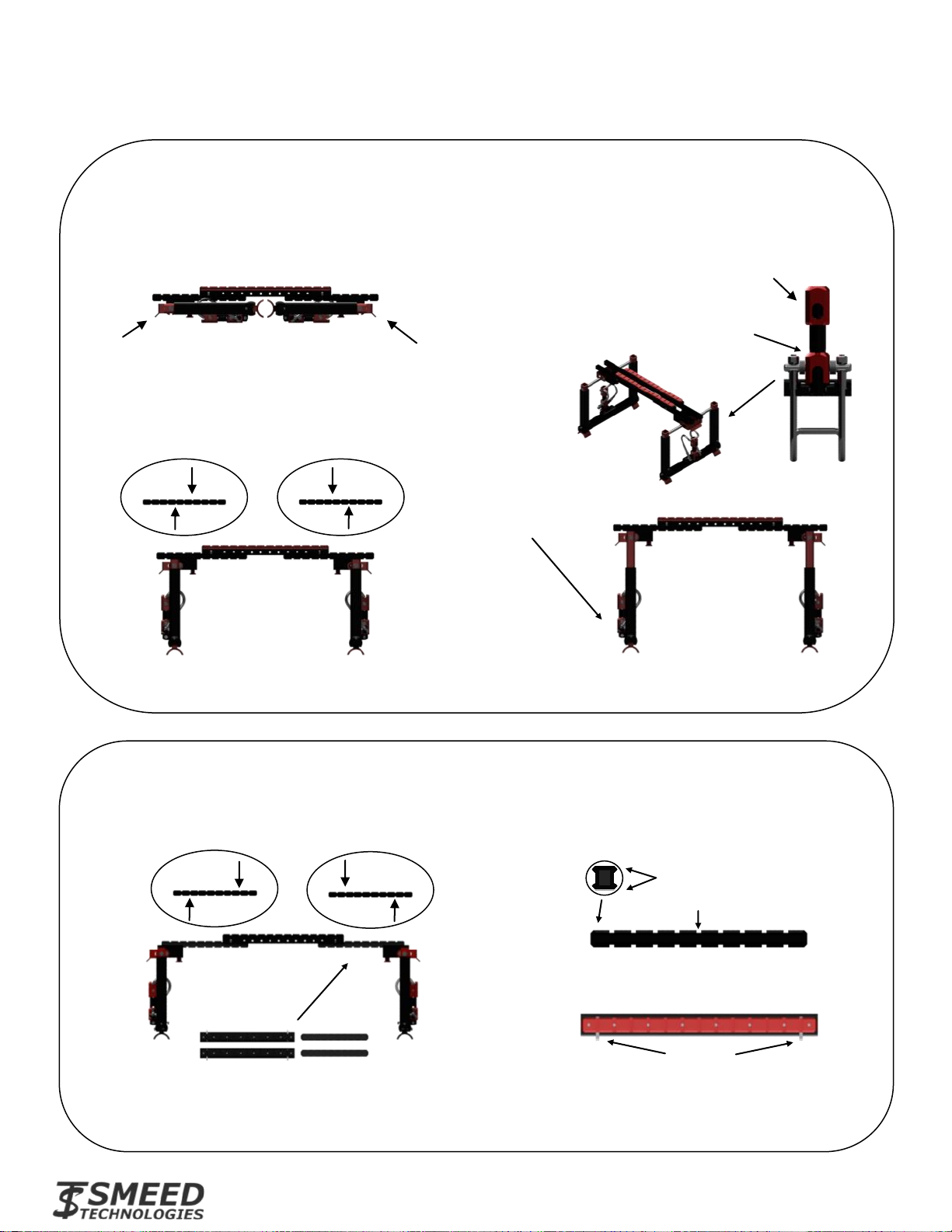

MERK-P: Adjusted for standard width liers of 20 inches:
Adjust 9” bars in the 14” receiver rails and Rapid jump unit receiver slots to achieve the desired
width of system. *Use laser etched (STD LITTER) reference slots.
Release handle Release handle
*Addional rails and receiver rails
can be added to increase width and
strength
MERK-P: Adjusted for Over Sized Lier (OSL) of 28 inch width:
Adjust 9” bars in the 14” receiver rails and Rapid jump unit receiver slots to achieve the desired width
of system. *Use laser etched (OSL LITTER) reference slots.
Medical Equipment Rail Kit (MERK) System
MERK-P (Plaorm)
Slots
Rail on each side
Tab Locks
9”double sided rail
(Qty 4)
14” receiver rail
(Qty 2)
Clamp handle release collar
(Slide up before releasing handle)
Standard width
(Stored posion)
Clamp hook storage release collar
(Slide down to release hooks)
Standard width
(Opened posion) Standard width
(3” height increase)
Push buon height adjustment
(adjust before placing over paent)

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.

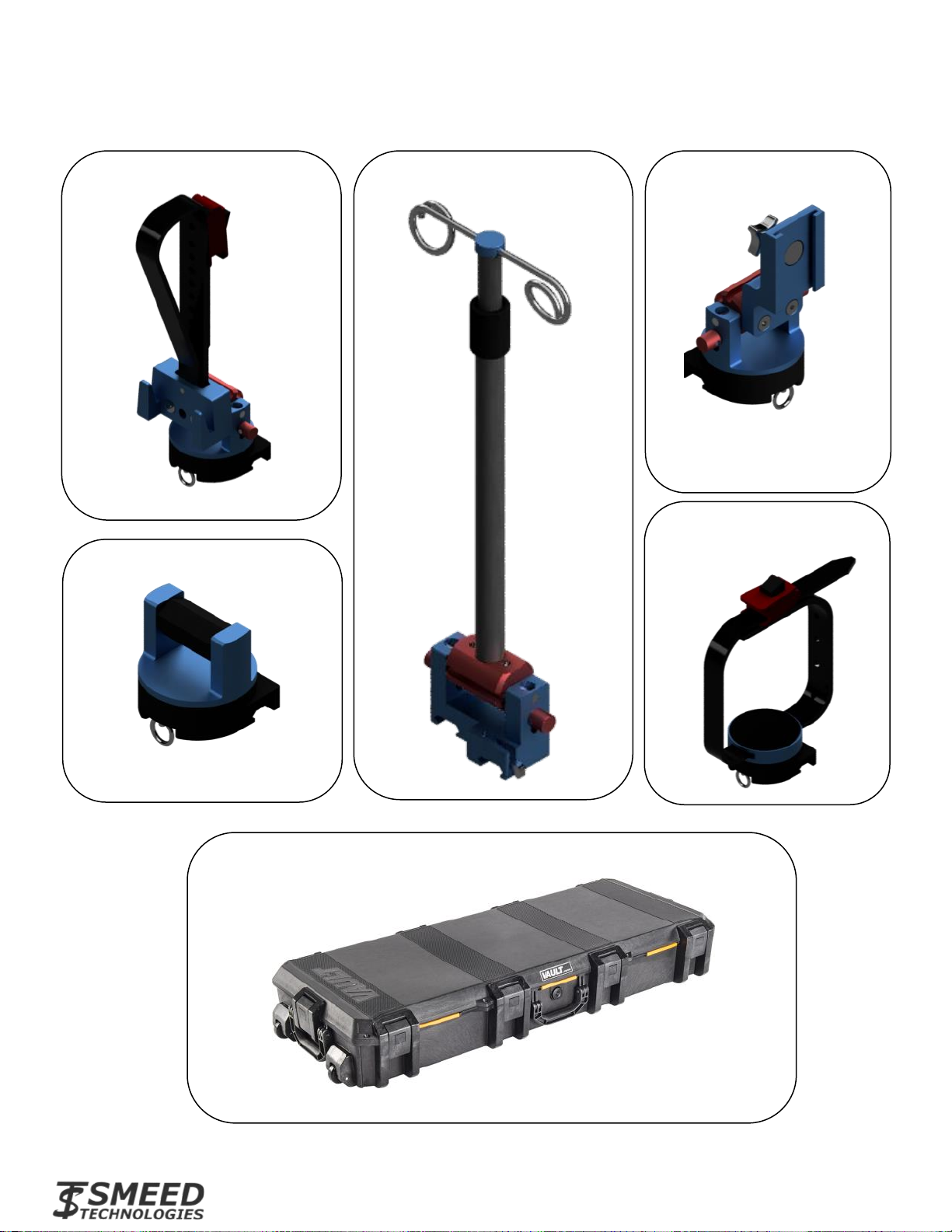

Medical Equipment Rail Kit (MERK) System
Accessory mounts
Propaq M/MD swivel
Infusion pump swivel
 731 Venlator– Zoll
 Zoll 330 Sucon– Zoll
 Treatment Tray
Equipment strap swivel
QTY-2
Infusion pole Bayonet swivel
QTY-2
Care Fusion 3 channel pump
Hard case

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.

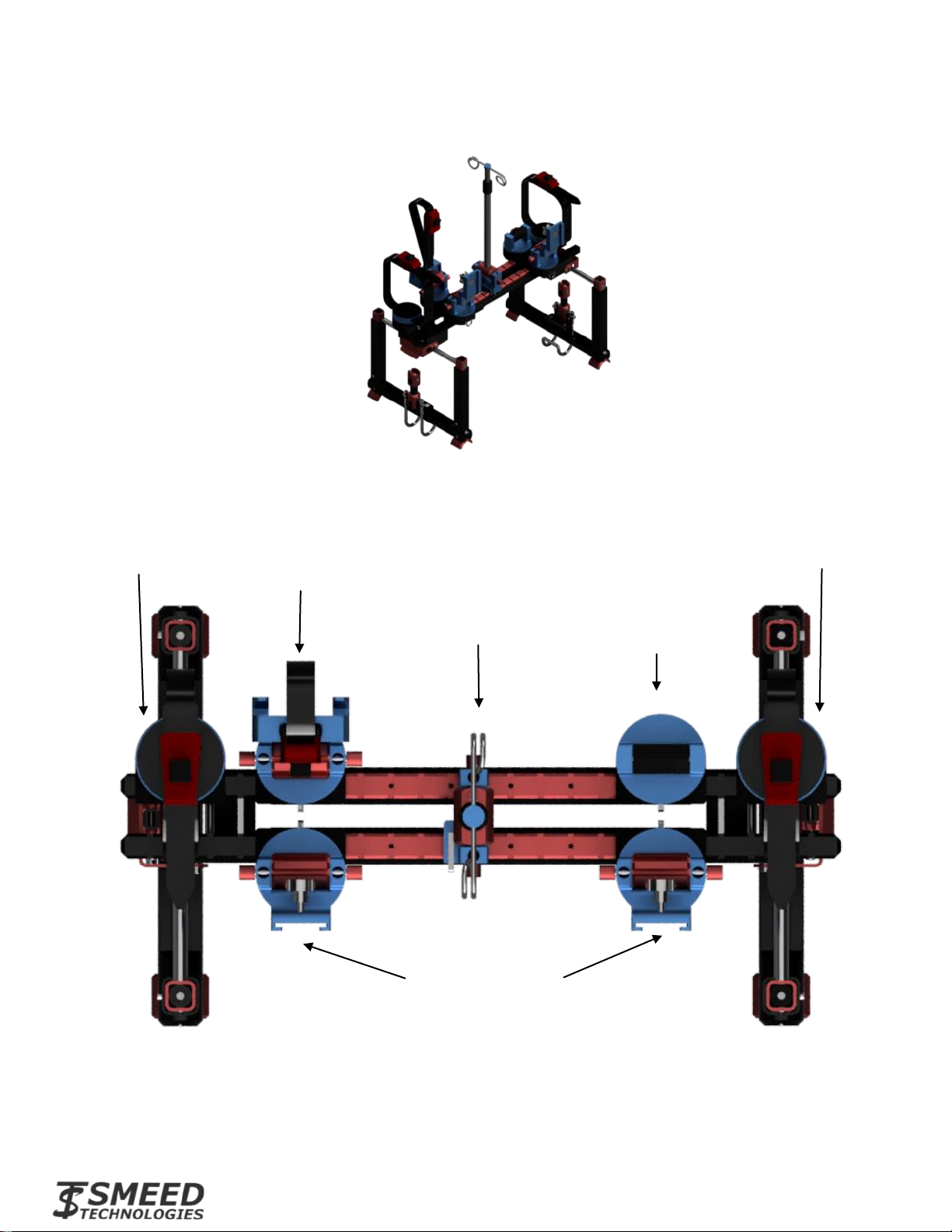

Medical Equipment Rail Kit (MERK)
Accessory layout
Propaq M/MD
Infusion pump
swivel
Bayonet mount
(330 sucon/731 venlator)
IV pole
Equipment strap
swivel
Top View
Equipment strap
swivel

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.
Medical Equipment Rail Kit (MERK) System
Propaq M/MD bayonet swivel
 Mono receiver rail
 Rotatable on main base with 360 degree range and lockable
on 22.5 degree increments
 Rotatable on red barrel with 90 degree range and locks on 45
degree increments
Retaining strap
Buckle
release
Top View
Rotaon
pull ring
Receiver rail
tab lock
Barrel rotaon
slide lock bar
Propaq M/MD
Buckle ratchet
handle Bayonet receiver

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.
 Mono receiver rail
 Rotatable on main base with 360 degree range
and lockable on 22.5 degree increments
 Rotatable on red barrel with 90 degree range
and locks on 45 degree increments
Tightening
knob
Pressure
pad
Medical Equipment Rail Kit (MERK) System
Bayonet swivel
330 Sucon/731 Venlator
Bayonet receiver
slot
Rotaon
pull ring Receiver rail
tab lock
Barrel rotaon
slide lock bar
Bayonet swivels
(330 sucon/731 venlator )
Top View

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.
Medical Equipment Rail Kit (MERK) System
Infusion pump swivel
(Care fusion 3-channel)
Infusion pump swivel
Top View
 Mono receiver rail
 Nylon insert for infusion pump to secure and
limit rotaon
 Rotatable on main base with 360 degree range
and lockable on 22.5 degree increments
Nylon insert
Rotaon
pull ring Receiver rail tab lock

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.
Top View

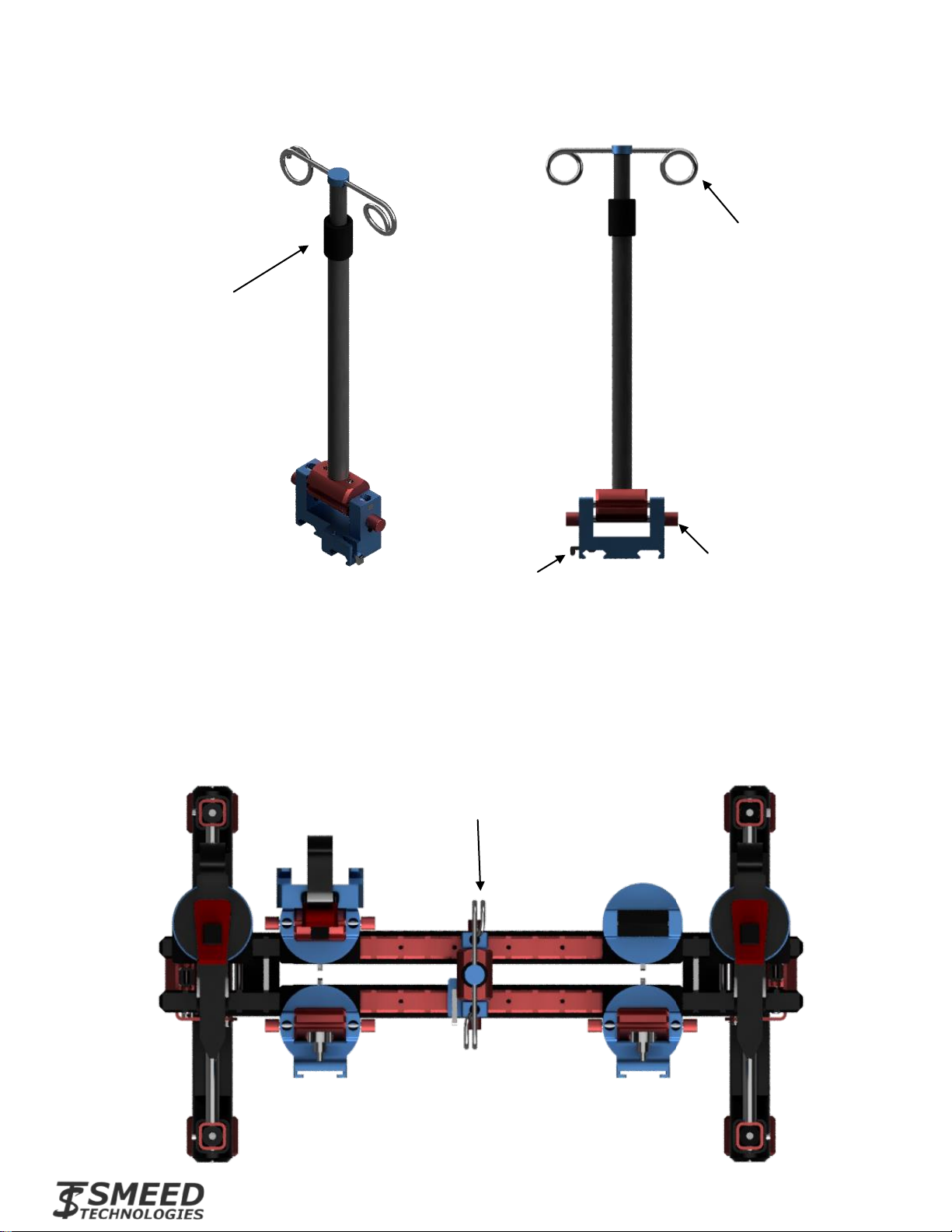

IV Pole
Medical Equipment Rail Kit (MERK) System
IV pole
 Tandem or mono receiver rail
 Telescopic to height of 18 inches
 Compression ring clamp for a variety of height adjustability
 Rotatable on red barrel with 90 degree range and locks on 45 degree increments
Compression
ring clamp
IV bag hooks
Receiver rail
tab lock
Barrel rotaon
slide lock bar

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.
Medical Equipment Rail Kit (MERK) System

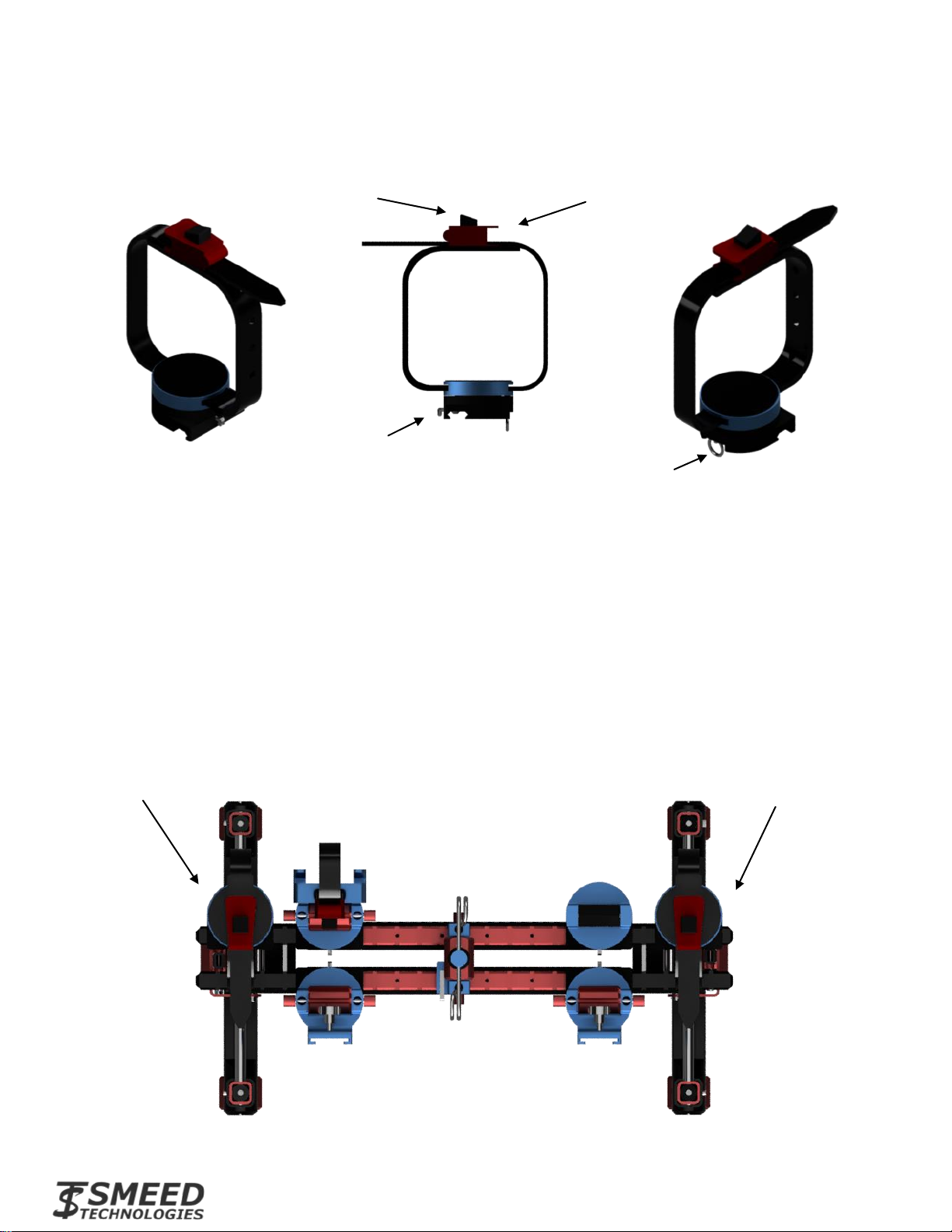

Equipment strap swivel
Top View
Equipment strap
swivel
Equipment strap
swivel
 Mono receiver rail
 Equipment retaining strap with 5 inch working inner diameter
 Single point release and ratchet
 Vibraon damping pad
 Rotatable on main base with 360 degree range and lockable on 22.5 degree increments
Buckle
release
Rotaon
pull ring
Receiver rail
tab lock
5” working
internal
diameter
Buckle ratchet
handle

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.
Medical Equipment Rail Kit (MERK) System

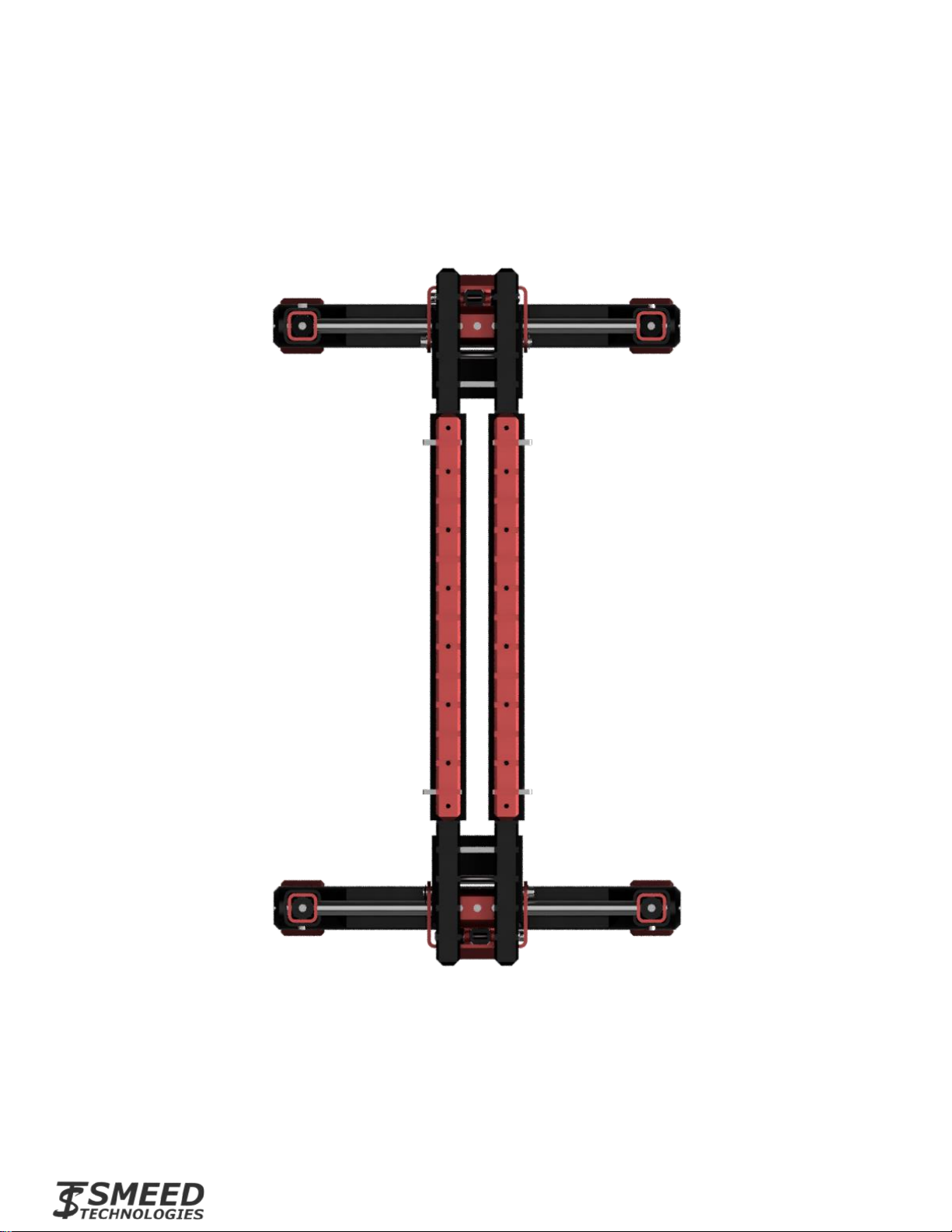

Planning Template
Top View
MERK-P: Adjusted for standard width liers of 20 inches:
Adjust 9” bars in the 14” receiver rails and Rapid jump unit receiver slots to achieve the desired
width of system. *Use laser etched (STD LITTER) reference slots.

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.
Medical Equipment Rail Kit (MERK) System
Planning Template
Top View
MERK-P: Adjusted for Over Sized Lier (OSL) of 28 inch width:
Adjust 9” bars in the 14” receiver rails and Rapid jump unit receiver slots to achieve the desired width of
system. *Use laser etched (OSL LITTER) reference slots.

As of 27 November 2021
2021 SMEED Technologies LLC. This document contains informaon that is proprietary and condenal to SMEED Technologies LLC. Use of this informaon
is under license from SMEED Technologies LLC. Any use other than that authorized by SMEED Technologies LLC is prohibited. SMEED Technologies and the
SMEED Technologies Logo are registered trademarks of SMEED Technologies LLC.
Cleaning and Service
 Wipe down surfaces with disinfectant aer use
 If heavy soiled, wash with warm soapy water, then dry and wipe down surfaces with disinfectant
 Store dry, no lubricants needed
Safety and Warnings
 Do not make height adjustments of the MERK system while the system is over the paent
 Remove MERK system before transferring paent to or from liers
 Wear all personal protecve equipment in accordance with normal ight operaons and standard oper-
ang procedures in accordance with military operaons
Medical Equipment Rail Kit (MERK) System
