Smeg TR4110P1 User manual

Contents
43
EN
1 Instructions 44
1.1 General safety instructions 44
1.2 Manufacturer liability 45
1.3 Appliance purpose 45
1.4 Disposal 45
1.5 Identification plate 46
1.6 This user manual 46
1.7 How to read the user manual 46
2 Description 47
2.1 General description 47
2.2 Cooking hob 48
2.3 Control panel 48
2.4 Other parts 50
2.5 Available accessories 50
3 Use 52
3.1 Instructions 52
3.2 First use 53
3.3 Using the accessories 53
3.4 Using the hob 54
3.5 Teppanyaki plate 55
3.6 Using the storage compartment 56
3.7 Using the ovens 56
3.8 Cooking advice 58

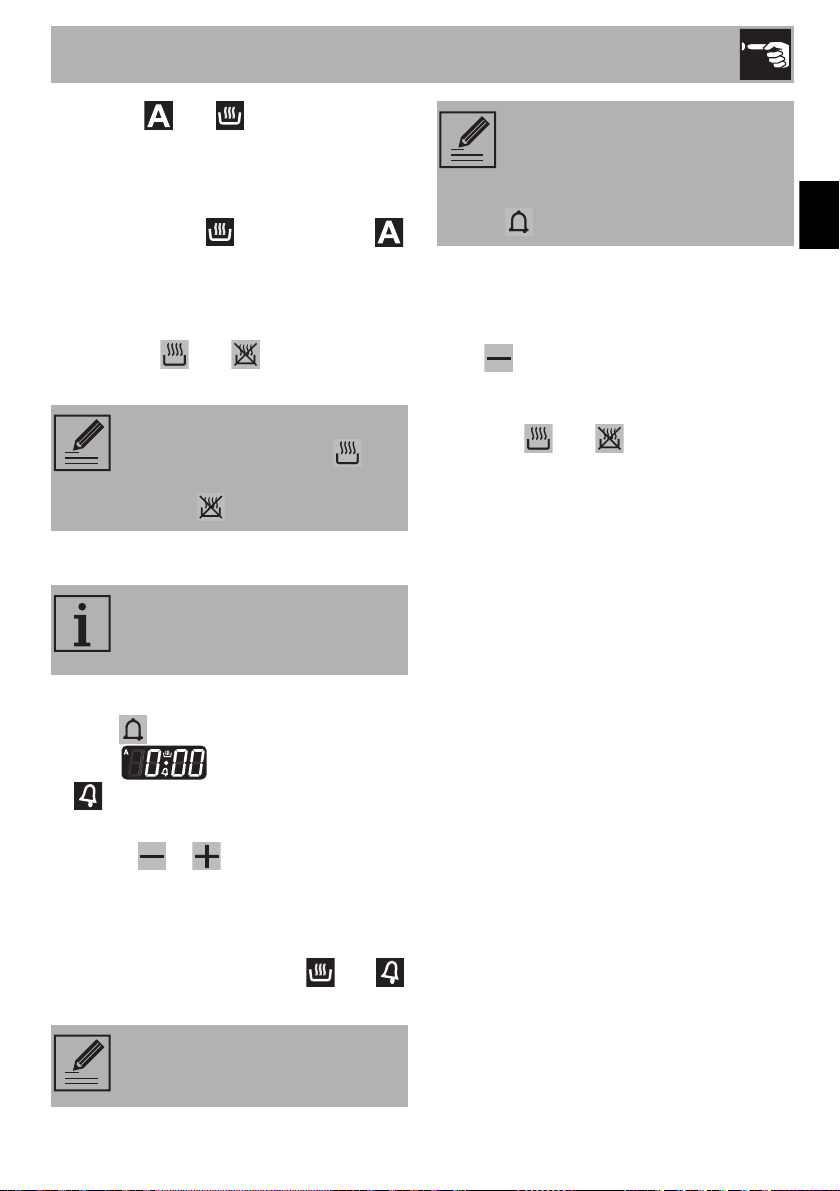

3.9 Programming clock 59
4 Cleaning and maintenance 63
4.1 Instructions 63
4.2 Cleaning the appliance 63
4.3 Removing the door of the auxiliary oven 64
4.4 Cleaning the door glazing 65
4.5 Removing the internal glass panels 65
4.6 Cleaning the inside of the oven 67
4.7 Vapor Clean: assisted oven cleaning 68
4.8 Extraordinary maintenance 70
5 Installation 71
5.1 Gas connection 71
5.2 Adaptation to different types of gas 74
5.3 Electrical connection 78
5.4 Positioning 79
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com

Instructions
44
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance and its
accessible parts become very hot.
• Never touch the heating elements
during use.
• Keep children under eight years of
age at a safe distance if they are not
constantly supervised.
• Children must never play with the
appliance.
• Never rest metallic objects such as
knives, forks, spoons and lids on the
appliance during use.
• Switch the appliance off immediately
after use.
• Never try to put out a fire or flames
with water: turn off the appliance and
smother the flames with a fire blanket
or other appropriate cover.
• The appliance must never be cleaned
by unsupervised children.
• Have qualified personnel carry out
installation and assistance
interventions according to the
standards in force.
• Do not modify this appliance.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in the
appliance.
• Do not try to repair the appliance
yourself or without the intervention of
a qualified technician.
• If the power supply cable is
damaged, contact technical support
immediately and they will replace it.
Risk of damaging the appliance
• Do not use abrasive or corrosive
detergents on glass parts (e.g.
powder products, stain removers and
metallic sponges).
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use steam jets for cleaning the
appliance.
• Do not obstruct ventilation openings
and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations where fats or oils could be
released.
• Never leave objects on the cooking
surface.
• Do not use the appliance to heat
rooms for any reason.

Instructions
45
EN
For this appliance
• Ensure that the appliance is switched off
before replacing the bulb.
• Do not rest any weight or sit on the open
door of the appliance.
• Take care that no objects are stuck in the
doors.
1.2 Manufacturer liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than the one
envisaged;
• non-observance of the user manual
provisions;
• tampering with any part of the
appliance;
• use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for cooking
food in the home environment. Every
other use is considered improper.
• This appliance may be used by children
aged at least 8 and by people of
reduced physical and mental capacity,
or lacking in experience in the use of
electrical appliances, as long they are
supervised or instructed by adults who
are responsible for their safety.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Disposal
This appliance must be disposed of
separately from other waste
(Directives 2002/95/EC, 2002/
96/EC, 2003/108/EC). The appliance
does not contain substances in quantities
sufficient to be considered hazardous to
health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and remove
it along with the plug.
• Consign the appliance to the
appropriate selective collection centres
for electrical and electronic equipment
waste, or deliver it back to the retailer
when purchasing an equivalent product,
on a one for one basis.
Power voltage
Danger of electrocution
• Disconnect the main power supply.
• Disconnect the power cable from the
electrical system.

Instructions
46
Our appliances are packed in non-
polluting and recyclable materials.
• Consign the packing materials to the
appropriate selective collection centres.
1.5 Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
1.6 This user manual
This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and in an accessible place for the
whole working life of the appliance.
Read this user manual carefully before using
the appliance.
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Use instruction sequence.
• Single use instruction.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the
packaging plastic bags.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories,
cooking advice.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: installation, operation
and inspection.
Safety instructions
Information
Advice

Description
47
EN
2 Description

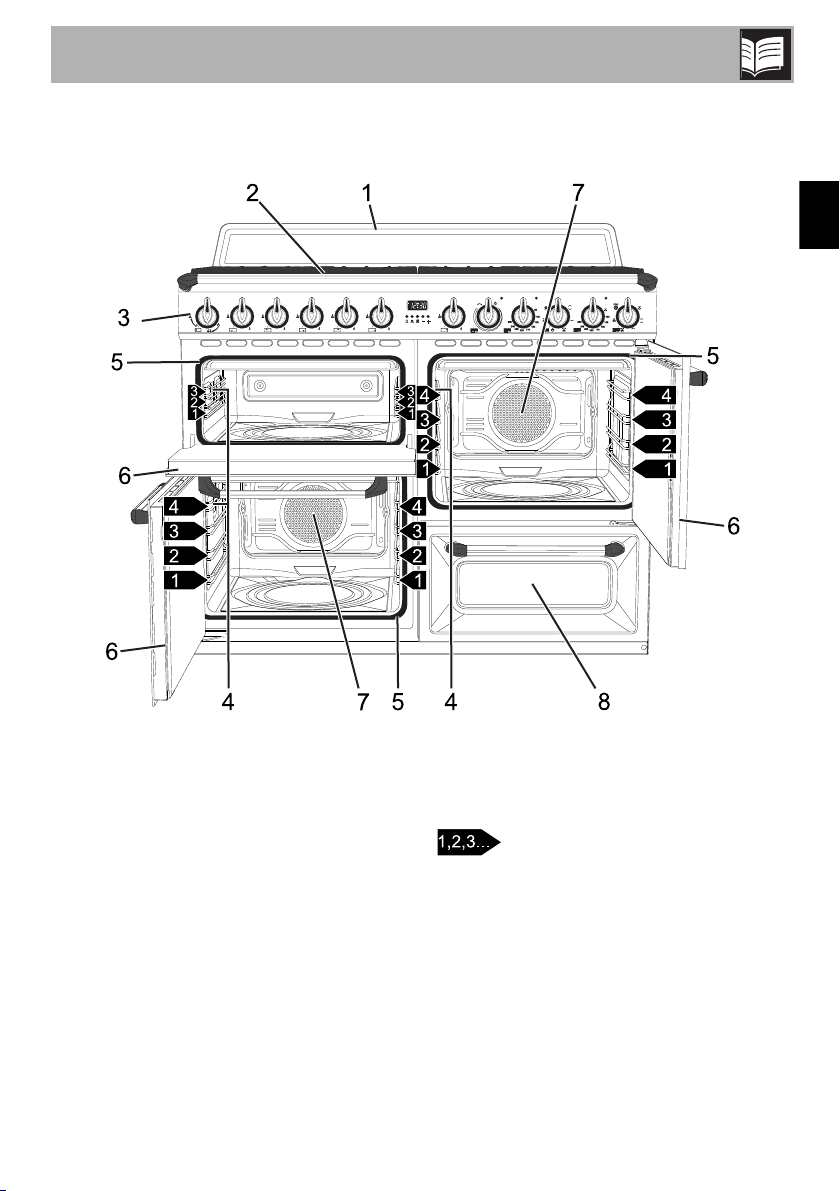

2.1 General description
1 Skirt
2 Cooking hob
3 Control panel
4 Oven light
5 Seal
6 Door
7 Fan
8 Storage compartment
Shelf for racks/trays support
frames

Description
48

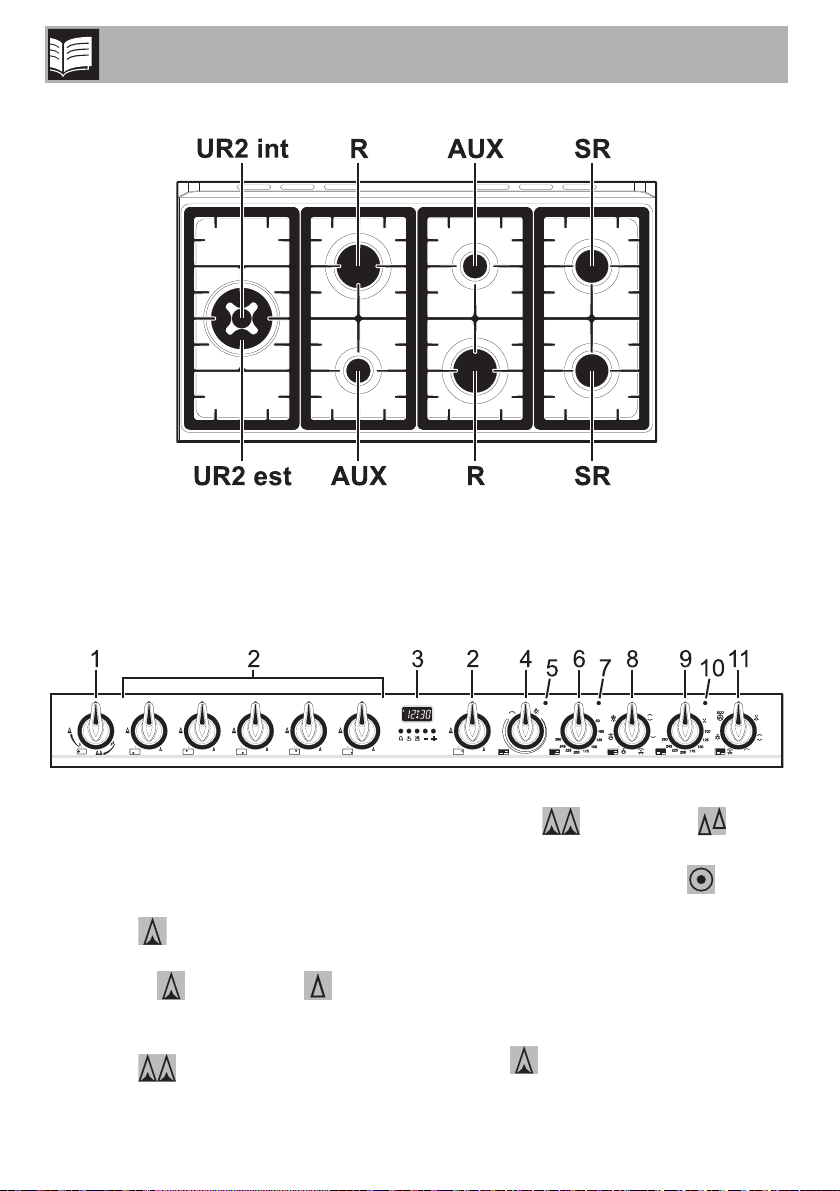

2.2 Cooking hob
AUX = Auxiliary
SR = Semi-rapid
R = Rapid
UR2 int. = Ultra rapid internal crown
UR2 est. = Ultra rapid external crown
2.3 Control panel
Ultra rapid burner knob (1)
Useful for lighting and adjusting the ultra
rapid burner.
Press and turn the knob anti-clockwise to
the symbol to light the burner internal
crown. Turn the knob to the zone between
the maximum and minimum setting
to adjust the flame.
Press and turn the knob anti-clockwise to
the symbol to light the burner external
crown. Turn the knob to the zone between
the maximum and minimum setting
to adjust the flame.
Press and return the knob to the position
to turn off the burner.
Hob burner knobs (2)
Useful for lighting and adjust the hob
burners.
Press and turn the knobs anti-clockwise to
the value to light the relative burners.
Turn the knobs to the zone between the

Description
49
EN
maximum and minimum setting to
adjust the flame.
Return the knobs to the position to turn
off the burners.

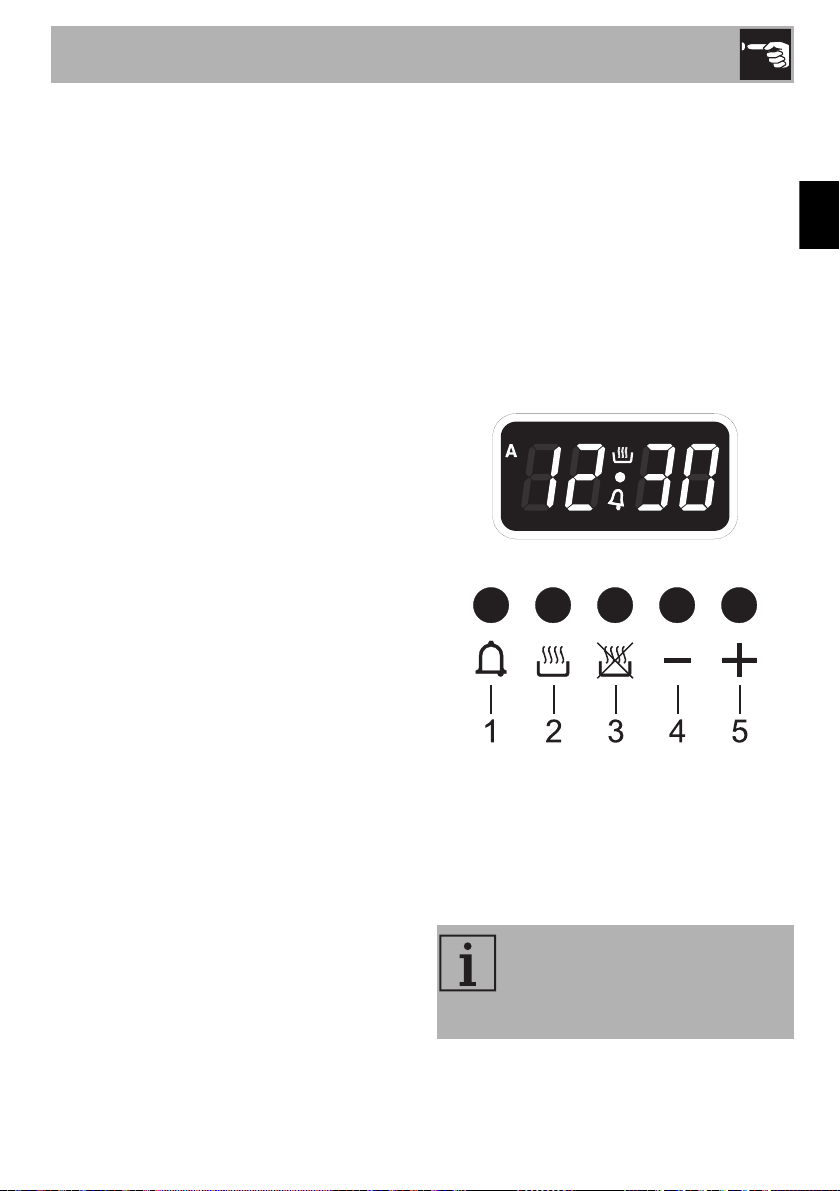

Programming clock (3)
Useful for displaying the current time, set
programmed cooking operations and
program the timer.
Auxiliary oven variable grill knob (4)
It turns on the light inside the oven or starts
the grill heating element to a temperature
ranging from a minimum of 50°C to a
maximum of 245°C.
Auxiliary oven variable grill indicator
light (5)
The indicator light comes on to indicate that
the auxiliary oven is heating up. It turns off
as soon as it reaches the set temperature. It
flashes regularly to indicate that the
temperature set inside the oven is kept
constant.
Lower multifunction oven temperature
knob (6)
This knob allows you to select the cooking
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
settings.
Lower multifunction oven indicator light
(7)
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
Lower multifunction oven function knob
(8)
The oven's various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.
Upper multifunction oven temperature
knob (9)
This knob allows you to select the cooking
temperature and the Vapor Clean
temperature.
Turn the knob clockwise to the required
value, between the minimum and maximum
settings.
Upper multifunction oven indicator light
(10)
The indicator light comes on to indicate that
the oven is heating up. It turns off as soon as
it reaches the set temperature. It flashes
regularly to indicate that the temperature set
inside the oven is kept constant.
Upper multifunction oven function knob
(11)
The oven's various functions are suitable for
different cooking modes. After selecting the
required function, set the cooking
temperature using the temperature knob.

Description
50
2.4 Other parts
Oven shelves
The oven features shelves for positioning
trays and racks at different heights. The
insertion heights are indicated from the
bottom upwards (see 2.1 General
description).
Cooling fan
The fan cools the ovens and comes into
operation during cooking.
The fan causes a steady outflow of air that
exits from the rear of the appliance and
which may continue for a brief period of
time even after the appliance has been
turned off.
Internal light
The internal light of the ovens comes on
when any function is selected.
2.5 Available accessories
Rack
Useful for holding cooking containers.
Tray rack
To be placed over the top of the oven tray;
for cooking foods which may drip.
Oven tray
Useful for collecting fat from foods placed
on the rack above.
Some models are not provided
with all accessories.

Description
51
EN

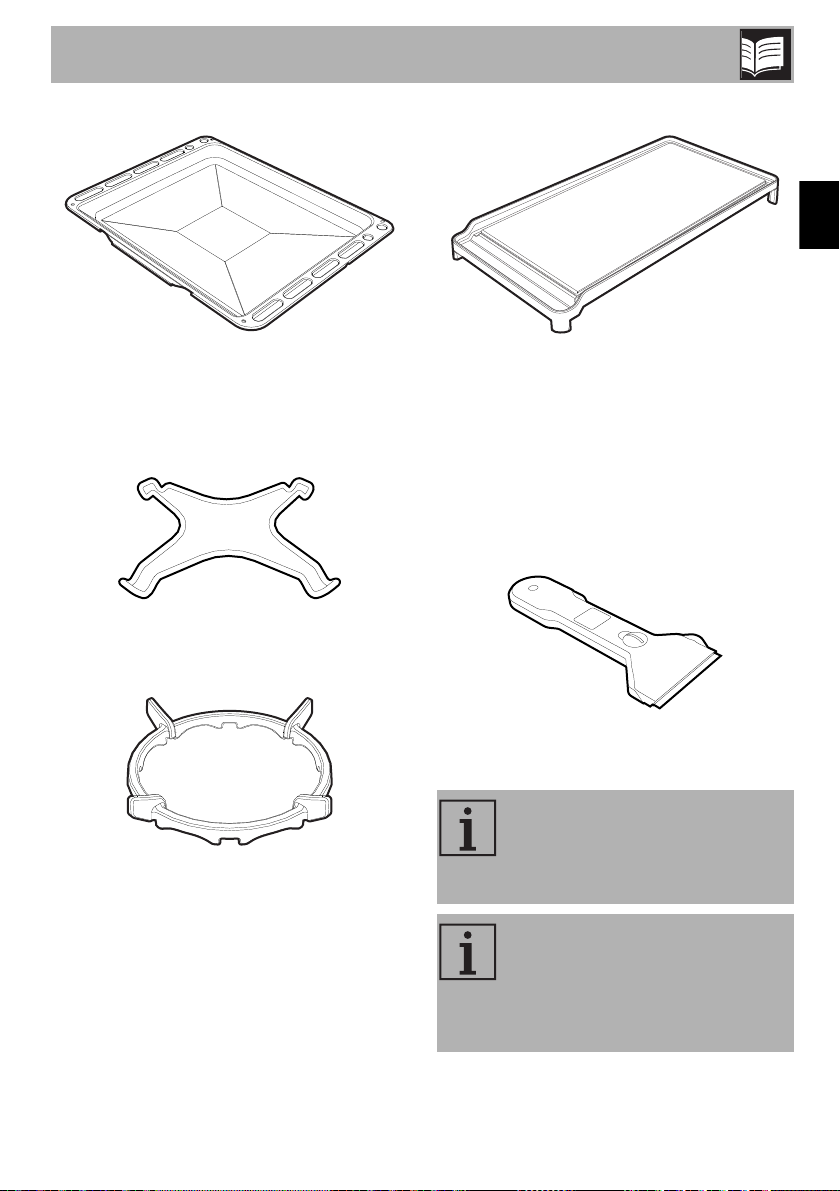

Deep tray
Useful for collecting fat from foods placed
on the rack above and for cooking pies,
pizzas and baked desserts.
Reduction pan stand
Useful when using small cookware.
WOK Reduction pan stand
Useful when using a wok.
Teppanyaki plate
Useful for cooking meat, fish and
vegetables directly on the plate without
adding fats or oils, staying true to the
tradition of Japanese cuisine that seeks to
exalt the natural flavours and aromas of
food ensuring light nourishment while
preserving all nutritional elements.
Scraper
Useful for cleaning the Teppanyaki plate.
Do not use on other surfaces.
The accessories intended to come
into contact with food are made of
materials that comply with the
provisions of current legislation.
Original and optional accessories
can be requested to Authorised
Assistance Centres. Use only
original accessories supplied by
the manufacturer.

Use
52
3 Use
3.1 Instructions
High temperature inside the oven
during use
Danger of burns
• Keep the oven door closed during
cooking.
• Protect your hands using heat resistant
gloves when moving food inside the
oven.
• Do not touch the heating elements inside
the oven.
• Do not pour water directly on very hot
trays.
• Do not allow children younger than 8
year old to come near the appliance
when in operation.
• If you need to move food or at the end
of cooking, open the door 5 cm for a
few seconds, let the steam come out,
then open it fully.
High temperature inside the
storage compartment
Danger of burns
• Do not open the storage compartment
when the oven is on and still hot.
• The items inside the storage
compartment could be very hot after
using the oven.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
housings with their respective burner
caps.
• Oils and fat could catch fire if
overheated. Be very careful.
High temperature inside the oven
during use
Danger of fire or explosion
• Do not spray any spray products near
the oven.
• Do not use or leave flammable materials
near the oven or the storage
compartment.
• Do not use plastic kitchenware or
containers when cooking food.
• Do not put sealed tins or containers in
the oven.
• Do not leave the oven unattended
during cooking operations where fats or
oils could be released.
• Remove from the oven compartment all
trays and racks not used during cooking.
