Smeg PX375AU User manual

Contents
3
EN
1 Instructions 4
1.1 General safety instructions 4
1.2 Manufacturer liability 7
1.3 Appliance purpose 7
1.4 Disposal 8
1.5 Identification plate 8
1.6 This user manual 8
1.7 How to read the user manual 9
2 Description 10
2.1 General Description 10
2.2 Symbols 11
3 Use 12
3.1 Instructions 12
3.2 First use 13
3.3 Using the cooktop 13
4 Cleaning and maintenance 16
4.1 Instructions 16
4.2 Cleaning the appliance 16
5 Installation 18
5.1 Clearances above and around domestic appliances 18
5.2 Safety instructions 19
5.3 Section cut from the work surface 20
5.4 Mounting 22
5.5 Fixing using brackets 23
5.6 Gas connection 24
5.7 Adaptation to different types of gas 27
5.8 Electrical connection 31
5.9 Instructions for the installer 32
We advise you to read this manual carefully, as it contains all the instructions for maintaining
the appliance’s aesthetic and functional qualities.
For further information on the product: www.smeg.com 02 8667 4833
These instructions apply only to the destination countries listed on the appliance's data
plate.
This is a class 3 built-in hob.

Instructions
4
1 Instructions
1.1 General safety instructions
Risk of personal injury
• During use the appliance
becomes hot. Care should be
taken to avoid touching heating
elements inside the oven.
• WARNING - Accessible parts will
become hot when in use. To avoid
burns young children should be
kept away.
• Never try to put out a fire or flames
with water: turn off the appliance
and smother the flames with a fire
blanket or other appropriate
cover.
• The appliance is not intended for
use by persons (including children)
with reduced physical, sensory or
mental capabilities, or lack of
experience and knowledge,
unless they have been given
supervised or instruction
concerning use of the appliance
by a responsible person for their
safety.
• Young children should be
supervised to ensure that they do
not play with the appliance.
• Keep children under eight years of
age at a safe distance if they are
not constantly supervised.
• Do not allow children younger
than 8 years old to come near the
appliance when in operation.
• Cleaning and maintenance must
not be carried out by unsupervised
children.
• Make sure that the flame-spreader
crowns are correctly positioned in
their housings with their respective
burner caps.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Fats and oils can catch fire if they
overheat. Do not leave the
appliance unattended while
preparing foods containing oils or
fats. If fats or oils catch fire, never
put water on them. Place the lid on
the pan and turn off the relevant
cooking zone.
• Warning – Unattended cooking
on a hob with fat or oil can be
dangerous and may result in a fire.
• CAUTION – The cooking process
has to be supervised. A short term
cooking process has to be
supervised continuously.
• When in use, do not place metal
objects, such as dishes or cutlery,
on the surface of the cooktop as
they may overheat.
• Do not insert pointed metal objects
(cutlery or utensils) into the slots in
the appliance.

Instructions
5
EN
• DO NOT USE OR STORE
FLAMMABLE MATERIALS NEAR
THE APPLIANCE.
• NEVER USE AEROSOL CANS
NEAR THE APPLIANCE WHILE IT
IS IN OPERATION.
• Switch the appliance off
immediately after use.
• DO NOT MODIFY THIS
APPLIANCE.
• Before carrying out any work on
the appliance (installation,
maintenance, positioning or
moving), wear personal protective
equipment.
• Before carrying out any work on
the appliance, disconnect the
mains power supply.
• Have authorised persons carry out
installation and assistance
interventions according to the
standards in force.
• Do not try to repair the appliance
yourself or without the intervention
of authorised persons.
• Do not pull the cable to remove
the plug.
• If the power supply cable is
damaged, contact technical
support immediately and they will
replace it.
Risk of damaging the appliance
• Use wooden or plastic utensils.
• Do not seat on the appliance.
• Do not use steam jets to clean the
appliance.
• Do not obstruct ventilation
openings and heat dispersal slots.
• Never leave the appliance
unattended during cooking
operations in which fats or oils
could be released that could
overheat and catch fire. Be very
careful.
• Danger of fire – Do not store items
on the cooking surface.
• DO NOT USE THE APPLIANCE
AS A SPACE HEATER.
• DO NOT PLACE ARTICLES ON
OR AGAINST THIS APPLIANCE.
• NOT SUITABLE FOR USE WITH
AFTERMARKET LIDS OR
COVERS.
• Do not spray any spray products
near the oven.
• Do not use plastic kitchenware or
containers when cooking food.
• All cookware must have smooth,
flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the
cooktop.

Instructions
6
• Take care not to spill acidic
substances such as lemon juice or
vinegar onto the cooktop.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use a steam cleaner to
clean this appliance.
• Do not use harsh abrasive
cleaners or sharp metal scrapers
to clean glass since they can
scratch the surface, which may
result in shattering of the glass.
• Do not use cleaning products
containing chlorine, ammonia or
bleach on steel parts or parts with
metallic surface finishes (e.g.
anodizing, nickel- or chromium-
plating).
• Do not wash the removable
components such as the cooktop
pan stands, flame-spreader
crowns and burner caps in a
dishwasher.
• Do not wash removable parts
such as the cooktop grids, flame-
spreader crowns and burner caps
in the dishwasher.
Installation
• TTHIS APPLIANCE MUST NOT
BE INSTALLED IN BOATS OR
CARAVANS.
• The appliance must not be
installed on a stand.
• Position the appliance into the
cabinet cutout with the help of a
second person.
• To prevent overheating, the
appliance must not be installed
behind a decorative door or a
panel.
• The gas connection should be
carried out by authorised persons.
• Installation with flexible hose must
be carried out so that the length of
the piping does not exceed 2 metres
when fully extended as regards
flexible steel hoses and 1.5 metres
in case of rubber hoses.
• The hoses should not come into
contact with moving parts and
should not be crushed in any way.
• If required, use a pressure
regulator that complies with
current regulations.
• After carrying out any operation,
check that the tightening torque of
gas connections is between 10 Nm
and 15 Nm.
• At the end of the installation, check
for any leaks with a soapy
solution, never with a flame.
• Have the electrical connection
performed by authorised persons.
• The appliance must be connected
to earth in compliance with
electrical system safety standards.

Instructions
7
EN
• Use cables withstanding a
temperature of at least 90°C.
• The tightening torque of the screws
of the terminal supply wires must
be 1.5 - 2 Nm.
• Before installation, make sure that
the local gas supply (gas type and
pressure) and the settings of the
domestic appliance are
compatible.
• The settings for this domestic
appliance are shown on the gas
setting label.
• This domestic appliance is not
connected to a device for
extracting combustion products. It
must be installed and connected in
accordance with current
installation regulations. Pay
particular attention to the relevant
requirements regarding ventilation.
• If the electrical supply is restricted,
means of all-pole disconnection
must be accessible and
incorporated in the fixed wiring in
accordance with the wiring rules.
For this appliance
• Do not obstruct ventilation
openings and heat dispersal slots.
• Do not insert pointed metal
objects (cutlery or utensils) into
the slots in the appliance.
• This appliance is not intended to
be operated by means of external
timer or separate remote control
system.
1.2 Manufacturer liability
The manufacturer declines all liability
for damage to persons or property
caused by:
• use of the appliance other than
the one envisaged,
• failure to comply with the
instructions in the user manual,
• tampering with any part of the
appliance,
• use of non-original spare parts.
1.3 Appliance purpose
• This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate.
• The appliance is not designed to
operate with external timers or with
remote-control systems.
1.4 Disposal
This appliance conforms to the
WEEE European directive
(2012/19/EU) and must be
disposed of separately from other
waste at the end of its service life.

Instructions
8
The appliance does not contain
substances in quantities sufficient to
be considered hazardous to health
and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power supply cable and
remove it along with the plug.
• Deliver the appliance to the
appropriate recycling centre for
electrical and electronic
equipment waste, or return it to the
retailer when purchasing an
equivalent product, on a one for
one basis.
Our appliances are packaged in
non-polluting and recyclable
materials.
• Deliver the packing materials to
the appropriate recycling centre.
1.5 Identification plate
The identification plate bears the
technical data, serial number and
brand name of the appliance. Do not
remove the identification plate for
any reason.
1.6 This user manual
This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the
user’s reach for the whole working
life of the appliance. Read this user
manual carefully before using the
appliance.
Place the supplied duplicate data
plate to a suitable adjacent surface
or within the instruction manual for
future reference.
Power voltage
Danger of electrocution
• Disconnect the mains power
supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or
any part of it unattended.
• Do not let children play with the
packaging plastic bags.

Instructions
9
EN
1.7 How to read the user manual
This user manual uses the following reading
conventions:
1. Sequence of instructions for use.
• Standalone instruction.
Instructions
General information on this user
manual, on safety and final
disposal.
Description
Description of the appliance and its
accessories.
Use
Information on the use of the
appliance and its accessories.
Cleaning and maintenance
Information for proper cleaning and
maintenance of the appliance.
Installation
Information for the qualified
technician: Installation, operation
and inspection.
Safety instructions
Information
Advice

Description
10
2 Description

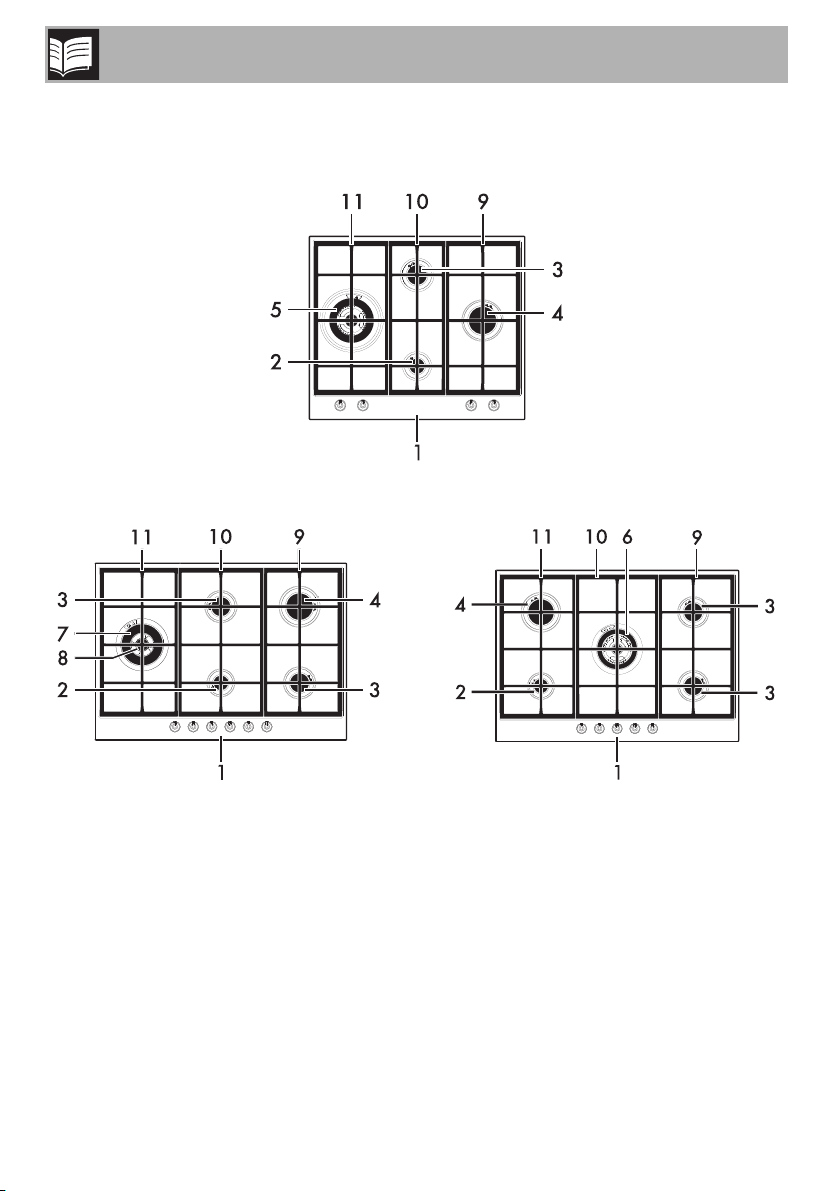

2.1 General Description
60 cm
70 cm side UR
1. Control panel
2. Auxiliary burner (AUX)
3. Semi-rapid burner (SR)
4. Rapid burner reduced (RR)
5. Ultra-rapid triple crown burner (UR*)
6. Ultra-rapid triple crown burner (UR)
70 cm central UR
7. Ultra-rapid burner with external crown
(UR2 ext.)
8. Ultra-rapid burner with internal crown
(UR2 int.)
9. Right grid
10. Central grid
11. Left grid

Description
11
EN

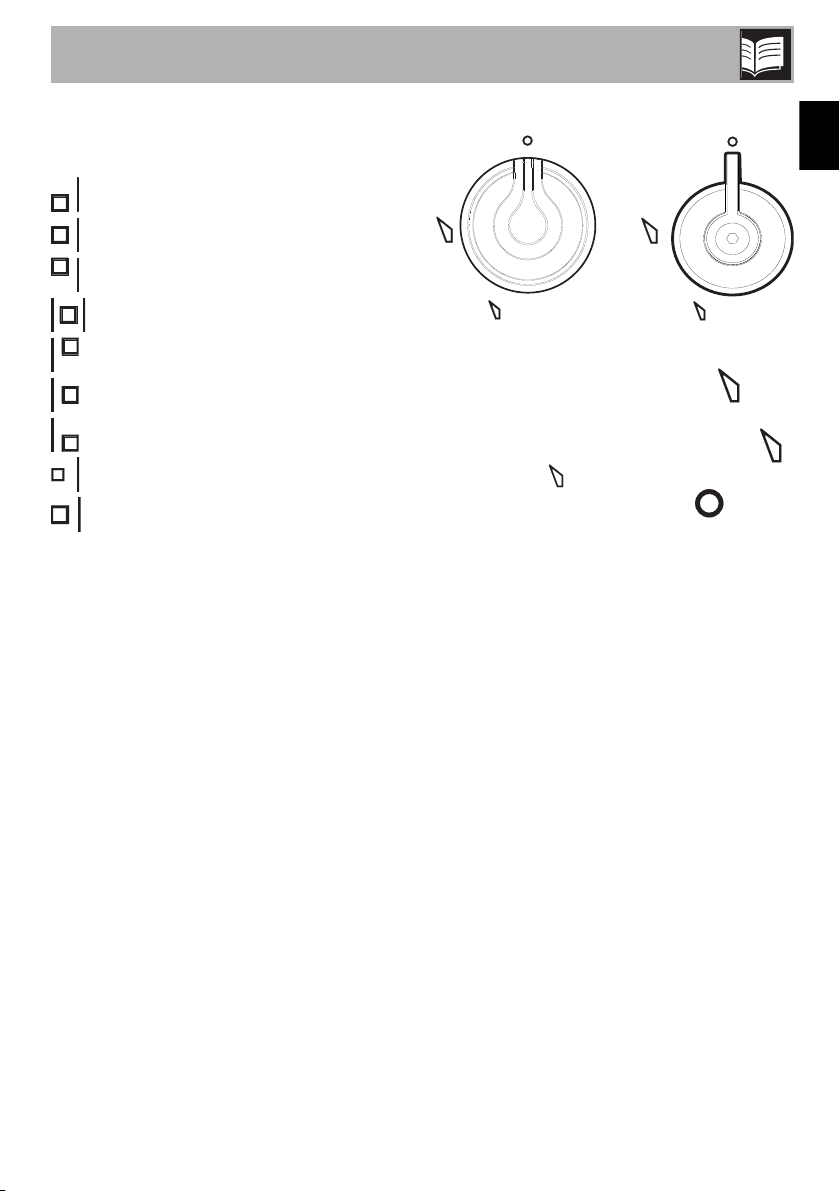

2.2 Symbols
Cooking zones
Front left
Centre left
Rear left
Central
Rear right
Central right
Front right
Internal lateral
External lateral
Burner knobs
For lighting and adjusting the burners. Press
and turn the knobs anti-clockwise to in
order to light the relative burners. Turn the
knobs to the zone between the maximum
and minimum setting to adjust the flame.
Return the knobs to the position to turn
off the burners.

Use
12
3 Use
3.1 Instructions
Escaping gas may cause an explosion.
If you smell gas or notice any faults in the
gas installation:
• Immediately shut off the gas supply or
close the gas cylinder valve.
• Immediately extinguish all naked flames
and cigarettes.
• Do not use any light or appliance
switches and do not pull any plugs out of
sockets. Do not use any telephones or
mobile phones within the building.
• Open windows and ventilate the room.
• Call the aftersales service or the gas
supplier.
Abnormal operation
Any of the following are considered to be
abnormal operation and may require
service:
• Yellow tipping of the hotplate burner
flame.
• Sooting up of cooking utensils.
Improper use
Danger of burns
• Make sure that the flame-spreader
crowns are correctly positioned in their
seats with their respective burner caps.
• Oils and fats could catch fire if
overheated. Be very careful.
• Do not leave the appliance unattended
during cooking operations where fats or
oils could be released.
• Do not spray any spray product near the
appliance.
• Do not touch the appliance’s heating
elements when it is running. Leave them
to cool before cleaning.
• Keep children under the age of 8 away
from the appliance when it is in use.
Improper use
Risk of damage to surfaces
• Do not use aluminium foil to cover the
burners or hob body.
• Cooking vessels or griddle plates
should be placed inside the perimeter of
the cooktop.
• All pans must have smooth, flat bottoms.
• If any liquid does boil over or spill,
remove the excess from the cooktop.
• It is not recommended to use
earthenware or steatite (soapstone)
pans to cook or heat food.
IMPROPER USE
RISK OF FIRE OR EXPLOSION
• DO NOT SPRAY AEROSOLS IN THE
VICINITY OF THIS APPLIANCE WHILE
IT IS IN OPERATION.
• DO NOT USE FLAMMABLE
MATERIALS NEAR THIS APPLIANCE.
• DO NOT PLACE ARTICLES ON OR
AGAINST THIS APPLIANCE.
• DO NOT MODIFY THIS APPLIANCE.
• DO NOT USE THIS APPLIANCE AS A
SPACE HEATER.
• NOT SUITABLE FOR USE WITH
AFTERMARKET LIDS OR COVERS.

Use
13
EN
• Burners not igniting properly.
• Burners failing to remain alight.
• Burners extinguishing whilst in operation.
• Gas valves with are difficult to turn.
In case the appliance fails to operate
correctly, contact the Authorised Assistance
Centre in your area.
3.2 First use
1. Remove any protective film from the
outside or inside of the appliance,
including accessories.
2. Remove any labels (apart from the
technical data plate) from accessories.
3. Remove and wash all the appliance's
accessories (see 4 Cleaning and
maintenance).
3.3 Using the cooktop
All the appliance’s control and monitoring
devices are located together on the front
panel. The burner controlled by each knob
is shown next to the knob. The appliance is
equipped with an electronic ignition device.
Simply press the knob and turn it anti-
clockwise to the maximum flame symbol,
until the burner ignites. If the burner does not
light in the first 15 seconds, turn the knob to
and wait 60 seconds before trying
again. After lighting, keep the knob pressed
in for a few seconds to allow the
thermocouple to heat up. The burner may
go out when the knob is released: In this
case, the thermocouple has not heated up
sufficiently.
Wait a few moments and repeat the
operation. Keep the knob pressed in
longer.
Correct positioning of the flame-
spreader crowns and burner caps
Before lighting the cooktop burners, make
sure that the flame-spreader crowns are
correctly positioned in their housings with
their respective burner caps. Make sure that
the holes in the burners are aligned with the
igniters and thermocouples. Also ensure that
the flame-spreader crowns are correctly
engaged in the burner holes.
In case of an accidental switching
off, a safety device will be tripped,
cutting off the gas supply, even if
the gas tap is open. Return the
knob to and wait at least
60 seconds before lighting it
again.

Use
14

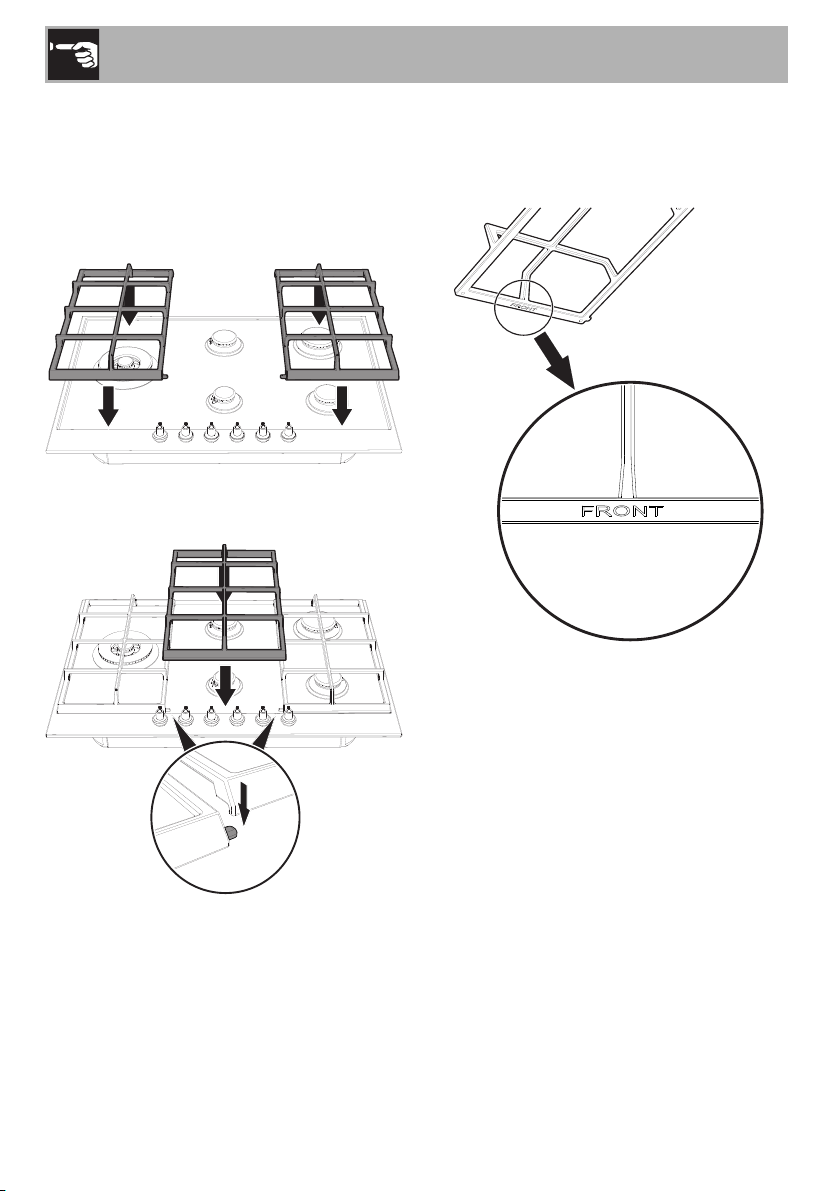

Correct positioning of the grids
To install the grids follow the instructions and
the following figures.
1. Lay the lateral grids on the cooktop
paying attention to position the front teeth
facing the knobs.
2. Lay the centre grid engaging the notches
in the teeth of the lateral grids.
In addition, pay attention to the mark
"FRONT" under each grid at the front, as a
further help to correctly position the grids on
the cooktop.
• Position the grids so that the marks
"FRONT" are facing the cooktop knobs.

Use
15
EN
Practical tips for using the cooktop
For better burner efficiency and to minimise
gas consumption, use pans with lids and of
suitable size for the burner, so that the
flames do not reach up the sides of the pan.
Once the contents come to the boil, turn
down the flame far enough to ensure that
the liquid does not boil over.
To prevent burns or damage to the cooktop
or the counter top during cooking, all pans
or griddles must be placed inside the
perimeter of the grids.
Cookware diameters:
• Aux.: 12 - 18 cm.
• Semi rapid: 14 - 24 cm.
• Rapid: 20 - 26 cm.
• Ultra-rapid: 20 - 30 cm.

Cleaning and maintenance
16
4 Cleaning and maintenance
4.1 Instructions
4.2 Cleaning the appliance
To keep the surfaces in good condition,
they should be cleaned regularly after use.
Let them cool first.
Ordinary daily cleaning
Always use specific products only that do
not contain abrasives or chlorine-based
acids.
Pour the product onto a damp cloth and
wipe the surface, rinse thoroughly and dry
with a soft cloth or a microfibre cloth.
Food stains or residues
Do not use steel sponges and sharp
scrapers, as they will damage the surfaces.
Use normal, non-abrasive products and a
wooden or plastic tool, if necessary. Rinse
thoroughly and dry with a soft cloth or a
microfibre cloth.
Improper use
Risk of damage to surfaces
• Do not use steam jets to clean the
appliance.
• Do not use cleaning products containing
chlorine, ammonia or bleach on parts
made of steel or that have metallic
surface finishes (e.g. anodizing, nickel-
or chromium-plating).
• If it comes into contact with aggressive
detergents, hard water or spills (cooking
water, sauces, coffee, etc.), clean
immediately after having let the cooktop
cool down.
• Do not use rough or abrasive materials
or sharp metal scrapers.
• Do not wash the removable
components such as the cooktop grids,
flame-spreader crowns and burner caps
in a dishwasher.
Annual service by an authorised
person is recommended, or if any
of the following conditions are
noticed; incomplete ignition,
appreciable yellow tipping,
carbon deposition, lifting, floating,
lighting back or objectionable
odour.

Cleaning and maintenance
17
EN
Cooktop grids
Remove the grids and clean them in
lukewarm water and non-abrasive
detergent. Make sure to remove any
encrustations. Dry them thoroughly and
return them to the cooktop.

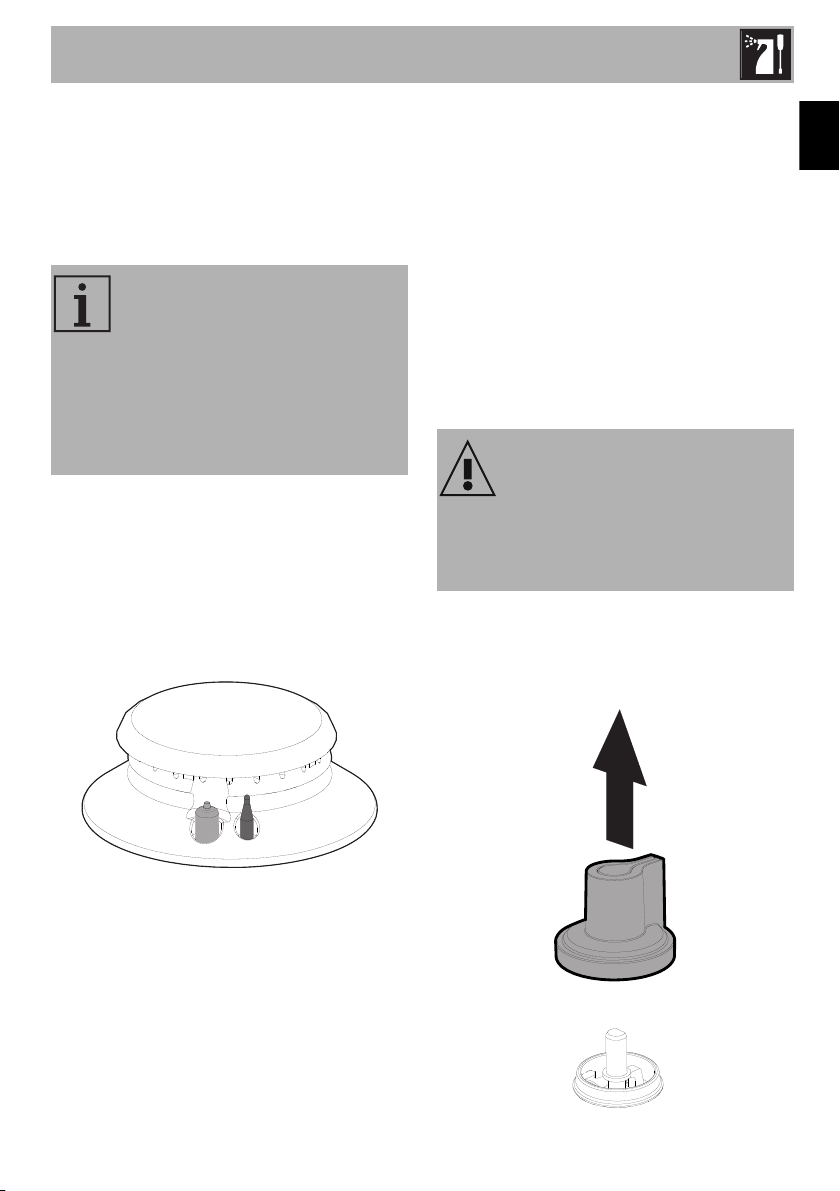

Igniters and thermocouples
For correct operation the igniters and
thermocouples must always be perfectly
clean. Check them frequently and clean
them with a damp cloth if necessary.
Remove any dry residues with a wooden
toothpick or a needle.
Flame-spreader crowns and burner caps
For easier cleaning, the flame-spreader
crowns and the burner caps can be
removed.
Wash them in hot water and non-abrasive
detergent. Carefully remove any
encrustation, then wait until they are
perfectly dry. Refit the flame-spreader
crowns making sure that they are correctly
positioned in their housings with their
respective burner caps.
Knobs
The knobs should be cleaned with a soft
cloth dampened with warm water, then
dried carefully. They can easily be removed
by pulling them upwards.
The continuous contact between
the grids and the flame can cause
modifications to the enamel over
time in those parts exposed to
heat. This is a completely natural
phenomenon which has no effect
on the operation of this
component. Do not use aggressive products
containing alcohol or products for
cleaning steel and glass when
cleaning the knobs, as these
products could cause permanent
damage.

Installation
18
5 Installation
5.1 Minimum clearance to
combustible surface
Cooktop
A200mm (Vertical combustible surface)
B600mm (Overhead) measured form the
highest part of the highest burner and
750mm for an exhaust fan.
C50mm (non-combustible surface)
D20mm (benchtop)
X(width) & Y (depth) see appliance
dimension within this manual.
Refer to AS/NZS 5601 (Protection of a
combustible surface) if the above minimum
clearances cannot be achieved.
Maximum height of the top of the pan
support with respect to the surface that
supports the appliance is 47mm.
5.2 Safety instructions
Veneers, adhesives or plastic coatings on
adjacent furniture should be temperature-
resistant (>90°C), otherwise they might
warp over time.
The minimum clearances must also be
respected for the edges of the cooktop on
the back as indicated in the mounting
illustrations.
The appliance connection point
shall be accessible with the
appliance installed.
Heat production during appliance
operation
Risk of fire
• Make sure that the cabinet material is
heat resistant.
• Check that the cabinet has the required
slots.
The minimum clearance between a
ventilation hood and the cooking
surface must be at least the
distance indicated in the ventilation
hood installation instructions.

Installation
19
EN
5.3 Section cut from the work surface
Create an opening with the dimensions
shown in the figure in the work surface of
the piece of furniture.
C: 70 cm models with central UR.
L: 70 cm models with side UR

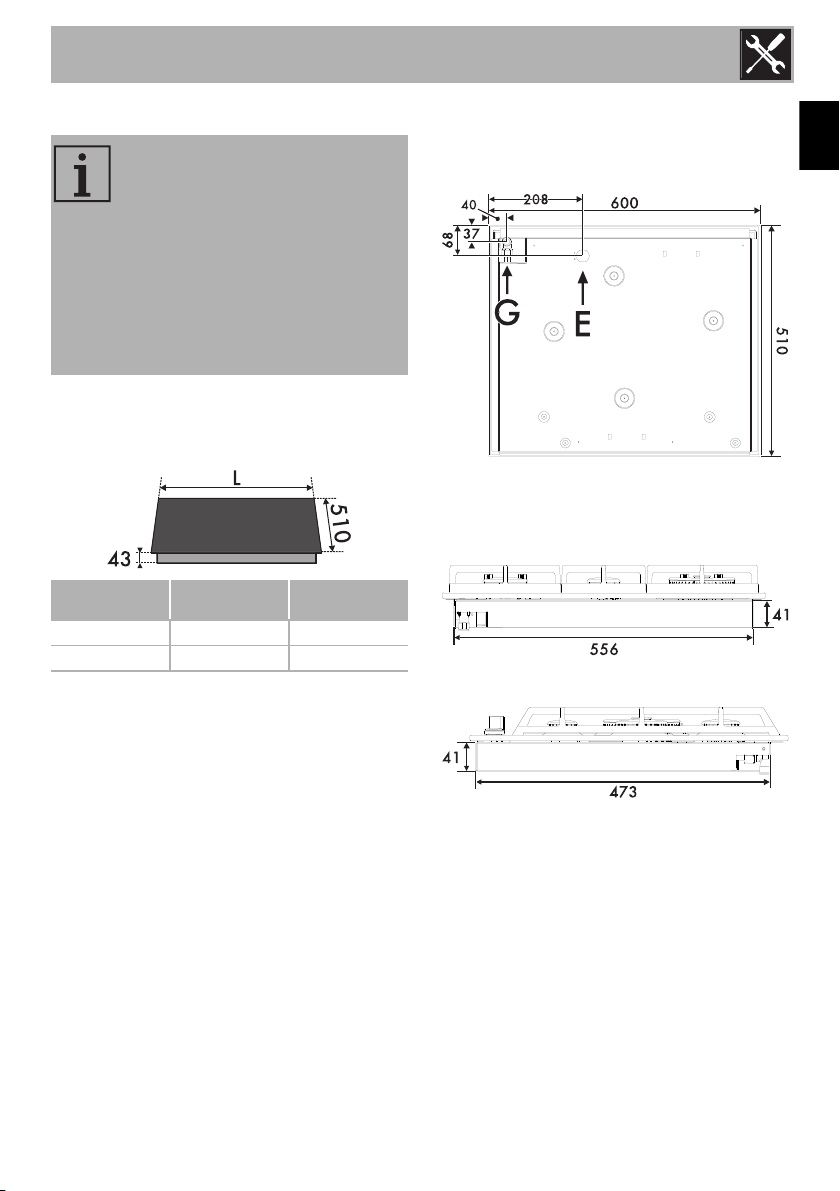

Overall dimensions: gas and electrical
connection location (measures in mm)
60 cm models:
View from the bottom
G Gas connection
E Electrical connection
Rear view
Right view
The following operation requires
building and/or carpentry work
and must therefore be carried out
by a competent tradesman.
Installation can be carried out on
various materials such as masonry,
metal, solid wood or plastic
laminated wood as long as they
are heat resistant (>90°C).
L (cm) X (mm) Y (mm)
60 - 70 C555 - 560 478 - 482
70 L655 - 660 478÷ 482

Installation
20
70 cm models with side UR:
G Gas connection
E Electrical connection
View from the bottom
Rear view
Right view
70 cm models with central UR:
View from the bottom
G Gas connection
E Electrical connection
Rear view
Right view

Installation
21
EN

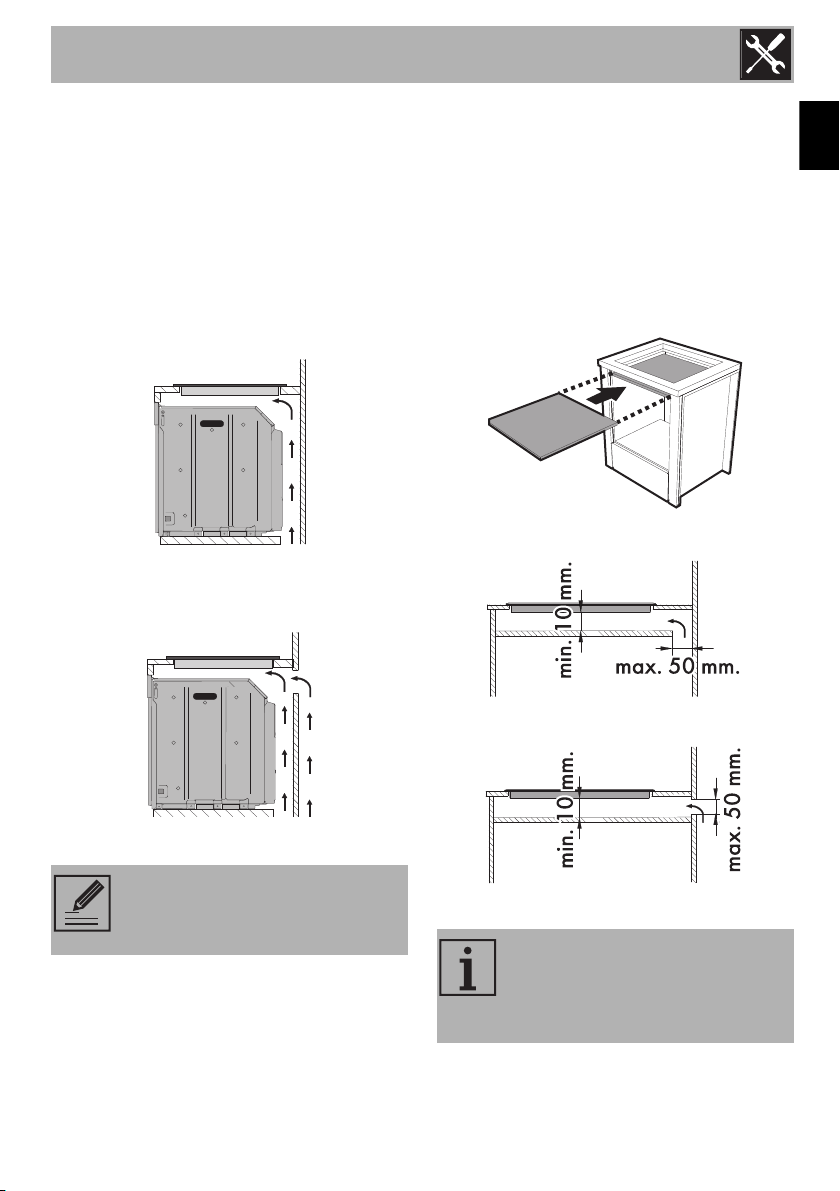

5.4 Mounting
Over built-in oven unit
The clearance between the cooktop and
the kitchen furniture or other installed
appliances must be enough to ensure
sufficient ventilation and air discharge.
If installed above an oven, a space must be
left between the bottom of the cooktop and
the top of the appliance installed below.
opens on bottom
opens on bottom and on rear
Over empty kitchen unit or drawers
If there are other pieces of furniture (lateral
walls, drawers, etc.), dishwashers or fridges
under the cooktop, a double-layer wooden
base must be installed at least 10 mm from
the bottom of the cooktop to avoid any
accidental contact. It must only be possible
to remove the double-layer base using
suitable equipment.
opens on bottom
opens on rear
If installed on top of an oven, the
latter must be equipped with a
cooling fan. Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with
sharp or hot parts.

Installation
22

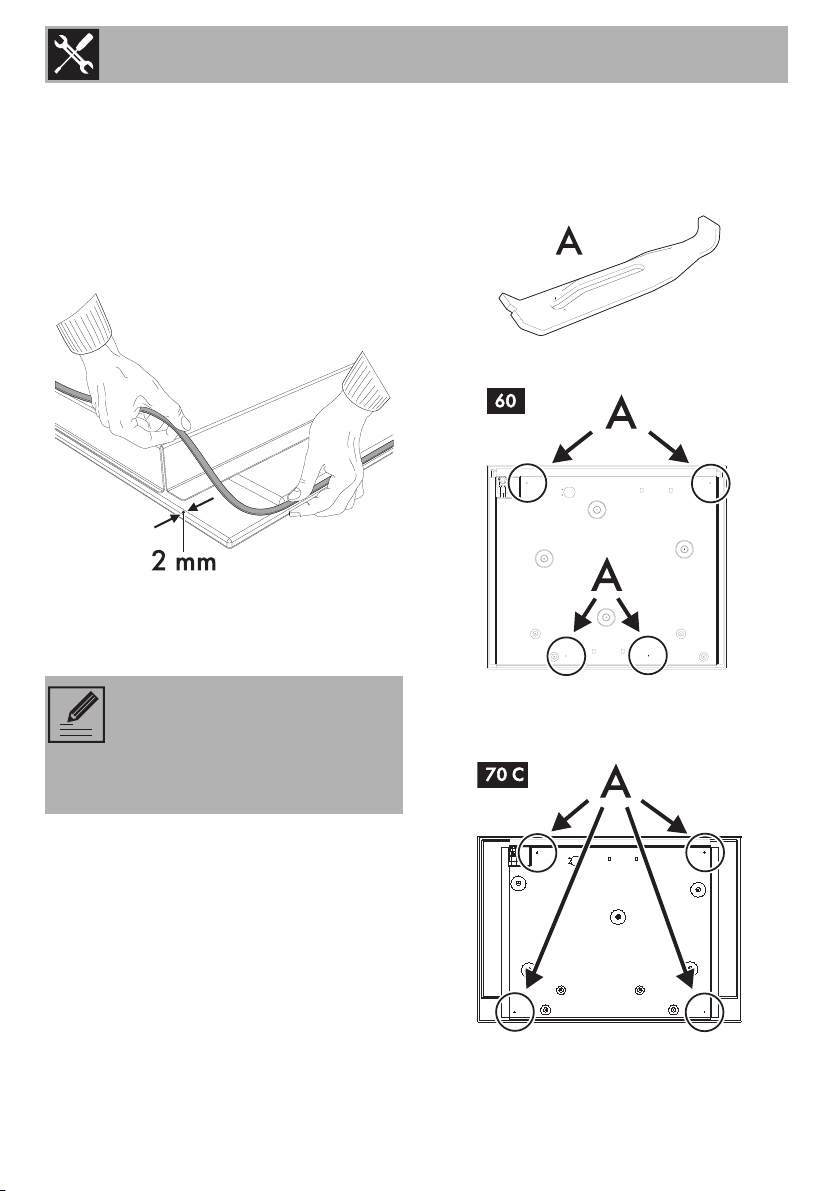

Cooktop seal
To prevent leakage of liquid between the
frame of the cooktop and the work surface,
put the insulating seal provided in position
before assembly.
1. Apply the seal provided along the outer
edge of the appliance surface.
2. Lay the appliance in the hole on the work
top (chapter 5.2 “Section cut from the
work surface”).
5.5 Fixing using brackets
The figures below show the exact holes to
be used to correctly attach the cooktop to
the work surface with brackets.
60 cm models
70 cm models with central UR
Do not use silicone to secure the
cooktop. This would make it
impossible to remove, if necessary,
without damaging it. Use the
insulating seal provided.
