Contents
33
1. Safety and operating instructions__________________________ 34
2. Installation and hook-up _________________________________ 37
3. Description of the controls _______________________________ 39
4. Operating instructions __________________________________ 46
5. Cleaning and maintenance_______________________________ 57
6. Troubleshooting _______________________________________ 61
Thank you for choosing this product.
We advise you to carefully read all the instructions contained in this
manual, in order to understand how to operate your dishwasher safely
and correctly.
The manual is divided into paragraphs, which provide a step by step
description of the dishwasher functions, with clear instructions
accompanied by detailed illustrations.
Recommendations are given for the correct use of the baskets, spray
arms, containers, filters, washing programs, and for operating the
controls.
Follow the recommended cleaning procedures to ensure that your
dishwasher always remains in perfect working order.
This manual provides a quick and easy reference for answering all your
questions concerning the use of your new dishwasher.
INSTALLATION INSTRUCTIONS: these are intended for the qualified
technician who must carry out the installation, hook-up and testing of
the appliance.
USER INSTRUCTIONS: these consist of recommendations for using the
appliance, a description of its controls and of the correct cleaning and
maintenance procedures.

Safety instructions
34
1. Safety and operating instructions
THIS MANUAL FORMS AN INTEGRAL PART OF THE APPLIANCE: IT MUST
ALWAYS BE KEPT INTACT TOGETHER WITH THE DISHWASHER. BEFORE
USING THE APPLIANCE, CAREFULLY READ ALL THE INSTRUCTIONS
CONTA INED IN THIS MA NUAL.
INSTALLATION MUST BE PERFORMED BY A QUALIFIED TECHNICIAN, IN
COMPLIANCE WITH THE REGULATIONS IN FORCE. THIS APPLIANCE IS
INTENDED FOR DOMESTIC USE, AND COMPLIES WITH THE EEC
DIRECTIVES 72/23, 897336 (INCLUDING 92/31) CURRENTLY IN FORCE,
INCLUDING THE PREVENTION AND ELIMINATION OF RADIO FREQUENCY
INTERFERENCE.
THE APPLIANCE IS DESIGNED FOR THE FOLLOWING PURPOSE: WASHING
AND DRYING OF DISHES; ANY OTHER USE SHALL BE CONSIDERED
IMPROPER. THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR
USES OTHER THAN THOSE DESCRIBED ABOVE.
THE NAME PLATE FEATURING THE TECHNICAL DATA, SERIAL NUMBER
AND MARKINGS IS VISIBLY POSITIONED ON THE INNER EDGE OF THE
DOOR. THE NAME PLATE ON THE INNER EDGE OF THE DOOR MUST
NEVER BE REMOVED.
DO NOT LEAVE THE DISCARDED PACKAGING MATERIALS UNSUPERVISED
WITHIN THE HOME. SEPARATE THE VARIOUS MATERIALS WHICH MAKE
UP THE PACKAGING AND TAKE THEM TO THE NEAREST SORTED WASTE
COLLECTION CENTRE.
THE APPLIANCE MUST BE PROVIDED WITH AN EARTH CONNECTION IN
ACCORDANCE WITH THE ELECTRICAL SAFETY REGULATIONS IN FORCE.
THE MANUFACTURER DECLINES ALL RESPONSIBILITY FOR DAMAGE TO
PERSONS OR PROPERTY RESULTING FROM THE FAILURE TO EARTH THE
APPLIANCE OR FROM A DEFECTIVE EARTH CONNECTION.
IF THE APPLIANCE IS NOT CONNECTED TO THE ELECTRICAL POWER
SUPPLY BY MEANS OF A PLUG, IT IS NECESSARY TO INSTALL AN
ISOLATION SWITCH WITH A CONTACT OPENING GAP OF AT LEAST 3 MM.
THE PLUG ON THE POWER CORD AND THE CORRESPONDING SOCKET
OUTLET MUST BE OF THE SAME TYPE, AND MUST CONFORM TO THE
REGULATIONS IN FORCE. CHECK THAT THE VOLTAGE AND FREQUENCY
OF THE ELECTRICAL POWER SUPPLY MATCH THE RATINGS ON THE
NAME PLATE. AVOID USING ADAPTORS OR SHUNT CONNECTIONS.
NEVER UNPLUG THE APPLIANCE BY PULLING THE POWER CORD.

Safety instructions
35
•AFTER INSTALLATION, THE PLUG MUST REMAIN ACCESSIBLE.
•IN THE EVENT OF DAMAGE TO THE POWER CORD, HAVE IT
REPLACED BY A QUALIFIED TECHNICIAN.
•AFTER CHANGING THE POWER CORD, MAKE SURE THAT THE
BRACKET WHICH SECURES THE CORD IS FIXED SECURELY IN
PLACE.
IF THE APPLIANCE IS INSTALLED ON A CARPETED OR COVERED FLOOR,
ENSURE THAT THE OPENINGS ON ITS UNDERSIDE ARE NOT
OBSTRUCTED.
ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID
WASTING ELECTRICITY.
OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE
MAINS POWE R CORD AFTER U NPLUGGING IT FROM THE WALL OUTLE T,
AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR
CHILDREN (LOCKS, DOORS, ETC.). THE APPLIANCE MUST THEN BE TAKEN
TO A SORTED WASTE COLLECTION CENTRE.
IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE
ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. THEN
CALL IN A QUALIFIED TECHNICIAN.
DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING
TRA NS IT! IF IN DOUBT, CONSUL T YOUR DEALER.
THE APPLIANCE MUST BE INSTALLED AND CONNECTED IN ACCORDANCE
WITH THE INSTRUCTIONS PROVIDED BY THE MANUFACTURER OR BY A
QUALIFIED TECHNICIAN.
THE APPLIANCE IS INTENDED FOR USE BY ADULTS. DO NOT ALLOW
CHILDREN TO COME NEAR OR PLAY WITH THE DISHWASHER. KEEP
CHILDREN AWAY FROM DETERGENTS AND FROM THE OPEN
DISHWASHER DOOR. THE PACKAGING MATERIALS (PLASTIC BAGS,
POLYSTYRENE, METAL BARS, ETC.) MUST NOT BE LEFT WITHIN THE
REACH OF CHILDREN.
KEEP CHILDREN AWAY FROM THE OPEN DISHWASHER. THE APPLIANCE
MAY CONTAIN RESIDUES OF DETERGENT WHICH CAN CAUSE
IRREVERSIBLE DAMAGE TO THE EYES, MOUTH, AND THROAT, AS WELL
AS POSSIBLE DEATH BY SUFFOCATION.
DO NOT INTRODUCE SOLVENTS SUCH AS ALCOHOL OR TURPENTINE
WHICH MAY CAUSE AN EXPLOSION.
DO NOT LOAD DISHES THAT ARE SOILED WITH ASH, WAX OR PAINTS.

Safety instructions
36
LEANING OR SITTING ON THE DISHWASHER DOOR WHEN OPEN MAY
CAUSE THE APPLIANCE TO OVERTURN, PUTING PEOPLE AT RISK.
DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE
THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM
AND BEFORE THE DRYING CYCLE.
KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED
IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE
TOP BASKET. TAKE CARE NOT TO CUT YOURSELF AND ENSURE THAT
THEY DO NOT PROJECT FROM THE BASKET.
AQUASTOP MODELS
THE AQUASTOP DEVICE PREVENTS FLOODING IN THE EVENT OF A
WATER LEAK. WHEN THE AQUASTOP DEVICE IS TRIPPED, CALL IN A
QUALIFIED TECHNICIAN TO IDENTIFY AND REPAIR THE FAULT.
IN MODELS EQUIPPED WITH THE AQUSTOP DEVICE, THERE IS A
SOLENOID VALVE INSIDE THE WATER INTAKE HOSE. DO NOT CUT THE
HOSE AND DO NOT ALLOW THE SOLENOID VALVE TO DROP INTO
WATER. IN THE EVENT OF DAMAGE TO THE WATER INTAKE HOSE,
DISCONNECT THE APPLIANCE FROM THE ELECTRICAL POWER SUPPLY
AND FROM THE WATER SUPPLY.
IMMEDIATELY AFTER INSTALLING THE DISHWASHER, PERFORM A QUICK
TEST OF THE APPLIANCE FOLLOWING THE INSTRUCTIONS BELOW. IF
THE DISHWASHER FAILS TO OPERATE CORRECTLY, DISCONNECT IT
FROM THE ELECTRICAL POWER SUPPLY AND CALL THE NEAREST
TECHNICAL SERVICE CENTRE. DO NOT ATTEMPT TO REPAIR THE
APPLIANCE.
THE DISHWASHER MEETS ALL THE REQUIREMENTS SET OUT BY THE
REGULATIONS IN FORCE CONCERNING SAFETY AND ELECTRICAL
EQUIPMENT. ANY TECHNICAL CHECKS SHOULD BE CONDUCTED
EXCLUSIVELY BY A TRAINED AND AUTHORISED TECHNICIAN: REPAIRS
CARRIED OUT BY UNAUTHORISED PERSONS WILL INVALIDATE THE
WARRANTY, AS WELL AS POSING A POTENTIAL HAZARD TO THE USER.
The manufacturer declines all responsibility for damage to persons or property
resulting from failure to observe the above precautions, from tampering with
even a single component of the appliance, or from the use of non original
spare parts.

Installation instructions
37
2. Installation and hook-up
Remove the polystyrene basket retainers.
Position the appliance in the desired place of installation. The back or
sides of the dishwasher may be placed up against walls or other
furniture units. If the dishwasher is installed near a heat source, fit the
special insulating panel to prevent overheating and malfunction of the
appliance.
To ensure stability, install integrated or built-under dishwashers only
under continuous worktops, and screw them to the adjacent units.
To facilitate the installation procedure, the intake and drain hoses can be
positioned in any direction; make sure that the hoses are not kinked,
crushed or pulled too tightly. A hole at least 8 cm in diameter is required to
allow the power supply cable and pipes to pass.
Level the appliance on the floor using its adjustable feet. This operation
is essential for ensuring correct operation of the dishwasher.
For free-standing models only: if the appliance is not built-in and is
therefore accessible on one side, the door hinge area must be covered
for safety reasons (injury hazard).
The covering fixtures are available as an accessory from specialist
dealers or the After-Sales Service.
Some models are equipped with only one adjustable foot at the rear,
which can be adjusted by turning the screw on the lower front part of the
appliance.
2.1 Water supply connection
Preventing the risk of clogging or damage: if the water pipe is new or
has not been used for a long time, before connecting to the water supply
check that the water is clear and free of impurities, to prevent damage to
the appliance.
The dishwasher must always be connected to the water system
with new hoses; old or used hoses must never be reused.

Installation instructions
38
CONNECTING TO THE WATER SUPPLY
Connect the intake hose to a cold water supply with ¾”
gas thread, inserting the filter Asupplied with the
dishwasher. Take care to screw the hose firmly into
place with your hands and then complete by
tightening about ¼ of a turn with pliers.
In dishwashers equipped with the ACQUASTOP
device, the filters is already fitted inside the threaded
ring.
The dishwasher can also be connected to a hot water supply not
exceeding 60°C. Supplying the appliance with hot water cuts down the
washing time by approximately 20 minutes, but slightly reduces its
effectiveness. Make the connection to the domestic hot water supply using
the same procedure described for connecting to the cold water supply.
DRAIN CONNECTION
Insert the dishwasher’s drain hose
into a drain pipe having a diameter
of at least 4 cm, or alternatively,
place it inside the kitchen sink
using the plastic support provided,
taking care not to crush or
excessively bend the hose. It is
important to prevent the hose from
coming loose and falling. For this
purpose, the plastic support is
equipped with a hole for tying it to
the wall or water tap.
The free end should be positioned at a height of between 30 and 100
cm,and should never be submerged in water. If a horizontal drain
extension hose is used (for a maximum of 3 m) the drain hose can be
placed at a maximum height of 85 cm from the ground.
2.2 Electrical connection
Plug the power cord into a suitable electrical outlet, according to the
instructions given in chapter "1. Safety and operating instructions".

User instructions
39
3. Description of the controls
3.1 Front panel

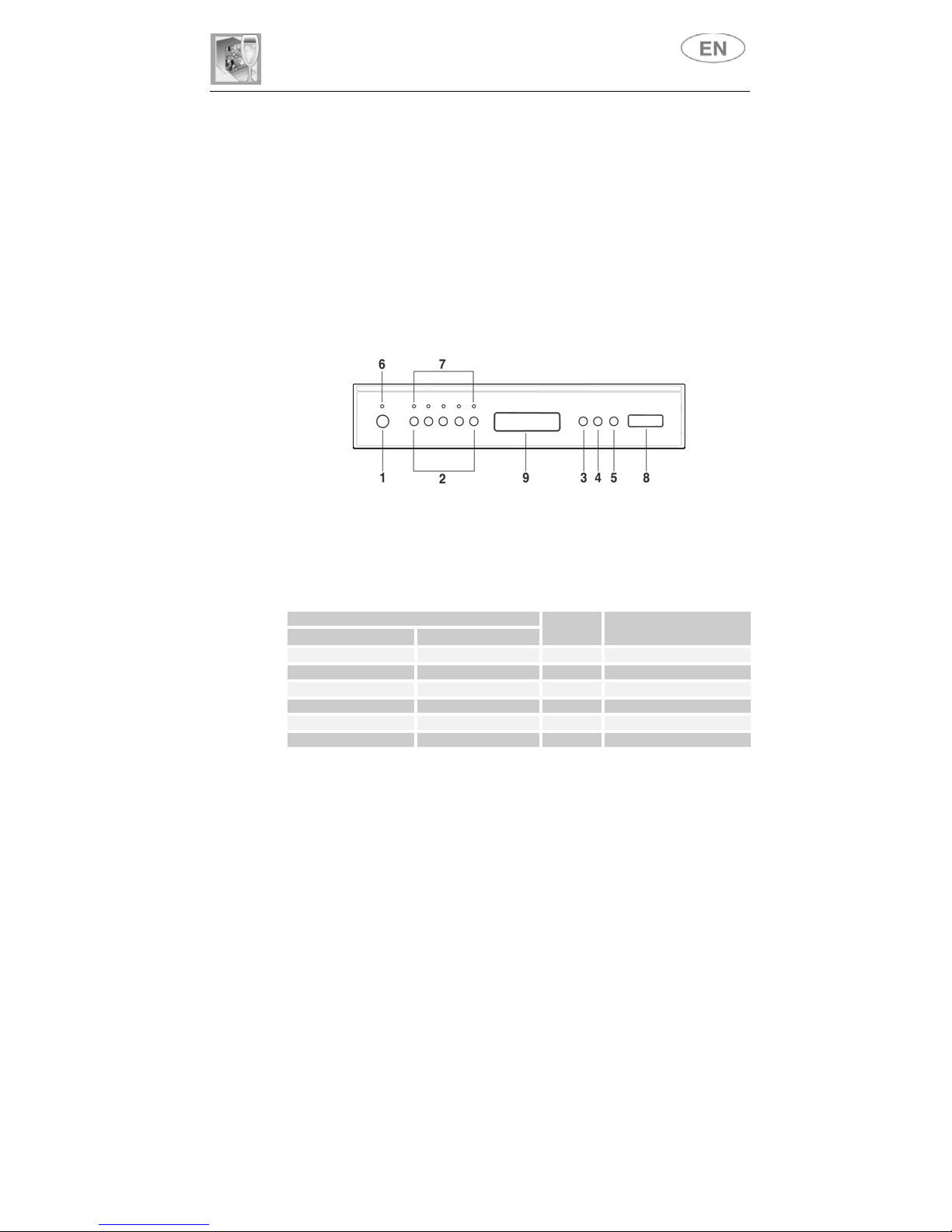

All the dishwasher controls are grouped on the front panel.
1 ON/OFF BUTTON
2SELECTION PROGRAM BUTTONS (P1…P5)
3ECO DRYING CY CLE BUTTON
4DELAY PROGRAM BUTTON
5 START/STOP BUTTON
6POWER ON LIGHT
7PROGRAM PHASE INDICATOR LIGHTS
8INFORM AT ION DISPLAY
9RECESSED DOOR HANDLE
3.2 Information display
The dishwasher is equipped with a practical
DISPLAY which provides information on the
programmed dishwasher functions.
LIGHTING
Pressing the ON/OFF button (1) will start the dishwasher and will lit up
the dishwasher pilot light (6). After approximately 3 second from this
operation the DISPLAY (8) will be turned on with a visualization that will
depend upon the state of the dishwasher.

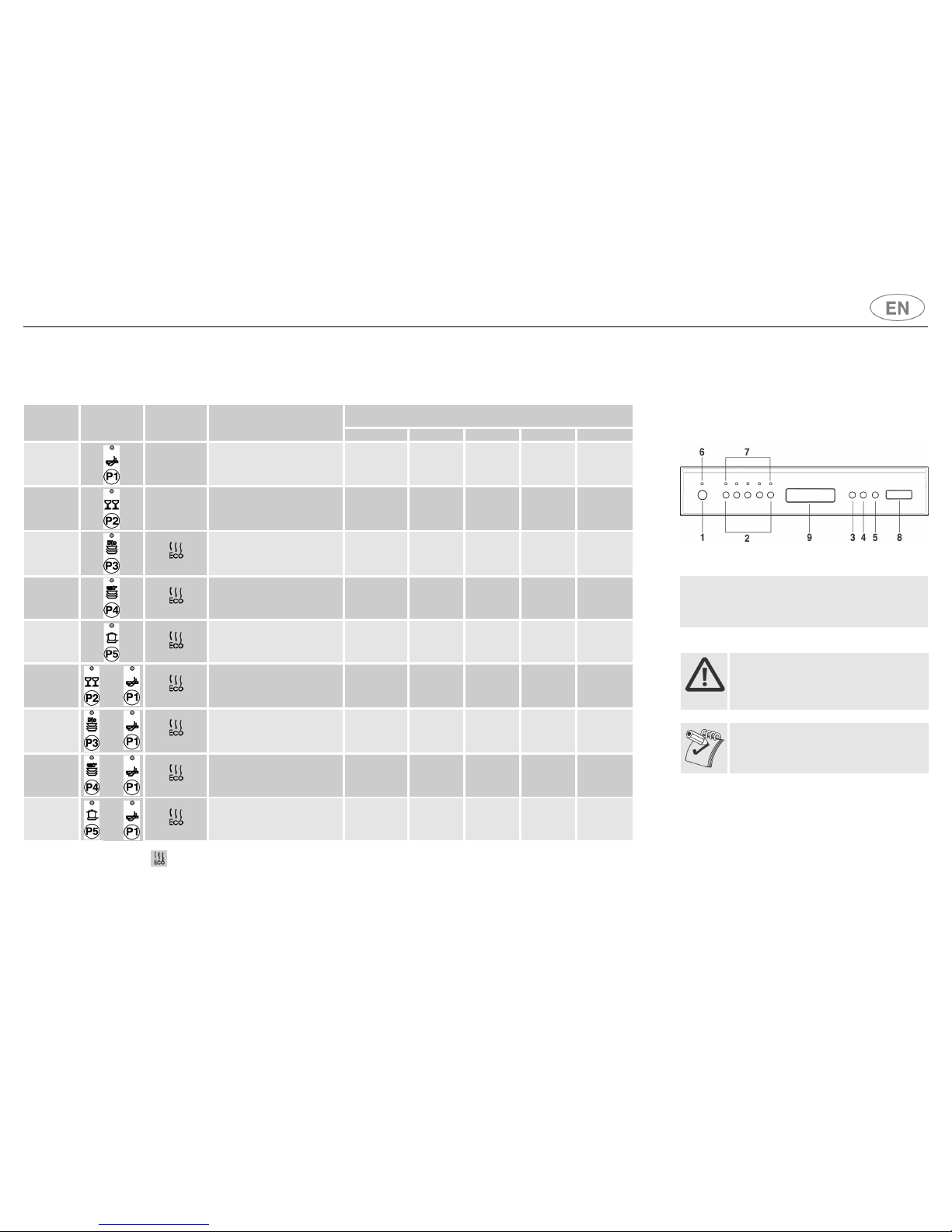

TABLE OF PROGRAMS
PROGRESS P ROGRAM
PROGRAM SELECTION
EC O
DRYING
(OPTIONAL)
TYP E A N D G RA DE DI RT
PREWASH WASH COLD RINSE HOT RINSE DRY
SOAK _PANS AND DISHES IN WAITING
OF COMPLETING THE LOAD COLD ____
QUICK _DISHES NOT MUCH DIRTY
AND WITH "FRESH DIRT"
WITHOUT RESIDUAL DRY
_38°C YES 58°C _
ECO
(*)
PANS AND DISHES
NOT VERY DIRTY
BUT WITH DR Y RESIDUALS
_55°C YES 68°C YES
DAILY PANS AND DISHES
WITH NORMAL DIRT,
WITHOUT DR Y RESIDUAL
_65°C YES 68°C YES
STRONG PANS AND DISHES
VERY DIRTY _70°C YES 68°C YES
DELICATE
+
DISHES NOT VERY DIRTY COLD 45°C YES 68°C YES
BIO
+
PANS AND DISHES DIRTY
AND WITH DRY RESIDUALS COLD 55°C YES 68°C YES
NORMAL
+
PANS AND DISHES DIRTY
AND WITH DRY RESIDUALS COLD 65°C YES 68°C YES
SUPER
+
PANS AND DISHES
VERY DIRTY
AND WITH DRY RESIDUALS 45°C 70°C YES 68°C YES
In programs containing the symbol, the ECO drying cycle option is available. This activates the ventilation system which allows
the dishes to be dried at lower temperatures (energy saving). With this option active, the program times are longer.
Only run the soak program with half loads.
(*) Reference program as EN 50242 standard.
(-) Not present.
If the dishwasher door is left open or is
not properly closed, the INFORMATION
DISPLAY (8) will signal that the washing
program cannot be started.
For any other information about use and
maintenance of the dishwasher, read the
enclosed manual carefully.
19 592 0001 03

User instructions
40
PROGRAMMING
In this dishwasher model all the programming operations are possible
only with closed door. With open door, on the DISPLAY (8) will appear
the symbols -- and the PILOT LIGHT PROGRAMS (7) remains out.
SELECTION PROGRAM
The program selection is possible
through the relative buttons (2).
By pressing the relative button of desired program (see table) it will lid up
the relative pilot light to confirm that the operation did occurred on the
DISPLAY (8) will appear a program duration forecasting (“h.mm”).
START PROGRAM
At this point, in order to start the machine, it is only enough to press the
START/STOP (5) for some seconds until the writtin “Time to end” start
to flash and confirmation “beep” is heard. From this moment the cycle
dration on the DISPLAY (8) starts to decrease.
This phase, that updates itself during the cycle, is “indicative” since it is
influenced by the washing conditions such as dishwasher type and
quantity, entry temperature etc. For this reason it is normal to see the
updating during a program (increment and decrease of minutes)
specially in the passage from one phase to the other (for example, from
washing to rinse).
END PROGRAM
The end of the program is indicated by a short signal acoustic and from
the “End” visual notification on DISPLAY (8). By pressing one of the
buttons, the “End” visual signal will vanish from the display and the
dishwasher is ready to continue a new cycle, the same thing happens
when closing or opening the door or by switching on-off the machine.

User instructions
41
INTERRUPTION OF A PROGRAM
In order to interrupt a running program it is necessary:
•to press the
START/STOP (5) for some seconds until when the
writting “Time to end” remains lit on the display (confirmation beep).
At this point,it is possible to start the cycle again, otherwise:
TO CHANGE A PROGRAM
To change the running program it is necessary:
•to interrupt the running program (see “INTERRUPTION OF A PROGRAM”);
•select the new program;
•to press again the START/STOP button (5) to make start the new
program.
STOPPING APROGRAM
To stop a program in progress, it must first be interrupted
(see“INTERRUPTION OFAPROGRAM”).
Now press buttons P1+P2 simultaneously and
the first three program lights will come on.
The display will show “P0” and the dishwasher will immediately switch to
the end of the cycle and drain the tank (during this process, the
“Timetoend” message willflash).
When the drain procedure ends, the end of cycle message "End"
appears on the display.
In case that the door is opened during the operation, to the next door
closing it is going to be necessary to start the program as shown in
paragraph “START PROGRAM”. The program will resume from the point in
which it was interrupted.
In case that the tub temperature is higher than 50°C the program
will start about 30 seconds later.
If the dishwasher door is left open or is not properly closed, the
INFORMATION DISPLAY (8) will signal that the washing program
cannot be started.

User instructions
42
TABLE FOR CERTIFICATION BODIES
Reference standard EN 50242
Reference program BIO
Load 10 place-settings
Type of detergent B
Amount of detergent 25 g
Rinse aid setting Depending on the model 3/4 or 4/6
EN 50242
The upper basket must be set in the low position.
3.3 Washing programs
The dishwasher is equipped with a control panel and an INFORMATION
DISPLAY (8) from which it is possible to carry out all the power switch-
on, switch-off and programming operations.
Before starting a washing program make sure that:
•The water supply tap is open.
•The correct amount of detergent has been added to the
dispenser.
•The baskets have been correctly loaded.
•The spray arms are able to rotate freely and without
obstruction.
•The dishwasher door is securely closed.

User instructions
43
DELAYING THE PROGRAM
The PROGRAMDELAY button (4)can be pressed to delay the start of
the program by up to 12 hours.. This means that the dishwasher can
be operated at the time of day of your choice.
The first time the PROGRAMDELAY button (4), is pressed the display
will show 12 hours, the maximum delay time before the program will
start. Each subsequent time the button is pressed the delay time will be
Chosen the delay, proceed with the program start, press the button
START/STOP (5) for same seconds until the clock symbol start to
flaash.
The machine will perform a dish pre-washing, and when finish, the “delay
program” will enter in function as it was first set.
In case you want to put to zero the “delay program” within the running
program it is necessary:
•to press the
START/STOP (5) button for some seconds until the
clock symbol remain lid up on the display;
•to press the
DELAY PROGRAM (4) more times until the reset of the
delay program (clock symbol shut off);
•to press the
START/STOP (5) button to make start the program.
N.B.: It is not possible to select the “delay program” when the program
have already began.
reduced, until the desired delay time is reached.
Particularly, on the display it will have the
following indications.

User instructions
44
TO SAVE ON ENERGY! … AND PROTECT THE ENVIRONMENT
•Always try to run the dishwasher fully loaded.
•Do not wash the dishes in running water.
•Use the washing program that is most appropriate for each type of
load.
•Do not carry out any preliminary rinsing.
•If available, connect the dishwasher to a hot water supply up to
60°C.
•When possible, skip the drying cycle by leaving the door open
when the washing cycle is complete; the air and the residual heat
will dry the dishes perfectly.
TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT
THE ENVIRONMENT
The phosphates contained in dishwasher detergents are harmful to the
environment. To avoid using excessive amounts of detergent and to
save on electricity, observe the following:
•separate the more delicate items from dishes that are more
resistant to aggressive detergents and high temperatures;
•do not pour the detergent directly on the dishes.
REMOVING THE DISHES
At the end of the washing program, wait at least 20 minutes before
removing the dishes, to allow them to cool down. To prevent any water
droplets on the upper basket from falling on the dishes in the lower
basket, it is advisable to unload the lower basket first, and then the
upper basket.
ADDITIONAL FUNCTIONS
The electronic control system allows personalizing the machine use
directly through a programming procedure not directly accessible that
allows: regulate water hardness level (see: “ADJUSTING THE WATER
SOF TENING SYSTEM ”).

User instructions
45
To access the programming environment, the appliance must be turned
on with the door open. Then proceed as follows:
•press the
ECO DRY (3) button until the Hsymbol appears on the
display, followed by the number 3, > H3;
•press the
PROGRAM DELAY (4) button the number of times
needed to select the right setting level for the hardness of the water
(H0, H1, H2, H3, H4, H5);
•press the
START/STOP (5) button to confirm the setting and return
to the program setting menu.
N.B.: after 2 minutes, the appliance exits the parameter setting menu
automatically.
The value entered for this parameter establishes whether or not
regeneration is to be carried out at the end of the washing cycle, on the
basis of the table below.
WATER HARDNESS TABLE
WATER HARDNESS
German D egrees (°dH) French Degrees (°dF) SETTING REGENERATION
< 9° < 15° H0 Not performed
< 15° < 25° H1 Performed every 6 cycles
< 23° < 40° H2 Performed every 5 cycles
< 34° < 60° H3 Performed every 3 cycles
< 46° < 80° H4 Performed every 2 cycles
< 58° < 100° H5 Performed every cycle
Contact your local water board for information on the hardness of your
water supply.
N.B.: a cycle is a washing program.

User instructions
46
4. Operating instructions
Once the dishwasher has been correctly installed, prepare for use as
follows:
•Adjust the water softening system;
•Add the regenerating salt;
•Add the rinse aid and detergent.
4.1 Using the water softening system
The amount of scale contained in the
water (water hardness index) can cause
whitish staining on the dry dishes, which
tend to become dull over time. The
dishwasher is equipped with an automatic
softening system which uses a special
regenerating salt to reduce the hardness
of the water.
The dishwasher is factory set for water
hardness level 3 (average hardness
41-60°dF – 24-31°dH).
When using water of medium hardness, the regenerating salt container
should be refilled after approximately 20 washing cycles. The salt
container can hold approximately 1.5 Kg of salt in grains. Some models
are equipped with an optical no-salt indicator. In these models, the cap
of the salt container contains a green float which descends as the salt
concentration in the water drops. When the green float can no longer be
seen through the transparent cap, the container must be topped up with
regenerating salt. The container is situated at the bottom of the
dishwasher. After removing the lower basket, unscrew the salt container
cap by turning it anticlockwise and pour in the salt using the funnel
supplied with the dishwasher. Before replacing the cap, remove any salt
residues from around the opening.
•When using the dishwasher for the first time, in addition to the salt it
is also necessary to add one litre of water to the container.
•Each time the salt container is refilled, make sure that the cap is
securely closed. The mixture of water and detergent must never
penetrate the salt container, as this would compromise the operation
of the regeneration system. In the event of this occurring, the
warranty will be invalidated.
•Only use regenerating salt specially formulated for domestic
dishwashers. If using salt tablets, do not fill the container
completely.
SALT

User instructions
47
•Do not use table salt as it contains insoluble substances which,
over time, may damage the water softening system.
•When necessary, refill the regenerating salt container before
starting the washing program. In this way, the excess saline
solution will be immediately removed by the water; the prolonged
presence of salt water inside the tank may lead to corrosion.
Be careful not to confuse the salt and detergent packages; adding
detergent to the salt container will damage the water softening system.
ADJUSTING THE WATER SOFTENING SYSTEM
The dishwasher is equipped with an device for the user to adjust the
water softening system according to the hardness of the water supply.
The setting switch is inside the plastic locking ring located on the right-
hand side, inside the dishwasher.

User instructions
48
WATER HARDNESS TABLE
WATER HARDNESS
German D egrees (°dH) French Degrees (°dF) SETTING
0 - 4 0 - 7 Setting N. 1 NO SALT
5 - 9 8 - 15 Setting N. 1
10 - 17 16 - 30 Setting N. 2
18 - 26 31 - 45 Setting N. 3
27 - 35 46 - 60 Setting N. 4
36 - 47 61 - 80 Setting N. 5
Contact your local water board for information on the hardness of your
water supply.
4.2 Using the rinse aid and detergent dispensers
The detergent and rinse aid
dispensers are situated on the inner
part of the door: the detergent
dispenser is on the left, and the
rinse aid dispenser is on the right.
With the exception of the SOAK program, before every washing cycle it
is necessary to add the required amount of detergent to the detergent
dispenser. The rinse aid, on the other hand, should only be added as
required.

User instructions
49

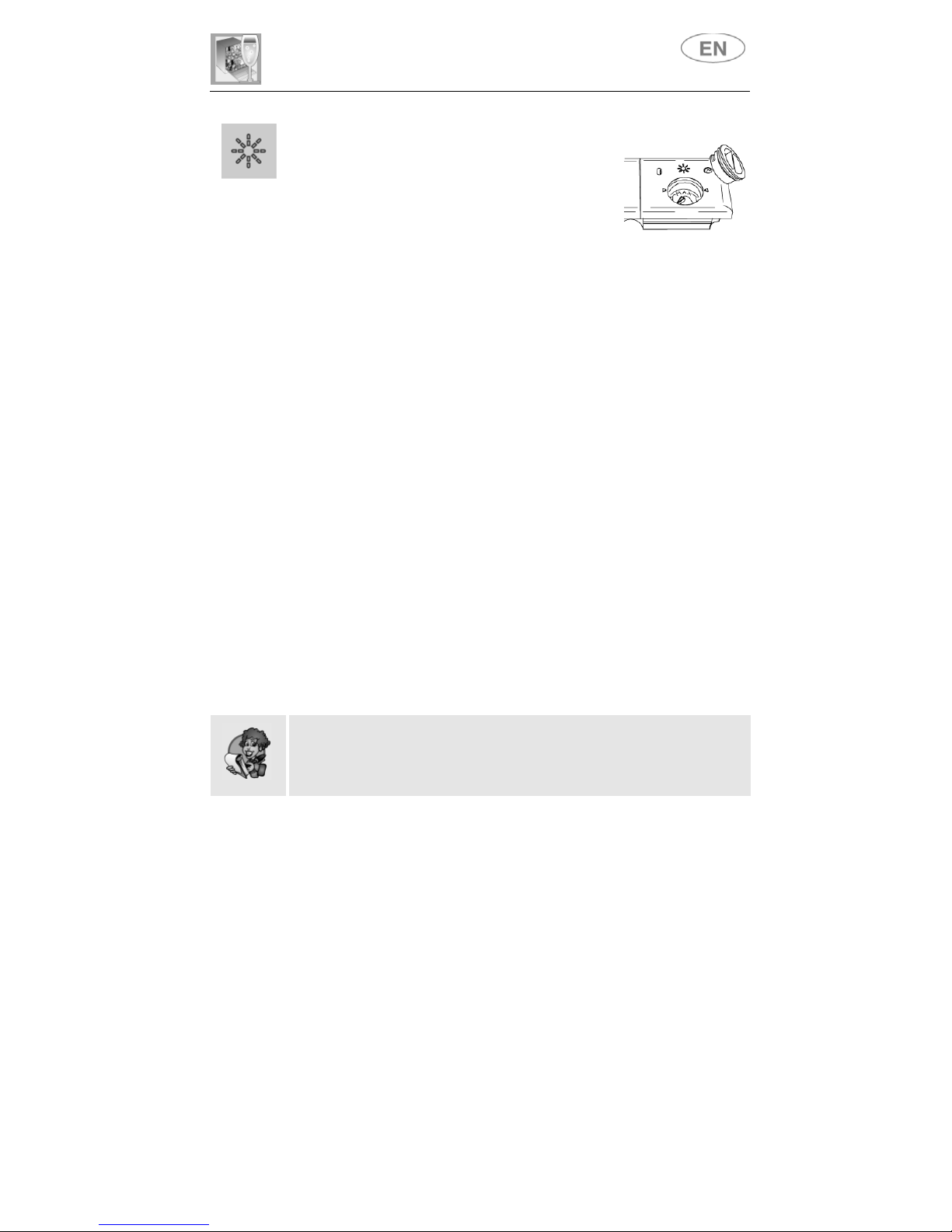

ADDING THE RINSE AID
The rinse aid helps the dishes dry faster and
prevents the formation of scale deposits and
staining; it is automatically added to the water
during the final rinse cycle, from the container
situated on the inner side of the door.
To add rinse aid:
•Open the door.
•Rotate the container cap anticlockwise by 1/4 of a turn and remove
it.
•Add the rinse aid until the container is full (approximately 140 cc).
The optical level indicator on the side of the cap should be
completely obscured. Refill the rinse aid when the optical level
indicator becomes clear again, or when the rinse aid warning light
illuminates.
•Replace the cover and turn it in a clockwise direction.
•Use a cloth to remove any spillage of rinse aid which might lead to
the formation of excess foam.
ADJUSTING THE RINSE AID DISPENSER SETTING
The dishwasher is factory set for medium water hardness. However it
possible to change the setting by turning the dispenser’s selector to the
desired position: the amount of rinse aid dispensed is proportional to the
selector position.
The setting must be increased when the washed dishes appear dull or
have circular staining.
•To adjust the rinse aid setting, rotate the dispenser cap through a
quarter turn in an anticlockwise direction and remove it.
•Then use a screwdriver to rotate the rinse aid selector to the desired
position.
•Replace the cap, turning it clockwise.
•The amount of rinse aid must be increased if the washed dishes
appear dull or feature circular stains.
•If, on the other hand, the dishes are sticky or have white streaks, it
is necessary to reduce the rinse aid setting.

User instructions
50

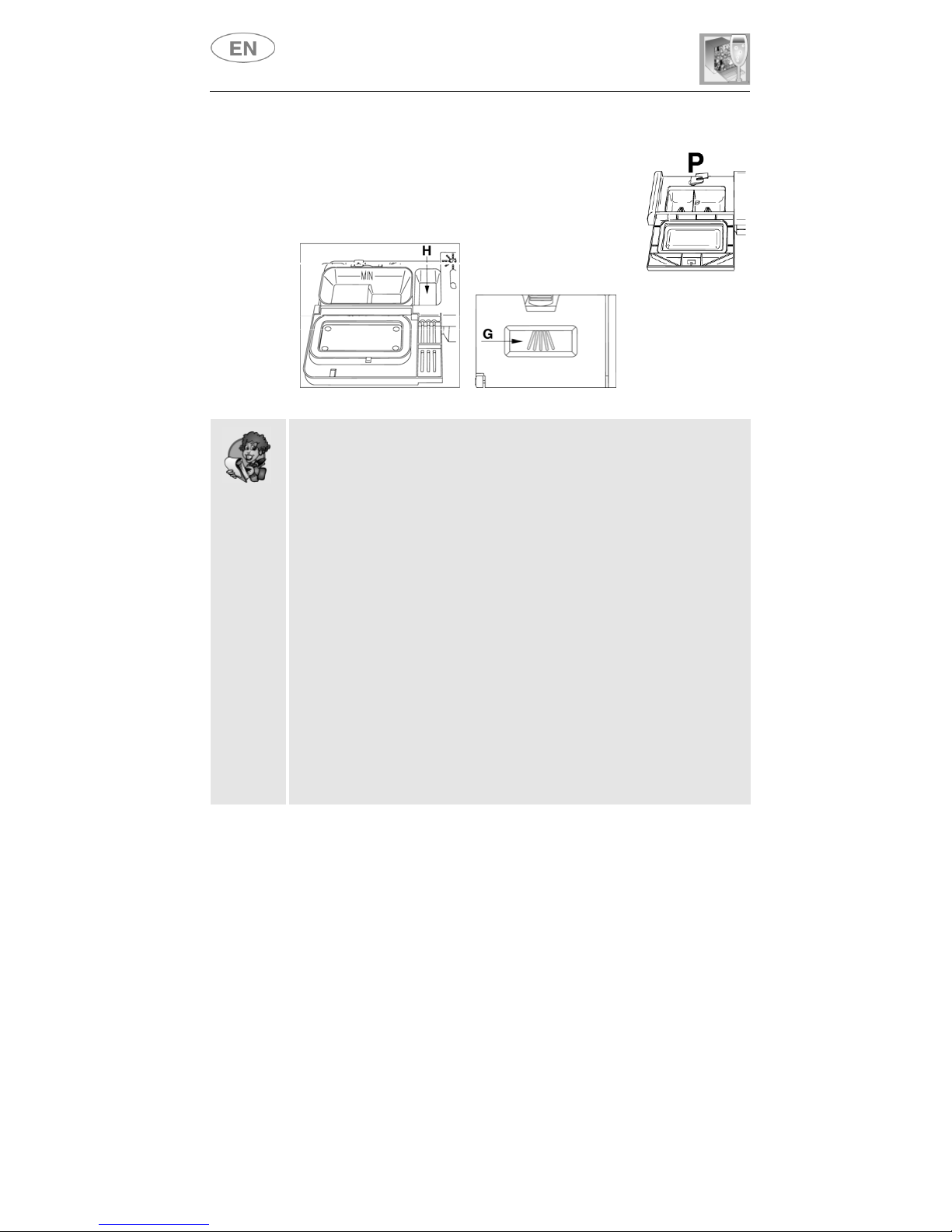

ADDING THE DETERGENT
To open the detergent dispenser cap, lightly press
the button P. Add the detergent and close the cap
carefully.
During the washing cycle, the dispenser will be
opened automatically.
•When a INTENSIVE program is selected, in addition to the normal
dose of detergent, it is necessary to add an additional amount inside
compartment G or H.
•Use only detergents specially formulated for dishwashers. For
optimal washing results it is important to use a good quality
detergent.
•The detergent packs must be sealed and stored in a dry place to
prevent the formation of lumps which may negatively affect washing
results. Once opened the detergent packs should not be kept for too
long, otherwise the detergent loses its effectiveness.
•Do not use detergents formulated for washing dishes by hand,
because they produce a great deal of foam and may negatively
affect the operation of the dishwasher.
•Add the correct amount of detergent. An insufficient amount of
detergent will result in a partial removal of dirt from the dishes,
whereas an excessive amount is wasteful and does not improve the
washing results.
