Index
BEFORE USING YOUR FRIDGE.....................................4
General warnings...................................................................... 4
Old and out-of-order fridges...................................................... 6
Safety warnings ........................................................................ 7
Installing and operating your fridge........................................... 8
Before Using your Fridge.......................................................... 9
Information about NO FROST Technology ............................... 9
PARTS AND PIECES OF YOUR FRIDGE ...................... 10
USAGE INFORMATION.................................................. 12
Display and control panel ........................................................ 12
Operating your fridge............................................................... 14
Super freeze mode .............................................................. 14
Super cool mode.................................................................. 14
Economy mode.................................................................... 15
Holliday mode ...................................................................... 15
Drink cool mode................................................................... 16
Function of Child lock .......................................................... 17
Screen saver mode.............................................................. 17
Cooler temperature settings .................................................... 18
Freezer temperature settings................................................... 18
Warnings about temperature adjustments............................... 19
Accessories ............................................................................. 20
Icemaker .............................................................................. 20
Quick Freezer Compartment ............................................... 20
Chilled Room Compartment ................................................ 21
CLEANING AND MAINTENANCE.................................. 22
Replacing the bulb................................................................... 23
PLACING THE FOODS................................................... 24
Where to place in the............................................................... 24

EN
3
Freezer Compartment.............................................................. 25
SHIPMENT AND REPOSITIONING................................ 30
Repositioning the Door ............................................................ 30
BEFORE CALLING SERVICE ........................................ 31
TIPS FOR SAVING ENERGY.......................................... 35

EN
4 BEFORE USING YOUR FRIDGE
General warnings
WARNING: Keep vantilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
WARNING: Do not use electrical appliances inside the
food storage compartments of the
appliance, unless they are of the type recommended by
the manufacturer.
WARNING: Do not damage the refrigerant circuit.
WARNING: To avoid a hazard due to the instability of
the appliance, it must be xed in accordance with the
instructions.
• If your appliance uses R600 as a refrigerant – you
can learn this information from the label on the cooler-
you should be careful during shipment and montage
to prevent your appliance’s cooler elements from
being damaged. Although R600a is a environmental
friendly and natural gas, as it is explosive, in case
of a leakage to be occurred due to a damage in the
cooler elements move your fridge from open ame
or heat sources and ventilate the room where the
appliance is located for a few minutes.
• While carrying and positioning the fridge, do not give
damage to the cooler gas circuit.
• Do not store explosive substances such as aerosol
cans with a ammable propellant in this appliance.
• This appliance is intended to be used in household
and similar applications such as;

EN
5
- sta󰀨 kitchen areas in shops, o󰀩ces and other working
environments
- farm houses and by clients in hotels, motels and
other residential type environments
- bed and breakfast type environments;
- catering and similar non-retail applications
• If the socket does not match the refrigerator plug,
it must be replaced by the manufacturer, its service
agent or similar qualied persons in order to avoid
a hazard.
• This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children should
be supervised to ensure that they do not play with
the appliance.
• A specially grounded plug has been connected
to the power cable of your refrigerator. This plug
should be used with a specially grounded socket of
16 amperes. If there is no such socket in your house,
please have it installed by an authorized electrician.
• This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given
supervision or instruction concerning use of the
appliance in a safe way and understandt the hazard
involved. Children shall not play with the appliance.
Cleaning and user maintenance, shall not be made
by children without supervision.
BEFORE USING YOUR FRIDGE

EN
6
Old and out-of-order fridges
• If your old fridge has a lock, break or remove the lock
before discarding it, because children may get trapped
inside it and may cause an accident.
• Old fridges and freezers contain isolation material and
refrigerant with CFC. Therefore, take care not to harm
environment when you are discarding your old fridges.
• Please ask your municipal authority about the disposal of
the WEEE for the reuse, recycle and recovery purposes.
Notes:
• Please read the instruction manual carefully before
installing and using your appliance. We are not responsible
of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction
manual, and keep this manual in a safe place to resolve
the problems that may occur in the future.
• This appliance is produced to be used at houses and it can
only be used in house and for the specied purposes. It
is not suitable for commercial or common use. Such use
will cause the guarantee of the appliance to be cancelled
and our company will not be responsible for the losses to
be occurred.
• This appliance is produced to be used in houses and it is
only suitable for cooling / storing foods. It is not suitable for
commercial or common use and/or for storing substances
except for food. Our company is not responsible for the
losses to be occurred in the contrary case.
BEFORE USING YOUR FRIDGE
• If the supply cord is demaged, it must be
replaced by the manufacturer, its service
agent or similar qualied persons in order to
avoid a hazard.
• This appliance is not intended for use at
altitudes exceeding 2000 m.

EN
7
Safety warnings
• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow
children to play with the appliance or let them to hang over
the door.
• Do not plug-in or out the plug from the receptacle with wet
hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer
department. Bottles or cans may explode.
• Do not place explosive or ammable material in your fridge
for your safety. Place drinks with higher alcohol amount
vertically and by closing their necks tightly in the fridge
department.
• When taking ice made in the freezer department, do not
touch it, ice may cause ice burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-
cream and ice cubes immediately after you take them out
of the freezer department!
• Do not re-freeze the frozen goods after being melted. This
may cause health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This affects
the performance of your fridge.
• Fix the accessories in the fridge during transportation to
prevent damage to accessories.
BEFORE USING YOUR FRIDGE

EN
8 BEFORE USING YOUR FRIDGE
Installing and operating your fridge
Before starting to use your fridge, you should pay attention to
the following points:
• Operating voltage for your fridge is 220-240 V at 50Hz.
• Mains cord of your fridge has a grounded plug. This plug
should be used with a grounded receptacle that has a
16 ampere fuse minimum. If you don’t have a receptacle
conrming with this, please have it done by a qualied
electrician.
• We do not take the responsibility of the damages that
occur due to ungrounded usage.
• Place your fridge in a place that it would not be exposed
to direct sunlight.
• Your appliance should be at least 50 cm away from stoves,
Gas ovens and heater cores, and should be at least 5 cm
away from electrical ovens.
• Your fridge should never be used outdoors or left under
the rain.
• When your fridge is placed next to a deep freezer, there
should be at least 2 cm between them to prevent humidity
on the outer surface.
• Do not place anything on your fridge, and install your fridge
in a suitable place so that at least 15 cm is available on the
upper side.
• The adjustable front legs should stabilized in an appropriate
height to allow your fridge operate in a stable and proper
way. You can adjust the legs by turning them clockwise
(or in the opposite direction). This should be done before
placing food in the fridge.
• Before using your fridge, wipe all parts with warm water
added with a tea spoonful of sodium bicarbonate, and
then rinse with clean water and dry. Place all parts after
cleaning.
• Install the distance adjustment plastic (the part with black
vanes at the rear) by turning it 90° as shown in the gure
to prevent the condenser from touching the wall.

EN
9
BEFORE USING YOUR FRIDGE
Before Using your Fridge
• When it is operated for the rst time or after transportation,
keep your fridge in the upright position for 3 hours and
plug it on to allow efcient operation. Otherwise, you may
damage the compressor.
• Your fridge may have a smell when it is operated for the
rst time; the smell will fade away when your fridge starts
to cool.

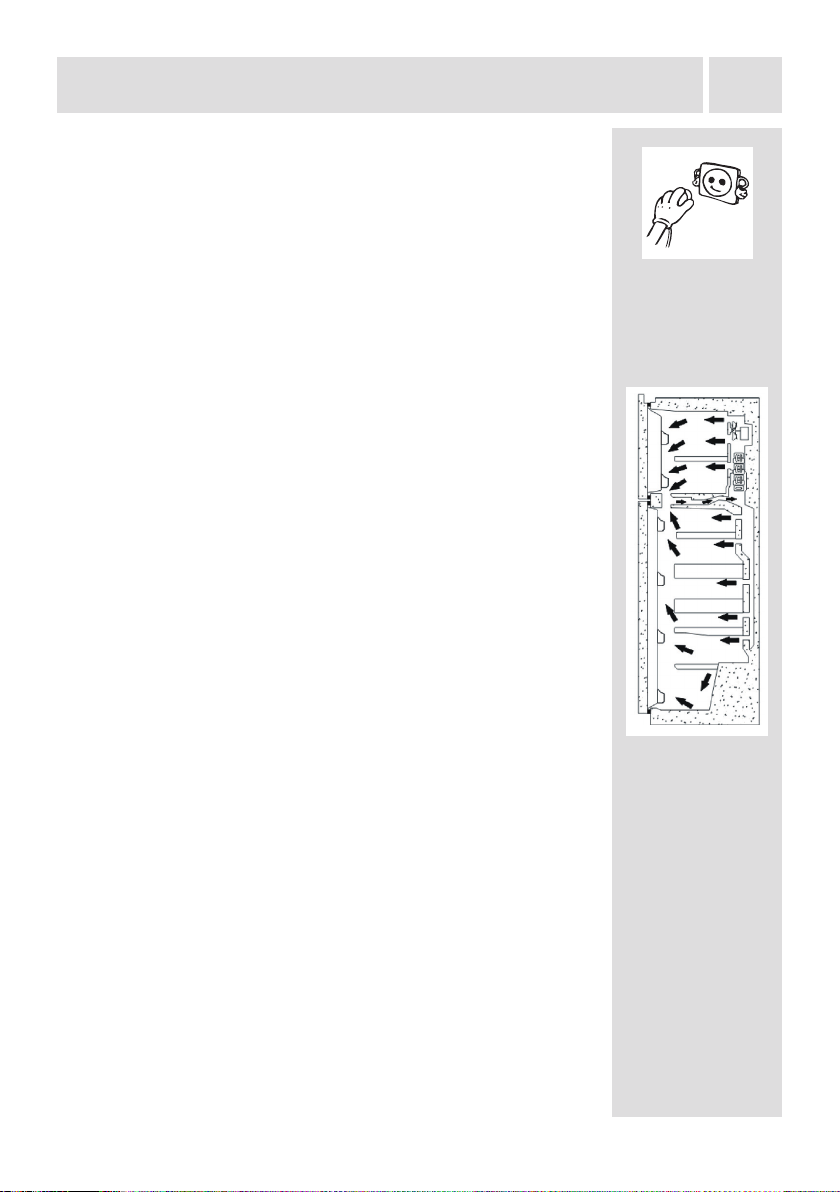

Information about NO FROST Technology
No-Frost fridges differ from other static fridges in their operating
principle.
In normal fridges, the humidity entering the fridge in the door
openings and the humidity of the food causes freezing in
the freezer compartment. To defrost the snow and ice in the
freezer compartment, you should turn off the fridge, take the
food that needs to be kept in a constant temperature off the
fridge, and remove the ice gathered in the freezer compartment
periodically.
The situation is completely different in no-frost fridges. Dry
and cold air is blown to the fridge and freezer compartments
homogeneously from several points via a blower fan. Cold air
dispersed homogeneously even between the shelves cools all
your food equally and uniformly, thus prevents humidity and
freezing.
Therefore your no-frost fridge allows you ease of use, besides
its huge volume and stylish appearance.

EN
10 PARTS AND PIECES OF YOUR FRIDGE
The purpose of this presentation is informing you about the parts of
your appliance.
The parts may vary depending on the model of the appliance.

EN
11
PARTS AND PIECES OF YOUR FRIDGE

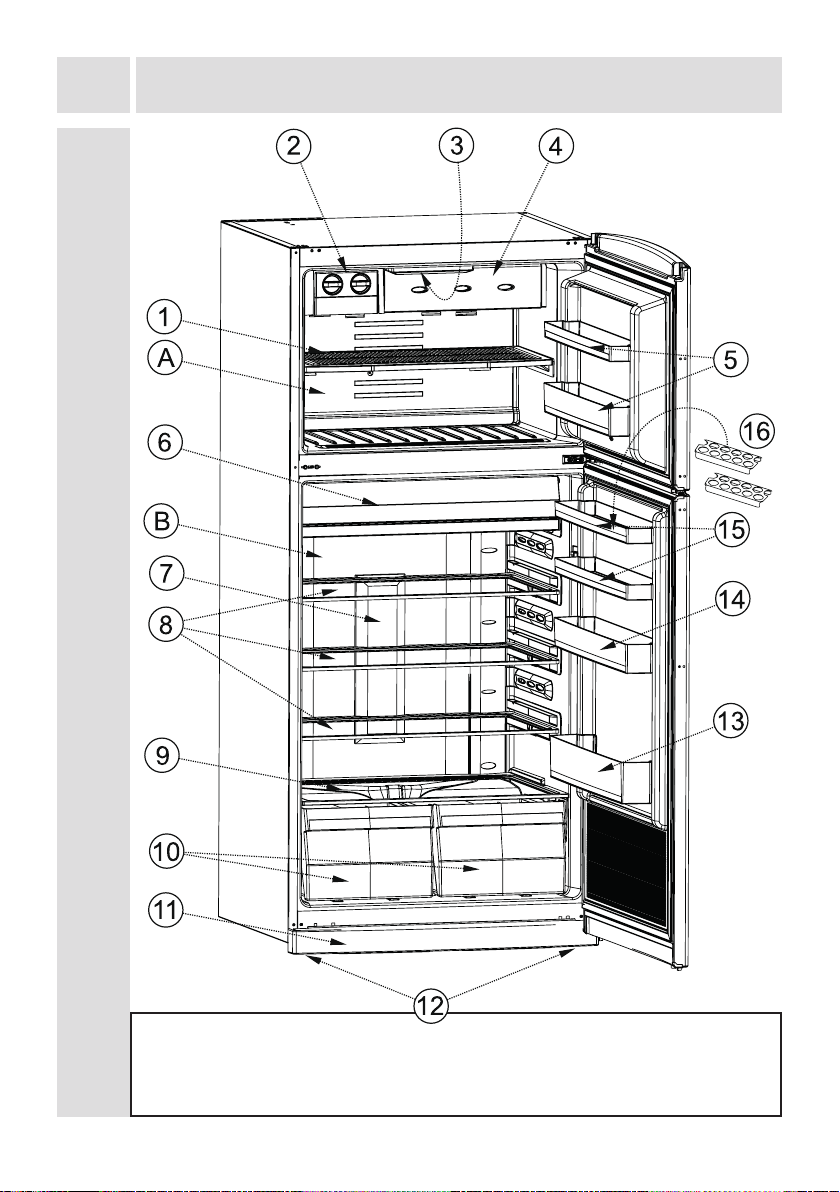

A) Freezer compartment
B) Fridge compartment
1) Freezer compartment shelf
2) Icemaker
3) Freezer lamp and its cover
4) Quick freezing shelf
5) Freezer compartment door shelves
6) Chilled room shelves
7) Fridge compartment lamp and its cover
8) Fridge compartment shelf
9) Crisper cover
10) Crisper
11) Kick plate *
12) Leveling feet
13) Fridge compartment door bottle shelf
14) Fridge compartment door shelf
15) Fridge compartment door litle shelves
16) Egg holder
* In some models
The purpose of this presentation is informing you about the
parts of your appliance.
The parts may vary depending on the model of the
appliance.

EN
12 USAGE INFORMATION
Display and control panel
1
2
3
4
5
6
7
9
10
11
8

EN
13

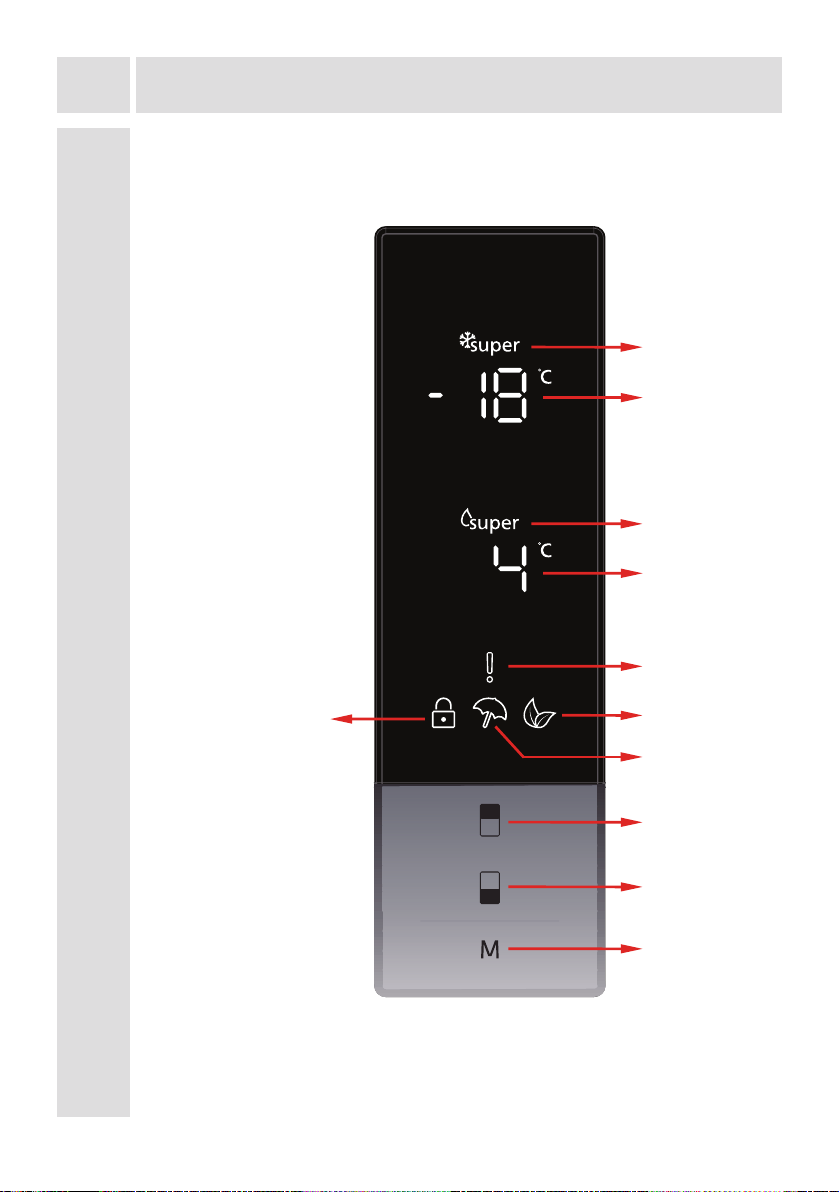

1. It is super freeze indicator.
2. It is freezer set value screen.
3. It is super cooling indicator.
4. It is cooler set value screen.
5. It is alarm symbol.
6. It is economy mode symbol.
7. It is holiday mode symbol.
8. It is child-lock symbol.
9. It enables the setting value of freezer to be modied and super
freeze mode to be activated if desired. Freezer may be set to -16,
-18, -20, -22, -24°C super freeze.
10. It enables the setting value of cooler to be modied and super cool
mode to be activated if desired. Cooler maybe set to 8, 6, 5, 4, 2 °C
super cool.
11. It enables the modes (economy, holiday…) to be activated if
desired.
USAGE INFORMATION

EN
14 USAGE INFORMATION
Operating your fridge

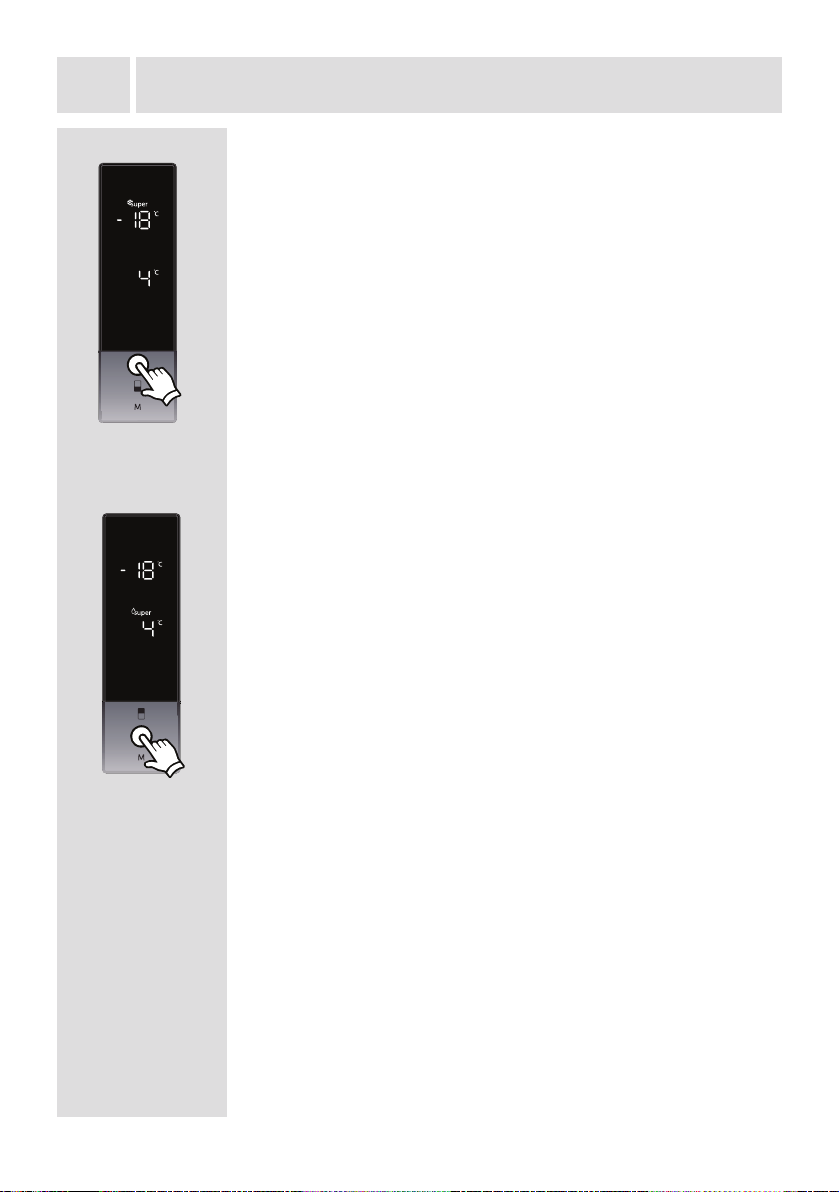

Super freeze mode
How would it be used?
Press freezer set button until Super freeze symbol will be
seen on the screen. Buzzer will sound beep beep. Mode will
be set.
During this mode:
• Temperature of cooler and super cool mode may be
adjusted. In this case super freeze mode continues.
• Economy and Holiday mode can not be selected.
• Super freeze mode can be cancelled by the same
operation of selecting.
Super cool mode
How would it be used?
Press cooler set button until Super cool symbol will be seen
on the screen. Buzzer will sound beep beep. Mode will be
set.
During this mode:
• Temperature of freezer and super freeze mode may be
adjusted. In this case super cool mode continues.
• Economy and Holiday mode can not be selected.
• Super cool mode can be cancelled by the same operation
of selecting.

EN
15
USAGE INFORMATION
Economy mode
How would it be used?
• Push "mode button" until eco symbol appears.
• If no button is pressed for 1 second. Mode will be set.
Eco symbol will blink 3 times. When mode is set, buzzer
will sound beep beep.
• Freezer and refrigerator temperature segments will show
"E".
• Economy symbol and E will light till mode nishes.
During this mode:
• Freezer may be adjusted. When economy mode will be
cancelled, the selected setting values will proceed.
• Cooler may be adjusted. When economy mode will be
cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected.
Economy mode is automatically cancelled and the
selected mode is activated.
• Holiday mode can be selected after cancelling the
economy mode. Then the selected mode is activated.
• To cancel, you will just need to press on mode button.
Holliday mode
How would it be used?
• Push "mode button" until holiday symbol appears
• If no button is pressed for 1 second. Mode will be set.
Holiday symbol will blink 3 times. When mode is set,
buzzer will sound beep beep.
• Cooler temperature segment will show "--".
• Holiday symbol and "--" will light till mode nishes.
During this mode:
• Freezer may be adjusted. When holiday mode will be
cancelled , the selected setting values will proceed.
• Cooler may be adjusted. When holiday mode will be
cancelled, the selected setting values will proceed.
• Super cool and super freeze modes can be selected.

EN
16 USAGE INFORMATION
• Holidaymodeisautomaticallycancelledandtheselected
modeisactivated.
• Economy mode can be selected after cancelling the
holidaymode.Thentheselectedmodeisactivated.
• Tocancel,youwilljustneedtopressonmodebutton.

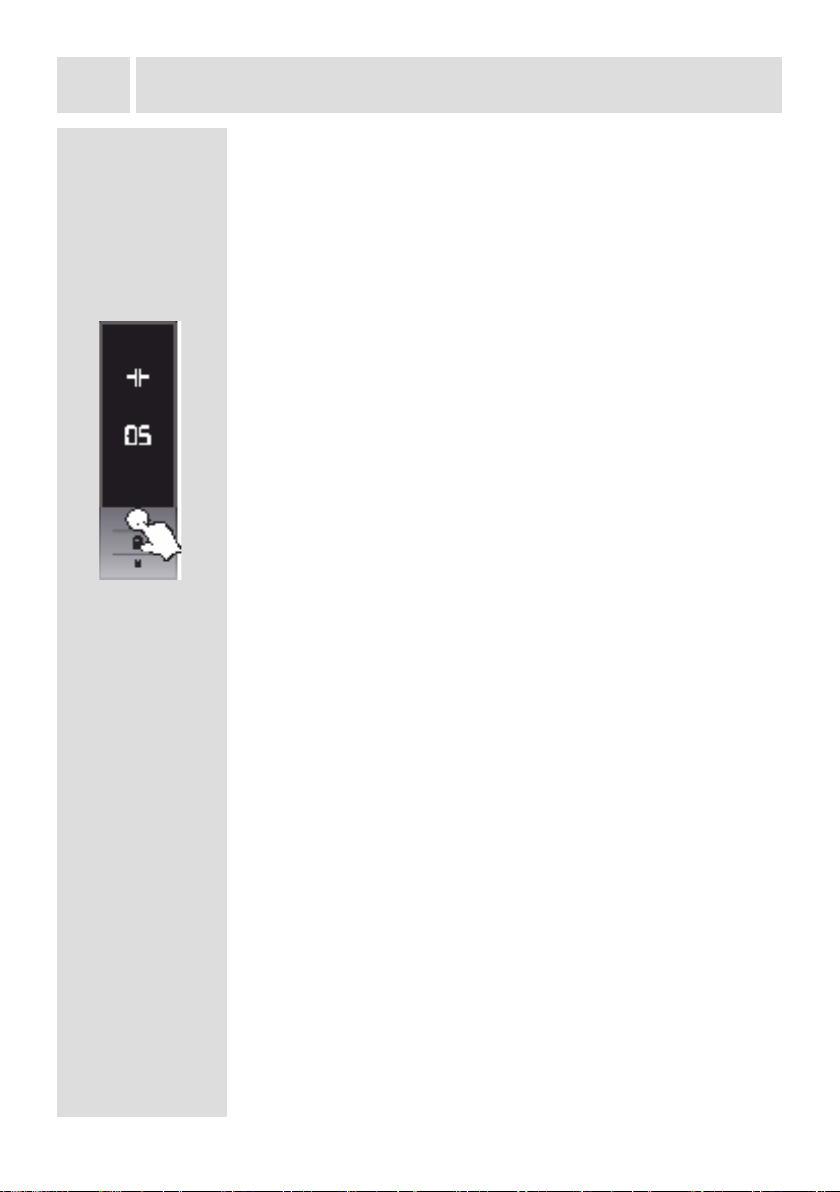

Drink cool mode
When would it be used?
Thismodeisusedtocoolthedrinkswithinadjustabletime.
How would it be used?
• Pressfreezerbuttonfor3seconds.
• Specialanimationwill start on freezer set value screen
and05willblinkoncoolersetvaluescreen.
• Presscoolerbuttontoadjustthetime(05-10-15-20-
25-30minutes).
• Whenyouselectthetimethenumberswillblink3times
onscreenandsoundbeepbeep.
• Ifnobuttonispressedwithin2secondsthetimewillbe
set.
• Thecountdownstartsfromtheadjustedtimeminuteby
minute.
• Remainingtimewillblinkonthescreen.
• To cancel this mode press freezer set button for 3
seconds.

EN
17
USAGE INFORMATION

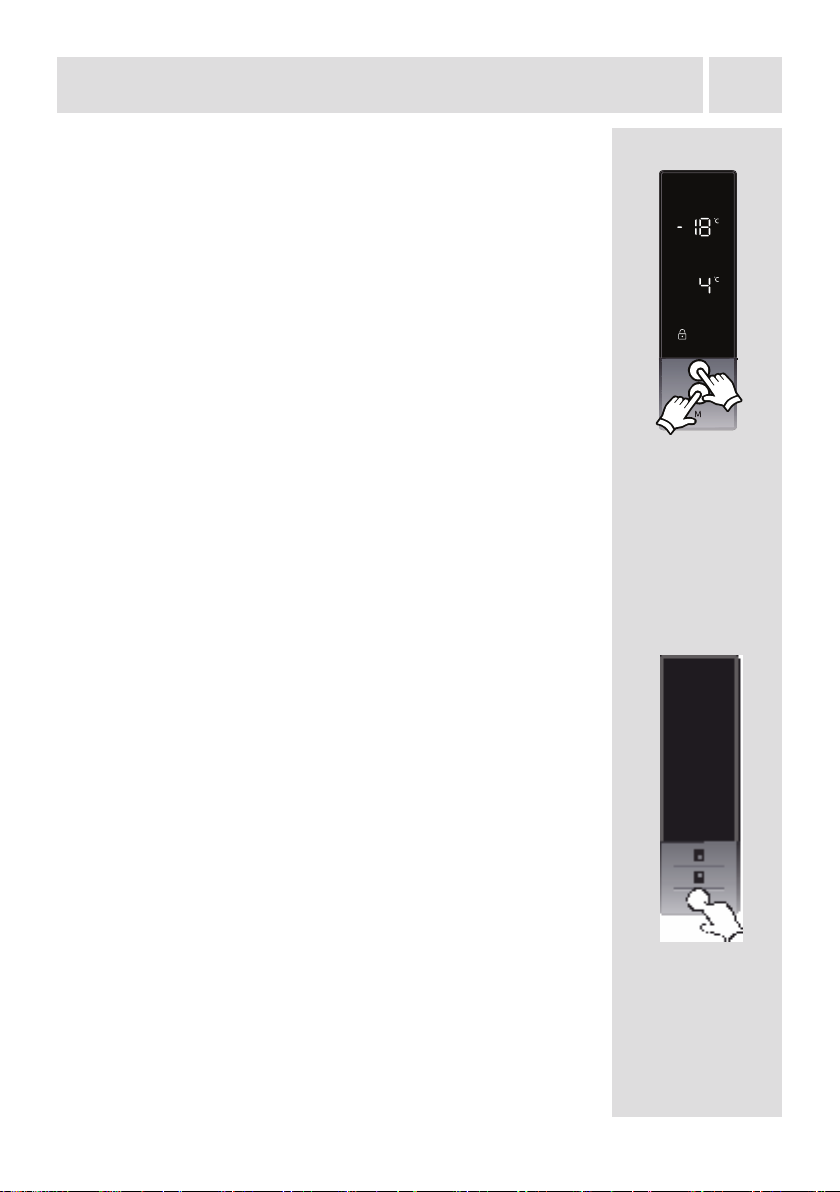

Function of Child lock
When would it be used?
To prevent children from playing with the buttons and
changing the settings you have made, child lock is available
in the appliance.
Activating Child Lock
Press on Freezer and Cooler buttons simultaneously for 5
seconds.
Deactivating Child Lock
Press on Freezer and Cooler buttons simultaneously for 5
seconds.
Note: Child lock will also be deactivated if electricity is
interrupted or the fridge is unplugged.
Screen saver mode
How to use?
• This mode will be activated when you press on mode
button for 5 seconds.
• If no button is pressed within 5 seconds when he mode is
active, lights of the control panel will go off.
• If you press any button when lights of control panel are
off, the current settings will appear on the screen, and
then you can maket he adjustment as you want. If you
neither cancel screen saver mode nor press on any
button in 5 seconds, the control panel will go off again.
• To cancel screen saver mode press on mode button for
5 seconds again.
• When screen saver mode is active you can also activate
child lock.
• If no button is pressed within 5 seconds after child lock
is activated, the lights of the control panel will turn off.
You can see latest status of settings or modes after you
pres any button. While control panel ‘s light is on, you
can cancel child lock as described in the instruction of
this mode.

EN
18 USAGE INFORMATION
Cooler temperature settings
• Initial temperature value for Cooler Setting Indicator is
+4 °C.
• Press cooler button once.
• When you rst push this button, the last value appears on
the setting indicator of the cooler.
• Whenever you press on this button, lower temperature
will be set. (+8°C, +6°C, +5°C, +4°C, +2°C, supercool)
• When you push the cooler set button until supercool
symbol appears, and if you do not push any button in 1
seconds Super Cool will ash.
• If you continue to press, it will restart from +8°C.
• The temperature value selected before Holiday Mode,
Super Freeze Mode, Super Cool Mode or Economy
Mode is activated will remain the same when the mode
is over or cancelled. The appliance continues to operate
with this temperature value.
Freezer temperature settings
• Initial temperature value for Freezer Setting Indicator is
-18°C.
• Press freezer set button once.
• When you rst push this button, the last set value will
blink on screen.
• Whenever you press on this button, lower temperature will
be set (-16°C, -18°C, -20°C, -22°C, -24°C superfreeze).
• When you push the freezer set button until superfreeze
symbol appears, and if you do not push any button in 1
seconds Super Freeze will ash.
• If you continue to press, it will restart from -16°C.
• The temperature value selected before Holiday Mode,
Super Freeze Mode, Super Cool Mode or Economy
Mode is activated will remain the same when the mode
is over or cancelled. The appliance continues to operate
with this temperature value.

EN
19
USAGE INFORMATION
Warnings about temperature adjustments
• Itisnotrecommendedthatyouoperateyourfridgeinenvironments
colderthan10°Cintermsofitse󰀩ciency.
• Temperatureadjustmentsshouldbemadeaccordingtothefrequency
ofdooropeningsandthequantityoffoodkeptinsidethefridge.
• Donotpasstoanotheradjustmentbeforecompletinganadjustment.
• Your fridge should be operated up to 24 hours according to the
ambienttemperaturewithoutinterruptionafterbeingpluggedintobe
completelycooled.Donotopendoorsofyourfridgefrequentlyanddo
notplacemuchfoodinsideitinthisperiod.
• A 5 minute delaying function is applied to prevent damage to the
compressorofyourfridge,whenyoutaketheplugo󰀨andthenplug
itonagaintooperateitorwhenanenergybreakdownoccurs.Your
fridgewillstarttooperatenormallyafter5minutes.
• Yourfridgeisdesignedtooperateintheambienttemperatureintervals
statedinthestandards,accordingtotheclimateclassstatedinthe
informationlabel.Wedonotrecommendoperatingyourfridgeoutof
statedtemperaturesvaluelimitsintermsofcoolinge󰀨ectiveness.
• Thisapplianceisdesignedforuseatanambienttemperaturewithin
the16°C-43°Crange.
Climate
Class Ambient Temperature oC
TBetween16and43(°C)
ST Between16and38(°C)
NBetween16and32(°C)
SN Between10and32(°C)

EN
20 USAGE INFORMATION
Accessories

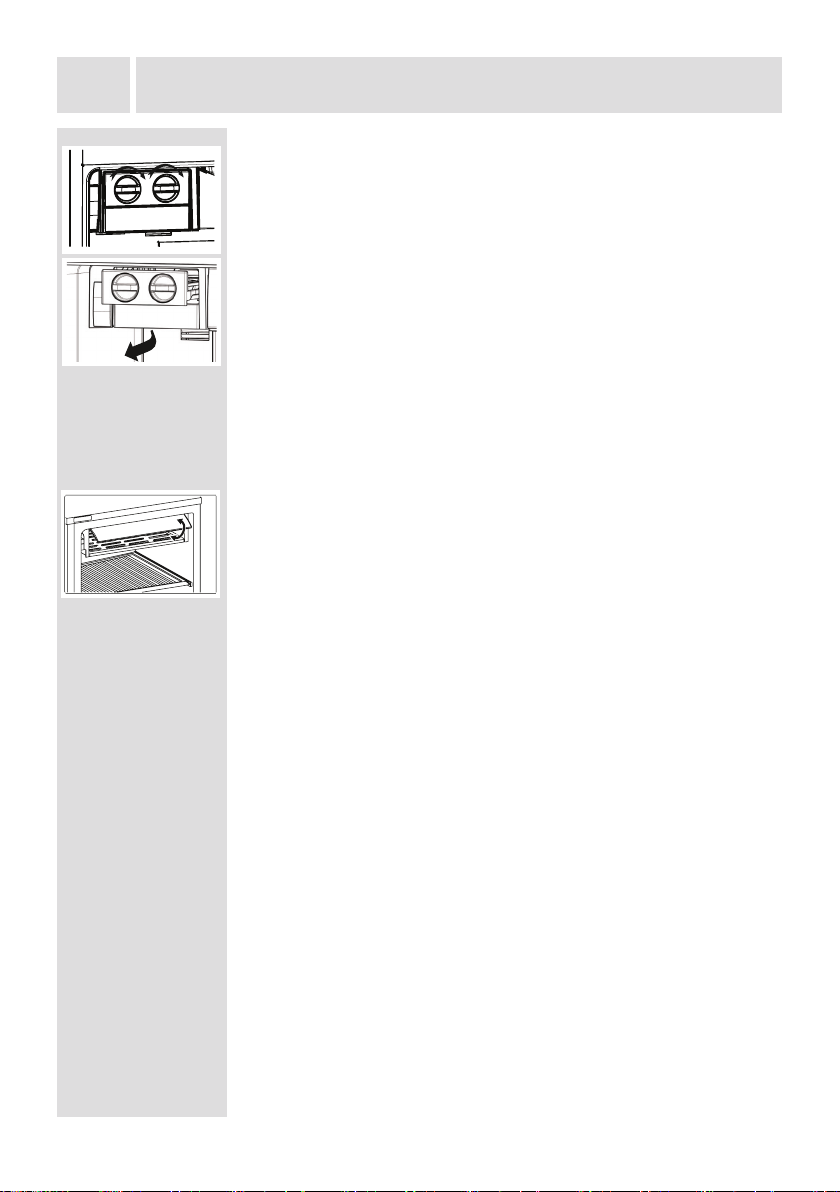

Icemaker
• Fill the icebox part of the icemaker with water and place
it back.
• You can take your ice approximately 2 hours later.
• Without displacing the icebox, turn the icebox arm to
the right until all the ice cubes are discharged to the ice
bucket.
• You can serve taking the ice bucket out or you can save
ice there.
The ice bucket is only for saving ice. Do not use it for making
ice by putting water in it. Otherwise, it can be broken.
Quick Freezer Compartment
• Use Quick freezer compartment for freezing fresh foods.
In this way, you can enable the foods which you want to
freeze to be frozen more rapidly and prevent their contact
with already frozen foods. * When the food is frozen,
you can place them to the other shelves in the freezing
compartment by taking them from the quick freezer shelf.
• To open the Quick freezer compartment door, you can
hold it and push forward by moving on the rails and you
can close it by pulling it back in the same way.
• Before closing the upper door of your fridge, make sure
that the cover of the quick freezer is closed. Otherwise, it
cannot perform its quick freezing function.
