Smeg SWM834E User manual

LAVABIANCHERIA
MANUALE DELL’UTENTE
WASHING MACHINE
USER MANUAL
mode d’emploi de machine
à laver électronique
SWM834E
SWM840E
SWM86E

THE CONTENTS
SECTION 1:BEFORE USING
xSafety warnings
xRecommendations
SECTION 2:INSTALLATION
xRemoval of transportation screws
xAdjustment of feet
xElectrical connection
xWater supply connection
xWater drain connection
SECTION 3:TECHNICAL SPECIFICATIONS
SECTION 4:CONTROL PANEL
xStart/Pause button
xFunction indicator lights
xFunction buttons
xSpin speed selector
xProgram knob
SECTION 5:WASHING YOUR LAUNDRY
xBefore washing
xRunning the machine
SECTION 6:MAINTENANCE AND CLEANING
xWater inlet filters
xPump filter
xDetergent drawer
xSiphon plug
xThe cabinet
xThe drum
xRemove of your machine from lime
SECTION 7: PRACTICAL INFORMATION
SECTION 8:AVOIDING MINOR FAULTS
SECTION 9:AUTOMATIC FAILURE DETECTION SYSTEM
SECTION 10:INTERNATIONAL WASHING SIGNS
30

SECTION 1:BEFORE USING
SAFETY WARNINGS
x
Do not use a multiple socket or extension cord.
xDo not insert a plug with damaged or broken cord into the socket.
xIf the cord is damaged it should be replaced by the manufacturer or
appointed service agent in order to avoid a hazard.
x
Never remove the plug from the socket by pulling from the cord
section. Remove the plug by holding.
x
Do not plug the power supply with wet hands.
x
Never touch the machine with wet hands or feet.
x
Never open the detergent drawer while the device is running.
x
Never force to open the door of the machine while the machine is
running.
x
Since the machine can reach high temperatures while running, do not
touch the drain hose and water during draining.
x
In case of any failure, first unplug the device and close the water tap.
Do not attempt to repair.Please apply to the nearest authorized
service station.
x
Do not forget that the packing material of your machine may be
hazardous for children.
x
Do not let your children play with the washing machine.
x
Keep your pet away from your machine.
x
Your machine should only be used by adults within the information
written in this manual.
x
Your machine is designed for use in house environment. Warranty
will be invalid if you use it for commercial purposes.
x
The appliance should not be put on a carpet which can block the air
ventilation on the bottom side.
RECOMMENDATIONS
x
The detergent or softener in contact with air for a long time will dry
and stick to your detergent drawer.To avoid this put your detergent
and softener into the detergent drawer just before washing.
x
It is recommended that you use pre-washing program for only very
dirty clothes.
x
Please do not exceed the maximum loading capacity.
x
The appliance is not intended for use by people (including children)
with reduced physical,sensor yor mental capabilities , or lack of
experience and knowledge , unless they have been given supervision
or instruction concerning use of the appliance by a preson
responsible for their safety.Children should be supervised to ensure
that they don’t play with the appliance.
31

x
If you will not use your machine for a long time, unplug your machine,
close the water supply and leave the door open in order to keep the
inside of the machine dry and for prevention from unpleasant odour.
x
As a result of the quality control procedures, a certain amount of
water may remain in your machine. This is not harmful for your
machine.
SECTION 2: INSTALLATION
You must pay attention to the following issues before using your washing
machine.

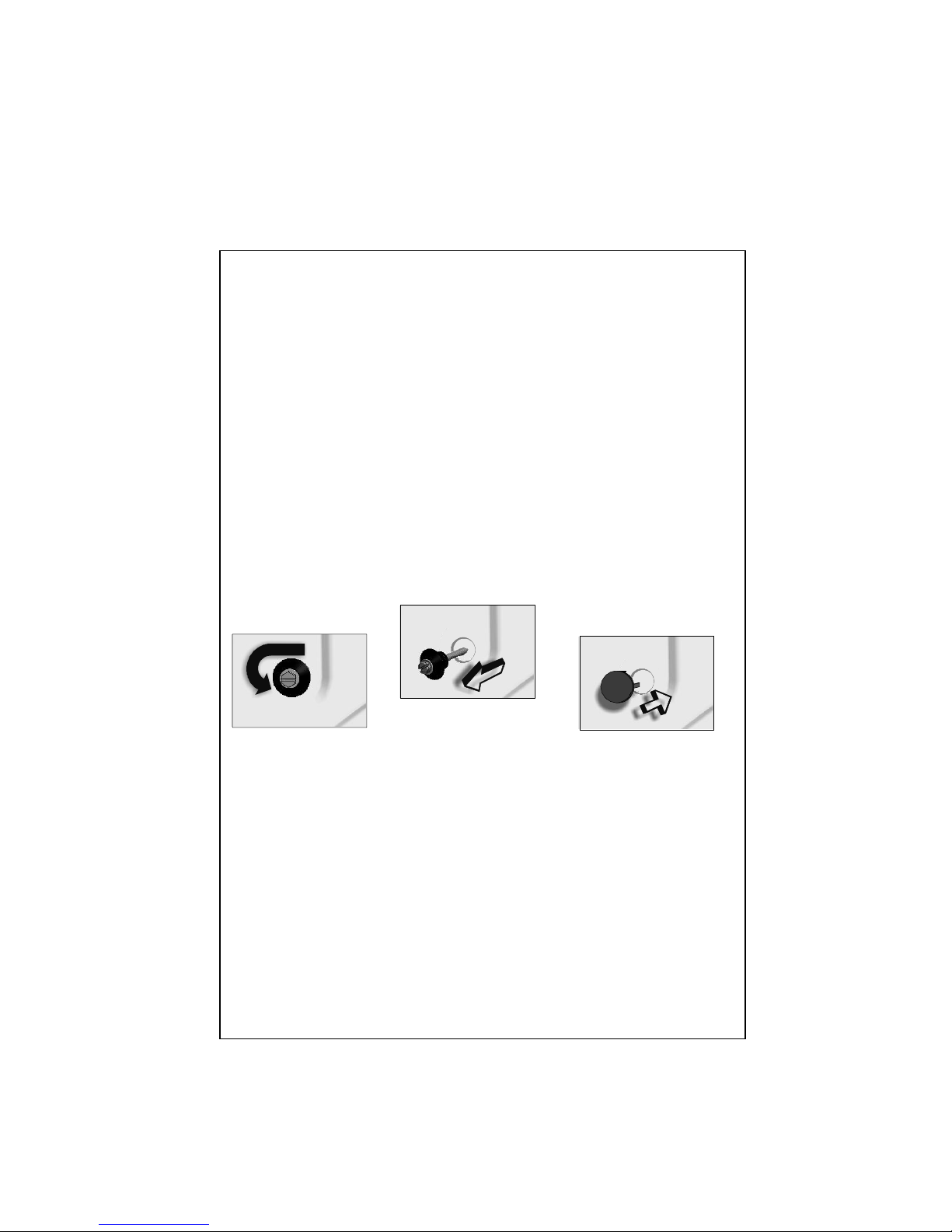

REMOVAL OF TRANSPORTATION SCREWS
x
Transportation screws, which are located at the back side of the
machine, must be removed before running the machine.
x
Loosen the screws by rotating counterclockwise by a suitable wrench.
(DIAGRAM-1)
x
Remove the screws by pulling them.(DIAGRAM-2)
x
To the holes where the transport screws have been removed, insert
the plastic transport screw taps found in the accessories bag.
(DIAGRAM-3)
x
The transportation screws, that have been removed from the machine
should be kept in hand for any other transportation necessities.
DIAGRAM-2
DIAGRAM-1 DIAGRAM-3
ADJUSTMENT OF FEET
x
Do not install your machine on rugs or similar surfaces.
x
For your machine to work silently and without any vibration, it should
be settled on a flat, non-slippery and tough ground.
32

x

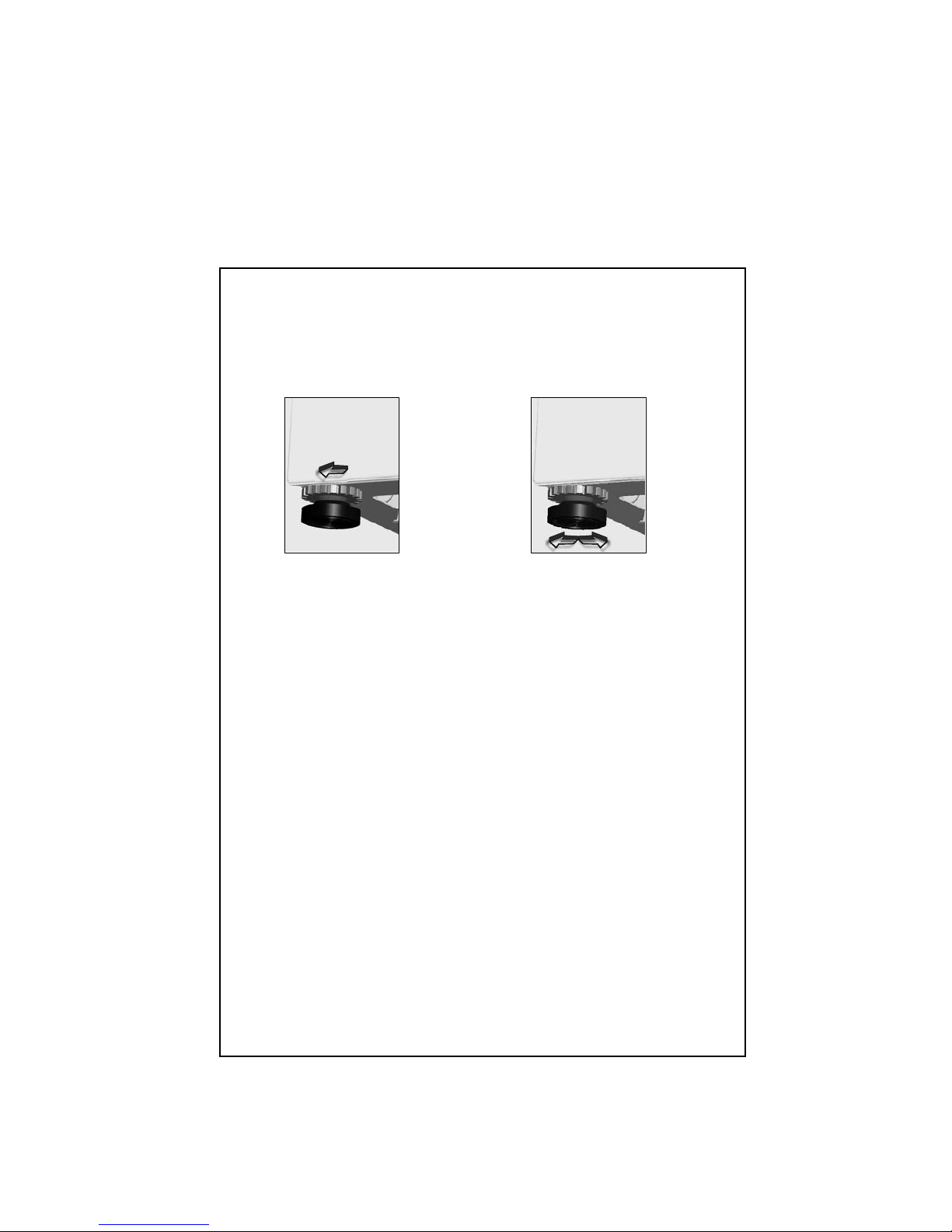

You can adjust the balance of your machine from its feet.
x
First, loosen the plastic adjustment nut.
x
Adjust by rotating the feet upwards or downwards.
x
After the balance has been reached, tighten the plastic adjustment
nut again by rotating it upwards.
x
Never put cartons, wooden blocks or similar materials under the
machine to balance the irregularities on the level of the ground.
ELECTRICAL CONNECTION
x
Your washing machine works with 220-240V and 50Hz.
x
A special grounded plug has been attached to the network cable of
your washing machine. This plug must definitely be inserted to a
grounded socket with 10 ampere. The fuse flow value of the
electricity line attached to this should also be 10 ampere. If you have
no such sockets and fuses in your house, let it be made by a qualified
electrician.
xOur company will not be responsible for any damages that may
occur as a result of usage without grounding.
xInsert the machine’s plug to a grounded socket which you can
easly reach.
WATER SUPPLY CONNECTION
xDepending on the features your machine,may be with single water
inlet(cold) or double water inlet (cold/hot). The white headed hose is
for cold water inlet and red headed hose is for hot water inlet (valid
for machines with hot&cold water inlet).
xTo prevent leakage from the connection joints, 1 (valid for cold water
inlet) or 2 (valid for machines with hot&cold water inlet) seals are
included in the hose packing. Fit these seals at the end of water inlet
hoses on the tap side.
xConnect the white headed hose to the water inlet valve with white
filter and connect the red headed hose to the water inlet valve with
red filter (latter is valid in machines with hot&cold water inlet). Tighten
the plastic parts of the connections with your hand.Please call a
qualified plumber for safer connections.
33

xWater pressure of 0,1-1 MPa from your tap will enable your machine
to work more efficiently.(0,1 MPa pressure means water flow of more
than 8 liters in 1 minute from a fully opened tap)
xAfter connections are completed, check for the non-leakage of the
connection joints by turning on your tap completely.
xBe sure that water inlet hoses are not folded, broken or crushed.
xMount the water inlet hoses to a 3”/4, geared water tap.

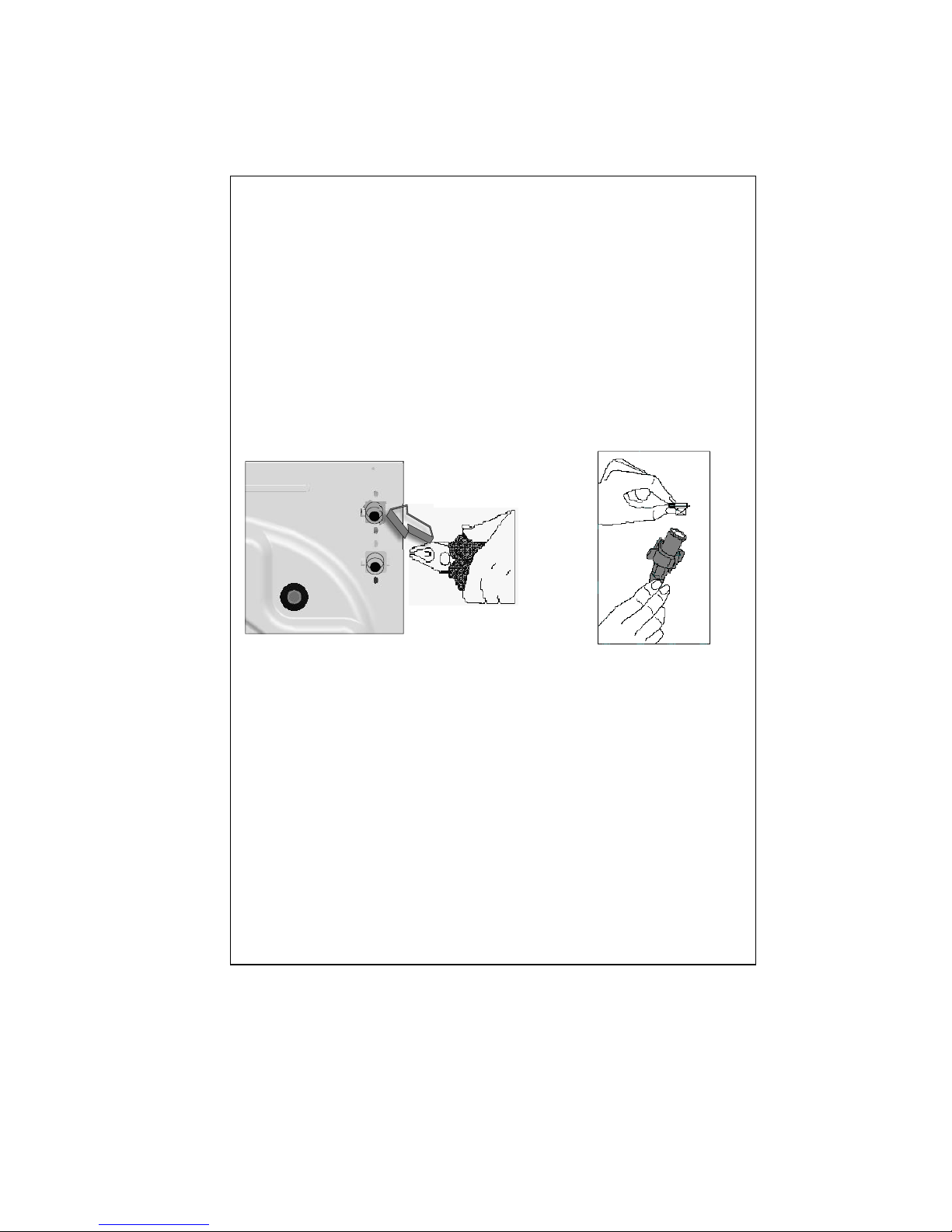

Cold water inlet (White filter valve)
Hot water inlet (Red filter valve)
WATER DRAIN CONNECTION
xBe sure that water inlet hoses are not folded, twisted, crushed or
elongated by stretching.
xWater drain hose should be mounted at a height of minimum 60 cm,
maximum 100 cm from the ground.
xThe end of the water drain hose may directly be fitted to the dirty
water outlet hole or a special apparatus mounted on the outlet
bracket of the wash-stand.
xNever attempt to extend the water drain hose by adding extra parts.
34

SECTION 3:TECHNICAL SPECIFICATIONS
SWM834E SWM840E SWM86E
Maximum dry
laundry capacity
(kg) 456
Recommended
loading (kg) 3,5 4,5 5,5
Height (cm) 85 85 85
Width (cm))59,6 59,6 59,6
Depth (cm) 37 42 54
Maximum spin
cycle ( rpm ) 800 800 800
(*) Maximum spin cycles depend on the model you’ve chosen
35

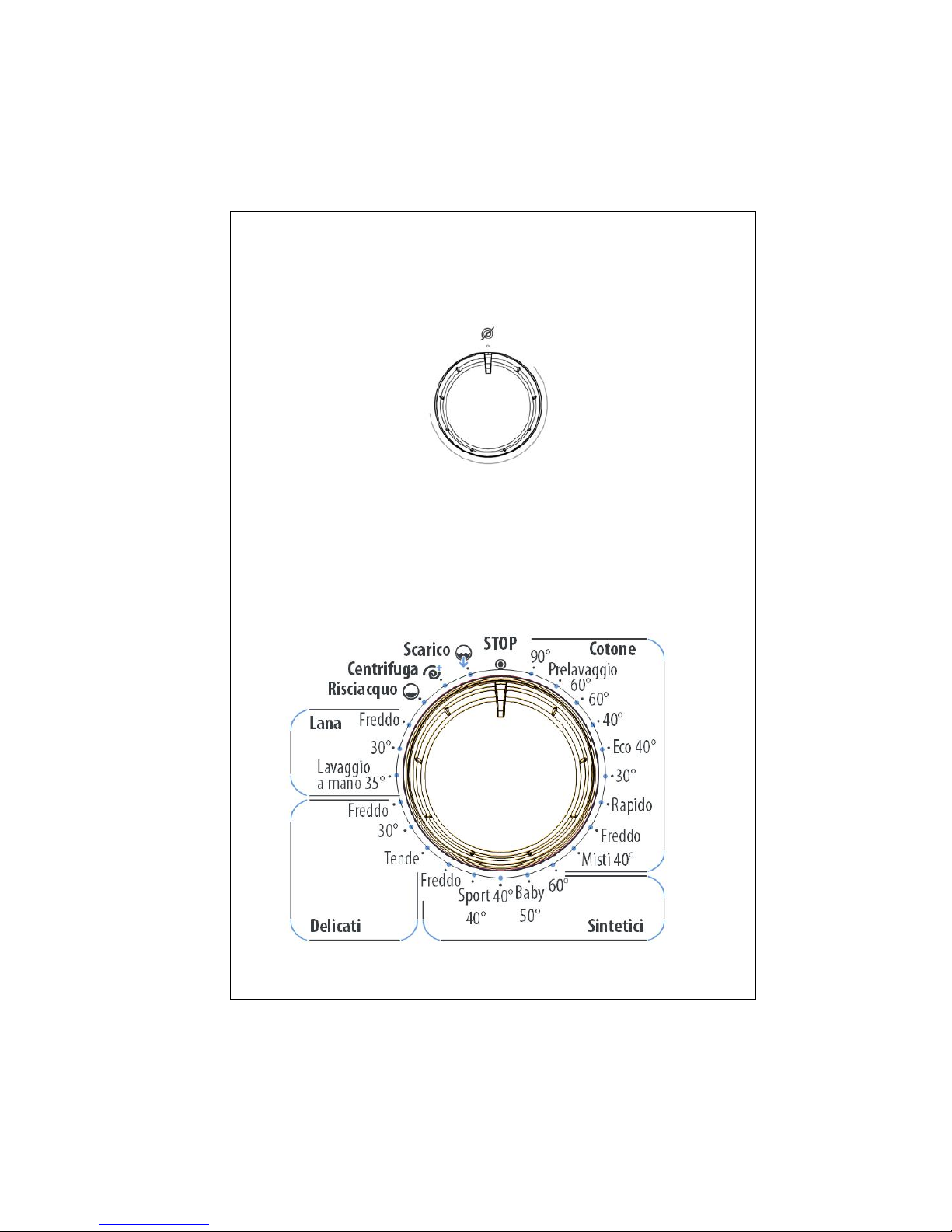

SECTION 4:CONTROL PANEL
1 2 3 4 5 6
7 8 9
1-Detergent drawer 6-Start/pause light
2-Program knob 7-Program ready light
3-Program end light 8-Function buttons
4-Spin speed selector 9-Start/pause button
5-Function indicator lights
36

START/PAUSE BUTTON
Used to start a selected program or pause during running.
WARNING!
It is required for the program knob to be brought to O(off)
position before selecting the program or changing a continuing
program.
FUNCTION INDICATOR LIGHTS
When the start/pause button or any function button is pressed,the
corresponding light turns on.The light turns off when the function
button or start/pause button is re-pressed, or when the process
the selected function is completed.
The function indicator lights are also used in failure detection system
mentioned in section 9.
FUNCTION BUTTONS
Rinse hold
This function is recommended to be used when the clothes cannot
be taken immediately after the end of the program.This will
prevent occurrence of wrinkles. When this button is pressed, the
last rinsing water is not drained. For the program to continue from
the same point, repress the same button.
37

If you do not want your sensitive clothes to be spinned or you
want them to be spinned sensitively, turn the program knob to O
(off) position. Bring the program knob on one of the draining or
spinning programs you desire and press the start/pause
button. If the program you have selected is a drain program, your
machine will draining the water inside.If you have selected a
spinning program, your machine will perform a spinning operation
and then end the program.
Extra rinse
You can have one more rinsing done in addition to the rinses
which your machine has made in all washing programs by using
this function.
Easy ironing
By using this function, you can ensure your clothes to come out
less wrinkled after the washing.
WARNING!
Functions vary depending on the model you have chosen.If you
forgot to use additional function and your machine starts to wash
push the additional function button. If the indicator light is on the
additional function will be activated, if not, the additional function
cannot be activated.
