SECTION 1 • About this Manual
HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual 1
SECTION 1
About this Manual
This operator’s manual describes the assembly, use, and maintenance of
the HOTLINE3 Blood and Fluid Warmer. This manual is intended for
use by individuals trained in the healthcare and biomedical professions.
Indications for Use
The HOTLINE3 Blood and Fluid Warmer is designed for use with the
HOTLINE3 Fluid Warming Set to warm blood and intravenous (I.V.)
fluids and deliver them to the patient's intravenous access site at
normothermic temperatures under gravity flow conditions. The
HOTLINE3 Warmer is intended for use by trained medical personnel to
provide routine flow of warmed I.V. fluid.
Conventions Used in this Manual
• The HOTLINE3Blood and Fluid Warmer will be referred to as the
HOTLINE3Warmer.
• The HOTLINE3L-370 Fluid Warming Set will be referred to as the
HOTLINE3Fluid Warming Set or Disposable Set.
Note: Some HOTLINE3War m e rs m ay have a ‘Converted from HL-90 to
HL-390’ label on the top of the device. This label indicates that a
HOTLINEHL-90 Warmer was upgraded to a HOTLINE3HL-390
Warm er.
WARNING: These instructions contain important information for
safe use of the product. Read the entire contents of this
operator’s manual, including Warnings and Cautions, before
using this product. Failure to properly follow warnings,
cautions, and instructions could result in death or serious injury
to the patient.
Convention Description
CONTRAINDICATION A Contraindication statement alerts the user to
conditions when the device should not be used.
WARNING A Warning statement alerts the user to conditions
that may cause death or serious injury to the
patient or user.
CAUTION A Caution statement alerts the user to conditions
that may cause malfunction, failure, or damage
to the device.

SECTION 2 • Description
2HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual
SECTION 2
Description
The HOTLINE3 Warmer delivers blood and intravenous fluid at
normothermic temperatures by surrounding the sterile intravenous line
with a layer of warmed recirculating solution. An onboard recirculating
solution supply is heated to 37.5°C ± 0.5 and circulated through the outer
lumen of the HOTLINE3 Fluid Warming Set, which surrounds the
intravenous line.
The HOTLINE3 Warmer employs a safe, recirculating solution heating
system, inherently free of “hot spots,” to actively warm the patient line.
Electronic circuitry continuously monitors the recirculating solution
temperature. The primary temperature control circuit limits the
recirculating solution to 38°C maximum. In the unlikely event of a
malfunction of this circuit, a second “watchdog” circuit will visually and
audibly alarm and stop the recirculating solution pump if the temperature
reaches 39.2°C. Fluid in the HOTLINE3 Fluid Warming Set is never
exposed to any damaging or dangerous temperatures while the
HOTLINE3 Warmer is operating.
The recirculating solution temperature and visual alarms are indicated on
the Display Panel on the front of the HOTLINE3 Warmer. A green
Operating light illuminates on this panel when the HOTLINE3 Warmer
is set up and operating correctly.
Components

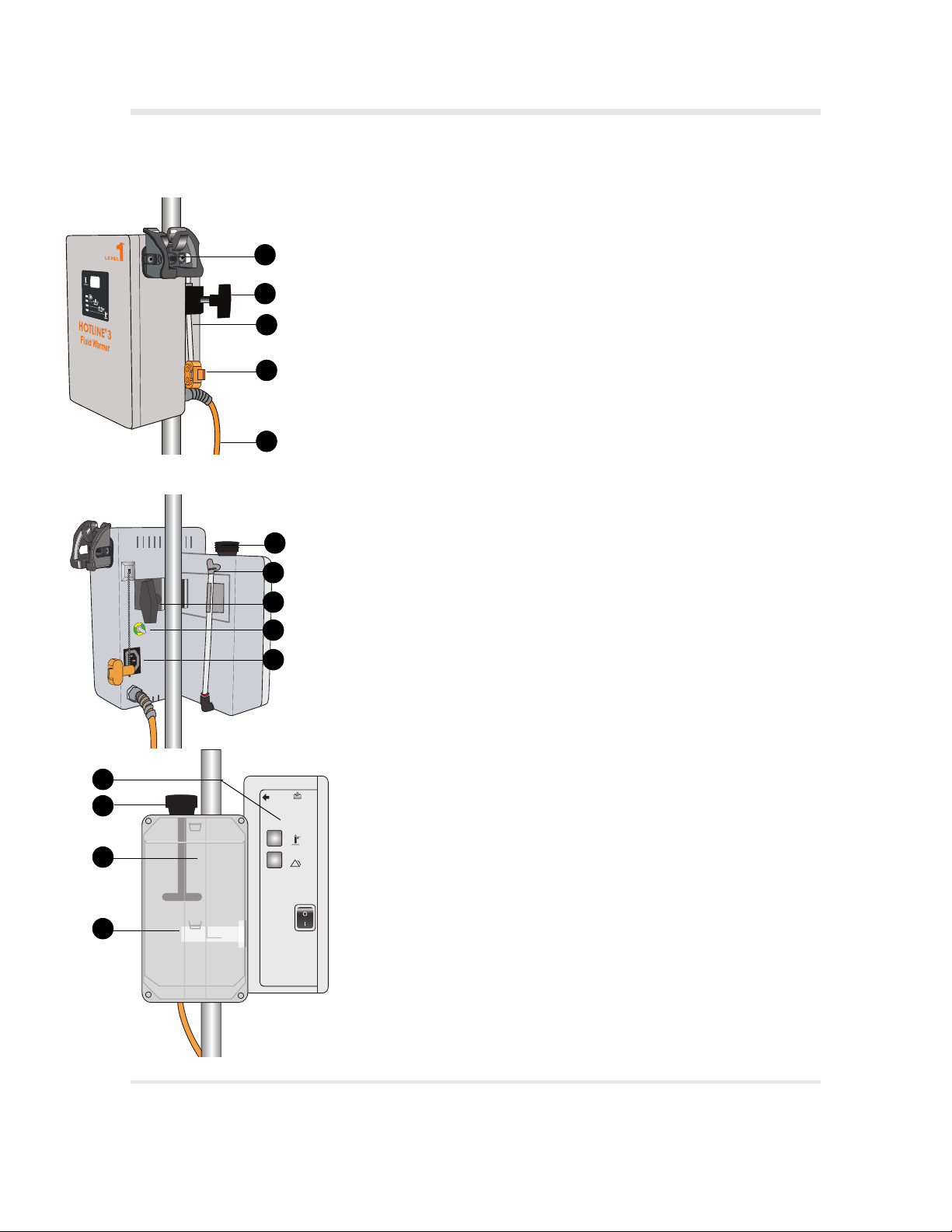

The HOTLINE3 components are called-out in the following series of
figures.

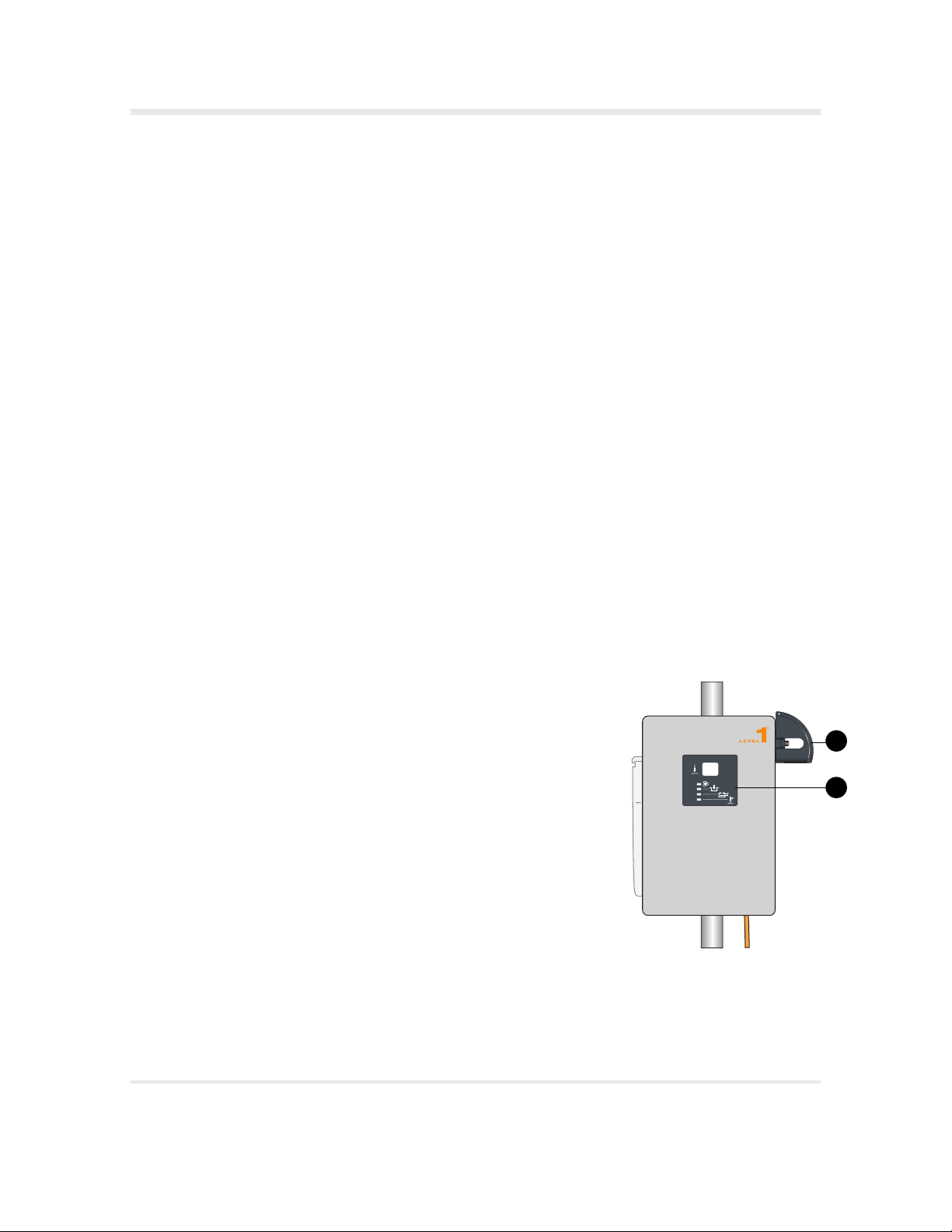

Front View
1Socket for HOTLINE3 Fluid Warming Set with the reflux plug
in place
2Display Panel
o
o
C
C
HOTLINE
®
3
Fluid Warmer
1
2

SECTION 2 • Description
HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual 3
Right Side View
1Socket with the reflux plug removed
2Clamp for I.V. pole
3Drain tube in tube holder
4Reflux plug
5Power cord
Rear View
1Fill-port plug
2Drain tube in tube holder
3Clamp for I.V. pole
4Protective earth terminal
5Auxiliary electrical outlet (uncovered)
Left Side View
1Power and Alarm Test Panel
2Fill-port plug
3Reservoir, contains recirculating solution
4Float switch (inside reservoir)
oo
CC
2
1
3
4
5
1
2
1
3
4
5
1.4 LITERS
2
1
3
4

SECTION 2 • Description
4HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual
HOTLINE®3 Fluid Warming Set
HOTLINE3 L-370 Fluid Warming Set is an individually packed, single-
use disposable with a Sterile Fluid Path. The priming volume is
approximately 20 ml. The HOTLINE3 Fluid Warming Set has a
connector that plugs into the socket on the right side of the HOTLINE3
Warmer. The connector is designed with a support guide to facilitate
installation and two locking tabs to ensure that HOTLINE3 Fluid
Warming Set is securely fastened in the socket. This is the only connection
necessary to provide the warming function. The HOTLINE3 Fluid
Warming Set is easily unplugged from the HOTLINE3 Warmer and
discarded.

SECTION 3 • Important Safety Information
HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual 5
SECTION 3
Important Safety Information
This section covers information for prescribers and guidelines for safe use
of the HOTLINE3 Warmer.
CONTRAINDICATIONS
• Not for use in warming platelets, cryo-precipitates, or
granulocyte suspensions.
WARNINGS
WARNINGS
Death or serious injury may occur to the patient or user if these
warnings are not followed.
• These instructions contain important information for safe use of
the product. Read the entire contents of this operator’s manual,
including Warnings and Cautions, before using this product.
Failure to properly follow warnings, cautions, and instructions
could result in death or serious injury to the patient.
•TheHOTLINE
®3 Fluid Warming Set, L-10, PC-8, and YC-8 are
single-use devices and are not intended for re-sterilization.
• Do not use HOTLINE®3 Fluid Warming Set, L-10, PC-8, and
YC-8 if the caps are not securely in place, else the I.V. flow path
may not be sterile.
•TheHOTLINE
®3 Warmer is for use only with Smiths Medical
supplied or approved parts, accessories, and Disposable Sets.
The device may not function as intended with the use of
unapproved parts, accessories, or Disposable Sets.
• Blood and blood products could contain pathogenic organisms.
Failure to follow institutional policy and procedures for
biomedical-hazardous materials could lead to exposure to
harmful pathogens.
• Set-up, priming, and use require aseptic technique as per
applicable institutional policies and procedures.
Continued

SECTION 3 • Important Safety Information
6HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual
Continued from previous page
WARNINGS
WARNINGS
• Prime the recirculating solution path before connecting to the
intravenous extension set. This is to confirm that there is not a
breach between the recirculating solution path and intravenous
path. If fluid exits the patient end of the HOTLINE®3 Fluid
Warming Set before connecting to the intravenous
administration set, remove and replace HOTLINE®3 Fluid
Warming Set.
• Remove all air from the HOTLINE®3 Fluid Warming Set, L-10,
PC-8, and YC-8 before connecting to the patient. Failure to do
so may result in introduction of air to the patient.
• To reduce the risk of outgassed microbubbles entering patient
vasculature, an L-10 Gas Vent may be used with the
HOTLINE®3 Fluid Warming Set.
• Not for use with pressure devices generating over 300 mmHg.
Pressure greater than 300 mmHg may compromise the integrity
of the HOTLINE®3 Fluid Warming Set.
• Do not stick the HOTLINE®3 Fluid Warming Set with needles, as
this will breach the I.V. path and compromise the integrity of the
patient intravenous line. If a Disposable Set with a breached
recirculating solution path/intravenous path is used, then
patient illness may occur because of the HOTLINE®3 Warmer's
recirculating solution entering the patient's bloodstream.
• Activation of the Over Temperature warning signal indicates
that warming has stopped and immediate operator intervention
is required to clear the over temperature condition or to remove
the device from service.
• If any visual indicator does not illuminate or the audible signal
does not sound, do not use the HOTLINE®3 Warmer. Remove
the device from service immediately.
• Do not operate the HOTLINE®3 Warmer in the presence of a
flammable anesthetic mixture with air, oxygen, or nitrous oxide.
The risk of explosion exists if the HOTLINE®3 Warmer is
operated in a potentially explosive environment.
• Do not use the HOTLINE®3 Warmer in high-energy fields such
as: MRI, X-RAY, portable and mobile RF communications
equipment, and other such devices. The HOTLINE®3 Warmer
may act as a projectile in a strong magnetic field, cause image
artifacts, or not function as intended.
Continued

SECTION 3 • Important Safety Information
HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual 7
Continued from previous page
WARNINGS
WARNINGS
• Exposed conductor on MAINS power cord can cause an
electrocution hazard. Remove device from service if the MAINS
power cord has exposed wires.
• Grounding reliability can only be achieved when the MAINS
power cord is connected to a properly grounded receptacle.
Risk of electrical shock exists if the equipment is not connected
to a properly grounded receptacle.
• Do not mount the HOTLINE®3 Warmer more than 107cm (42")
above the floor. For convenience, 107cm (42") is indicated on
the HOTLINE®3 Warmer power cord by a black mark. Mounting
the HOTLINE®3 Warmer above 107cm (42") may result in
instability of the pole and tipping.
• Ensure that the HOTLINE®3 Warmer clamp is screwed tightly
onto the I.V. pole. Failure to securely mount the HOTLINE®3
Warmer onto the I.V. pole may cause the HOTLINE®3 Warmer
to slide down the I.V. pole.
• Do not use the HOTLINE®3 Warmer if equipment or Disposable
Set malfunction is evident.
• No user-serviceable parts. All service must be performed by
Smiths Medical or competent personnel.
• No modification of this equipment is allowed.
CAUTIONS
Malfunction, failure, or damage to the device may occur if these
cautions are not followed.
• Federal (U.S.A.) law restricts this device to sale by or on the
order of a physician.
• Do not autoclave or immerse any part of the HOTLINE®3
Warmer in liquids, which may cause damage and improper
functioning.
• Never use organic solvents (e.g., acetone), strong acids, or
bases to clean any portion of the HOTLINE®3 Warmer.
Continued

SECTION 3 • Important Safety Information
8HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual
Continued from previous page
CAUTIONS
• Do not place the HOTLINE®3 Warmer directly under a faucet or
use a faucet sprayer to rinse. Never spray cleaning or other
fluids into openings on the HOTLINE®3 Warmer or into the
external connectors.
• This device is cooled by convection. Be sure the air vents on the
bottom and the back of the device are kept clear.
• Do not fill the HOTLINE®3 Warmer reservoir with a HOTLINE®3
Fluid Warming Set in place. Failure to remove the HOTLINE®3
Fluid Warming Set before the fill procedure may result in an air
lock in the HOTLINE®3 Warmer.
• Medical devices require specific material characteristics to
perform as intended. These characteristics have been verified
for single use only. Any attempt to re-process the device for
subsequent re-use may adversely affect the integrity of the
device or lead to deterioration in performance.
Additional WARNINGS and CAUTIONS for Accessories
WARNINGS for the L-10 Gas Vent
• Do not tape over vents, else air will not be vented.
• Not for use with volumetric infusion pumps, hand pumps, or
syringes. These may compromise the integrity of the L-10 Gas
Vent or HOTLINE®3 Fluid Warming Set.
• When the L-10 Gas Vent is in use, it should be placed at or
below the heart level. Do not raise the gas vent above the
patient’s heart level. If the gas vent is raised above heart level,
air may be entrained into the infusion line, possibly causing air
embolism, resulting in serious injury or death.
CAUTIONS for the L-10 Gas Vent
• This product contains natural rubber latex, which may cause
allergic reactions.

SECTION 4 • Assembly Instructions
HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual 9
SECTION 4
Assembly Instructions
Read through the instructions completely prior to setting up the
HOTLINE3 Warmer.
Step 1 - Unpack the HOTLINE3 Warmer
1Open the shipping carton and remove the HOTLINE3Warmer.
2Check the contents of the package to verify the following
components are present:
•HOTLINE
3 Warmer
• Operator’s Manual
•HOTLINE
3 Inspection/Test Form
3Examine the HOTLINE3Warmer for damage. If any components
appear damaged, do not use the HOTLINE3Warmer. C ontac t
Smiths Medical for a replacement.
Note: After unpacking the HOTLINE3Warmer, recycle packaging
material according to hospital policy for recyclable materials.
Step 2 - Clamp the HOTLINE3Warmer to the I.V.
Pole
WARNINGS
WARNINGS
• Ensure that the HOTLINE®3 Warmer pole clamp is screwed
tightly onto the I.V. pole. Failure to securely mount the
HOTLINE®3 Warmer onto the I.V. pole may cause the
HOTLINE®3 Warmer to slide down the pole and may injure the
patient or user.
• Do not mount the HOTLINE®3 Warmer more than 107cm (42”)
above the floor. For convenience, 107cm (42") is indicated on
the HOTLINE®3Warmer line cord by a black mark. Mounting
the HOTLINE®3 Warmer above 107cm (42”) may result in
instability of the pole and tipping that may injure the patient or
user.
CAUTIONS
• This device is cooled by convection. Be sure the air vents on the
bottom and the back of the device are kept clear.

SECTION 4 • Assembly Instructions
10 HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual

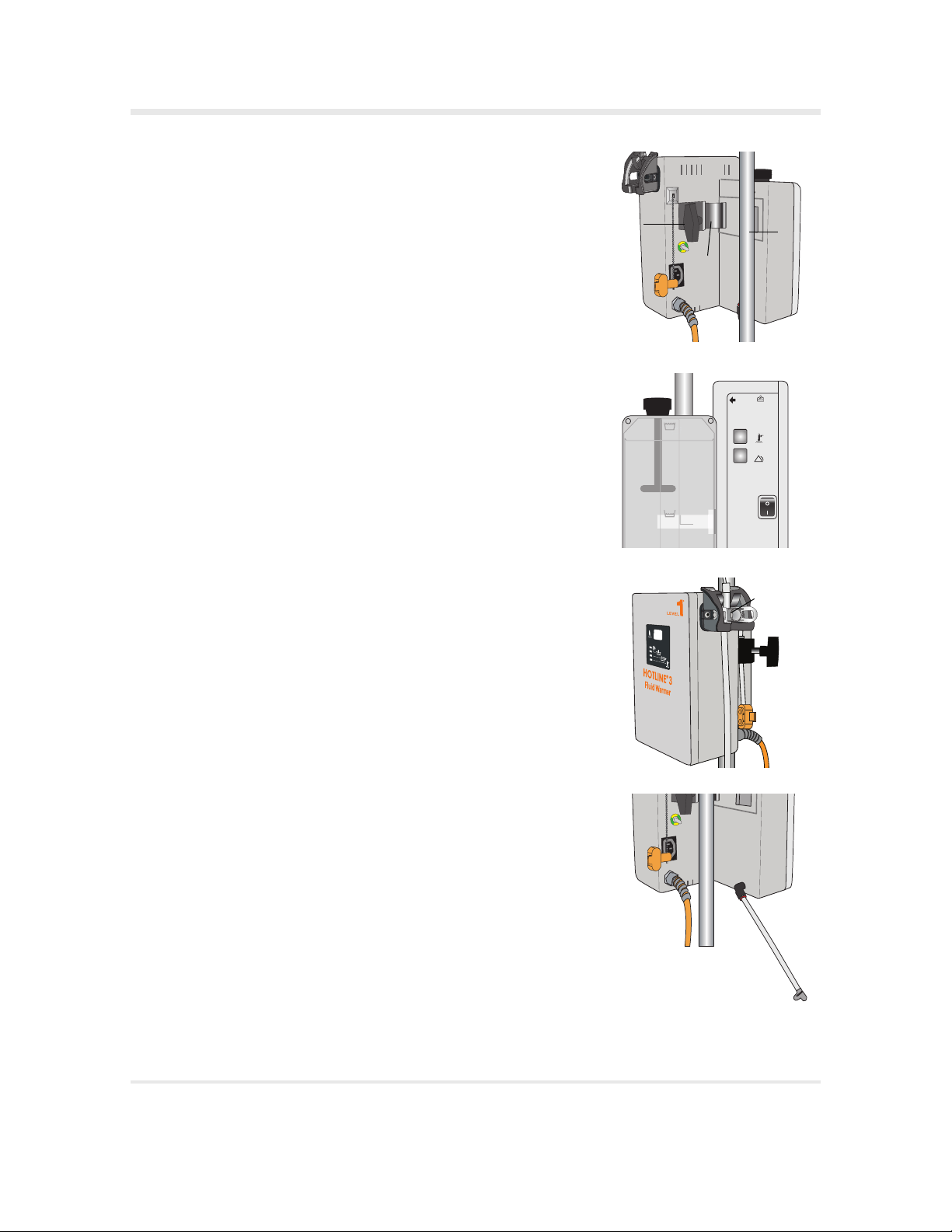

1Slide the clamp (a) on the HOTLINE3Warmer over the I.V. pole
(b) and tighten the clamp screw (c) firmly.
2Check the tightness of the HOTLINE3Warmer to ensure it is
securely clamped to the pole.
Step 3 - Disinfect the Reservoir
1Prepare a 0.3% hydrogen peroxide solution by mixing 140 ml of 3%
hydrogen peroxide solution and 1,260 ml of distilled water.
2Remove the reflux plug from the socket if required, and then
remove the fill-port plug (d) and fill the reservoir with 1.4 liters of
0.3% hydrogen peroxide solution.
3Replace the fill-port plug (d).
4Insert a HOTLINE3Fluid Warming Set (e) into the socket.
5Plug the HOTLINE3 Warmer into properly grounded power
outlet.
6Tu r n t h e HOTLINE3Warmer ON and let the solution circulate
for a 30-minute disinfection period.
7Tu r n t h e HOTLINE3Wa r m er OFF.
8Invert the drain tube (f) and place a container under the end of the
tube. Remove the end cap (g) and drain the recirculating solution
into the container.
9When all the recirculating solution has drained from the reservoir,
replace the end cap and insert the drain tube back in the holder.
10 Remove the HOTLINE3Fluid Warming Set. Dispose of the
HOTLINE3 Fluid Warming Set in a safe manner according to
local guidelines for disposal of contaminated medical waste.
b
c
a
1.4 LITERS
d
oo
CC
e
f
g

SECTION 4 • Assembly Instructions
HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual 11
Step 4 - Fill the Reservoir With Recirculating Solution
WARNINGS
WARNINGS
• Do not fill the HOTLINE®3 Warmer reservoir with a HOTLINE®3
Fluid Warming Set in place. Failure to remove the HOTLINE®3
Fluid Warming Set before the fill procedure may result in an air
lock in the HOTLINE®3 Warmer.
Recirculating Solution Protocols
Use one of the following solutions for the reservoir.
1Prepare the recirculating solution.
2Remove the fill-port plug (a).
3Fill the reservoir with 1.4 liters of recirculating solution.
4Replace the fill-port plug.
Step 5 - Perform the Electrical Safety Tests
Perform all applicable electrical safety tests as required per institutional
procedure. Refer to Section 9,
Te s t i n g , for more information about
electrical safety testing.
Recirculating Solution Preparation Maintenance
0.3% Hydrogen Peroxide
Solution
Mix 140 ml of 3% hydrogen
peroxide with 1,260 ml of
distilled water.
Replace solution and
disinfect reservoir every
12 months.
Distilled
Water
Use distilled water. Replace solution and
disinfect reservoir every
30 days.
35% Isopropyl Alcohol
Solution
Mix 700 ml of 70% isopropyl
alcohol with 700 ml of distilled
water.
Replace solution and
disinfect reservoir every
30 days.
Note: Use distilled water only, not tap water. Failure to do so may cause build-up of
mineral deposits in the recirculating solution path, which may impair heater
performance.
1.4 LITERS
a

SECTION 5 • Principle of Operation
12 HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual
SECTION 5
Principle of Operation
HOTLINE3 Warmer delivers blood and intravenous fluid at
normothermic temperatures under routine, gravity flow rates.
Conventional fluid warming systems suffer from cool-down between the
warmer and the patient connection. HOTLINE3 Warmer overcomes this
problem by providing active warming of the patient line all the way to the
patient connection.
Active warming is achieved by surrounding the sterile intravenous line
with a layer of precisely controlled warm recirculating solution (a), thereby
protecting the patient line against exposure to cold and eliminating patient
line cool-down.
Infusate Delivery Temperatures
The following table shows the typical infusate delivery temperatures
at the patient end of an L-370 HOTLINE3Fluid Warming Set.
Note: The setpoint temperature of the recirculating solution is
38.0C.
a
a
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000
Flow Rate (ml / hr) 20° C Saline
10° C Saline
Temperature ° C
40.0
36.0
32.0
28.0
24.0
20.0
22.0
42.0
38.0
34.0
30.0
26.0
Ambient Temperature Range: 20° C ± 2° C
Source data on file

SECTION 6 • Operation
HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual 13
SECTION 6
Operation

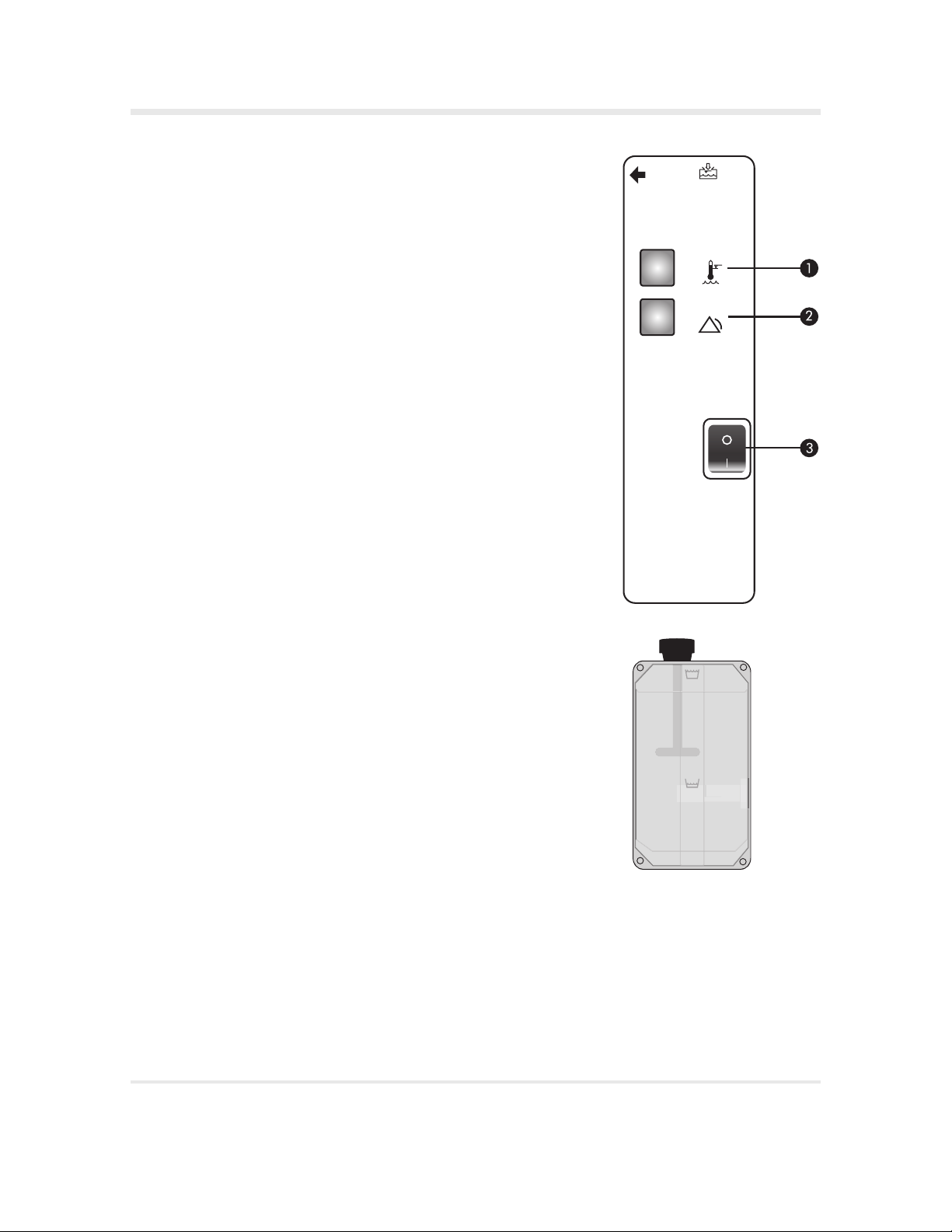

This section describes the controls and displays that monitor and control
the HOTLINE3 Warmer, and the modes of operation.
Controls and Displays
•DisplayPanel
• Power and Alarm Test Buttons
• Reservoir Level Display
Display Panel
The Display Panel is located on the front of the HOTLINE3 Warmer
and provides continuous information about the operation of the
HOTLINE3 Warmer. A liquid crystal display (LCD) indicates
recirculating solution temperature. Just below the LCD, four light-
emitting diodes (LEDs) indicate operation modes for the HOTLINE3
Warm e r.
1Recirculating Solution Temperature - The temperature is displayed
in degrees Celsius.
2ON/Operation - The green LED illuminates when the power is
turned on and the HOTLINE3 Fluid Warming set is properly
installed.
3Check Disposables - The red LED illuminates and an audible
attention signal beeps when the HOTLINE3 Fluid Warming Set
is not properly installed.
4Add Recirculating Solution - The red LED illuminates and an
audible attention signal beeps when the level in the reservoir is low
and additional recirculating solution must be added.
5Over Temperature - The red LED illuminates and an audible
warning signal beeps when the recirculating solution is over the
acceptable temperature for safe use.
1
2
3
4
5

SECTION 6 • Operation
14 HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual
Power and Alarm Test Panel
The Power and Alarm Test Panel is located on the left side of the
HOTLINE3 Warmer next to the reservoir. This panel contains two
pressure-sensitive buttons that are activated when pressed, and the
ON/OFF switch.
1Over Temperature Alarm Test Button - The Over Temperature
Alarm Test is used to confirm the proper operation of the Over
Temperature circuitry.
2Alarm Signal Test Button - The Alarm Signal Test is used to
confirm proper operation of the visual and audible alarms.
3Power ON/OFF Switch - The black switch toggles to turn power
ON and OFF.
Reservoir Level Display
The reservoir for the recirculating solution is located on the left side of
the HOTLINE3 Warmer, next to the Power and Alarm Test Panel.
The level of the recirculating solution is visible in the reservoir. Two
symbols indicate the maximum (a) and minimum (b) solution level
requirements.
1.4 LITERS
a
b

SECTION 6 • Operation
HOTLINE®3 Blood and Fluid Warmer | Operator’s Manual 15
Modes of Operation
The HOTLINE3 Warmer operation is defined in the following modes:
• OFF Mode
•ON/OperatingMode
• Check Disposables Mode
• Add Recirculating Solution Mode
• Over Temperature Alarm Mode
The description of each mode includes a definition of the mode, activation
and/or monitoring of the mode, mode characteristics, and method to clear
the mode state.
OFF Mode
The power switch is in the OFF position (a) and the HOTLINE3
Warmer is turned off.
ON/Operating Mode
The power switch is in the ON position (b) and the HOTLINE3 Fluid
Warming Set has been properly installed.
Mode Characteristics
• The green Operating LED (c) illuminates.
• The recirculating solution temperature display will begin to
increase.
• The recirculating solution path in the HOTLINE3Fluid
Warming Set will automatically prime.
Check Disposables Mode
The Check Disposables mode indicates a missing or improperly
installed HOTLINE3 Fluid Warming Set.
Mode characteristics
• The green Operating LED on the Display Panel turns off.
•he red Check Disposables LED (d) on the Display Panel
illuminates.
• The audible alarm sounds and repeats approximately every two
seconds.
a
b
c
d
