Smith’s Environmental Products Eco-Powerad 500 Operation manual

IMPORTANT
1. The appliance is not to be used by children or persons with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction
2. Children should not be permitted to play with the appliance
3. Ensure that the fan is switched off from the supply mains before
removing the guard
4. Any specifications with regards to dimensions of space required for the
appliance to operate effectively
Products with this symbol (crossed out wheelie bin) cannot be disposed as household
waste. Old electrical and electronic equipment must be recycled at a facility capable of
handling these products and their waste by-products. If you are purchasing
replacement equipment your retailer may offer a 'take back' scheme, or will be able to
give details of the nearest approved authorised treatment facility. Proper recycling and
waste disposal will help conserve resources whilst preventing detrimental effects on
our health and the environment.
WEEE Registered Code: WEE/ED0093VW
This Installation and User Guide is printed on 100% re-cycled paper.
Smith’s Environmental Products Ltd.
1-2 Blackall Industrial Estate, South Woodham Ferrers,
Chelmsford, Essex CM3 5UW
Tel: [phone], Fax: [phone], After Sales: 01245 324560
E-mail: [e-mail] Web: www.smiths-env.com
Iss 8 8 March 15
Versatile, energy efficient heating
Eco-Powerad
Models
Eco-Powerad 500, Eco-Powerad 1000,
Eco-Powerad 1500 & Eco-Powerad 2000
INSTALLATION & USER GUIDE

INTRODUCTION
In the event of items missing or visible damage please contact us on 01245
324560.
This heating appliance is intended for mounting on a wall at low level. The
minimum recommended installation height is 150cm (6 inches) from the floor.
There is no clearance required on either side of the heater.
This heater must not be used in bathrooms or other high humidity areas.
Eco-Powerad® units are designed for use on two-pipe pumped central heating
systems and are also suitable with use in a system where hot water is generated
from renewable sources. This product is not suitable for one-pipe heating
systems. Pipe connections are 15mm.
We recommend the use of Thermostatic Radiator Valves (TRV”S) to connect the
unit to the heating system and to control the room temperature.
Please note, only reversible angle valves are suitable.
Connections into each end of radiator are via 15mm copper tube. Not ½ female
iron.
Make sure the male iron fitting supplied with the rad valves are removed, so
connections can be made via the compression fitting.
Alternately this heater can be used in conjunction with a wall mounted remote
room thermostat. Refer to the manufacturers instructions supplied with the
thermostat.
Eco-Powerad® is classified as a fixed appliance and electrical connection should
be via a double pole 3A fused spur.
The fused spur must not be directly above the heater but should be accessible
after completion of the installation.
If the pre-wired mains cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons. The appliance must
be earthed.
To avoid possibility of vibration, this product must be installed on a flat, even
surface.
To comply with Building Regulations Part L (Part J in Scotland) this heater is fitted
and controlled by an integral room thermostat.
Please note the guarantee may be invalidated if this product is not installed and
used in accordance with this guide.
2
Heating
Ensure your central heating is ON and set the Theromstatic Radiator Valve
(TRV) or room thermostat (if fitted) to the required position .
Set the fan speed switch to the desired position (I or II). Providing the water
temperature in the system is more than 38°C and the thermostat controlling
your central heating system is calling for heat, the heater will switch on.
Moving the switch to (0) will turn off the heater.
7

FAULT FINDING
Fan does not run on any switch setting
Check the power source is switched ON
Check fuse in the fused spur
Check wiring connections at the fused spur
Check the central heating is switched on and the TRV or room
thermostat (if fitted) is calling for heat.
No heat output on settings I or II
Check the power supply is switched ON
Ensure the TRV or room thermostat (if fitted) is calling for heat
Balance the central heating system if installed on the same circuit as
panel radiators and increase the circulating pump speed if required.
In the event of difficulty please contact us on 01245 324560. It will be more
helpful if you do not remove the product from the central heating system.
We would be most grateful if you would leave this installation & operation
guide and the guarantee registration card with the owner of the property.
USER GUIDE
Your product is covered by a free 5-year parts and labour guarantee; please
complete and return the Guarantee Registration Card to us as soon as possible
to ensure that should you require assistance, we can help you quickly and
efficiently.

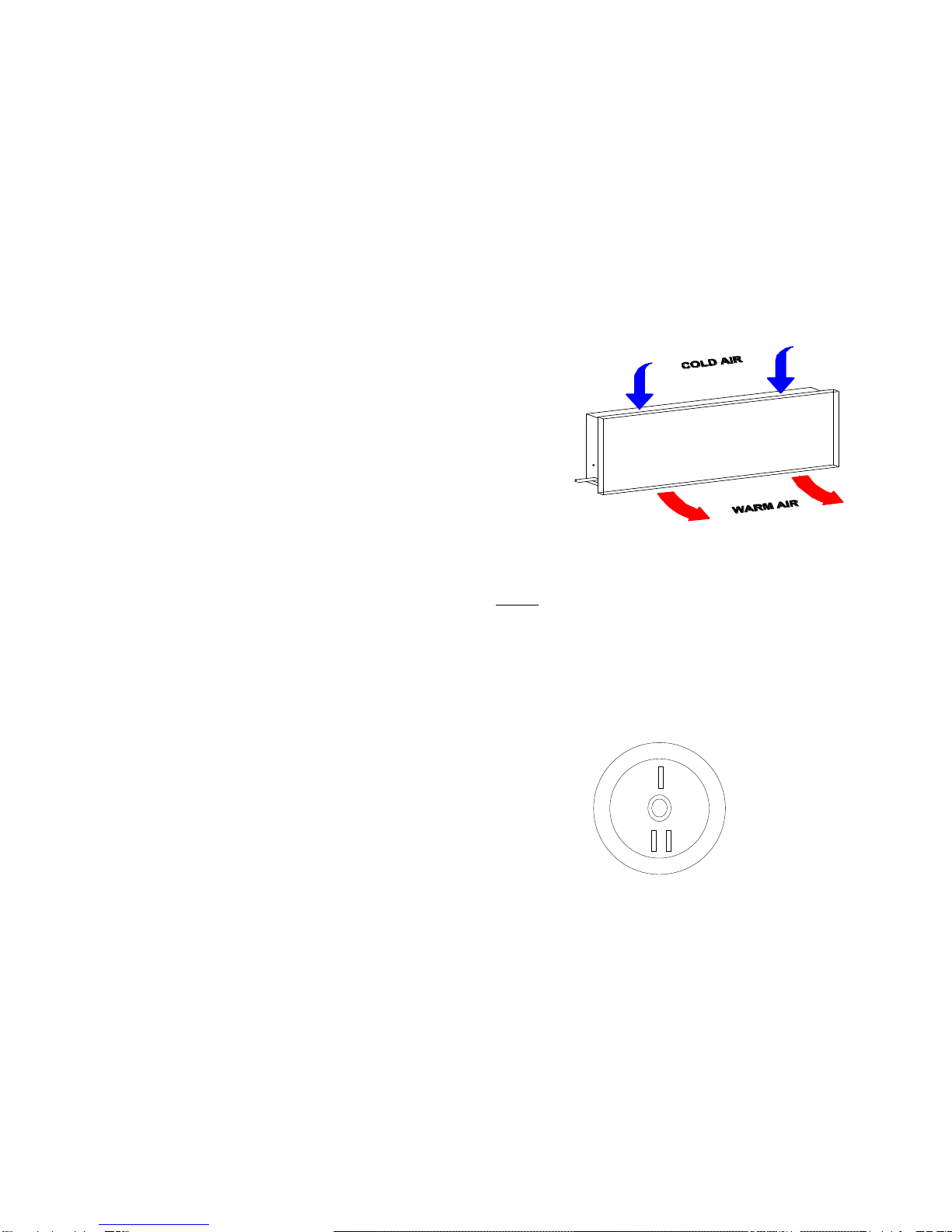

Your Eco-Powerad® heater is designed to operate as part of your central
heating system in the same way as a panel radiator. It will switch on and off
automatically with you central heating system.
Heat from your central heating system passes through a heat exchanger
transferring its heat to the aluminium fins, room air is drawn in the top grille
and heated as it passes through the heat exchanger before being gently
expelled back into the room at floor level.
6

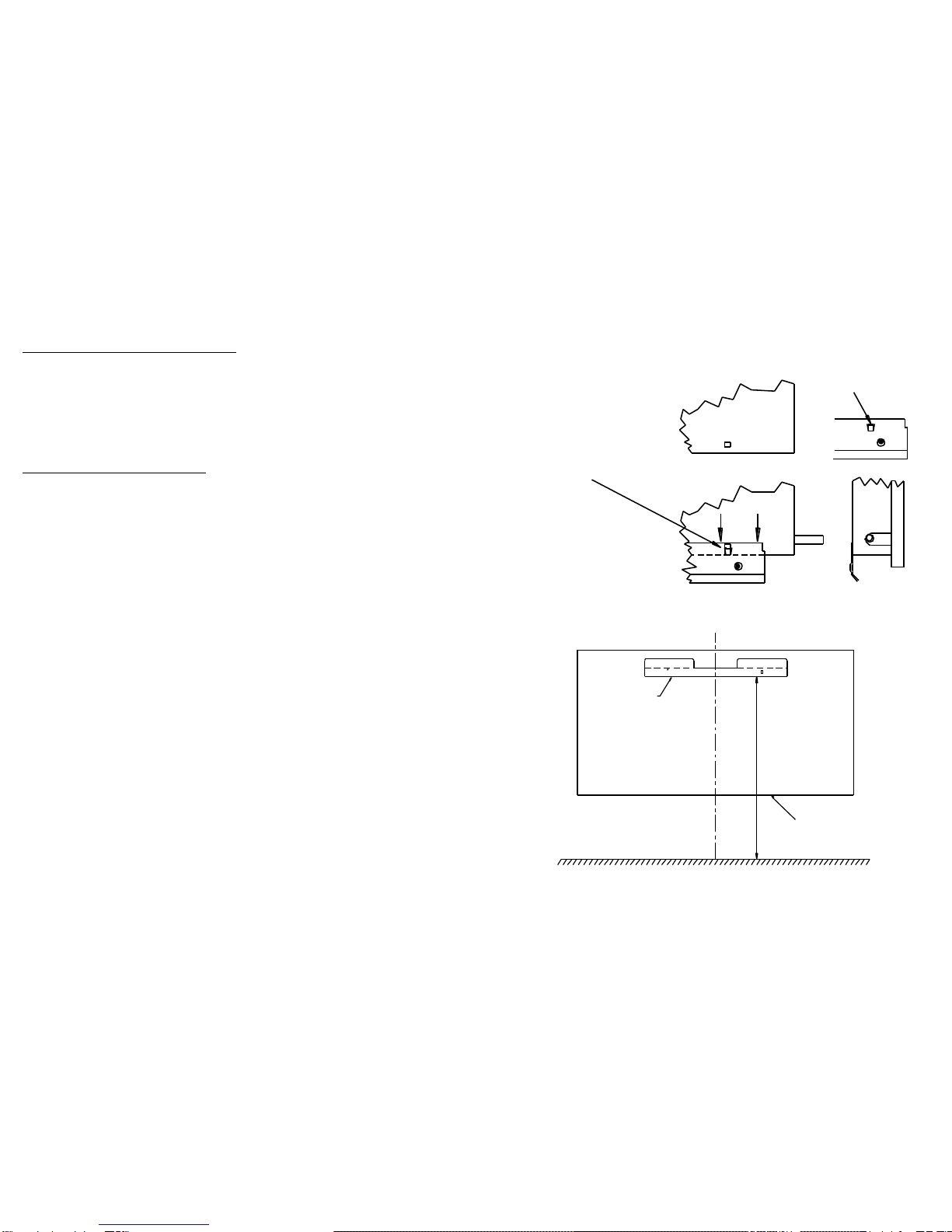

MOUNTING THE UNIT
Remove the lower mounting bracket/air deflector strip and the EZ hanger from
the back of the unit.
Attach lower mounting bracket/ air deflector strip to the lower rear edge of
the unit as shown.
Fix the EZ easy hanger to the wall, using suitable fixings, position the heater on
the EZ hanger and mark the fixing holes of the lower mounting bracket/air
deflector.
Position the unit on the EZ bracket and fix the lower mounting bracket/air
deflector to the wall with suitable fixings (not supplied). See diagram overleaf.
3
ALIGN TAGS ON LOWER
MOUNTING BRACKET / AIR
DEFLECTOR STRIP INTO
SQUARE HOLES ON LOWER
REAR CHASSIS AND PUSH
DOWNWARDS TO ATTACH
Locating Tag
EZ HA NGE R ST RIP
525 MIN
FLOOR
ECO POW ERAD OUTL INE

PIPE WORK
This product should be connected to the system flow and return pipes via the
use of TRV”s Thermostatic Radiator Valves.
Connect the heating system flow and return pipes to the heater pipe-work
ends on either side of unit using (TRV”s) Thermostatic Radiator valves (not
supplied - refer to TRV manufacturers instructions).
Take care not to stress or overtighten fittings as this could damage the unit
pipework. (Note- If the heater is being wired in conjunction with a wall
mounted remote room thermostat is is recommended that isolating valves are
fitted to the flow and return pipes in place of TRV”s)
Check for water leaks. Remove any trapped air from the system via the vent
valve via the access holes in either side of the unit (if the flow in connected to
the right hand side then the opposite side vent must be bled and vice versa.)
Do not over tighten the air vent
ELECTRICAL CONNECTION
ALL ELECTRICAL INSTALLATIONS CONNECTIONS MUST COMPLY WITH
BS7671, 1992 AND THE IEE REGULATIONS. CHECK THE VOLTAGE ON
THE HEATER IS CORRECT FOR YOUR SUPPLY. IF IN DOUBT, CONSULT A
QUALIFIED ELECTRICIAN.
If the pre-wired mains cable is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons.
4
Isolate the supply and connect the heater three core mains lead to the fused
spur (3A) in accordance with the instructions provided on the mains lead label.
(The supply wire which is coloured green or green and yellow must be
connected to the terminal marked Eon the appliance, the supply wire which is
coloured black or blue must be connected to the terminal marked Non the
appliance and the supply wire which is coloured red or brown must be
connected to the terminal marked Lon the appliance).
The fused spur must not be directly above the heater but should be accessible
after completion of the installation.
COMMISIONING
This heater is equipped with a low temperature cut out thermostat which
requires the water in the heating system to be at least 38°C before the fans
will run.
Turn on the electrical supply at the fused spur, switch on the central heating
system, set the thermostat to Max. The fan(s) should run and heat will flow
within a few minutes.
1. Turn on the electrical supply at the fused spur.
2. Set the fan speed switch to either Ior II
3. Turn on the central heating system.
4. Balance the central heating system if required.
5. If the installation is working correctly remember to reset the room
thermostat to its normal setting.
HEAT OUTPUT PERFORMANCE (High Speed)
Water
Temperature
Eco-Powerad
500
Btu (kW)
Eco-Powerad
1000
Btu (kW)
Eco-Powerad
1500
Btu (kW)
Eco-Powerad
2000
Btu (kW)
40°
1025 (0.30)
2400 (0.70)
3075 (0.90)
4600 (1.35)
50°
1700 (0.50)
3400 (1.00)
5125 (1.50)
6825 (2.00)
75°
2900 (0.85)
7150 (2.10)
8200 (2.40)
11950 (3.50)
Based on exiting water temperature, average temperature drop is 4°C.
5
BLEED POINT
(Located on left- hand
side of heater)

Guarantee Statement
Thank you for purchasing a Smith’s heater.
It has been designed and manufactured to the highest quality standards to ensure it
gives you efficient and trouble-free service for many years.
To back up our commitment, included with your product is a free five year parts
and labour guarantee.
This gives you peace of mind that in the unlikely event of the product failing within
the first five years, we will repair or replace the product completely free of charge
provided the product has been installed, used and maintained in accordance with the
instructions.
It is important to register within 7 days. This will ensure you receive a prompt and
efficient service, if your product requires attention within the guarantee period. If you
do not register your product, you will be required to produce a proof of purchase prior
to receiving this service.
If you experience any problems with the use of your product, please contact our
after-sales office on 01245 324560.
Smith’s Environmental Products Ltd manufactures a complete range of heaters for
domestic and commercial applications.
If you require any further information, please contact us on 01245 324900 or visit
our website at www.smiths-env.com.
Your statutory rights are not affected by this guarantee.

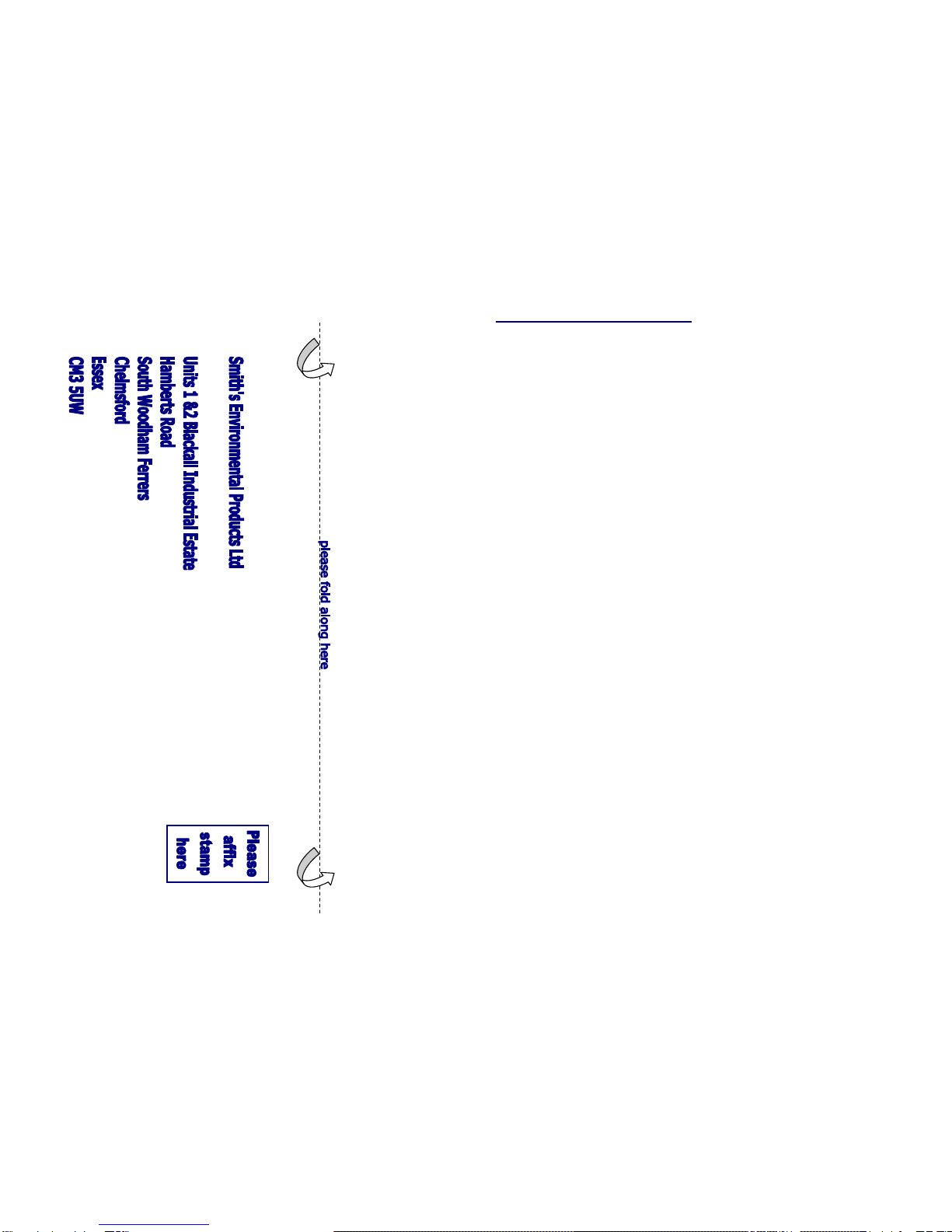

Please pull this Registration card from the
booklet and fill in all parts and return.

Guarantee Registration Card
& Customer Satisfaction Survey
Dear Customer
We hope our product suits all your requirements; it would help us immensely if you could find the time to
fill in this form, your response will help us maintain the quality standards we all expect in today’s climate.
Customer name ________________________________________ Date_____/_____/__________
Email Address ____________________________@________________________________________
Product Name ______________________________________________________________________
Tick as appropriate
V Good Good Fair Poor
Product
Delivery
Sales & Ordering
Response to
any problems
Comments …………………………………………………………………………………………………
………………………………………………………………………………………………..
………………………………………………………………………………………………..
Thank you for your time to fill in this survey, the response will help us to serve your
needs more effectively. Please return by fax to 01245324422.
Quality Control Manager: Ron Brown [e-mail]
User Details
User Name Mr/Mrs/Miss/Ms/Other ……………………………………………………………………………
Initials …………………. Surname ………………………………………………………………………………
Address ………………………………………………………………………………………………………………….
………………………………………………………………………………………………………………………………
…………………………………………………………………… Post Code: …………………………………
Telephone: ……………………………………………………………………………………………………………..
Product & Model installed (e.g. Space Saver SS5)
……………………………………………………………………………………………………………………………….
Room Installed (e.g. Kitchen): …………………………………………………………………………………..
Your details will only be held by Smiths Environmental Products Ltd and used solely to
provide customer services and product information.
If you do not wish to be contacted, please put an x in the box.
Installer Details
Company name: …………………..
Principal contact: Mr/Mrs/Miss/Ms/Other: …………………………………………………………………
Initials: ………………… Surname: ……………………………………………………………………………
Address: …………………………………………………………………………………………………………………
………………………………………………………………………………………………………………………………
…………………………………………………………………… Post Code: ……………………………………
Telephone: …………………………………………………………………………………………………………….
Date of installation ……………/……………/………………
Room Installed (e.g. Kitchen): …………………………………………………………………………………..
Your details will only be held by Smiths Environmental Products Ltd and used solely to
provide customer services and product information.
If you do not wish to be contacted, please put an x in the box.
