Smith FS150.T.FlexHD User manual

FS150
Hand-held Portable Scariers
Parts & User Manual
[phone]
www.SMITHMFG.com
MANUFACTURING
Cutters / Removers / Parts / Support
1-800-653-9311
www.SmithMfg.com
Phone: [phone] • Fax: [phone]
FS150.T.FlexHD
FS150.T.Makita
FS150.T.PN

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
FS150
VERSION 5/2014
Page Contents
2 Index / Introduction
3 Required Safety Equipment / Safety Guidelines
(PNEUMATIC)
4Your FS150 PNEUMATIC Hand held scarier
5 Using the FS150 properly (PNEUMATIC)
6 Maintenance checklist / Safety Guidelines
(ELECTRIC)
7Your FS150 ELECTRIC Hand held scarier
8 Using the FS150 properly (ELECTRIC)

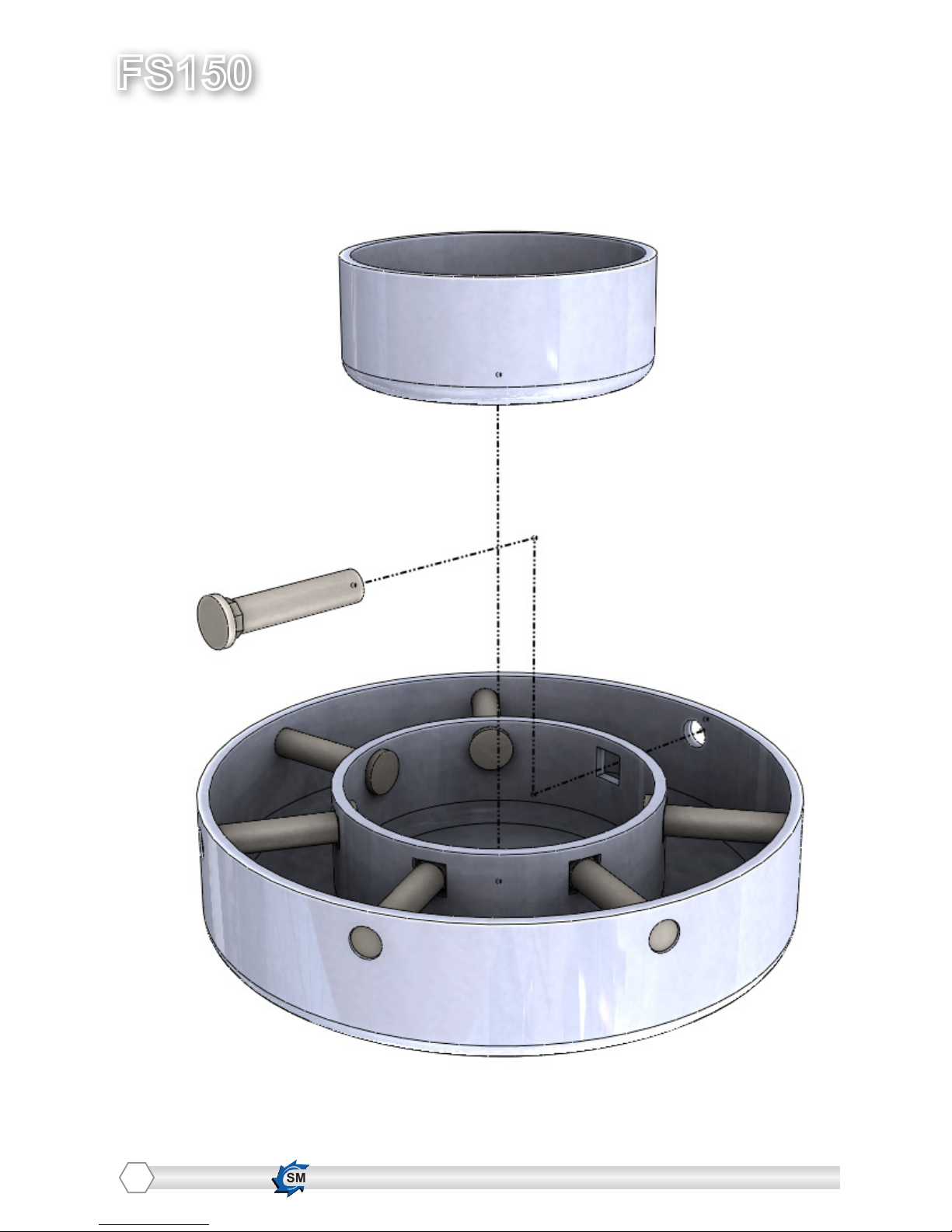

9-10 Drum and cutter options, drum assembly
11 Operating Guideline
12 Maintenance Log
13-14 Warranty Information
INDEX
2
INTRODUCTION
Congratulations on purchasing the
FS150™from SMITH Mfg. Company.
The SMITH brand FS150 is a fast, rugged and
lightweight portable hand-held scarier designed
for high performance edging or removing in hard
to reach locations by hand or in the upright caddy
that removes faster than conventional diamond
discs.
Best for touch-ups, edging, removing in hard to
reach areas, walls, ceilings, under tables. Add
FS150.C caddy for upright removal. Used by
Concrete Resurfacing Contractors, Striping
Contractors, DIYrs
Exclusive features of this machine:
It’s versatile, offering a variety of cutters with a
4 or 6 shaft cutter set-up with extra set of shaft
holes, and lightweight with reversible left or right
handles to power through highspots, lowspots and
in very tight areas.
You will obtain years of satisfying service when
your machine is properly used and maintained.
Please read completely this guide and parts list
manual to assure your REMOVAL SUCCESS. If
you have any questions about the operation of your
machine or would like to order replacement parts,
please contact your SMITH Dealer directly, or call
SMITH at 1-800-653-9311 or [phone] for
the name of your local dealer.

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 5/2014
FS150
REQUIRED SAFETY
EQUIPMENT
When using this tool the following
safety equipment MUST be worn!
If you do not have this
DO NOT USE THE MACHINE
SAFETY GLASSES
SAFETY GLOVES
SAFETY MASK
SAFETY GUIDELINES
-PNEUMATIC-
• Read all instructions before using the tool. all
operators must be fully trained in its use and
aware of these safety rules.
• DO NOT exceed the Maximum working
pressure of 100psi
• Use ONLY compressed air at the
recommended conditions
• If the tool appears to malfunction, remove
from use immediately and arrange for service
and repair
• If the tool is used with a balancer or other
supporting device ensure that it is xed
securely
• Always keep hands away from the working
attachment tted to the tool
• The tool IS NOT electrically insulated.
NEVER use tool if there is any chance of it
coming into contact with live electricity
• Always when using the tool adopt a rm
footing and/or position and grip the tool rmly
to be able to counteract any forces that may
be generated while using the tool
• Use only the correct spare parts. Do not
improvise or make temporary parts
• Do not lock, tape, wire etc the ON/OFF valve
in the run position. The trigger/lever must
always be free to return to the off position
when it is released
• Always shut off the air supply to the tool and
depress the trigger/lever to exhaust air from
the feed hose before tting, adjusting or
removing the working attachment
• Check hose and ttings regularly for wear,
replace if necessary
• Always use a suitable vacuum cleaner or
dust extraction unit
3

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
FS150
VERSION 5/2014
YOUR PNEUMATIC FS150TM HAND HELD SCARIFIER ASSEMBLY
(FS150.T.PN)
Please take time to familiarize yourself with the FS150™’s
controls, as well as some of the features of your new machine
Item: P/N Qty Description
1 FS050.P 1 Pneumatic grinder
2 FS150.006 1 Collar for pneumatic grinder
3 FS150.000.T 1 FS150 housing assembly
4 FS150.004 1 Vacuum cap
5 FS150.830.3160A 1 Adapter mount
6 FS150.475.3282.5 3 Flat washer
7 FS150.475.3282.4 3 Lock washer
8 FS150.475.3282.3 3 Hex head cap screw
9 FS150.840.1450 1 Threaded stud
10 FS150.475.A 1 Blank drum
10* Varies 1 Assembled drum (see pg. 9)
11 FS150.840.1450.2 1 Nylock nut
NOTE: Item 3 includes item numbers 4-9, and 11
4
4
2
1
3
5
9
11
10, 10*
6
7
8

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 5/2014
FS150
5
RECOMMENDATIONS
ACCESSORIES
• Recommended working pressure:
6.3 bar / 90 psi
• Maximum working pressure:
7.0 bar / 100 psi
• Recommended hose bore:
10mm / 3/8”
• Recommended hose length:
10m / 30 ft
USING THE FS150
AIR SUPPLY: Use clean lubricated air supply
that will give a measured air pressure at the
tool of 6.3 bar / 90 psi when the tool is running
with the trigger/lever depressed. Use the
recommended hose size and length. Do not
connect the tool to the air line system without
incorporating an easy to reach an operate air
shut off valve. The air supply should be
lubricated. It is strongly recommended that an
air lter, regulator, lubricator (FRL) is used as
this will supply clean, lubricated air at the
correct pressure for the tool. Details of such
equipment can be obtained from your
supplier/dealer. If such equipment is not used,
the tool should be lubricated by shutting off the
air supply to the tool and de-pressurising the
line by pressing the trigger on the tool.
Disconnect the air line and pour into intake
bishing a teaspoon (5ml) of a suitable pneumat-
ic motor lubricating oil preferably incorporating
a rust inhibitor. Reconnect the tool to an air
supply and run slowly for a few seconds to
allow air to circulate the oil. If tool is used
frequently lubricate on a daily basis and also if
tool starts to lose power.
WORK STATIONS: The tool should only be
used as a hand operated tool. It is recom-
mened that the tool is used when standing on a
solid oor. It can be used in other positions but
before any such use the operator must be in
a secure position having a rm grip and foot-
ing and be aware of safety rules to be obeyed
when using the grinder.
• FS200 Compact
Scarier/Grinder
• FS050 Handheld
Scarier/Grinder
• MV300 (110V)
HEPA Vacuum

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
FS150
VERSION 5/2014
MAINTENANCE CHECK LIST
Before beginning servicing on any
FS150 unit, DISCONNECT FROM
AIR SUPPLY SOURCE
• Check all fasteners and re-tighten,
since the machine will vibrate the
fasteners loose if they are not secured.
Use locktight.
• Clean drum housing regularly to prevent
material buildup.
• Inspect drum, and shafts for damage
and replace as needed.
• Regularly lubricate grinder with a
suitable pneumatic motor lubricating oil.
Preferably one that incorporates a rust
inhibitor.
• Check hose and ttings regularly for
wear or leaks, replace if necessary.
• Check all fasteners and re-tighten,
since the machine will vibrate the
fasteners loose if they are not secured.
Use locktight.
SAFETY GUIDELINES
-ELECTRIC-
• Accessories must be rated for at least the
speed recommended on the tool warning label.
Wheels and other accessories running over
rated speed can y apart and cause injury.
• Hold tool by insulated gripping surfaces when
performing an operation where the cutting tool
may contact hidden wiring or its own cord.
Contact with a “live” wire will make exposed
metal parts of the tool “live” and shock the
operator.
• NEVER use tool with wood cutting blades or
other sawblades. Such blades when used on
a polisher frequently kick and cause loss of
control leading to personal injury.
• Hold the tool rmly and keeps hands away from
rotating parts.
• Make sure the abrasive disc or wool bonnet is
not contacting the workpiece before the switch
is turned on.
• When sanding metal surfaces, watch out for
ying sparks. Hold the tool so that sparks y
away from you and other persons or ammable
materials.
• Do not leave the tool running. Operate the tool
only when hand-held.
• Do not touch the workpiece immediately after
operation; it may be extremely hot and could
burn your skin.
• Check that the workpiece is properly supported.
• Pay attention that the wheel continues to rotate
after the tool is switched off. Check hose and
ttings regularly for wear, replace if necessary
• This tool has not been waterproofed, so do not
use water on the workpiece surface.
• Ventilate your work area adequately when you
perform sanding operations.
• Use of this tool to sand some products, paints
and wood could expose user to dust containing
hazardous substances. Use appropriate respi-
ratory protection.
6

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 5/2014
FS150
7
YOUR ELECTRIC FS150TM HAND HELD SCARIFIER ASSEMBLY
Please take time to familiarize yourself with the FS150™’s
controls, as well as some of the features of your new machine
Item: P/N Qty Description
1 FS050.FXHD 1 FLEX grinder
1* FS050.ME 1 Makita grinder
2 FS150.475.3282.FX 1 Collar for FLEX grinder
2* FS150.475.3282 1 Collar for Makita grinder
3 FS150.000.T 1 FS150 housing assembly
4 FS150.004 1 Vacuum cap
5 FS150.830.3160A 1 Adapter mount
6 FS150.475.3282.5 3 Flat washer
7 FS150.475.3282.4 3 Lock washer
8 FS150.475.3282.3 3 Hex head cap screw
9 FS150.840.1450 1 Threaded stud
10 FS150.475.A 1 Blank drum
10* Varies 1 Assembled drum (see pg. 9)
11 FS150.840.1450.2 1 Nylock nut
NOTE: Item 3 includes item numbers 4-9, and 11
4
2, 2*
1, 1*
3
5
9
11
10, 10*
6
7
8

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
FS150
VERSION 5/2014
RECOMMENDATIONS
• ELECTRICAL SAFETY: Grounded tools
must be plugged into an outlet properly
installed and grounded in accordance with
all codes and ordinances. Never remove the
grounding prong or modify the plug in any
way. Do not use any adaptor plugs. Check
with a qualied electrician if you are in doubt
as to whether the outlet is
properly grounded. If the tools should
electrically malfunction or break down,
grounding provides a low resistance path to
carry electricity away from the user.
• Avoid body contact with grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is grounded.
• Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
• Do not abuse the cord. Never use the cord to
carry the tools or pull the plug from an outlet.
Keep cord away from heat, oil, sharp edges
or moving parts. Replace damaged cords
immediately. Damaged cords increase the
risk of electric shock.
• When operating a power tool outside, use an
outdoor extension cord marked “W-A” or “W”.
These cords are rated for outdoor use and
reduce the risk of electric shock.
USING THE FS150
• PERSONAL SAFETY: Stay alert, watch what
you are doing and use common sense when
operating a power tool. Do not use tool while
tired or under the inuence of drugs, alcohol,
or medication. A moment of inattention while
operating power tools may result in serious
personal injury.
• Dress properly. Do not wear loose clothing
or jewelry. Contain long hair. Keep your hair,
clothing, and gloves away from moving parts.
Loose clothes, jewelry, or long hair can be
caught in moving parts.
• Avoid accidental starting. Be sure switch is
off before plugging in. Carrying tools with
your nger on the switch or plugging in tools
that have the switch on invites accidents.
• Do not overreach. Keep proper footing and
balance at all times. Proper footing and
balance enables better control of the tool in
unexpected situations.
• Use safety equipment. Always wear eye
protection. Dust mask, non-skid safety shoes,
hard hat, or hearing protection must be used
for appropriate conditions. Ordinary eye or
sun glasses are NOT eye protection.
• WORK STATIONS: Keep your work area
clean and well lit. Cluttered benches and dark
areas invite accidents.
• Do not operate power tools in explosive
atmospheres, such as in the presence of
ammable liquids, gases, or dust. Power
tools create sparks which may ignite the dust
or fumes.
• Keep bystanders, children, and visitors away
while operating a power tool. Distractions can
cause you to lose control.
DRUM OPTIONS
8

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 5/2014
FS150
DRUM OPTIONS
9
A variety of cutters are available for the
FS150 to suit all your removal needs.
SCRAPE-IT
CF0409 - 10 angled-edge
star, 100% sintered
ultra-premium-life tungsten
carbide cutter
SCRAPE-IT
FINE FINISH 7-SHAFTED
Drum assembly: FS150.0411.F
Rebuild kit: FS150.0411.F.RK
Available in:
MEDIUM FINISH 7-SHAFTED
Drum assembly: FS150.0411.M
Rebuild kit: FS150.0411.M.RK
CF0411 - 15-edge star, 100%
sintered ultra-premium-life
tungsten carbide cutter
FINISH-IT
FINE FINISH 7-SHAFTED
Drum assembly: FS150.1043.F
Rebuild kit: FS150.1043.F.RK
Available in:
MEDIUM FINISH 7-SHAFTED
Drum assembly: FS150.1043.M
Rebuild kit: FS150.1043.M.RK
HS1043 - 18-edge star, 100%
ultra-premium-life hardened
steel cutter
Available in:
MEDIUM FINISH 7-SHAFTED
Drum assembly: FS150.1519.M
Rebuild kit: FS150.1519.M.RK
FLAIL-IT
CF1519 - 8-spike extended-tip
ultra-premium-life tungsten
carbide cutter
FINE FINISH 7-SHAFTED
Drum assembly: FS150.1519.F
Rebuild kit: FS150.1519.F.RK
FINE FINISH 7-SHAFTED
Drum assembly: FS150.0409.F
Rebuild kit: FS150.0409.F.RK
Available in:
MEDIUM FINISH 7-SHAFTED
Drum assembly: FS150.0409.M
Rebuild kit: FS150.0409.M.RK
CF0410 - 15-edge star,
100% sintered ultra-
premium-life tungsten
carbide cutter
FINE FINISH 7-SHAFTED
Drum assembly: FS150.0410.F
Rebuild kit: FS150.0410.F.RK
Available in:
MEDIUM FINISH 7-SHAFTED
Drum assembly: FS150.0410.M
Rebuild kit: FS150.0410.M.RK

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
FS150
VERSION 5/2014
10
DRUM ASSEMBLY
PIN RETAINER
PIN
(7)
DRUM MAIN BODY

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 5/2014
FS150
The FS050 and FS150 are heavy duty commercial grade removal attachments connected to a
light duty consumer grade right angle electric or pneumatic 3000 RPM polisher/sander in an effort
to produce an affordable entry level scarier for small jobs and detail surface preparation work.
These systems will only operate to the limit of their weakest component. Using the unit as a recip-
rocating hammer or similar demolition tool will result in the failure of the polisher/sander.
Improper operation will result in repeated replacement of the polisher/sander and unacceptable
downtime.
Operational Guidelines:
11
Before use:
1. Read all manuals and practice safety before
during and after operation. Only authorized,
experienced and properly trained personnel
should operate this equipment.
2. Always wear personal safety equipment such
as sturdy non-slip boots, ear protection, dust
mask and approved eye protection.
3. Do not operate this equipment in an environ-
ment where any explosive gases may be
present, or where the risk of re or explosion
may exist.
4. Use an approved dust collection system and
incorrect use of the dust collector or breathing
dust can result in property damage, personal
injury, or death.
5. Never allow the rotating heads to come in
contact with the operator or bystander.
During Use:
6. Operate only with approved sanders at a con-
stant maximum speed of 3,000 RPM.
7. Bring unit to operating speed prior to applying
to work surface.
8. Remove or prep surface in shallow passes at a
maximum of 1/8” per pass (or less), depending
upon surface hardness and condition.
9. Allow only the carbide cutters to contact the
work surface. Avoid allowing the unit to repeat-
edly bounce or rebound off the work surface.
10. The rotational speed of the cutting head
should remain constant during operation,
avoid allowing the motor to bog or slow down
due to aggressive action by the operator as
this will cause the unit to overheat and place
excessive loads on the polisher/sander.
11. Do not operate if any component is loose or
the motor appears hot or not operating at
peak performance.
After use:
12. Disconnect from power supply prior to servic-
ing this equipment
13. Any warranty issues with the sander/polisher
must be handled directly with manufacturer
of the sander/polisher. Separate the FS150
from the sander/polisher when handling war-
ranty issues with the manufacturer.
14. For larger scale removal projects or jobs,
SMITH recommends moving to one of our
commercial grade upright scariers for supe-
rior removal speeds and less downtime.
15. Questions? Please contact your SMITH
Representative at 954-941-9744.
HAZARDOUS DUST WARNING
Dust resulting from use of this machine
and cutter tools may include chemicals
proven to cause cancer, birth defects
and reproductive health issues, including
lead from some paints and silica from
concrete and masonry. Always operate
this machine in a well-ventilated area
with a HEPA-lter dust containment
vacuum system.
Operators should always wear proper
safety equipment, including an approved
respirator to lter out ne dust particles.
All EPA and OSHA guidelines regarding
airborne dust should be followed when
operating this machine. Failure to follow
these safety protocols may result in
serious injury, illness or death.

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
FS150
VERSION 5/2014
MAINTENANCE LOG
WARRANTY CLAIMS
The manufacturer reserves the right to change or improve the machine design without assuming any
obligation to update any products previously manufactured before this manual. It is the customer’s
responsibility to complete the warranty card and mail it to the seller within 10 days from the date
of purchase. If a failure occurs during the warranty period, the customer must contact the seller to
determine the appropriate action. Any and all transportation charges are to be borne by the purchaser.
12

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
VERSION 5/2014
FS150
Limited Equipment Warranty
All statements, technical information and recommendations contained in SMITH’s literature are based on tests believed to be reliable, but
the accuracy or completeness thereof is not guaranteed and the following is made in lieu of all warranties, expressed or implied. SMITH
warrants all equipment or part referenced in this document which is manufactured by SMITH and bearing its name to be free from defects
in material and workmanship on the date of sale to the original purchaser under normal use and maintenance as herein provided. This
warranty does not apply to components manufactured by others such as, but not limited to, bearings and engines; such components that
may or may not have their own warranties.
With the exception of any special, extended, or limited warranty published by SMITH, SMITH will, for a period of three months (90
days) from the date of sale or up to ve hundred (500) hours of use by buyer, whichever shall occur rst; repair or replace any part of
the equipment determined by SMITH to be defective. This warranty applies only when the equipment or part is installed, operated and
maintained in accordance with SMITH’s written recommendations.
SMITH’s sole obligation for any breach of warranty or breach of contract for defects, deliberate or accidental omissions, shall be
limited to repairing, replacing or allowing credit for, at SMITH’s option, any part which, under normal and proper use and maintenance,
proves defective in material or workmanship within warranty period, provided, however, that notice of any such defect or omission and
satisfactory proof thereof is promptly given by buyer to SMITH, and thereafter, such defective part is returned to SMITH with transportation
charges prepaid, and SMITH’s examination proves such part to have been defective. This warranty does not obligate SMITH to bear any
transportation charges or personnel time in connection with the replacement or repair of defective parts. This warranty does not obligate
SMITH to bear any expense for travel time or of personnel in connection with any service calls. SMITH will not, in any event, be liable to
the user for any consequential damages arising out of this sale for the loss of use, lost prots or revenue, interest, lost goodwill or work
stoppage. SMITH shall not be liable for any injury, loss or damage, direct or consequential, arising out of the use or the inability to use
the product or for environmental claims. It being understood that SMITH has no means of controlling the products nal use; therefore, it
shall be buyer’s responsibility to determine suitability of product for intended use and buyer assumes all risks and liabilities whatsoever,
in connection therewith. In no event shall SMITH be liable for consequential or special damages. Used products are sold on an “as is”
basis, and there is no implied warranty of merchantability or of tness for a particular purpose, unless made in writing by an ofcer at
SMITH’s ofce.
This warranty does not cover, and SMITH shall not be liable for general wear and tear, or any malfunction, damage or wear caused
by faulty installation, misapplication, abrasion, corrosion, inadequate or improper maintenance, negligence, accident, tampering, or
substitution of non-SMITH component parts. Nor shall SMITH be liable for malfunction, damage or wear caused by the incompatibility
of SMITH equipment with structures, accessories, equipment or materials not supplied by SMITH, or the improper design, manufacture,
installation, operation or maintenance of structures, accessories, equipment or materials not supplied by SMITH. This warranty does
not apply in respect to damages to any product or accessory or attachment thereof caused by overloading or other misuse, neglect or
accident, nor does this warranty apply to any product or accessory or attachment thereof, which has been repaired or altered in any
way which, in the sole judgment of SMITH, affects the performance, stability or general purpose for which it was manufactured. In the
manufacture of buyer’s equipment, parts may be omitted or equivalent functioning equipment and components may be substituted for the
original specied equipment upon the sole judgment and discretion of SMITH.
This warranty is conditioned upon the prepaid return of the equipment claimed to be defective to an authorized SMITH Reseller for
verication of the claimed defect. If the claimed defect is veried, SMITH will repair or replace free of charge any defective parts and
return of merchandise back to the customer freight collect. If inspection of the equipment does not disclose any defect in material or
workmanship, repairs will be made at a reasonable charge, which charges may include the costs of parts, labor and transportation.
THIS WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING BUT NOT
LIMITED TO WARRANTY OF MERCHANTABILITY OR WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE.
SMITH’s sole obligation and buyer’s sole remedy for any breach of warranty shall be as set forth above. The buyer agrees that no other
remedy (including, but not limited to, incidental or consequential damages for lost prots, lost sales, injury to person or property, or any
other incidental or consequential loss) shall be available. Any action for breach of warranty must be brought within two (2) years of the
date of sale.
SMITH MAKES NO WARRANTY, AND DISCLAIMS ALL IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, IN CONNECTION WITH ACCESSORIES, EQUIPMENT, MATERIALS OR COMPONENTS SOLD BUT NOT
MANUFACTURED BY SMITH.
These items sold, but not manufactured by SMITH (such as electric motors, switches, hose, etc.), are subject to the warranty, if any,
of their manufacturer. SMITH will provide purchaser with reasonable assistance in making any claim for breach of these warranties.
In no event will SMITH be liable for indirect, incidental, special or consequential damages resulting from SMITH supplying equipment
hereunder, or the furnishing, performance, or use of any products or other goods sold hereto, whether due to a breach of contract, breach
of warranty, the negligence of SMITH, or otherwise.
ADDITIONAL WARRANTY COVERAGE - SMITH does provide extended warranty and wear warranty for products.
Corrections - typographical or clerical errors contained herein are subject to correction by SMITH.
Assignment - buyer shall not assign or transfer this warranty without SMITH’s written consent.
Entire agreement and applicable law - the rights and obligations of SMITH and buyer shall be governed by the laws of the state of Florida,
U.S.A. In force on date hereof. The provisions hereof are intended by buyer and SMITH as a nal expression of their agreement, and
are intended also, as a complete and exclusive statement of all terms apply cable to buyer’s order. No waiver, modication, or addition to
any of the terms hereof shall be binding on SMITH, unless made in writing by an ofcer at SMITH’s ofce as stated herein. In the event
of conict between buyer’s purchase order and the terms hereof, the latter shall control. If any provisions herein are to any extent invalid
or unenforceable, the remainder of the warranty shall not be effected thereby and shall be valid and enforceable to the fullest extent
permitted by law.
Legal action - buyer shall be responsible for all costs of collection of outstanding indebtedness, including but not limited to attorney’s
fees and court costs to seller. Buyer shall reimburse seller for any and all litigation expenses seller incurs as a result of an unsuccessful
buyer claim. The jurisdiction and venue of the court for any litigation, state or federal, brought by the buyer and/or seller shall be located
in venue determined by seller.
Fair labor standards - seller’s products are produced in the United States and in conformity with all applicable provisions of the fair labor
standards act of 1938 as amended and any regulations and orders of the United States Department of Labor issued thereunder.
All written and visual data contained in this document reects the most current product information available at the time of this publication.
SMITH reserves the right to make changes at any time without notice.
TO ORDER, contact your SMITH distributor or call 1-800-653-9311 to identify the nearest distributor.
SMITH Manufacturing Co, Inc.
1610 South Dixie Highway
Pompano Beach, FL 33060
www.smithmfg.com
13

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
FS150
VERSION 5/2014
Pre-Operation Inspection - Warranty Activation - Machine Registration
Go to www.smithmfg.com/warranty_activation.php
Thank you for purchasing a SMITH. This machine was tested and passed inspection prior to shipping.
Please complete this form upon receipt of your equipment and prior to use on the job. Failure to do so will void warranty.
All sections must be completed. Should you have any questions, please add to the comments section below.
Fax completed form to [phone] or email to [e-mail]
**Do not contact SMITH for engine/motor problems, only machine warranty issues **
Motor/Engine Warranty Contacts: Honda: http://engines.honda.com/dealer-locator/
Subaru: http://robinamerica.com/dealerusacan.aspx
Leeson: http://www.leeson.com/leeson/servicecenter.do?invoke=viewServiceCenterLocator
Brook Crompton Motor: http://www.brookcromptonna.com/contact.html
Weg Motors: http://www.weg.net/us/Contact/Service-Network
Purchaser Details
Organization ___________________________________________________________________________
Name ___________________________________ Title: ______________________________
Operators: _______________________________________________________________________
Phone: ______________________________________ Email: ___________________________________
Address ______________________________________________________________________________
City ___________________________________________ State _____________ Zip ________________
SMITH Machine _____________________________ Machine Serial # _____________________________
Date of Purchase ____________ Purchased from______________________________
Pre-Operation Inspection (Please check all)
1. No parts or components on the machine appear damaged or lost in shipment. [ ] Yes [ ] No
2. All bolts, fasteners, hoses are in place and tightly secured, wheels are operational. [ ] Yes [ ] No
3. Grease points have been identified for future maintenance requirements and appear lubricated. [ ] Yes [ ] No
4. Cutters and Drum/Spindle Assembly are operational and secure on machine. [ ] Yes [ ] No
5. Motor has been started and in good working condition. [ ] Yes [ ] No
6. All Decals appear in place and securely attached. [ ] Yes [ ] No
7. Equipment runs and tested to assure all components are operating correctly. [ ] Yes [ ] No
8. Do you have a Wear Parts Kit with an Extra Cutter set in stock? [ ] Yes [ ] No
9. Did you join Remove Faster News for tech updates, experience sharing and special offers? [ ] Yes [ ] No
10. Comments: ________________________________________________________________________________
_____________________________________________________________________________________________
_____________________________________________________________________________________________
Inspector’s Signature: ___________________________________ Date: _____________________
Note: To prevent downtime, experienced users stock (1) machine wear parts kit with an extra cutter drum/spindle assembly
& (1) cutter drum/spindle rebuild kit after receipt. Do you want to purchase and receive a special offer?[ ] Yes [ ] No
FS150
14

SMITH Manufacturing 1-954-941-9744 www.SmithMfg.com
SMITH Manufacturing
1610 South Dixie Highway
Pompano Beach, FL 33060
Toll Free: 800.653.9311
Phone: [phone]
Fax: [phone]
Email: [email protected]
www.SmithMfg.com
