SmoothTalker Mobile CX4 4G LTE User manual

Gain
30 dB
3
Operating temp
-30 C TO + 85 C
Dimensions
L 11.6 x W 6.4 x H 3.2 (cm)
Model Series
BTEUX430
SPECIFICATIONS
2G, 3G, 3G+, 4G, 4G+, GSM, HSPA, CDMA, LTE, LTE A
Frequencies MHz
800MHz 900MHz 1800MHz 2100MHz
Max Power-TX: Watts EIRP
POWER
SUPPLY
Input - 12-24V Output- 5.5V
Current: 3.0A
Smoothtalker.com
Weight 0.249 kg
Max Power RX: mW
0.0032
4 BAND
Mobile CX4 4G LTE
30dB
Coupling Cradle Connect Mobile
Network Signal Amplifier - Extreme Power
MULTI BAND
User Manual BTEUX430
Mobile Network
Signal Amplifier
CRADLE TYPE
30dB 4 BAND
MULTI BAND 30dB
GSM,HSPA,CDMA,LTE, LTE A
Connect
Extreme Power
2G, 3G, 3G+, 4G, 4G+
Vehicle
stealth
tech
®
Band 20
Band 8
Band 3
Band 1
1800MHz
2100MHz
800MHz
900MHz

Fig. 2
Desktop Cradle 100-240V
adapter
Applications
Optional Desktop (Fig. 2)
(Additional parts required which are not
included in Amplifier kit.)
1

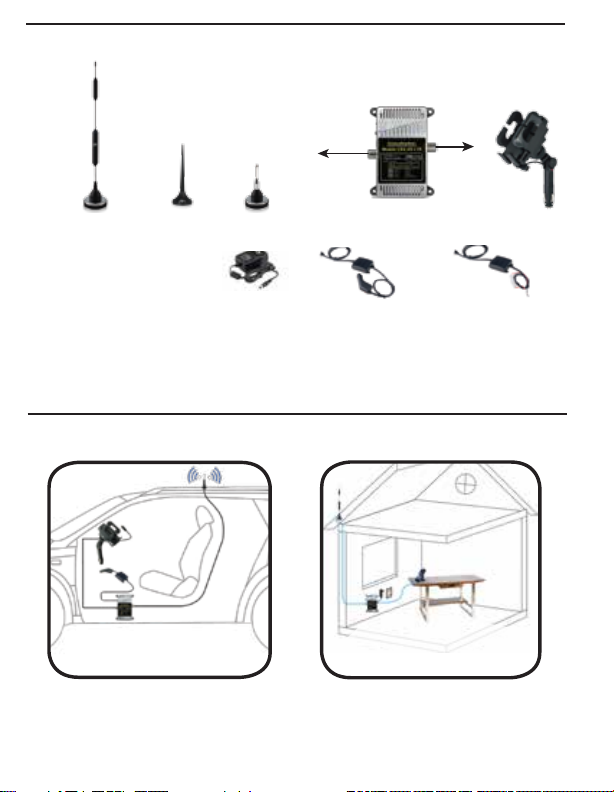

Contents
Mobile Amplifier
Installsocket plug
100-240 volt
AC/DC
Optional Power Types
Holder / Cradle
SEM2MXSEMINISEM14MX
NOTE: Only one of the outside antennas is included in this kit (check model) All kits include necessary brackets
and co-axial cables for assembly. It is normal for the Amplifier to be quite warm while the phone is in use state.
To comply Smoothtalker warranty, this Amplifier must only be operated with cables, antennas, and coupling
devices that have been approved for use with this equipment.(Pg. 5)
Typical Vehicle Installation (Fig. 1 )
(All parts are included)
Fig. 1
Mobile Cradle with 12-24V
Socket CLA plug-in type
Outside antenna options
BTUN1PA
Outside Antenna
Outside Antenna
Amplifier Amplifier
Holder
Holder

2
Installation
1) Connect the outside antenna to the side of the Amplifier marked as
“outside antenna.”
Connect the inside antenna to the side of the Amplifier marked as “inside antenna.”
2) Placement
Placement: Place the outside antenna in the middle of the vehicle roof. If the
vehicle has a sunroof please place the antenna on the roof towards the back
window. Place the Patch(inside) antenna in desired location. For cars and trucks
the console between the front seats is recommended. Connect the Amplifier as
shown in Fig.1 & 2 on Pg. 1 or Fig. 3 on Pg. 4.
Important: Use only the power supply included with the Amplifier. Connecting
another power supply at any time will result in damage to the Amplifier and will
void the warranty. Do not turn on the power switch until ALL cables have been
screwed or plugged into the Amplifier or you can cause damage to the Amplifier.
The Mobile CX4
Can easily be moved from vehicle to vehicle

3
Band Frequency
RX High Power Attenuation
Oscillation Attenuation
Hp Att
Osc Att

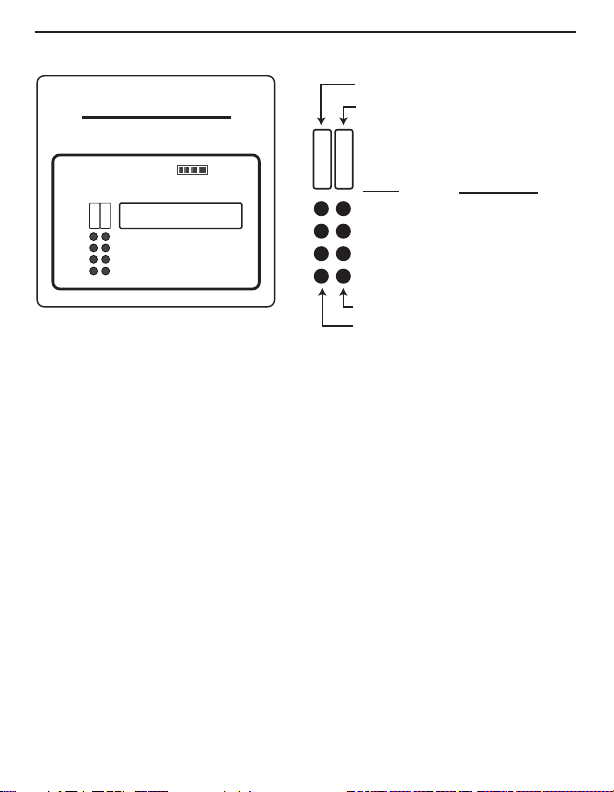

Understanding the LED Indicators
Orange LED
Green LED
Band 1 2100MHz
Band 3 1800MHz
Band 8 900MHz
Band 20
800MHz
The LED lights on the Amplifier face plate indicate the operating gain state of
the Amplifier.
The Green and Orange lights indicate the gain status in each operating band
When Both Green and Orange LED's are “SOLID ON” it means that the Amplifier
is operating normally with full gain (No Automatic Gain Reduction)
When one or both of the LEDS are flashing (Per the chart on Pg. 6) it indicates
that the gain has been automatically reduced due to either:
A) High receive (RX) outside signal level (when very close to cell tower)
B) Loop Oscillation, caused when the inside antenna is located too close to the
outside antenna
Each flash indicates 3dB of gain reduction also known as gain attenuation.
For example: three flashes equals 9dB of attenuation.
Green LED indicates loop oscillation status. When flashing it means reduction of
gain. To improve coverage you need to spread the distance between the inside
and outside antennas. If you spread them far enough away, the Green LED will
become SOLID ON which indicates the Amplifier is working at its max gain.
Smoothtalker®
Mobile CX4 4G LTE
Mobile
Signal Amplifier
Extreme Power
4 BAND
MULTI BAND 30dB
Coupling Connect
RX/TX
2G, 3G, 3G+, 4G, 4G+
GSM, HSPA, CDMA, LTE, LTE A
Hp Att
Osc Att
Band 20 800MHz
Band 8 900MHz
Band 3 1800MHz
Band 1 2100MHz
DC 6V Only Outside Antenna
Inside Antenna

4

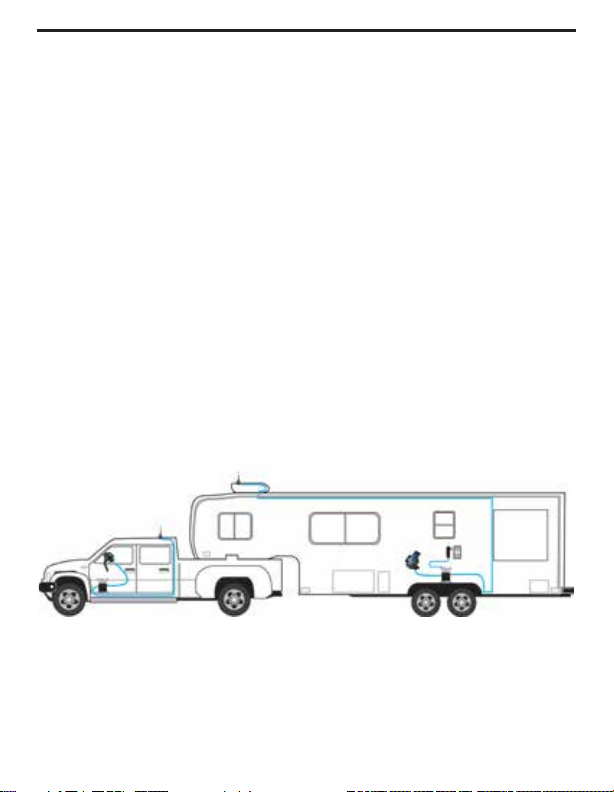

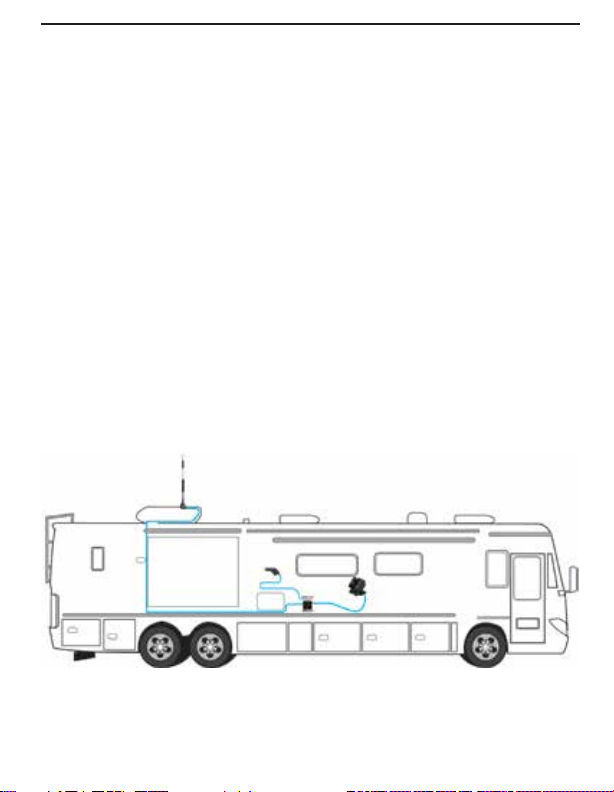

Typical RV Installation Mobile CX4 (Fig. 3)
Holder
Amplifier
Outside Antenna
LED Lights Explanation and Troubleshooting
Orange LED indicates RX (outside signal) status.
There are 4 Orange LED lights: 800 Mhz , 900 Mhz ,1800 Mhz, 2100 Mhz.
LED ON state indicates that the RX (Receive Signal) function of the band is
functioning normally. LED OFF state indicates that the band is shut down.
When Orange LED is flashing it indicates reduced gain also known as
attenuation of gain. You cannot prevent this condition. It means that the outside
signal is very strong and the Amplifier has reduced it's gain in order to protect the
closest cell tower. If the cell tower which is close is the one you are using, then
you can ignore the gain reduction and you will still get enough signal strength
to cover your area. In this case this is the normal operating process.
If the close cell tower is not the one you are using, then you can try to relocate
your outside antenna away from this cell tower and face it or point it to the cell
tower you are using in order to get more gain.
If you need help pls contact [e-mail] and we will help
you determine your cell tower location and get you setup.

5
Smoothtalker approved accessories most be used with this Amplifier to maintain
warranty.
Approved Equipment List
ANTENNA CABLES
ACX100, ACX900
CBXmaXfe10,20,30,40,50,60
CBNmaNfe10,20,30,40,50,60
CBGmaGfe 10,20,30,40,50,60
ANTENNAS
SEM2, 11, 14, series
SEM2M, 11M, 14M, series
SEM2LGM, 11LGM, 14LGM, 26LGM series
SEM2LGML 11LGML, 14LGML, 26LGML series
SEM2TH, 11TH, 14TH, 26TH series
SEM2THL, 11THL, 14THL, 26THL series
SEMTHMM series
SEMTHPB series
SEMRP1X , SEMRP1XL
SRBL series
SEMD1 series
SEMDA2 series
SEMO series
SEMDP1 series
SEMDY series
SEMDYD series
COUPLING HOLDERS
BTH Series

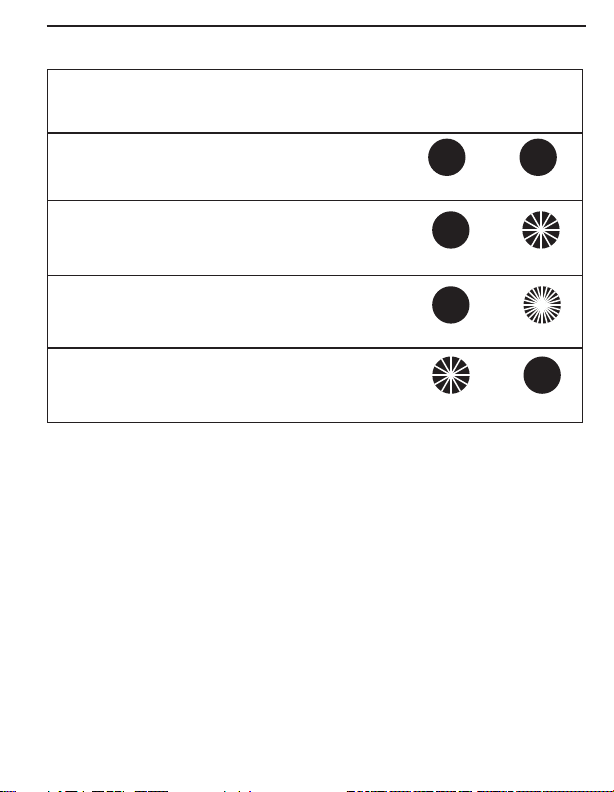

LED Lights Indicate Gain Status
ON ON
ON
SLOW FLASHING
SOLID ONSOLID ON
SOLID ON
SOLID ONSLOW FLASHING
FAST FLASHING
OFF
ON/
ORANGE LED
RX High Power
GREEN LED
Oscilation
Attenuation (Att)
Orange Solid ON = Full Gain & Green Solid ON = Full Gain
Orange Solid ON & Green Slow Flashing = Oscillation Att
Orange Off & Green Fast Flashing = Oscillation Shutdown
Orange Slow Flashing & Green Solid ON = RX High Power Att
Each flash indicates 3dB of gain reduction also known as gain attenuation.
For example: three flashes equals 9dB of attenuation.
No Flashing = Full Gain
Each Flash = up to 3dB gain reduction
Each Flash = up to 3dB gain reduction
Fast Flashing = Amplifier shutdown (pls troubleshoot)
Operational description:
This devices comprise with International NPS (Network Protection
Standard): NPS and other compliance/safeguard features for AGC and
anti-oscillation have been implemented. NPS and other compliance/
safeguard features are defaulted to be “On” (in operation). NPS and other
compliance/safeguard features can not be field reconfigured, disabled or
removed. This Amplifier is not user programmable, does not need fine
tuning or adjustment.
In 2001 SmoothTalker produced the first digital mobile Mobile Network signal
Amplifier in North America with FCC and Industry Canada approval.
We continue to lead with the most powerful and intelligent Amplifiers
in the world. Our dynamic adaptive proprietary algorithms make
them totally network friendly. We call it STEALTH TECH technology.
6

Declaration of Conformity
In accordance with EU Directives and Regulations
Mobile Communications Inc.
230 Earl Stewart Dr. Aurora, ON. Canada L4G6V8,
as the manufacturer hereby declares under our sole responsibility that the, Product(s):
Mobile Network Signal Enhancer, Model name/s: Smoothtalker :
BTEUX430 Mobile CX4, BTEUX415 Stealth M2M X4
Is/are in conformity with the requirements of the RE Directive 2014/53/EU:
The radio equipment meets the following essential requirements
Article 3.1 a): Health and Safety Conform
Article 3.1 b): Electromagnetic Compatibility Conform
Article 3.2: Effective and Efficient Use of Radio Spectrum Conform
Radio EN 301 908-1 V11.1.1, EN 301 908-15 V11.1.2, EN 303 609 V12.5.1
EN 301 908-11 V11.1.2
Article 3.2
EMC EN 301 489-1 V2.2.0, EN 301 489-50 V2.2.0
Article 3.1(b)
Safety EN 62368-1: 2014
Article 3.1(a)
Health RF Exposure EN 62311: 2008
Article 3.1(a)
An EU Type Examination Certificate for this Product was issued in accordance with
Annex III (Module B) of the 2014/53/EU Radio Equipment Directive by Bay Area
Compliance Laboratories Corp. (2014/53/EU Radio Equipment Directive Notified Body
Identification Number 1313)
This product has been tested and certified CE, RoHS.
Smoothtalker.com
stealth
tech
®
Automatic power
control protects the
Mobile Network
RE Directive 2014/53/EU
Certified Compliant
For Inquires please contact Us
[e-mail]
