QuickStart: FLUKE TiS
© 2011 The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT 05641 / 800.636.9820 / www.thesnellgroup.com
TiS Page 1
1. MEMORY: Insert SD memory card into the slot under the rubber cover on the side of the camera.
2. POWER: The TiS has an internal battery, this can be charged by plugging the adapter into the camera (under the
same rubber cover). A battery life indicator is displayed in the upper left corner of the LCD screen.
3. START: Press and hold the F2 button for 1-2 seconds until you hear an audible tone signaling camera startup.
Swing the attached lens cover up and lock in the open position on the top of the camera.
The LCD display will turn on and you will see the default start up screen (as above) showing a live
infrared image.
To turn the camera off hold the F2 button until an audible tone signals it is powering down.
4. FOCUS: Focus by slowly manually rotating the focusing ring on the infrared camera lens.
5. AUTO ADJUST (Level & Span): The camera should start in the auto Mode. “Auto” will be displayed in the
upper right corner of the LCD screen. If the camera starts in the “Lock” mode:
Press F3 [Range] to display [Lock] [Back] [Auto].
Press F3 [Auto] to permit the camera to continuously auto adjust span and level.
6. Manual “LOCK” ADJUST (Level & Span): From the default start-up screen push F2 until [Palette] [Menu]
[Range] appears in the lower portion of the LCD screen.
Press F3 [Range] to display [Lock] [Back] [Auto].
Press F1 [Lock] to lock the current level and span settings.
Note: the Mode indicator now displays “Lock” at the upper left corner of the LCD screen.
7. PAUSE IMAGE: Pause or Freeze the image by momentarily pressing the front Trigger.

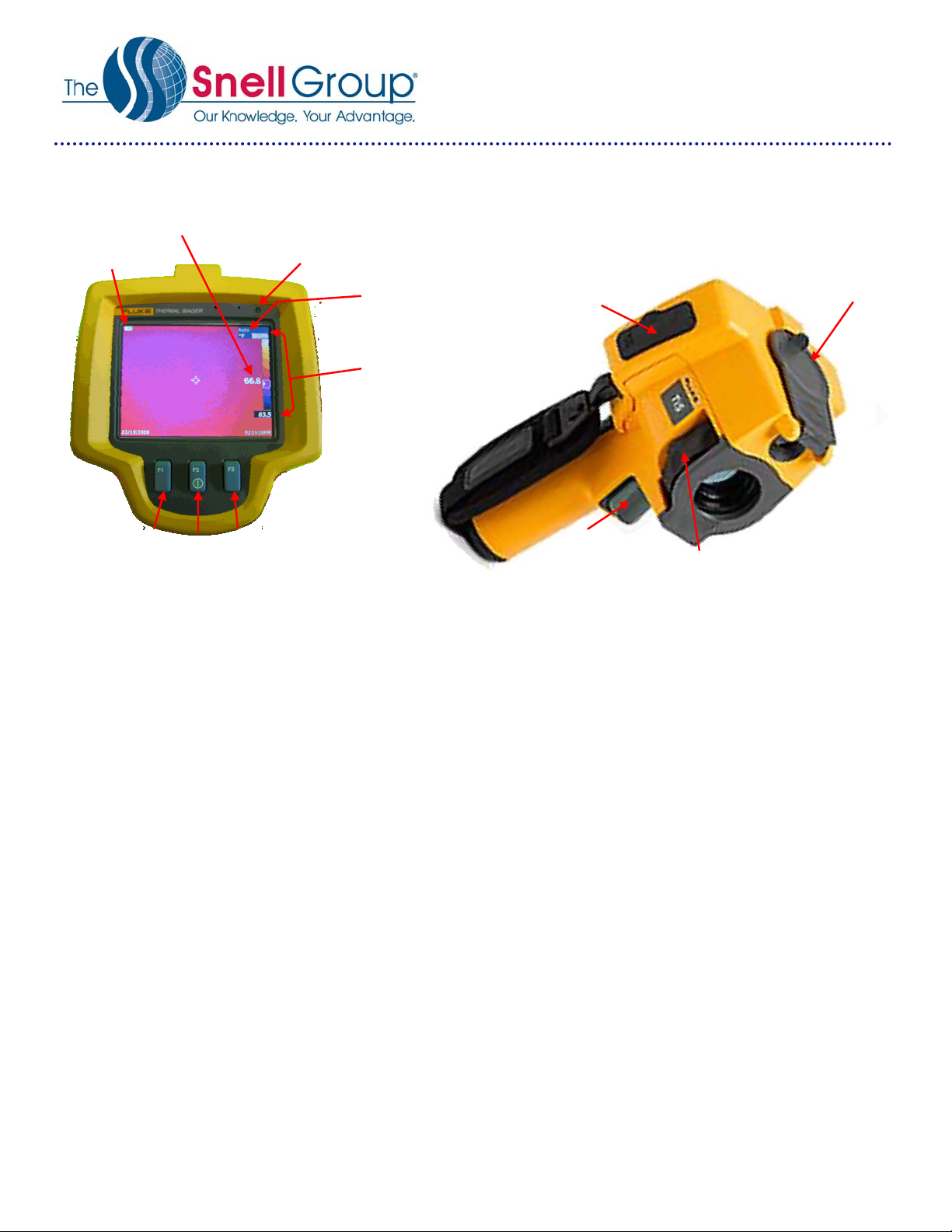

F1 F2 F3
(On/Off)
Level & Span
I
ndicator
Center Spot Temp.
Indicator
Memory Card Slot
Power/Charge
IR Focusing Ring
Trigger
(Pause/Un-pause)
Backlight Sensor
Battery Life
Indicator Auto/Lock
Mode Indicator
Lens Cover
(Swing up and lock)

QuickStart: FLUKE TiS
© 2011 The Snell Group / 322 N. Main St. / Suite 8 / Barre, VT 05641 / 800.636.9820 / www.thesnellgroup.com
TiS Page 2
If this is not an image you desire to save, abort saving image by pressing the trigger button again and
return to a live image
8. SAVE IMAGE: To save an image first pause the image as above which also displays the Image Captured
menu. To save the displayed image press the F1 [Store] button.
9. CHANGE PALETTE: From the default start-up screen push F2 until [Palette] [Menu] [Range] appears in the
lower portion of the LCD screen.
Press F1 [Palette] then F1 [Up] or F3 [Down] to scroll through the three available palette choices.

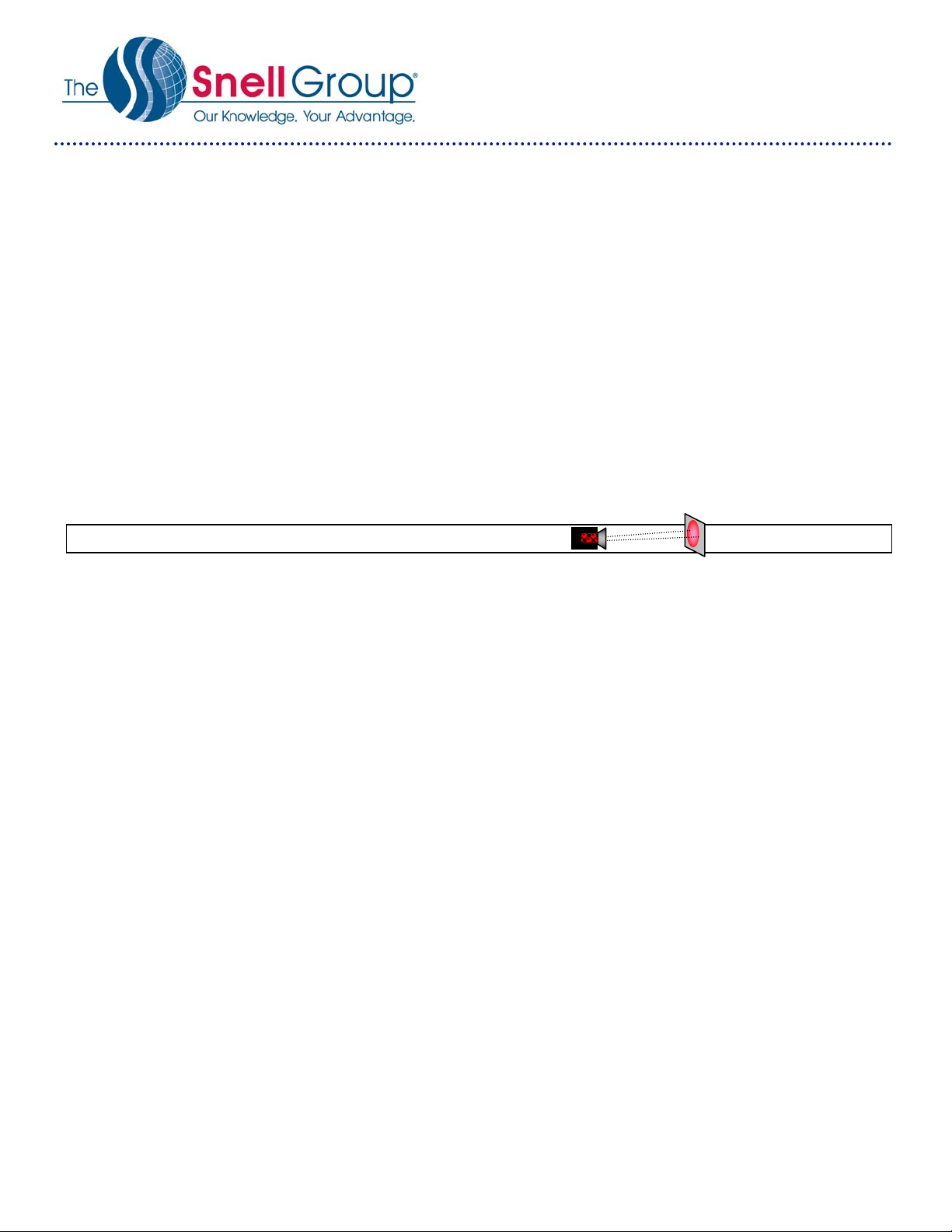

IFOV =2.5 mRad (Theoretical with 120x120 Detector and standard 17˚x17˚lens) Detect 1in. target @ 33ft.
