SNOWJOE Sunjoy Santa Belle User manual

Santa Belle Gazebo
Style # L-GZ089PST
Recommended persons for safe assembly: 4.
CONGRATULATIONS –You’ve purchased a fine item from The
Home Depot.
Our clear, easy to follow; step by step instructions will guide
you through the project from start to finish. Feel confident that
this will be a fun and rewarding project. The final product will be
a quality piece that will go together smoothly and give years of
enjoyment.
All you will need is a screwdriver, a hammer, and a ladder not

lower than 2m (about 6.6 feet).
If you have any questions just call 866-578-6569. Please refer to
the DPCI code about when calling.

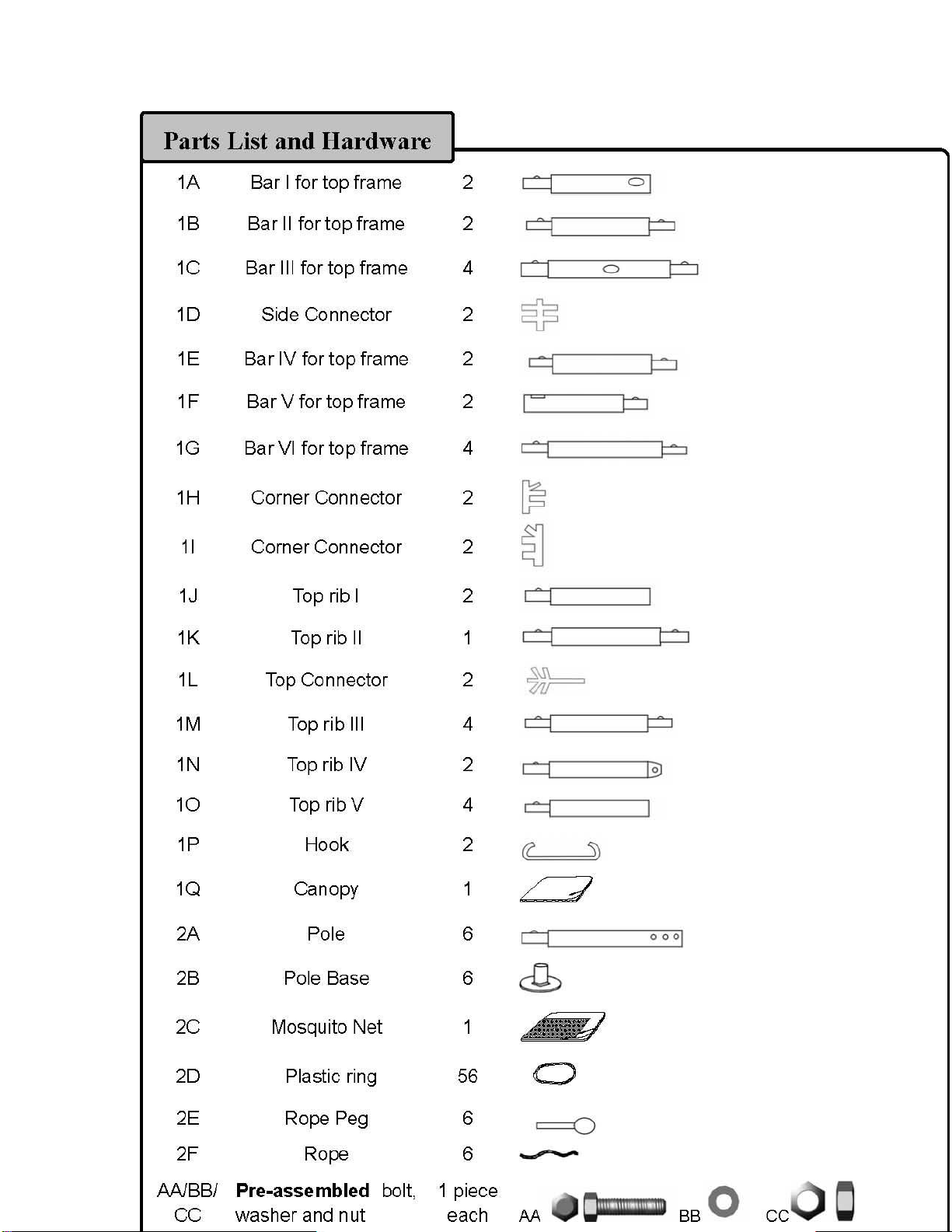

Step Identification For ease of identification all
parts are labeled to
correspond to the Step
number in which the part is
used.
IMPORTANT:
1. 1. When installing and assembling your gazebo, it’s recommended that 2 or
more persons are involved.
2. 2. Do not use the unit during an electrical storm, as there is a remote chance
of getting struck by lightening.
3. 3. Do not climb on top of the gazebo. Falling off the gazebo can result in
serious injury, possibly even death.
4. 4. Do not leave the gazebo assembled when there is a risk of high wind, as

damage will occur to the structure.
5. 5. Never barbecue under this gazebo or use lanterns that contain naked
flames.
6. 6. This package contains small items and plastic bags that should be kept
away from children.
7. 7. Ensure that any connectors & poles are firmly secured in position fully. It is
important to do so before use so as to avoid collapsing or damage to the item, which
could result in injury.
WARNING:
1. 1. KEEP ALL FLAME AND HEAT SOURCES AWAY FROM THIS GAZEBO
FABRIC.
2. 2. This Gazebo is made of Fabric that meets CPAI-84 specifications for flame
resistance. It is not fire proof. The fabric will burn if left in continuous contact with any
flame source. The application of any foreign substance to the gazebo fabric may render
the flame-resistant properties ineffective.
3. 3. Due the natural properties of metal frame material, if rust develops, clean
rust area by sanding slightly, then wipe thoroughly and apply touch-up paint that is
contained in the package.

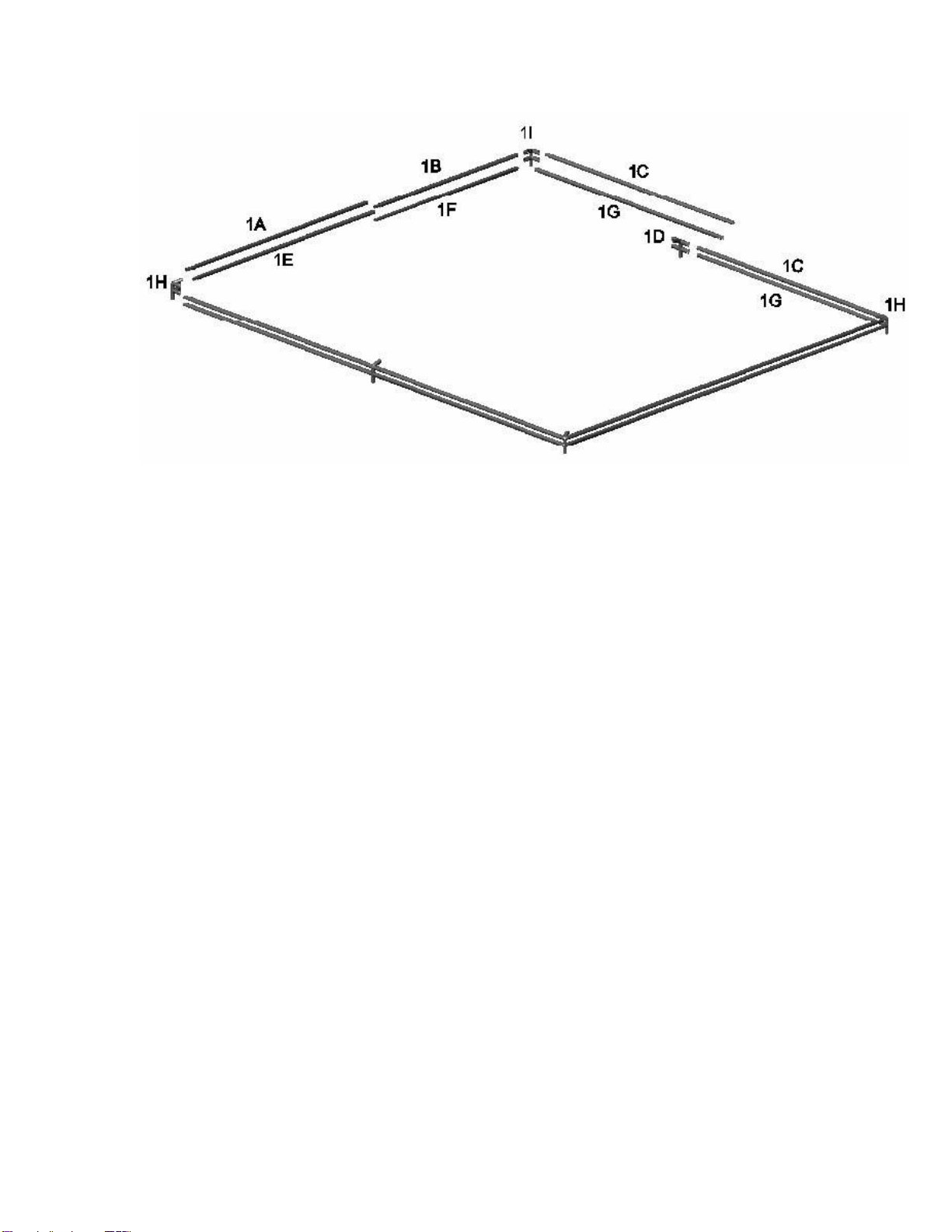

Fig.1: Insert one end of 1B into 1A; do the same for 1E and 1F.
Fig.2: Insert one end of 1C and 1G into 1D separately.
Fig.3: Connect the other ends of the mutually inserted bars (the ones inserted in Fig.1 and
Fig. 2) with 1I
(1J).
After that, you’ll get the top frame assembled as below illustration indicates.

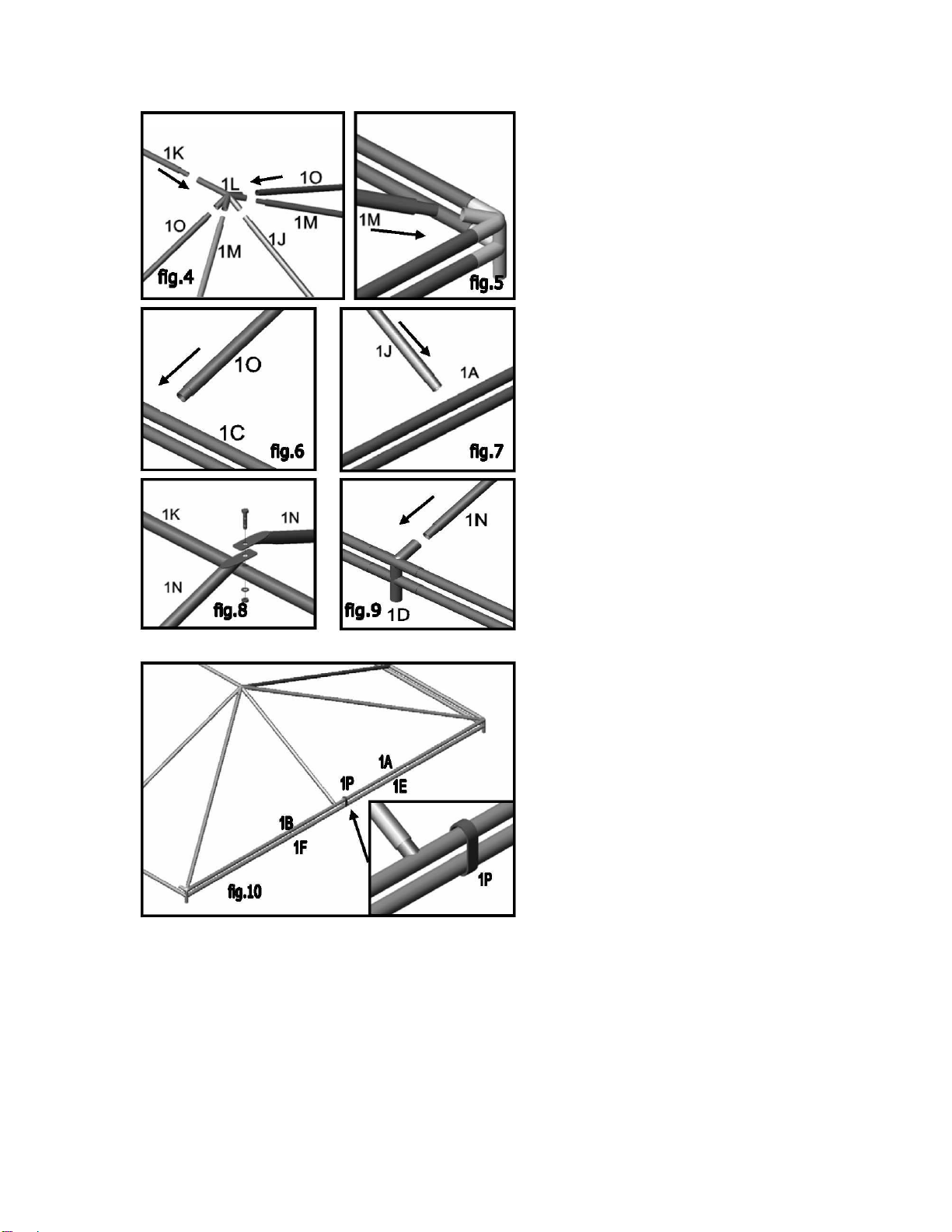

Fig.4＆Fig.5＆Fig.6＆Fig.7:
.①Insert 1K into1L;
.②Insert one end of 1M into 1L, and then insert the other end of it into 1J（1I）;
.③Insert one end of 1Ointo 1L, and the other end into the hole in 1C;
.④Insert one end of 1J into 1L and then the other end into the hole in 1A.

Fig.8: Screw off the bolt AA, washer BB and nut CC which have been pre-assembled in 1K,
and use them to fix two 1Ns with 1K;
Fig.9: Insert the other end of 1N into 1D;
Fig.10: Fasten 1A & 1B with 1E & 1F together by 1P

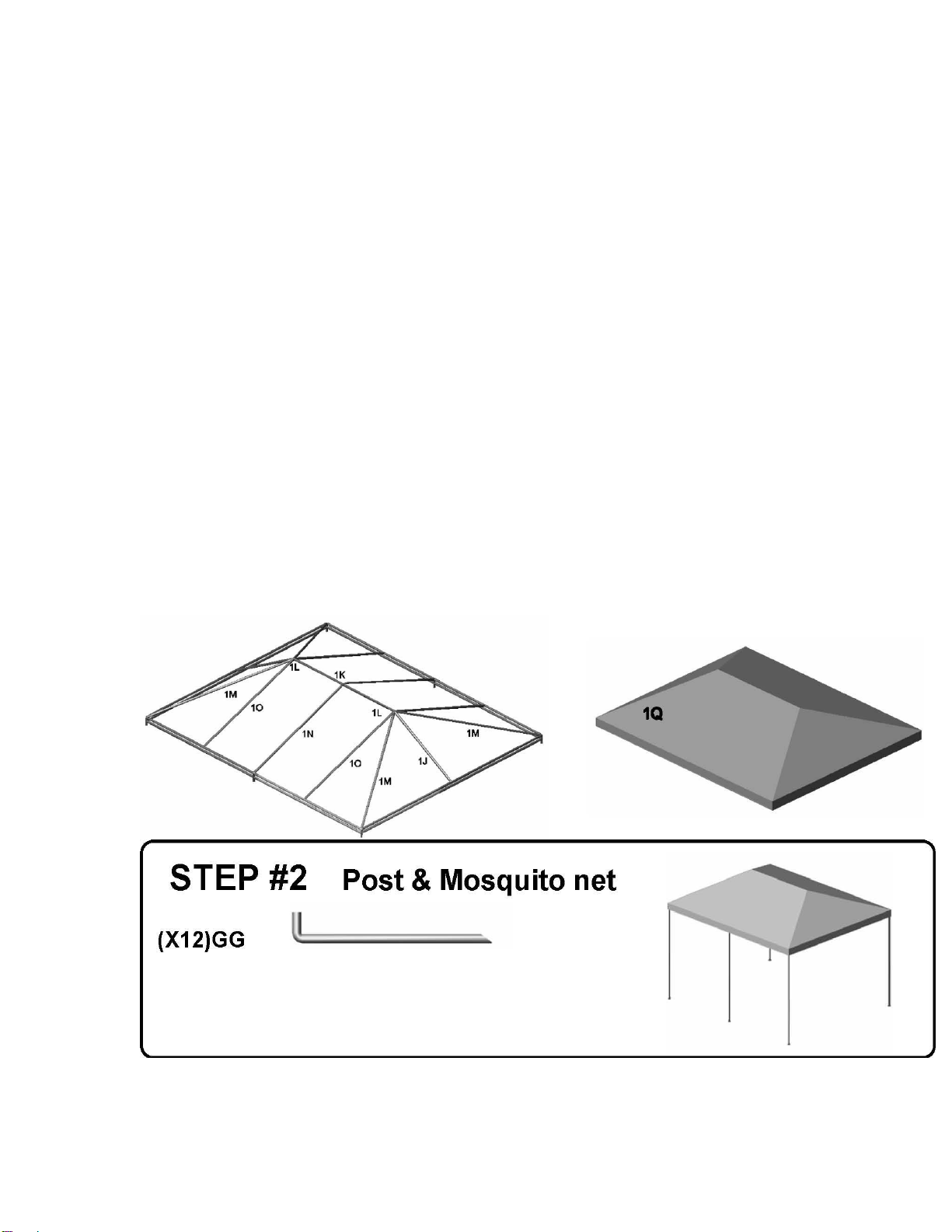

At the end of this step, you will get the whole top frame ready as below figure shows. At this
time, put Canopy 1Q on the ready frame and have it well fixed.

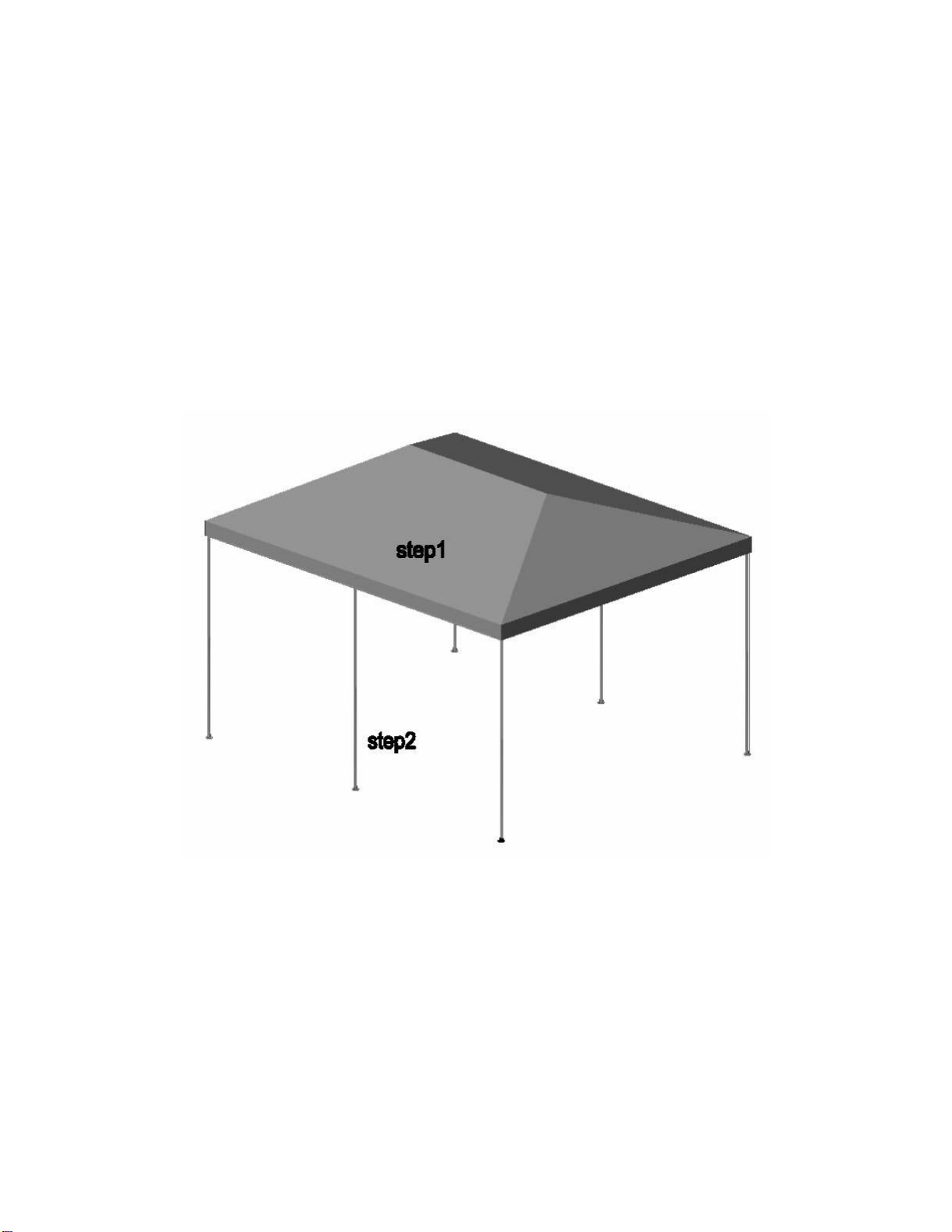

Fig.11.1 & Fig. 11.2 ：Insert one end of four 2As into 2Bs separately, then lift the top and
insert the other end of 2A into 1I, 1J and 1D separately.（Get 4 persons here at least for
this step）. By doing this, you reach the step of Fig. 11 now.
Fig.11.3：Peg stakes GG into the ground to secure the gazebo.

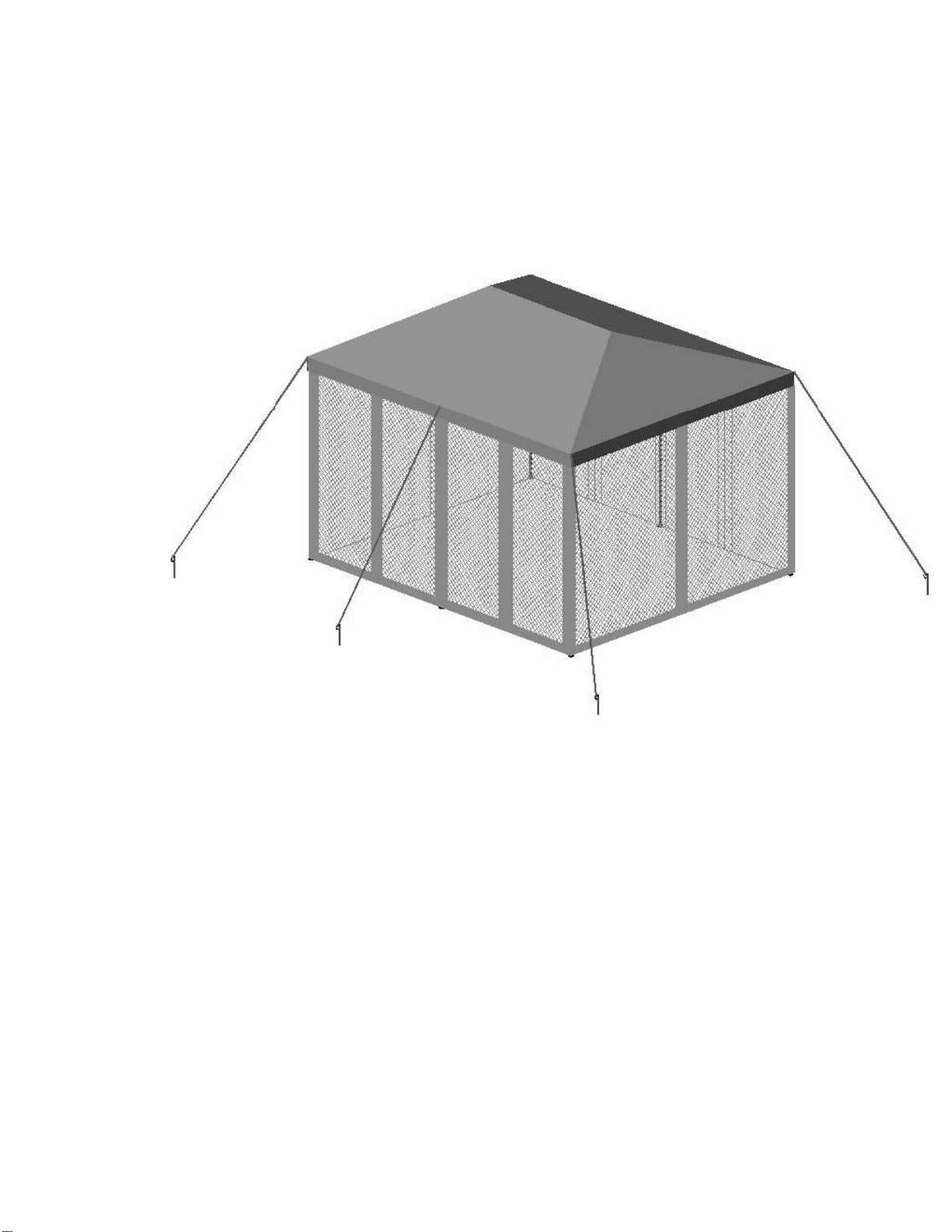

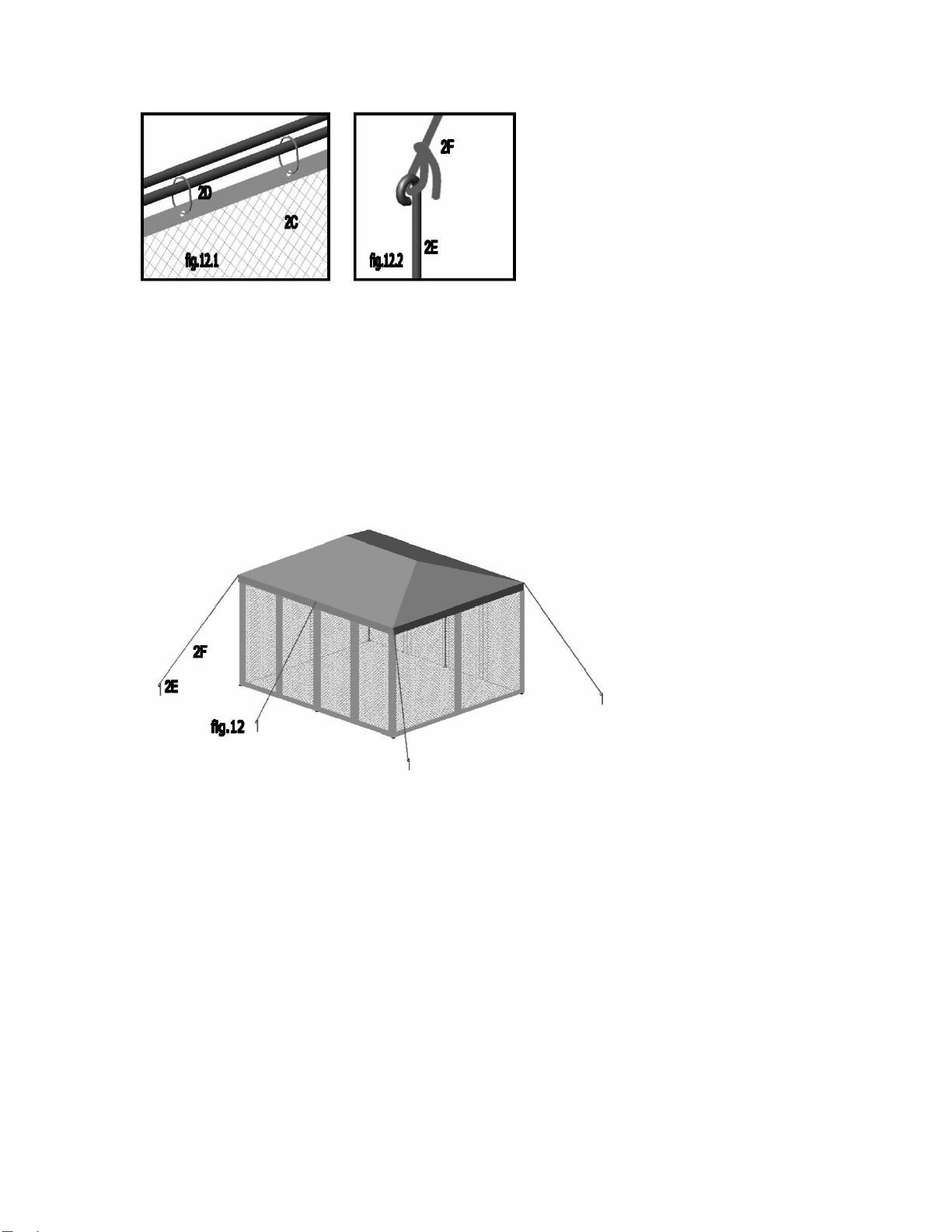

Fig.12.1 & Fig. 12.2 ：
①Put on mosquito net 2C into the top frame bars
1E, 1F and 1G, using plastic rings 2D; ②Tie one end of the rope 2F to the corner edge
of the canopy; Loop the other end of the rope through the hole of rope peg 2E insert rope
peg 2E into the ground. Strain up the rope and knot it to secure the whole product.
Limited Warranty:
This limited warranty is extended to the original purchaser and applies to defects in materials and
workmanship of your item provided the item is maintained with care and used only for personal,
residential purposes.
The item is warranted to be free from defects in material or workmanship for a period of 6 month.
We don't reimburse for transportation or delivery costs, or compensate the individual or any
outside party for assembling or disassembling the product.
Exclusions:
Items used for commercial, contract, or other non-residential purposes, or items damaged due to
acts of nature, vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of

hardware is not covered. Proof of purchase (dated register receipt) is required for warranty claims.
Warranty is to the original purchaser and is non-transferable. Any replacement of warranted items
will be in the original style and color, or a similar style and color if the original is unavailable or
has been discontinued. As some states do not allow exclusions or limitations on an implied
warranty, the above exclusions and limitations may not apply. This warranty gives you specific
rights, and you may also have other rights, which vary from state to state.
Maintenance:
Our iron/steel components for garden accessories and furniture are coated with rust inhibiting
paint that protects it from rusting. However, due to the nature of iron, surface oxidation (rusting)
will occur once these protective coatings are scratched. This is a natural process and is not a
defect! To minimize this condition, we recommend care when assembling & handling the product
to prevent scratching the paint. Should any scratching or damage occur, we recommend
immediate touch-up with rust inhibiting paint. Surface rust can also be easily removed with a very
light application of common cooking oil. If surface oxidation (rusting) occurs and if no measure is
taken to prevent this, the oxidation may start dripping on to deck or patio and cause damaging
stains, which may be difficult to remove. This can be prevented if measure is taken to keep the
product from oxidizing.
Important: Please do not return this product to the store. For technical assistance on
assembly or replacement parts Please do not return this product to the store, call Sunjoy
Industries at 1(866) 578-6569 from
8:30 AM to 5:30 EST Monday to Friday or fax the replacement part form which put into the
package to (740)-283-3549 or Email [e-mail] for assistance.
