Preface
Notice
The products, services or features you purchased shall be subject
to the company's commercial contracts and terms. All or part of
the products and services described in this document may not
within the scope of your purchase. Unless additional terms and
conditions in your contract, the company does not make any
statement or guarantee on the contents of this document. In
addition, the term "Product" as described in this document refers
broadly to "ESI Series products".
Save this Instruction
This manual must be considered as an integral part of the
equipment. Customer can print the electronic version to hard
copy and keeping properly for future reference. Anyone who
operates the device at any time must operate in accordance with
the requirements of this manual.
Copyright Declaration
The copyright of this manual belongs to SHENZHEN
SOFARSOLAR Co., Ltd. Any corporation or individual should not
plagiarize, partially cope or fully copy (including software, etc.),
not allow to duplication and publishment in any form and any
way. All rights reserved, SOFAR reserves the right of final
interpretation. This manual subject to modify according to user's
or customer's feedback. Please check our website at
http://www.sofarsolar.com for latest version.
Document Updates
V4.0 2023-11-01
Initial version

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
5
Outline
Please read the product manual carefully before installation,
operation or maintenance. This manual contains important
safety instructions and installation instructions that must be
followed during installation and maintenance of the equipment.
Scope of Validity
This product manual describes the installation, electrical
connections, commissioning, maintenance and troubleshooting
of ESI Series products.
Target Group
This manual is for qualified electricians. The tasks described in
this manual only can be performed by qualified electricians.
Symbols Used
The following types of safety instruction and general information
appear in this document as described below:
“Danger” indicates a hazardous situation
which, if not avoided, will result in death or
serious injury.
Danger
“Warning” indicates a hazardous situation
which, if not avoided, could result in death or
serious injury.
Warning
“Caution” indicates a hazardous situation
which, if not avoided, could result in minor or
moderate injury.
Caution
“Attention” indicates there are potential risks, if
fail to prevent, may lead to equipment cannot
normally or property damage.
Attention

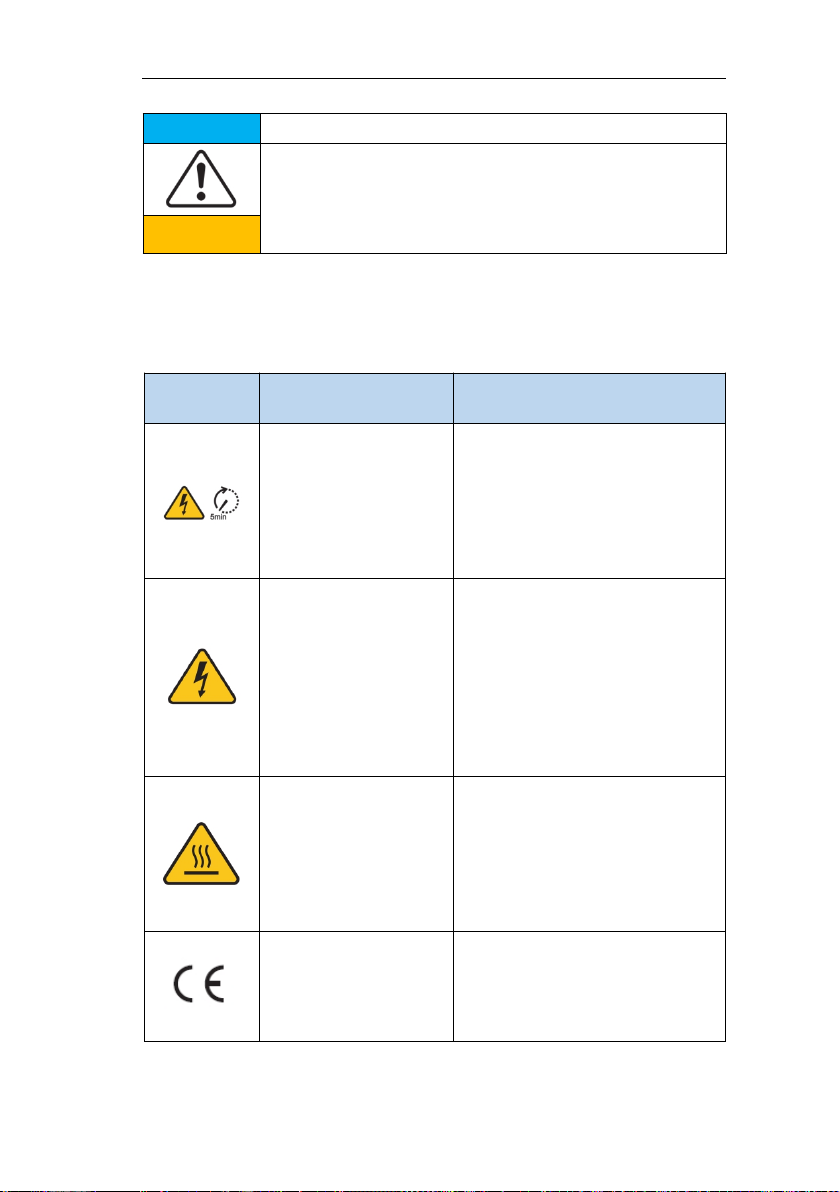

“Note” provides additional information and tips
that are valuable for the optimal operation of
the product, will help you to solve a problem or
save your time.
Note

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
6
1 Basic Safety Information
Outlines of this Chapter
Please read the instruction carefully. Faulty operation may cause
serious injury or death.
1.1 Requirement for Installation and Maintenance
Common Requirements
The product must be installed in full compliance with national
and local power grid standards and regulations.
Before installing and adjusting the produce, please read all of
instructions, cautions and warnings in this manual.
Before connecting the product to the electrical utility grid,
contact the local utility company for allowance. Also, this
connection must be made only by qualified electrician.
When any maintenance or repair is required, please contact the
nearest authorized maintenance center. If you don't know which
service center is closest to you, please contact your local
distributor. Don't repair the product by yourself, which may lead
serious injury or damage.
Before installing and maintaining the device, using the DC switch
to cut off the high voltage direct current of the photovoltaic array.
Otherwise, the high voltage may cause serious injury.
If you have any question or problem when you
read the following information, please contact
SHENZHEN SOFARSOLAR CO., Ltd.
Note

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
7
The product should be placed in a well-ventilated place. Do
not place the product in a sealed or air-tight position or
cabinet, otherwise it will affect the operation performance
and system life of the energy storage system.
Avoid direct sunlight. Do not place this product near stoves
and fire sources. Otherwise, the lithium battery in the
product system will leak or even explode.
The maintenance personnel of this product must
understand the knowledge and skills related to inverter
and battery maintenance.
ESI Series products are transformerless inverter which
requires the positive pole and negative pole of the PV array
are NOT grounded. Otherwise, it will cause inverter failure.
In the PV system, all non-current-carrying metal parts (such
as mounting frame, combiner box enclosure, etc.) should
be connected to earthed.
Reminder: Do not disassemble and destroy the battery. The
toxic electrolyte in the battery can damage your skin and
eyes.
Caution: Comply with the following requirements during the
installation and maintenance of the product:
A) Remove watches, rings and other metal objects from your
body.
B) Use tools with insulated handles.
C) Wear rubber gloves and shoes.
D) Do not place tools or metal objects on the battery.

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
8
E) Close the inverter before connecting/disconnecting the
battery and the energy storage inverter.
F) Battery +/- pole shall be isolated from ground.
Installation and maintenance personnel requirements
When the product is in the running state, some parts may be
electrified and hot. Improper use, improper installation or
operation may result in serious injury to person or property.
Transport, loading, unloading, installation, start-up and
maintenance operations must be performed by a qualified
electrical engineer (all accident precautions in force in the user's
country must be followed!) SOFAR will not be responsible for
any personal injury or property injury caused by improper use.
Installation location requirement
Please install the product according to the following section.
Place inverter in an appropriate bearing capacity objects (such
as solid brick wall, or strength equivalent mounting surface, etc.)
and make sure inverter vertical placed. A proper installation
location must have enough space for fire engine access in order
for maintenance if faulty occur. Ensure the inverter is installed in
a wall ventilated environment and have enough air cooling
cycle. Air humidity should less than 90%.
Transportation Requirement
Inverter is in the good electrical and physical condition when it
ship out from factory. During transport, inverter must be placed
in its original package or other proper package. Transportation
company should responsible for any damage during transport
period.
If you find any packing problems that may cause the damage of
inverter or any visible damage, please notice the responsible
transportation company immediately. You can ask your installer

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
9
or SOFAR for help is necessary.
This product contains battery module through UN38.3, belongs
to the ninth category of dangerous goods. Therefore, loading and
unloading must comply with local laws and regulations and
industry standards during transportation. Rough loading and
unloading may cause short circuit or damage to batteries in
containers, which may result in battery leakage, breakage,
explosion, or fire.
Transportation Requirement
Shipping complies with the IMDG CODE and the
International Maritime Dangerous Goods CODE.
For land transportation, comply with ADR or JT T617
shipping requirements.
Meet the regulatory requirements of the transport
regulatory authorities of the country of origin, route and
destination.
Comply with international regulations for the transport of
dangerous goods and the supervision requirements of the
corresponding national transport regulatory authorities.
Electrical Connection
Please comply with all the current electrical regulations about
accident prevention in dealing with the current inverter.
Before the electrical connection, use opaque
material to cover the PV modules or disconnect
PV string DC switch. PV arrays will produce
dangerous voltage if it is exposure under sun.
When installing a battery, check the positive and
negative terminals of the battery and turn off the
Danger

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
10
battery.
All operation must accomplish by certified
electrical engineer
Must be trained;
Completely read the manual operation and
understand all information.
Warming
Must get permission by local utility company
before connecting to grid and the connection
must be done by certified electrical engineers.
Attention
Operation Cautions
Touching the utility grid or the terminal
conductors can lead to lethal electric shock or
fire!
Do not touch non-insulated cable ends, DC
conductors and any live components.
Attention to any electrical relevant instruction
and document.
Danger
Enclosure or internal components may get hot
during operation. Please wear insulated gloves.
Attention
Maintenance and Repair Cautions
Before any repair work, turn OFF the AC circuit
breaker between the product and electrical grid
first, then turn OFF the DC switch.
After turning OFF the AC circuit breaker and DC
switch wait for at least 5 minutes before carry
any maintenance or repair work.
Danger
Product should not work again until removing all
faults. If any repair work is required, please
contact local authorized service center.
Should not open the product cover without

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
11
authorized permit, SOFARSOALR does not take
any responsibility for that.
Attention
EMC/Noise Level
Electromagnetic compatibility (EMC) refers to that on electrical
equipment functions in a given electromagnetic environment
without any trouble or error, and impose no unacceptable effect
upon the environment. Therefore, EMC represents the quality
characters of an electrical equipment.
The inherent noise-immune character: immunity to internal
electrical noise
External noise immunity: immunity to electromagnetic
noise of external system
Noise emission level: influence of electromagnetic emission
upon environment
Electromagnetic radiation from the product may
be harmful to health!
Please do not continue to stay away from the
product in less than 20cm when it is working
Danger
1.2 Symbols and Signs
High voltage of inverter may be harmful to
health!
Only certified engineer can operate the product;
Juveniles, Disable, should not use this product;
Keep this product out of the reach of children;
Danger
Caution of burn injuries due to hot enclosure!
Only touch the screen and pressing key of the
product while it is working
Caution
PV array should be grounded in accordance to
the requirements of the local electrical grid
company

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
12
Attention
Ensure the maximum DC voltage input is less
than the product’s maximum DC voltage
(including in low temperature condition). Any
damage cause by over-voltage, SOFAR will not
take the responsibility including warranty
Warning
The product has some safety symbols on it. Please read and fully
understand the content of the symbols before installation.
Sings on the inverter module
Symbols
Name
Explanation
This is a residual
voltage in the
inverter module!
After disconnect with the
DC side, there is a residual
voltage in the inverter
module, operator should
wait for 5 minutes to ensure
the capacitor is completely
discharged.
Caution of high
voltage and
electric shock
The inverter module
operates at high voltages.
Prior to performing any
work on the product,
disconnect the product
from voltage sources. All
work on the product must
be carried out by qualified
persons only.
Caution of hot
surface
The inverter module can
get hot during operation.
Avoid contact during
operation. Prior to
performing any work on the
product, allow the product
to cool down sufficiently.
Comply with
European
standard (CE)
certification
The product complies with
the CE Certification

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
13
Grounding
Terminal
Connect the inverter
module to the ground bar
for grounding protection
Observe the
documentation
Read all documentation
supplied with the product
before install
Positive pole and
negative pole
Positive pole and negative
pole of the input voltage
(DC)
Temperature
Indicated the temperature
allowance range
This side up
Inverter must always be
transported, handled and
stored in such a way that
the arrows always point
upwards.
RCM (Regulatory
Compliance Mark)
The product complies with
the requirements of the
applicable
Australian standards
Sings on the battery module
Symbols
Name
Explanation
This is a residual
voltage in the
battery module!
After the battery is
powered on, there is a high
voltage. After the battery is
powered off, the internal
capacitor is still charged，
operator should wait for 5
minutes to ensure the
capacitor is completely
discharged.

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
14
Caution of high
voltage and
electric shock
The inverter module
operates at high voltages.
Prior to performing any
work on the product,
disconnect the product
from voltage sources. All
work on the product must
be carried out by qualified
persons only.
Caution of hot
surface
The inverter module can
get hot during operation.
Avoid contact during
operation.
Grounding
Terminal
Connect the battery
module to the ground bar
for grounding protection
Observe the
documentation
Read all documentation
supplied with the product
before install.

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
15
2 Product Introduction
2.1 Product Overview
2.1.1 Product Brief Introduction
ESI series single-phase household energy storage system consists
of inverter module and lithium battery module. It adopts
modular design and can be stacked with building blocks. The
battery capacity ranges from 5kWh to 30kWh. The system can
manage the energy of photovoltaic, battery, utility grid and load
according to the actual application, and realize the optimal
distribution of system energy. Multiple working modes are
available to meet diverse needs.
The main features are as follows:
Stack integrated design, convenient installation, simple
maintenance;
Built-in battery pack equalization management unit to
improve battery available capacity;
Photovoltaic maximum input current 16A, applicable to
large current and double-sided module;
Battery side complete electrical isolation, safer system;
UPS function to ensure the stable operation of critical load;
Supports a mixture of new and old batteries;
Supports battery switch off with a button.

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
16

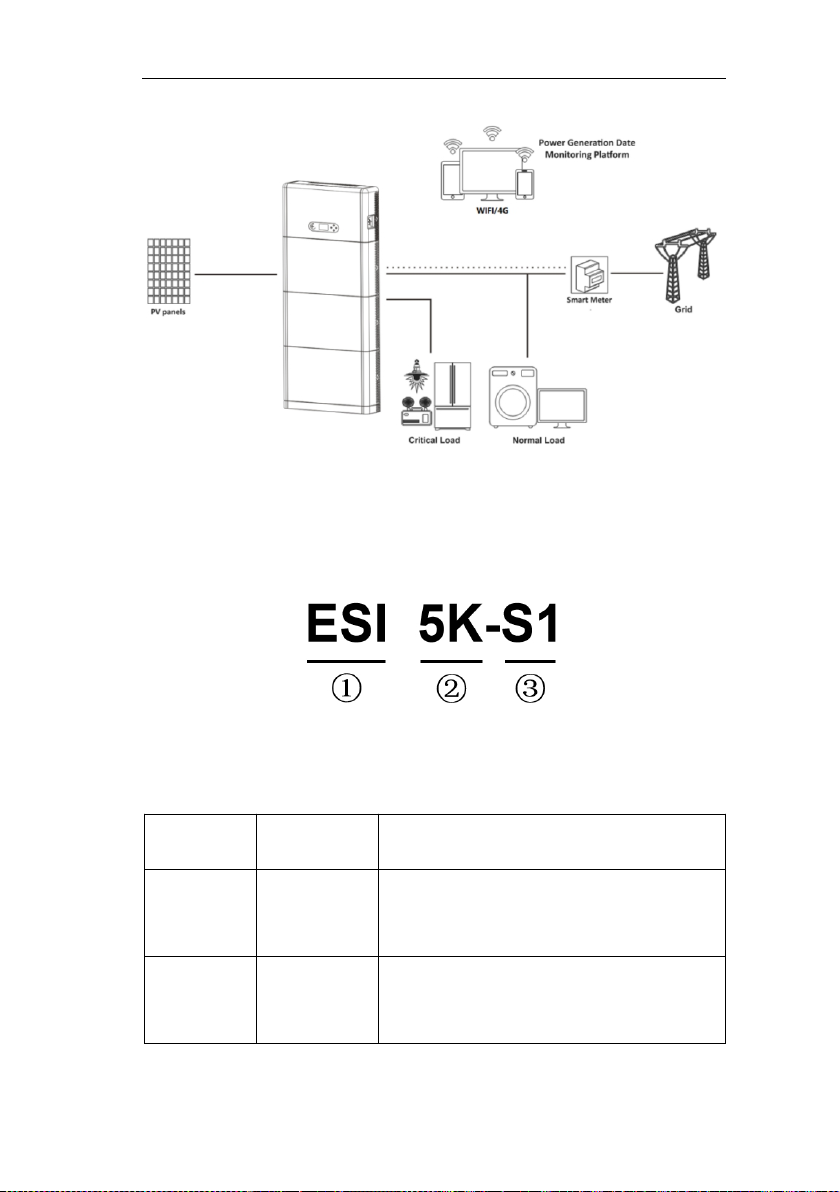

Figure 2.1.1-1 ESI series application principle diagram
2.2 Product Model Description
ESI series inverter model:
Figure 2.2-1 Inverter Model Identifiers
Table 2.2-1 Inverter Model demonstration
Identifiers
Meaning
Specification
①
Product
Model
Stacked optical storage all in one
machine
②
Power
Grade
5K，the power grade of inverter is
5kw

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
17
Power grade list：
3kw/3.68kw/4kw/4.6kw/5kw/6kw
③
Inverter
Model
Single-phase hybrid energy storage
inverter
ESI series battery module model：
Figure 2.2-2 Battery module model identifiers
Table 2.2-2 Battery module model demonstration
Identifiers
Meaning
Specification
①
Product series
name
SOFAR BTS series battery
module name
②
Battery module
power grade
5K: Battery module power
is 5kWh
ESI series system model：

ESI 3-6K-S1-HA1-6 (PowerAll) User Manual
18
Figure 2.2-3 Model identifiers
Table 2.2-3 Model demonstration
Identifiers
Meaning
Specification
①
Product category
Stacked optical storage
all in one machine
②
Power grade
6K，the power grade of
inverter is 6kw
③
Inverter model
Single-phase hybrid
energy storage inverter
④
Battery module
quantity
HA3 means 3 battery
modules
2.3 Product Capacity Description
The ESI series residential energy storage system supports power
and capacity expansion and supports up to six inverter modules
in parallel. One inverter module supports up to six batteries
expansion modules.
