GE 076005-0 Setup guide

Illustrated Parts List
IPL No. 208893 Rev. A (03/12/2010)
Liquid-Cooled
Home Generator System
30000 Watts
MODEL
076005-0
NG & LP
Not for
Reproduction

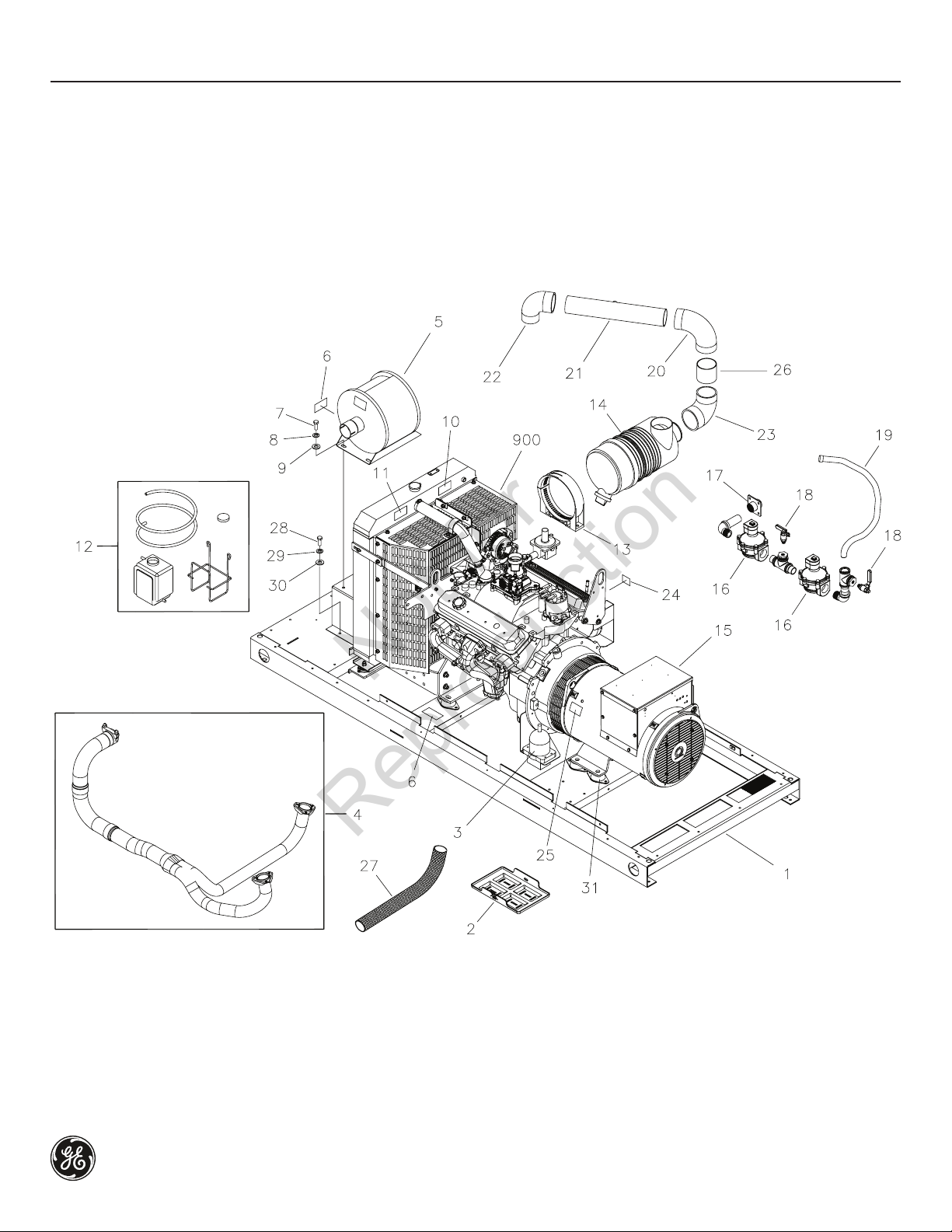

Exploded View - Main Unit
2 BRIGGSandSTRATTON.COM
Copyright © 2010. All rights reserved. No part of this material may
be reproduced or transmitted in any form without the express
written permission of Briggs & Stratton Power Products Group, LLC.
is a trademark of General Electric Company
and is under license by Briggs & Stratton
Power Products Group, LLC.
Not for
Reproduction

Parts List - Main Unit
3
Item Part # Description
1 AE207451GS BASE
2 205623GS TRAY-BATTERY
3 206119GS HEATER
4 205043GS KIT-EXHAUST
5 204654GS MUFFLER
6 205398GS DECAL
7 * HHCS-5/16-18 x 1
8 * WASHER-5/16-M8, LOCK
9 * WASHER-5/16-M8, FLAT
10 205396GS DECAL
11 205399GS DECAL
12 205226GS OVERFLOW-BOTTLE
13 204868GS CLAMP
14 204275GS FILTER-AIR
207576GS FILTER-CARTRIDGE
15 204341GS ALTERNATOR
207019GS RECTIFIER-BRIDGE
207020GS REGULATOR-VOLTAGE
16 206120GS VALVE-FUEL
17 AE204802GS COUPLER
18 206626GS VALVE-BALL
19 206455GS HOSE-FUEL
20 206727GS ELBOW
21 206650GS TUBE
22 206598GS ELBOW
23 206539GS ELBOW
24 186649GS DECAL
25 205401GS DECAL
26 206729GS TUBE
27 206985GS INSULATION
28 * HHCS-1/4-20 x 3/4
29 * WASHER-1/4-M6, LOCK
30 * WASHER, 1/4
31 204653GS MOUNT, Vibration
* HHCS, 1/2 - 13 x 30
* WASHER, 1/2
* NUT, 1/2 - 13
900 § ENGINE
Parts Not Illustrated
207645GS KIT-MANUAL ACC
207635GS MANUAL-OPERATOR
207624GS MANUAL-INSTALL
206992GS MANUAL-ENGINE
841281 SWITCH-OIL PRESSURE
206533GS SWITCH-TEMP
207337GS KIT-LED REMOTE
205206GS HOSE
206944GS HOSE-DRAIN
198573GS FUSE
208345GS PAINT-TOUCHUP, SLVR PRLSCNT
208346GS PAINT-TOUCHUP, GE SLVR
205622GS KIT-HARDWARE BATTERY
195642GS DECAL-Rainproof
Optional Accessories Not Included
208350GS PAINT-SPRAY, GE SLVR
208349GS PAINT-SPRAY, SLVR PRLSCNT
207244GS KIT-DECALS-FRNCH
207422GS DECAL-Do Not Lift, Frnch
6168 KIT-MAINTENANCE
§ - Contact Engine Manufacturer.
* - Items without part numbers are common fasteners and are
available at local hardware stores.
Not for
Reproduction

4

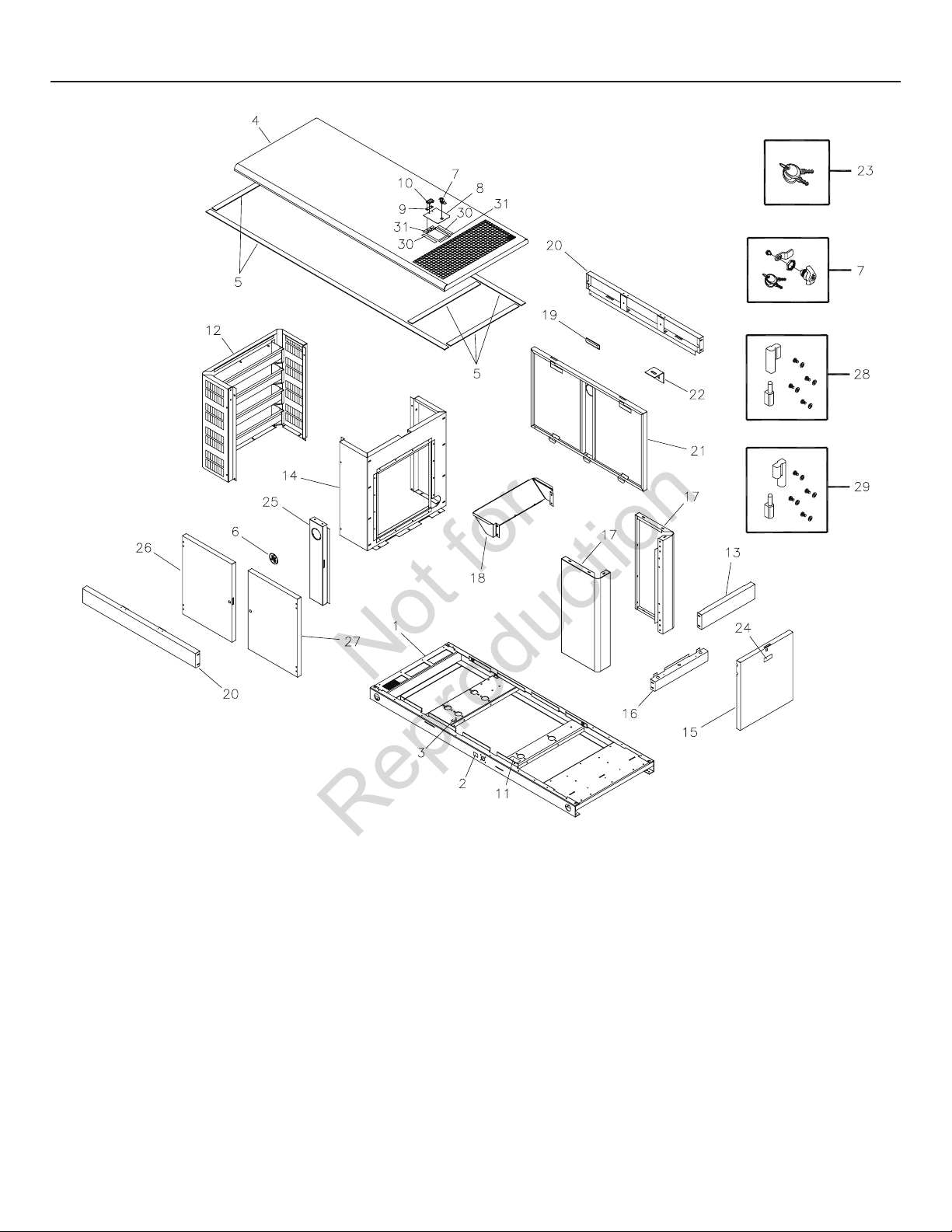

Exploded View & Parts List- Enclosure
Item Part # Description
1 AE207451GS BASE
2 186643GS DECAL
3 B4986AGS DECAL
4 207675GS ROOF
5 205368GS SEAL
6 207096GS BADGE
7 204700GS KIT-LATCH
8 AE204451GS COVER
9 AE204443GS PLATE-COVER
10 205225GS HINGE
11 205126GS DECAL
12 207711GS BULKHEAD-ALTERNATOR
13 207672GS RAIL-SUPPORT
14 207671GS BULKHEAD-ENGINE
15 207701GS DOOR
16 207705GS RAIL-SUPPORT
17 207694GS CORNER
18 207707GS BAFFLE
Item Part # Description
19 186049GS HANDLE
20 207680GS RAIL-SUPPORT
21 207677GS DOOR
22 AE204460GS BRACKET
23 207652GS KEY-LATCH
24 205398GS DECAL
25 207995GS DOOR-SUPPORT
26 207993GS DOOR
27 207994GS DOOR
28 204852GS KIT-HINGE, LEFT
29 204920GS KIT-HINGE, RIGHT
30 197316GS SEAL
31 207758GS SEAL
Parts Not Illustrated
207730GS SEAL- (Cut to Fit)
(Cut to Fit)
Not for
Reproduction

Item Part # Description
1 AE207665GS PANEL-ACCESS
2 207176GS CONTROL PANEL
3 21217GS MOUNT-VIBRATION
4 201307GS PLUG
5 205028GS BLOCK-TERMINAL
6 205026GS RELAY
7 198549GS DECAL
8 205029GS BLOCK-TERMINAL
9 190841GS TERMINAL
10 204519GS INSULATOR
11 192065GS BREAKER-CIRCUIT 200A
12 186173GS BUSHING-SNAP
13 192151GS HOLDER-FUSE
14 205110GS FUSE
15 198550GS DECAL
16 204530GS LUG
17 B4986AGS DECAL
18 203015GS BUSHING-SNAP
19 B5082AGS DECAL
20 205392GS DECAL
Item Part # Description
21 205394GS DECAL
22 193297GS DECAL
23 205395GS DECAL
24 205393GS DECAL
25 AE205058GS COVER
26 205030GS JUMPER
27 AE206191GS PLATE-COVER
28 205588GS DIODE
29 192696GS TERMINAL
30 207241GS DECAL
31 198516GS CONNECTOR-10-PIN
32 AE205553GS PANEL
33 AE205554GS PANEL
34 AE205685GS PANEL
Part Not Illustrated
205953GS HARNESS-WIRE
198573GS FUSE
205115GS DECAL-Fuse
192597GS DECAL-Utility

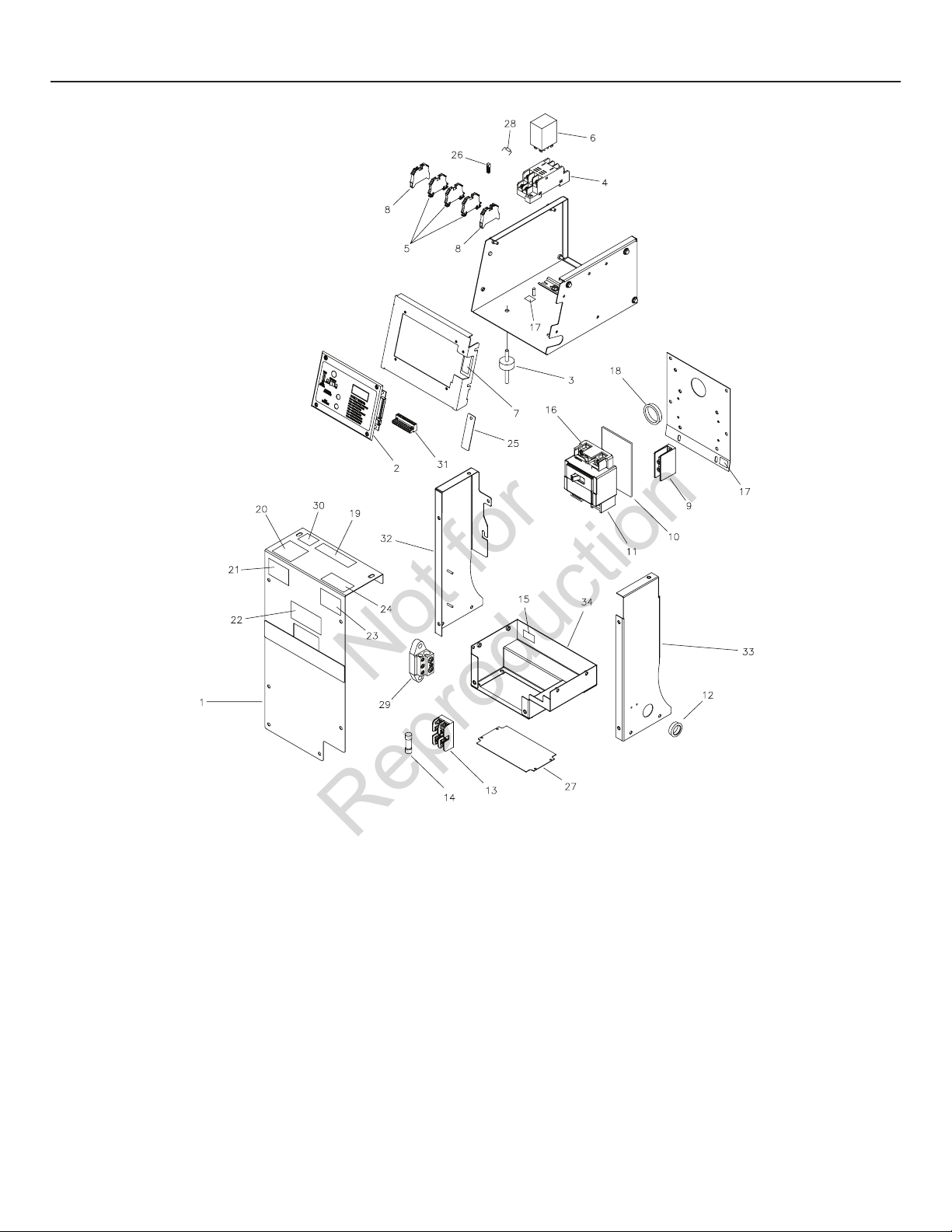

Exploded View & Parts List - Control Panel
