SURVEYING INSTRUMENTS
NET1200
3-D STATION
for 3-D COORDINATE MEASURING SYSTEM
Theall-new3-Dstationopensup
anewdimensionofprecision,
rangeandspeedforlargestructure
3-Dmeasurement.
TheNET1200canmeasurelargestructuressuchasships,
tunnels,buildings,bridges,domes,
andotherlargeobjectsin0.1mmresolutions.
BuildingonitsexcellentpastsuccessthenewNET1200is
readytomeetthenewchallengesofthenewcentury.

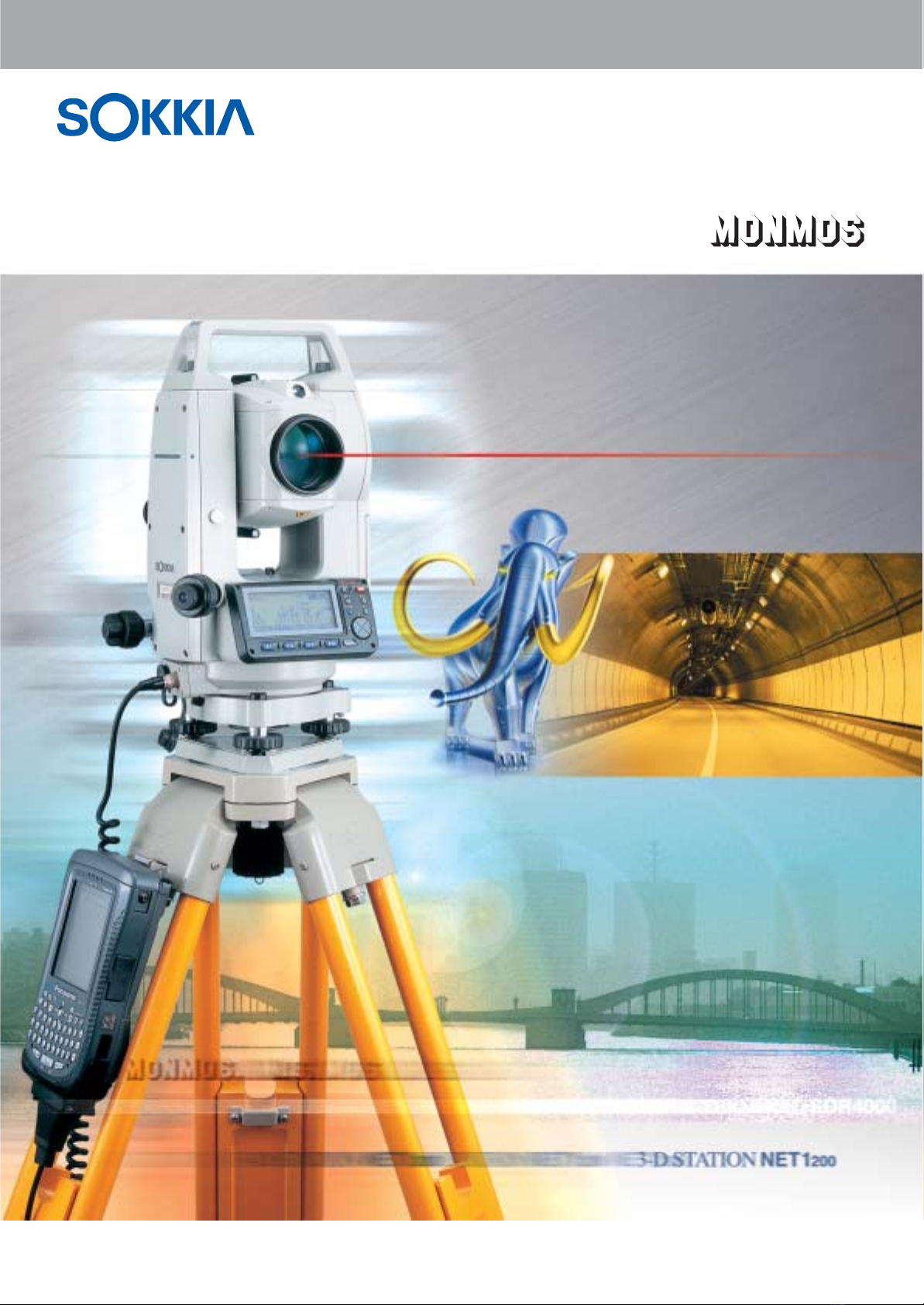

The picture shows NET1200 3-D Station in conjunction with SDR4000 Control Terminal.
Laser beam image is simulated

Ultra-high performance 3-D
NET1200incorporatesanewultra-highperformanceEDMandreliableabsoluteencoders.
Sokkiahasestablishednewstandardsinallareas-precision,range,speed,
easeofoperation,mobilityandweather-resistance.
One-secondprecision
NET1200 employs original absolute encoders with
new algorithms. One-arc-second angle accuracy is
equal to 0.5mm (0.02in.) at 100m (330ft.) and 1mm
(0.04in.) at 200m (650ft.). By minimizing the angle
measurement error, total accuracy of 3-D coordinates
has been remarkably improved.
Idealtelescope
The telescope of NET1200 provides an image
unrivalled in both brightness and sharpness. By re-
designing the optics and mechanics, the telescope
has been made smaller allowing operators wearing
hard hats to perform sighting with greater comfort and
ease.
Ultra-highperformanceEDMbroadens
theboundariesof3-Dmeasurement
Sokkia has developed a new EDM with state-of-the-art
digital signal processing and sophisticated optical
technologies. It outperforms its predecessors in all
fields such as range, speed and precision.
Higher precision and longer range with
reflective sheet targets
The distance accuracy of the NET1200 is ±(0.6 +
2ppm x D)mm which is equal to ±0.8mm (0.03in.) at
100m (330ft.) and ±1mm (0.04in.) at 200m (650ft.).
By using a 50x50mm target, the measuring range has
been doubled to 200m (650ft.), which enables 3-D
measurement of larger objects. Thanks to this new
EDM, the need to constantly relocate the instrument
point is reduced, and therefore total precision of 3-D
measurement is improved.
Reflectorless measurement capability
NET1200 incorporates the reflectorless measurement
function to measure objects without using any target.
So now even points where a target cannot be
manually affixed can still be measured. The visible red
laser beam enhances the scope of the NET1200
further. Being ultra-narrow it can measure with
pinpoint accuracy those points whose complex or
convoluted situation had previously hampered
accurate measurement. The measuring range is 40m
(130ft.) with white surfaces (90% reflective) and
accuracy is exceptionally high at ±(1 + 2ppm x D)mm
- equal to 1.08mm (0.04in.) at 40m (130ft.).
Long range measurement with prisms
With the Sokkia's AP surveying prism, NET1200
measures up to 2,000m (6,500ft.) with ±(2 + 2ppm x
D)mm precision. CPS12 high precision prism provides
±(1 + 2ppm x D)mm accuracy up to 350m (1,140ft.).
High-speed measurement
With the reflective sheet or reflectorless, distance is
measured every 0.9 seconds (initial 4.8s).
Laser-pointerand
targetilluminationfunctionsforeasyaiming
These two new functions greatly facilitate operation in
the field.

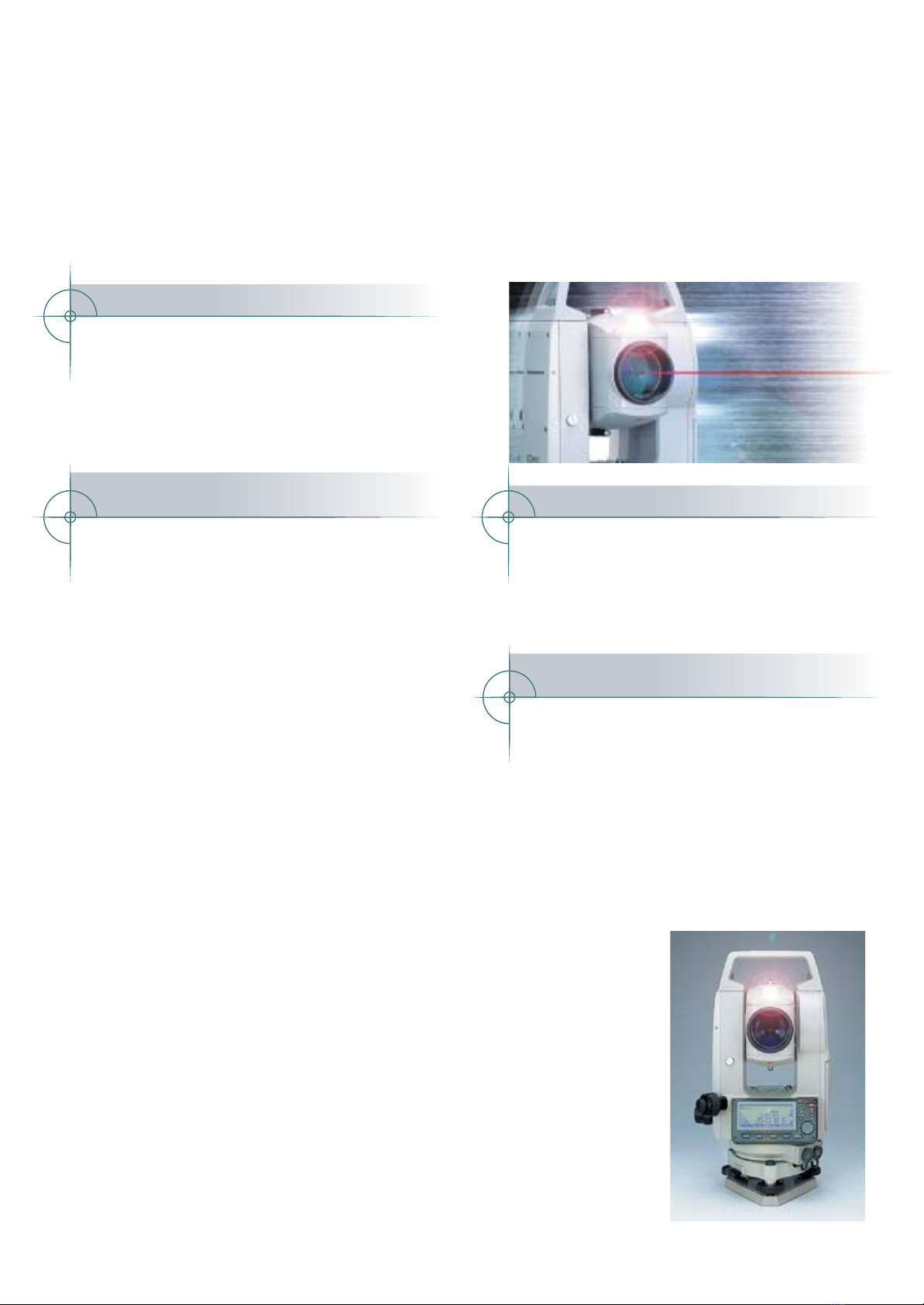

Laser-pointer function
The EDM beam is also used as a convenient laser
pointer for pinpointing the measuring point. This
function also boosts the efficiency of setting-out tasks
under considerably low light conditions such as inside
a factory building.
Target illumination
A white LED is built into the upper part of the
telescope section. This LED illuminates the direction
in which the telescope is aimed allowing the operator
to easily sight a
target at long range
even in poor light.
You can select "on"
or "blinking", and
the brightness can
be adjusted to suit
the environmental
conditions.

station NET1200
Weather-proofcompactbody
Thanks to its superior IP66 structure, the NET1200
can be relied upon even in rain, on dusty worksites,
and in other harsh working environments. And
moreover, what with the new compact body weighing
only a mere 5.5kg (12.1 lb.), the unit is much more
portable.
Long-lifedetachablebattery
One Li-Ion detachable battery supplies power for
approx. 6 hours of continuous operation. Two
batteries, which provide enough power for one full day
of work, are equipped as standard. Recharging time is
under 2 hours per battery with the quick charger -
included as a standard accessory.
All-in-onecarryingcase
The standard carrying case can
hold the SDR4000/4E/4C
control terminal in addition to
all the standard accessories
such as batteries, chargers,
operator's manual, and more.
Operationviacontrolterminalfor
maximumprecision
If the control terminal SDR4000 is connected to
NET1200, all operations, with the exception of target
sighting, can be performed with the SDR4000. Once
the object has been sighted the operator does not
have to touch the NET1200 at all so giving the
greatest possible precision.
＊Option
NET1200
3-D Station
SDR4000
Control Terminal

A-212-E-2-0402-LB
ISO9001 Certified (JQA-0557)
http://www.sokkia.co.jp/english/
INTERNATIONAL SALES DEPARTMENT
260-63 HASE, ATSUGI, KANAGAWA, 243-0036 JAPAN
PHONE [phone] FAX [phone]
Printed in Japan on 100% recycled paper with ecologically safe soy ink.
Sokkia is a sponsor
of the International Federation
of Surveyors.
*1 With white side of a KODAK Gray Card (90% reflective), brightness 5,000lx or less.
Range and/or accuracy may be varied according to measuring objects, observation situations and environmental conditions.
*2 No haze, visibility about 40km (25 miles), overcast, no scintillation.
Telescope
Angle measurement
Unit (selectable)
Display resolutions (selectable)
Accuracy (ISO12857-2:1997)
Measuring time
Measurement mode
Automatic dual-axis compensator
Collimation compensation
Fine motion screws
Distance measurement
Measuring range
(slope distance)
Display resolutions
(selectable)
Accuracy
(D=measuring distance,
unit: mm)
Measuring time
Measuring mode (selectable)
Atmospheric correction / Prism constant correction
Refraction & earth-curvature correction
Laser output
Data storage and transfer
Internal memory
Scale factor setting
Interface
Printer output
General
Laser-pointer function
Target illumination
Display
Keyboard
SF14 Wireless keyboard
Sensitivity of levels
Optical plummet
Tribrach
Dust and water resistance / Operating temperature
Instrument height / Size with handle and battery
Weight with handle and battery
Power supply
BDC46A detachable battery
BDC12 external Ni-Cd battery (Option)
Automatic power cut-off
Fully transiting, coaxial sighting and distance measurement optics.
Length: 171mm (6.7in.), Objective aperture: 45mm (1.8in.) (EDM: 48mm (1.9in.)), Magnification: 30x,
Resolving power: 2.5" or better, Image: Erect, Field of view: 1°30' (26m/1,000m), Minimum focus: 1.3m (4.3ft.),
Reticle illumination: 5 brightness levels
Photoelectrical absolute encoder scanning. Both circles adopt diametrical detection.
Degree / Gon / Mil
0.5" / 1", 0.1 / 0.2mgon, 0.002 / 0.005mil
1" / 0.3mgon / 0.005mil
0.5s or less, continuous
Clockwise / Counterclockwise, selectable. 0 set, Hold, Angle input, Repetition, available.
Zenith 0 / Horizontal 0 / Horizontal 0±/ Slope in %, selectable.
Dual-axis liquid tilt sensor. Working range: ±3' (±55mgon)
On / Off selectable
Fine / Coarse 2-speed motion
Modulated laser, phase comparison method with red laser diode, coaxial optics
1.3 to 200m (4.3 to 650ft.) (using 50x50mm sheet）
1.3 to 40m (4.3 to 130ft.)
1.3 to 350m (4.3 to 1,140ft.) （under good conditions*2）
1.3 to 2,000m (4.3 to 6,500ft.) （under good conditions*2）
0.0001m / 0.1mm / 0.001ft. / 0.01in.
0.001m / 1mm / 0.01ft. / 0.1in.
±(0.6 + 2ppm x D)mm
±(1 + 2ppm x D)mm
±(1 + 2ppm x D)mm (4 to 350m）, ±(5 + 2ppm x D)mm (1.3 to 4m)
±(2 + 2ppm x D)mm (4 to 2,000m）, ±(5 + 2ppm x D)mm (1.3 to 4m)
With reflective sheet or reflectorless: Every 0.9s (initial 4.8s), With prism: every 1.0s (initial 5.2s)
Every 0.3s (initial 1.6s)
Fine (single / repeat / average), Tracking
Temperature, pressure, ppm input available / -99.9 to +99.9mm (0.1mm steps), 0 fixed in reflectorless mode
On (K=0.142 / 0.20) / Off, selectable
Reflective sheet / prism mode: Class 1 equivalent (max. 0.22mW)
Reflectorless mode: Class 2 equivalent (max. 0.99mW)
About 10,000 points
0.5 to 2.0
Asynchronous serial, RS-232C compatible, baud rate: 1,200 to 38,400 bps
Centronics compatible (w/optional DOC46 printer cable)
On / Off, selectable
White LED, Blink / On / Off, selectable, Brightness selection available
Alphanumeric/graphic dot matrix LCD, 192 x 80 dots, w/backlight, w/contrast adjustment, on both faces
4 soft keys and 11 keys on both faces
Optional
Plate level: 20"/2mm, Circular level: 10'/2mm, Graphic LCD: 3'/outer circle
Image: Erect, Magnification: 7x, Minimum focus: 0.3m (0.98ft.)
Detachable
Conforms to IP66 (IEC 60529:1989) / -10 to +50°C (+14 to +122°F)
236mm (9.3in.) from tribrach bottom / W 165 x D 171 x H 341 mm (W 6.5 x D 6.7 x H 13.5 in.)
Approx. 5.5kg (12.1 lb.)
7.2V DC
Li-Ion rechargeable battery, 2 BDC46A are included as standard accessories.
About 6 hours (single measurement every 30 seconds at 25°C (77°F)), (laser-pointer and target illumination off)
Less than 2 hours with CDC61/62/64
Continuous use about 22.5 hours (single measurement every 30 seconds at 25°C (77°F))
Auto-off time is selectable from 30, 15, 10, 5 minutes or none.
NET1200 SPECIFICATIONS
○2003 SOKKIA CO.,LTD.
c
KODAK is a registered trademark of the Eastman KODAK Company.
Sokkia is a trademark of Sokkia Co., Ltd. Product names mentioned in this brochure are trademarks of their respective owners.
Product colors in this brochure may vary slightly from those of the actual products owing to limitations of printing process.
Designs and specifications are subject to change without notice.
H
V
With reflective sheet
Reflectorless*1
With CPS12 prism
With 1 AP prism
Fine mode
Tracking mode
With reflective sheet
Reflectorless*1
With CPS12 prism
With 1 AP prism
Fine mode
Tracking mode
Continuous use per battery
Recharging time per battery
LASER RADIATION
DO NOT STARE INTO BEAM
MAX0.99mW LD 635-690nm
CLASS2 LASER PRODUCT
IEC 60825-1 Am.2 2001
BDC46A Li-Ion rechargeable battery x 2, CDC61/62/64 quick charger, Lens hood,
Lens cap, Tool kit, Wiping cloth,Operator's manual, Carrying case, Shoulder strap
Standard accessories
