Sola HD S4K4U6000C User manual

S4KC Series Industrial On-line UPS
208 V, 6000 & 10,000 VA User Manual

While every precaution has been taken to ensure accuracy and completeness in this manual, EGS Electrical Group, LLC.
assumes no responsibility, and disclaims all liability for damages resulting from use of this information or for any errors or
omissions.
The SolaHD and Emerson logos are registered in the U.S. Patent and Trademark Oce. All other product or service names
are the property of their registered owners.
©2010 EGS Electrical Group, LLC. All rights reserved. Specications are subject to change without notice.

S4KC SERIES USER MANUAL | iii
Contents
Important Safety Precautions 6
Save these Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Electromagnetic Compatibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Information for the Protection of the Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Glossary of Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
1.0 Introduction 9
2.0 System Description 10
2.1 Surge Protection Devices (SPD) & EMI/RFI Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.2 Rectier/Power Factor Correction (PFC) Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.3 Inverter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
2.4 Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.5 Dc-to-Dc Converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.6 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.7 Dynamic Bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.0 Major Components 12

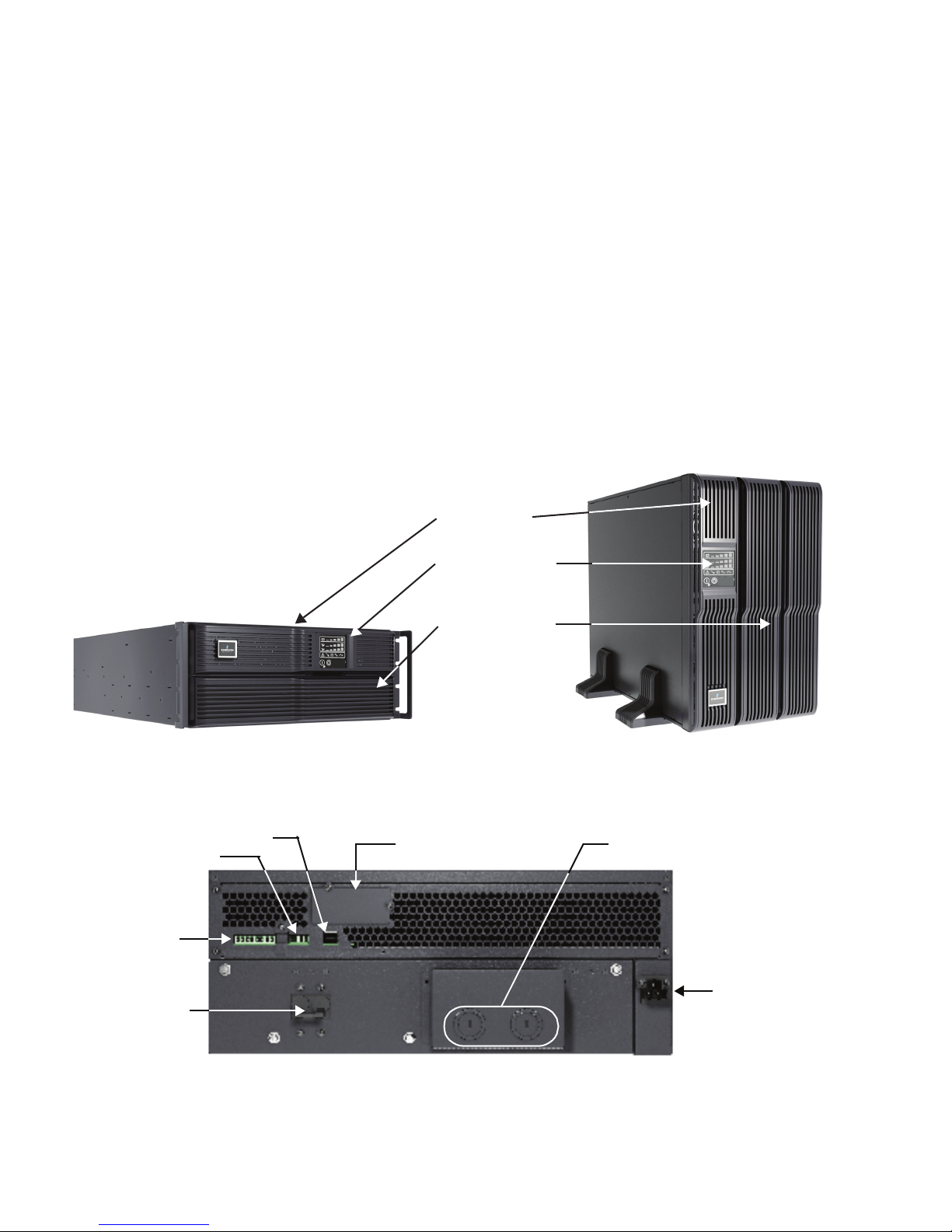

3.1 Main Frame & Electronics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

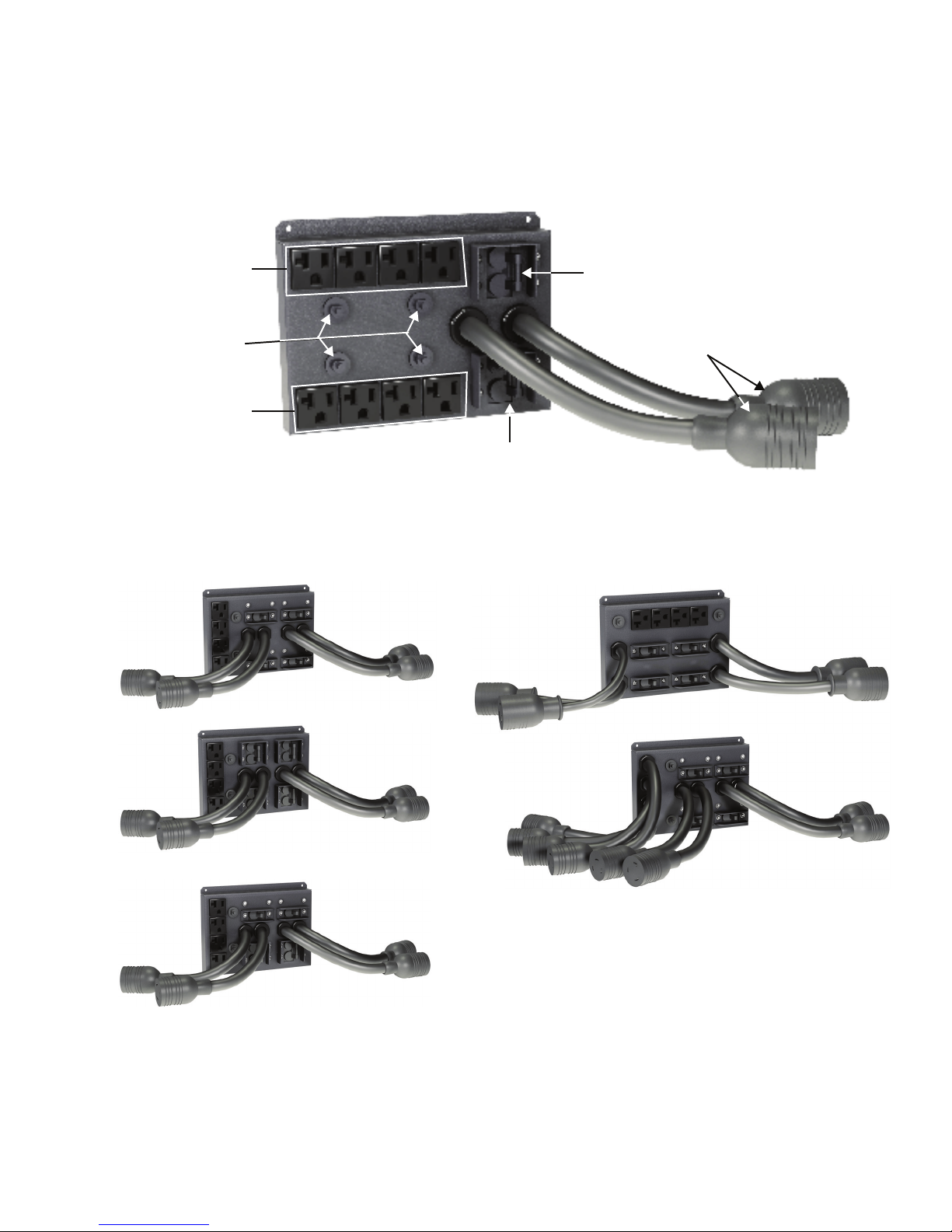

3.2 Removable Power Distribution Box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Internal Battery Packs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.0 Preinstallation 17
4.1 Unpacking & Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.2 What’s Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

iv | Contents
5.0 Installation 18
5.1 Installation Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.2 Installing the Main Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.2.1 Tower UPS Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.2.2 Rack-mount UPS Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2.3 Installing the Adjustable Rack-mount Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3 External Battery Cabinet Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.4 Connect Input/Output Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.4.1 Remove Power Distribution Box from S4K4U6000C Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.4.2 Remove Power Distribution Box from S4K6U10KC Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.4.3 Install Power Distribution Box on S4K4U6000C Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.4.4 Install Power Distribution Box on S4K6U10KC Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.4.5 Distribution Box Electrical Connections. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.4.6 Terminal Block Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
6.0 Conguration Program 29
6.1 Conguration Program Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
6.1.1 What You Will Need . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
7.0 Controls & Indicators 30
7.1 On/Alarm Silence/Manual Battery Test Button. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
7.2 Standby/Manual Bypass Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.3 Load Level Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7.4 Battery Level Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
7.5 UPS Status Indicators. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
8.0 Operation 34
8.1 Startup Checklist for the S4KC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8.2 Initial Startup & Electrical Checks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
8.3 Manual Battery Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.4 Put the S4KC in Manual Bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.5 Shut Down the S4KC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.6 Disconnecting Input Power from the S4KC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
8.7 Maintenance Bypass . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

S4KC SERIES USER MANUAL | v
9.0 Communication 36
9.1 Communication Interface Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.2 Terminal Block Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.2.1 Any Mode Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
9.2.3 On Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.2.4 Low Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.3 UPS IntelliSlot Communication Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.3.1 MultiLink . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.4 Remote Emergency Power O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10.0 Maintenance 39
10.1 Replacing the Internal Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.1.1 Battery Replacement Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
10.2 Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
10.3 Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
10.4 Checking UPS Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
10.5 Checking UPS Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
10.6 Replacing the Power Module on S4K6U10KC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
11.0 Troubleshooting 44
11.1 UPS Symptoms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
11.1.1 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
11.1.2 Audible Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
11.2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
12.0 Specications 48
12.1 Auto-learning Battery Backup Times . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
13.0 Registration & Warranty 55
13.1 Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
13.2 Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

6 | Important Safety Precautions
IMPORTANT SAFETY PRECAUTIONS
SAVE THESE INSTRUCTIONS
This manual contains important safety instructions. Read all safety and operating instructions before operating the
Uninterruptible Power System (UPS). Adhere to all warnings on the unit and in this manual. Follow all operating and user
instructions. This equipment can be operated by individuals without previous training.
This product is designed for commercial/industrial use only. It is not intended for use with life support or other designated
“critical” devices. Maximum load must not exceed that shown on the UPS rating label. The UPS is designed for data
processing equipment. If uncertain, consult your dealer or local SolaHD representative.
This UPS is designed for use on a properly grounded (earthed) 100/200, 110/220, 115/230, 120/208, 120/240, or 127/220 V ac;
50 or 60 Hz supply. The factory default setting is 120/208 V ac, 60 Hz. Installation instructions and warning notices are in
this manual.
The S4KC is designed for use with a four-wire input (L1, L2, N, G).
! WARNING
Although the S4KC has been designed and manufactured to ensure personal safety, improper use can result in electrical
shock or re. To ensure safety, observe the following precautions:
• Turn o and unplug the UPS before cleaning it.
• Clean the UPS with a soft, dry cloth. Do not use liquid or aerosol cleaners.
• Never block or insert any objects into the ventilation holes or other openings of the UPS.
• Do not place the UPS power cord where it might be damaged.
Operate the UPS in an indoor environment only, in an ambient temperature range of 0°C to +40°C (+32°F to +104°F).
Install the UPS in a clean environment, free from moisture, ammable liquids, gases, and corrosive substances.
The S4K4U6000C contains no user-serviceable parts except the internal battery pack. The S4K6U10KC contains no user-
serviceable parts except the internal battery pack and the power module. The UPS On/O buttons do not electrically
isolate internal parts. Under no circumstances should you attempt to gain access internally due to the risk of electric
shock or burn.
Do not continue to use the UPS if the front panel indications are not in accordance with these operating instructions or
the UPS performance alters in use. Refer all faults to your SolaHD representative.
DO NOT CONNECT equipment that could overload the UPS or demand dc current from the UPS, for example: electric
drills, vacuum cleaners, laser printers, hair dryers, or any appliance using half-wave rectication.
Storing magnetic media on top of the UPS may result in data loss or corruption.
Servicing of batteries should be performed or supervised by personnel knowledgeable of batteries and the required
precautions. Proper disposal of batteries is required. Refer to your local laws and regulations for disposal requirements.

S4KC SERIES USER MANUAL | 7
! WARNING
A battery can present a risk of electrical shock and high short circuit current. The following precautions should be
observed when working with batteries:
• Wear rubber gloves, boots, and safety glasses.
• Remove watches, rings, and other metal objects.
• Use tools with insulated handles.
• Do not lay tools or metal parts on top of batteries.
• If the battery kit is damaged in any way or shows signs of leakage, contact your local dealer or SolaHD represen-
tative immediately.
• Do not dispose of batteries in a re; they may explode.
• Handle, transport, and recycle batteries in accordance with local regulations.
Electromagnetic Compatibility
The S4KC complies with the limits for a CLASS A DIGITAL DEVICE, PURSUANT TO Part 15 of FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any
interference received, including interference that may cause undesired operation. Operating this device in a residential
area is likely to cause harmful interference that users must correct at their own expense.
The S4KC Series complies with the requirements of EMC Directive 2004/108/EC and the published technical standards.
Continued compliance requires installation in accordance with these instructions and use of accessories approved by
SolaHD.
NOTICE: This is a product for restricted sales distribution to informed partners. Installation restrictions or additional
measures may be needed to prevent radio interference.
Information for the Protection of the Environment
UPS Servicing: The UPS makes use of components dangerous for the environment (electronic cards and electronic
components). The components removed must be taken to specialized collection and disposal centers.

8 | Important Safety Precautions
Glossary of Symbols
Risk of electrical shock
Indicates caution followed by important instructions
Ac input
Ac output
Requests the user to consult the manual
Indicates the unit contains a valve-regulated lead acid battery
Recycle
Dc voltage
Equipment grounding conductor
Bonded to ground
Ac voltage
ON/Alarm Silence/Battery Test
OFF/Bypass
WEEE
!
i
PbH2SO4
-
+
R

S4KC SERIES USER MANUAL | 9
1.0 Introduction
Congratulations on your choice of the SolaHD S4KC Uninterruptible Power System (UPS). The S4KC is available in nominal
power ratings of 6,000 VA and 10,000 VA.
The S4KC is a compact, on-line Uninterruptible Power System (UPS) which continuously conditions and regulates its
output voltage, whether utility power is present or not. It is designed to supply microcomputers and other sensitive
equipment with clean sine wave power.
The S4KC features a light-emitting diode (LED) display to indicate both load percentage and battery capacity. It also
provides self-diagnostic tests, a combination ON/Alarm Silence/Manual Battery Test button, and a Standby/Manual
Bypass button.
The S4KC has a IntelliSlot® port for communication between the UPS and a network server or other computer system. This
port provides detailed operating information including voltages, currents, and alarm status to the host system when used
in conjunction with MultiLink®. MultiLink can also remotely control UPS operation.

10 | 2.0 System Description
2.0 System Description
Input Output
Inverter
Battery
Rectier/PFC
Dc to Dc
Converter
SPD &
EMI/RFI
Filters
L1
G G
Static
Bypass
L2
N
L1
L2
N
Battery
Charger

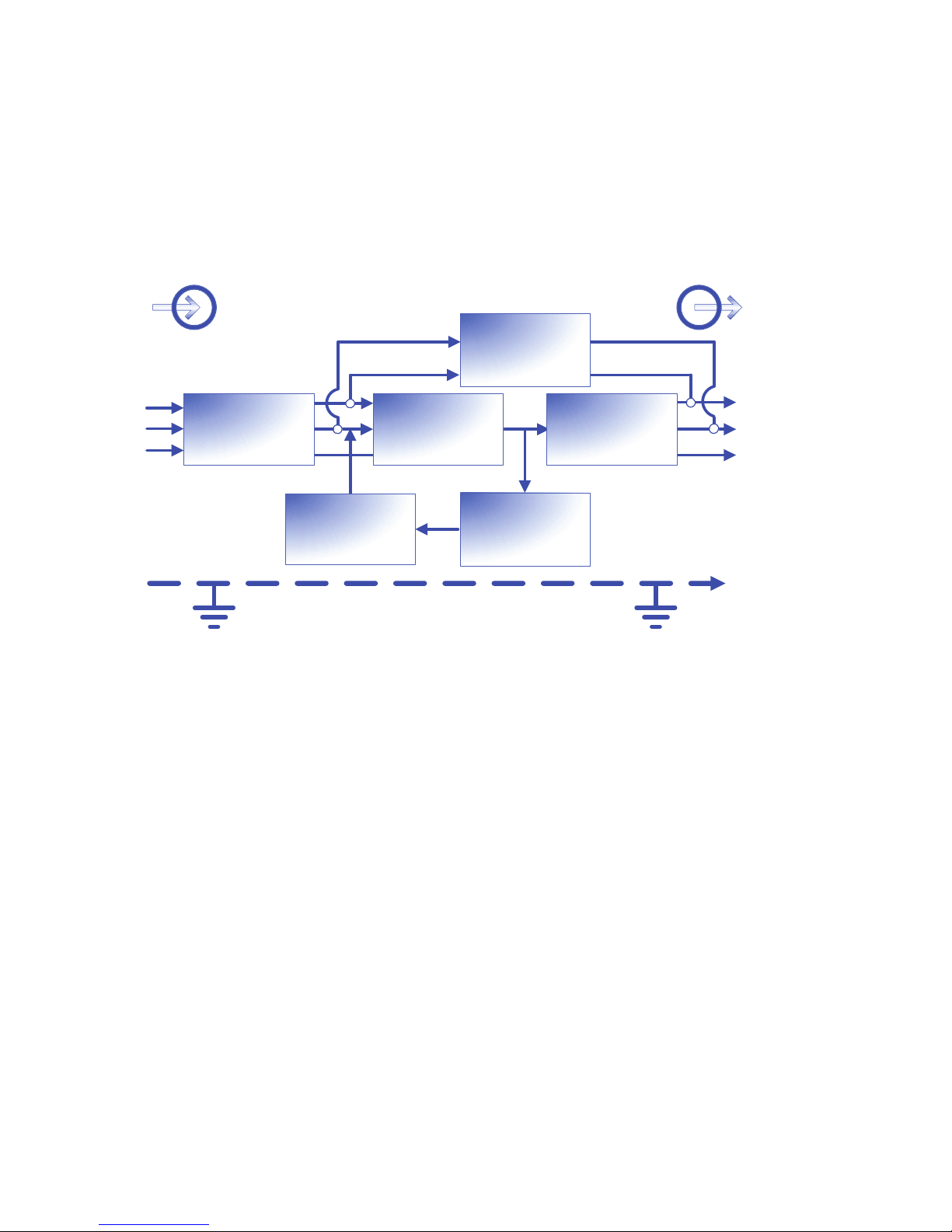

Figure 1: Operating principle diagram
2.1 Surge Protection Devices (SPD) & EMI/RFI Filters
These UPS components provide surge protection and lter both electromagnetic interference (EMI) and radio frequency
interference (RFI). They minimize any surges or interference present in the utility line and keep the sensitive equipment
protected.
2.2 Rectier/Power Factor Correction (PFC) Circuit
In normal operation, the rectier/power factor correction (PFC) circuit converts utility ac power to regulated dc power for
use by the inverter while ensuring that the wave shape of the input current used by the UPS is near ideal. Extracting this
sine wave input current achieves two objectives:
• The utility power is used as eciently as possible by the UPS.
• The amount of distortion reected on the utility is reduced.
This results in cleaner power being available to other devices in the building not being protected by the S4KC.
2.3 Inverter
In normal operation, the inverter utilizes the dc output of the power factor correction circuit and inverts it into precise,
regulated sine wave ac power. Upon a utility power failure, the inverter receives its required energy from the battery
through the dc-to-dc converter. In both modes of operation, the UPS inverter is on-line and continuously generating
clean, precise, regulated ac output power.

S4KC SERIES USER MANUAL | 11
2.4 Battery Charger
The battery charger utilizes energy from the utility power and precisely regulates it to continuously oat charge the
batteries. The batteries are being charged whenever the S4KC is connected to utility power.
2.5 Dc-to-Dc Converter
The dc-to-dc converter utilizes energy from the battery system and raises the dc voltage to the optimum operating
voltage for the inverter. This allows the inverter to operate continuously at its optimum eciency and voltage, thus
increasing reliability.
2.6 Battery
The S4KC utilizes valve-regulated, non-spillable, lead acid batteries. To maintain battery design life, operate the UPS in
an ambient temperature of 15°C to 25°C (59°F to 77°F). Optional external battery cabinets are available to extend battery
backup times. For backup times, see Table 13.
2.7 Dynamic Bypass
The S4KC provides an alternate path for utility power to the connected load in the unlikely event of a UPS malfunction.
Should the UPS have an overload, overtemperature, or any other UPS failure condition, the UPS automatically transfers
the connected load to bypass. Bypass operation is indicated by an audible alarm and an illuminated amber Bypass LED
(other LEDs may be illuminated to indicate the diagnosed problem). To manually transfer the connected load from the
inverter to bypass, press the Standby/Manual Bypass button once and hold it for about 2 seconds.
NOTE: The bypass power path does NOT protect the connected equipment from disturbances in the utility supply.

12 | 3.0 Major Components
3.0 Major Components
The S4KC is composed of three major assemblies to provide easier handling, installation, and versatility.
3.1 Main Frame & Electronics
All models of the S4KC are shipped without the internal batteries installed. Power distribution varies by model and rating.
The S4K4U6000C ships with a basic hardwire distribution box attached and is ready to be connected to the load (see
Figure 3).
The S4K6U10KC ships with a cover plate installed over the power distribution box connections (see Figure 5). Several
optional power distribution boxes are available.
Status Indicators
and Controls
Lower Bezel and
Battery Access
Door
Upper Bezel
Figure 2: Front view—rack-mount and tower congurations
External battery
connector
IntelliSlot Port
USB Port
Terminal block
communication
Input breaker
Knockouts for hardwired
power input
REPO
Figure 3: Rear view—S4K4U6000C

S4KC SERIES USER MANUAL | 13
S4KPAD2-HDWRC
for S4K4U6000C
S4KPAD2-HDWR-MBSC*
for S4K4U6000C
Maintenance
bypass breaker
Input breaker
Input
breaker
Figure 4: Input power hardwire boxes—S4K4U6000C
NOTE: Hardwire and hardwire/receptacle boxes that include a manual bypass switch permit ac power to continue to
ow from the utility input to the load while the box is removed from the UPS. For details, refer to “3.2 Removable Power
Distribution Box”.
External battery
connector
IntelliSlot Port
USB Port
Terminal block
communication
Maintenance
bypass switch
Knockouts
for hardwired
power input
REPO connection block
Input
breaker
switch
Output
breaker
switch
Cover for power
distribution box
connections
Figure 5: Rear view—S4K6U10KC
*Standard on S4K4U6000C units

14 | 3.0 Major Components
3.2 Removable Power Distribution Box
The UPS is shipped with a power distribution box. This box contains the UPS input circuit breaker.
S4KPAD2-001C *
Receptacles: four 5-20; one L14-30; one L6-30R
S4KPAD2-002C
Receptacles: two 5-20R; two L6-20R
S4KPAD2-003C
Receptacles: four 5-20R; two L6-30
S4KPAD2-005C
Receptacles: four L5-20R; two L6-30R
S4KPAD2-004C
Receptacles: four L5-20R; two L5-30R
S4KPAD2-006C
Receptacles: four L6-20R
L14-30 Input
power connector
Input power
breaker
Maintenance
bypass breaker
Output power breakers
for pigtails
Push button output
power breakers for two
L5-20 receptacles
(second push button
breaker obscured)
Figure 6: Power distribution models for S4K4U6000C
*S4KPAD2-001C shown as an example; similar features on other distribution boxes are arranged dierently

S4KC SERIES USER MANUAL | 15
S4KPAD2-102C
Receptacles:
four L6-20R
four 5-20R
S4KPAD2-103C
Receptacles:
four L6-30R
four 5-20R
S4KPAD2-104C
Receptacles:
four 5-20R
two L6-30R
two L6-20R
S4KPAD2-105C
Receptacles:
four 5-20R
two L5-30R
two L5-20R
S4KPAD2-106C
Receptacles:
four L6-20R
four L5-20R
Output circuit breaker
switch for L6-30R pigtail #1
5-20R output
receptacles
5-20R output
receptacles
Push button
circuit breakers
for 5-20R
receptacles
L6-30R output
receptacles
S4KPAD2-101C*
Receptacles:
two L6-30; eight 5-20R
Output circuit breaker
switch for L6-30R pigtail #2
2
1
Figure 7: Power distribution models for S4K6U10KC
*S4KPAD2-101C shown as an example; similar features on other distribution boxes are arranged dierently

16 | 3.0 Major Components
3.3 Internal Battery Packs
The UPS has two internal battery packs behind a battery access door on the front of the unit. Each internal battery pack is
tted with a connector to link to the UPS.
Battery connector
Front of battery pack S4K6U10KC battery packs
shown; S4K4U6000C battery
packs have the same features
Battery handle
Figure 8: Internal battery pack features

S4KC SERIES USER MANUAL | 17
4.0 Preinstallation
4.1 Unpacking & Inspection
Unpack the UPS and conduct the following checks:
• Inspect the UPS for shipping damage. If any shipping damage is found, report it to the carrier and your local dealer
or SolaHD representative immediately.
• Check the accessories against the delivery list. If there are any discrepancies, contact your local dealer or SolaHD
representative immediately.
4.2 What’s Included
The S4KC is shipped with the following items:
• Compact disk with: MultiLink, Conguration program, and User manual (electronic version)
• One USB cable, 6-1/2 ft. (2 m) long
• Rack handles with mounting hardware
• Power distribution box (installed on UPS)
• Terminal block communication terminals
• One plastic tower set
• Warnings, safety instructions booklet, and WEEE recycling sheet (ISO 14001 compliance)
The S4KC external battery cabinet is shipped with the following items:
• One battery cabinet
• Two spacers for S4K4U6000C models and four spacers for S4K6U10KC models (for tower conguration)
• One dc power cable

18 | 5.0 Installation
5.0 Installation
Do NOT attempt to start the UPS, turn on any circuit breakers, or energize the input power until instructed to do so in “8.2
Initial Startup and Electrical Checks”.
! CAUTION
The UPS is heavy (see “12.0 Specications”). Take proper precautions when lifting or moving the unit.
5.1 Installation Environment
Install the UPS indoors in a controlled environment, where it cannot be accidentally turned o.
Place the UPS in an area of unrestricted airow around the unit.
The installation location must be free of water, ammable liquids, gases, corrosives, and conductive contaminants. Avoid
direct sunlight.
Maintain a minimum clearance of 4 inches (100 mm) in the front and rear of the UPS. Do not obstruct the air inlets on
the front panel and rear panel of the UPS. Blocking the air inlets reduces ventilation and heat dissipation, shortening the
service life of the unit.
Maintain an ambient temperature range of 0°C to +40°C (+32°F to +104°F).
NOTE: UPS operation in sustained temperatures outside the range of 15°C to 25°C (59°F to 77°F) reduces battery life.
5.2 Installing the Main Cabinet
The S4KC may be installed as a tower conguration or in a rack, depending on available space and use considerations.
Determine the type of installation and follow the appropriate instructions in either “5.2.1 Tower UPS Installation or “5.2.2
Rack-Mount UPS Installation”.
5.2.1 Tower UPS Installation
To install the S4KC as a tower:
1. Take out support bases from the accessories bag (see Figure 9).
Support Bases
Spacers
Connectors
Figure 9: Support bases
2. If optional external battery cabinets will be connected to the UPS, take out the spacers shipped with the battery
cabinet.
3. Connect the spacers and the support bases as shown in Figure 9. Each S4KC needs two assembled support bases, one
in the front and one in the rear.

S4KC SERIES USER MANUAL | 19
4. Adjust the direction of the operation and display panel on the S4KC.
a. Remove the front metal bezel cover as shown in Figure 10.
Front metal
bezel cover
Figure 10: Remove the front metal bezel cover
b. Using the nger grips on the display panel, gently pull and rotate 90 degrees clockwise and snap it back into
position as shown in Figure 11.
Operation and display
panel rotated 90 degrees
clockwise
Figure 11: Rotate the operation and display panel
c. Replace the front metal bezel cover on the S4KC.
5. Place the S4KC and any battery cabinets on the support bases. Each S4KC requires two support assemblies as shown
in Figure 2.

20 | 5.0 Installation
5.2.2 Rack-Mount UPS Installation
When using the S4KC in a rack-mount conguration, the UPS must be supported by a slide kit, xed rails, or a shelf.
When using the optional Adjustable Rack-Mount Kit, you will use the instructions below. The gures accompanying “5.2.3
Installing the Adjustable Rack-Mount Kit” show the positioning of the rack-mounting brackets. SolaHD recommends taking
the internal batteries out of the UPS during rack installation. This will make the UPS cabinet lighter and easier to handle.
! CAUTION
The UPS is heavy (see “12.0 Specications”). The UPS must be installed as close to the bottom of the rack as possible.
If placed too high, it can make the rack top-heavy and prone to tipping over.
5.2.3 Installing the Adjustable Rack-Mount Kit (Sold Separately)
This kit contains parts needed to mount both models of the UPS and the external battery cabinets into EIA310-D standard
four-post racks that are 18–32 in. deep (457–813 mm). The weight limit per pair of adjustable rack-mounting brackets is
200 lb. (91 kg).
Parts included:
• Two rear bracket members, two front bracket members, two inner bracket members
• Sixteen M4 machine screws, eight M4 locking hex nuts
• Eight M5 machine screws
Tools needed for installation:
• Phillips screwdriver
• 7 mm wrench
The adjustable rack-mounting brackets (Part#: SRS18-32) feature retaining latches to prevent users from inadvertently
sliding the UPS or battery cabinet out of the rack.
To install the rack-mount brackets:
1. Unpack two rack-mounting bracket assemblies and mounting hardware from this kit. Bracket assemblies are inter-
changeable between left-hand or right-hand.
Remove the inner member from each bracket assembly as shown in Figure 12 by extending it to its outer-most position,
depressing the retaining latch and then pulling the inner member out of the bracket assembly.
Return
anges
Inner
members
Front
members
Retaining
latches
Figure 12: Removing the inner member from each bracket assembly
