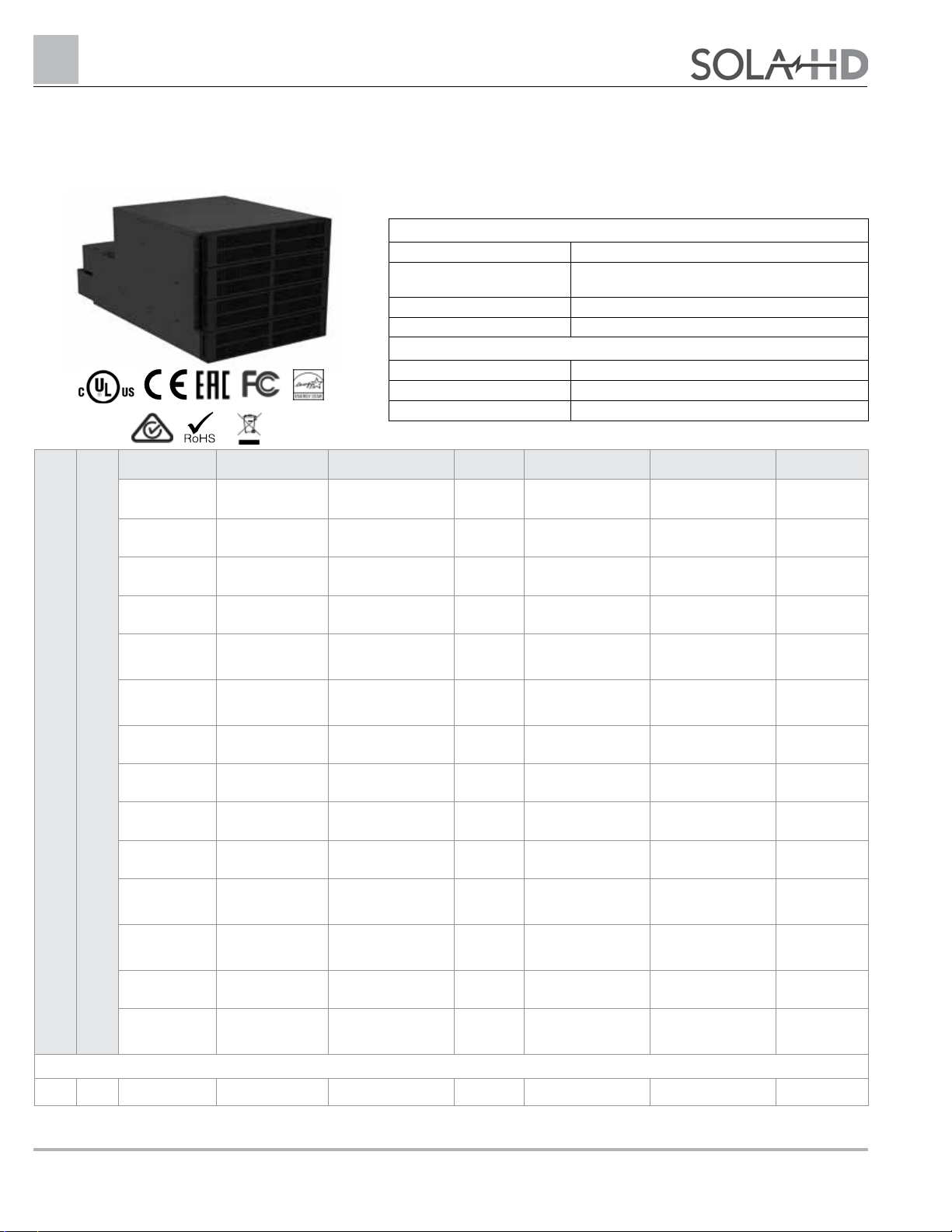

The S5KC Modular UPS is scalable from 5 to 20 kVA,
offering many exible options by adding a few standard
modules. Designed to be fully congured, tested and
shipped in the conguration you need, the S5KC Modular
UPS also has the ability to be easily upgraded in the
eld to either higher VA ratings (up to 20 kVA maximum),
longer back-ups time or to add N+x parallel redundancy.
Congurations can be cost-effectively upgraded keeping
your S5KC Modular UPS current without a large
reinvestment in a new system.
The optional N+x redundancy provides a fault-tolerant group
of power modules and controls. The modular design is easy
to upgrade so the UPS can grow with the needs of the
system that is being protected.
Each of the modular components, including 5 kVA power
modules, LCD display, battery modules and system control
modules, can be hot-swapped making it easy to increase
power, extend your back-up time or add redundancy while
still providing power protection to the load.
This fault-tolerant system uses intelligent power and battery
modules which take themselves off-line if there is a problem
without interrupting power to the load. Self-diagnostic
capabilities simplify maintenance and troubleshooting. Each
unit incorporates an internal automatic bypass.
Applications
With multiple standard options in a smaller footprint,
providing more exibility for capacity and communication
both pre- and post-installation, the S5KC delivers the
power protection needs in applications such as
• Oil and Gas (Pure OEMs)
• Pharmaceutical
• Automotive
• Food & Beverage
Features
• Module level redundancy provides multiple layers of
protection to ensure your machine has the power it
needs to run safely with no single point of failure, critical
loads continue to run on conditioned battery power even
if a system component malfunctions.
• An industry leading 0.9 power factor keeps machines
performing awlessly when running on battery power.
• Superior overload capabilities deliver conditioned power
during temporary power anomalies without unnecessarily
transferring to and from bypass power.
S5KC Modular Series On-Line Uninterruptible Power Systems (UPS)
• Independently controlled maintenance bypass is
designed to provide maximum system availability to
critical equipment by allowing transfer of connected
equipment to an alternate power path. The UPS can
then be turned Off and removed from service with no
interruption of power to connected equipment.
• True on-line double conversion with a large input voltage
range (low line transfer down to 110 Vac) isolates
sensitive equipment from power uctuations while
minimizing transfers to increase battery life.
• ENERGY STAR® qualied UPS models – UPS products
meeting the EPA’s requirements use an average of 35%
less energy than their standard counterparts.
• To enhance the availability and trouble-free operation,
every pre-congured S5KC UPS arrives standard with
one IS-UNITY-DP communications card installed.
Enabling you to take advantage of the remote monitoring
and diagnostic service available with your system during
your initial standard warranty period.
• Start-up services available, contact your local SolaHD
sales representative for details.
Certifications and Compliances
•Listed, UPS Equipment
- UL 1778, Fourth Edition
- CSA C22.2 No. 107.3
• Series S5KCA, S5KCB,S5KCC,S5KCD
- CE (Low Voltage and EMC Directive)
EN62040-1, EN62040-2 EAC - TR CU 004/2011
Safety of Low-Voltage Equipment, TR CU 020/2011
EMC
E179213
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2
Uninterruptible Power Supplies
Chassis Selection
The S5KC Modular UPS system has multiple chassis
available to build on:
Select the proper chassis based on your applications current
and future need for expansion. Also consider if redundancy
will be required for your application then consider your
application power and location wiring needs. To help with
selecting the appropriate chassis series, we have provided
a useful selection ow chart to guide you to an appropriate
chassis series for your needs.
Steps to Selection
1. Determine the maximum kVA you will need for future
expansion.
2. Determine the kVA and run time value for your
immediate need.
3. Using the ow chart to the right, determine the voltage,
phase conguration and chassis requirements.
4. Determine if you need redundancy. If the exact run time
is critical and you are not sure which unit is appropriate,
please contact our technical support team to aid in
selection.
5. Select the unit that meets both your immediate
requirements, and is expandable to your future
needs. Each chassis will have a “Maximum Upgrade”
capacity. The Maximum Upgrade is the highest kVA
expansion that particular conguration is capable of
without removing any of the battery modules from the
original conguration.
6. External Battery Cabinets (EBC). Depending on
extended run-times desired or your location's spacing
requirements, you may be able to add an optional EBC
to extend your run-time.
7. Optional External Maintenance Bypass (EMB) or other
available accessories. Review your application's current
and future needs and consider all functional options
including lters and spare modules if desired.

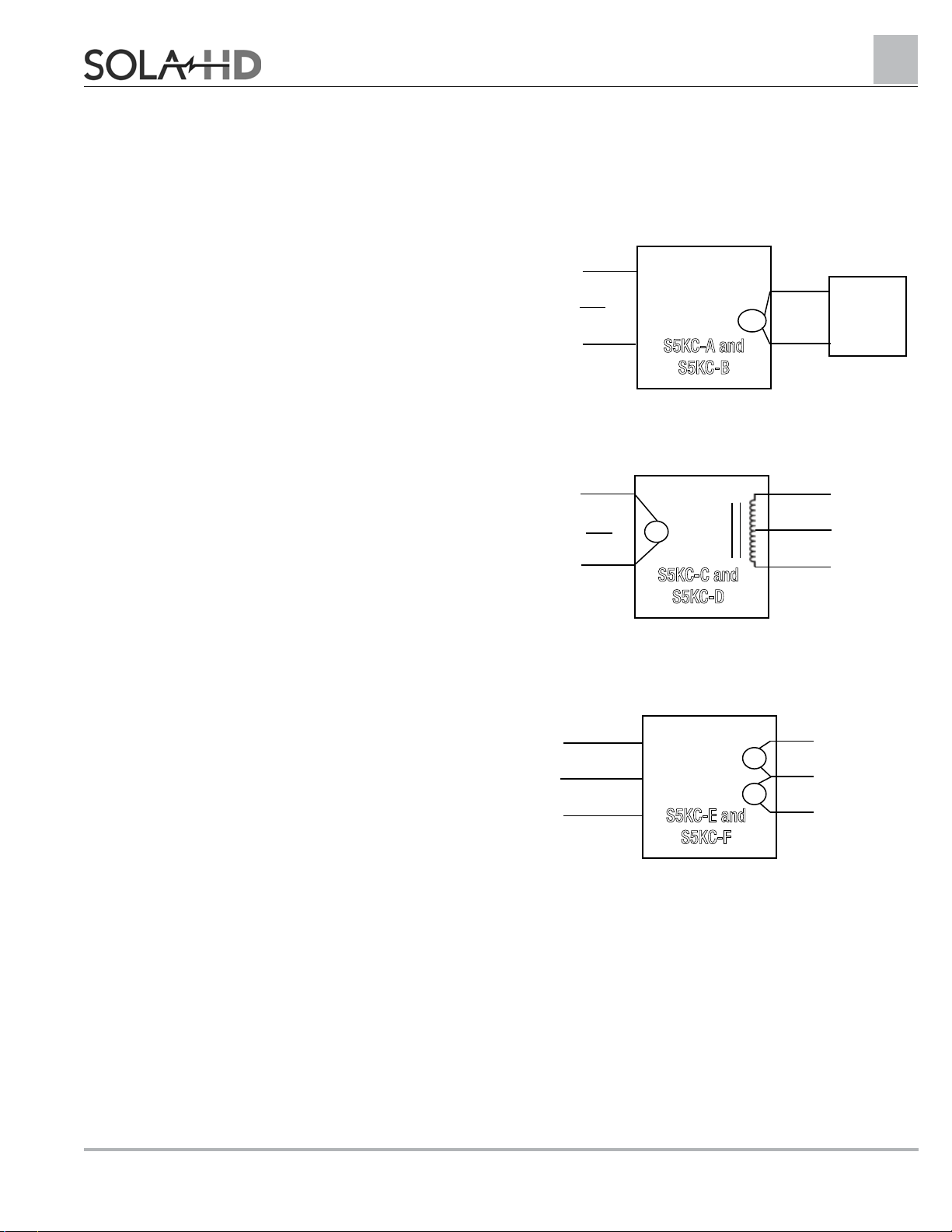

Which Product Do I Select?
Xfmr-free (2W + G)
Xfmr-free (3W + G)
S5KC-A and
S5KC-B
S5KC-E and
S5KC-F
INV
INV
INV
L
N
L
L
L
L(N)
L
All loads are
200-240V
L
L(N)
L
L(N)
L
L
N X
N X
L
L
N
INV
S5KC-C and
S5KC-D
N
L
L
Xfmr-based (3W + G)
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2Uninterruptible Power Supplies
Table 16: Specifications
10 Bay (A) 16 Bay (B) 12 Bay (C) 16 Bay (D) 10 Bay (E) 16 Bay (F)
Xfmr-free Xfmr-based Xfmr-free dual inverter
Capacity 15 kVA 20 kVA 15 kVA 20 kVA 15 kVA 20 kVA
13.5 kW 18 kW 13.5 kW 18 kW 13.5 kW 18 kW
General and Environment
Conducted and radiated EMC levels IEC/EN/AS 62040-2 Cat 2, CISPR22 Class A, FCC Part 15 Class A
Compliant immunity standards IEC/EN/AS 61000-4-2, 3, 4, 5, 6
Environmental WEEE and ROHS2 (6 by 6), REACH Compliant
ENERYGY STAR® qualified Yes
All Models
Yes
All Models
Yes
10, 15, 20 kVA
Yes
10, 15, 20 kVA
Yes
All Models
Yes
All Models
Dimensions — mm (in) & Weight kg (lbs)
Width 440 mm (17 in) 440 mm (17 in) 440 mm (17 in) 440 mm (17 in) 440 mm (17 in) 440 mm (17 in)
Depth 800 mm (32 in) 850 mm (34 in) 800 mm (32 in) 850 mm (34 in) 800 mm (32 in) 850 mm (34 in)
Height 695 mm (27 in) 970 mm (38 in) 1060 mm (42 in) 1240 mm (49 in) 695 mm (27 in) 970 mm (38 in)
Weight (frame rating
populated)
Unit Weight 256 kg (565 lbs) 318 kg (700 lbs) 361 kg (795 lbs) 417 kg (920 lbs) 256 kg (565 lbs) 318 kg (700 lbs)
Shipping Weight 274 kg (605 lbs) 336 kg (740 lbs) 379 kg (835 lbs) 435 kg (960 lbs) 274 kg (605 lbs) 336 kg (740 lbs)
Environmental
Operating temperature 0 °C - 40 °C (32 °F - 104 °F)
Relative humidity 0 - 95%, non-condensing
Altitude 3000 m (10000 ft) @ 25°C (77°F)
Efficiency (AC-AC) 91.8-92.0% 91.6-92.0% 88.5-89.9% 88.6-89.7% 90.4-91.0% 90.0-91.0%
Heat dissipation 4208 BTU / Hr 5747 BTU / Hr 5528 BTU / Hr 7965 BTU / Hr 4904 BTU / Hr 6768 BTU / Hr
Input Data
Nominal input voltage
200/208/220/230/240 Vac; Single Phase 200/100, 208/120, 220/110,
230/115, 240/120 Vac;
Single Phase
380/400/415 Vac; 3 Phase Not Applicable
Input Voltage Range The input voltage range based on the ouput loading, refer to User Manual
Power Factor Single-phase input, > 0.99 Cos;
three-phase input, > 0.95 Cos Single-phase input, > 0.99 Cos
Input Frequency Range 40 Hz to 70 Hz auto-sensing
Battery Module
Battery capacity 36W @ 15min-rate to 1.67V per cell @ 25°C (77°F)
Battery Back-up Time (full load) 5 minutes (for non-redundant system which has equal number of battery strings and power modules)
Maximum Charge current (full load) Power module internal charger: 1.8A / Charger module: 10A
Nominal Voltage 144 VDC
Recharge time < 5 hours to 90% capacity (PM internal charger with 1:1 ratio of PM to Battery Strings)
Output Data
Output voltage 200/208/220/230/240 Vac; Single
Phase
100/100/173/200,110/110/
190/220, 115/115/199/230,
120/120/208/240 Vac; Single Phase
200/100, 208/120, 220/110,
230/115, 240/120 Vac; Single Phase
Voltage regulation ±3%
Voltage stability (100% step load) ±7%
Voltage Recovery time ≤ 60 minutes
Voltage distortion
≤ 3%, linear load
≤ 5%, non-linear load ≤ 7%, non-linear load ≤ 5%, non-linear load
Output frequency 50/60 Hz
Output overload capability
< 104% continuous
105% - 130% for 1 min
131% - 150% for 10 sec
151% - 200% for 1 sec
> 201% for 250 msec
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2
Uninterruptible Power Supplies
Table 17: Mechanical Description
Dimension mm (In)
Chassis Height (H) Depth (D)
S5KC-A SERIES 695 (27) 800 (32)
S5KC-B SERIES 970 (38) 850 (34)
S5KC-C SERIES 1060 (42) 800 (32)
S5KC-D SERIES 1240 (49) 850 (34)
S5KC-E SERIES 695 (27) 800 (32)
S5KC-F SERIES 970 (38) 850 (34)
Chassis Designation Number of Bays Description
S5KC-A 10 Bay 5-15 kVA, 1PH, Xfmr-free, 200-240 VAC input/output
S5KC-B 16 Bay 5-20 kVA, 1PH, Xfmr-free, 200-240 VAC input/output
S5KC-C 12 Bay 5-15 kVA, 1PH, Xfmr-based, 200-240 VAC input - 200/100-240/120 VAC output
S5KC-D 16 Bay 5-20 kVA, 1PH, Xfmr-based, 200-240 VAC input - 200/100-240/120 VAC output
S5KC-E 10 Bay 5-15 kVA, 2PH, Xfmr-free, 200/100-240/120 VAC input/output
S5KC-F 16 Bay 5-20 kVA, 2PH, Xfmr-free, 200/100-240/120 VAC input/output
SOLAHD
(H)
440 (17) (W) (D)
Chassis Dimensions
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2Uninterruptible Power Supplies
The S5KC UPS is a true online double-conversion system, having the following operating modes:
• Normal Mode
• Back-up Mode
• Auto Restart Mode
• Bypass Mode
Normal Mode
The power module rectiers derive power from a utility AC source and supply regulated DC power to the inverter.
The module’s inverter regenerates precise AC power to supply the connected equipment. The battery charger is in
the power module and maintains a oat-charge on the batteries of the UPS; additionally, the optional charger module
(S5KCCHRGRMOD) can also charge the batteries to maintain a quicker recharge time for long back-up time applications.
Back-up Mode
When AC utility fails, the connected equipment is supplied power by the inverter, which obtains energy from the battery
modules. The output power will not be interrupted during the failure or restoration of the AC utility/mains source.
Auto Restart Mode
After a power outage and complete battery discharge, and once AC utility is restored, the UPS will automatically restart and
resume supplying power to connected equipment. This feature is enabled at the factory, but can be disabled by the user. The
user can also program two auto restart delay settings
from the LCD:
• Battery capacity level (%)
• Countdown timer
Bypass Mode
The bypass provides an alternate path for power to the connected equipment and operates in the following manner:
• Automatic: In the event of an internal fault or should the inverter overload capacity be exceeded, the UPS performs an
automatic transfer of the connected equipment from the inverter to the bypass source.
• Manual: Should the UPS need to be taken out of service for limited maintenance or repair, manual activation of the
bypass will cause an immediate transfer of the equipment from the inverter to the bypass source.
S5KC Operating Modes
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2
Uninterruptible Power Supplies
S5KC-A & S5KC-B Frames:
Xfmr-Free
S5KC-C & S5KC-D Frames:
Xfmr-Based
S5KC-E & S5KC-F Frames:
Xfmr-Free
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2Uninterruptible Power Supplies
Series
Designation
Frame Configuration Type System kVA / kW Number of Charger
Modules System Type Battery Type and Number Strings
Output Voltage/
Frequency/Wiring Distribution Slot 1 Distribution Slot 2 Product Type
A = 10 Bay, Xfmr Free,
1PH, cULus Listed, GS/
CE/C-tick Marked
05A = 5 kVA / 4.5 kW N = No charger module N = Non-redundant
NN = None (allows
for empty replacement
frames to be shipped)
A = 200V, 60Hz, L-L-G N = None N = None C = Standard product
B = 16 Bay, Xfmr Free,
1PH, cULus Listed, GS/
CE/C-tick Marked
10A = 10 kVA / 9 kW A = 1 charger module R = Redundant Power
and Controls
C1 = 1 String, CSB
UPS 12460 F2 FR B = 220V, 60Hz, L-L-G 1 = (2) L6-30R, (8) 5-15/20R [PD2-101]
1 = (2) L6-30R, (8)
5-15/20R [PD2-101]
C = 12 Bay Xfmr
Based, 1PH, cULus
Listed, GS/CE/C-tick
Marked
15A = 15 kVA / 13.5
kW
F = Redundant Power,
Controls, and Battery
C2 = 2 Strings, CSB
UPS 12460 F2 FR C = 208V, 60Hz, L-L-G 2 = (4) L6-20R, (4) 5-15/20R [PD2-102]
2 = (4) L6-20R, (4)
5-15/20R [PD2-102]
D = 16 Bay Xfmr
Based, 1PH, cULus
Listed, GS/CE/C-tick
Marked
20A = 20 kVA / 18 kW C3 = 3 Strings, CSB
UPS 12460 F2 FR D = 240V, 60Hz, L-L-G 3 = (4) L6-30R, (4) 5-15/20R [PD2-103]
3 = (4) L6-30R, (4)
5-15/20R [PD2-103]
E = 10 Bay, Xfmr Free,
2PH, cULus Listed
C4 = 4 Strings, CSB
UPS 12460 F2 FR
E = 200/100V, 60Hz,
L-L-N-G
4 = (2) L6-30R, (2)
L6-20R, (4) 5-15/20R
[PD2-104]
4 = (2) L6-30R, (2)
L6-20R, (4) 5-15/20R
[PD2-104]
F = 16 Bay Xfmr Free,
2PH, cULus Listed
C5 = 5 Strings, CSB
UPS 12460 F2 FR
F = 220/110V, 60Hz,
L-L-N-G
5 = (2) L5-30R, (2)
L5-20R, (4) 5-15/20R
[PD2-105]
5 = (2) L5-30R, (2)
L5-20R, (4) 5-15/20R
[PD2-105]
C6 = 6 Strings, CSB
UPS 12460 F2 FR
G = 208/120V, 60Hz,
L-L-N-G
6 = (4) L6-20R, (4) L5-
20R [PD2-106]
6 = (4) L6-20R, (4) L5-
20R [PD2-106]
C7 = 7 Strings, CSB
UPS 12460 F2 FR
H = 240/120V, 60Hz,
L-L-N-G
7 = (4) L5-20R, (4)
5-15/20R [PD2-107]
7 = (4) L5-20R, (4)
5-15/20R [PD2-107]
J = 220/127V, 60Hz,
L-L-N-G
8 = (2) L6-30R, (2) L6-
20R [PD2-108]
8 = (2) L6-30R, (2) L6-
20R [PD2-108]
9 = (2) L14-30R [PD2-
109]
9 = (2) L14-30R [PD2-
109]
A = (4) IEC320-C19, (4)
IEC320-C13 [PD2-200]
A = (4) IEC320-C19, (4)
IEC320-C13 [PD2-200]
B = (2) IEC320-C19,
(8) IEC320-C13 [PD2-
201]
B = (2) IEC320-C19,
(8) IEC320-C13 [PD2-
201]
C = (12) IEC320-C13
[PD2-202]
C = (12) IEC320-C13
[PD2-202]
D = (2) IEC309-32A, (4)
IEC320-C13 [PD2-204]
D = (2) IEC309-32A, (4)
IEC320-C13 [PD2-204]
Example: 10 Bay, 1PH, 10 kVA/9 kW, No Charger Module, Non-Redundant, 2 strings, 208V, 60 Hz, L-L-G, No Distribution Slots, Standard Product
S5K A 10A A N C2 C N N C
Table 18: Part Number Configuration
The S5KC modular is available in many combinations. Use the part number template below to identify the description of any
given part number.
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2
Uninterruptible Power Supplies
Series
Designation
Frame Configuration Type System kVA / kW Number of Charger
Modules System Type Battery Type and Number Strings
Output Voltage/
Frequency/Wiring Distribution Slot 1 Distribution Slot 2 Product Type
A = 10 Bay, Xfmr Free,
1PH, cULus Listed, GS/
CE/C-tick Marked
05A = 5 kVA / 4.5 kW N = No charger module N = Non-redundant
NN = None (allows
for empty replacement
frames to be shipped)
A = 200V, 60Hz, L-L-G N = None N = None C = Standard product
B = 16 Bay, Xfmr Free,
1PH, cULus Listed, GS/
CE/C-tick Marked
10A = 10 kVA / 9 kW A = 1 charger module R = Redundant Power
and Controls
C1 = 1 String, CSB
UPS 12460 F2 FR B = 220V, 60Hz, L-L-G 1 = (2) L6-30R, (8) 5-15/20R [PD2-101]
1 = (2) L6-30R, (8)
5-15/20R [PD2-101]
C = 12 Bay Xfmr
Based, 1PH, cULus
Listed, GS/CE/C-tick
Marked
15A = 15 kVA / 13.5
kW
F = Redundant Power,
Controls, and Battery
C2 = 2 Strings, CSB
UPS 12460 F2 FR C = 208V, 60Hz, L-L-G 2 = (4) L6-20R, (4) 5-15/20R [PD2-102]
2 = (4) L6-20R, (4)
5-15/20R [PD2-102]
D = 16 Bay Xfmr
Based, 1PH, cULus
Listed, GS/CE/C-tick
Marked
20A = 20 kVA / 18 kW C3 = 3 Strings, CSB
UPS 12460 F2 FR D = 240V, 60Hz, L-L-G 3 = (4) L6-30R, (4) 5-15/20R [PD2-103]
3 = (4) L6-30R, (4)
5-15/20R [PD2-103]
E = 10 Bay, Xfmr Free,
2PH, cULus Listed
C4 = 4 Strings, CSB
UPS 12460 F2 FR
E = 200/100V, 60Hz,
L-L-N-G
4 = (2) L6-30R, (2)
L6-20R, (4) 5-15/20R
[PD2-104]
4 = (2) L6-30R, (2)
L6-20R, (4) 5-15/20R
[PD2-104]
F = 16 Bay Xfmr Free,
2PH, cULus Listed
C5 = 5 Strings, CSB
UPS 12460 F2 FR
F = 220/110V, 60Hz,
L-L-N-G
5 = (2) L5-30R, (2)
L5-20R, (4) 5-15/20R
[PD2-105]
5 = (2) L5-30R, (2)
L5-20R, (4) 5-15/20R
[PD2-105]
C6 = 6 Strings, CSB
UPS 12460 F2 FR
G = 208/120V, 60Hz,
L-L-N-G
6 = (4) L6-20R, (4) L5-
20R [PD2-106]
6 = (4) L6-20R, (4) L5-
20R [PD2-106]
C7 = 7 Strings, CSB
UPS 12460 F2 FR
H = 240/120V, 60Hz,
L-L-N-G
7 = (4) L5-20R, (4)
5-15/20R [PD2-107]
7 = (4) L5-20R, (4)
5-15/20R [PD2-107]
J = 220/127V, 60Hz,
L-L-N-G
8 = (2) L6-30R, (2) L6-
20R [PD2-108]
8 = (2) L6-30R, (2) L6-
20R [PD2-108]
9 = (2) L14-30R [PD2-
109]
9 = (2) L14-30R [PD2-
109]
A = (4) IEC320-C19, (4)
IEC320-C13 [PD2-200]
A = (4) IEC320-C19, (4)
IEC320-C13 [PD2-200]
B = (2) IEC320-C19,
(8) IEC320-C13 [PD2-
201]
B = (2) IEC320-C19,
(8) IEC320-C13 [PD2-
201]
C = (12) IEC320-C13
[PD2-202]
C = (12) IEC320-C13
[PD2-202]
D = (2) IEC309-32A, (4)
IEC320-C13 [PD2-204]
D = (2) IEC309-32A, (4)
IEC320-C13 [PD2-204]
Example: 10 Bay, 1PH, 10 kVA/9 kW, No Charger Module, Non-Redundant, 2 strings, 208V, 60 Hz, L-L-G, No Distribution Slots, Standard Product
S5K A 10A A N C2 C N N C
Configuration Notes:
1. Every pre-congured S5KC UPS arrives standard with one IS-UNITY-DP communications card installed. This allows you to take advantage of the
monitoring included with your system during your initial standard warranty period. Start-up services available, contact your local SolaHD sales representative
for details.
2. “Maximum Upgrade” capacity considerations. The Maximum Upgrade is the highest kVA expansion each conguration will provide without removing any
of the battery modules from the original conguration. Please consider your future expansion and redundancy needs.
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2Uninterruptible Power Supplies
kVA/kW Non-Redundant
Catalog Number
Available
Expansion Bays
(Total/Power)
Redundant
Catalog Number
Available
Expansion Bays
(Total/Power)
S5KA Xfmr-Free (2W + G)
5/4.5 S5KA05ANNC1CNNC 7/2 S5KA05ANRC1CNNC 6/2
10/9 S5KA10ANNC2CNNC 5/1 S5KA10ANRC2CNNC 3/1
15/13.5 S5KA15ANNC3CNNC 1/0 S5KA15ANRC3CNNC 0/0
S5KB Xfmr-Free (2W + G)
5/4.5 S5KB05ANNC1CNNC 13/3 S5KB05ANRC1CNNC 12/3
10/9 S5KB10ANNC2CNNC 10/2 S5KB10ANRC2CNNC 9/2
15/13.5 S5KB15ANNC3CNNC 7/1 S5KB15ANRC3CNNC 6/1
20/18 S5KB20ANNC4CNNC 4/0 S5KB20ANRC4CNNC 3/0
S5KC Xfmr-Based (Input: 2W + G, Output: 3W + G)
5/4.5 S5KC05ANNC1GNNC 9/2 S5KC05ANRC1GNNC 8/2
10/9 S5KC10ANNC2GNNC 6/1 S5KC10ANRC2GNNC 5/1
15/13.5 S5KC15ANNC3GNNC 3/0 S5KC15ANRC3GNNC 2/0
S5KD Xfmr-Based (Input: 2W + G, Output: 3W + G)
5/4.5 S5KD05ANNC1GNNC 13/3 S5KD05ANRC1GNNC 12/3
10/9 S5KD10ANNC2GNNC 10/2 S5KD10ANRC2GNNC 9/2
15/13.5 S5KD15ANNC3GNNC 7/1 S5KD15ANRC3GNNC 6/1
20/18 S5KD20ANNC4GNNC 4/0 S5KD20ANRC4GNNC 3/0
S5KE Xfmr-Free (3W + G)
5/4.5 S5KE05ANNC1GNNC 7/2 S5KE05ANRC1GNNC 6/2
10/9 S5KE10ANNC2GNNC 5/1 S5KE10ANRC2GNNC 3/1
15/13.5 S5KE15ANNC3GNNC 1/0 S5KE15ANRC3GNNC 0/0
S5KF Xfmr-Free (3W + G)
5/4.5 S5KF05ANNC1GNNC 13/3 S5KF05ANRC1GNNC 12/3
10/9 S5KF10ANNC2GNNC 10/2 S5KF10ANRC2GNNC 9/2
15/13.5 S5KF15ANNC3GNNC 7/1 S5KF15ANRC3GNNC 6/1
20/18 S5KF20ANNC4GNNC 4/0 S5KF20ANRC4GNNC 3/0
Table 19: Basic Recommended Part Numbers (scalable for your application needs)
Back-up time: 5 minutes minimum at full load with 1-battery string per 5 kVA 
Configuration Notes:
1. Voltage Options: Additional Output Voltage Congurations are available. Refer to Table 16 and 18, part number conguration template table.
Example: D = 240V, 60Hz, L-L-G ; S5KC05ANN1DNNC is a 240V conguration.
2. Every pre-congured S5KC UPS arrives standard with one IS-UNITY-DP communications card installed. This allows you to take advantage of the moni-
toring included with your system during your initial standard warranty period. Start-up services available, contact your local SolaHD sales representative for
details.
3. Available Expansion Bays (Total/Power) equals the TOTAL available expansion bays still available and POWER is the number of bays that can be used for
remaining POWER modules up to the maximum allowed for that conguration. For example: S5KA05ANNC1CNNC, has 7 total, 2 power so you can add
either 6 battery modules, 1 charging module or 6 battery modules and 2 power modules.
4. Do you require an EBC or MBC? Please refer to conguration table 20 and 21 to build an appropriate part.
Congurations with run-times in excess of 5 minutes are available, contact Technical Services.
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2
Uninterruptible Power Supplies
Table 20: External Battery Cabinet (EBC) Part Number Configuration
Series
Designation
Frame Configuration
Type
Number of Battery
Strings Battery Manufacturer Battery Model Overcurrent Protection Product Type
1 = 1 String C = CSB XX = CSB UPS
12460 F2 FR B = Circuit Breaker C = Standard product
2 = 2 Strings
N = None (allows for
empty replacement
frames to be shipped)
NN = None
(allows for empty
replacement frames
to be shipped)
3 = 3 Strings
4 = 4 Strings
5 = 5 Strings
6 = 6 Strings
7 = 7 Strings
N = None (allows for
empty replacement
frames to be shipped)
Example: 4 String, CSB, CSB UPS 12460 F2 FR, Circuit Breaker, Standard Product
S5K EBC 4 C XX B C
The S5KC Modular UPS includes internal batteries. Optional,
matching external battery cabinets, offer extended battery
runtime. Use the part number template below to identify the
description of any given part number.
Specifications
Mechanical
Conducted and Radiated EMC
Levels IEC/EN/AS 62040-2—Class A, FCC Part 15 (Class A)
Safety Standards IEC/EN/AS 62040-1:2008, UL 1778 4th Ed and CSA 22.2 No. 107.3
Immunity Standards IEC/EN/AS 61000-4-2, 3, 4, 5, 6 (C-tick)
Transportation ISTA-1E
Dimensions, WxDxH in (mm) 17x28x38 in
(440x712x970 mm)
Unit Weight, lbs (kg) 148 lbs (67 kg)
Shipping Weight, lbs (kg) 209 lbs (95kg)
Environmental
Operating Temperature °F (°C) 32 °F to 104 °F (0 °C to 40 °C)
Storage Temperature, °F (°C) Without battery: -4 °F to 140 °F (-20 °C to 60 °C)
With battery: 5 °F to 104 °F (-15 °C to 40 °C)
Relative Humidity, % 0 - 95%, non-condensing
Altitude, ft. (m) 10000 ft (3000 m)
E179213
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2Uninterruptible Power Supplies
Table 21: Maintenance Bypass Options
The S5KC Modular Series Maintenance Bypass provides maximum system availability to business critical equipment by
allowing transfer of connected equipment to an alternate power path allowing full isolation of the UPS for maintenance. The
UPS can then be turned Off and removed from service with no interruption of power to connected equipment.
Series Designation
Frame Configuration Type
Mounting Rating Voltage/Frequency/
Wiring Agency Distribution Slot 1 Distribution Slot 2 Product Type
R = Rackmount 1 = 15 kVA, 100A A = 200V, 60Hz,
L-L-G U = cULus N = None N = None C = Standard product
2 = 20 kVA, 125A B = 220V, 60Hz,
L-L-G
1 = (2) L6-30R, (8)
5-15/20R [PD2-101]
1 = (2) L6-30R, (8)
5-15/20R [PD2-101]
C = 208V, 60Hz,
L-L-G
2 = (4) L6-20R, (4)
5-15/20R [PD2-102]
2 = (4) L6-20R, (4)
5-15/20R [PD2-102]
D = 240V, 60Hz,
L-L-G
3 = (4) L6-30R, (4)
5-15/20R [PD2-103]
3 = (4) L6-30R, (4)
5-15/20R [PD2-103]
E = 200/100V, 60Hz,
L-L-N-G
4 = (2) L6-30R,
(2) L6-20R, (4)
5-15/20R [PD2-104]
4 = (2) L6-30R,
(2) L6-20R, (4)
5-15/20R [PD2-104]
F = 220/110V, 60Hz,
L-L-N-G
5 = (2) L5-30R,
(2) L5-20R, (4)
5-15/20R [PD2-105]
5 = (2) L5-30R,
(2) L5-20R, (4)
5-15/20R [PD2-105]
G = 208/120V, 60Hz,
L-L-N-G
6 = (4) L6-20R, (4)
L5-20R [PD2-106]
6 = (4) L6-20R, (4)
L5-20R [PD2-106]
H = 240/120V, 60Hz,
L-L-N-G
7 = (4) L5-20R, (4)
5-15/20R [PD2-107]
7 = (4) L5-20R, (4)
5-15/20R [PD2-107]
J = 220/127V, 60Hz,
L-L-N-G
8 = (2) L6-30R, (2)
L6-20R [PD2-108]
8 = (2) L6-30R, (2)
L6-20R [PD2-108]
9 = (2) L14-30R
[PD2-109]
9 = (2) L14-30R
[PD2-109]
A = (4) IEC320-C19,
(4) IEC320-C13
[PD2-200]
A = (4) IEC320-C19,
(4) IEC320-C13
[PD2-200]
B = (2) IEC320-C19,
(8) IEC320-C13
[PD2-201]
B = (2) IEC320-C19,
(8) IEC320-C13
[PD2-201]
C = (12) IEC320-
C13 [PD2-202]
C = (12) IEC320-
C13 [PD2-202]
D = (2) IEC309-32A,
(4) IEC320-C13
[PD2-204]
D = (2) IEC309-32A,
(4) IEC320-C13
[PD2-204]
Example: Rackmount, 15 kVA, 100A, 208V, 60Hz, L-L-G, UL, cUL Listed, No Distribution Slots, Standard Product
S5K MBC R 1 C U N N C
NOTES:
RM-MBC (Rack Mount - Maintenance By-Pass Cabinet)
Specifications
Mechanical
Dimensions, W x D x H, mm (In) 440 x 862 355 mm (17.3 x 33.9 x 14.3 in)
Safety Standards IEC/EN/AS 62040-1:2008, UL 1778 4th Ed
and CSA 22.2 No. 107.3
Transportation ISTA Procedure 1A
Weight, kg (lbs) 30 kg (66.1 lbs)
Environmental
Operating Ambient Temperature 0°C to +40°C (32°F to 104°F)
Storage Ambient Temperature -20°C to +60°C (-4°F to +140°F)
Humidity 0 to 95% non-condensing
E179213
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2
Uninterruptible Power Supplies
Optional Equipment S5KCCHRGRMOD, Charger Module
Catalog Number Description
Communication Options
IS-UNITY-DP IS Communications Card for multiple protocols:
BACnet, Modbus, SNMP, Web, YDN23
IS-RELAY
Relay contact board, relay contact signals for
“On Battery”, “Low Battery”, “On Bypass”,
"On UPS", “Summary Alarm” and “UPS Fault”.
S5KREPOKIT
Remote Emergency Power Off Kit includes
50’ length of cable with connector to UPS and
external push button switch.
Model Number Description
S5KCRACKKIT Rackmount Kit
S5KCEBCCBL1M EBC Cable 1 meter
S5KCEBCCBL3M EBC Cable 3 meters
S5KCEBCCBL5M EBC Cable 5 meters
S5KCLRTCONNKIT LRT Connector Kit
S5KCLRTTEMPKIT LRT Temperature Sensor Kit
S5KCCHRGRMOD Charger Module, 10 amps
S5KCEBCCARD EBC Communication Card
S5KCBATMODCU Expansion Battery to increase run time.
Note: Each kit includes one string (2 modules)
Optional Equipment
Model Number Description
S5KC5KPWRMOD1 Power Module (PM1), 208/120 VAC, 5 kVA / 4.5kW
(E & F Chassis)
S5KC5KPWRMOD2
Power Module (PM2), 230, 208 VAC, 5 kVA /
4.5kW
(A, B, C & D Chassis)
S5KCBATMODCU Replacement Battery
Note: Each kit includes one string (2 modules)
S5KCBYPDSPMOD Bypass DSP Module
S5KCBYPMCUMOD Bypass MCU Module
S5KCLCDMOD LCD module
S5KCAFLTRKIT Air Filter Kit
S5KCAFLTRKIT-FD Fine Dust Air Filter Kit
S5KCBEZELHMI Metal HMI Bezel with Display Opening and Filter
S5KCBEZEL Metal Bezel for Module Bays and Filter
Spare Equipment Parts
S5KC5KPWRMOD1 (P, B, C) *
(P, B, C) * (P, B, C) *
B ** B **
B ** B **
Example: 10-Bay Conguration
(S5KC Chassis E and F)
P = Power module
B = Battery module
C = Charger module
* Where you have an empty spot you can add a power, battery or charger.
** Battery module only.
In AC mains mode, the charger module charges the system
battery modules or external battery cabinet. Each charger
module is rated to deliver 10A charging current. The charger
module has an independent control function and maintains
real-time communication with the system and the battery
modules to ensure stable charging and fault protection.
The charger module may be added or replaced on-line with
no interruption or danger to the user, connected battery
system or connected equipment.
S5KCBATMODCU = 2 Modules or 1 string
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2Uninterruptible Power Supplies
UPS Extended Warranty Offering for the SolaHD S1K, S3K and S4K Series
S3K
Catalog Number Description
1-Year Extended Warranty
1EWPS3K700 1-year extended warranty for S3K700
1EWPS3K1000 1-year extended warranty for S3K1000
1EWPS3K1600 1-year extended warranty for S3K1600
3-Year Extended Warranty
3EWPS3K700 3-year extended warranty for S3K700
3EWPS3K1000 3-year extended warranty for S3K1000
3EWPS3K1600 3-year extended warranty for S3K1600
S1K
Catalog Number Description
1-Year Extended Warranty
1EWPS1K320 1-year extended warranty for S1K320
1EWPS1K520 1-year extended warranty for S1K520
1EWPS1K650 1-year extended warranty for S1K650
1EWPS1K850 1-year extended warranty for S1K850
1EWPS1K1200 1-year extended warranty for S1K1200
1EWPS1K1500 1-year extended warranty for S1K1500
3-Year Extended Warranty
3EWPS1K320 3-year extended warranty for S1K320
3EWPS1K520 3-year extended warranty for S1K520
3EWPS1K650 3-year extended warranty for S1K650
3EWPS1K850 3-year extended warranty for S1K850
3EWPS1K1200 3-year extended warranty for S1K1200
3EWPS1K1500 3-year extended warranty for S1K1500
S4K4UC AND S4K6UC – Maintenance Bypass Switch
S4KC Industrial – UPS Models
Catalog Number Description
1-Year Extended Warranty
1EWPS4K2U700C 1-year extended warranty for S4K2U700C
1EWPS4K2U1000C 1-year extended warranty for S4K2U1000C
1EWPS4K2U1500C 1-year extended warranty for S4K2U1500C
1EWPS4K2U2000C 1-year extended warranty for S4K2U2000C
1EWPS4K2U3000C 1-year extended warranty for S4K2U3000C
1EWPS4K4U6000C 1-year extended warranty for S4K4U6000C
1EWPS4K6U10KC 1-year extended warranty for S4K6U10KC
3-Year Extended Warranty
3EWPS4K2U700C 3-year extended warranty for S4K2U700C
3EWPS4K2U1000C 3-year extended warranty for S4K2U1000C
3EWPS4K2U1500C 3-year extended warranty for S4K2U1500C
3EWPS4K2U2000C 3-year extended warranty for S4K2U2000C
3EWPS4K2U3000C 3-year extended warranty for S4K2U3000C
3EWPS4K4U6000C 3-year extended warranty for S4K4U6000C
3EWPS4K6U10KC 3-year extended warranty for S4K6U10KC
Note: Warranty on S4K4U6000 covers electronics and internal battery.
The extended warranty program extends the standard
two-year product warranty by the term of the extension
purchased, 1-year or 3 years. This results in warranty terms
of 3 or 5 years (depending on the extension selected) from
the date of purchase. SolaHD will repair or replace the unit
at any point during the extension period, subject to the same
conditions as the standard warranty. The warranty extension
is not transferable.
S4KC Industrial – Battery Cabinets
Catalog Number Description
1-Year Extended Warranty
1EWPS4K2U48BATC 1-year extended warranty for S4K2U48BATC
1EWPS4K2U96BATC 1-year extended warranty for S4K2U96BATC
1EWPS4K144BATC 1-year extended warranty for S4K144BATC
1EWPS4K288BATC 1-year extended warranty for S4K288BATC
3-Year Extended Warranty
3EWPS4K2U48BATC 3-year extended warranty for S4K2U48BATC
3EWPS4K2U96BATC 3-year extended warranty for S4K2U96BATC
3EWPS4K144BATC 3-year extended warranty for S4K144BATC
3EWPS4K288BATC 3-year extended warranty for S4K288BATC
Catalog Number Description
1-Year Extended Warranty
1EWPS4K06KPAD 1-year extended warranty for S4K4UC PADs
1EWPS4K10KPAD 1-year extended warranty for S4K6UC PADs
3-Year Extended Warranty
3EWPS4K06KPAD 3-year extended warranty for S4K4UC PADs
3EWPS4K10KPAD 3-year extended warranty for S4K6UC PADs
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2
Uninterruptible Power Supplies
Field Service Programs for the S4K4UC/6UC Industrial and S5KC Series
These programs are for Domestic coverage (valid only within
the continental United States and Canada); additional travel
expenses may be billed to customers with site locations
more than 150 miles from a major metropolitan area.
S4K4UC/6UC Industrial Start-Up Programs
Start-Up includes one site trip within the contiguous 48
states by a factory trained technician. Any additional trips
by the customer service engineer as a result of the site not
being ready for start-up may result in additional costs to the
customer. The site trip includes the following services for one
UPS module:
• Rack construction, installation or re-conguration with UPS
accessories.
• Installation includes mounting and start-up of new UPS
and internal batteries (excludes hard-wired applications).
• Services performed by factory trained technician.
• Services performed 24x7, excluding national holidays
within the 48 contiguous states.
S5KC Modular Start-Up Programs
Start-up services should be ordered as a separate line item
at the time of purchase. S5KC Series UPS sold with start-up
Services are provided with a 2 year parts and labor warranty.
Please refer to the following information for a menu of start-
up options and please choose the appropriate start-up
service required. If start-up is not ordered and performed,
please note that this will reduce your warranty period to two
years of parts and, 90 days labor.
A separate Preventative Maintenance Only plan is available in
addition to the standard Start-Up plan.
Service Programs - S4K4UC/6UC and S5KC Series
Preferred service level options include 6-hour on-site
response, 24x7 within 150 miles of nearest service centers.
24x7 emergency service includes parts (including internal
batteries), labor, and travel. Also includes one (1) Preventive
Maintenance (PM) visit per year, scheduled at the customer’s
convenience (24x7).
Essential service level options include 6-hour on-site response,
24x7 within 150 miles of nearest service centers. 24x7
emergency service includes parts (including internal
batteries), labor, and travel. Also includes one (1) Preventive
Maintenance (PM) visit per year, scheduled by the customer
for M-F 8AM-5PM.
Basic service level options include 6-hour on-site response,
24x7 within 150 miles of nearest service centers. 24x7
emergency service includes parts (excluding internal
batteries), labor, and travel. Preventive Maintenance (PM)
not included and is not available if the Basic Service plan is
selected.
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]

2Uninterruptible Power Supplies
Field Service Programs for the S4K4UC, S4K6UC Industrial and S5KC Series - continued
Catalog Number Description
Domestic Only (7-Days/Week, 24 Hrs/Day)
SUS4K061U7 6 kVA Start-Up
SUS4K101U7 10 kVA Start-Up
Preferred Service (w/ 1 PM)
Catalog Number Equipment
MUUS4K06PR1 S4K4U6000C
MEUS4KBATPR1 S4K144BATC & S4K288BATC
MUUS4K10PR1 S4K6U10KC
S4K4UC and S4K6UC Industrial Start-Up Programs S5KC Start-Up Services
S4K4UC and S4K6UC Industrial Service Programs
1 PM Only (7-Days/Week, 24 Hrs/Day)
Catalog Number Equipment
MS4K061PM24 S4K4U6000C
MS4KBAT1PM24 S4K144BATC & S4K288BATC
MUUS4K10PM24 S4K6U10KC
1 PM Only (Mon-Fri, 8 am - 5 pm)
Catalog Number Equipment
MS4K061PM85 S4K4U6000C
MS4KBAT1PM85 S4K144BATC & S4K288BATC
MUUS4K10PM85 S4K6U10KC
Catalog Number Equipment
SUS5KCXXMF S5KC Start-Up Monday-Friday 8-5
SUS5KCXX24 S5KC Start-Up 7x24
SUPS5KCXXMF S5KC Start-Up Plus M-F 8-5 w/1PM over initial
warranty period
SUPS5KCXX24 S5KC Start-Up Plus 7x24 w/1PM over initial
warranty period
Basic Service (PM not available)
Catalog Number Equipment
MUUS4K06BA0 S4K4U6000C
MEUS4KBATBA0 S4K144BATC & S4K288BATC
MUUS4K10BAO S4K6U10KC
Essential Service (w/ 1 PM)
Catalog Number Equipment
MUUS4K06ES1 S4K4U6000C
MEUS4KBATES1 S4K144BATC & S4K288BATC
MUUS4K10ES1 S4K6U10KC
Catalog Number Service Program
MUUS5KCXPRYY Preferred Service
MUUS5KCXESYY Essential Service
MUUS5KCXBAYY Basic Service
MS5KC1PM24 PM Only (7-Days/Week, 24 Hrs/Day)
for all congurations
S5KC Modular Service Programs
Contact Technical Services to obtain the catalog number
for any of the Preferred, Essential or Basic Services (catalog
number depends on the S5KC conguration).
X = Number of Power/Charger Modules (#1 through #6)
YY = Number of Battery Modules (#01 through #07)
Note: Service programs are valid for one year.
PM = Preventative Maintenance
Phone: [phone] - Fax: [phone] - Web: www.clrwtr.com - Email: [email protected]
