Solaira Cosy XL User manual

Reference Manual
Solaira Cosy XL
277V
WEATHERPROOF INFRARED HEATERS SUITABLE FOR OUTDOOR AND INDOOR USE
IN NON-HAZARDOUS AREAS
- COMMERCIAL AND INDUSTRIAL, (RESIDENTIAL 240V OUTDOOR USE ONLY)
SCOSYXL1 277C (240V - 112 W / 277V - 1 00W)
SCOSYXL1 277L1C (240V - 112 W / 277V - 1 00W) CANDEL LOW LIGHT
SCOSYXL20277C (240V - 1 00W / 277V - 2000W)
SCOSYXL20277L1C (240V - 1 00W / 277V - 2000W) CANDEL LOW LIGHT
EN
Standard Frontage/Fascia
STAINLESS STEEL FRONTAGE/FASCIA HEATER MODELS FOR CANADA & USA:
STANDARD FRONTAGE/FASCIA HEATER MODELS FOR CANADA & USA:
SCOSYXL1 277SS (240V - 112 W / 277V - 1 00W)
SCOSYXL20277L1SS (240V - 1 00W / 277V - 2000W) CANDEL LOW LIGHT
SCOSYXL1 277SS (240V - 112 W / 277V - 1 00W)
SCOSYXL20277L1SS (240V - 1 00W / 277V - 2000W) CANDEL LOW LIGHT
Ref No. 043498-3-EN-S (Iss. A)
Stainless Steel Frontage/Fascia
IM POR TANT - SAVE TH ESE IN ST R U C TI O N S F OR F UTUR E R EFE R EN CE
247748
INFORESIGHT CONSUMER RODUCTS INC.
125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2 3
Tel: [phone] - Fax: [phone]
Email: [e-mail] - Website: www.solairaheaters.com
C = COLOR CODE

1. Read all instructions before using this heater.
2. Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or
injury to persons.
3. This heater is hot when in use. To avoid burns, do not let bare skin
touch hot surfaces. If provided, use handles when moving this heater.
Keep combustible materials, such as furniture, pillows, bedding,
papers, clothes, and curtains at least 6 feet (1.8m) from the front of the
heater and keep them away from the sides and rear.
4. Extreme caution is necessary when any heater is used by or near
children or invalids and whenever the heater is left operating and
unattended.
5. When not in use, disconnect the supply.
6. Do not operate any heater with a damaged cord or after the heater
malfunctions, has been dropped or damaged in any manner. Return
heater to authorized service facility for examination, electrical or
mechanical adjustment, or repair.
7. This heater is not intended for use in bathrooms, laundry areas and
similar locations. Never locate heater where it may fall into a bathtub
or other water container.
8. Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or the like. Arrange cord away from traffic area and where it
will not be tripped over.
I M P O R TA N T I N S T R U C T I O N S
When using electrical short-wave INFRARED EATERS, basic
precautions should always be followed to reduce the risk of fire,
electric shock, and injury to persons, including the following:
2 of 14 Ref No. 043498-3-EN-S (Iss. A)

S AV E T H E S E I N S T R U C T I O N S
9. To disconnect heater, turn controls to off.
10. Do not insert or allow foreign objects to enter any opening as this may
cause an electric shock or fire, or damage the heater.
11. To prevent a possible fire, do not block openings in any manner.
12. A heater has hot parts inside. Do not use it in areas where gasoline,
paint, or flammable liquids are used or stored.
13. Do not cover or otherwise obstruct the heater.
14. Do not touch the heater during operation as the body becomes
very hot and cause burns. Particular attention has been given
where children and vulnerable people are present.
I M P O R TA N T I N S T R U C T I O N S
3 of 14 Ref No. 043498-3-EN-S (Iss. A)
G R O U N D I N G I N S T R U C T I O N S
All 240V / 277V heaters have a cord from the terminal box which must be
permanently connected to a properly grounded supply.
Keep combustible material such as furniture papers clothes and
curtains at least 6 feet (1.8m) from the front of the heater and away
from the sides and rear.
Heaters are not intended for use as indoor residential or as a
household heater. They may be used for outdoor residential 240V use.
W A R N I N G : R I S K O F F I R E

Before using this appliance:
1. Check that the voltage indicated on the units rating label corresponds to the mains
supply voltage.
2. Do not install the heaters less than the minimum height from the floor as specified below
in the specification - Table 1.
3. Ensure that the heater has been securely fastened in its final mounting position.
4. WARNING - This appliance must be grounded and hard wired!
5. WARNING - Keep the supply cable away from the front and body of the heater which will
get hot during use.
6. Do not cover or obstruct the heater while it is in use.
7. Do not insert any object through any slot or opening in the heater.
8. Do not use if the grille is not present.
9. WARNING - Before replacing the lamp emitter or cleaning the unit, ensure that the hard
wired circuit is disconnected from the mains supply. Note: always ensure that the lamp
emitter is cool before handling.
10. Do not handle the lamp emitter with bare hands. If it is inadvertently touched,
remove finger marks with a soft cloth and methylated spirit or rubbing
alcohol. Otherwise, the marks will burn into the lamp emitter during use
causing premature heater failure.
11. The heater is not intended for use by young children and must be supervised
by a responsible person at all times.
I N T R O D U C T I O N
The Solaira Cosy XL 277V heater produces short-wave infrared heat like the sun, warming
people and objects and not the air in between. It is mounted on an adjustable bracket that
allows the heat to be directed exactly where it is required. Its attractive, lightweight design
means that it is effective yet unobtrusive. The short-wave infrared weatherproof heater is
designed for indoor and outdoor use.
Please read the following instructions carefully before use. The safety of this heater is
guaranteed only by its correct usage in accordance with these instructions therefore
they should be retained for future reference.
C AU T I O N
4 of 14 Ref No. 043498-3-EN-S (Iss. A)

5 of 14 Ref No. 043498-3-EN-S (Iss. A)
I N S TA L L AT I O N

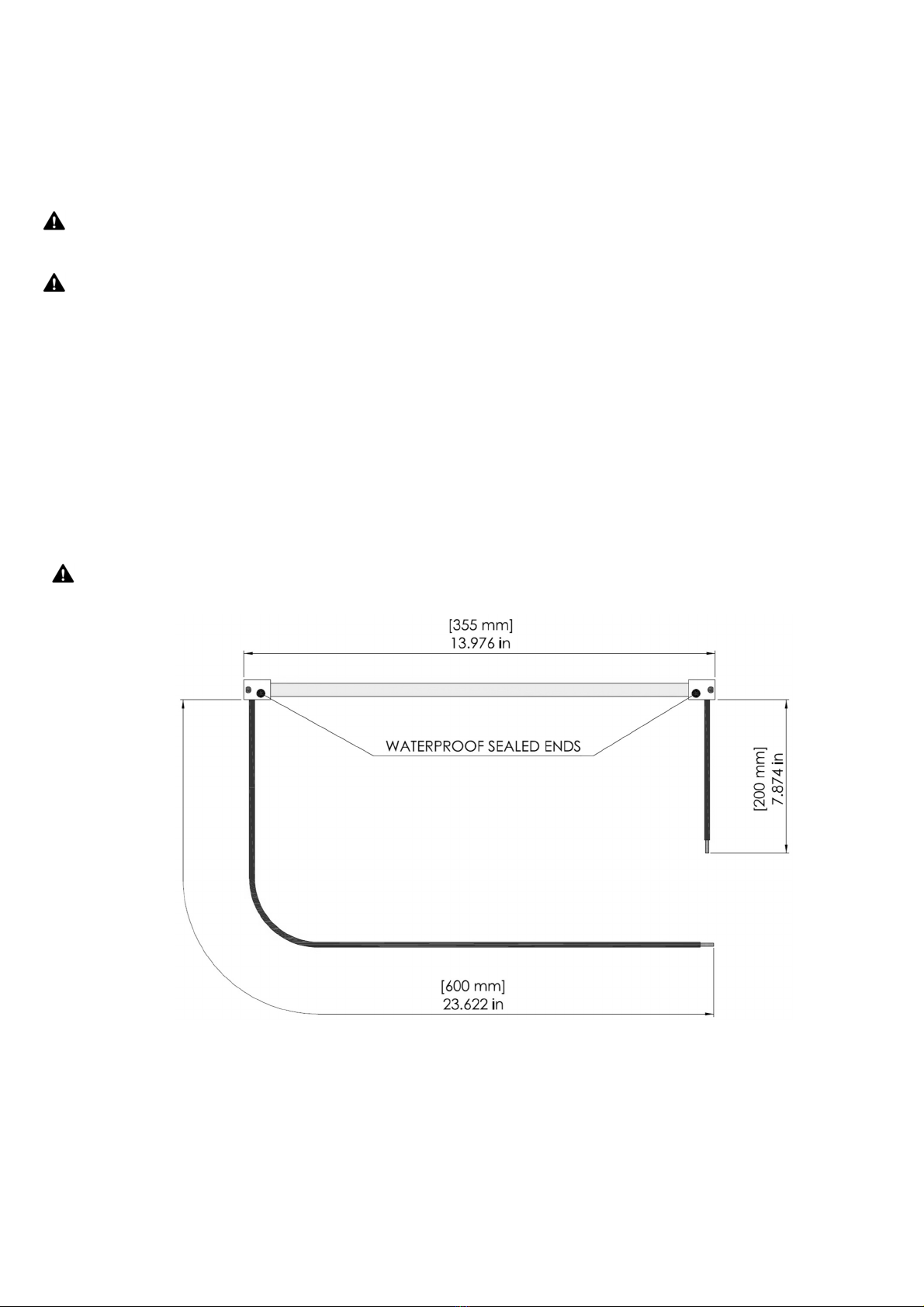

The 240V / 277V heaters are fitted with a supply cord measuring 79 inches (200cm) for
permanent connection.
WARNING:
Wiring procedures and connections should be in accordance with the
National Electric Code (NEC) and local codes.
WARNING: If the supply cord becomes damaged, it must be immediately replaced by a
qualified person in order to avoid a hazard.
CAUTION: Disconnect electric power supply before working on circuit wiring to prevent
electric shock.
CAUTION:
Please observe the minimum safe distance between the heater body and any
inflammable surfaces.
CAUTION: When the electrical connection is outside a weatherproof socket must be used
having ground fault protection (GFCI or GFI).
NOTE: CONSULT A QUALIFIED ELECTRICIAN IF IN DOUBT.
!
S P E C I F I C AT I O N TAB L E
Model Types
SCOSYXL15277C &
SCOSYXL15277L1C,
SCOSYXL15277SS &
SCOSYXL15277L1SS
SCOSYXL20277C &
SCOSYXL2077L1C,
SCOSYXL20277SS &
SCOSYXL20277L1SS
Voltage 240V / 277V
Total Power 1125W / 1500W 1500W / 2000W
Current 4.7A / 5.4A 6.3A / 7.2A
Min. mounting height from floor
Min. distance from ceiling 8¾in (22cm)
Min. distance from side wall 17in (43cm)
17in (43cm) /
25in (64cm)
Dimensions - W × H × D 22in × 4½in × 6¼in (56cm × 11cm × 16cm),
20½in × 4½in × 6¼in (52cm × 11cm × 16cm)
Weight 6.2lbs (2.8kg)
7ft 10½in (240cm)

6 of 14 Ref No. 043498-3-EN-S (Iss. A)
The Solaira Cosy XL 277V heater can be mounted in a
horizontal (Fig. A) or angled manner (Fig. B) with the
standard L-shaped bracket supplied.
1. Securely fasten the Solaira Cosy XL 277V bracket to
the mounting surface using the fixing holes in the
bracket. Please refer to the specification table for
recommended positioning of the heater.
2. Fix in the required angular position by tightening the
fixing bolt on the bracket at the rear of the heater.
3. The Solaira Cosy XL 277V bracket can be used to
adjust the direction of the heater up and down (see Fig.
C). This is done by loosening the bolts fixing the heater
to the bracket, and then retightening once the correct
position is achieved.
4. Secure the supply cable so the cable is directed away
from the heater and is not resting on the body or
obstructing the air-vents.
Fig.
ANGLE MOUNTED UNIT
C AU T I O N
M O U N T I N G
Always isolate the heater from the mains supply
when mounting or adjusting the heater position.
CAUTION: When mounting the heater horizontally,
do not position the heater at an angle more than 50°
or less then 45° as shown in Fig. A.
CAUTION: The heater should be mounted with the
minimum clearances adhered to. Please refer to
Table 1 for the recommended positioning of the
heater. Do not install the heater in a corner!
CAUTION: When mounted the heater at an angle, ensure the back of the heater is
parallel to the mounting surface (See Fig. B). The heater should always be angled
downwards when mounting this way with the terminal box at the bottom of the heater -
see Fig. B.
CAUTION: Always allow the heater to cool before attempting to reposition/move. Never
attempt to move the heater while it is switched on!
CAUTION:
Observe the minimum safe distance between the heater body and
inflammable surfaces and objects when mounting (see specification table).
ORIZONTAL MOUNTED UNIT
Fig. A
Fig. C
MIN. 45°
SEE TABLE 1 FOR MIN. HEIGTHT
GROUND LEVEL
INDENT
PREVENTS
DROP DOWN
MOVEMENT
MAX. 50°
TERMINAL
BOX
MAX. 45°
MIN. 30°

7 of 14 Ref No. 043498-3-EN-S (Iss. A)
M O U N T I N G T O A C E I L I N G / O V E R H A N G
C AU T I O N
Always isolate the heater from the mains supply when mounting or adjusting the
heater position.
The Solaira Cosy XL 277V heater can be mounted to a ceiling or overhang (as shown in Fig.
D) using an optional ceiling bracket (not supplied).
1. Securely fasten the ceiling bracket to the mounting surface using the fixing holes in the
bracket. Please refer to the specification table for recommended positioning of the heater.
2. Mount the heater to the bracket as shown in Fig. E and fix in the position by tightening the
fixing bolt on the bracket at the rear of the heater.
3. Secure the supply cable so the cable is directed away from the heater and is not resting on
the body or obstructing the air-vents.
CAUTION: The heater should be mounted with the minimum clearances adhered to.
Please refer to the specification table for the recommended positioning of the heater. Do
not install the heater in a corner!
CAUTION: The heater should always be angled downwards when mounting this way
CAUTION: Always allow the heater to cool before attempting to reposition/move. Never
attempt to move the heater while it is switched on!
CAUTION:
Observe the minimum safe distance between the heater front and
inflammable surfaces and objects when mounting.
8¾”
[22cm]
MIN.
REFER TO TABLE 1
FOR MIN. DISTAN E
TO SIDE WALL
Fig. D Fig. E

8 of 14 Ref No. 043498-3-EN-S (Iss. A)
C I R C U I T D I AG R AM 2 4 0 V S U P P LY
Fig. G
Fig. F
277V HEATER RATED ON 240V SUPPLY
277V RATED HEATER CONNECTED
ON STAR/WYE OUTPUT (NEUTRAL TO PHASE)
C I R C U I T D I AG R AM 2 7 7 V S U P P LY
Appropriately
rated double
pole switch or
double pole
breaker
Appropriately
rated double
pole switch or
double pole
breaker

9 of 14 Ref No. 043498-3-EN-S (Iss. A)
M AI N T E N AN C E
CAUTION: Always isolate the mains power from the heater or heater assembly before replacing
lamp emitters or any maintenance procedure including cleaning.

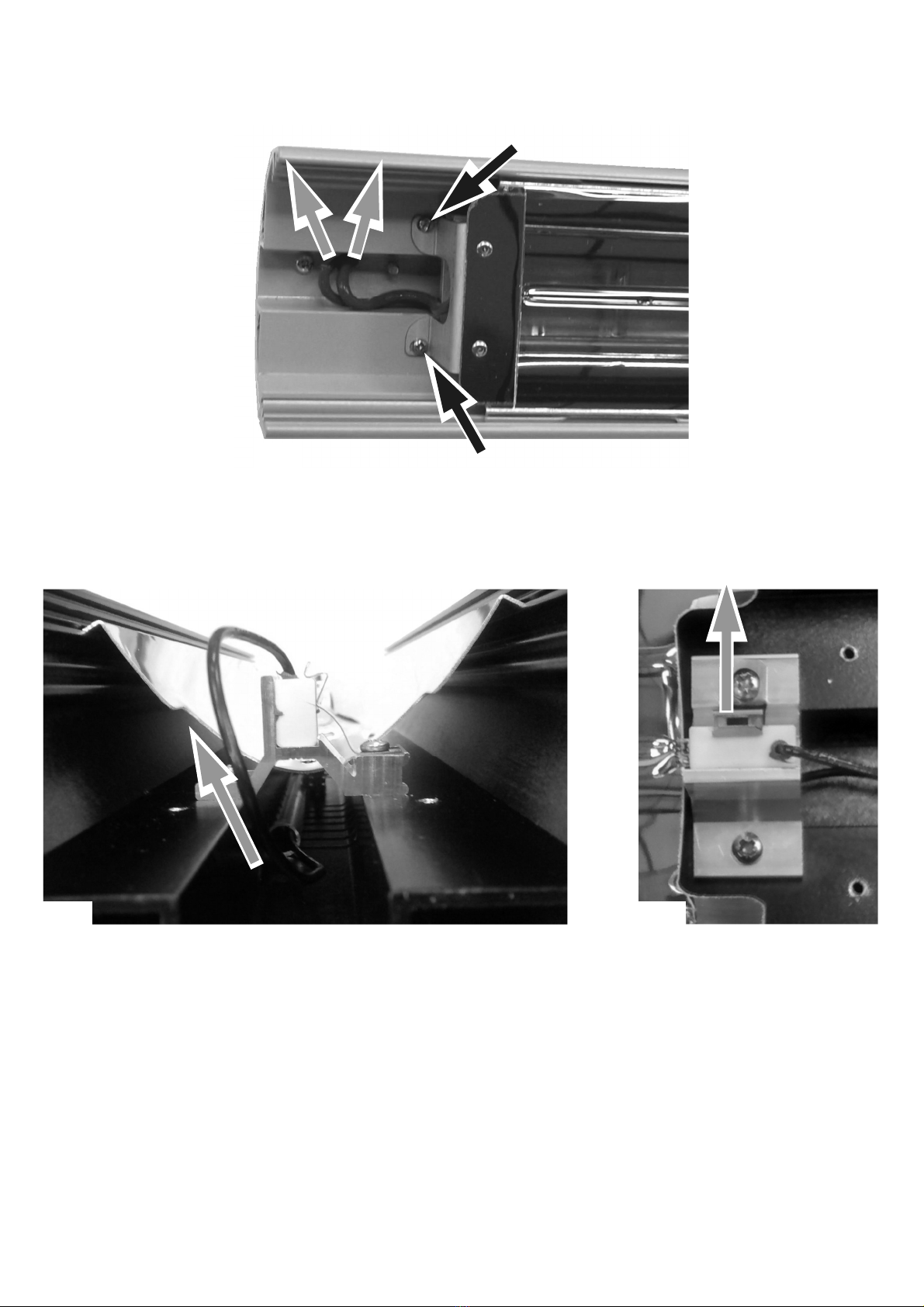

CAUTION: Should dust or dirt appear on the reflector, it is recommended that that the guard and
lamp emitter are removed and the reflector is wiped with a lint-free cloth before reassembling
(see lamp emitter replacement instructions).
NOTE: For replacement lamp emitters or spare parts (see diagrams on next page) please
contact your local distributor quoting model type and rating from rating label. It is very
important that your replacement lamp emitter is exactly the same as the one it was
supplied with. Failure to fit the exact same type can cause the heater to prematurely fail.
!
CAUTION: Please ensure that the length of wires on the replacement lamp emitter are the same
as shown in the diagram below (Fig. ).
Y O U R R E P L A C E M E N T L A M P E M I T T E R
Fig. H

10 of 14 Ref No. 043498-3-EN-S (Iss. A)
S O L AI R A C O S Y X L - C O M P O N E N T PA R T D I A G R AM
S O L AI R A C O S Y X L S TAI N L E S S S T E E L -
C O M P O N E N T PAR T D I AG R A M
GRILLE
SIDE REFLE TOR
& BRA KET
REFLE TOR
TUBE GUIDE
FOR LAMP
EMITTER WIRE
ALUMINUM END OVER
ALUMINUM END OVER
LAMP EMITTER
JUN TION BOX GASKET
JUN TION BOX ASSEMBLY
MOUNTING
BRA KET
ASSEMBLY
GRILLE
END OVER
(STAINLESS STEEL
OR ALUMINUM)
END OVER
(STAINLESS STEEL
OR ALUMINUM)
JUN TION BOX ASSEMBLY
JUN TION BOX GASKET
HEATER BODY HOUSING
REFLE TOR
MOUNTING
BRA KET
ASSEMBLY
TUBE GUIDE FOR
LAMP EMITTER WIRE
LAMP EMITTER
RH SIDE FRONT
FAS IA INSERT
(STAINLESS STEEL)
LH SIDE FRONT FAS IA
INSERT (STAINLESS STEEL)
LAMP
EMITTER
HOLDER & LIP
SIDE REFLE TOR
& BRA KET
Fig. I
Fig. J
SIDE REFLE TOR
& BRA KET
HEATER BODY HOUSING
LAMP
EMITTER
HOLDER
& LIP
LH SIDE FRONT FAS IA
INSERT (ALUMINUM)
RH SIDE FRONT FAS IA
INSERT (ALUMINUM)

11 of 14 Ref No. 043498-3-EN-S (Iss. A)
1. Ensure the heater and lamp emitter are cool and the power supply is disconnected before
disassembly.
2. Remove the heater from its mounted position should if it is not safe to work on it while
mounted.
3. Remove the screws from the junction box (Fig. K) and lift off the cover.
C A U T I O N
Disconnect from the mains power before any attempts are made to replace the lamp emitter.
Contact your distributor for the correct replacement quoting model type and rating from the
rating label. We recommend you read through the procedure and refer to the parts diagram
on the previous page of this manual before commencing work.
R E P L AC I N G T H E L AM P E M I T T E R
4. Disconnect the lamp emitter wires from the connector blocks by unscrewing the screws
highlighted above in Fig. L.
5. Unscrew the four screws (see Fig. M) from the end cover and remove from the heater
body. Repeat at opposite end.
6. Slide out the side covers from both ends as shown in Fig. N.
Fig. K Fig. L
Fig. M Fig. N
CABLE STRAIN RELIEF
BRIDGE (MAX. TIGHTEN)
WEATHERPROOF GLAND
ASSEMBLY (SILICONE
WASHER/GLAND NUT)

12 of 14 Ref No. 043498-3-EN-S (Iss. A)
7. Remove the two screws as highlighted on in Fig. O to take out the side reflector bracket
and reflector assembly that allows access the lamp emitter holding clip. Repeat at opposite
end of the lamp emitter.
8. Where the lamp emitter wires are fed through the gasket into the terminal box (Fig. O),
gently pull the lamp emitter wires through the body of the heater so the wires exit the
junction box.
9. At the opposite end of the lamp emitter, the wire will be clearly visible in the lamp emitter
wire tube so gently pull the long wire (Fig. P) out of the tube until it is free.
10. One at a time pull the spring clips back in the direction shown in Fig. Q and lift up the
ceramic caps of the lamp emitter to remove it from the heater.
11. The lamp emitter should now be removed from the heater. Refit the new lamp emitter in
reverse order ensuring the ceramic caps are correctly seated in the lamp emitter holders, no
wires are trapped and all screws are refitted and fully tightened.
Fig. O
Fig. P Fig. Q

13 of 14 Ref No. 043498-3-EN-S (Iss. A)
N O T E S

IMPORTANT - SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE
INFORESIGHT CONSUMER RODUCTS INC.
125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2 3
Tel: [phone] - Fax: [phone] - Email: [e-mail] - Website: www.solairaheaters.com
Due to our policy of ongoing improvement, we reserve the right to make changes without notice.
© 2021 INFORESIG T CONSUMER PRODUCTS INC.
Ref No. 043498-3-EN-S Issue No. A
Solaira Cosy XL 277V
STAINLESS STEEL FRONTAGE/FASCIA HEATER MODELS FOR CANADA & USA:
STANDARD FRONTAGE/FASCIA HEATER MODELS FOR CANADA & USA:
247748
Standard Frontage/Fascia
SCOSYXL1 277C (240V - 112 W / 277V - 1 00W)
SCOSYXL1 277L1C (240V - 112 W / 277V - 1 00W) CANDEL LOW LIGHT
SCOSYXL20277C (240V - 1 00W / 277V - 2000W)
SCOSYXL20277L1C (240V - 1 00W / 277V - 2000W) CANDEL LOW LIGHT
C = CODE COULEUR
SCOSYXL1 277SS (240V - 112 W / 277V - 1 00W)
SCOSYXL20277L1SS (240V - 1 00W / 277V - 2000W) GAMME ÉMETTEUR CANDEL
SCOSYXL1 277SS (240V - 112 W / 277V - 1 00W)
SCOSYXL20277L1SS (240V - 1 00W / 277V - 2000W) GAMME ÉMETTEUR CANDEL
Stainless Steel Frontage/Fascia
