Solaira ICR Series User manual

I M P OR TA N T - S AV E T H E S E I N S T R U C T I O N S F O R F U T U R E R E F E R E N C E
SHORTWAVE INFRARED HEATERS FOR
OUTDOOR AND INDOOR USE -
COMMERCIAL AND INDUSTRIAL
EN
SICR30240-C & SICR30240LL-C 2250 / 3000W, 208 / 240V (SINGLE PHASE
SICR40240-C & SICR40240LL-C 3000 / 4000W, 208 / 240V (SINGLE PHASE
INFORESIGHT CONSUMER PRODUCTS INC.
125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3
Tel: [phone] - Fax: [phone]
Email: [e-mail] - Website: www.solairaheaters.com
Reference Manual
Solaira
ICR Series H2
DOUBLE EMITTER
CANADA & USA MODELS:
C = COLOR CODE
STANDARD & CANDEL
247748

I M P O R TA N T I N S T R U C T I O N S
I M P O R TA N T I N S T R U C T I O N SI M P O R TA N T I N S T R U C T I O N S
I M P O R TA N T I N S T R U C T I O N S
When using electrical INFRARED HEATERS, basic precautions
should always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
1. Read all instructions before using this heater.
2. Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or
injury to persons.
3. This heater is hot when in use. To avoid burns, do not let bare skin
touch hot surfaces. If provided, use handles when moving this heater.
Keep combustible materials, such as furniture, pillows, bedding,
papers, clothes, and curtains at least 6 feet (1.8m) from the front of the
heater and keep them away from the sides and rear.
4. Extreme caution is necessary when any heater is used by or near
children or invalids and whenever the heater is left operating and
unattended.
5. Do not operate any heater with a damaged cord or plug or after the
heater malfunctions, has been dropped or damaged in any manner.
Return heater to authorized service facility for examination, electrical or
mechanical adjustment, or repair.
6. This heater must not be used in bathrooms, laundry areas and similar
locations.
7. Do not run cord under carpeting. Do not cover cord with throw rugs,
runners, or the like. Arrange cord away from traffic area and where it
will not be tripped over.
8. To disconnect heater, if hard wired switch off breaker. Connect to
grounded CFI outlets only.
9. Connect to properly grounded outlets only.
2

S AV E T H E S E I N S T R U C T I O N S
S AV E T H E S E I N S T R U C T I O N SS AV E T H E S E I N S T R U C T I O N S
S AV E T H E S E I N S T R U C T I O N S
G R O U N D I N G I N S T R U C T I ON S
For 240 (or 208) volt heaters. The cord must be hard wired.
10. Do not insert or allow foreign objects to enter any opening as this may
cause an electric shock or fire, or damage the heater.
11. To prevent a possible fire, do not block openings in any manner.
12. A heater has hot parts inside. Do not use it in areas where gasoline,
paint, or flammable liquids are used or stored.
13. Avoid the use of an extension cord because the extension cord may
overheat and cause a risk of fire.
14. Do not cover or otherwise obstruct the heater.
15. Do not touch the heater during operation as the body becomes hot and
could causes burns. Particular attention has been given where children
and vulnerable people are present.
I M P O R TA N T I N S T R U C T I O N S
I M P O R TA N T I N S T R U C T I O N SI M P O R TA N T I N S T R U C T I O N S
I M P O R TA N T I N S T R U C T I O N S
3
Keep combustible material such as furniture, papers,
clothes and curtains at least 6 feet (1.8m) from the front
of the heater and away from the sides and rear.
Do not use as an indoor residential or household heater.
W A R N I N G : R I S K O F F I R E
W A R N I N G : R I S K O F F I R EW A R N I N G : R I S K O F F I R E
W A R N I N G : R I S K O F F I R E

C AU T I O N
C AU T I O NC AU T I O N
C AU T I O N
I N T R O D U C T I O N
The Solaira ICR Series H2 heater produces radiant heat like the sun, warming people and
objects rather than the air in between. It is mounted on an adjustable bracket that allows the
heat to be directed exactly where it is required. The Solaira ICR Series H2 heater is designed
for outdoor and indoor use.
Please read the following instructions carefully before use. The safety of this heater is
guaranteed only by its correct usage in accordance with these instructions, therefore
they should be retained for future reference.
Before using this appliance:
1. Check that the voltage indicated on the units rating label corresponds to the mains
supply voltage.
2. Do not install the heaters less than the minimum height from the floor, distance to ceiling
and distance to side walls as specified in Table. 1.
3. Ensure that the heater has been securely fastened in its final mounting position.
4. WARNING - This appliance must be grounded!
5. WARNING - Keep the mains cord away from the body of the heater.
6. If a socket outlet is used do not position the outlet immediately above or behind the
heater.
7. Avoid the use of an extension cord with this product.
8. Do not cover or obstruct the heater at any time.
9. Do not insert any object through any slot or opening in the heater.
10. Do not use if guard is not present.
11. WARNING - When replacing the emitter or cleaning the unit, ensure that the 3-pin 120
volt plug is removed from its socket outlet or if hard wired the circuit is disconnected from
the mains supply. NOTE: ALWAYS ENSURE THAT THE EMITTER IS COOL BEFORE
HANDLING.

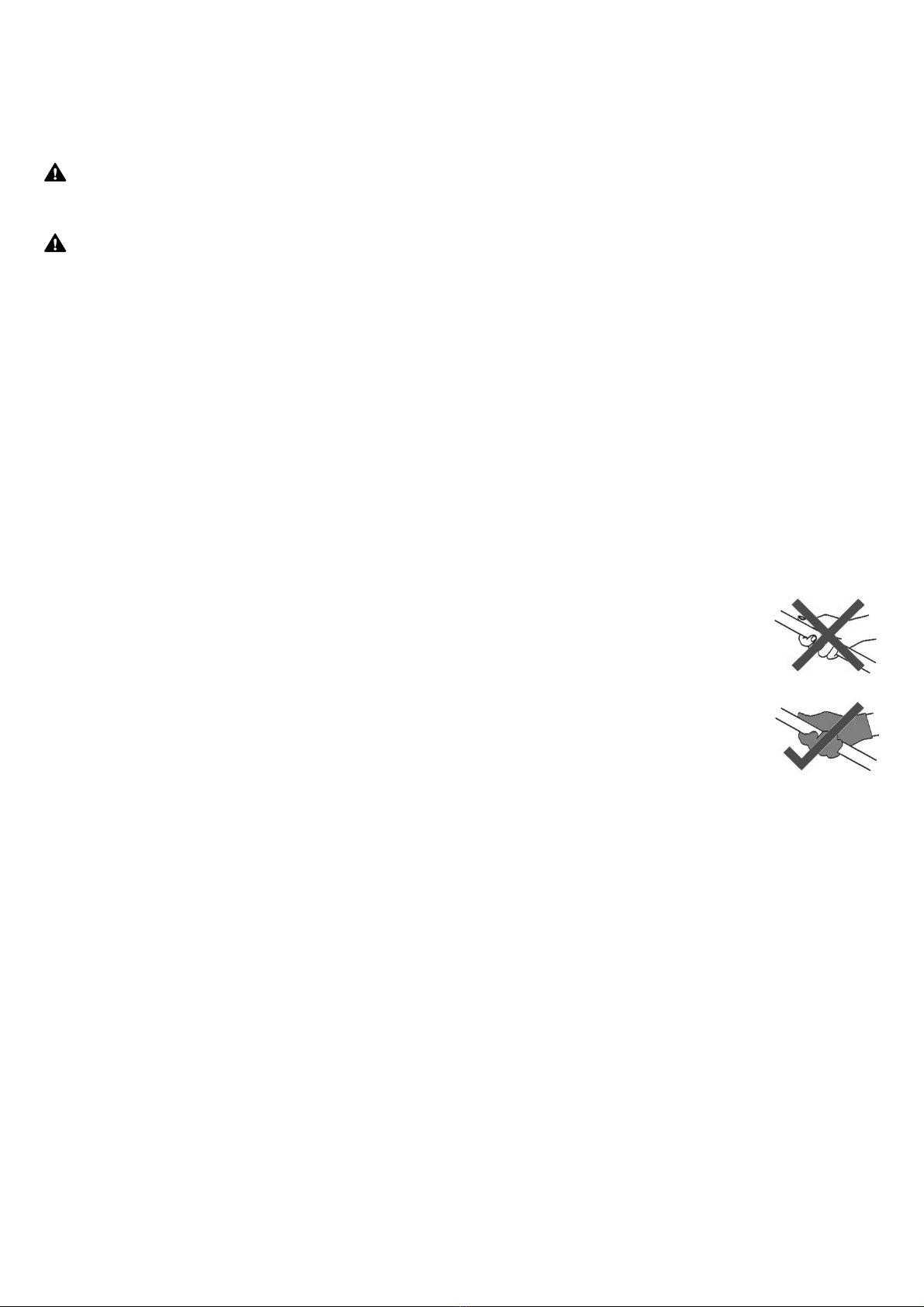

12. Do not handle the halogen emitter with bare hands. If it is inadvertently
touched, remove finger marks with a soft cloth and methylated spirit or
rubbing alcohol. Otherwise, the marks will burn into the quartz emitter during
use causing premature heater failure.
13. The heater is not intended for use by young children and must be supervised by a
responsible person at all times.
4

Model Types SICR30240-C&
SICR30240LL-C
SICR40240-C&
SICR40240LL-C
Voltage 208 / 240 V
No. of Emitters × Power 2 × 1500 W 2 × 2000 W
Current 10.8 / 12.5 A 14.4 / 16.7 A
Min. mounting height from floor
Min. distance from ceiling 6 in (15 cm)
Min. distance from side wall 39 in (100 cm)
Dimensions - W × H × D 33½ in × 10 in × 4½ in (86 cm × 26 cm × 12 cm)
Weight 13 lbs (6.0 kg)
98 in (250 cm)
Total Power 2250 / 3000 W 3000 / 4000 W
S P E C I FI C AT I O N
T a b l e 1 . C a n a d a a n d U S A H e a t e r s
I N S TAL L AT I O N
The 208/240V heaters are fitted with 6 feet, 7 inches (2.0m) of supply cable for hard wiring.
WARNING:
Wiring procedures and connections should be in accordance with the
National Electric Code (NEC) and local codes.
WARNING: If the supply cord becomes damaged, it must be immediately replaced by a
qualified person.
CAUTION: Disconnect electric power supply before working on circuit wiring to prevent
electric shock.
CAUTION:
Please observe the minimum safe distance between the heater body and any
inflammable surfaces.
CAUTION: When installing outdoors we recommend the heater is positioned where it will
be protected from exposure to extreme weather such as snow and ice.
CAUTION: When the electrical connection is outside a weatherproof socket must be used
having ground fault protection (GFCI or GFI).
NOTE: IF IN DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
!
5
WARNING - RISK OF FIRE: Do not use as an indoor residential or household heater.

M O U N T I N G - WA L L M O U N T E D
C A U T I O N
C A U T I O NC A U T I O N
C A U T I O N
Switch off/unplug the heater from the mains supply when mounting or adjusting the heater
position.
• The heater is suitable for installation only on a
normally non-flammable surface. Observe the
minimum safe distance between the heater
body and inflammable surfaces when
mounting. Please refer to Table 1 for the
recommended positioning of the heater with
regards to minimum distances. Do not install
the heater in a corner! If installing near a
corner, always ensure minimum side wall
distance is adhered to.
• Do not position the heater near to furniture or
curtains as this could present a fire hazard.
• When wall mounting the heater in a horizontal
manner, do not position the heater at an angle
more than 75° and less than 45° when viewed
from the side as shown in Fig. A.
• Always allow the heater to cool before
attempting to reposition/move. Never attempt
to move the heater while it is switched on!
Fig. D
Fig. B
Fig. A
6
Fig. C

TERMINAL
BOX
FIXING BOLTS
Fig. E
7
FIXING BOLTS
SCREW TO LOCK
DOWNWARD
POSITION
Fig. F
Fig. G
TYPICAL HEATER MOUNTING ARRANGEMENT
FIX IN DESIRED
POSITION
SCREW TO LOCK
POSITION
1. Securely fasten the L-shaped wall brackets to
the mounting surface as shown in Fig. B (for
wall mounting) or Fig. C (for overhead
mounting). Refer to the mounted bracket hole
centres detail in Fig. D. See Table 1 for
recommended positioning of the heater.
NOTE: WALL FIXINGS ARE NOT SUPPLIED.
2. The heater should be mounted with the terminal
box at the bottom of the heater when wall mounted
(see Fig. E).
3. Position the heater between the two brackets and
fix through the body brackets. Loosely fit the fixing
bolts on the brackets at the rear of the heater as
shown in Figs. E & F.
4. Fix in the desired position and tighten locking
screws. Then fully tighten heater bolts.
5. Ensure the supply cable is not resting on the
heater.

8
M O U N T I N G - C H AI N H U N G
C A U T I O N
C A U T I O NC A U T I O N
C A U T I O N
Switch off/unplug the heater from the mains supply when mounting or adjusting the heater
position.
Fig. J

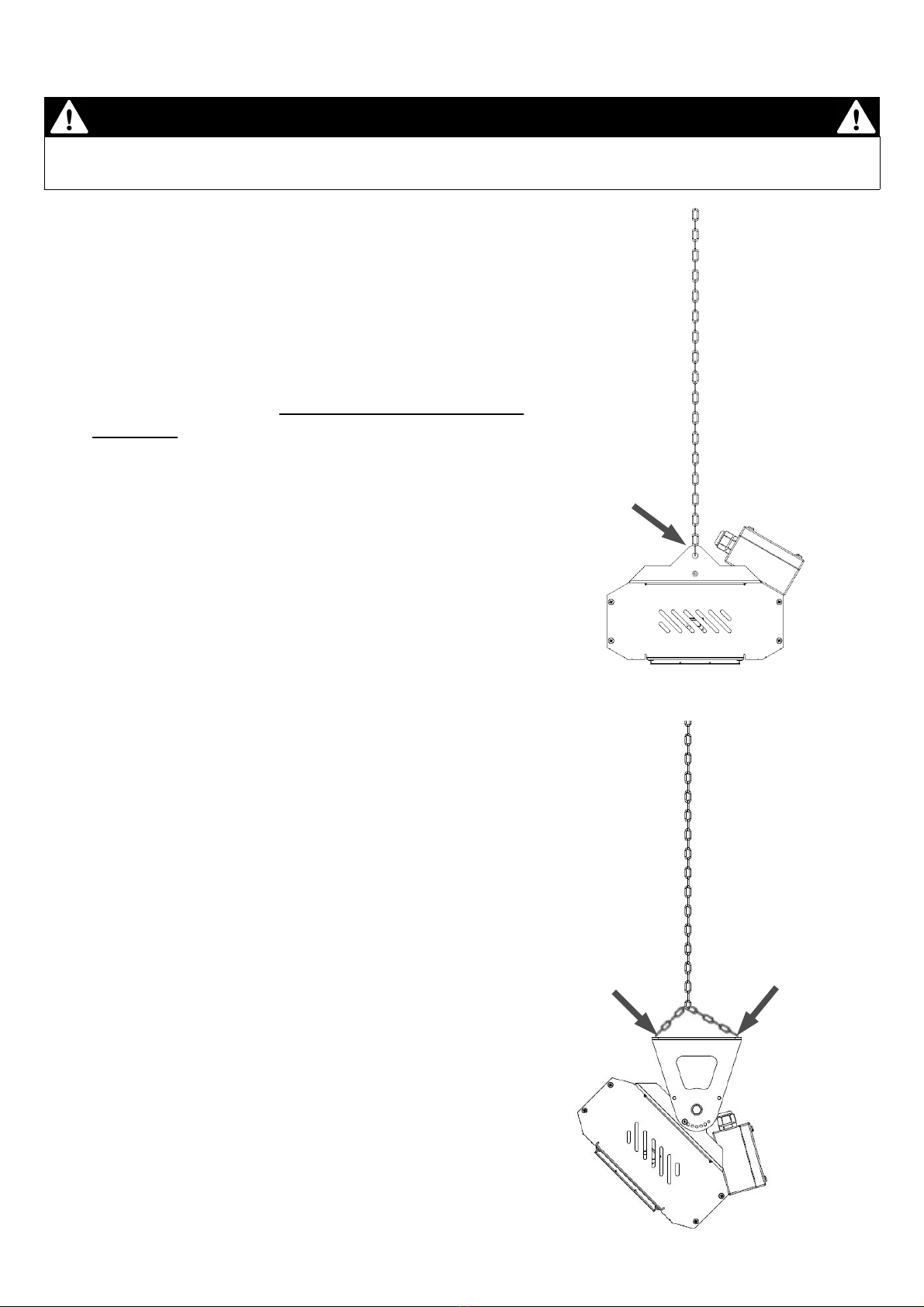

1. When chain hung, ensure chains are of
adequate size and securely fixed to support the
weight of the heater.
2. Fix the heater assembly to the chains via the
holes in the centre of the body brackets if
intending to face directly down as shown in
Fig. H. If the heater is to be angled fix the
heater to the brackets as described in the
previous mounting sections and connect the
chain to the holes in the brackets (Fig. J).
3. Ensure the supply cable does not rest on the
heater.
• The heater is suitable for installation on chains
that are suitably fixed to a structure sufficient to
hold the weight of the heater. Observe the
minimum safe distance between the heater
body and inflammable surfaces when mounting.
• Please refer to Table 1 for the recommended
positioning of the heater with regards to
minimum distances. Do not install the heater in
a corner! If installing near a corner, always
ensure minimum side wall distance is adhered
to.
• Do not position the heater near to furniture or
curtains as this would present a fire hazard.
• Always allow the heater to cool before
attempting to reposition/move. Never attempt to
move the heater while it is switched on!
Fig. H

M O U N T I N G - C E I L I N G R E C E S S E D
C A U T I O N
C A U T I O NC A U T I O N
C A U T I O N
Switch off/unplug the heater from the mains supply when mounting or adjusting the heater
position.
• See Fig. K below showing typical recessed mounting arrangement.
• Please refer to Table 1 for the recommended positioning of the heater with regards to
minimum distances. Do not install the heater in a corner! If installing near a corner, always
ensure minimum side wall distance is observed.
• Do not position the heater near to furniture or curtains as this would present a fire hazard.
• Always allow the heater to cool before attempting to reposition/move. Never attempt to
move the heater while it is switched on!
TYPICAL RECESSED INSTALLATION
SEE TABLE 1 FOR
MINIUM MOUNTING HEIGHT
Fig. K
ENCLOSURE BOX
9
FASCIA FLANGE
ïWhen recess mounting the heater it must be accompanied with a enclosure box made from
a suitable material with a 1 hour fifire rating (contractor supplied) and a fascia flflange trim
kit (sold seperately) MUST be used. See Fig. L for dimensions of fascia flflange trim detailing the
box length and width. Please note, the enclosure box and fascia flflange can weigh in excess of
20.0 lbs (9.1 kg) so adequate structural provision is required for the installation.
M O U N T I N G - C E I L I N G R E C E S S E D
CAUTION
CAUTIONCAUTION
CAUTION
Switch off/unplug the heater from the mains supply when mounting or adjusting the heater
position.
• See Fig. K below showing typical recessed mounting arrangement.
• Please refer to Table 1 for the recommended positioning of the heater with regards to
minimum distances. Do not install the heater in a corner! If installing near a corner, always
ensure minimum side wall distance is observed.
• Do not position the heater near to furniture or curtains as this would present a fire hazard.
• Always allow the heater to cool before attempting to reposition/move. Never attempt to
move the heater while it is switched on!
TYPICAL RECESSED INSTALLATION
SEE TABLE 1 FOR
MINIUM MOUNTING HEIGHT
Fig. K
ENCLOSURE BOX
9
FASCIA FLANGE
ïWhen recess mounting the heater it must be accompanied with a enclosure box made from
a suitable material with a 1 hour fifire rating and a fascia flflange trim kit must be used. See
Fig. L for dimensions of fascia flflange trim detailing the box length and width. Please note,
the enclosure box and fascia flflange can weigh in excess of 20.0 lbs (9.1 kg) so adequate
structural provision is required for the installation.

10
Fig. M
TYPICAL INSTALLATION
Fig. L
DIMENSIONS OF FLANGE TRIM FOR ENCLOSURE BOX
KIT OF 4 × SIDES SHOWN AS ASSEMBLED

11
Y O U R R E P L AC E M E N T E M I TT E R
It is important that when ordering a replacement emitter the heater model type is specified.
Failure to fit the correct emitter will cause the heater to fail and become dangerous in use.
Please contact your service agent to purchase your replacement emitter.
H A N DL I N G T H E R E P L A C E M E N T E M I TT E R
Your new emitter should be handled with care and without touching the quartz glass
with bare hands. A cotton glove may be used for this purpose. Remove any finger
marks with a soft cloth and methylated spirits or rubbing alcohol. Finger marks will burn
into the emitters quartz glass causing premature failure.
M AI N TE N AN C E
In the event of heater failure or for spare parts or advice, please contact your service
agent.
CAUTION: Unplug/switch off unit from the mains supply before replacing an emitter or
any maintenance procedure including cleaning.
CAUTION: To ensure optimum heat effectiveness, it is recommended that the guard is
removed and gently wipe the reflectors with a soft cloth. The emitter may also be carefully
wiped. Please take care not to touch the emitter with bare hands.

Unplug/switch off from the mains power to the heater power before any attempts are
made to replace an emitter. Contact your service agent for the correct replacement
emitter quoting model type and rating from rating label. It is important that you read
through the emitter replacement procedure before commencing.
C A U T I O N
C A U T I O NC A U T I O N
C A U T I O N
R E P L A C I N G T H E E M I T T E R
12
Fig. N

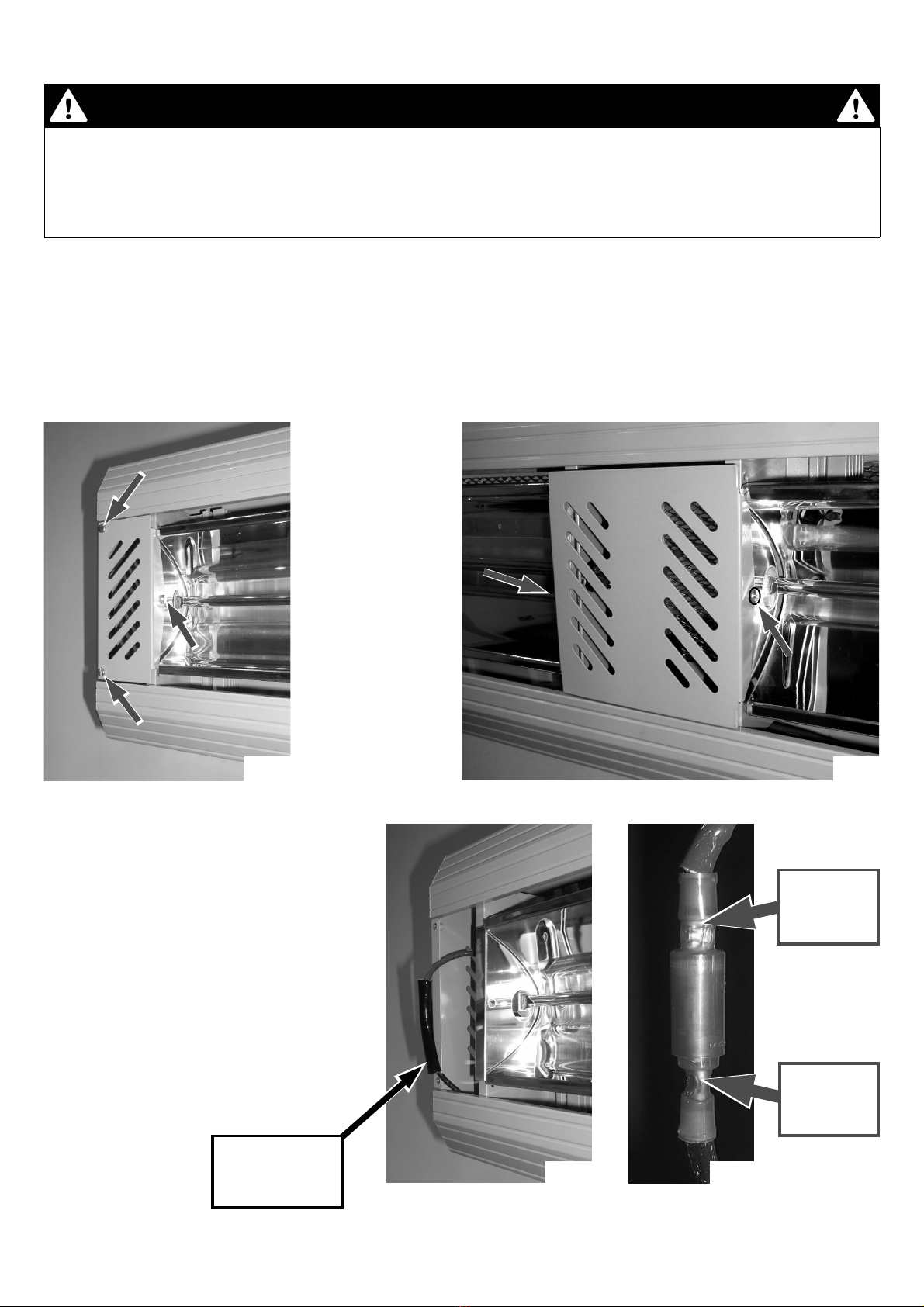

1. Disconnect the power supply to the heater.
2. Remove desired guard by flexing one end and releasing from it’s locating holes.
3. Remove the three screws from the front cover(s) (Fig. N) and two screws from the middle
cover(s) as shown in Fig. P.
Fig. Q
Fig. P
4. Slide the black sleeving
(Fig. P) downwards to reveal the
quick-fit female/male connector.
Holding the two connector
halves as shown in Fig. Q (don’t
hold by the wires), gently pull
apart in the direction shown in
Fig. R to separate the
connection as shown in Fig. S
and Fig. T. Repeat at opposite
end.
MOVABLE
PROTECTION
SLEEVE
Fig. R
MALE
HALF
(EMITTER)
FEMALE
HALF
(SUPPLY)

13
Fig. T Fig. U

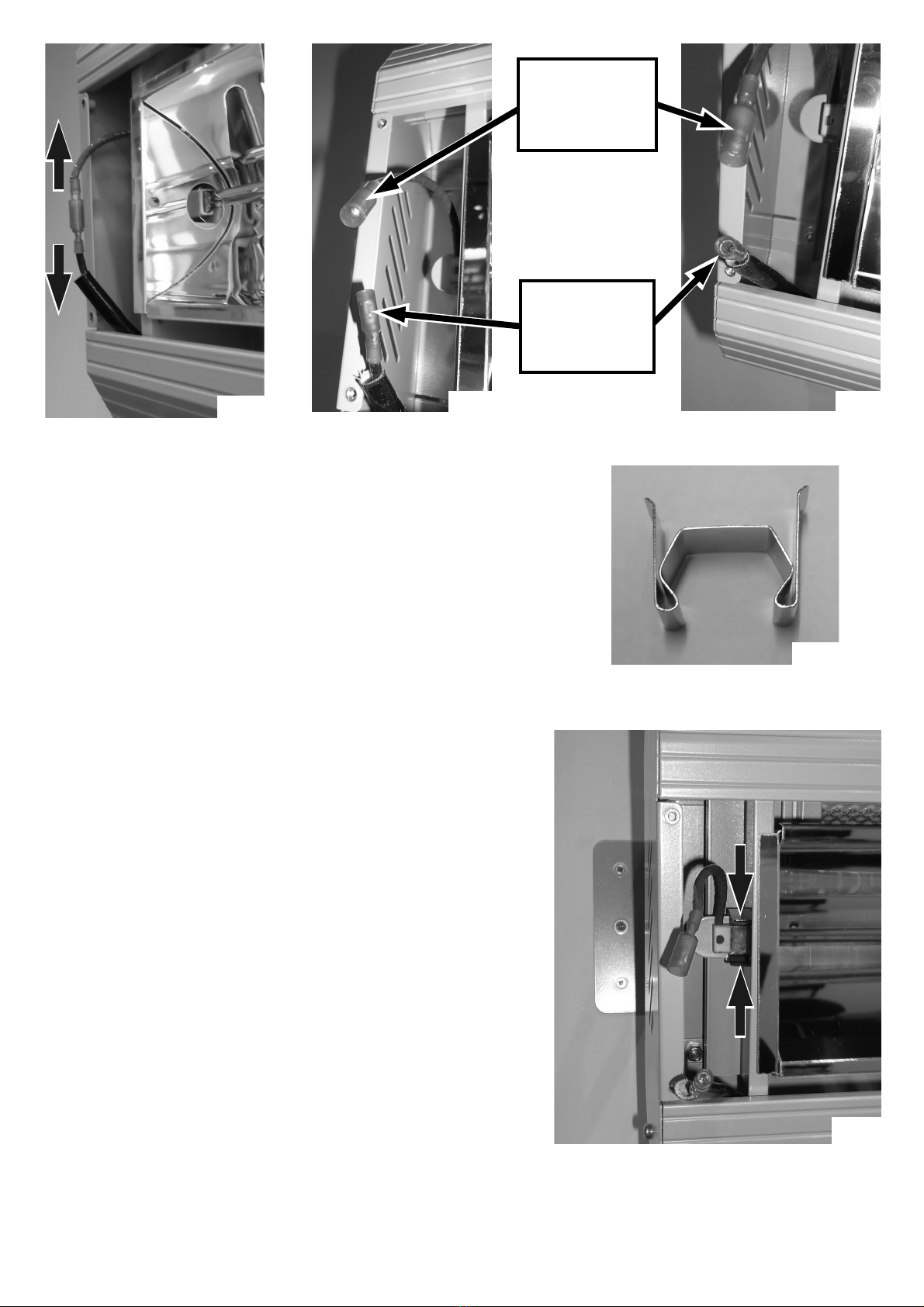

5. Remove the emitter holding clips (Fig. V) by
squeezing the clip together and lifting away as
shown in Fig. W.
6. Slide the emitter out through the extrusion
feeding one way first with the wire and then the
opposite way to take out and remove. Take care
not to scratch the reflector surface.
7. Refit the new emitter. Take care not to mark the
reflector or touch the new emitter with the hands
(see note on page 11).
8. Replace the emitter holding clips. Make sure
they are firmly in place over the white ceramic
ends of the emitter.
9. Refit the male and female connectors by fully
pushing together. Cover and refit the black sleeve.
10. Replace the front side covers and middle
cover in reverse order and then refit the wire
guard(s).
Fig. V
Fig. S
MALE
CONNECTOR
FROM
EMITTER WIRE
FEMALE
CONNECTOR
FROM LIVE
SUPPLY
Fig. W

IMPORTANT - SAVE THESE
INSTRUCTIONS FOR FUTURE REFERENCE
Solaira ICR Series H2
SHORTWAVE INFRARED HEATERS FOR
OUTDOOR AND INDOOR USE -
COMMERCIAL AND INDUSTRIAL
INFORESIGHT CONSUMER PRODUCTS INC.
125 Traders Blvd. E Unit # 4, Mississauga, Ontario L4Z 2H3
Tel: [phone] - Fax: [phone] - Email: [e-mail] - Website: www.solairaheaters.com
Due to our policy of ongoing improvement, we reserve the right to make changes without notice.
© 2015 INFORESIGHT CONSUMER PRODUCTS INC.
Ref No. 043138EN Issue No. 3
CAN/CSA-C22.2 No. 46-13
UL 2021 3rd Edition
247748
