SolarEdge StorEdge Interface SESTI-S4 User manual

Installation Guide
StorEdge Interface
For the Single Phase Inverter with HD-
Wave Technology and SetApp
Configuration and LG Chem Batteries
Version 1.1

Contents
Disclaimers 2
Important Notice 2
Emission Compliance 2
Revision History 4
HANDLING AND SAFETY INSTRUCTIONS 5
Safety Symbols Information 5
IMPORTANT SAFETYINSTRUCTIONS 5
Chapter 1: Overview 7
The StorEdge Solution Components 7
Additional References 8
Installation Workflow 9
Installation Equipment List 10
Chapter 2: Connecting the Energy Meter 12
Chapter 3: StorEdge Interface Installation 13
Unpacking and Identifying the Product 13
Mounting the StorEdge Interface 13
Connecting the StorEdge Interface 14
Chapter 4: System Configuration 20
Setting up Communication with the Battery and Energy Meter 20
Configuring StorEdge Applications 21
Running a Battery Self-test 21
Appendix A: Troubleshooting 23
StorEdge Interface LEDs 23
Appendix B: Powering the LG Chem Battery Off and On 24
Appendix C: Connecting and Powering Systems with a DC DisconnectSwitch 25
StorEdge Interface Technical Specifications 27
Support Contact Information 29
StorEdge Interface Installation Guide MAN-01-00621-1.1
1 

Disclaimers
Important Notice
Copyright © SolarEdge Inc. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photographic,
magnetic or otherwise, without the prior written permission of SolarEdge Inc.
The material furnished in this document is believed to be accurate and reliable.
However, SolarEdge assumes no responsibility for the use of this material. SolarEdge
reserves the right to make changes to the material at any time and without notice. You
may refer to the SolarEdge web site (www.solaredge.com) for the most updated version.
All company and brand products and service names are trademarks or registered
trademarks of their respective holders.
Patent marking notice: see http://www.solaredge.com/patent
The general terms and conditions of delivery of SolarEdge shall apply.
The content of these documents is continually reviewed and amended, where
necessary. However, discrepancies cannot be excluded. No guarantee is made for the
completeness of these documents.
The images contained in this document are for illustrative purposes only and may vary
depending on product models.
Emission Compliance
This equipment has been tested and found to comply with the limits applied by the
local regulations.
These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, you are encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Disclaimers 2
StorEdge Interface Installation Guide MAN-01-00621-1.1

Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for
compliance may void the user’s authority to operate the equipment.
StorEdge Interface Installation Guide MAN-01-00621-1.1
3 Emission Compliance

Revision History
Version 1.1 (September 2019)
Added Running a Battery Self-test on page 21.
Version 1.0 (July 2019)
First version of this guide
Revision History 4
StorEdge Interface Installation Guide MAN-01-00621-1.1

HANDLING AND SAFETY INSTRUCTIONS
During installation, testing and inspection, adherence to all the handling and safety
instructions is mandatory. Failure to do so may result in injury or loss of life and
damage to the equipment.
Safety Symbols Information
The following safety symbols are used in this document. Familiarize yourself with the
symbols and their meaning before installing or operating the system.
WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in injury or loss of life. Do not proceed
beyond a warning note until the indicated conditions are fully understood and
met.
CAUTION!
Denotes a hazard. It calls attention to a procedure that, if not correctly
performed or adhered to, could result in damage or destruction of the
product. Do not proceed beyond a caution sign until the indicated conditions
are fully understood and met.
NOTE
Denotes additional information about the current subject.
IMPORTANTSAFETYFEATURE
Denotes information about safety issues.
Disposal requirements under the Waste Electrical and Electronic Equipment (WEEE)
regulations:
NOTE
Discard this product according to local regulations or send it back to SolarEdge.
IMPORTANT SAFETYINSTRUCTIONS
SAVETHESEINSTRUCTIONS

WARNING!
The inverter cover must be opened only after shutting off the inverter ON/OFF
switch located at the bottom of the inverter. This disables the DC voltage inside
the inverter. Wait five minutes before opening the cover. Otherwise, there is a
risk of electric shock from energy stored in the capacitors.
StorEdge Interface Installation Guide MAN-01-00621-1.1
5 HANDLING AND SAFETY INSTRUCTIONS

WARNING!
Do not remove the StorEdge Interface cover before five minutes have elapsed
after disconnecting all sources of power, and shutting OFFthe inverter and the
StorEdge Interface.
WARNING!
Before operating the system, ensure that the power cable and wall outlet have
been grounded properly.
WARNING!
When handling the battery, adhere to all manufacturer safety instructions.
WARNING!
The battery must be powered off before and during wiring.
To power off the battery:
1. Turn off the circuit breaker.
2. Turn off the disconnect/auxiliary power switch.
To power the battery back on:
1. Turn on the disconnect/auxiliary power switch.
2. Turn on the circuit breaker.
For details, see Powering the LG Chem Battery Off and On on page 24.
CAUTION!
This unit must be operated under the specified operating conditions as
described in the technical specifications supplied with the unit.
NOTE
The battery used must be NRTL certified.
NOTE
For battery decommissioning and disposal, follow the manufacturer
requirements and instructions.
NOTE
The StorEdge Interface is IP65 rated. Unused connectors and glands should be
sealed with the provided seals.
NOTE
The symbol appears at grounding points on the SolarEdge equipment. This
symbol may also be used in this manual.
HANDLING AND SAFETY INSTRUCTIONS 6
StorEdge Interface Installation Guide MAN-01-00621-1.1

Chapter 1: Overview
SolarEdge’s StorEdge™ solution for Smart Energy Management uses the StorEdge
Interface to connect the battery to the inverter.
Power is stored in the battery and can be used for various applications such as
maximized self-consumption and time of use profile programming. For backup power,
an inverter specifically designed for backup applications is required; this inverter is not
in the scope of this document.
The StorEdge Solution Components
The Inverter - manages the battery and system energy, in addition to its traditional
functionality as a DC-optimized PV inverter.
The Energy Meter - is used by the inverter for export, import, production and
consumption readings, and for Smart Energy Management applications, such as:
export limitation and maximizing self-consumption.
The StorEdge Interface - The StorEdge Interface connects the battery to the
inverter through fuses, and supplies control and monitoring signals to the battery
for operation.
One battery - a DC-coupled battery designed to work with the SolarEdge system.
StorEdge Interface Installation Guide MAN-01-00621-1.1
7 Chapter 1: Overview

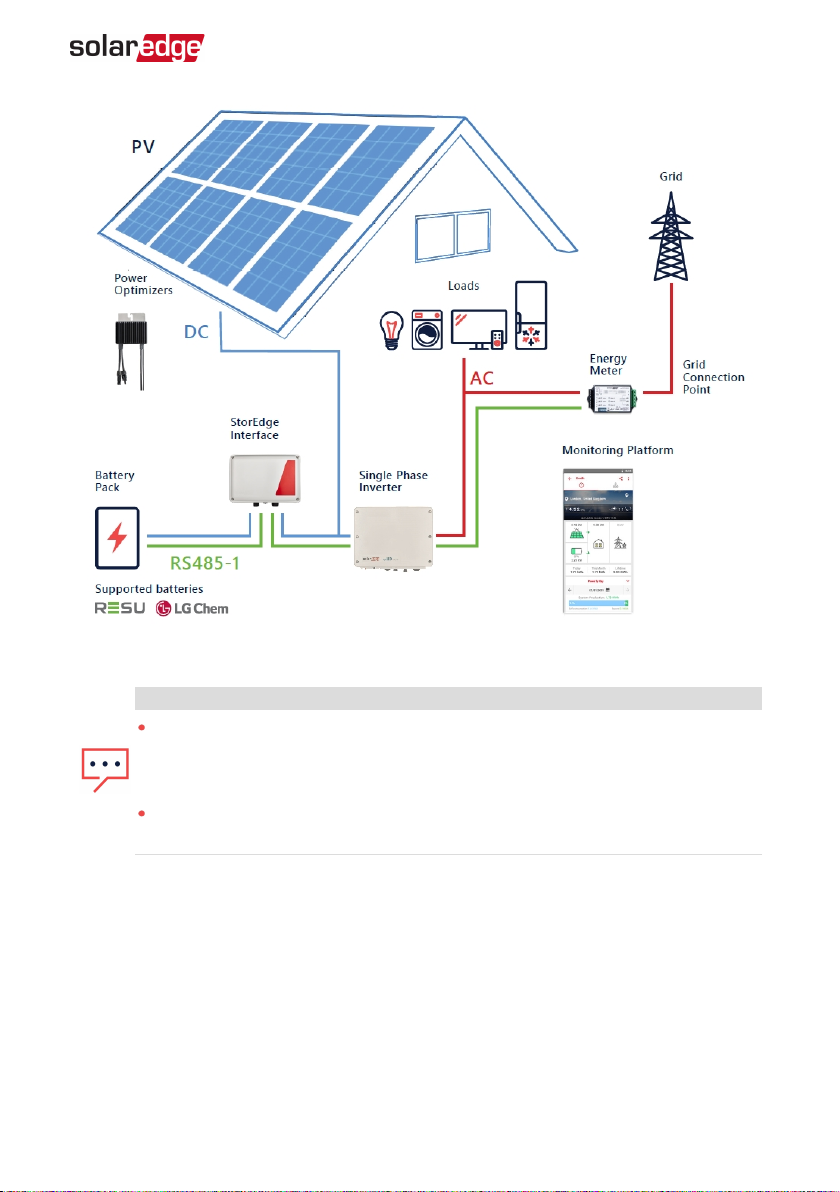

Figure 1: StorEdge system components
NOTE
Additional SolarEdge inverters (without batteries) can be connected over
RS485. The inverters will participate in export limitation and Smart Energy
Management.
PV modules connected to power optimizers are not mandatory for charge/
discharge profile programming.
Additional References
This document describes basic system connection and configuration - PVsystem
(power optimizer strings), one inverter, one battery, and one meter.
For additional configuration options refer to the StorEdge Solution Applications -
Connection and Configuration Guide, available at:
Chapter 1: Overview 8
StorEdge Interface Installation Guide MAN-01-00621-1.1

https://www.solaredge.com/sites/default/files/storedge_applications_
connection_and_configuration_guide.pdf

If your inverter has an LCDdisplay (it is not SetApp configurable), refer to
this guide for StorEdge Interface installation and configuration:
https://www.solaredge.com/sites/default/files/storedge_interface_
installation_with_LG_and_HD_wave.pdf
Installation Workflow
When installing the StorEdge system, follow this workflow to ensure all the components
are connected and functioning correctly.
Plan the StorEdge system layout:
The battery and StorEdge Interface will connect to the DC side of the inverter.
Since the inverter DC connections are on its left side, it is recommended to
position the battery and interface to the left of the inverter to simplify wiring.
The total distance between the battery and the inverter, including StorEdge
Interface, should not exceed the maximum distance shown in the figure below:

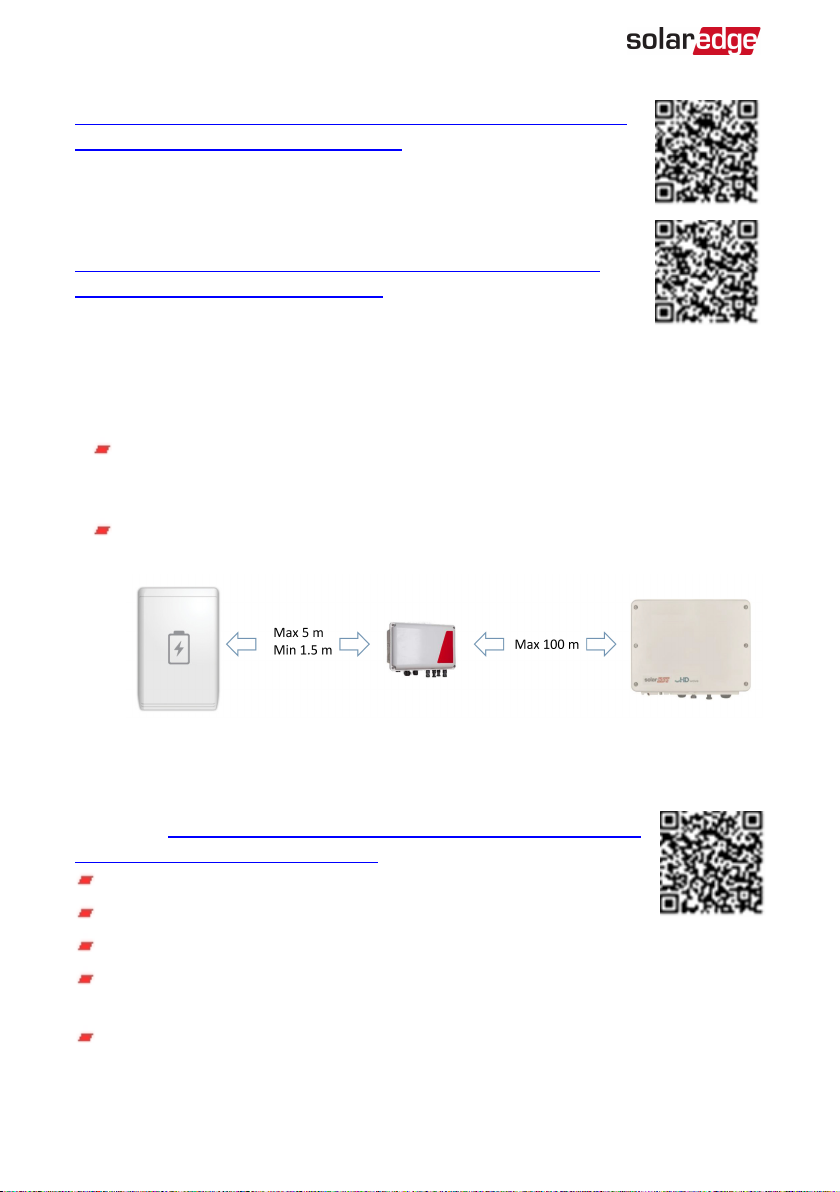

Figure 2: System Layout
Step 1 - PVsystem installation - modules, power optimizers and inverter(s). Refer to the
following chapters of the SolarEdge Installation Guide supplied with the inverter and
available at https://www.solaredge.com/sites/default/files/se_hd_wave_
inverter_SetApp_installation_guide.pdf:
Installing the Power Optimizers (if applicable)
Installing the Inverter
Connecting the AC and the Strings to the Inverter
Activating the inverter- as described in the Commissioning chapter of the
SolarEdge Installation Guide , using the activation card supplied with the inverter.
Pairing the system - as described in the Commissioning chapter of the SolarEdge
StorEdge Interface Installation Guide MAN-01-00621-1.1
9 Installation Workflow

Installation Guide
Setting Up Communication

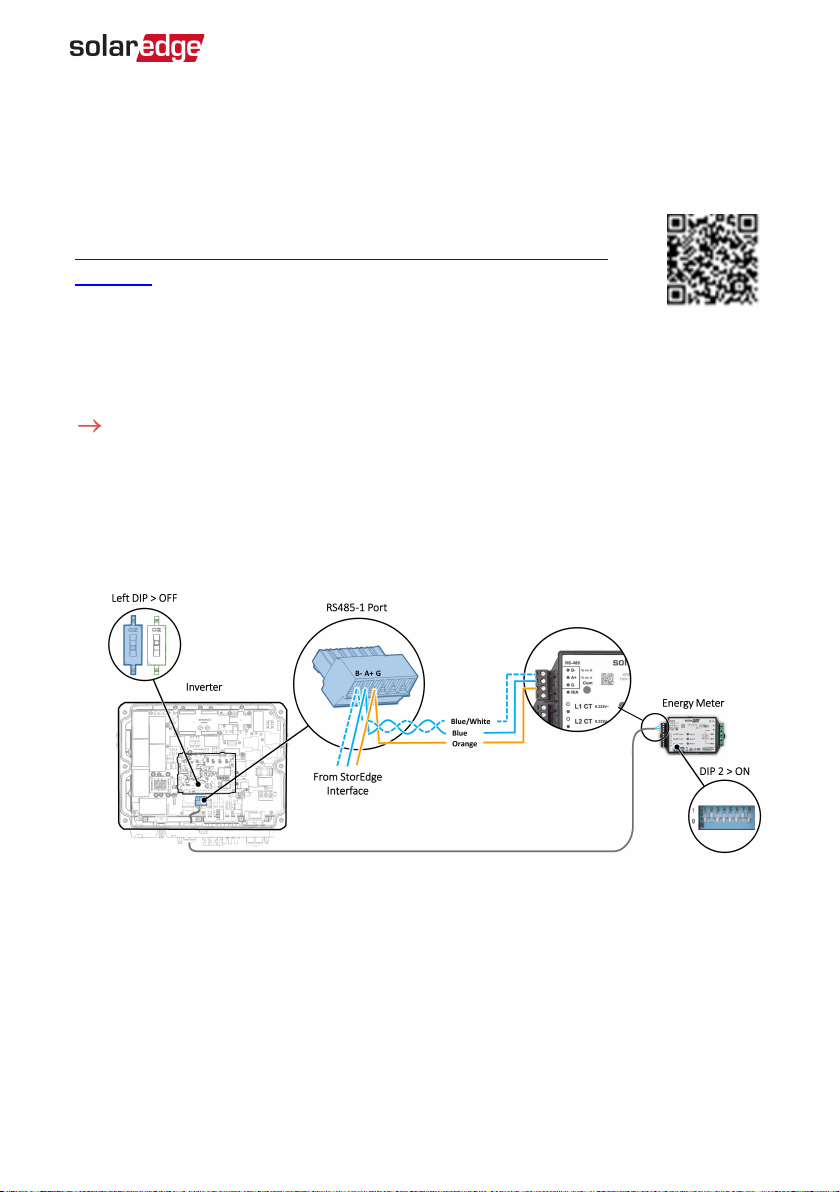

Step 2 - Install an Energy Meter (required for Smart Energy Management). See
"Connecting the Energy Meter" on page12.
Step 3 - Install and configure the StorEdge Interface. See StorEdge Interface Installation
on page 13.
Step 4 - Connect the battery to the StorEdge Interface and mount the battery. Refer to
the installation information in the manufacturer documentation, and to Connecting the
StorEdge Interface to the Battery on page 17.
Step 5 - Configure the communication between the inverter and other devices (Energy
Meter, battery). See Setting up Communication with the Battery and Energy Meter on
page 20.

Installation Equipment List
Standard tools can be used during the installation of the SolarEdge system. The
following is a recommendation of the equipment needed for installation:
Allen screwdriver for 5mm screw type for the inverter enclosure screws.
Allen screwdriver for M5/M6/M8 screw types
Standard flat-head screwdrivers set
Non-contact voltage detector
Cordless drill (with a torque clutch)or screwdriver and bits suitable for the surface
on which the inverter and optimizers will be installed. Use of an impact driver is not
allowed.
Appropriate mounting hardware (for example: stainless bolts, nuts, and washers)
for attaching:
the mounting brackets to the mounting surface
the power optimizer to the racking (not required for smart modules)
MC4 crimper
Wire cutters
Wire strippers
Voltmeter
Mobile phone with latest SetApp version
Chapter 1: Overview 10
StorEdge Interface Installation Guide MAN-01-00621-1.1

For installing the communication options, you may also need the following:
For Ethernet:
CAT5/6 twisted pair Ethernet cable with RJ45 connector
If using a CAT5/6 cable spool: RJ45 plug and RJ45 crimper
For RS485 and battery:
Four- or six-wire shielded twisted pair cable
Watchmaker precision screwdriver set
StorEdge Interface Installation Guide MAN-01-00621-1.1
11 Installation Equipment List

Chapter 2: Connecting the Energy Meter
For Smart Energy Management applications, such as export limitation and maximizing
self-consumption, the StorEdge solution requires an Energy Meter.
To install the Energy Meter, refer to the installation guide supplied with it:
http://www.solaredge.com/files/pdfs/solaredge-meter-installation-
guide.pdf.

For communication, the Energy Meter and the StorEdge Interface use the same RS485-1
port on the inverter's communication board.
Use a 3-wire shielded twisted pair cable, 0.2 (0.2-1) mm² 600V or CAT5.
To connect the Energy Meter to the inverter
1. Connect one end of the communication cable to the Energy Meter, as explained in
the Energy Meter's installation guide.
2. Open one of the inverter's communication glands and insert the other end of the
communication cable through the gland.

Figure 3: Meter Connection
3. Make sure the RS485-1 DIPswitch (the left switch) is OFF.
4. Make sure the Energy Meter's DIPswitch 2 is ON.
5. Proceed with connection only after installing the StorEdge Interface, as explained in
"Connecting the StorEdge Interface to the Inverter" on page14.
Chapter 2: Connecting the Energy Meter 12
StorEdge Interface Installation Guide MAN-01-00621-1.1

Chapter 3: StorEdge Interface Installation
Unpacking and Identifying the Product
An identification label with product specifications is attached to each device.
Check the equipment for damage before starting installation: There are no loose parts.
All parts are either mounted or located in the accessory kit. If any damage is found,
document the damage and contact SolarEdge.
Mounting the StorEdge Interface
1. Determine the StorEdge Interface mounting location, on a wall or pole, as follows:
Maximum total distance between the battery and the inverter, including
StorEdge Interface: 100 m (330 ft).
Maintain a minimum 20 cm (8”) clearance between the StorEdge Interface and
other objects.
Figure 4: StorEdge Interface clearance
StorEdge Interface Installation Guide MAN-01-00621-1.1
13 Chapter 3: StorEdge Interface Installation

2. Install the bracket. Verify that the bracket is firmly attached to the mounting surface.
Figure 5: Mounting the StorEdge Interface
3. Attach the StorEdge interface back brackets to the mounting bracket using the four
supplied bolts. Tighten the bolts with a torque of 9 N*m / 6.6 lb*ft.
4. Loosen the four Allen screws of the StorEdge Interface cover and remove the cover.
Connecting the StorEdge Interface

Figure 6: StorEdge Interface connectors
Connecting the StorEdge Interface to the Inverter
For communication, the Energy Meter and the StorEdge Interface use the same RS485-1
port on the inverter's communication board.
Chapter 3: StorEdge Interface Installation 14
StorEdge Interface Installation Guide MAN-01-00621-1.1

Use a communication cable with the following specifications:
Cable type: Min. 3-wire shielded twisted pair (a shielded Ethernet cable (CAT5/5e
STP) may be used)
Wire cross-section area: 0.2- 1 mm²/ 24-18 AWG (a CAT5 cable may be used)
To connect to the inverter DC:
1. Prepare one pair of DCcables with MC4 connectors at both ends - male at one end
and female at the other end.
2. Connect one end of the cables to the inverter, and connect the other end to the
DC+ and DC- input connectors marked INV OUT.
NOTE
If all the inverter DC inputs are connected to PV strings, use a branch cable
to connect the StorEdge Interface to the inverter DC input.
To connect RS485 communication between the inverter and StorEdge Interface:
1. Connect one end of the communication cable to the RS485 terminal block in the
StorEdge Interface (see Figure 7 ):
a. Open a communication gland.
b. Remove the seal from one of the openings and insert the cable through the
opening.
c. Connect the wires to the B-, A+ and G pins (use a twisted pair for A+ and B-).
Use a screwdriver to release the wire clamps on the terminal block.

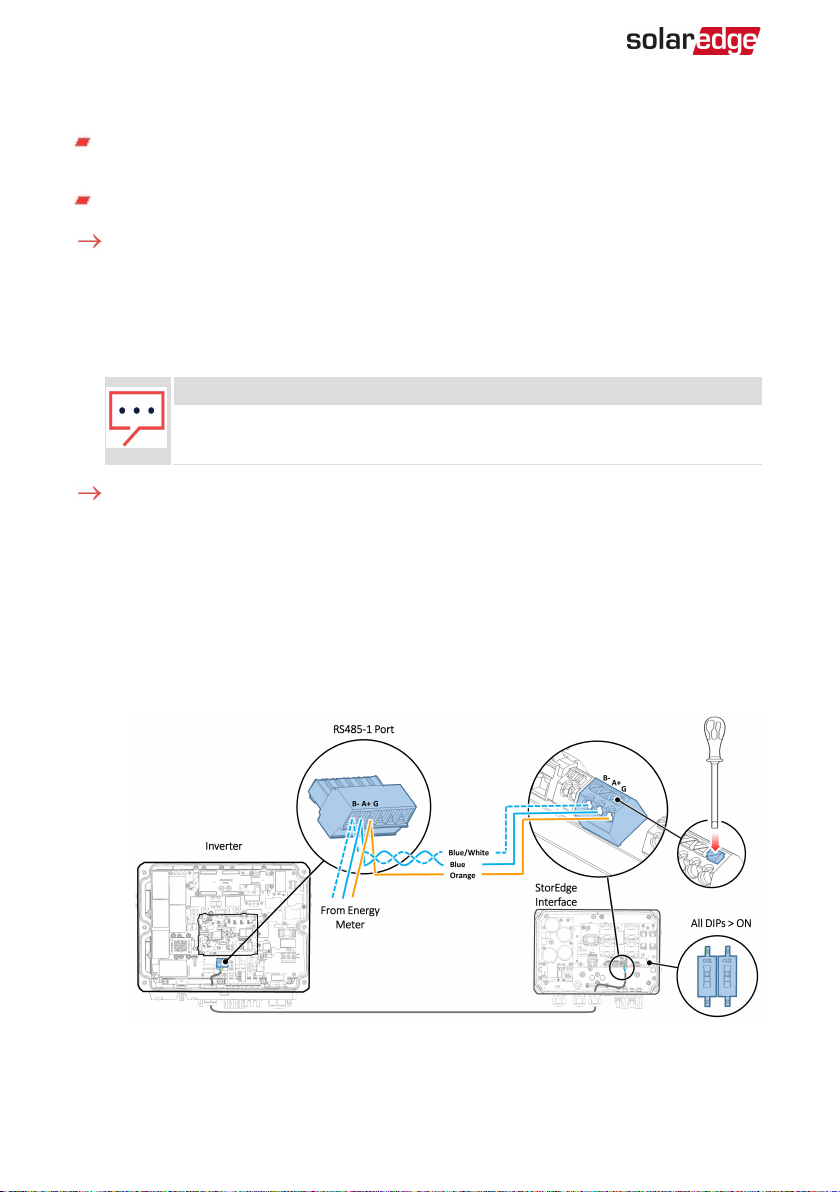

Figure 7: Communication cable connection - Inverter to StorEdge Interface
2. Connect the other end of the communication cable to the inverter communication
StorEdge Interface Installation Guide MAN-01-00621-1.1
15 Connecting the StorEdge Interface

board:
a. Open the inverter cover as described in its manual.
b. Remove the seal from one of the openings in the communication gland and
insert the wire through the opening.
c. Remove the 6-pin connector from the RS485-1 port on the communication
board.
d. Loosen the screws of the three leftmost openings on the connector (RS485-1
port).
e. Twist the communication wires of the StorEdge Interface and of the Energy
Meter together (B with B, A with A, G with G).
f. Insert the twisted wires into the connector and tighten them with the screws.
g. Check that the wires are fully inserted and cannot be pulled out easily.
Connecting the StorEdge Interface to AC
NOTE
The AC is used for auxiliary power only and does not carry high power.
Use a three-wire cable with a cross section of 1-2mm2.
To connect to AC:
1. Turn OFFthe ACpower source to be connected to the StorEdge Interface.
2. Remove the StorEdge Interface's ACsealing gland.
3. Strip off 5/16" (8mm) of the AC cable insulation and expose two line wires and one
groundingwire.
Chapter 3: StorEdge Interface Installation 16
StorEdge Interface Installation Guide MAN-01-00621-1.1

4. Insert the wire ends into the AC terminal block (L, N, G). Use a screwdriver to release
the wire clamps on the terminal block.

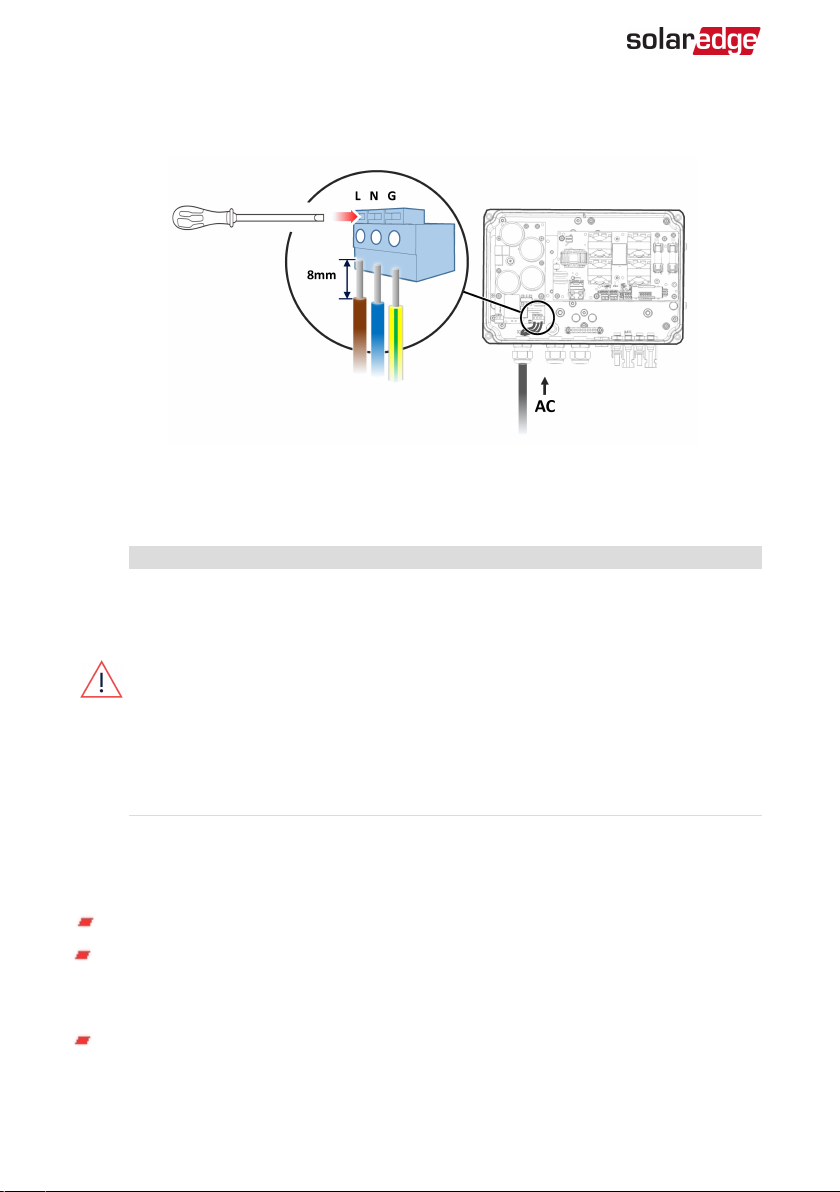

Figure 8: AC connection
Connecting the StorEdge Interface to the Battery
WARNING!
The battery must be powered off before and during wiring.
To power off the battery:
1. Turn off the circuit breaker.
2. Turn off the disconnect/auxiliary power switch.
To power the battery back on:
1. Turn on the disconnect/auxiliary power switch.
2. Turn on the circuit breaker.
For details, see Powering the LG Chem Battery Off and On on page 24.
Before installing the battery pack according to the instructions provided by the battery
manufacturer, connect the battery to the StorEdge Interface as described in this section.
In addition, follow these guidelines:
Make sure the battery's circuit breaker switch is OFF.
For easy access to battery connectors, it is recommended to connect the cables to
the battery and to set all battery DIP switches to their correct positions before
mounting the battery.
Measure the necessary length between the StorEdge Interface and the battery for
all cables.
StorEdge Interface Installation Guide MAN-01-00621-1.1
17 Connecting the StorEdge Interface

Mark polarity on DCcables.
Mount the battery.
Connect all the wires to the battery connection panel.
Connect to the StorEdge Interface .
Tie and wrap the cables to avoid pulling them out during mounting.
For additional information, refer to
http://www.solaredge.com/sites/default/files/storedge_interface_wiring_
quick_guide_and_on_site_checklist_for_lg_batteries.pdf.

To connect the battery and the StorEdge Interface:
1. Connect a communication cable between the StorEdge Interface and the battery.
Use a 5-wire shielded twisted pair cable with a cross section of 0.2 (0.2 - 1.5)
mm2. A CAT5 600V insulated cable can also be used.
Use a screwdriver to release the wire clamps on the terminal block.
Figure 9: Communication cable connection - LGChem Battery to StorEdge Interface
2. Connect DC cables between the StorEdge Interface and the battery.
Use a pair of PV DC cables with a cross section of 6 (4-6) mm2, 600V insulated, with
MC4 connectors at one end.
Chapter 3: StorEdge Interface Installation 18
StorEdge Interface Installation Guide MAN-01-00621-1.1

WARNING!
Make sure to connect the power cables at correct polarity. Connecting the
power cables at reverse polarity may result in damage to the inverter or
battery.
Figure 10: DC cable connection - LGChem Battery to StorEdge Interface
3. Make sure the battery is properly grounded.
4. Close the StorEdge Interface cover and fasten it with the four screws with a torque
of 1.2 N*m / 0.9 ft.*lb.
StorEdge Interface Installation Guide MAN-01-00621-1.1
19 Connecting the StorEdge Interface
