SolarEdge SE3000 User manual

SolarEdge Installation Guide –MAN-01-00057-2.0
1
Cover goes here
(right-side [odd] page)
photovoltaikforum.com

Disclaimers
SolarEdge Installation Guide –MAN-01-00057-2.0
2
Disclaimers
Important Notice
Copyright © SolarEdge Inc. All rights reserved.
No part of this document may be reproduced, stored in a retrieval system or transmitted, in
any form or by any means, electronic, mechanical, photographic, magnetic or otherwise,
without the prior written permission of SolarEdge Inc.
This document is solely for the use of SolarEdge customers and employees.
The material furnished in this document is believed to be accurate and reliable. However,
SolarEdge assumes no responsibility for the use of this material. SolarEdge reserves the
right to make changes to the material at any time and without notice. You may refer to the
SolarEdge web site (www.solaredge.com) for the most updated version.
All company and brand products and service names are trademarks or registered
trademarks of their respective holders.
Exclusion of Liability
The general terms and conditions of delivery of SolarEdge shall apply.
The content of these documents is continually reviewed and amended, where necessary.
However, discrepancies cannot be excluded. No guarantee is made for the completeness of
these documents.
photovoltaikforum.com

Table of Contents
SolarEdge Installation Guide –MAN-01-00057-2.0
3
Table of Contents
Handling and Safety Instructions.................................................................5
Support and Contact Information................................................................6
Chapter 1, Introducing the SolarEdge PowerHarvesting System....9
What is the SolarEdge Power Harvesting Solution? ..................................9
SolarEdge Power Optimizer .....................................................................9
SolarEdge Inverters ................................................................................10
SolarEdge Monitoring Portal..................................................................11
Installation Workflow..................................................................................11
Transport and Storage ................................................................................12
Inverter Transport...................................................................................12
Inverter Storage ......................................................................................12
Equipment List.............................................................................................12
Chapter 2, Installing the Power Optimizers...............................13
Applicable Notes and Warnings.................................................................13
Step 1, Mounting the Power Optimizers....................................................14
Step 2, Connecting Each PV Module to a Power Optimizer......................15
OP250-LV, OP300-MV, OP400-MV, OP400-EV ....................................15
Connecting Power Optimizers................................................................17
Step 3, Connecting Power Optimizers in Strings......................................17
Verifying Proper Power Optimizer Connection .....................................18
Step 4, Recording Installation Information...............................................19
Chapter 3, Installing the Inverter................................................21
Identifying the Inverter...............................................................................21
Selecting the Mounting Location................................................................21
Chassis Clearance...................................................................................21
Mounting the Inverter.................................................................................23
Connecting the Inverter ..............................................................................25
Inverter Connection Overview ...............................................................25
Connecting the SolarEdge Inverter.........................................................26
Completing the Inverter Installation.......................................................29
Residual Current Device .............................................................................31
Chapter 4, Commissioning the Installation ................................33
Commissioning –Workflow........................................................................33
Step 1, Activating the System.................................................................33
photovoltaikforum.com

Table of Contents
SolarEdge Installation Guide –MAN-01-00057-2.0
4
Step 2, Pairing Power Optimizers to the Inverter ...................................35
Step 3, Verifying Proper Operation .........................................................37
Step 4, Reporting and Monitoring Installation Data...............................38
Chapter 5, Replacing and Adding System Components............41
Modifying an Existing Installation.............................................................41
Three Phase Inverters –Replacing the Fans.............................................43
Chapter 6, Setting Up Communication.......................................45
Communication Dataflow ...........................................................................45
Connector Panel...........................................................................................45
Communication Types.................................................................................46
Creating an RS232 (UART) Connection....................................................47
Creating an Ethernet (LAN) Connection...................................................49
Creating an RS485 Bus Connection...........................................................54
Verifying the Connection ............................................................................59
Troubleshooting Communication ...........................................................59
Chapter 7, Inverter User Interface..............................................61
Inverter LCD Panel and LEDs...................................................................61
Inverter LCD Panel and User Buttons....................................................62
Configuring the Inverter Using the LCD Panel and User Buttons..........67
Inverter Configuration Menu Options ....................................................72
LCD Button Menu Options ....................................................................74
Configuring the Inverter Using the SolarEdge Configuration Tool........75
Appendix A, Errors and Troubleshooting..................................77
Appendix B, Technical Specifications .........................................85
Single Phase Inverter...................................................................................85
Three Phase Inverter...................................................................................87
OP250-LV,OP300-MV,OP400-MVand OP400-EV....................................89
Appendix C, Power Optimizer Mechanical Specifications........91
OP250-LV, OP300-MV, OP400-MV, OP400-EV Power Optimizers......92
Appendix D, Safe DC....................................................................93
Appendix E, Limited Product Warranty....................................95
photovoltaikforum.com

Handling and Safety Instructions
SolarEdge Installation Guide –MAN-01-00057-2.0
5
Handling and Safety Instructions
During installation, testing and inspection adherence to the following handling
and safety instructions is mandatory.
Safety Symbols
The following safety symbols are used throughout this document. Familiarize
yourself with the symbols and their meaning before installing or operating this
instrument.
WARNING!
Denotes a hazard. It calls attention to a procedure that, if not correctly performed or
adhered to, could result in injury or loss of life. Do not proceed beyond a warning note
until the indicated conditions are fully understood and met.
CAUTION:
Denotes a hazard. It calls attention to a procedure that, if not correctly performed or
adhered to, could result in damage or destruction of the instrument. Do not proceed
beyond a caution sign until the indicated conditions are fully understood and met.
NOTE:
Denotes additional information about the current subject.
IMPORTANT SAFETY FEATURE:
Denotes information about safety issues.
Instructions
WARNING!
Do not remove the inverter cover before five minutes have elapsed after
disconnecting all sources of power. Only use lockable connectors for DC input.
Otherwise, there is a risk of electric shock form energy stored in the capacitor.
WARNING!
Before operating the SolarEdge inverter, ensure that the power cable and wall outlet
have been grounded properly.
WARNING!
Repairs or testing under power must only be performed by qualified SolarEdge
technicians who are familiar with and qualified to work with the SolarEdge inverter.
WARNING!
This unit is not intended to be opened by a user. It must only be opened by a qualified
technician for installation and maintenance purposes.
CAUTION:
This unit must be operated under the specified operating specifications, as described
in the technical specification document.
photovoltaikforum.com

Support and Contact Information
SolarEdge Installation Guide –MAN-01-00057-2.0
6
CAUTION:
Optimizers are IP65 rated. Choose a mounting location where optimizers will not be
submerged in water.
Unused connectors must be sealed. Exposed connectors may be unsafe or create
functional problems, and will void the warranty. Do not leave the optimizers exposed
to water unless the connectors are sealed, either by mating or by plugging with
appropriate plugs (not provided).
CAUTION:
The inveretrs are IP65 rated. Unused connectors and glands should be sealed with
the provided seals.
Support and Contact Information
If you have technical problems concerning our products, please contact us:
USA Canada: 1877 360 5292
Germany: 089-45459730 and 089-4161703-39
France: 0800917410
Belgium: 080073041
Italy: 800 784 824
United Kingdom: 08002061058
Israel: 073 2403118
Australia: 1800149229
Rest of World: [phone]
Fax: [phone]
Email to:
[email protected]m (all locations, excluding Germany and North
America)
[email protected]e (Germany)
[e-mail] (North America)
Before contact, please gather the following information:
Inverter and power optimizer type.
Serial number of the inverter and the power optimizer in question.
The error indicated on the inverter screen or on the SolarEdge Monitoring
Portal.
System configuration information, including the type and number of modules
connected and the number and length of strings.
The communication method to the SolarEdge server.
photovoltaikforum.com

Support and Contact Information
SolarEdge Installation Guide –MAN-01-00057-2.0
7
The Support option on the top right of the SolarEdge Configuration Tool’s
main window can be used to automatically collect all relevant information to be
sent to SolarEdge Professional Services for support. This option is described in
detail in the SolarEdge Configuration Tool Software Guide.
photovoltaikforum.com

Support and Contact Information
SolarEdge Installation Guide –MAN-01-00057-2.0
8
Blank page left intentionally
photovoltaikforum.com

Introducing the SolarEdge Power Harvesting System
SolarEdge Installation Guide –MAN-01-00057-2.0
9
Chapter 1
Introducing the SolarEdge Power
Harvesting System
What is the SolarEdge Power
Harvesting Solution?
The SolarEdge power harvesting solution maximizes the power output from any
type of solar PV installation while reducing the average cost per watt. The
sections below describe each of the system’s components.
SolarEdge Power Optimizer
SolarEdge power optimizers can be connected to existing PV modules in order to
maximize power harvesting by locally performing Maximum Power Point
Tracking (MPPT) at the PV module level.
The power optimizers keep the string voltage fixed, regardless of the length of the
string and of the environmental conditions. Each SolarEdge power optimizer
directly transmits performance data from every PV module over the power line.
Two types of power optimizers are provided by SolarEdge, as follows:
Module add-on solutions, connected during installation to one or more PV
module. P/N: OP250-LV, OP300-MV, OP400-MV and OP400-EV.
Module embedded solution (CSI), is supplied embedded into a PV module.
You may refer to the SolarEdge power optimizer datasheets in order to determine
which power optimizer is most suitable for you requirements.

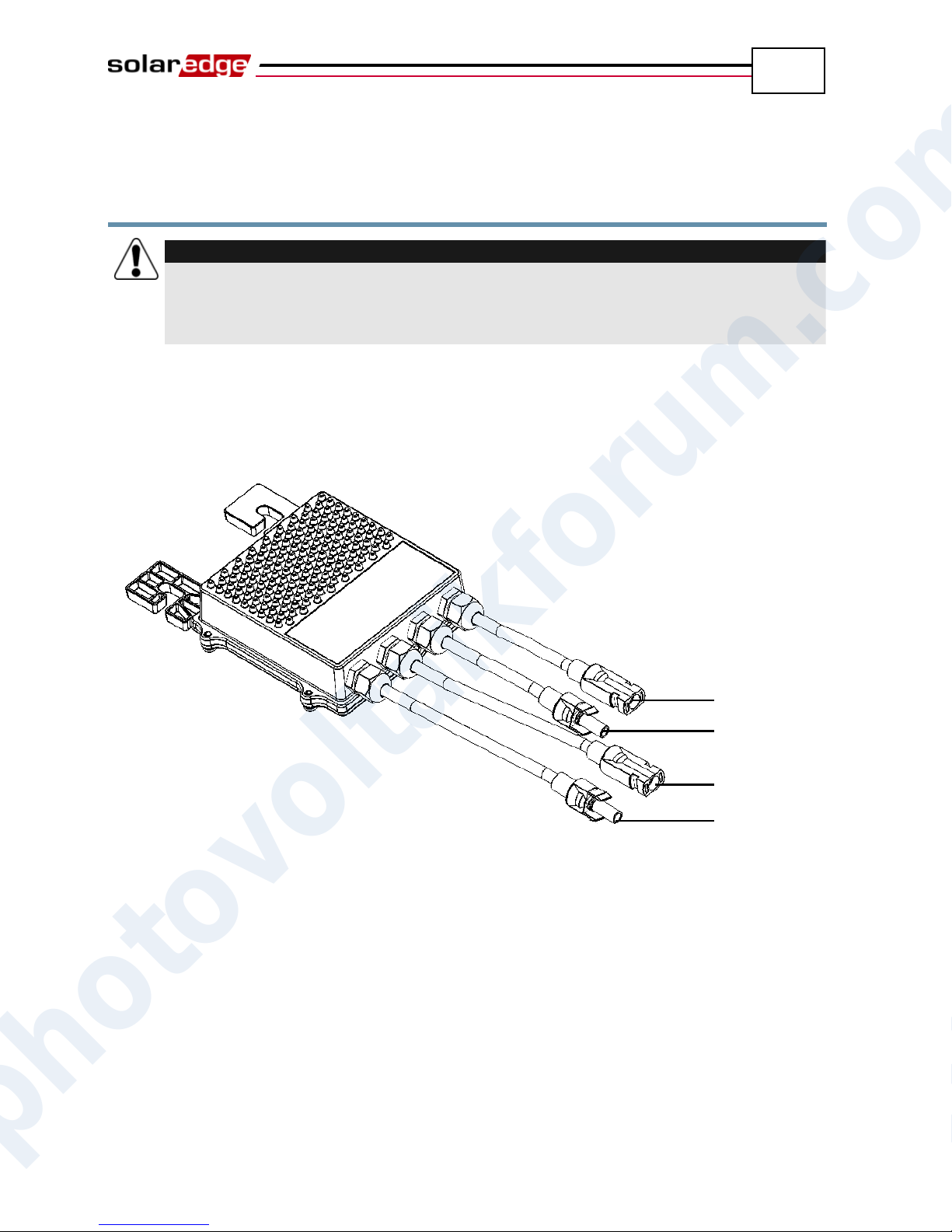

Figure 1: Add-On Box Solution
Mounting Hole
Mounting Hole
photovoltaikforum.com

Introducing the SolarEdge Power Harvesting System
SolarEdge Installation Guide –MAN-01-00057-2.0
10
SolarEdge Inverters
The SolarEdge Single Phase and Three Phase Inverters efficiently convert DC
power received from the PV modules into AC power that can be fed into the main
circuit board of the site and from there to the grid. The inverters also receive the
monitoring data from each power optimizer and transmit it to a central server
(called the Monitoring Server) through an Ethernet network to an external modem
connection.
Figure 2: SolarEdge Inverter
Inverter Package Contents
The following lists the contents of the inverter package:
One inverter.
One wall-mounting bracket.
One box containing the following:
Two Allen screws for fastening the inverter to the wall-mounting
bracket.
Installation Guide.
Quick Installation Guide.
Inverter activation instructions.
Top
Front
Bottom
LCD
Heat Sink
photovoltaikforum.com

Introducing the SolarEdge Power Harvesting System
SolarEdge Installation Guide –MAN-01-00057-2.0
11
SolarEdge Monitoring Portal
The SolarEdge Monitoring Portal enables you to monitor the technical and
financial performance of one or more SolarEdge Photovoltaic sites. It provides
information about present and past performance of each PV module individually
and about the system as a whole.
NOTE:
You may refer to the SolarEdge Monitoring Portal User Guide for more information
about this option.
Installation Workflow
The following provides an overview of the workflow for installing and setting up
a new SolarEdge site. Most of these procedures can also be used for adding
components to an existing SolarEdge site.
Page 13
Pages 19, 38
Page 21
Page 33
Page 45
Page 66
Installing the Inverter and
Connecting the String to the Inverter
Commissioning and Activating
the Installation
Recording Power Optimizer
Serial Numbers
Connecting the Inverter to the
SolarEdge Monitoring Server
Configuring the Inverter
Connecting Power Optimizers
to Modules and to a String
photovoltaikforum.com

Introducing the SolarEdge Power Harvesting System
SolarEdge Installation Guide –MAN-01-00057-2.0
12
Transport and Storage
Inverter Transport
The SolarEdge inverter should be transported in its original packaging, facing up
and without exposing the inverter to unnecessary shocks.
Inverter Storage
Store the inverter in a dry place where ambient temperatures are always between
-20°C and +50°C.
Equipment List
Standard tools can be used during the installation of the SolarEdge system. The
following is a recommendation of the equipment to be used when installing a
SolarEdge system:
Allen screwdriver for M6 and M5 screw types.
Drilling machine and bits suitable for a wall or pole, where the inverter
mounting bracket is installed.
Suitable screws for attaching the inverter mounting bracket to a wall.
M6 (1/4”) screws for attaching the power optimizer to the racking.
MC4 crimper
Toolbox, including wire cutters, wire strippers and screwdrivers
Optional: Voltmeter, Electric screwdriver
For installing the communication option, you may also need the following:
For Ethernet: RJ45 connectors
For RS485: A three-wire cable. A four- or six-wire twisted pair telephone
cable may be used.
An inverter has either RJ45/RJ11 connectors or block terminal connectors for
communication. For RJ45/RJ11 connectors, you also require the following:
For Ethernet:
CAT5 twisted pair Ethernet cable
RJ45 crimping tool
For RS485:
RJ11 six-pin connector (also known as RJ25)
RJ11 crimping tool
photovoltaikforum.com

Installing the Power Optimizers
SolarEdge Installation Guide –MAN-01-00057-2.0
13
Chapter 2
Installing the Power Optimizers
Applicable Notes and Warnings
The following notes and warnings apply when installing the SolarEdge power
optimizers:
CAUTION:
If installing directly on the module or module frame, first consult the module
manufacturer for guidance regarding location and the impact on the module warranty.
CAUTION:
SolarEdge power optimizers and inverters use connectors from the following
manufacturers:
Multi Contact MC4
Amphenol H4
Tyco keyed connector
Huber Suhner Raddox
Installing a SolarEdge system without ensuring compatibility of the module connectors
with the optimizer connectors may be unsafe and could cause functionality problems
such as ground faults, resulting in inverter shut down.
In order to ensure mechanical compatibility of the SolarEdge optimizers and the
modules to which they are connected:
Use identical connectors from the same manufacturer and of the same type on
both the power optimizers and on the modules; or
Verify that the connectors are compatible in the following way:
▪The connector manufacturer should explicitly verify compatibility with the
SolarEdge connector; and
▪A third-party test report by one of the listed external labs (TUV, VDE, Bureau
Veritas UL, CSA, InterTek) should be obtained, verifying the compatibility of
the connectors.
NOTE:
The power optimizer may be placed in any orientation, meaning there is no up
direction.
NOTE:
The power optimizer should be mounted in a location that is either ventilated or that
has a free space of air around it for heat dissipation.
NOTE:
Mounting brackets are suited to either a flat surface or a pole and can be attached to
any surface texture.
photovoltaikforum.com

Installing the Power Optimizers
SolarEdge Installation Guide –MAN-01-00057-2.0
14
IMPORTANT SAFETY FEATURE:
PV modules with SolarEdge power optimizers are safe. They only carry a low safety
voltage before the inverter is turned on.
IMPORTANT SAFETY FEATURE:
As long as the power optimizers are unconnected to the inverter or the inverter is
OFF, the power optimizers will output a safe 1V voltage during installation.
IMPORTANT NOTE:
SolarEdge power optimizers are energized by the PV modules to which they are
connected. String length must not be less than eight power optimizers when using a
single phase inverter and sixteen power optimizers when using a three phase inverte,
or the entire string may shut down. (Please refer to the power optimizer datasheets for
the exact minimum and maximum number of power optimizers permitted in a string.)
NOTE:
Completely shaded PV modules may cause the affected power optimizers to temporarily
shut down. This will not affect the performance of the other power optimizers in the
string, as long as the minimum string length requirement is met when taking into account
the lighted modules only. If under typical conditions modules connected to fewer than
eight optimizers in a single phase system or to fewer than sixteen optimizers in a three
phase system will remain unshaded, add more PV modules.
Step 1, Mounting the Power
Optimizers
Determine the mounting location of each power optimizer. The power
optimizer should be mounted in a place where it can be mounted securely
using both mounting holes. It must also be located near enough so that the
power optimizer can connect to a single PV module. Mark all mounting hole
locations.
Each power optimizer must be attached to the rack using both mounting
holes.
Drill the holes.
CAUTION:
Do not drill through the power optimizer or through the mounting holes. The vibrations
created bythe drill can damage the power optimizer and will void the warranty.
Mount one power optimizer at each location using M6 (1/4”) screws and
washers.
Verify that the power optimizer is securely attached.
photovoltaikforum.com

Installing the Power Optimizers
SolarEdge Installation Guide –MAN-01-00057-2.0
15
Step 2, Connecting Each PV Module
to a Power Optimizer
WARNING!
Before performing this step, turn OFF the inverter by turning off the ON/OFF switch at
the bottom of the inverter and the AC switch of the main circuit board. All inverters in
an installation site should be switched OFF in this manner. This step is required to
verify that the power optimizers will output a safe 1V voltage during installation.
OP250-LV, OP300-MV, OP400-MV, OP400-EV
These power optimizers connect to a single PV module via its two inputs (a plus
and a minus).
Figure 3: OP250-LV, OP300-MV, OP400-MV, OP400-EV
Input +
Input -
Output -
Output +
photovoltaikforum.com

Installing the Power Optimizers
SolarEdge Installation Guide –MAN-01-00057-2.0
16
The following shows the required clearance around the power optimizer.
Figure 4: Clearance –Top View
Figure 5: Clearance –Side View
1” (2.5 cm)
1” (2.5 cm)
1” (2.5 cm)
1” (2.5 cm)
photovoltaikforum.com

Installing the Power Optimizers
SolarEdge Installation Guide –MAN-01-00057-2.0
17
Connecting Power Optimizers
►To connect these power optimizers to the PV modules:
WARNING!
Verify that you have identified the inputs and outputs correctly. Do not connect PV
modules to power optimizer outputs.
NOTE:
The power optimizer has reverse polarity protection. Even so, you must still verify the
correct polarity by checking the PV module’s polarity with a voltmeter. Some module
manufacturers may use connector polarity that is different from that used by
SolarEdge power optimizer inputs.
The input connectors are shown in the figures above. The output connectors
are in the middle of each side.
Step 3, Connecting Power Optimizers
in Strings
Power optimizers must be connected in series in order to construct strings.
IMPORTANT SAFETY FEATURE:
As long as the power optimizers are unconnected to the inverter and the inverter is
OFF, the power optimizers will output a safe 1V voltage during installation.
The full string can either be directly connected to the inverter or connected in
parallel to another strings and then together they are connected to the
inverter.
You can construct and connect in parallel strings of unequal length, meaning
the number of power optimizers in each string does not have to be the same.
The power optimizer output cables are labeled +and –.
Connect the Plus (+) connector of the output wire of the first power optimizer
in the string to the Minus (-) connector of the second power optimizer in the
string. Repeat this step for each power optimizer in the string. This procedure
is similar to the standard procedure for connecting PV modules.
WARNING!
Make sure that the Plus (+) and the Minus (-) connector cables are firmly and totally
inserted.
IMPORTANT NOTE:
Be sure to record power optimizer serial numbers during their installation, as this
information may be required later for troubleshooting.
The SolarEdge Monitoring Portal can be used to access SolarEdge site information, as
described in the Step 4, Reporting and Monitoring Installation Data section on page 38.
photovoltaikforum.com

Installing the Power Optimizers
SolarEdge Installation Guide –MAN-01-00057-2.0
18
Verifying Proper Power Optimizer
Connection
►To verify proper power optimizer connection:
Make sure the PV modules are exposed to sunlight during this process.
Otherwise, the power optimizers may not be on.
Verify each string individually before connecting it to the other strings or to
the inverter.
Each power optimizer connected to a PV module initially produces a safe
voltage of 1 V. A string with properly connected power optimizers should
produce 1 V per power optimizer in the string. For example, if 10 power
optimizers are connected in a string, then 10 V should be produced. Use a
voltmeter with at least 0.1V measurement accuracy to verify that the total
voltage produced is in accordance with the number of power optimizers in
the string.
If 0 V is measured for the string, check for a disconnection of the outputs
of one of the power optimizers.
If the voltage is lower than the quantity of power optimizers (for
example, 9 V when 10 power optimizers are connected), verify whether
one or more of the power optimizers are not connected, meaning they
were skipped during the string connection process. If they are all
connected, verify whether one or more of the PV modules is not
connected properly to its power optimizer.
If the voltage is too high, then apply the CAUTION below.
photovoltaikforum.com

Installing the Power Optimizers
SolarEdge Installation Guide –MAN-01-00057-2.0
19
CAUTION:
If the measured voltage is too high, the installation may not have a safe low
voltage. PROCEED WITH CARE!!
Please note that a deviation of up to 2V for a full string is considered
normal.
A voltage that is higher than the quantity of power optimizers may be
caused by one of the following reasons:
An extra power optimizer is connected in the string.
The output of a PV module may be connected in the string instead of the
output of a power optimizer.
A malfunction of one of the power optimizers.
Perform the following if the total string voltage is too high:
Verify that only power optimizers are connected in the string and that no
PV module outputs are connected without a power optimizer.
Disconnect the wires that connect the power optimizers in the string.
Measure that there is 1V safety voltage for each individual power
optimizer in order to locate the power optimizer that does not output the
proper voltage.
If a malfunctioning power optimizer is located, check its connections,
polarity, module and voltage.
If a malfunction cannot be bypassed or resolved, skip the malfunctioning
power optimizer, thus connecting a shorter string.
Do not continue before finding the problem and removing the
malfunctioning power optimizer.
IMPORTANT SAFETY FEATURE:
After a PV module is connected to the power optimizer, the power optimizer
outputs a safe voltage of 1 V. We suggest verifying this output for the first
few power optimizers that you connect in order to verify their proper
connection. Take note that if you use a tracker, the power optimizer will turn
ON only if the tracker is tracking the sun and at least 2 W of power are
provided by the PV module.
Step 4, Recording Installation
Information
Be sure to record power optimizer serial numbers during their installation, as this
information may be required later for troubleshooting, and is necessary for proper
physical layout on the monitoring website.
The serial number(s) of the inverter(s) must be specified in order to open a new
site.
For more information about recording and monitoring installation data, see
page 38.
photovoltaikforum.com

Installing the Power Optimizers
SolarEdge Installation Guide –MAN-01-00057-2.0
20

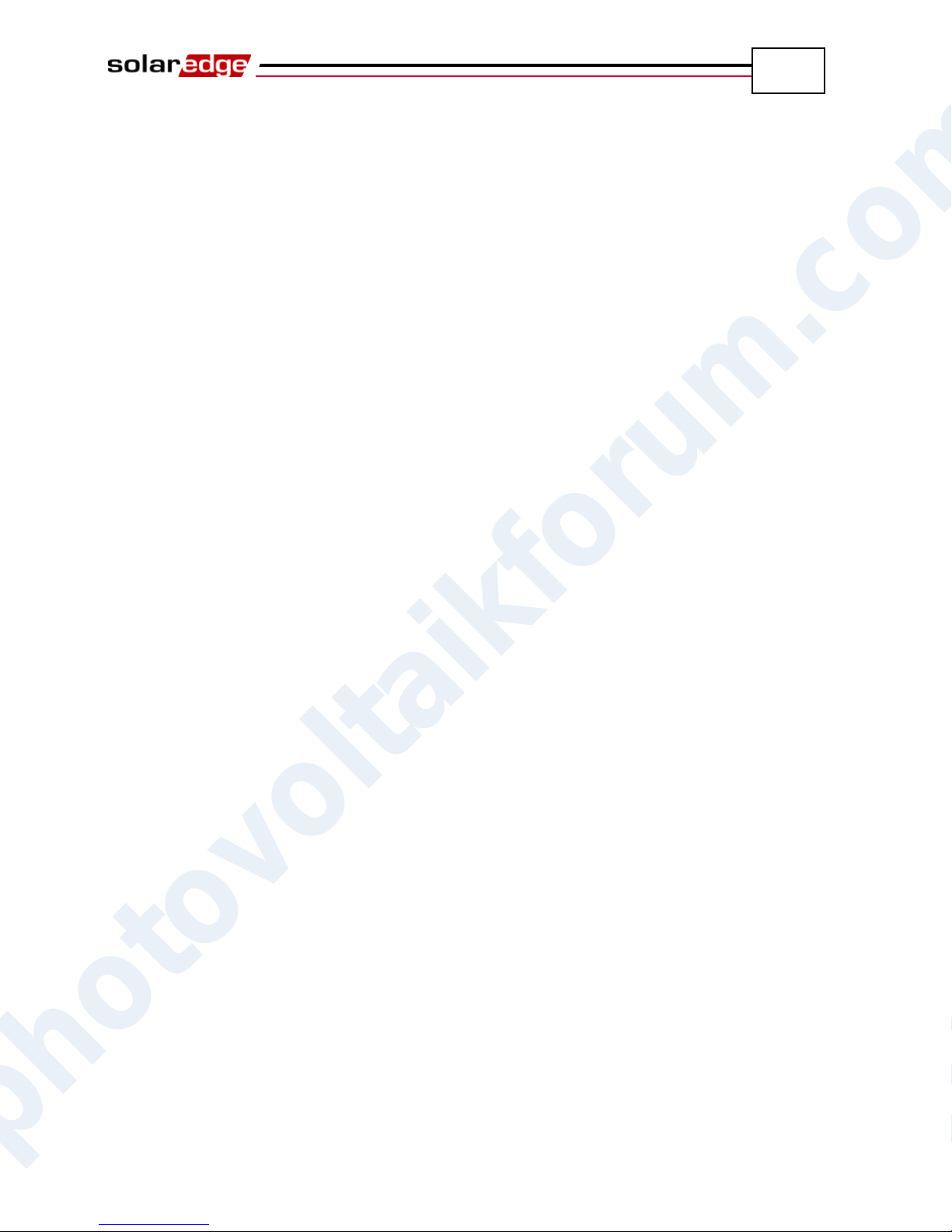

Blank page left intentionally
photovoltaikforum.com
