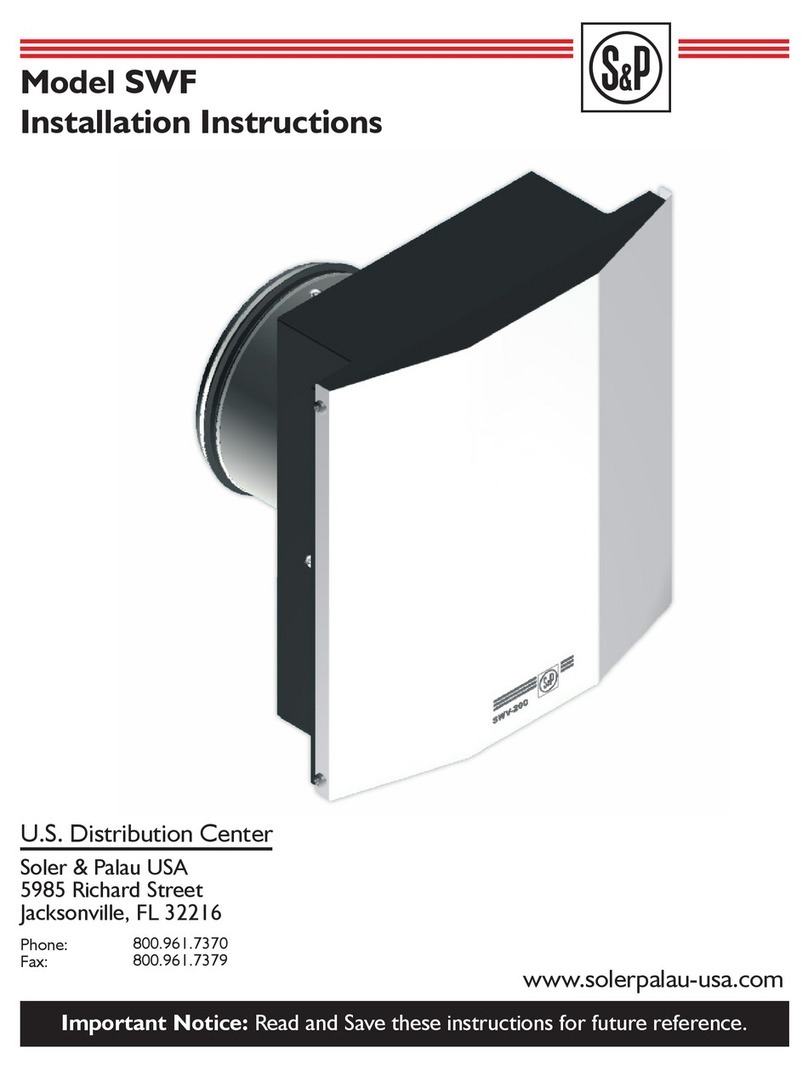

Soler & Palau SIDEWALL SWF-100 Assembly instructions

SIDEWALL (SWF)
CENTRIFUGAL SIDEWALL FANS
VENTILADORES CENRIFUGOS DE MONTAJE EN PAREDES
VENTILATEUR DE PAROI CENTRIFUGE EN LIGNE
Models SWF-100, 100X, 150, 150X, 200
INSTALLATION AND WIRING INSTRUCTIONS
INSTRUCCIONES DE MONTAJE
INSTRUCTIONS DE MONTAGE ET DE CÂBLAGE
(English / Español / Français)
READ AND SAVE THESE INSTRUCTIONS
LEER Y GUARDAR ESTAS INSTRUCCIONES
LIRE ET CONSERVER CES INSTRUCTIONS
CU
R
ULS

Dimensional Data
WARNING
Soler and Palau designs the highest quality products available in the industry and meets stringent manufac-
turing requirements. These units are not designed however to be utilized as the primary devices used in a
life support ventilation systems where failure could result in loss or injury, the user should provide adequate
backup ventilation, supplementary natural ventilation, failure alarm system, or acknowledge willingness to ac-
cept the risk of such loss or injury
ADVERTENCIA
Soler y Palau diseña productos de la más alta calidad en la industria, los cuales han sido fabricados siguiendo
las más rigurosas normas de producción. Sin embargo, estas unidades no son diseñadas para ser utilizadas
como dispositivos primarios que se emplean en un sistema de ventilación vital donde una falla podría tener
como resultado perdidas o lesiones. El usuario debe también adoptar un sistema de ventilación de reserva;
ventilación natural de suplemento o un sistema de alarma de fallas, o reconocer que está dispuesto a asimilar
el riesgo de tales pérdidas o lesiones
AVERTISSEMENT
Soler and Palau conçoit les produits de la plus haute qualité disponibles dans l’industrie et rencontre les
exigences de fabrication rigoureuses. Toutefois, ces unités ne sont pas conçues pour être utilisées comme
dispositifs principaux dans les systèmes de ventilation critiques pour préserver la vie et dont la défaillance
pourrait entraîner une perte ou un préjudice ; l’usager doit assurer une ventilation de secours adéquate, une
ventilation naturelle supplémentaire, un système d’alarme de protection contre les pannes, ou signifier sa
disposition d’accepter le risque de telle perte ou de tel préjudice.
3
Model A B C C1 C2 D
SWF-100 13 ¼
337
13 ¼
337
9
228
3
76
2 7/16
62
4
100
SWF-100x 13 ¼
337
13 ¼
337
9
228
3
76
2 7/16
62
4
100
SWF-150 15 ½
394
13 ¼
337
10 3/16
256
3
76
2 7/16
62
6
150
SWF-150x 15 ½
394
16 1/16
408
10
254
3 3/16
81
2 7/16
62
6
150
SWF-200 15 ½
394
16 1/16
408
11 7/16
290
3 3/8
87
2 7/16
62
8
200
C
C1
C2
D
A
B
2 mm

ENGLISH
Fan Installation
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY, OBSERVE THE
FOLLOWING:
(a) Use this unit only in the manner intended by the manufacturer. If you have any questions contact the
manufacturer.
(b) Before servicing or cleaning the unit, switch the power off at the service panel and lock the service
disconnecting means to prevent power from being switched on accidentally. When the service
disconnecting means cannot be locked; securely fasten a prominent warning device such as a tag to
the service panel.
(c) Installation work and electrical wiring must be done by qualified person(s) in accordance with all
applicable codes & standards including related construction.
(d) When cutting or drilling into wall or roof, do not damage electrical wiring and other hidden utilities.
(e) CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous Or Explosive
Materials And Vapors.
(f) DO NOT USE with heated air in excess 140˚F (60˚C).
Select Fan Location
When selecting a location to install the SWF fan that has been chosen, take into consideration the applica-
tion of the product, the locations of fresh air intakes, and sound generated by the SWF unit.
The fan should be located a minimum of 6 feet horizontally and 8 feet vertically from any fresh air intakes
for HVAC systems, heat recovery systems, etc. to prevent exhaust air streams from being re-introduced
into the occupied space. Doors or windows that are frequently opened during pleasant seasons may also be
considered fresh air intakes so keep this in mind when selecting the location of the SWF.
Mark and Introduce Required Holes
Once the location on the exterior wall where the fan is to be mounted has been selected, mark all screw
and hole locations utilizing the included template. Cut the holes through the wall for the duct connection
and for the electrical conduit. Measure the thickness of the wall and the length of the duct connection that
is supplied on the SWF fan. Cut a length of duct so that once connected to the fan, will extend 2” through
the wall.
If mounting the fan on a masonry wall, drill four holes and insert wall anchors. If mounting to wooden
structure, you will utilize wood screws to secure the SWF to the wall.
If the fan is to be mounted on a wall surface which is not flush such as lapped siding, a mounting plate to
provide for a flush fit needs to be made.
Mount the Fan
Insert electrical supply through the wall. Attach the duct extension to the SWF making sure that the
connection is secure. Apply a generous amount of exterior silicone caulk to backplate of the fan to ensure
an airtight/waterproof connection between the fan and the wall surface. If a mounting frame is used in
conjunction with lapped siding, be certain to apply a generous amount of caulk between the frame and the
wall as well as the fan backplate and the frame. Mount the fan to the wall.
Note: Be certain to make an airtight seal around all interior wall penetrations before attaching
duct work.
45

4
Electrical Connection
All SWF series fans operate from a standard 120V 60Hz A.C electrical supply. All wiring must be carried out
in accordance with National Electrical Code, and all applicable state and local buildings codes.
WIRING INSTRUCTIONS
WARNING! Make sure that power supply is disconnected and locked to prevent accidental acti-
vation.
1. Remove the screws securing the terminal box cover plate located on the fan motor mounting bracket.
All fan motor and capacitor connections are pre-wired to the electrical terminal strip. A 3/8” romex type
cable restraint connector will be needed to secure the wiring through the knockout provided on the side of
the terminal box.
2. Bring incoming electrical service through the romex connector and the fan electrical service opening.
Using a small regular screwdriver, tighten the neutral (white) wire of the incoming 115V power supply un-
der the open terminal strip port opposing the motor Blue wire. Tighten the line (black) wire of the incom-
ing supply under the open terminal opposing the motor Black wire. Now, secure the source ground to the
open terminal strip opposing the Green/Yellow Wire.
3. Secure the romex connector. Secure the incoming supply with the romex connector. Replace the fan
terminal box cover.
4. Apply a generous bead of silicone caulk around the electrical provision hole in the backplate of the fan
to provide for a secure seal.
MAINTENANCE INSTRUCTIONS
1. Since fan bearings are sealed and provided with an internal lubricating material, no additional lubrication is
necessary.
2. It is recommended that the cover is screen is checked on a regular basis to check for any obstructions
and the cover is removed and the motor and wheel are inspected and cleaned as necessary.
No other maintenance is necessary.
5

WIRING DIAGRAMS
Motor with speed controller
Motor without speed controller
67

6
FIVE (5) YEAR WARRANTY
Soler & Palau warrants that the SWF - SIDEWALL series exhaust fan will be free from defective materials and
workmanship for the period of (5) years from the date of original purchase. In the event that we and any part
defective the product will be repaired or, in the Company’s discretion, replaced without charge provided that
the product has been installed in accordance with the enclosed instructions and all applicable EPA Standards
and state and local building codes.
IF CLAIMING UNDER WARRANTY
Please return the complete product, freight paid, to your local authorized distributor. All returns must be
accompanied by a valid Bill Of Sale. All returns must be clearly marked “Warranty Claim,” with an accompanying
description stating the nature of the fault.
THE FOLLOWING WARRANTIES DO NO APPLY
Damages from shipping, either concealed or visible. Claim must be filed with the carrier. Damages resulting
from improper wiring or installation
Damages caused by acts of nature, or resulting from improper consumer procedures such as: Improper
Maintenance; Misuse; Negligence; Alteration; Abuse; Abnormal Use; or Accident or Incorrect Electrical
Voltage and Current.
Removal or alteration to the Soler & Palau data plate label.
WARRANTY VALIDATION
The end user must keep a copy of the Bill of Sale to verify purchase date.
THEABOVEFIVE(5)YEARWARRANTYISEXPRESSLYINLIEUOFALLOTHERWARRANTIES,EXPRESSED,
WRITTEN OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
USE. IN NO EVENT SHALL SOLER & PALAU BE LIABLE FOR ANY SPECIAL, CONSEQUENTIAL, OR
INCIDENTAL DAMAGES, INCLUDING LOSS OF PROPERTY, REVENUES, LOST PROFITS, and COSTS
OF REMOVAL, INSTALLATION OR REINSTALLATION.
7
