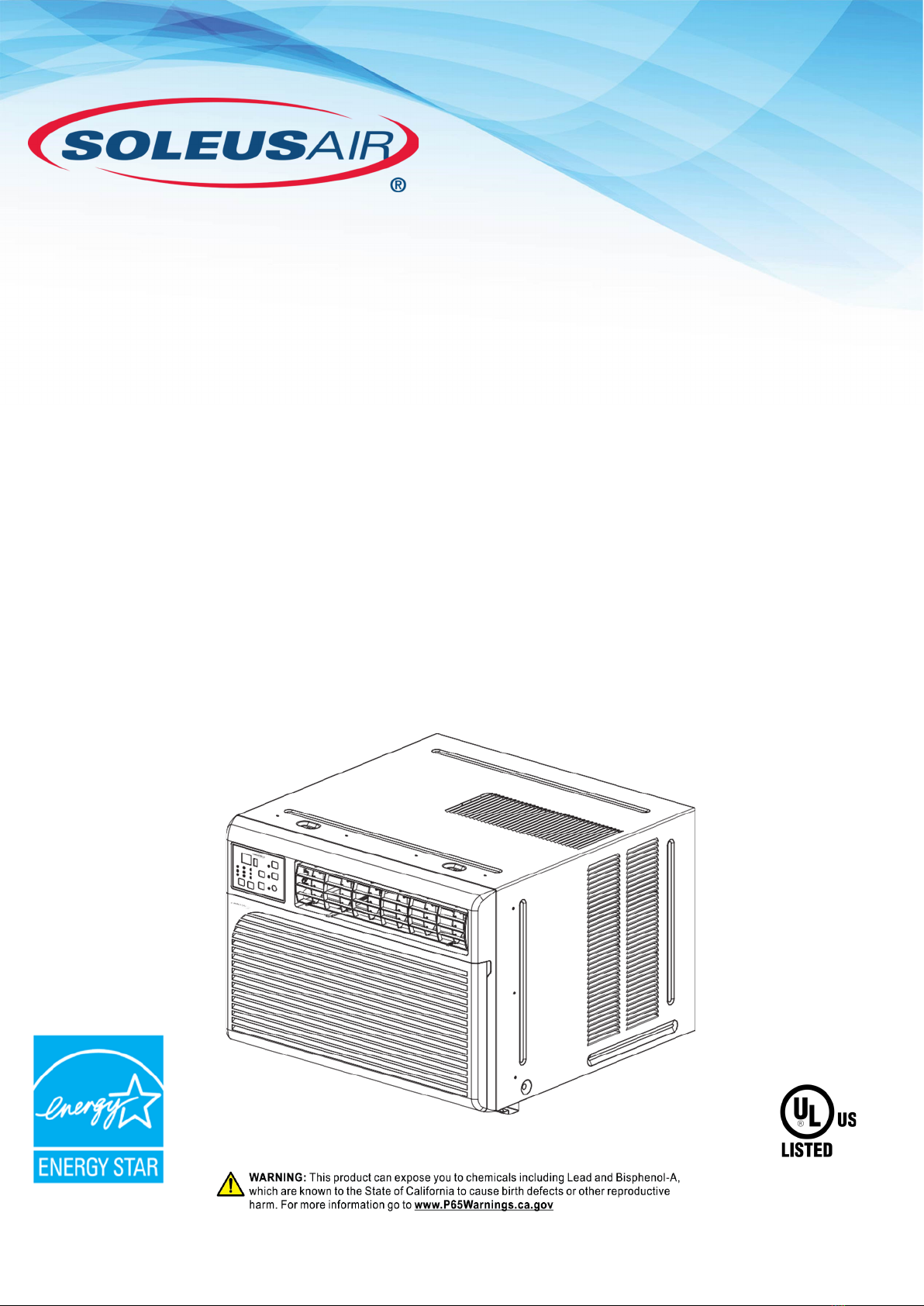

Soleus Air WS1-15E-02 User manual

V190108
Air conditioner must be upright for 24 hours prior to operating.
This ensures that the compressor will function as intended.
Model
WS1-15E-02 15,000 BTU
WS1-18E-02 18,300 BTU
WS1-24E-02 24,000 BTU
Electronic Window Air Conditioner
Operating Instructions
AIR CONDITIONER
2MF3
File No. SA 12793

Thank you for choosing a Soleus Air Window Air Conditioner. This Owner’s Manual will provide
you with valuable information necessary for the proper care and maintenance of your new product.
Please take a few moments to thoroughly read the instructions and familiarize yourself with all the
operational aspects of your new Soleus Air Window Air Conditioner.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the
store name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: _____________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT INSTRUCTIONS
PURCHASE INFORMATION
Before installing and using your air conditioner, please read this owner’s manual carefully. Store this manual in a
safe place for future reference. Your safety and the safety of others is very important to us. Please pay attention to
all safety messages outlined in this owner’s manual.
WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic
precautions:
 Plug into a grounded 3 prong outlet.
 Do not remove the ground prong.
 Do not use a plug adapter.
 Do not use an extension cord.
 Unplug the air conditioner before servicing.
 Use two or more people to move and install the air
conditioner.
This is a safety alert symbol.
This symbol alerts you to potential hazards that can harm you or others or even cause death.
All safety messages will directly follow the safety alert symbol and/or the words “DANGER”
or “WARNING.”
All Safety messages alert you of potential hazards, how to reduce the chance of injury, and what
can happen if instructions are not followed correctly.
Failure to immediately follow these in-
structions may cause serious injury or
even death.

This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord
and plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexi-
ble cord with no termination on the load side and a LCDI attachment plug on the line side.
The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the
nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.
The cord will remain de-energized until the device has been manually reset. This is intended to reduce the
risk of a fire in the power cord or combustible materials nearby. The cord shields are not grounded and they
must be considered a shock hazard if exposed. The cord shield must not be connected to ground or to any
exposed metal.

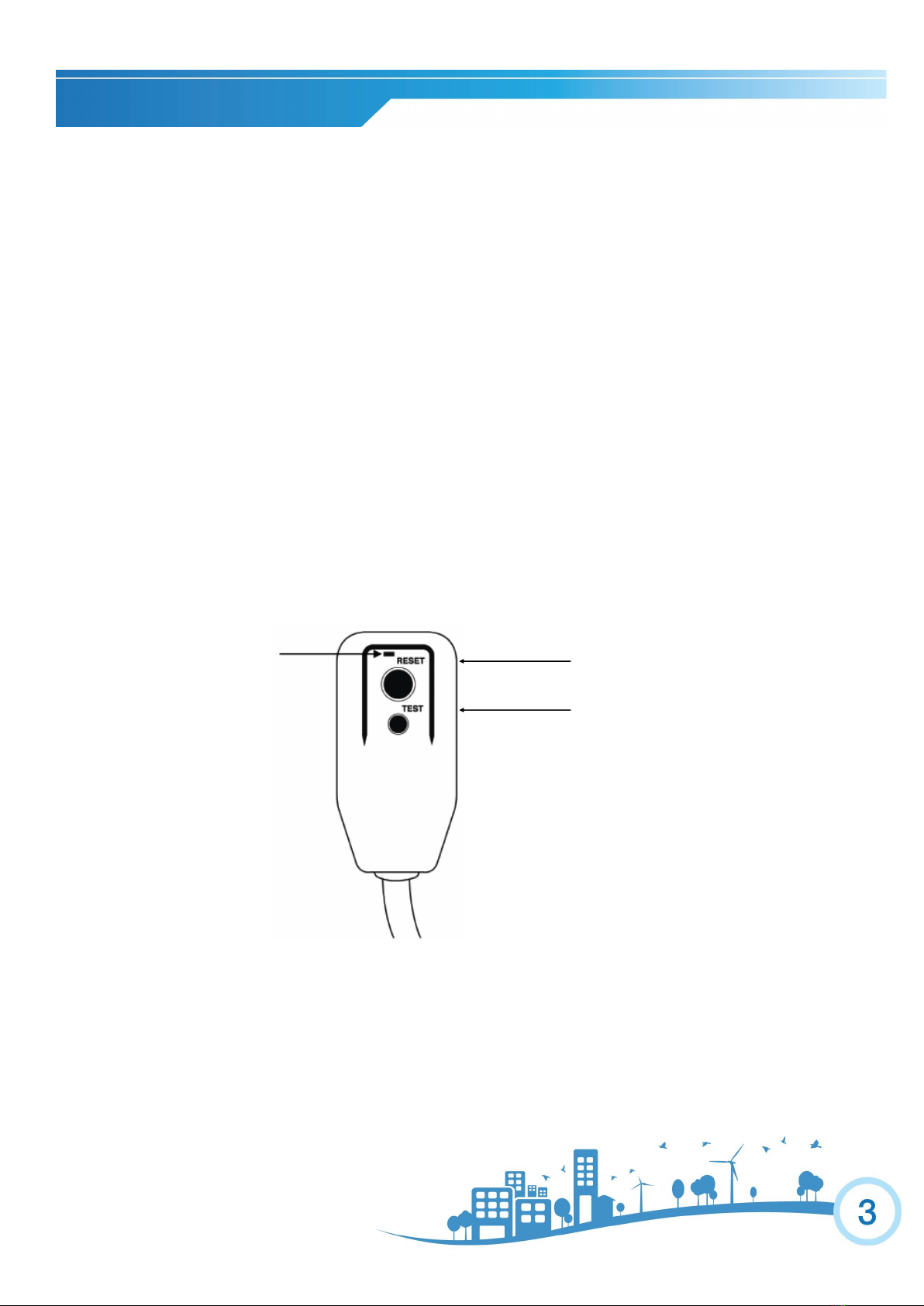

The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly.
To test:
1. Plug power cord into wall outlet, the LED light will turn on.
2. Press TEST Button, circuit should trip, cutting power to the air conditioner. When this occurs, the LED
light will turn off.
3. Press RESET button to restore power to the unit. Once power is restored, the LED light will turn on.
If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air
conditioner or attempt to reset the LCDI Plug. Contact Customer Service for troubleshooting recommenda-
tions.
WARNING:
1. DO NOT press the TEST button while the air conditioner is operating.
2. The TEST and RESET buttons should not be used as “ON” and “OFF” switches.
3. The cord and plug are not intended to offer protection to externally connected loads or supply circuits.
4. The cord and plug are intended for indoor use only.
POWER CORD AND PLUG
RESET
TEST
LED LIGHT
Note: Your unit’s power cord may
differ from the one shown.

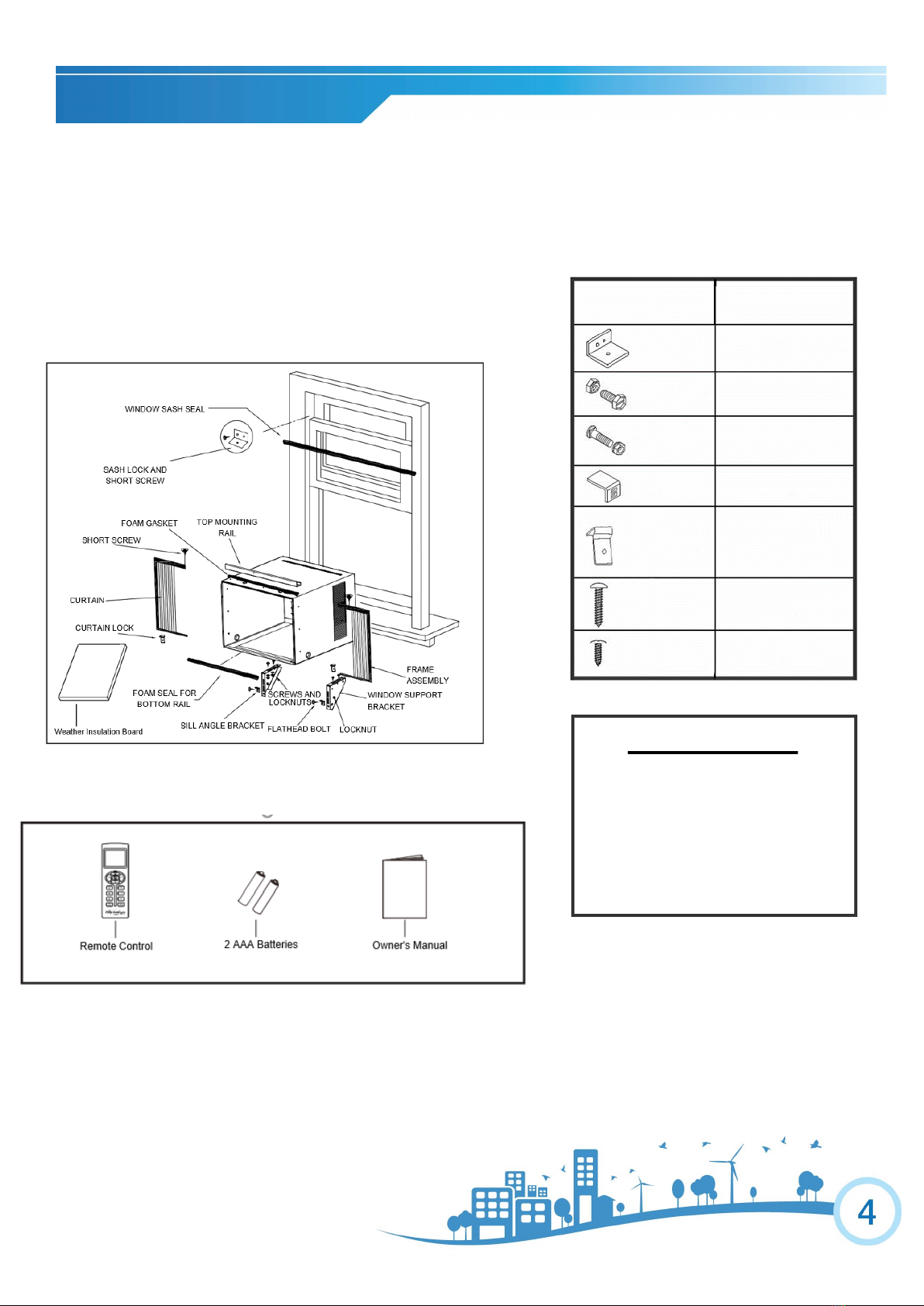

PACKAGE CONTENTS
 Window Air Conditioner (1)
 Remote Control (1)
 AAA Battery (2)
 Top Mounting Rail (1)
 Foam Gasket (1)
 Curtain (2)
 Foam Seal for Bottom Rail (1)
 Hardware Bag (1)
 Owner’s Manual (1)
 Weather Insulation Board (2)
 Window Sash Seal (1)
 Window Support Bracket (2)
TOOLS NEEDED
Large Flathead Screwdriver
Tape Measurer
Adjustable Wrench or Pliers
Pencil
Level
Socket Wrenches
Phillips Head Screwdriver
Hardware
(In plastic Bag)
Quantity
1
4
2
2
2
13
10
Sash Lock
Screw and
Locknut
Flathead Bolt
and Locknut
Sill Angle
Bracket
Curtain Lock
Long Screws
Short Screws

SPECIFICATIONS
 Noise level is measured at a distance of 3.28 ft away from the front of the unit in cooling mode.
 Power consumption is measured when the fan runs at the highest speed setting.
 These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
Model WS1-15E-02
Power Supply (Ph/V/Hz) 1/115/60
Rated Cooling Capacity (BTU/h) 15,000
Cooling Power Input (Watts) 1,230
Rated Current Cooling (Amperage) 12
CEER 11.8
Noise Level dB(A) (L/H) 55/59
Airflow CFM (H/L) 411/358
Dehumidifying Capacity 73.9 Pints per day
Product Dimensions (W” x H” x D”) 23.625” x 17.75” x 25.375”
Package Dimensions (W” x H” x D”) 26.125” x 20” x 30.5”
Net/Gross Weight (Lbs) 110/121
Refrigerant Type R-410A
Plug Type NEMA 5-15P
Model WS1-18E-02 WS1-24E-02
Power Supply (Ph/V/Hz) 1/230/60 1/230/60
Rated Cooling Capacity (BTU/h) 18,300 24,000
Cooling Power Input (Watts) 1,530 2,330
Rated Current Cooling (Amperage) 6.7 10.3
CEER 11.8 10.3
Noise Level dB(A) (L/H) 56/61 56/61
Airflow CFM (H/L) 430/370 447/388
Dehumidifying Capacity 82.8 Pints per day 152.4 Pints per day
Product Dimensions (W” x H” x D") 26.375” x 18.625” x 26.625” 26.375” x 18.625” x 26.625”
Package Dimensions (W” x H” x D”) 29.5” x 20.875” X 31.125” 29.5” x 20.875” X 31.125”
Net/Gross Weight (Lbs) 132.27/154.32 141.1/163.1
Refrigerant Type R-410A R-410A
Plug Type NEMA 6-15P NEMA 6-20P

ELECTRICAL SAFETY
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE
PRESENATION OF THE MANUFACTURER. SOLEUS N.A. HAS NOT CONDUCTED AN INDEPENDENT TEST TO
VERIFY THE INFORMATION AND SPECIFICATIONS PRESENTED HEREWITHIN.

INSTALLATION
Window Preparation
Please read all instructions prior to installing your air conditioner. Two people are recommended to install this product. If a new
electrical outlet is required, have the outlet installed by a qualified electrician before installing the unit.
Before installing the unit, check the dimensions of your window to make sure the air conditioner will fit. This unit is made to fit
inside a standard double-hung window. Make sure the window is in good shape and able to firmly hold the provided screws. If
not, make repairs prior to installing the unit.

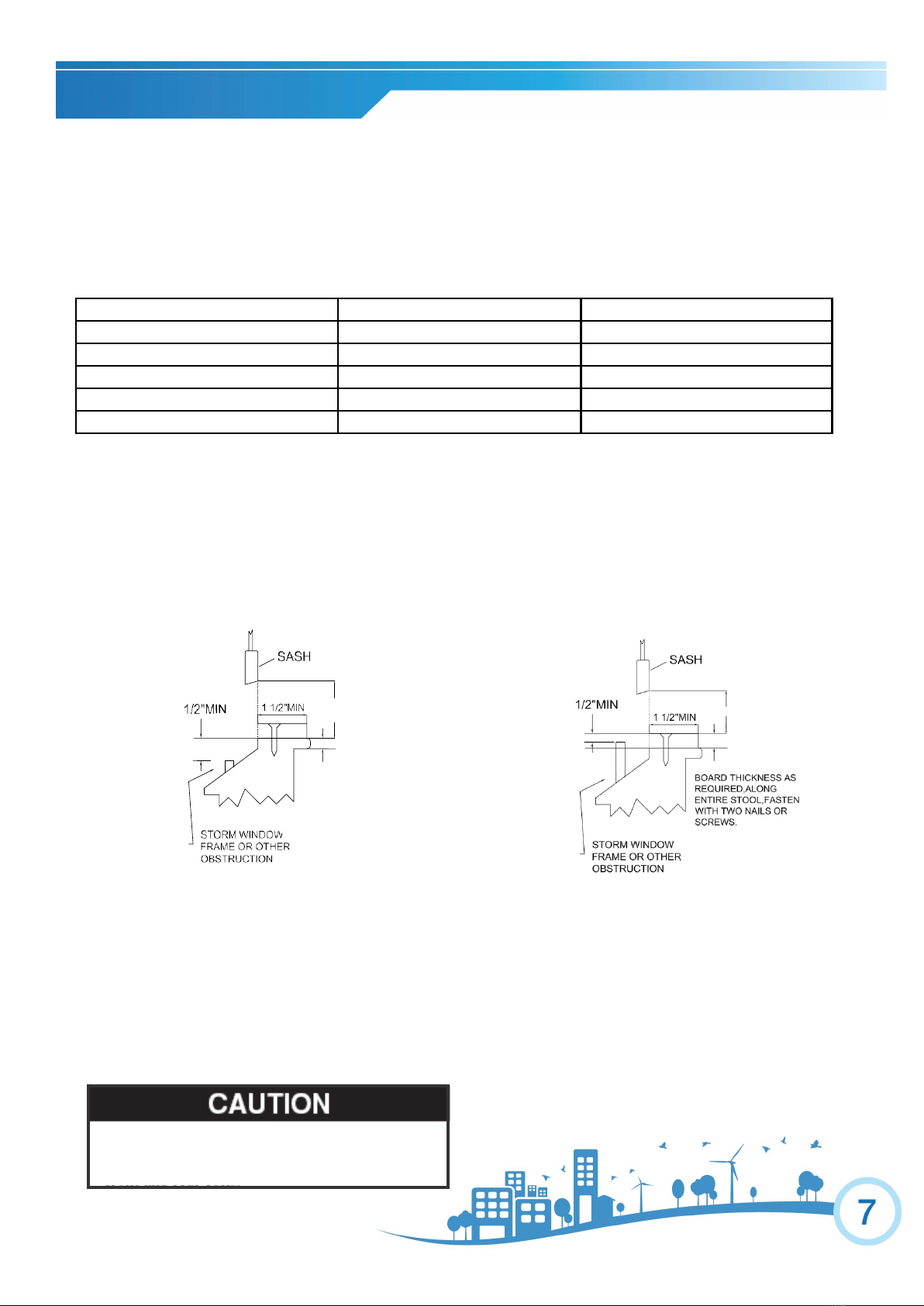

Storm Window Requirements
A storm window frame will not allow the air conditioner to tilt properly which will keep it from draining properly. To ad-
just for this, attach a board or piece of wood to the sill. The board or wood piece should have a depth of at least 1 1/2”.
Make sure the board or piece of wood is approximately 1/2” higher than the storm window frame. This will allow the air
conditioner to tilt enough for proper drainage (See FIG. 2).
Prior to Installing the Air Conditioner
1. Check for anything that could block airflow. Check the area outside of the window for things such as shrubs, trees,
or awnings. Check the inside area to make sure curtains, drapes, or blinds will not prevent proper airflow.
2. Check the available electrical outlet. The power supply must be the same as shown on the unit serial nameplate
(located on the left side of the unit, near the front faceplate). Be sure the outlet is close enough for the power cord to
reach.
3. Carefully unpack the air conditioner. Remove all packing material and make sure the floor is protected when remov-
ing. Due to the large size of this air conditioner, two people should move the unit together.
When handling the unit, be careful to avoid cuts from the
sharp metal edges and aluminum fins on the front and rear
coils.
Model WS1-15E-02 WS1-18E-02 / WS1-24E-02
Unit Height 17 3/4" 18 5/8"
Unit Width 23 5/8" 26 3/8"
Min. Window Opening (See FIG 1) 18 3/4" 19 7/8"
Min. Window Width 28 1/8" 30"
Max Window Width 41 3/4" 50 "
18 3/4", / 19 7/8"MIN
18 3/4" / 19 7/8"MIN
FIG.2
FIG.1

.
INSTALLATION & ASSEMBLY INSTRUCTIONS - WINDOW MOUNTING

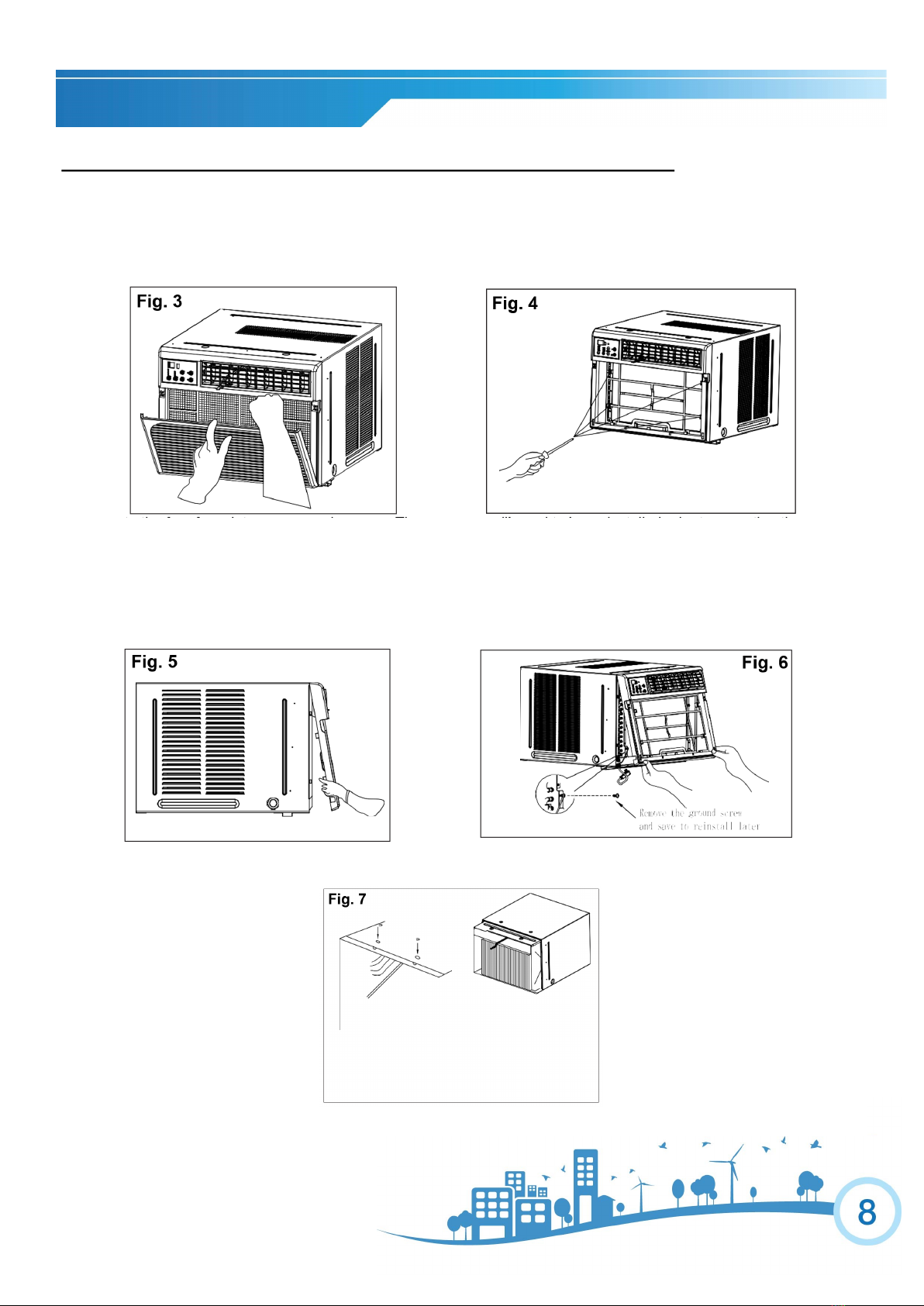

REMOVE CHASSIS
1. Pull down the front panel and remove the filter (See Fig. 3).
2. Lift the front panel upwards to remove and place to the side.
3. Locate the four faceplate screws and remove. These screws will need to be re-installed prior to mounting the air condi-
tioner (See Fig. 4).
4. After removing the screws, gently pull away the faceplate from the air conditioner cabinet. Remove the ground screw and
save for reinstallation later (See Fig. 5 & 6).
5. Remove the two screws from top of the unit (See Fig. 7). Hold the cabinet while pulling on the base handle, and care-
fully remove the unit.
INSTALLATION

INSTALLATION

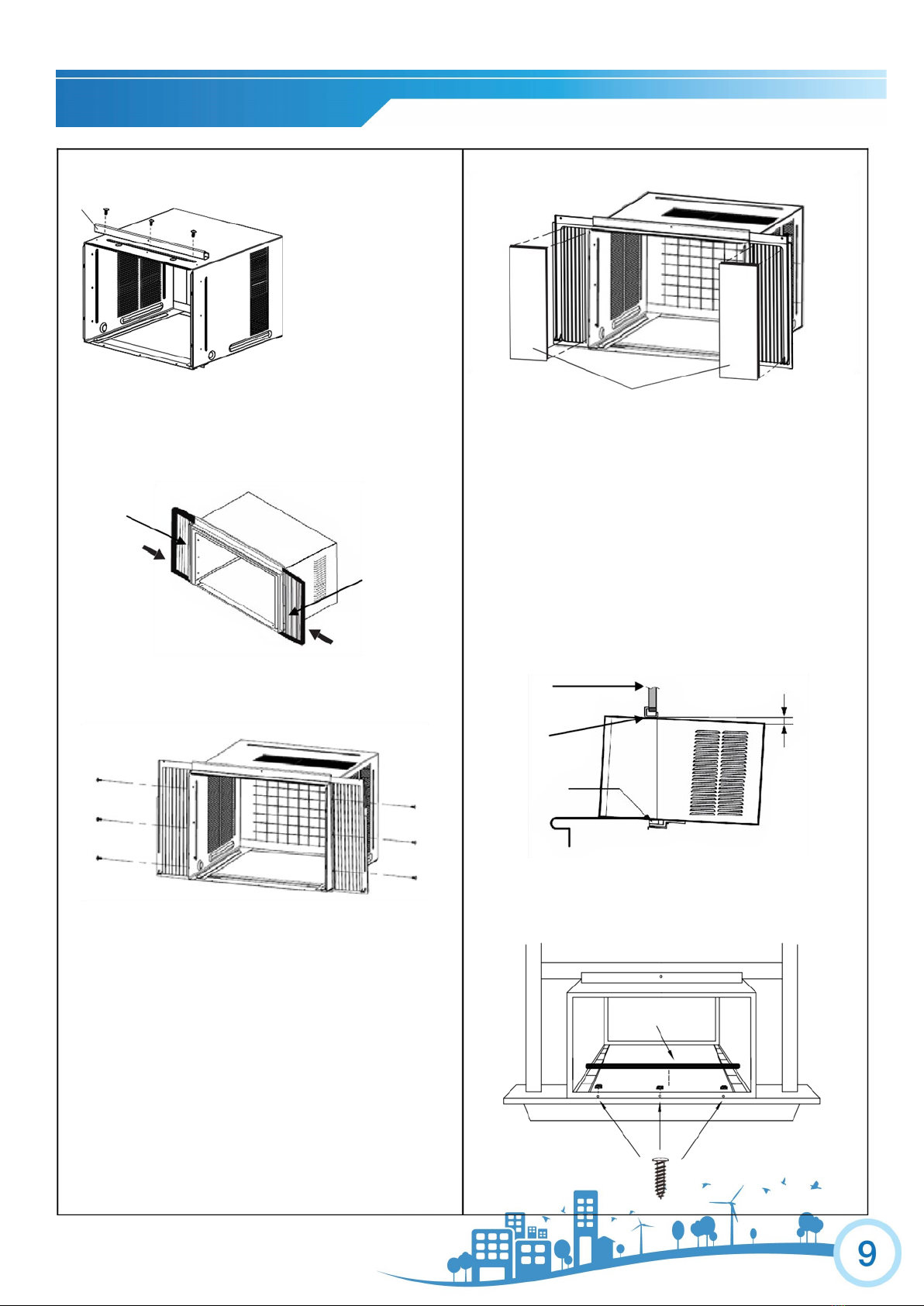

Curtain
Curtain Installation
3. Fasten the curtains to the unit with short screws (Fig.10).
Weather Insulation Board Installation
NOTE: The Weather Insulation Boar d adds an extr a
layer of insulation to keep air from passing through the
sides of the window air conditioner.
1. Using a sharp blade or scissors, slowly cut the
Weather Insulation Board to a size that will fit inside
of the side curtain rails and completely cover the cur-
tain.
2. Once properly sized, remove the backing to expose
the adhesive tape.
3. Place the Weather Insulation Board over the left cur-
tain and firmly press and hold for 5 seconds.
4. Repeat above steps to install the Weather Insulation
Board on right curtain (Fig.11).
Fig. 8
Curtain
Fig. 9
Fig. 10
Fig. 11
Weather Insulation Boards
Fig. 12
Long Screw
Place the Cabinet Inside the Window
1. Set the cabinet in the window so that is centered.
Place the unit so that front edge of the bottom rail
is against the back edge of the sill.
2. Bring the window down so that the front edge of
the top rail is in front of the window. Be sure the
unit is tilting slightly to the outside.
3. Fasten cabinet to window sill using three long
screws. Pre-drill holes if needed. Add the bottom
rail seal over the screws (Fig. 12).
Window
Frame
Top Rail
Bottom Rail
1/4”
1. Attach the top mounting rail to
the unit with short screws (Fig.8).
2. Slide the free end of the curtain into the side panel of the
air conditioner. Do this for each side. The flange for securing
the curtain into the window sill will be facing the room side
when installed (Fig.9).
Top Mounting
Rail
Bottom Rail Seal

.
INSTALLATION

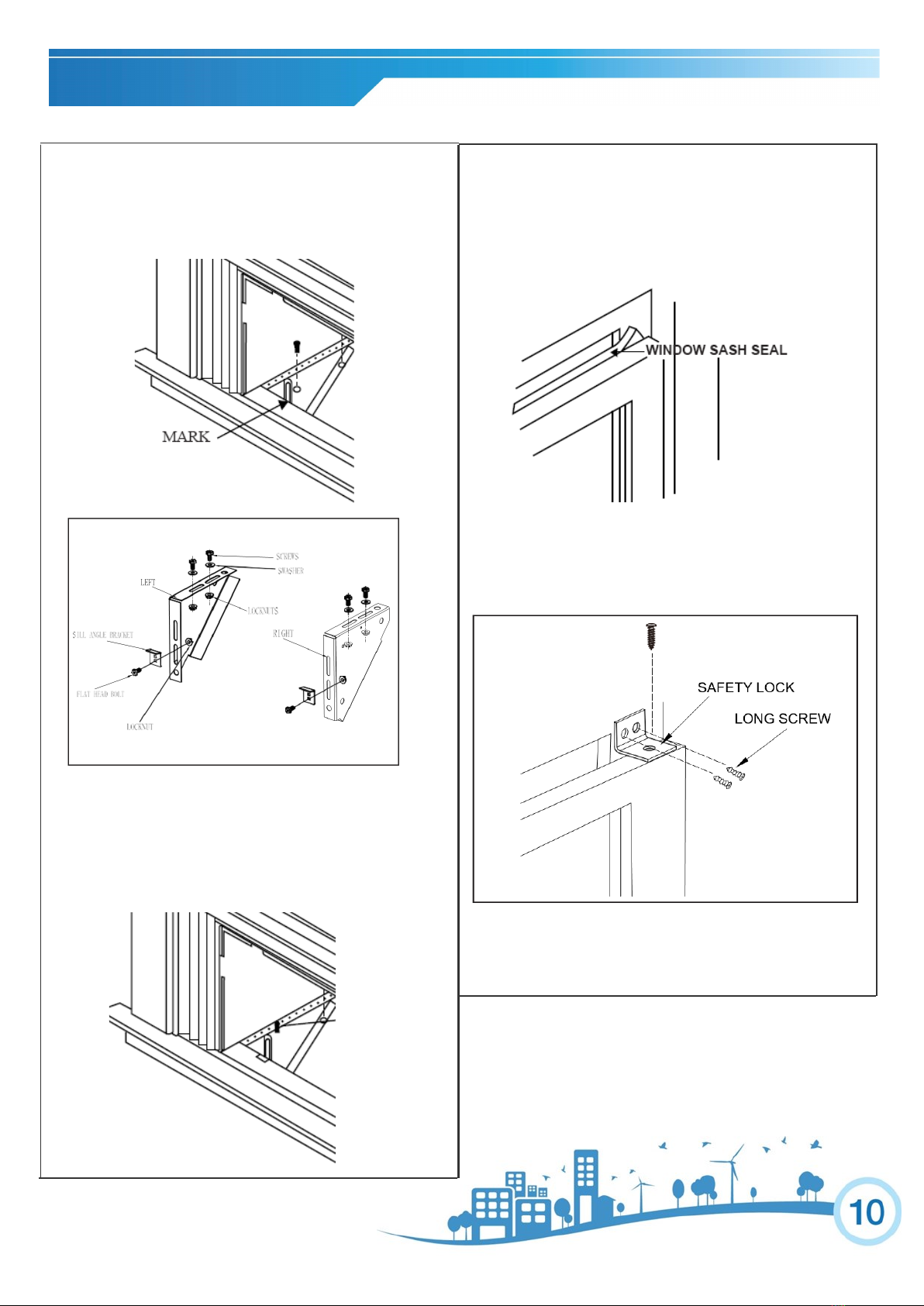

Install Support Brackets
1. Hold each support bracket flush against the outside of
the window sill. Tighten each bracket to the bottom of
the cabinet as shown below. Mark the brackets at top
lever of the window sill and then remove.
2. Assemble the sill angle brackets to the support brackets
at the marked position as shown above. Hand tighten,
but not all the way for any changes that may need to be
made later during installation.
3. Install the support brackets (with sill angle brackets
attached) to the bottom of the cabinet as shown below.
4. Tighten all 6 bolts securely.
Screw &
Locknuts
Install the Window Lock and Sash Seal
1. Trim the sash seal to fit the width of the window. Insert
the sash seal into space between the upper and lower
sashes.
2. Attach the right angle safety lock as shown below.

INSTALLATION
Installing the Chassis into the Cabinet
1. Team lift (two people) the air conditioner chassis and
carefully slide it into the cabinet. Let the front of the air
conditioner hang out approximately 6”.
2. CAUTION: DO NOT PUSH ON THE CONTROLS
OR FINNED COILS.
3. Be sure the chassis is firmly seated in the back of the
cabinet.
4. Insert all screws removed during window installation
and reattach the front face plate, front panel, and the air
filter. Use the REMOVE CHASSIS instructions and
figures 3-7 on page 8 for reference.
Extend the Curtain Panels
1. Carefully raise the window to expose the curtain
panel and panel frame. Extend the curtain panels to
fill the window opening.
2. Place the curtain lock between the curtain exten-
sions and the window sill, drive locking screws
through the lock and into the sill.
Secure the Air Conditioner
1. Secure the left and right flanges on the lower end
sides of the panel with long screws (See Fig. 13).
2. Drive locking screws through upper frame holes
into window sash.
Flange
Curtain Locks Curtain
Fig. 13
Window Sill

.

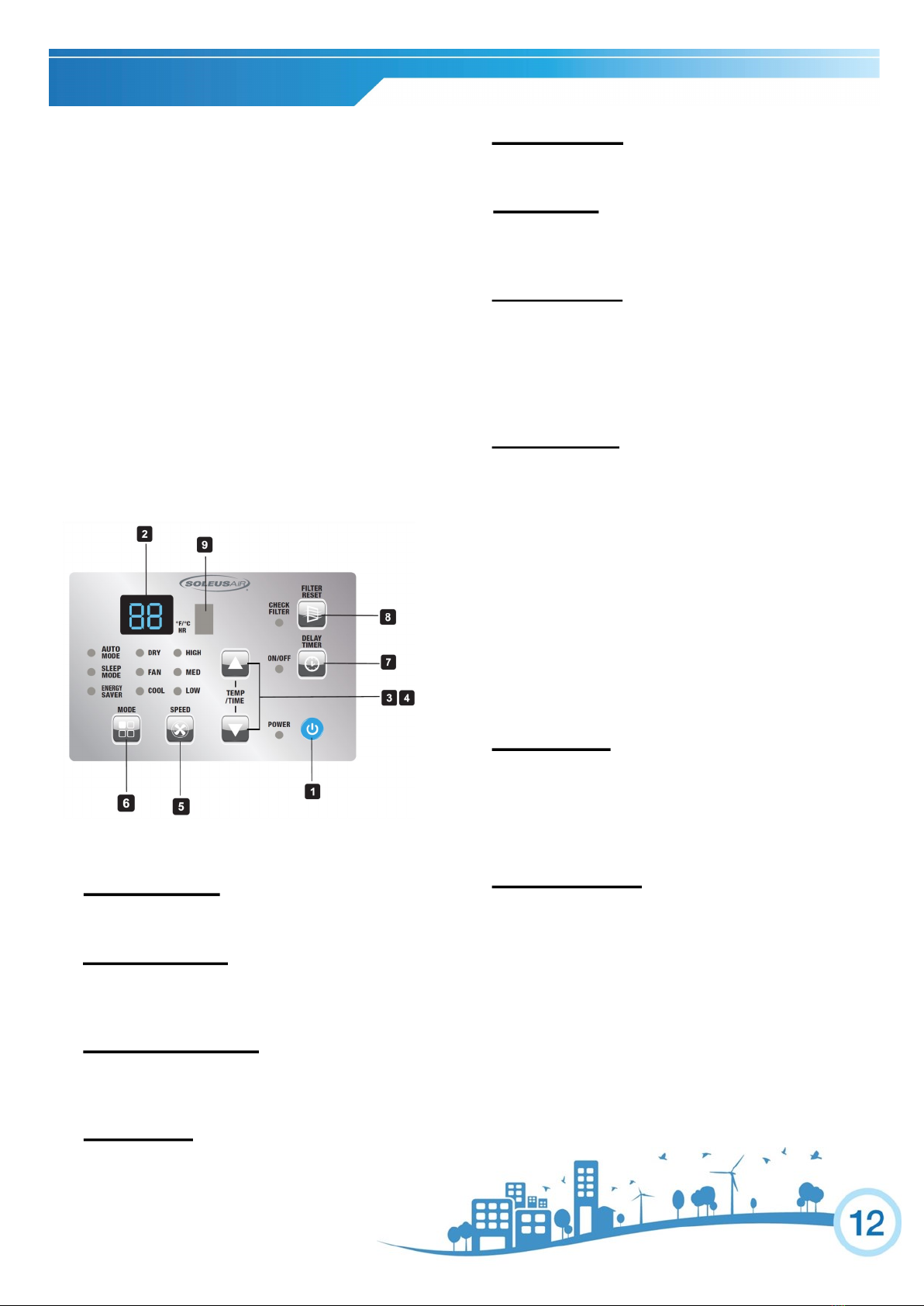

CONTROL PANEL
Electronic Control Panel & Remote Control
Note: This control panel display always shows the
room temperature in Fan Mode except when setting
the temperature and timer.
Normal Operating Sounds
 You may hear a pinging noise caused by water
hitting the condenser on rainy days, or when the
humidity is high. This design feature helps re-
move moisture and improve efficiency.
 You may hear the thermostat click when the
compressor cycles on and off.
 Water will collect in the base pan during rain
or days of high humidity. The water may over-
flow and drip from the outside part of the unit.
 The fan may run even when the compressor is
not on.
Power Button (1): Turn the air conditioner on
and off.
Digital Display (2): Will display set temperature
when the unit is in Cool, Dry, Auto, Sleep, Energy
Saver mode, and display current room temperature
when in Fan mode.
Temperature Set (3/4): Use these buttons on the
control panel or remote to increase or decrease the
Set Temperature.
Fan Speed (5): Use the fan speed button to
change the fan speed. Choose between
high, medium, and low.
Mode Button (6): Press the MODE button to
cycle through the various modes: Cool, Dry, Fan,
Auto, Sleep, Energy Saver.
Timer Set (7): Use these buttons on the control
panel and remote control to set the timer. Each
press of the ▲or▼ button will increase or de-
crease the timer.
Auto-On Timer: When the air conditioner is off,
it can be set to automatically turn on in 1-24
hours at the previous set mode and fan settings.
To set the Auto-on Timer, press the DELAY
TIMER button on the unit or remote control.
Timer can be set in 1 hour increment.
Auto-off Timer: When the air conditioner is on, it
can be set to automatically turn off in 1-24 hours.
To set the Auto-off Timer, press the DELAY
TIMER button on the unit or remote control. Timer
can be set in 1 hour increment.
Once timer is set, TIMER ON/OFF indicator on con-
trol panel will light up, the set temperature will also,
shown on digital display. To see the remaining time,
press DELAY TIMER button. To change the timer
settings, use the ▲or▼ on control panel or remote
control.
During preview of timer setting, press DELAY
TIMER button once to display set time, press the
button one more time to cancel the settings.
Filter Reset (8): After the fan rotates for 250 total
hours, the filter check light will turn on to remind
the user to clean the filter. Press the FILTER RE-
SET button to reset the reminder once the filter is
cleaned.
Signal Receiver (9): Point the remote control to
the air conditioner when sending instruction to the
unit.

.

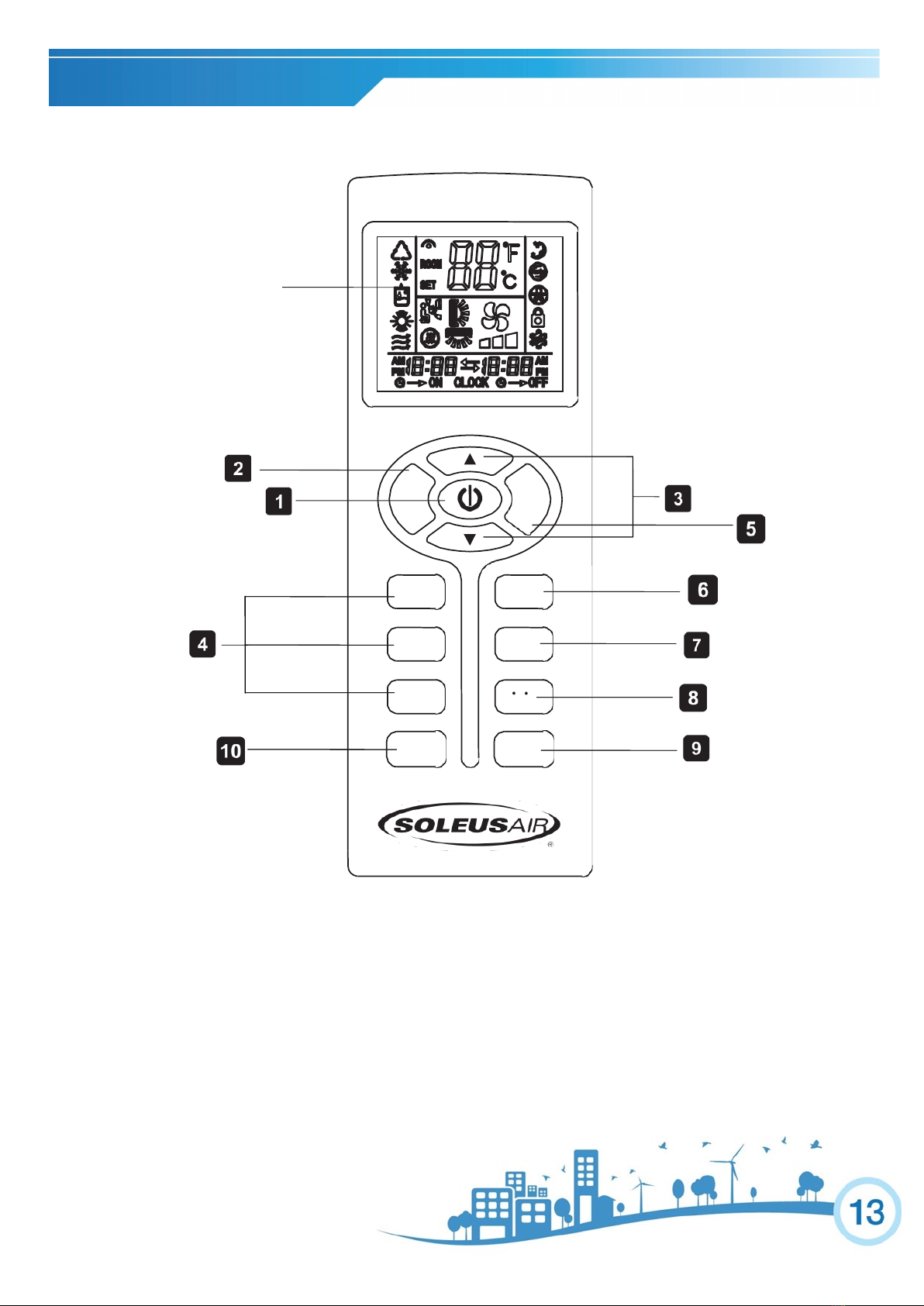

REMOTE CONTROL
Battery Size: AAA - NOTE: Do not mix old and new batteries or different types of AAA batteries.
LCD Display
MODE SLEEP
FAN
HIGH ENERGY
SAVER
FAN
MED TIMER
FAN
LOW C/ F
CHILD
LOCK
MYTEMP
MODE

.
OPERATION INSTRUCTIONS
1. ON/OFF - Press the button to turn the A/C on or off. When the unit is turned off, the Timer func-
tion will be cancelled. The set temperature will be saved.
2. MODE SELECTION - Press the MODE button repeatedly to cycle between the different modes: Au-
to, Cool/Energy Saver, Dry (Dehumidifier), and Fan.
3. TEMPERATURE SETTING - Press the ▼ button to decrease the temperature when the unit is on.
Stop pressing the button when the desired temperature is displayed. Temperature range is 61⁰F-90⁰F.
Press the ▲ button to increase the temperature when the unit is on. Stop pressing the button when the
desired temperature is displayed. Temperature range is 61⁰F-90⁰F.
4. FAN - Press the FAN button to turn on the fan mode.
FAN HIGH –Press this button to set the fan speed to high. Can be used in COOL or FAN mode.
FAN MED –Press this button to set the fan speed to medium. Can be used in COOL or FAN mode.
FAN LOW –Press this button to set the fan speed to low. Can be used in COOL or FAN mode.
5. SLEEP MODE - Sleep mode can be activated under Cool mode, Dry mode, Auto mode, and Fan mode.
Press the SLEEP button on the remote control, When in SLEEP mode, the fan will run on low to keep
fan noise at a minimum. The temperature setting will gradually increase to 2°F above the original set
temperature for each of first 2 hours. The unit will keep operating the same temperature until the sleep
mode is turned off.
6. ENERGY SAVER (On by default) - Press the ENERGY SAVER button to turn off and on the Energy
Saver mode. When the unit is in Energy Saver mode, the energy saver light will turn on. Selecting En-
ergy Saver mode will cycle the fan off and on with the compressor to limit energy consumption. Only
available in COOL mode. Use this feature when the room is unoccupied and a greater range of room
temperature is acceptable.
7. TIMER - Press the TIMER button when the unit is off to set up the Auto-on timer. The hour indicator
on the digital display will start flashing. Press the Timer button to set timer within 1-24 hours.
Press the TIMER button when the unit is on to set up the Auto-off timer. The hour indicator on the dig-
ital display will start flashing. Press TIMER button to set timer within 1-24 hours. To cancel the timer,
press the TIMER button repeatedly until the timer mode is off.
8. °C/°F - Press the °C /°F button to switch the temperature between Celsius and Fahrenheit.
9. MYTEMP MODE - Press the MYTEMP MODE button to change the thermostat sensor from the air
conditioner to the remote location. When MYTEMP MODE is activated, double hyphen sign "--" will
flash 3 seconds on digital display. The air conditioner will cool the area depending on the location and
set temperature of the remote control. Take the remote control with you so the air conditioner cools the
room to your location.
10. CHILD LOCK - Press this button to
lock/unlock the remote control but-
tons.

USE THE AIR CONDITIONER
Freezing Conditions: This is a cooling only air conditioner. It is not designed for freezing outdoor condi-
tions. It must not be used in freezing outdoor conditions.
Remote Control: To ensure proper operation when using the remote control, aim the remote directly at
the signal receiver on the air conditioner.
 The remote control has a signal range up to 20 feet.
 Make sure nothing is blocking the remote control signal from being received by the air conditioner.
 Make sure the batteries are installed correctly and still have power.
Cooling Mode: Use the Cool mode at High, Medium, Low fan speed when cooling is needed. Use the tem-
perature ▲ or ▼ buttons to set the desired temperature between 61°F-90°F.
Once the temperature is set, the compressor will cycle on and off to keep the room temperature at the set tem-
perature level. The lower the set thermostat temperature, the cooler the room will be. The higher the set ther-
mostat temperature, the warmer the room will become.
 For Normal Cooling - set the mode to Cool and the Fan to High or Med with the temperature set to 70
degrees.
 For Maximum Cooling - set the mode to Cool and the Fan to High with the temperature set to 65 de-
grees.
 For Quieter & Nighttime Cooling - set the mode to Cool and the Fan to Low with the temperature set to
72 degrees.
Energy Saver Mode:
When the Energy Saver mode is ON, the fan will cycle on and off with the compressor. This results in more
variations of room temperature and humidity. Normally, it is used when the room is unoccupied. The fan
may continue to run for a short time after the compressor cycles off.
When the Energy Saver mode is OFF, the fan runs all the time in fan or cool mode.
Fan Only Mode: Use Fan Only mode at High, Medium, or Low fan speed to provide air circulation and
filtering without cooling. Since Fan Only setting does not provide cool, a set temperature cannot be en-
tered. The room temperature will appear in the display.
Loss of Power Protection: If power to the air conditioner is lost or interrupted, the air conditioner will
automatically restart in the setting last used prior to power loss. Timer will be cancelled when power is
lost or interrupted. You may need to set a new timer if desired.

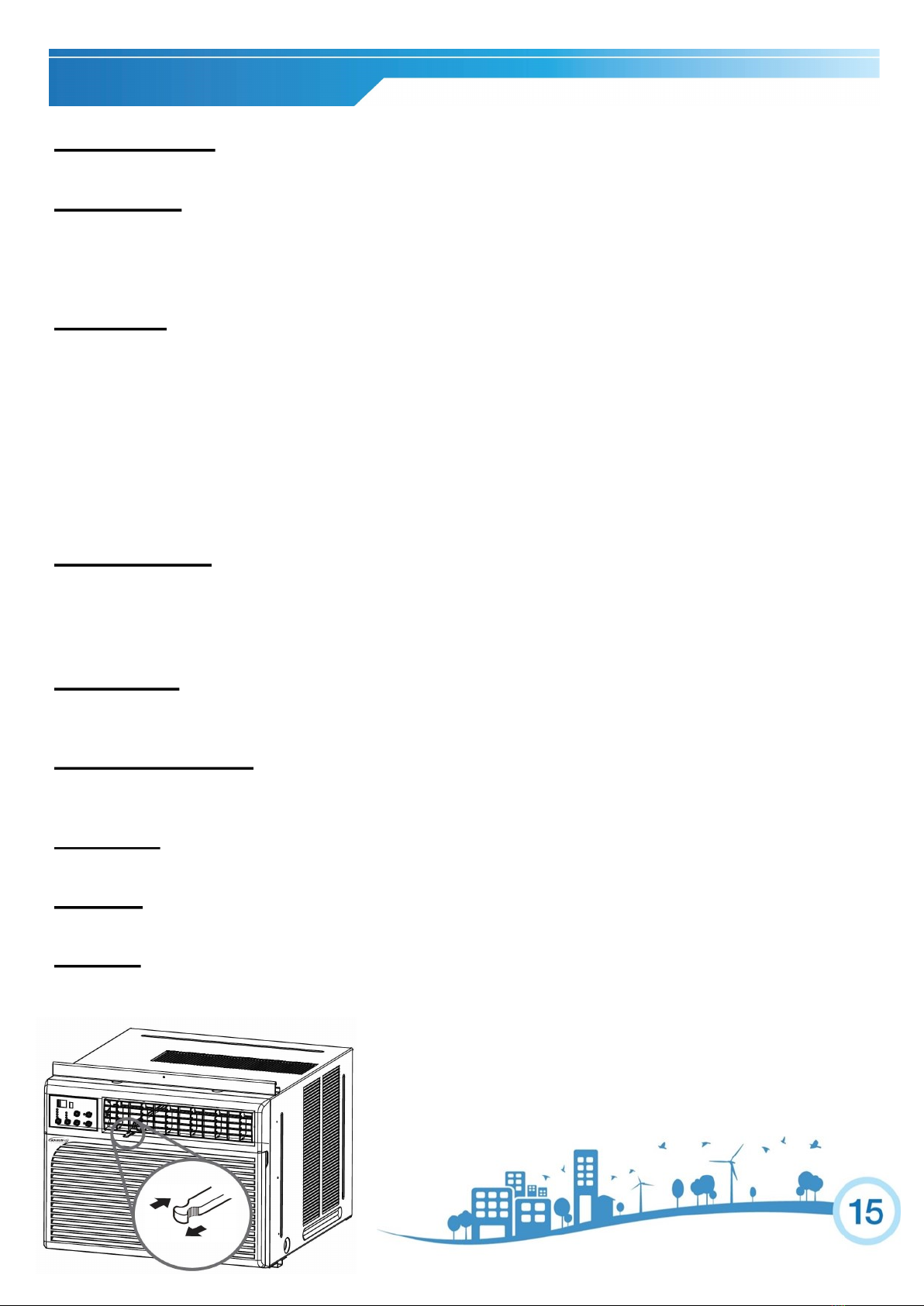

Air Direction: Use the lever on the front air vents to adjust the airflow direction. You can direct the air-
flow to left, right, up or down. The lever is located on the lower left and right side of the air vent.
Auto Mode: The air conditioner will automatically choose Cool or Fan mode based on current room tem-
perature.
Ventilation: In order to maintain the best cooling condition, push the Fresh Air Lever to close the vent.
When fresh air is necessary, pull the Fresh Air Lever to open the vent allowing fresh air being re-
circulated in the room.
Fresh Air Lever

USE AND CARE
CARE AND CLEANING
Clean your air conditioner to keep it looking new and to minimize dust build up.
Air Filter Cleaning
The air filter should be checked at least once every month to see if it needs cleaning. Trapped particles and
dust can build up in the filter and may decrease airflow as well as cause the cooling coils to accumulate frost.
To clean the air filter:
1. Remove the filter by pulling down on the indents of the filter door on the front of the unit (See FIG. 14).
2. Wash the filter using liquid dish soap and warm water. Rinse the filter thoroughly. Gently shake the filter to re-
move excess water.
3. Let the filter dry completely before placing it back into the air conditioner.
4. If you do not wish to wash the filter, you may vacuum the filter to remove the dust and other particles.
Wear and Tear
To minimize wear and tear on the air conditioner, always wait at least 3 minutes before changing modes.
This will protect the compressor and extend product life.
Cabinet Cleaning
To clean the air conditioner cabinet:
 Unplug the air conditioner to prevent shock or a fire hazard. The cabinet and front panel of the air con-
ditioner may be dusted with an oil- free cloth or washed with a cloth dampened in a solution of warm
water and mild liquid soap. Rinse thoroughly with a damp cloth and wipe dry.
 Never use harsh cleaners, wax or polish on the cabinet front.
 Be sure to wring excess water from the cloth before wiping around the controls. Excess water in or
around the controls may cause damage to the air conditioner.
Winter Storage
To store the air conditioner when it is not in use for an extended period of time, remove it carefully from
the window according to the installation instructions and cover it with plastic or place it in the original box.
Error Codes
If the Error Codes continue to display after unplugging and re-plugging the power cord, call our customer
service at [phone] for further solution.
Error
Codes
Description
E2 Room temperature sensor failure
E3 Room temperature pipe sensor failure
FIG. 14
Indents

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES SOLUTIONS
The Air Conditioner will not start The air conditioner is unplugged  Make sure the air conditioner
plug is pushed completely into
the outlet.
The fuse is blown/circuit breaker is
tripped
 Check the main fuse/circuit
breaker box and replace the fuse
or reset the breaker.
Power failure
 The unit will automatically restart
when power is restored.
 There is a protective time delay
(approx. 3 minutes) to prevent
tripping of the compressor over-
load. For this reason, the unit may
not start normal cooling for 3
minutes after it is turned back on.
The LCDI plug is tripped
 Press the RESET button located
on the power cord plug.
 If the RESET button will not stay
engaged, discontinue use of the
air conditioner and contact a
qualified service technician.
The Air Conditioner does not cool as
it should Airflow is restricted  Make sure there are no curtains,
blinds, or furniture blocking the
front of the air conditioner.
The temperature control may not be
set correctly
 Lower the set thermostat tempera-
ture.
The air filter is dirty  Clean the filter. See the Cleaning
and Care Section of the manual.
The room may be too warm  Please allow time for the room to
cool down after turning on the air
conditioner.
Cold air is escaping  Check for open furnace registers
and cold air returns.
The Cooling Coils are frozen  See “Air Conditioner Freezing Up”
below.
The Air Conditioner is freezing up Ice blocks the air flow and stops the air
conditioner from cooling the room  Set the MODE dial to HIGH FAN
or HIGH COOL and set the ther-
mostat to a higher temperature.

TROUBLESHOOTING
PROBLEM POSSIBLE CAUSES SOLUTIONS
Water is dripping outside Hot and humid weather  This is normal
Water is dripping inside the room The air conditioner is not correctly
tilted towards the outside  For proper water drainage, make
sure the air conditioner is slightly
tilted downward from the front of
the unit to the rear.
Water collects in the base pan Moisture removed from the air is
draining into the base pan  This is normal for a short period in
areas with low humidity and nor-
mal for a longer period in areas
with high humidity.
The Remote Control is not work-
ing
The batteries are inserted incor-
rectly or batteries may be dead  Check the position of the batter-
ies.
 Replace the batteries

LIMITED WARRANTY
Two Year Components Limited Warranty
Five Year Compressor Limited Warranty
Soleus N.A. warrants the accompanying Soleus Air Air Conditioner to be free of defects in material and workmanship for the appli-
cations specified in its operation instruction for a period of TWO (2) years for components and FIVE (5) years for the compressor
from the date of original retail purchase in the United States.
If the unit exhibits a defect in normal use, Soleus N.A. will, at its option, either repair or replace it, free of charge within a reasona-
ble time after the unit is returned during the warranty period.
As a condition to any warranty service obligation, the consumer must present this Warranty Certificate along with a copy of the
original purchase invoice.
THIS WARRANTY DOES NOT COVER:
Damage, accidental or otherwise, to the unit while in the possession of a consumer not caused by a defect in material or
workmanship.
Damage caused by consumer misuse, tampering, or failure to follow the care and special handling provisions in the in-
structions.
Damage to the finish of the case, or other appearance parts caused by wear.
Damage caused by repairs or alterations of the unit by anyone other than those authorized by Soleus N.A.
Freight and Insurance cost for the warranty service.
Filter and Accessories
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY ARE LIMITED TO THE DU-
RATION OF THIS EXPRESS LIMITED WARRANTY. SOLEUS N.A. DISCLAIMS ANY LIABILITY FOR CONSEQUEN-
TIAL OR INCIDENTAL DAMAGES AND IN NO EVENT SHALL SOLEUS N.A.’S LIABILITY EXCEED THE RETAIL VAL-
UE OF THE UNIT FOR BREACH OF ANY WRITTEN OR IMPLIED WARRANTY WITH RESPECT TO THIS UNIT.
This warranty covers only new products purchased from our authorized dealers or retailers. It does not cover used, sal-
vaged, or refurbished products.
As some states do not allow the limitation or exclusion of incidental or consequential damages, or do not allow limitation on im-
plied warranties, the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you
may also have other rights that vary from state to state.
For Technical Support and Warranty Service
Please Call [phone]
www.soleusna.com
