Soleus Air GH-PAC-10E5 User manual

10,000 BTU Portable Air Conditioner
Operating Instructions
Model No. GH-PAC-10E5

Thank you for choosing a Soleus Air Powered by Gree Portable Air Conditioner. This owner’s man-
ual will provide you with valuable information necessary for the proper care and maintenance of your
new product. Please take a few moments to thoroughly read the instructions and familiarize yourself
with all the operational aspects of your new Portable Air Conditioner.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store
name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
IMPORTANT INSTRUCTIONS
Before installing and using your portable air conditioner, please read this owner’s manual carefully. Store this
manual in a safe place for future reference.
1) Always place the unit on a level surface.
2) Never use or store gasoline or other flammable vapor or liquid near this unit unless instructed by this manual.
3) Maintain at least 10 inches (25 cm) clearance space around this unit. Do not block or cover air inlet or outlet grilles.
4) The unit must be connected to a correctly grounded power supply.
5) Do not start or stop the unit by inserting or pulling out the power plug.
6) Do not use an adapter plug or extension cord.
7) Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool.
8) Do not insert anything into the air outlet. Do not obstruct air inlet or outlet grills unless instructed by this manual.
9) Do not let children play near this unit.
10) Always inspect the cord for signs of damage before use. If the power cord is damaged, it must be replaced by the
manufacturer or a qualified service technician.
11) When cleaning the unit, always turn the unit off and unplug the power cord.
2

3
SPECIFICATIONS
•The cooling capacity is measured at an ambient temperature of DB 86 °F, WB 78 °F.
•Noise level is measured at a distance of 3.28 ft away from the front of the unit, when the unit is in cooling mode.
•Power consumption is measured when the fan runs at the highest speed setting.
•These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
•If the environment temperature is higher than the max operating temperature or lower than the minimum operating
temperature, the air conditioner may not work properly.
PACKAGE CONTENTS
Portable Air Conditioner
Exhaust Hose (1)
Exhaust Hose Adapter (1)
Window Kit Adapter (1)
Hose Adapter (1)
Remote Control & AAA Batteries (2 batteries)
Window Kit - 3 Sliding Panels (1 single hose panel, 2 extension panels)
Drain Hose Assembly (drain pipe, clamp, hose clip, rubber plug, & screw)
Owner’s Manual
Power Suppl y (Ph/V/Hz) 1/115/60 Hz
Dehumidifying Capacity (P ints/Day) 50
Rated Coolin g Cap acity (BTU/h) 10,000
Rated Heatin g Cap acity (BTU/h) /
Cooling Power Input (Watts) 1050
Heating Power Input (Watts) /
Rated Curre nt Cooling (Amperage) 9.5
Rated Curre nt Heating (Amperage) /
Nois e Level d b (A) H/L <=56
CFM - H / M / L 195 / 165 / 13 5
Product Dime nsions (W” x H” x D”) 11.75 x 31.75 x 14.75
Product Wei ght (Lbs) 58.1
Refrigerant Type R-4 10A
Refrigerant Charg e (Oz) 15
Model No. / Reference No. GH-PAC-10E5
Energy consumption
Energy consumption in stand by
1050 watts/hour
2 watts/hour

POWER CORD AND PLUG
4
WARNING
This unit has a grounded three
pronged plug intended to fit into a
three slot outlet. (A) An adapter is
available for connecting three
pronged plugs into two slot outlets.
(B) When doing so, the green ground-
ing tab extending from the adapter
must be fastened under the wall
plate’s mounting screw. The adapter
should not be used if a three-slot out-
let is available.
DO NOT DEFEAT THE SAFETY
PURPOSE OF THE GROUNDED
PLUG.

PRODUCT DIAGRAM
Control Panel
5
Louvers
Louver Guides
Casters
Power Cord
Filters
Upper Air Intake
Lower Air Intake
Remote Control Holder
Air Exhaust Vent

PARTS & WINDOW KIT ASSEMBLY
PARTS
EXHAUST HOSE & ADAPTERS
ASSEMBLY & INSTALLATION
INSTALLATION
When the unit is operating as an air conditioner or dehumidifier, the window kit and exhaust hose must be installed.
When the unit is operating in fan mode, the window kit and exhaust hose do not need to be installed .

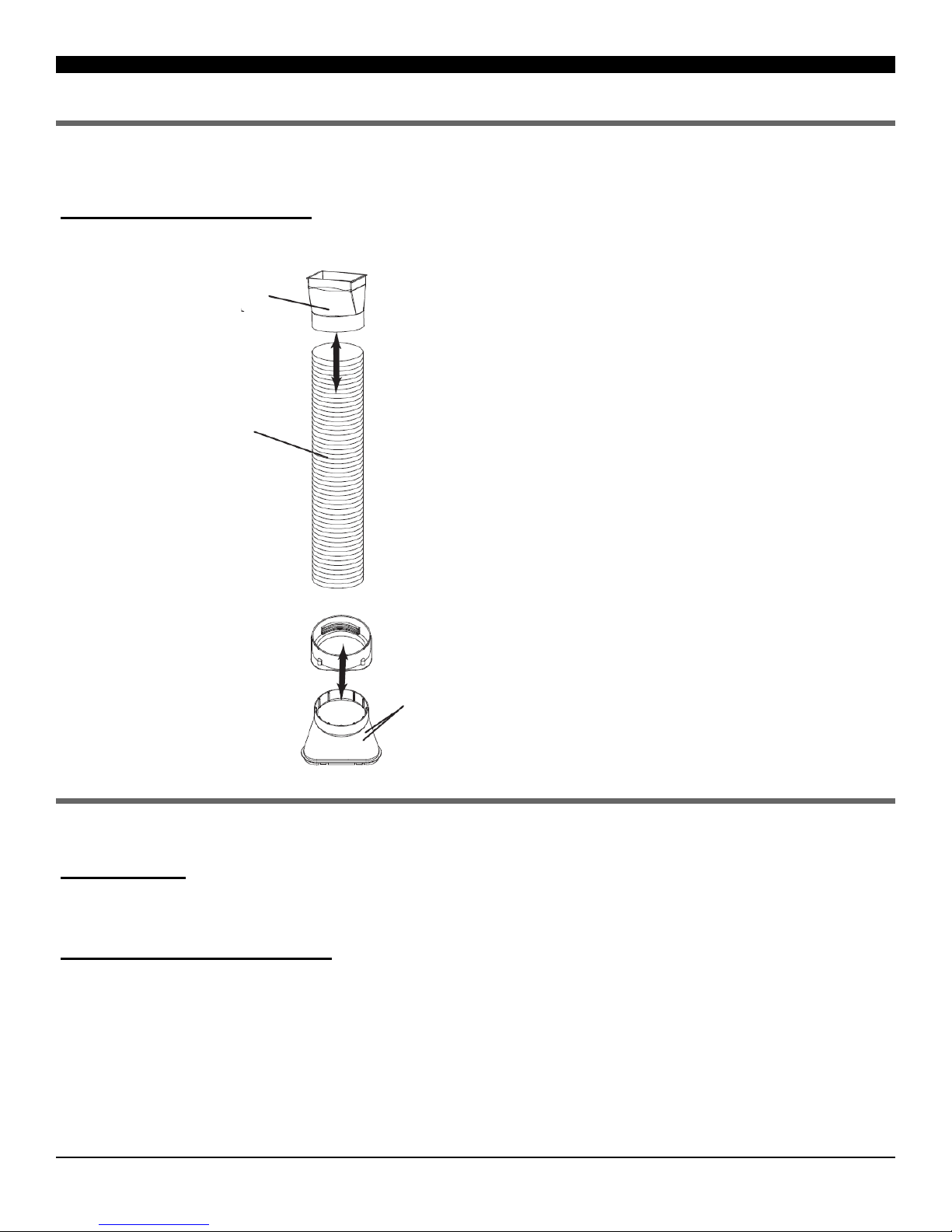

MOUNTING THE EXHAUST HOSE
• Choose a suitable location, near a grounded electrical outlet and suitable window or door. Remove
packaging and locate components.
• Extend both ends of the exhaust hose approximately 6 inches.
• Screw the window kit adapter onto one end of the exhaust hose clockwise. Screw the hose adapter onto
the other end of the exhaust hose clockwise.
• Mount the exhaust hose onto the back of the unit by locking the hose adapters into place.
• For maximum efficiency do not bend the hose as much as possible.
6
Exhaust Hose Adapter
Exhaust Hose
Hose Adapter and
Window Kit Adapter

7
SINGLE HOSE WINDOW KIT INSTALLATION
When installing the exhaust hose, try and keep it as flat as possible. The less angles and bends
in the hose, the better the unit will perform. If bending or an angle is necessary, use single 90°
angles like the pictures above. Multiple bends will decrease performance and efficiency
This installation is OK The is a poor installation
22”
26”

CONTROL PANEL, DISPLAY, & OPERATING INSTRUCTIONS
CONTROL PANEL & LED DISPLAY
CONTROL PANEL OPERATING INSTRUCTIONS
1) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER
button once more to turn the unit off.
2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Air Condi-
tioner, Dehumidifier, and Fan only mode. Each press of the MODE button will light up a different icon on
the control panel. The exhaust hose and window kit must be installed when the unit is in Air Conditioner or
Dehumidifier mode. When using the unit as a fan, it is not necessary to keep the exhaust hose and window
kit connected to the unit.
3) Temperature - Select the desired temperature by pressing either - or + key when using the unit in
cooling mode. The digital thermostat will display the set temperature.
4) Louver Direction - This unit has 4-Way directional louvers. Use the louver guides to direct air where
cooling or fanning is needed most.
5) Bucket Full - When the unit cannot evaporate the collected moisture fast enough. The excess water will
collect in a backup water tank located inside the unit. The bucket full icon will light up if this occurs
REMOTE RECEIVER
MODE BUTTON TEMP SELECT BUTTONS POWER BUTTON
8
BUCKET FULL LIGHT
COOL MODE LIGHT DRY MODE LIGHT
FAN MODE LIGHT
LED DISPLAY

9
1) Power On and Off - Press the ON/OFF (POWER) button once to manually turn the unit on. Press the Power button once
more to turn the unit off. When you manually power the unit on and off by pressing the ON/OFF button, the preset timer will
be cancelled.
2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes: Auto, Air Conditioner, Dehu-
midifier, and Fan only mode. Once a mode is selected, an arrow will light up on the LCD display next to the selected MODE
label on the remote. Auto mode automatically chooses the air conditioner, dehumidifier, or fan mode based on the current room
temperature.
3) Fan Speed - Press the FAN speed button to cycle through low, medium, and high fan speeds. The small fan icons will light up
depending on which speed is selected. The more fan icons light up, the higher the speed. The fan icons are located on the LCD
display next to the SPEED label.
4) Temperature Setting - When the unit is in Air Conditioner mode you can select your desired temperature. Press the TEMP
SELECT buttons (+or -) to select your desired temperature setting. The temperature on the LCD display on the remote control
will increase or decrease accordingly. Hold the +/- buttons for two seconds to rapidly increase or decrease the temperature.
REMOTE CONTROL OPERATING INSTRUCTIONS
MODE BUTTON
TEMP SELECT BUTTONS
POWER BUTTON
SWING BUTTON
(Not Available on GH-PAC-10E5)
TIMER BUTTON
FAN BUTTON
SLEEP BUTTON
LCD DISPLAYand
MODE LABELS
NOTE: Heat mode is not available
on the GH-PAC-10E5
NOTE: HEAT MODE IS
NOT AVAILABLE

5) Auto-on Timer: When the air conditioner is off, it can be set to automatically turn on in 30 minutes to 24 hours at the previous
set mode and fan setting. To set the Auto-on Timer, press the TIMER button on the unit or remote control. Each touch of the +/-
buttons on the remote will change the timer setting in 30 minute increments (.5 hours). The T-ON and Hlights will blink while
the Auto-on Timer is being set. Once the timer is set, press the TIMER button once more to save the setting. Press the ON/OFF
button to cancel the timer.
Auto-off Timer: When the air conditioner is on, it can be set to automatically turn off in 30 minutes to 24 hours. To set the
Auto-off Timer, press the TIMER button on the remote control. Each touch of the +/- buttons on the remote will change the
timer setting in 30 minute (.5 hour) intervals. The T-OFF and Hlights will blink while setting. To cancel the timer, press the
ON/OFF button. Once the timer is set, press the TIMER button once more to save the setting. Press the ON/OFF button to
cancel the timer.
6) Sleep Mode - Press the SLEEP mode button to engage SLEEP mode. Sleep mode automatically reduces the
set temperature by 2°F after one hour and 4°F after two hours. This feature limits compressor usage and
enhances energy savings while you are sleeping.
7) Auto Mode - When AUTO mode is selected the air conditioner will automatically choose the operating
mode base on the current room temperature. When the room is below 68°F the air conditioner will
automatically fan the room to circulate air. When the room temperature is between 68°F-73°F the air
conditioner will operate in Fan mode if it was previously selected or dehumidifier mode (if another mode
was used previously) to remove humidity from the air as well as some cooling to help lower the room
temperature. When the room temperature is between 74°F-79°F the air conditioner will always operate in
dehumidifier mode. When the room temperature rises above 79°F, the unit will operate in air conditioner
mode to maximize cooling. Auto mode uses pre-determined settings to keep you comfortable by choosing
the most energy efficient mode based on the temperature of the room.
10
REMOTE CONTROL OPERATING INSTRUCTIONS (Cont.)
NOTE:
1. Battery: AAA 1.5V x 2
2. Remote control type: YX1FF
3. Remove batteries when remote not in use for a long time.
4. Press “MODE”& “ - ” can shift the °C & °F when the remote control in“OFF”mode.
5. Press “ + ” & “ - ” can lock and unlock the keyboard
6. Do not connect the battery improperly.
may explode or leak.
7

11
When the temperature or humidity is too high, the air conditioner may not be able to evaporate all of the water
as quickly as needed. All moisture that is unable to be evaporated is placed in a small bank up water tank in-
side the unit. When this tank is completely full, an alarm will sound, the compressor will shut off, and the
bucket full icon will light up on the control panel. To manually empty the tank, please follow the instructions
below.
1) Remove the pre-installed Drain Cap from the unit (See Below).
2) Attach the Clamp with the provided Screw (See Below).
3) Attach the Drain Hose to the Drain Port using the Drain Hose Clip. Insert the Drain Plug into the free end
of the Drain Hose and guide the Drain Hose through the Clamp. Once finished, the unit can be easily
drained by removing the drain plug and guiding the drain hose into a small pan to drain the water.
DRAINING COLLECTED WATER
Drain Hose Clamp Drain Hose Clip Drain Plug Screw
A. Drain Port
B. Clamp
A. Drain Port
B. Drain Cap
A. Drain Plug
B. Drain Port
C. Drain Hose
D. Drain Hose Clip
E. Clamp

MAINTENANCE
Note: Make sure power is off and the power cord is not plugged into an electrical outlet prior to
performing any maintenance on the unit.
Clean or replace filter - If the air filter is blocked with a dust, the airflow volume may reduce. It is
recommended to clean the filter once every two weeks or as needed.
1) Remove the filter from the filter compartment on the back of the unit.
2) Wash the air filter by immersing it gently into warm water with a neutral detergent. Rinse the filter
and dry it thoroughly out of sunlight.
3) Slide the filter back into the filter compartment after it is thoroughly dried.
4) If the filter is torn or unusable, order a new filter by calling the customer service number on the
warranty page of this manual.
Clean the unit Housing
1) Keep the unit from being exposed directly to the sun to prevent color fading.
2) Clean the surface with a damp cloth and dry it with a soft towel.
Storing the Unit for an Extended Period of Time or Transporting the unit
1) Empty any excess water by unplugging the water drainage stop in the back of the unit (located at
the bottom).
2) Unplug the unit.
3) The unit should be stored in a cool dry place.
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE
PRESENTATION OF THE MANUFACTURER. SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT
TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN.
12

PROBLEM
The Air Conditioner will not start
POSSIBLE CAUSES
The air conditioner is unplugged or not
connected well.
The fuse is blown/circuit breaker is
tripped.
Power Failure
The current interrupter device is
tripped.
SOLUTIONS
• Make sure the air conditioner plug
is pushed completely into the out-
let
• Check the house fuse/circuit
breaker box and replace the fuse
or reset the breaker.
• The unit will automatically re-start
when power is restored.
• There is a protective time delay
(approx. 3 minutes) to prevent
tripping of the compressor
overload. For this reason, the unit
may not start normal cooling for 3
minutes after it is turned back on.
• Press the RESET button located
on the power cord plug.
• If the RESET button will not stay
engaged, discontinue use of the
air conditioner and contact a
qualified service technician.
TROUBLESHOOTING
The Air Conditioner does not cool
as it should
Airflow is restricted
The temperature control may not be
set correctly.
The air filter is dirty
The room may be too warm
Cold air is escaping
The Evaporator is frozen
• Make sure there are no curtains,
blinds, or furniture blocking the
front of the air conditioner
• Lower the set thermostat tempera-
ture
• Clean the filter. See the Cleaning
and Care Section of the manual.
• Please allow time for the room to
cool down after turning on the air
conditioner.
• Check for open furnace registers
and cold air returns
• The unit is defrosting and will re-
sume operation when done.
The Air Conditioner displays the
Timer hours but does not work Is the TIMER ON enabled? • Cancel the TIMER or wait until the
unit turns on.
The Remote Control is not working
The batteries are inserted incorrectly
The batteries may be dead
• Check the position of the batteries.
• Replace the batteries
13

PROBLEM
The LCD Display is showing “E5”
POSSIBLE CAUSES
Low Voltage Protection
SOLUTIONS
• Unplug for 10 minutes and then
turn on the unit. If “E5” is still dis-
played, contact customer service.
TROUBLESHOOTING (CONT.)
The LCD Display is showing “H8”
The backup water tank is full
• Drain the water tank
• If the “H8” I still displayed after the
water tank has been emptied, con-
tact customer service.
14

WARRANTY
One Year Limited Warranty
Soleus International Inc. warrants the accompanying Soleus Air Powered by Gree Portable Air Conditioner to be free of
defects in material and workmanship for the applications specified in its operation instruction for a period of ONE (1)
year from the date of original retail purchase in the United States.
If the unit exhibits a defect in normal use, Soleus International Inc. will, at its option, either repair or replace it, free of
charge within a reasonable time after the unit is returned during the warranty period.
As a condition to any warranty service obligation, the consumer must present this Warranty Certificate along with a
copy of the original purchase invoice.
THIS WARRANTY DOES NOT COVER:
• Damage, accidental or otherwise, to the unit while in the possession of a consumer not caused by a defect in
material or workmanship.
• Damage caused by consumer misuse, tampering, or failure to follow the care and special handling provisions
in the instructions.
• Damage to the finish of the case, or other appearance parts caused by wear.
• Damage caused by repairs or alterations of the unit by anyone other than those authorized by Soleus Interna-
tional Inc.
• Freight and Insurance cost for the warranty service.
ALL WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANT ABILITY ARE LIMITED TO
ONE-YEAR DURATION OF THIS EXPRESS LIMITED WARRANTY. SOLEUS INTERNATIONAL INC.
DISCLAIMS ANY LIABILITY FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES AND IN NO EVENT
SHALL SOLEUS INTERNATIONAL INC’S LIABILITY EXCEED THE RETAIL VALUE OF THE UNIT FOR
BREACH OF ANY WRITTEN OR IMPLIED WARRANTY WITH RESPECT TO THIS UNIT.
This warranty covers only new products purchased from our authorized dealers or retailers. It does not cover used, sal-
vaged, or refurbished products.
As some states do not allow the limitation or exclusion of incidental or consequential damages, or do not allow
limitation on implied warranties, the above limitations and exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state to state.
For Technical Support & Warranty Service
Please write to or visit us at:
Soleus International Inc.
20035 E. Walnut Dr. North
City of Industry, CA 91789 U.S.A.
www.soleusair.com
www.greeusa.com
15
