Portable Air Conditioner with
Evaporative Technology
PE7-10R-03
Operating Instructions
Model No. PE7-10R-03
3046364

Thank you for choosing a Soleus Air Portable Air Conditioner. This owner’s manual will provide you
with valuable information necessary for the proper care and maintenance of your new product. Please
take a few moments to thoroughly read the instructions and familiarize yourself with all the opera-
tional aspects of your new Soleus Air Portable Air Conditioner with Heat Pump technology.
For your own records, please attach a copy of your sales receipt to this manual. Also, write the store
name/location, date purchased, and serial number below:
Store Name: ____________________________________________________
Location: ______________________________________________________
Date Purchased: _________________________________________________
Serial Number (located on back of unit): ______________________________
2
IMPORTANT INSTRUCTIONS
Before installing and using your portable air conditioner, please read this owner’s manual carefully. Store this
manual in a safe place for future reference.
1) Always place the unit on a level surface.
2) Never use or store gasoline or other flammable vapor or liquid near this unit unless instructed by this manual.
3) Maintain at least 10 inches (25 cm) clearance space around this unit. Do not block or cover air inlet or outlet grilles.
4) The unit must be connected to a correctly grounded power supply.
5) Do not start or stop the unit by inserting or pulling out the power plug.
6) Do not use an adapter plug or extension cord.
7) Do not use the unit in the immediate surroundings of a bath, a shower or a swimming pool.
8) Do not insert anything into the air outlet. Do not obstruct air inlet or outlet grills unless instructed by this manual.
9) Do not let children play near this unit.
10) Always inspect the cord for signs of damage before use. If the power cord is damaged, it must be replaced by the
manufacturer or a qualified service technician.
11) When cleaning the unit, always turn the unit off and unplug the power cord.
12) When the unit is not in use, always remove the venting kit from window.
13) Do Not Mix Old And New Batteries. Do Not Mix Alkaline, Standard (Carbon - Zinc), Or Rechargeable (Nickel -
Cadmium) Batteries.

SPECIFICATIONS
• The cooling capacity is measured at an ambient temperature of DB 86 °F, WB 78 °F.
• Noise level is measured at a distance of 3.28 ft away from the front of the unit, when the unit is in cooling mode.
• Power consumption is measured when the fan runs at the highest speed setting.
• These specifications are for reference only. For actual data, please refer to the rating label on the back of the unit.
• If the environment temperature is higher than the max operating temperature or lower than the minimum operating temperature,
the air conditioner may not work properly.
PACKAGE CONTENTS & SPECIFICATIONS
What’s in the Box:
Portable Air Conditioner
Exhaust Hoses (1)
Hose Adapters (1)
Window Kit Adapter (1)
Remote Control
AAA Batteries (2)
Window Kit - 3 Sliding Panels (1 single hose panel, 2 extension panels)
Owner’s Manual
3
MODEL PE7-10R-03
Cooling Capacity 10,000 BTU/Hr
Dehumidifying Capacity (Pints per day) 48 Pints/Day
Air Flow Volume (CFM) 265 CFM
Power Source 115 V / 60 HZ
Sound Pressure Level 45 dB (A)
Product Weight 56.2 lbs
Product Dimensions (W x D x H) 11.75” W x 18.75” D x 24.875” H
Refrigerant R-410A
Cooling Power Consumption 1060 Watts
Rated Current 9.3 Amps
DISCLAIMER
ALL INFORMATION AND THE TECHNICAL SPECIFICATIONS PRESENTED IN THIS USER’S MANUAL ARE THE
PRESENTATION OF THE MANUFACTURER. SOLEUS INTERNATIONAL HAS NOT CONDUCTED INDEPENDENT
TEST TO THE INFORMATION AND THE SPECIFICATIONS PRESENTED HEREWITHIN.

NOTE: Actual product design may differ slightly from images below.
4

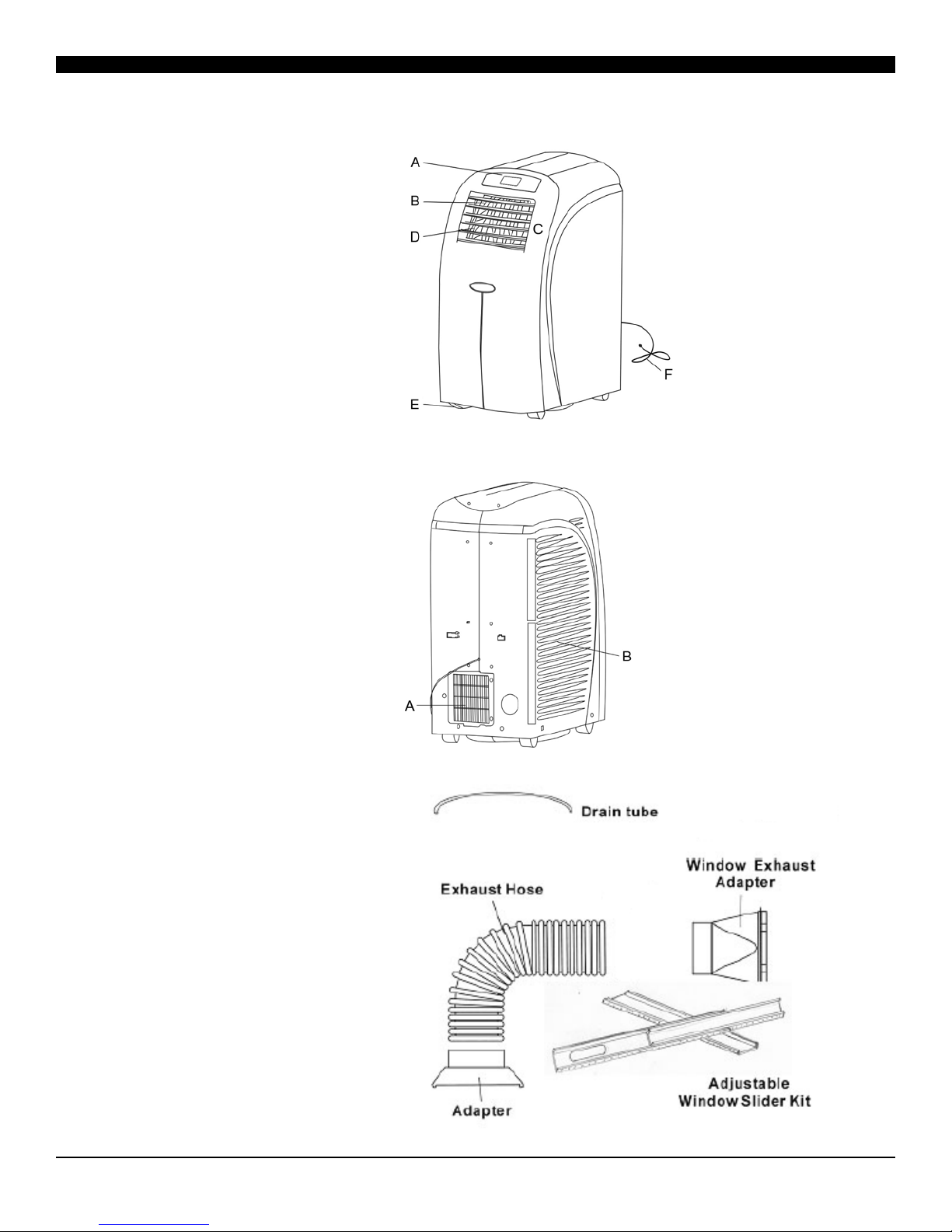

FRONT
A. Control panel
B. Vertical air louvers
C. Air outlet
D. Horizontal air louvers
E. Casters
F. Power Cord & Plug
BACK
A. Hot air outlet grill
B. Lower air inlet grill
ACCESSORIES
Flexible exhaust hose with 2 adapters
• 3-piece set
• stretches from 14 1/4” to 60 5/8”
(36cm to 150cm)
Adjustable window slider kit
• 3-piece set
• adjusts 19.7” - 55.5” (50cm to 141cm)
Drain tube
PRODUCT DIAGRAM

5
SELECTING THE LOCATION
Place the unit in a flat location where the air out-
lets are not obstructed. Place the unit at least
20” (50cm) away from a wall or other obstacle.
MOUNTING THE EXHAUST HOSE
Slide the square end of the exhaust duct over the
hot air outlet on the back of the unit.
The exhaust hose should be kept as short and
straight as possible. Prevent any sharp bends in
the exhaust hose, as this will trap hot exhaust air.
The hot exhaust air can be vented through the
wall or out a window. If mounting in the wall, the
height of the hole should be 14 1/4” to 60
5/8” (36cm to 150cm).
Soleus Air does not provide a venting kit for
through the wall ventilation. Venting through the
wall requires a custom installation.
INSTALLATION

This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord and
plug as required by US National Electric Code 440.65. This cord consists of a length of shielded flexible cord
with no termination on the load side and a LCDI attachment plug on the line side.
The LCDI power cord and plug will remove the supply source via electrical disconnect (circuit trip) if the
nominal current leakage between the cord shield and either load conductor exceeds a predetermined value.
The cord will remain de-energized until the devise has been manually reset. This is intended to reduce the risk
of a fire in the power cord or combustible materials nearby. The cord shields are not grounded and they must
be considered a shock hazards if exposed. The cord shield must not be connected to ground or to any exposed
metal.

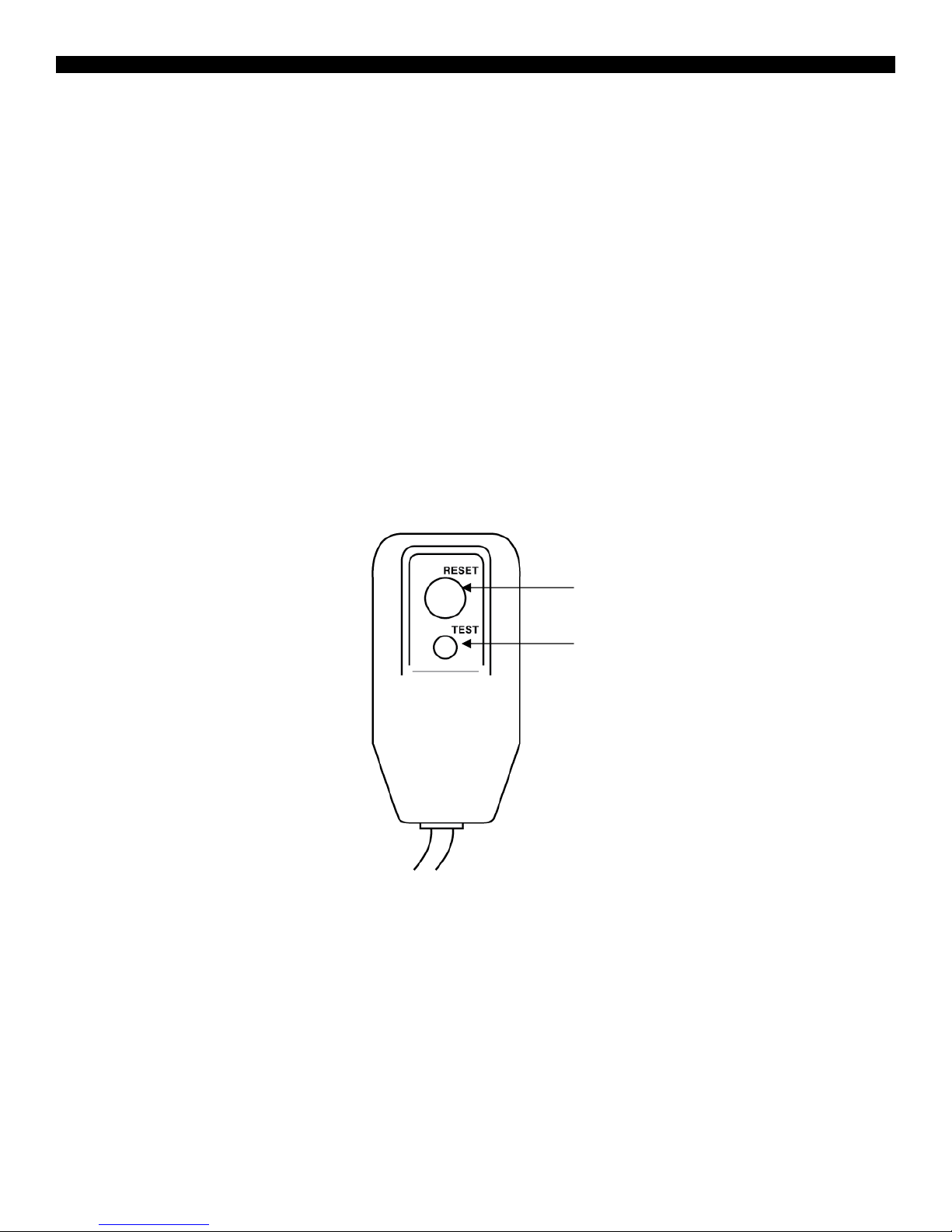

The test and reset buttons on the LCDI Plug are used to check if the plug is functioning properly. To test:
1. Plug power cord into wall outlet
2. Press TEST Button, circuit should trip, cutting power to the air conditioner
3. Press RESET button for use
If test button is pressed and unit can still be turned on, current leakage has been detected. Do not use the air
conditioner or attempt to reset the LCDI Plug. Contact Soleus Air Customer Service for troubleshooting
recommendations.
WARNING:
1. DO NOT press the TEST button while the air conditioner is operating.
2. The TEST and RESET buttons should not be used as “ON” and “OFF” switches.
3. The cord and plug are not intended to offer protection to externally connected loads or supply circuits.
4. The cord and plug are intended for indoor use only.
RESET
TEST
LCDI POWER CORD AND PLUG
6

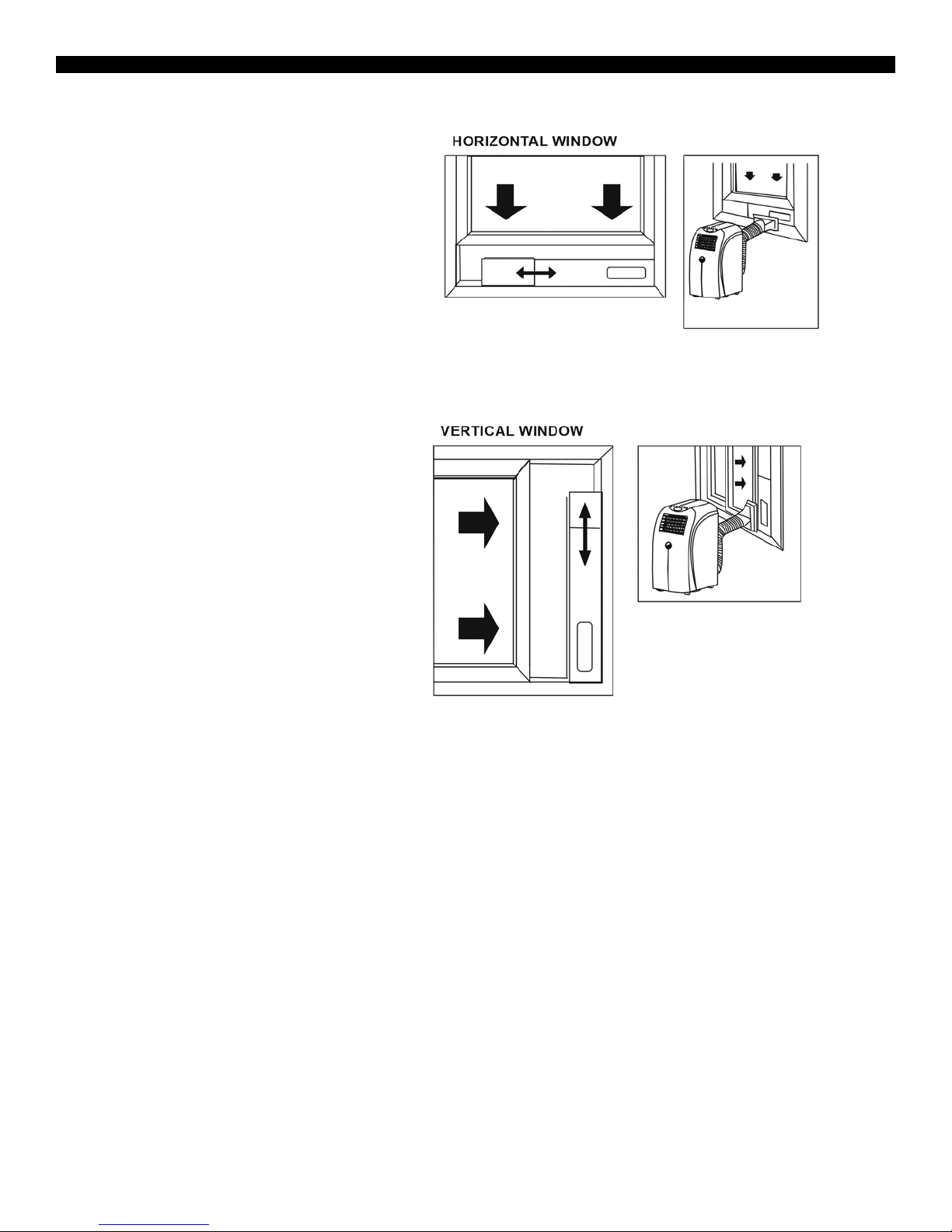

WINDOW KIT INSTALLATION
The window kit is designed to fit into most standard
vertical and horizontal windows, as well as some
sliding glass doors. However, it may be necessary to
modify some aspects of the installation process for
certain window types.
Open the window or sliding door and adjust the
length of the window kit to fit the opening. If the
window kit is not long enough, connect the extra
window kit panel to fit the opening. Mark and cut
down a single panel of the window kit if neces-
sary.
Place the window kit between the window and the
window frame as shown in the images to the right.
Close the window onto the window kit to form a
tight seal.
Attach the exhaust duct adapter to the window kit.
Tabs located on the adapter will lock into place
securing the adapter to the window kit.
WINDOW KIT INSTALLATION
Window Slider Kit
Minimum: 19.7” (50cm)
Maximum: 55.5” (141cm)
Window Slider Kit
Minimum: 19.7” (50cm)
Maximum: 55.5” (141cm)
7

8
NOTE: The Portable Air Conditioner above may differ from the unit described in this manual. The above directions and images
show general directions for all Soleus Air single hose portable air conditioners.
WINDOW KIT INSTALLATION

9

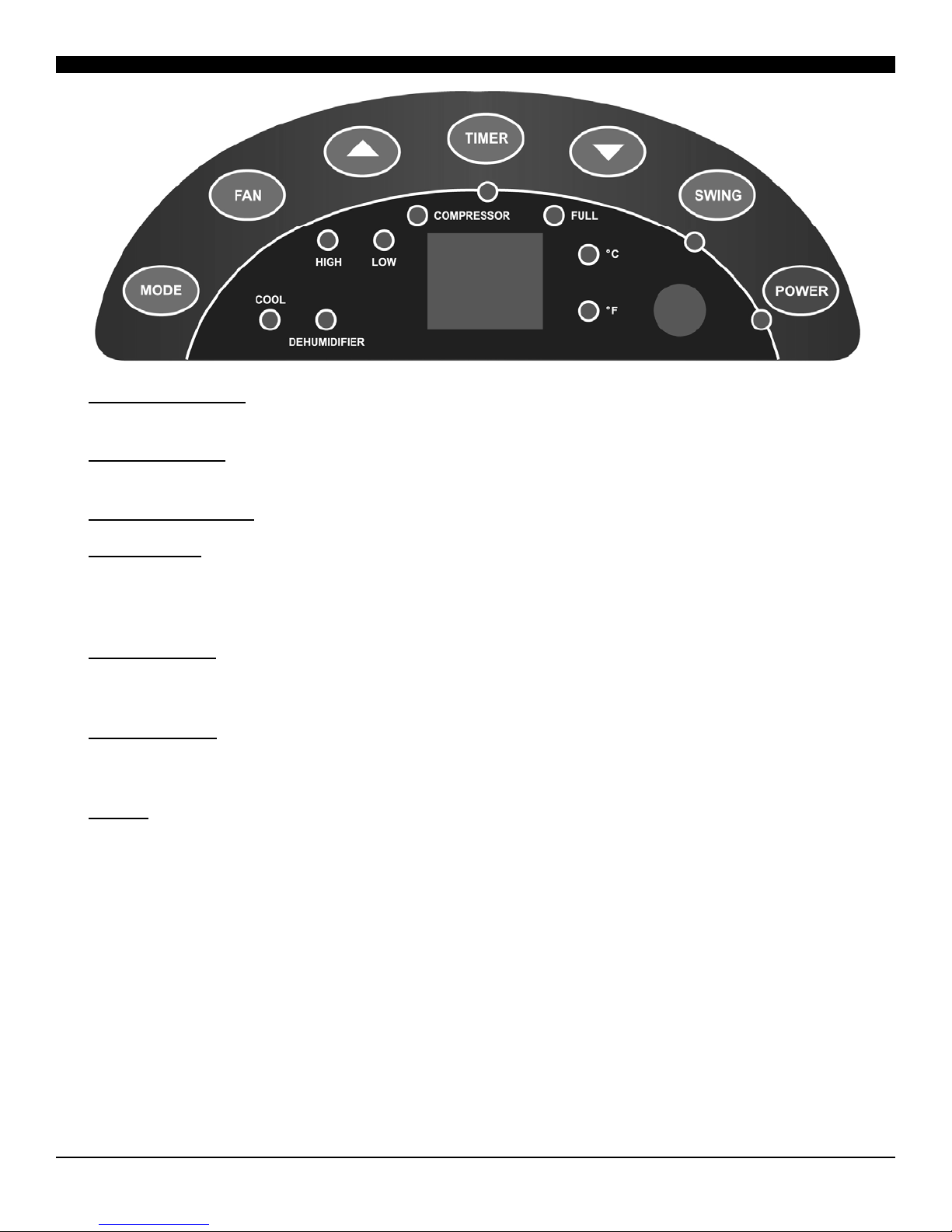

CONTROL PANEL & OPERATION
1) Power On and Off - Press the POWER button once to manually turn the unit on. Press the POWER
button once more to turn the unit off.
2) Mode Selection - Press the MODE Button repeatedly to cycle between the different modes:
Air Conditioner and Dehumidifier.
3) Fan Speed Control - Press the FAN Button to cycle through the different fan speeds: High and low.
4) Temperature - Select the desired temperature by pressing either ▼or ▲ button when using the unit in
cooling mode. The temperature indicator flashes to display the desired temperature setting. After the tem-
perature is set, the unit will display this temperature setting until it is changed by the user. Press the ▼and
▲ buttons simultaneously on the control panel to change between Celsius or Fahrenheit.
5) Auto-on Timer - To program the Auto-on timer, press the TIMER button when the unit is powered off.
Press the ▲or ▼buttons to change the timer to the desired amount of time (1-24 hours) for the unit to
automatically turn on.
6) Auto-off Timer - To program the Auto-off Timer , press the TIMER button when the unit is powered on.
Press the ▲or ▼buttons to change the timer to the desired amount of time (1-24 hours) for the unit to
automatically turn on.
7) Swing - To start side-to-side louver oscillation, press the Swing button once. The SWING light will light
up on the control panel. To stop oscillation, press the Swing button again. Vertical air flow direction can be
adjusted manually.
NOTE: HEAT MODE is not available on this model.

OPERATING THE UNIT USING THE CONTROL PANEL
Air Conditioner Mode
1) Install the exhaust hose and window kit properly (see pages 7 & 8).
2) Plug the Power Cord into an electrical outlet.
3) Turn on the unit by pressing the POWER button on the control panel.
4) Press the ▲or ▼buttons until the desired room temperature appears on the control panel
display. The temperature ranges from 61°F - 88 °F (16 °C - 31 °C).
5) Select the desired fan speed by pressing the FAN button.
NOTE: During hot days, the unit will cool the room most efficiently by setting the temperature at the lowest
setting and the fan speed on high. Reducing the length of the exhaust duct, insulating the exhaust hose and
window kit, and keeping direct sunlight to a minimum will also improve the cooling efficiency.
NOTE: When the unit is running on cooling mode, the exhaust hoses are required and must be vented outside
using the supplied window kit.
Dehumidifier Mode
1) Install the exhaust hoses and window kit properly (see pages 7 & 8).
2) Plug the Power Cord into an electrical outlet.
3) Turn on the unit by pressing the POWER Button on the control panel.
NOTE: The unit operates at low fan speed during dehumidifier mode. The unit cools room slightly during
the dehumidification. Keep the windows and doors closed to aid the effectiveness of the unit in removing the
moisture from the room.
NOTE: When the unit is running in dehumidifier mode, the exhaust hoses are required and must be vented
outside using the supplied window kit. The unit will not perform in dehumidifier mode when the room tem-
perature is lower than 61°F .
Compressor Indicator
The compressor light will light up on the control panel display when the compressor turns on. The compressor
light will turn off when the compressor shuts off.
10
