Solflex SonaSafe HW Series User manual

Installation - Manual
HW - Acoustic Housing

Page 2
Manual HW Acoustic Housing
Version: 10/2020
Solflex GmbH
Am Feuerstein 282
2392 Wienerwald
Austria
T: [phone]
E: [e-mail]
www.solflex.eu
ATU 65324348
FN 337206t
Always observe all relevant standards and
statutory regulations
Subject to change without prior notice.
All business transactions based on our Terms and Conditions, available at
www.solflex.eu

Page 3
Manual HW Acoustic Housing
Version: 10/2020
Table of content
1. General information .........................................................4
2. Technical Data.................................................................4
3. Warranty ........................................................................5
4. Safety ............................................................................5
4.1. Intended use...................................................................5
4.2. Safety instructions ...........................................................5
4.2.1. Risks during unloading and transportation ..........................5
4.2.2. Risk of damage to property and the environment.................5
4.3. Emergency procedures .....................................................5
4.3.1. Fire fighting ....................................................................5
5. Product delivery ..............................................................5
5.1. Unloading / transport to location of installation....................6
6. Installation of unit ...........................................................7
6.1. Installation HW100NP/HW200NP and HWY100NP/HWY200NP 8
6.2. Installation of Heat Pump, ............................................. 28
7. Maintenance and Service ................................................ 28
7.1. General ........................................................................ 28
7.2. Silencers....................................................................... 28
7.3. Grounding..................................................................... 28
7.4. Test run ....................................................................... 28
7.5. Removal and disposal..................................................... 28

Page 4
Manual HW Acoustic Housing
Version: 10/2020
1. General information
Solflex produces SonaSafe acoustic housing for a wide range of Heat Pump, Air
Conditioning and Refrigeration systems.
This manual applies to the following series:
SonaSafe HW* Serie

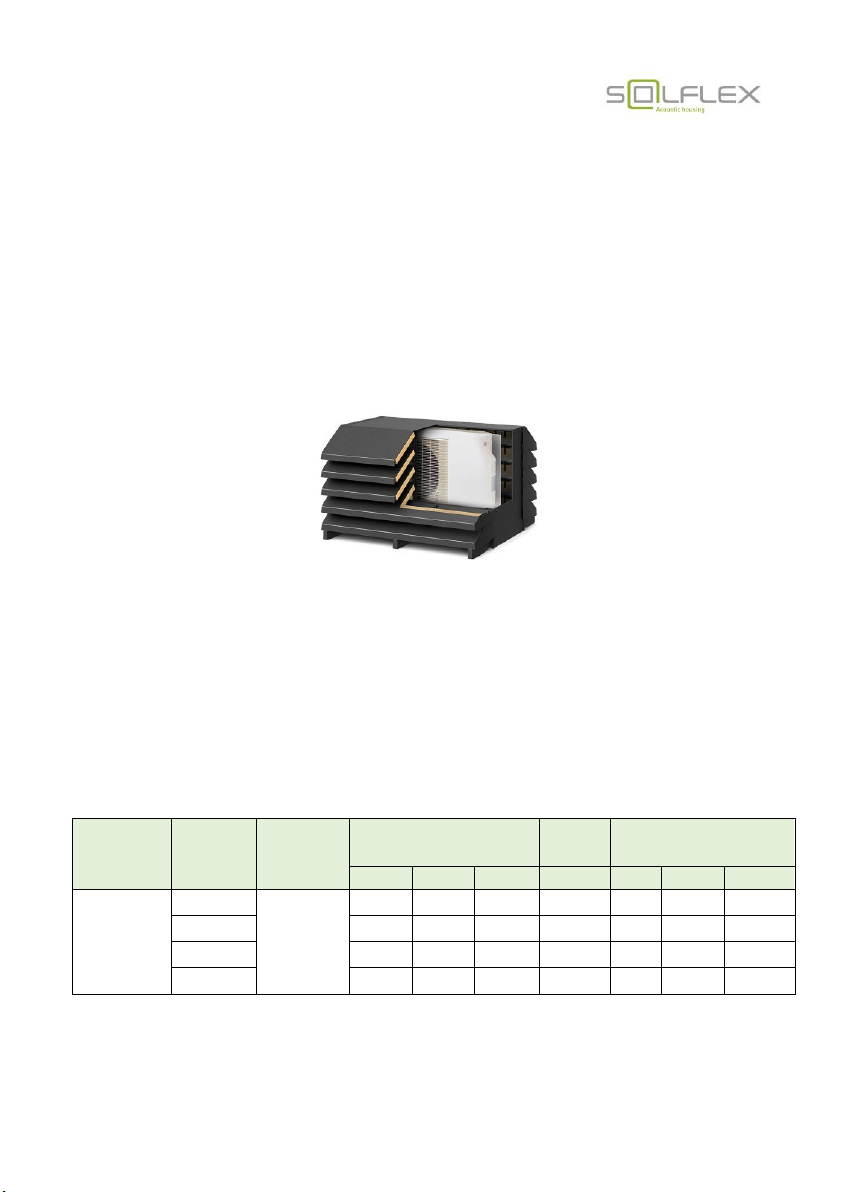

2. Technical Data
Stable, insulated box body with a completely dismountable body.
All housing components are corrosion resistant. For the exact separation of the air
duct between intake and blow-out an air-tight air separation part between the noise
insulation housing and the air conditioning / refrigeration unit or heat pumps is
provided. This air separation unit must be attached on site to the air conditioning /
refrigeration unit or heat pumps using the supplied adhesive pads. The panels on the
top, as well as on the left and right side of the silencer housing can be dismantled
using screw connections for optimum access and service of the equipment.
The complete construction is optimized for the operation of air conditioning /
refrigeration appliances and heat pumps.
Principle SonaSafe
Typ Edition
Housing dimensions
[mm]
Weight
[kg]
Max. dimensions for
installation
H W D H W D
Rear suction
front
discharge
HW100NP
Black plastic
758 1165 1200 50 655 1060 490
HWY100NP 1002 1165 1200 70 900 1060 490
HW200NP 1489 1165 1200 90 1390 1060 490
HWY200NP 1733 1165 1200 110 1650 1060 490

Page 5
Manual HW Acoustic Housing
Version: 10/2020
3. Warranty
24 months from delivery.
4. Safety
In the event of improper operation or
operation for a purpose other than the
intended, there is however a risk of
serious or even fatal injury to persons
and a risk of damage to the unit and
other property.
4.1. Intended use
The unit must only be used as
acoustic housing for compatible Heat
Pump, Air Conditioning and
Refrigeration systems. Any other use
is strictly prohibited.
4.2. Safety instructions
All work about the assembly,
installation and commissioning of the
unit must be carried out by specially
trained technicians.
4.2.1. Risks during
unloading and transportation
Risk of serious injury from dislodged
loads.
Do not stand under suspended loads.
Risks from electric power
Risk of electric shock from
electrostatic charge of housing:
Earth the device.
4.2.2. Risk of damage to
property and the environment
Serious damage to property from
dropping loads;
please observe the instructions in
section "Delivery of product".
Serious damage to heat exchanger
connections, panelling and other
mounted components from force
impact during moving of unit
elements; always move the unit
elements by their base frame.
Risk of damage to components from
heavy impact, e.g. when attempting
to dislodge a part with a hammer,
etc.: Components that rest on the
foundation must only be moved by
shifting.
4.3. Emergency procedures
4.3.1. Fire fighting
Strictly adhere to all statutory fire
safety regulations.
The insulation foam has a fire
behaviour according norm.
5. Product delivery
Upon delivery, inspect the product for
damage caused during transport and
ensure that the delivery is complete.
Record any damage or missing parts
on the transport documents.
Complaints regarding obvious
transport damage or incomplete
deliveries cannot be considered if
made too late.
On the construction site, protect the
unit against dirt, impact and the
elements.

Page 6
Manual HW Acoustic Housing
Version: 10/2020
5.1. Unloading / transport to
location of installation
This unit is shipped in parts on a
pallet. For unloading, lift the unit by
the pallet.
Too short forks can damage the
acoustic housing.
Risk of serious injury or damage to
property from dropping loads.
Observe the safety instructions of the
transport equipment and lifting gear.
Do not climb onto the unit.

Page 7
Manual HW Acoustic Housing
Version: 10/2020
6. Installation of unit
At the place of installation, it must be possible to provide impeccable service and
maintenance and the necessary air intake of the built-in air-conditioning, refrigeration
and heat pump units.

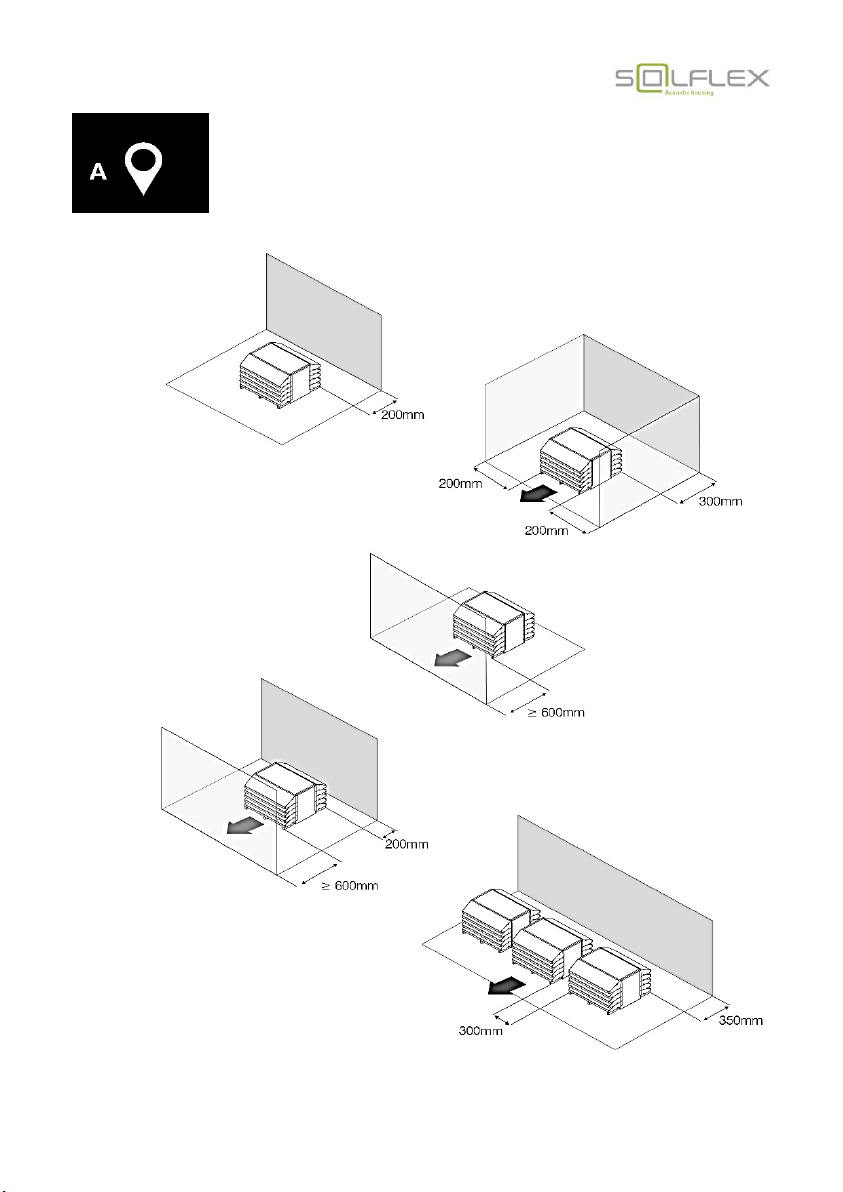

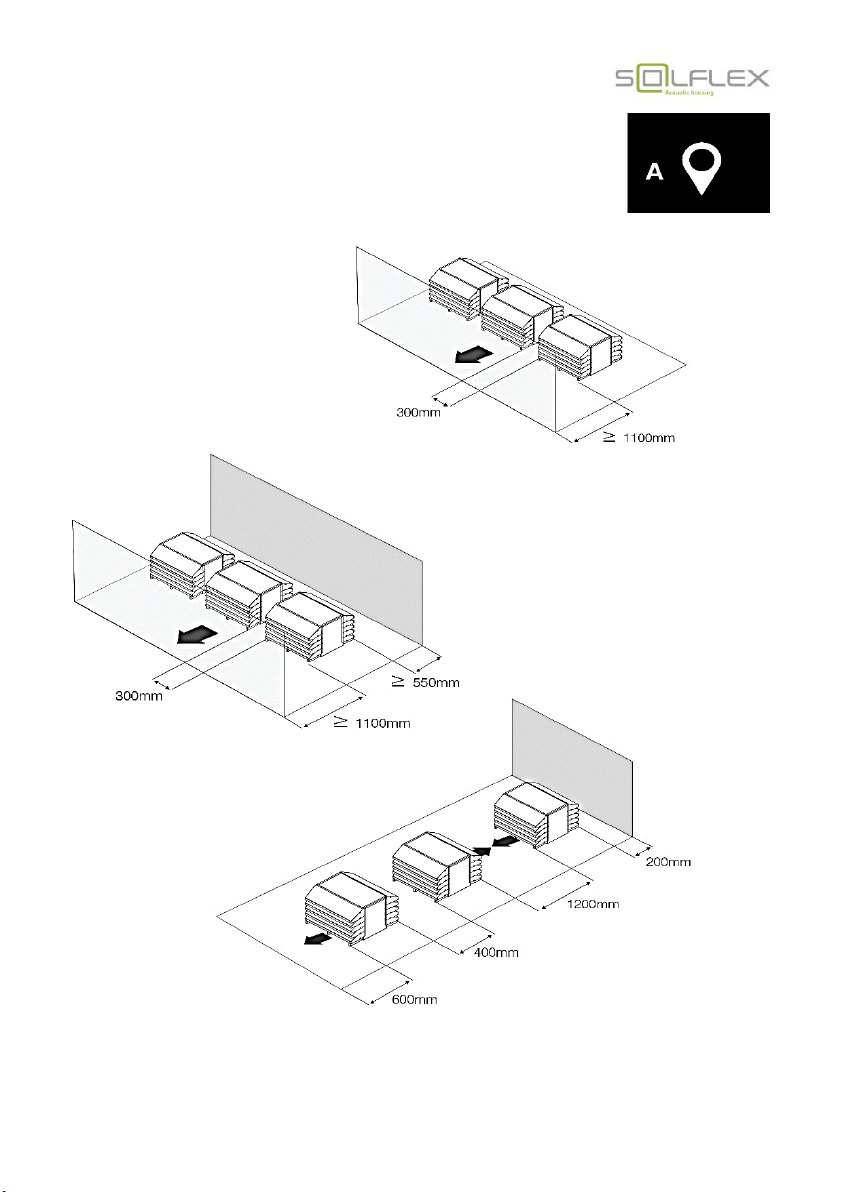

When planning the installation site, the guide lines for minimum distances
around the air-conditioning, refrigeration and heat pump manufacturer must be
respected.
The acoustic louvre, on the suction and exhaust sides has a depth of 200mm and the
site must enable this to remove to have access to the built-in air conditioning,
refrigeration and heat pump equipment.
Important NOTE:
Please always use the required safety work gear during installation.
Due to the packaging materials and the production process, personal injury may occur,
such as hand injuries.
If the soundproof housing is freely accessible, the necessary measures during assembly
should be taken to local conditions to avoid personal injury.

Page 8
Manual HW Acoustic Housing
Version: 10/2020

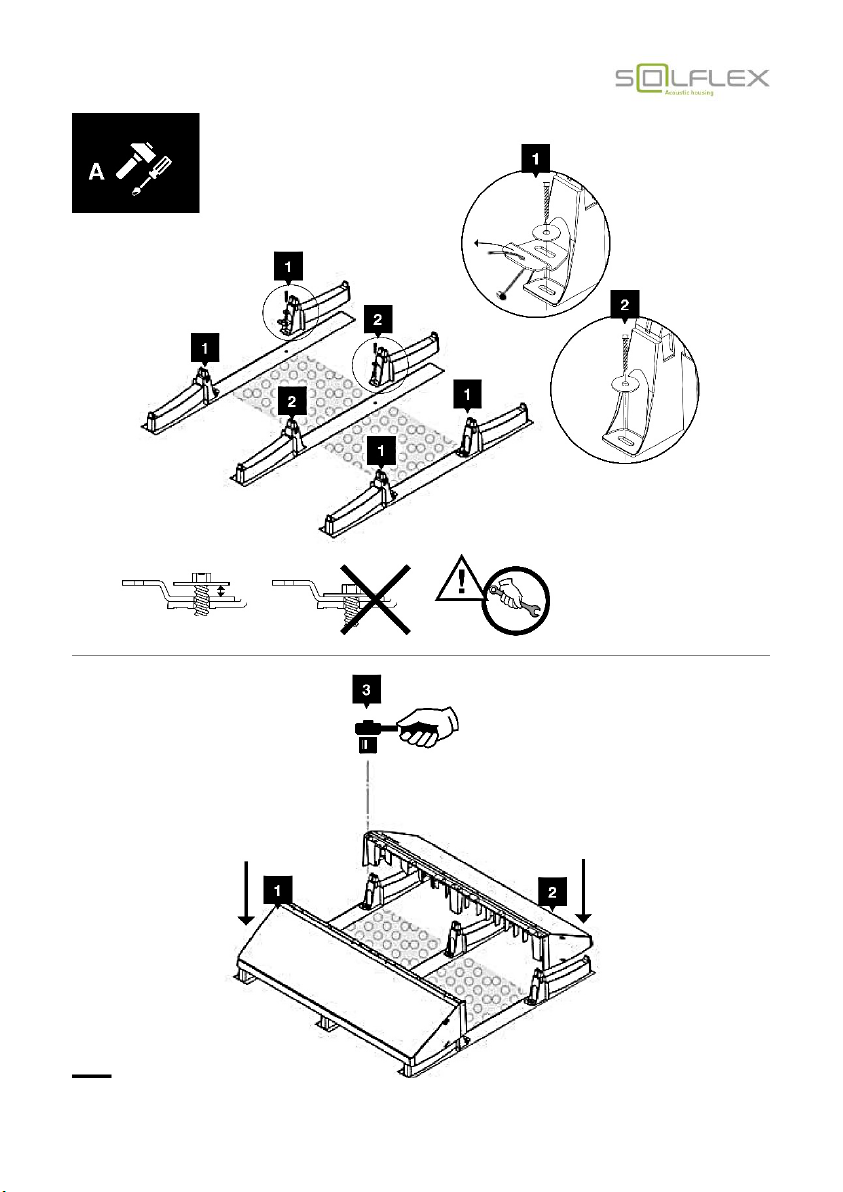

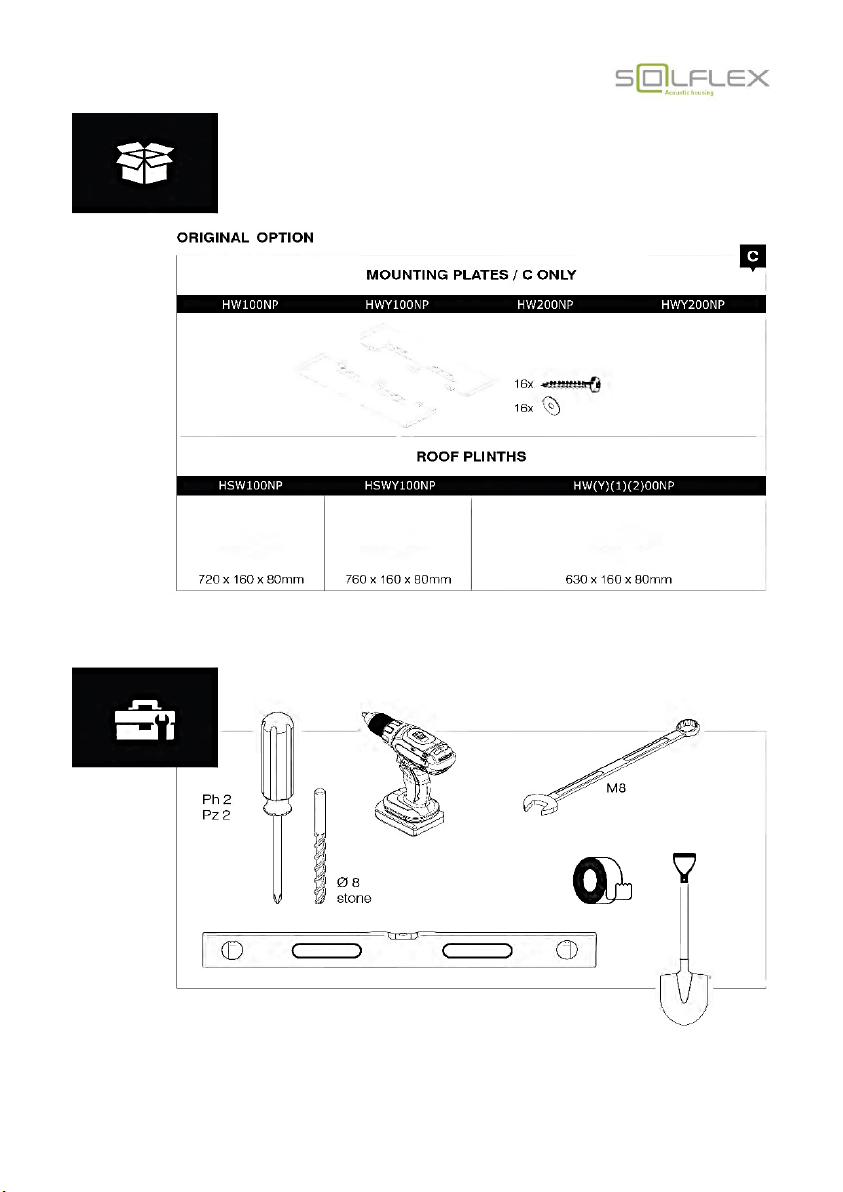

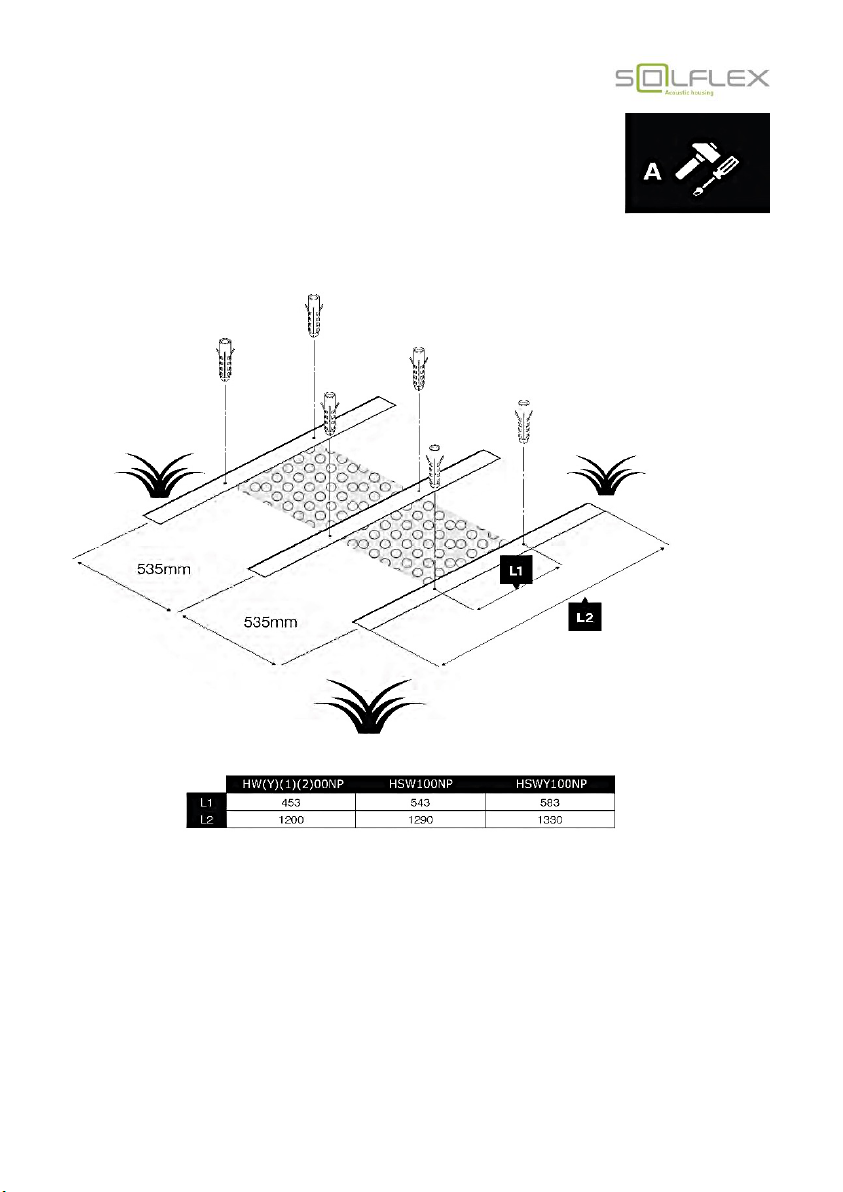

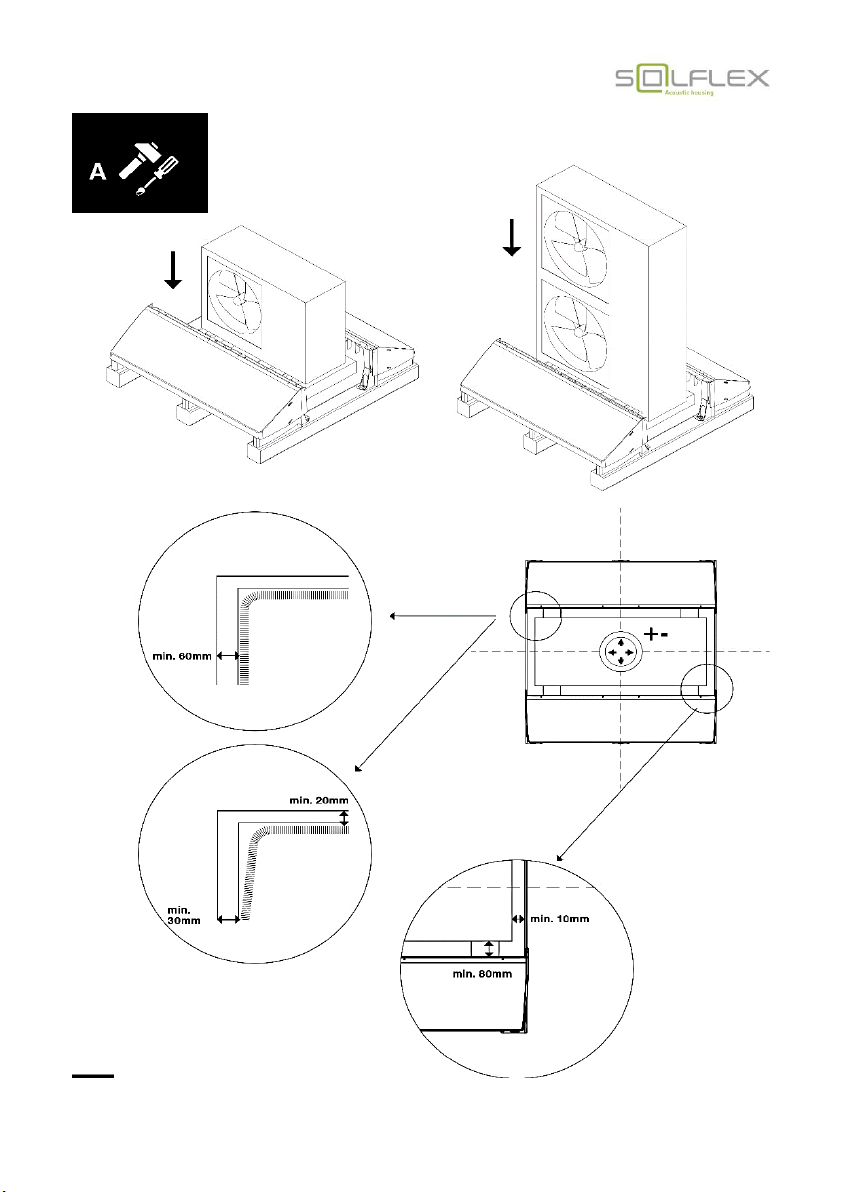

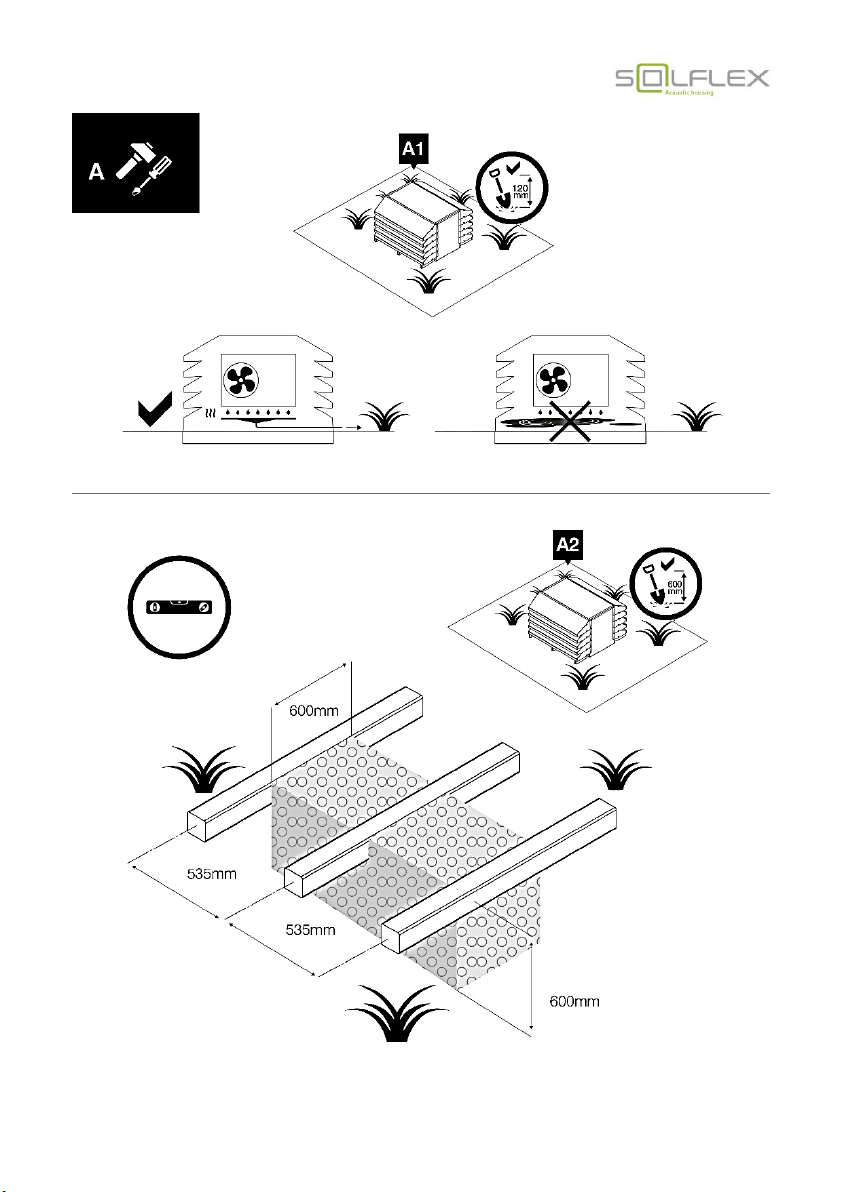

6.1. Installation HW100NP/HW200NP and HWY100NP/HWY200NP

Page 9
Manual HW Acoustic Housing
Version: 10/2020

Page 10
Manual HW Acoustic Housing
Version: 10/2020

Page 11
Manual HW Acoustic Housing
Version: 10/2020

Page 12
Manual HW Acoustic Housing
Version: 10/2020

Page 13
Manual HW Acoustic Housing
Version: 10/2020

Page 14
Manual HW Acoustic Housing
Version: 10/2020

Page 15
Manual HW Acoustic Housing
Version: 10/2020

Page 16
Manual HW Acoustic Housing
Version: 10/2020

Page 17
Manual HW Acoustic Housing
Version: 10/2020

Page 18
Manual HW Acoustic Housing
Version: 10/2020

Page 19
Manual HW Acoustic Housing
Version: 10/2020

Page 20
Manual HW Acoustic Housing
Version: 10/2020
