Solo SL4824 Series User manual

3505 HUTCHINSON ROAD
CUMMING, GA 30040-5860
Quick Start GuideQuick Start Guide
Quick Start GuideQuick Start GuideQuick Start Guide
SOLO Temperature Controller
SL4824 Series
SOLO
Safety Infor ation
WARNING: To minimize the risk of potential safety problems, you should follow all applicable local and
national codes that regulate the installation and operation of your equipment. These codes vary from area to
area and it is your responsibility to determine which codes should be followed, and to verify that the equip-
ment, installation, and operation are in compliance with the latest revision of these codes.
Equipment damage or serious injury to personnel can result from the failure to follow all applicable codes and
standards. We do not guarantee the products described in this publication are suitable for your particular appli-
cation, nor do we assume any responsibility for your product design, installation, or operation.
f you have any questions concerning the installation or operation of this equipment, or if you need additional
information, please call us at 1-800-633-0405 or 770-844-4200.
This publication is based on information that was available at the time it was printed. At
Automationdirect.com® we constantly strive to improve our products and services, so we reserve the right
to make changes to the products and/or publications at any time without notice and without obligation. This
publication may also discuss features that may not be available in certain revisions of the product.
AutomationDirect’s SOLO is a single loop dual output temperature controller that can control both heating and
cooling simultaneously. There are four types of control modes: P D, ON/OFF, Manual, and Ramp / Soak control.
Depending upon the particular model of controller, the available outputs include relay, voltage pulse, current, and
linear voltage. There are up to three alarm outputs available to allow seventeen alarm types in the initial setting
mode. SOLO can accept various types of thermocouple, RTD, or analog inputs, and has a built in RS-485
interface using Modbus slave (ASC or RTU) communication protocol.
Other features include:
•1/32 DIN panel size
•2 part x character 7-segment LED display for Process Value (PV): Red color, and Set Point (SV): Green color
•Auto Tuning (AT) function with PID control
•Selectable between °C and °F for thermocouple and RTD inputs
•0 to 50 °C (32 to 122 °F) operating temperature range
•UL, CUL and CE agency approvals
General Description
Specifications
Box Contents and Unpacking Instructions
• Unpack the SOLO temperature controller from its shipping carton. Included in the carton is the temperature
controller, mounting brackets plus hardware and this Quick Start Guide.
• Inspect all equipment for completeness. If anything is missing or damaged, immediately call the
AutomationDirect returns department @ 1-800-633-0 05.
• Inspect the part number to ensure the model received matches the output type required.
WARNING! Electric shock danger
1. To prevent electric shock, do not touch the AC terminals while the power is supplied to the controller.
This controller is an open-type temperat re controller. Make s re to eval ate any dangero s application in
which a serio s h man inj ry or serio s property damage may occ r.
1. Always use recommended solder-less terminals: Fork terminal with insolation (M3 screw, width is 7.0mm, hole
diameter 3.2mm). Screw size: M3 x 6.5 (With 6.8 x 6.8 square washer). Recommended tightening torque: 0.4 Nm
(4kgfcm). Applicable wire: Solid/twisted wire of 2 mm, 12AWG to 24AWG. Choose AutomationDirect part numbers
BM-00120, BM-00220 or BM-00320 depending on wire size. Be sure to tighten them properly.
2. Protect the controller from dust or foreign objects to prevent controller malfunction.
3. Do not modify or disassemble the controller.
4. Do not connect anything to the “Not used” terminals.
5. Make sure all wires are connected correctly.
6. Do not install and/or use the controller in places subject to: (a) Dust or corrosive gases and liquid. (b) High humidity
(c) Vibration and shock. (d) EM / RF (e) high temperature.
7. Turn power off when wiring or changing a temperature sensor.
8. Be sure to use wires that match the thermocouple types when extending or connecting the thermocouple wires.
9. Use wires with correct resistance when extending or connecting a platinum resistance thermometer (RTD).
10. Keep the wire as short as possible when wiring a platinum resistance thermometer (RTD) to the controller and
route power wires as far as possible from load wires to prevent interference and induced noise.
11. This controller is an open-type unit and must be placed in an enclosure away from high temperature, humidity,
dripping water, corrosive materials, airborne dust and electric shock or vibration.
12. Make sure power cables and signals from instruments are all installed properly before energizing the controller,
otherwise serious damage may occur.
13. To prevent electric shock, do not touch the terminals in the controller or try to repair the controller when power is
applied.
14. Use a soft, dry cloth to clean the controller. Do not use acid or alkaline liquids for cleaning.
15. This instrument is not furnished with a power switch or fuse. Therefore, if a fuse or power switch is required, install
the protection close to the instrument. Recommended fuse rating: Rated voltage 250 V, Rated current 1 A. Fuse
type: Time-lag fuse
16. Note: This controller does not provide overcurrent protection. Use of this product requires that suitable overcur-
rent protection device(s) must be added to ensure compliance with all relevant electrical standards and codes.
(Rated 250 V, 15 Amps max). A suitable disconnecting device should be provided near the controller in the end-
use installation.
5
0.94”
(24.0 mm)
1.76”
(44.75 mm)
0.86”
(21.85 mm)
3.93”
(99.8 mm)
0.13”
(3.40 mm)
1.89”
(48.0 mm)
PV SV
AT OUT1 ALM FC
OUT2
SET
4824
SOLO
Controller and Panel Cutout Di ensions
1.76”
[44.8 mm]
1.58”
[40.0 mm]
0.87"
[22.0 mm]
+0.02
-0
+0.6
-0
+0.02
-0
+0.6
-0
2.56”
[65.0mm]
(Min.)
(Min.)
1
2
3
5
This Quick Start Guide provides basic information on setting up the SOLO temperature controller. For
advanced setup and communication control as well as free configuration software visit the
AutomationDirect web site at www.AutomationDirect.com.
SL4824Series
Mounting Bracket
and Hardware SL4824 Temperature
Controller
SL4824
Quick Start Guide
*Note: The supplied 249 ohm resistor should be installed as shown in the terminal wiring diagrams
in section 7 or current input operation.
5011661606-S426
2012-01-12
249 ohm
resistor
Speci ications
Input Power Requirements 100 to 240 VAC 50 / 60 Hz or 24 VDC
Operation Voltage Range 85 to 264 VAC or 21.6 to 26.4 VDC
Power Consumption 5VA Max
Memory Protection EEPROM 4K bit, number of writes 100,000
Control Mode P D, ON/OFF, Ramp / Soak control or Manual
Input Accuracy Less than ± 0.2% full scale (except thermocouple R, S, & B types) Max ± 3° (thermocouple R, S, & B types)
Vibration Resistance 10 to 55 Hz, 10 m/s2for 10 min, each in X, Y and Z directions
Shock Resistance Max. 300 m/s2,3 times in each 3 axes, 6 directions
Ambient Temperature Range 32°F to 122°F (0°C to 50°C)
Storage Temperature Range -4°F to 149°F (-20°C to 65°C)
Altitude 2000m or less
Relative Humidity 35% to 80% (non-condensing)
RS-485 Communication Modbus slave ASC / RTU protocol
Transmission Speed 2400, 4800, 9600, 19.2K, 38.4K bps
IP Rating P65: Complete protection against dust and low pressure spraying water from all directions.
(inside suitable enclosure)
Agency Approvals UL, CUL, CE (UL file number E311366)
Pollution Degree Degree 2 - Normally, only non-conductive pollution occurs.
Temporary conductivity caused by condensation is to be expected.
Input Types
•Thermocouple* K, J, T, E, N, R, S, B, L, U, TXK (Sampling Rate: 400 ms / per scan)
•Platinum RTD 3-wire Pt100, JPt100 (Sampling Rate: 400 ms / per scan)
• Analog 0-50 mV, 0-5V, 0-10V, 0-20 mA*, 4-20 mA* (Sampling Rate: 150 ms / per scan)
Control Output Options
• Relay (R) SPST max. resistive load 3A @ 250 VAC
• Voltage Pulse (V) DC 14V Max, output current 40mA Max
• Current (C) DC 4-20 mA output (Load resistance: Max 600 ⏲)
• Linear Voltage (L) DC 0-10V (Load resistance Min 1K⏲)
*Note: se only ungrounded thermocouples.
Output Speci ications
Part Number Input Voltage Output #1 Output #2 / Alarm*
SL4824-RR 100 - 240 VAC Relay - SPST Relay - SPST
SL4824-VR 100 - 240 VAC Voltage Pulse Relay - SPST
SL4824-CR 100 - 240 VAC Current Relay - SPST
SL4824-LR 100 - 240 VAC Linear Voltage Relay - SPST
SL4824-RR-D 24 VDC Relay - SPST Relay - SPST
SL4824-VR-D 24 VDC Voltage Pulse Relay - SPST
SL4824-CR-D 24 VDC Current Relay - SPST
*Output #2 can be configured as control output #2 or as an alarm output
Product Support and Configuration Software
• For product support, specifications, and installation troubleshooting, a complete
User Manual can be downloaded from the On-line Documentation area of the
AutomationDirect web site.
• For additional technical support and questions, call our Technical Support team
@ 1-800-633-0 05 or 770-8 - 200.
• Configuration software for the SOLO controller is available for free down-
load at www.AutomationDirect.com. The software allows communication
and programming for up to four controllers at the same time. Parameters,
process values, set points and temperature changes can be monitored with
the software. The setup data can be uploaded to the user’s PC via RS- 85
communication. The user can monitor the temperature changes of the
controllers from the “PV Monitor” Display.

Reset to Factory Default Instructions
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. n the parameter
inpt, use the ,and .buttons to select the value that corresponds to the thermocouple or RTD type
that will be attached to the controller. See the table below for specifications. Press the ;button to save the
selected value. The controller will display the module information splash screen for three seconds and then return
to the main screen.
2. Press the ;button for three seconds again. Press the 'button to access the tpun parameter. Use
the ,and .buttons to select either Cfor Centigrade or ffor Fahrenheit display. Press the ;button
to save the selected value. The controller will display the module information splash screen for three seconds and
then return to the main screen.
3. Press the ;button for three seconds again. Press the 'button repeatedly until the tp-H parameter
appears. Use the ,and .buttons to set the maximum value of the operational temperature range. n oper-
ation, if the PV value is higher than the TP-H value, the PV display flashes to indicate an error and the controller
outputs shut off. The SV value cannot exceed the TP-H value. Press the ;button to save the selected value.
Press the 'button to access the tp-l parameter. Use the ,and .buttons to set the minimum value
of the operational temperature range. n operation, if the PV value is lower than the TP-L value, the PV display
flashes to indicate an error and the controller outputs shut off. The SV value cannot be set lower than the TP-L
value. Press the ;button twice to save the selected value and return to the controller main screen.
4. Press the 'button repeatedly until the parameter sp appears. Use the ,and .buttons to select
either 0for a whole degree or 1for a tenth degree temperature display.* Press the ;button twice to save
the selected value and return to the controller main screen.
5. f the input temperature from the thermocouple or RTD needs to be adjusted, press the ;button for less
than 3 seconds. Press the 'button repeatedly until the parameter tpof appears. Use the ,and .
buttons to adjust a positive or negative offset to the PV value displayed on the controller. Press the ;button
twice to save the selected value and return to the controller main screen.
*Note: The decimal point display cannot be adjusted or B, S, and R type thermocouples.
Ther ocouple or RTD Input
Mounting Instructions
SOLO temperature controllers can be mounted through a cutout in an enclosure or panel by using the dimen-
sions shown in Section 5. The directions for mounting the controller through a cutout are:
1. nsert the temperature controller through the panel cutout.
2. Slide the M3X0.5 nut into the opening in the top of the mounting bracket and insert the M3X0.5 X 30mm
mounting screw in the mounting bracket.
3. Slide the mounting bracket onto the controller and push the mounting bracket forward until the bracket stops.
4. Tighten the M3X0.5 X 30mm screw to secure temperature controller in place.
1
2
4
3
6
SL4824-LR
WARNING! Electric shock danger
To prevent electric shock, do not connect AC power to your device until all input and output
connections are completed.
SL4824-RR SL4824-VR
SL4824-CR
Ter inal Identification
7
Display, LED and Key Pad
PV SV
ATOUT1 ALM FC
OUT2
SET
4824
SOLO
PV Display: To display the process value or parameter type.
SV Display: To display the set point, parameter operation read value
manipulated variable or set value of the parameter.
AT: Auto-tuning LED, flashes when the Auto-tuning operation is ON.
OUT1 / OUT2: Output LED, lights when the output is ON.
ALM: Alarm output LED, lights when one of the alarms is on.
°C, °F: Temperature unit LED. °C: Celsius °F: Fahrenheit
Set Button: Press this key to select the desired function mode and
confirm the setting value.
Rotate Button: Press this key to select parameters within the function
mode.
Down Button: Press this key to decrease values displayed on the SV
display. Hold down this key to speed up the decrement.
Up Button: Press this key to increase values displayed on the SV
display. Hold down this key to speed up the increment.
8
10
All of the following set up instructions are for setting up a controller from the factory defaults. f the appli-
cation for a controller needs to be changed, reset the controller to factory default using the following
steps.
1. Press the 'button until the parameter loC appears. Use the .button to select loC1. Press the
;button.
2. Press and hold the ,and .buttons simultaneously for one second and release.
3. Press the 'button repeatedly until the PV display shows pass. Use the ,button to change the value
on the SV display to 1357.Press the ;button.
4. Cycle power on the Controller to reset to factory default mode. All user set values are erased.
Thermocouple* Type and Temperature Range
Input Temperature Sensor Type LED Display Temperature Range
Thermocouple TXK type txk -328 ~ 1472°F (-200 ~ 800°C)
Thermocouple type u-328 ~ 932°F (-200 ~ 500°C)
Thermocouple L type l-328 ~ 1562°F (-200 ~ 850°C)
Thermocouple B type b-212 ~ 3272°F (100 ~ 1800°C)
Thermocouple S type s32 ~ 3092°F (0 ~ 1700°C)
Thermocouple R type r32 ~ 3092°F (0 ~ 1700°C)
Thermocouple N type n-328 ~ 2372°F (-200 ~ 1300°C)
Thermocouple E type e32 ~ 1112°F (0 ~ 600°C)
Thermocouple T type t-328 ~ 752°F (-200 ~ 400°C)
Thermocouple J type j-148 ~ 2192°F (-100 ~ 1200°C)
Thermocouple K type k-328 ~ 2372°F (-200 ~ 1300°C)
RTD Type and Temperature Range
Input Temperature Sensor Type LED Display Temperature Range
Platinum Resistance (Pt100) pt -328 ~ 1112°F (-200 ~ 600°C)
Platinum Resistance (JPt100) jpt -4 ~ 752°F (-20 ~ 400°C)
*Note: se only ungrounded thermocouples.
11-1
Key Pad Operation
Operation Mode
SET
Hold for 3 sec.
SET
Initial Setting
Mode
Regulation
Mode
SET
Press for less
than 3 sec.
Initial Setting
Parameters
Operation
Parameters
Regulation
Parameters
SET

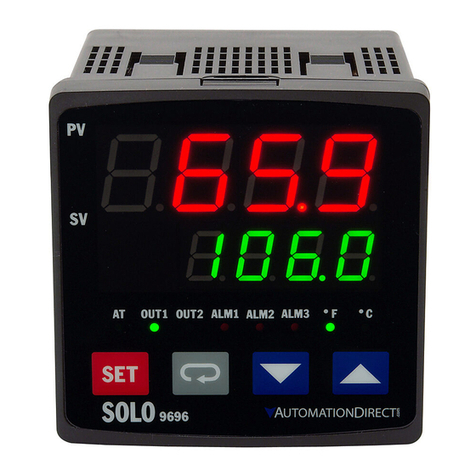

The SOLO temperature controller has three function modes: nitial Setting mode, Operation mode and Regulation
mode. When power is first applied to the temperature controller, the module information splash screen appears.
This screen shows the firmware version on the PV display and the two output types for that particular model on
the SV display. After three seconds, the controller will automatically proceed to the Operation mode main screen.
Press and hold the ;button for three seconds to go into the nitial Setting mode. Press the ;button for less
than three seconds to access the Regulation mode. Press the 'button while inside any of the three function
modes to access the individual parameters for each function mode. Use the .and ,buttons to change the
individual parameter values. Pressing the ;button saves the parameter values. Press the ;button again
to return the controller to the Operation mode.
9
Sensor Input Power Input
0 – 10 VDC 4 – 20 A
2-wire RTD
Ther ocouple 3-wire RTD
AC Powered
Models
DC Powered
Models
24 VDC power or models with
–D su ix only

Current Input
1. nstall the supplied 249 ohm resistor between terminal #4 and #6.
2. Access the nitial Setup mode by pressing and holding the ;button for three seconds. n the parameter
inpt, use the ,and .buttons to select the value that corresponds to the current input that will be
applied to the controller. See the table for current specifications. Press the ;button to save the selected
value. The controller will display the module information splash screen for three seconds and then return to the
main screen.
3. Press the ;button for three seconds again. Press the 'button repeatedly until the parameter tp-
appears. Use the ,and .buttons to select the high engineering value that corresponds to the maximum
current signal that will be applied to the input of the controller. For example, if the ma4 4-20mA input is to be
used, this is the value the controller will display when the input equals 20mA. Press the ;button to save the
selected value. Press the 'button to access the parameter tp-l. Use the ,and .buttons to select
the low engineering value that corresponds to the minimum current signal that will be applied to the input of the
controller. For example, if the ma4 4-20mA input is to be used, this is the value the controller will display when
the input equals 4mA. Press the ;button twice to save the selected value and return to the controller main
screen.
4. Press the 'button repeatedly until the parameter sp appears. Use the ,and .buttons to select
0,1,2or 3to indicate the position of the decimal point for the PV and SV values on the controller. Press the
;button twice to save the selected value and return to the controller main screen.
5. f the current input PV value displayed on the controller needs to be adjusted, press the ;button for less
than 3 seconds. Press the 'button repeatedly until the parameter tpof appears. Use the ,and .
buttons to adjust a positive or negative offset to the PV value displayed on the controller. Press the ;button
twice to save the selected value and return to the controller main screen.
Current Input Type and Range
Current Input Type LED Display Engineering Range
4~20mA Analog Input ma4 -999 ~ 9999
0~20mA Analog Input ma0 -999 ~ 9999
Heating Loop with PID Control
PID Control Setup
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. Press the '
button repeatedly until the parameter Ctrl appears. Confirm the default value Pid is selected for P D
control. Press the 'button to access the parameter s- C.Confirm the default value eat is select-
ed for controlling a heating loop. Press the ;button to return to the controller main screen.
2. Press the 'button to access the parameter r-s. Verify that the default value run is selected. Press
the ;button to return to the controller main screen.
3. Refer to Section 12-1 of this Quick Start Guide to set up the P D control parameters.
4. f the temperature controller’s output #1 is discrete, access the regulation mode again by pressing the ;
button for less than three seconds. Press the 'button repeatedly until the parameter tpd appears. Use
the ,and .buttons to set the time period in seconds for the heating control. Press the ;button twice
to save the value and return to the controller main screen.
There are four groups for storing P D parameters, pid0 (P D0) - pid3 (P D3). Press the ;button for
less than three seconds and press the 'button repeatedly until the parameter pid0 appears. Use the
,and .buttons to select which group to use for storing the P D parameters. Press the ;button to
confirm the setting. The groups pid0 -pid3 can be individually set up with different SV values to be used
in the control process. f the group pid4 is selected, the controller will automatically select the most useful
P D parameters based on the current temperature setting and the SV value set in each P D group.
The parameters for P D can be auto-tuned using the At parameter. Access this parameter by pressing the ;
button for less than three seconds. Use the .button to turn the auto-tune feature on. Press the ;button
to save the value. Optimal P D values are automatically determined with the auto-tune feature. P D operation
can also be controlled by programming the individual p,i, and dparameters for each P D group. Access these
parameters by pressing the ;button for less than three seconds and press the 'button repeatedly until
the parameter pn appears where ncorresponds to the P D group you are programming. Use the ,and
.buttons to change the value for the Proportional band if desired and press the ;button to save the
value. Press the 'button to access the in parameter. Use the ,and .buttons to change the value
for the ntegral time if desired and press the ;button to save the value. Press the 'button to access the
dn parameter. Use the ,and .buttons to change the value for the Derivative time if desired and press
the ;button twice to save the value and return to the controller main screen.
Voltage Input
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. n the parameter
inpt, use the ,and .buttons to select the value that corresponds to the voltage input that will be
applied to the controller. See the table for voltage specifications. Press the ;button to save the selected
value. The controller will display the module information splash screen for three seconds and then return to the
main screen.
2. Press the ;button for three seconds again. Press the 'button to access the parameter tp- .Use
the ,and .buttons to select the high engineering value that corresponds to the maximum voltage signal
that will be applied to the input of the controller. For example, if the V5 0V-5V input is to be used, this is the
value the controller will display when the input equals 5V. Press the ;button to save the selected value.
Press the 'button to access the parameter tp-l. Use the ,and .buttons to select the low engi-
neering value that corresponds to the minimum voltage signal that will be applied to the input of the controller.
For example, if the V5 0V-5V input is to be used, this is the value the controller will display when the input
equals 0V. Press the ;button twice to save the selected value and return to the controller main screen.
3. Press the 'button repeatedly until the parameter sp appears. Use the ,and .buttons to select
0,1,2or3to indicate the position of the decimal point for the PV and SV values on the controller. Press the
;button twice to save the selected value and return to the controller main screen.
4. f the voltage input PV value displayed on the controller needs to be adjusted, press the ;button for less
than 3 seconds. Press the 'button repeatedly until the parameter tpof appears. Use the ,and .
buttons to adjust a positive or negative offset to the PV value displayed on the controller. Press the ;button
twice to save the selected value and return to the controller main screen.
Cooling Loop with ON / OFF Control
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. Press the '
button repeatedly until the parameter Ctrl appears. Use the ,and .buttons to select onof for ON
/OFF control. Press the ;button to save the value. Press the 'button to access the parameter s- C.
Use the .button to select Cool for controlling a cooling loop. Press the ;button twice to save the value
and return to the controller main screen.
2. Press the 'button to access the parameter r-s. Verify that the default value run is selected. Press
the ;button to return to the controller main screen.
3. Press the ;button for less than three seconds to access the parameter Cts. Use the ,and .
buttons to enter hysteresis. This is the amount the PV must go above the SV before the controller output turns
on. Press the ;button twice to save the selected value and return to the controller main screen.
Dual Heating / Cooling Loop with PID Control
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. Press the '
button repeatedly until the parameter Ctrl appears. Confirm the default value Pid is selected for P D
control. Press the 'button to access the parameter s- C. Use the .button to select 1C2 for
controlling a dual heating / cooling loop. This parameter sets the heating control to output #1 and the cooling
control to output #2. Press the ;button twice to save the value and return to the controller main screen.
2. Press the 'button to access the parameter r-s. Verify that the default value run is selected. Press
the ;button to return to the controller main screen.
3. Refer to Section 12-1 of this Quick Start Guide to set up the P D control parameters.
4. f the temperature controller’s output #1 is discrete, access the regulation mode again by pressing the ;
button for less than three seconds. Press the 'button repeatedly until the parameter tpd appears. Use
the ,and .buttons to set the time period in seconds for output #1, the heating control. Press the ;
button to save the value. f the temperature controller’s output #2 is discrete, press the 'button repeatedly until
the parameter Cpd appears. Use the ,and .buttons to enter the cycle period in seconds for output
#2, the cooling output. Press the ;button twice to save the value and return to the controller main screen.
5. Optional regulation parameters can be programmed for a second
control output. f this is desired, access the regulation mode again by
pressing the ;button for less than three seconds. Press the '
button until the parameter Coef appears. This value allows the cooling
control to have a different proportional setting than the heating loop. The
heating loop proportional band setting is multiplied by the Coef value to
create a proportional band setting for the cooling loop control. Use the
,and .buttons to change this value if desired. Press the ;
button to save the selected value. Press the 'button to access the
parameter dead. Use the ,and .buttons to enter a deadband
zone value around the setpoint where the output is not effected by the
proportional control value. As long as the PV remains within the deadband
zone the output is not affected by the proportional control. The integral and
derivative controls ignore the deadband setting and may cause the output
to be on within the deadband zone. Press the ;button twice to save
the value and return to the controller main screen.
11-2
Voltage Input Type and Input Range
Voltage Input Type LED Display Engineering Range
0~50mV Analog Input mv -999 ~ 9999
0V~10V Analog Input v10 -999 ~ 9999
0V~5V Analog Input v5 -999 ~ 9999
11-3
12-1
12-2
12-5
12-6
Dual Heating / Cooling Loop with ON / OFF Control
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. Press the '
button repeatedly until the parameter Ctrl appears. Use the ,and .buttons to select onof for ON
/ OFF control and press the ;button to save the selected value. Press the 'button to access the param-
eter s- C. Use the .button to select 1C2 for controlling a cooling / heating loop. This parameter sets
the heating control to output #1 and the cooling control to output #2. Press the ;button twice to save the
value and return to the controller main screen.
2. Press the 'button to access the parameter r-s. Verify that the default value run is selected. Press
the ;button to return to the controller main screen.
3. Press the ;button for less than three seconds to access the
parameter ts. Use the ,and .buttons to enter hysteresis
for output #1, the heating control. This is the amount the PV must go
below the SV before the controller output turns on. Press the ;
button to save the selected value. Press the 'button to access
the parameter Cts. Use the ,and .buttons to enter
hysteresis for output #2, the cooling control. This is the amount the
PV must go above the SV before the controller output turns on. Press
the ;button twice to save the selected value and return to the
controller main screen.
4. Optional regulation parameters can be programmed for additional dual loop control. f this is desired, access
the regulation mode again by pressing the ;button for less than three seconds. Press the 'button
repeatedly until the parameter dead appears. Use the ,and .buttons to enter a deadband zone value
around the setpoint where the output is not on. The PV must go beyond the deadband range in order for either
the heating or cooling output to turn on. Press the ;button twice to save the selected value and return to the
controller main screen.
12-7
OFF PV
Set point
ON
Heating
Dead band
Heating hysteresis Cooling hysteresis
Cooling
hts Cts
dead
Dual loop ON / OFF control
output operation
PV
0
Output Dead band: dead
band width=positive
Set point
Heating Cooling
dead
PV
0
Output Dead band: dead
band width=negative
Set point
Heating Cooling
dead
Dual control with PID
positive deadband
Dual control with PID
negative deadband
Heating Loop with ON / OFF Control
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. Press the '
button until the parameter Ctrl appears. Use the ,and .buttons to select onof for ON / OFF
control. Press the ;button to save the value. Press the 'button to access the parameter s- C.
Confirm the default value eat is selected for controlling a heating loop. Press the ;button to return to
the controller main screen.
2. Press the 'button to access the parameter r-s.Verify that the default value run is selected. Press
the ;button to return to the controller main screen.
3. Press the ;button for less than three seconds to access the parameter ts.Use the ,and .
buttons to enter hysteresis. This is the amount the PV must go below the SV before the controller output turns
on. Press the ;button twice to save the selected value and return to the controller main screen.
12-3
Cooling Loop with PID Control
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. Press the '
button repeatedly until the parameter Ctrl appears. Confirm the default value Pid is selected for P D
control. Press the 'button to access the parameter s- C.Use the .button to select Cool for
controlling a cooling loop. Press the ;button twice to save the value and return to the controller main screen.
2. Press the 'button to access the parameter r-s.Verify that the default value run is selected. Press
the ;button to return to the controller main screen.
3. Refer to Section 12-1 of this Quick Start Guide to set up the P D control parameters.
4. f the temperature controller’s output #1 is discrete, access the regulation mode again by pressing the ;
button for less than three seconds. Press the 'button repeatedly until the parameter Clpd appears. Use
the ,and .buttons to set the time period in seconds for the cooling control. Press the ;button twice
to save the value and return to the controller main screen.
12-
Note: Select the desired control mode be ore beginning PID Control Setup.

1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. Press the '
button repeatedly until the parameter Ctrl appears. Use the ,and .buttons to select onof for ON
/ OFF control and press the ;button to save the selected value. Press the 'button to access the param-
eter s- C. Use the .button to select 2C1 for controlling a cooling / heating loop. This parameter sets
the cooling control to output #1 and the heating control to output #2. Press the ;button twice to save the
value and return to the controller main screen.
2. Press the 'button to access the parameter r-s. Verify that the default value run is selected. Press
the ;button to return to the controller main screen.
3. Press the ;button for less than three seconds to access the
parameter ts. Use the ,and .buttons to enter hysteresis
for output #2, the heating control. This is the amount the PV must go
below the SV before the controller output turns on. Press the ;
button to save the selected value. Press the 'button to access the
parameter Cts. Use the ,and .buttons to enter hysteresis
for output #1, the cooling control. This is the amount the PV must go
above the SV before the controller output turns on. Press the ;
button twice to save the selected value and return to the controller
main screen.
4. Optional regulation parameters can be programmed for additional dual loop control. f this is desired, access
the regulation mode again by pressing the ;button for less than three seconds. Press the 'button
repeatedly until the parameter dead appears. Use the ,and .buttons to enter a deadband zone value
around the setpoint where the output is not on. The PV must go beyond the deadband range in order for either
the heating or cooling output to turn on. Press the ;button twice to save the selected value and return to the
controller main screen.
Dual Cooling / Heating Loop with ON / OFF Control
12-9
OFF PV
Set point
ON
Heating
Dead band
Heating hysteresis Cooling hysteresis
Cooling
hts Cts
dead
Dual loop ON / OFF control
output operation
Manual Control
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. Press the '
button repeatedly until the parameter Ctrl appears. Use the ,and .buttons to select manu for
manual control. Press the ;button twice to save the selected value and return to the controller main screen.
2. Press the 'button to access the parameter out1.Use the ,and .buttons to set a value
between )0 and 10)0 to control output #1 directly. f the controller has a discrete output, a value of 2)0
turns the output on 20% of the time. A value of 10)0 would turn the output on 100% of the time. A manually
controlled analog output value is a percentage of the analog signal. For example, if the controller has a 4-20mA
current output, a setting of )0 would mean that the output would be 4mA. The output would be 20mA with a
setting of 10)0. Both types of manually controlled outputs are off with a value of 00. Press the ;button
to save the selected value. For dual output control, press the 'button to access the parameter out2.Use
the ,and .buttons to set a value between )0 and 10)0 to control output #2 directly. Press the ;
button twice to save the selected value and return to the controller main screen.
12-11
Dual Cooling / Heating Loop with PID Control
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. Press the '
button repeatedly until the parameter Ctrl appears. Confirm the default value Pid is selected for P D
control. Press the 'button to access the parameter s- C.Use the .button to select 2C1 for
controlling a dual cooling / heating loop. This parameter sets the cooling control to output #1 and the heating
control to output #2. Press the ;button twice to save the value and return to the controller main screen.
2. Press the 'button to access the parameter r-s.Verify that the default value run is selected. Press
the ;button to return to the controller main screen.
3. Refer to Section 12-1 of this Quick Start Guide to set up the P D control parameters.
4. f the temperature controller’s output #1 is discrete, access the regulation mode again by pressing the ;
button for less than three seconds. Press the 'button repeatedly until the parameter Clpd appears. Use
the ,and .buttons to set the time period in seconds for the cooling output. Press the ;button to save
the value. f the temperature controller’s output #2 is discrete, press the 'button repeatedly until the param-
eter Cpd appears. Use the ,and .buttons to enter the cycle period for output #2, the heating output.
Press the ;button twice to save the value and return to the controller main screen.
5. Optional regulation parameters can be programmed for additional dual
loop control. f this is desired, access the regulation mode again by
pressing the ;button for less than three seconds. Press the '
button repeatedly until the parameter Coef appears. This value allows
the heating control to have a different proportional setting than the cooling
loop. The cooling loop proportional band setting is multiplied by the
Coef value to create a proportional band setting for the heating loop
control. Use the ,and .buttons to change this value if desired.
Press the ;button to save the selected value. Press the 'button to
access the parameter dead.Use the ,and .buttons to enter a
deadband zone value around the setpoint where the output is not effected
by the proportional control value. As long as the PV remains within the
deadband zone the output is not affected by the proportional control. The
integral and derivative controls ignore the deadband setting and may
cause the output to be on within the deadband zone. Press the ;button
twice to save the value and return to the controller main screen.
12-8
PV
0
Output Dead band: dead
band width=positive
Set point
Heating Cooling
dead
PV
0
Output Dead band: dead
band width=negative
Set point
Heating Cooling
dead
Dual loop PID control
positive deadband
Dual loop PID control
negative deadband
Alar Output
Note: ALnH represents AL1H. ALnL represents AL1L.
13
Ra p / Soak Control
1. Access the nitial Setup mode by pressing and holding the ;button for three seconds. Press the '
button repeatedly until the parameter Ctrl appears. Use the ,and .buttons to select pro6 for
Ramp / Soak control. Press the ;button to save the selected value. Press the 'button to access the
parameter Patn. Eight different Ramp / Soak patterns are possible with the Solo Temperature Controller. Use
the ,and .buttons to select pattern number 0 through 7 for programming. Press the ;button to save
the selected value.
2. The chart below illustrates an example of a seven step Ramp / Soak pattern (Pattern 0). Press the 'button
to access the parameter SP00. Use the ,and .buttons to select a setting value temperature for step
00 and press the ;button to save the value. Press the 'button to access the parameter ti00. Use the
,and .buttons to enter a time in hours / minutes for step 00. Follow this procedure until the desired
number of temperature and time parameters are completed. Press the 'button to access the parameter
psx0. Use the ,and .buttons to select the last step to be completed by the Ramp /Soak pattern. For
example, if psx0 is set to 4, steps 00 through 04 will be executed in the pattern.
3. Press the 'button to access the parameter CYC0. Use the ,and .buttons to select the number
of additional times the Ramp / Soak pattern will be executed. For example, if CyC0 is set to 3, the Ramp /
Soak pattern will execute a total of four times. Press the ;button to save the selected value. Press the '
button to access the parameter lin0. Use the ,and .buttons to choose a Ramp / Soak pattern to
execute after the completion of Pattern 0. f set to off, the temperature of the last step in Pattern 0 will be held.
Press the ;button twice to save the selected value and return to the controller main screen.
100°
70°
50°
30°
Ramp
03.00 02.00
08.00
Soak
POS0 POS1 POS2 POS3 POS4 POS5 POS6
05.00 03.00
05.00
03.00
Step00 = 50°
Time00 = 3 hrs 00 min.
Step01 = 70°
Time01 = 2 hrs 00 min.
Step02 = 70°
Time02 = 5 hrs 00 min.
SP00
ti00
SP01
ti01
SP02
ti02
Step03 = 100°
Time03 = 3 hrs 00 min.
Step04 = 100°
Time04 = 8 hrs 00 min.
Step05 = 30°
Time05 = 5 hrs 00 min.
SP03
ti03
SP04
ti04
SP05
ti05
Step06 = 30°
Time06 = 3 hrs 00 min.
Process Step = 6
Cycle times = 0
Link = OFF
SP06
ti06
psx0
CyCO
lin0
12-10
Set Value Alarm Type Alarm Output Operation
0 Alarm function disabled Output is OFF
1Deviation upper and lower limit:
This alarm output activates when the PV value is higher than the setting value
SV + ALnH or lower than the setting value SV - ALnL.
ON
OFF
SV-ALnL SVSV + ALnH
2Deviation upper-limit:
This alarm output activates when the PV value is higher than the setting value
SV + ALnH.
ON
OFF
SV SV+ALnH
3Deviation lower limit:
This alarm output activates when the PV value is lower than the setting value
SV - ALnL.
ON
OFF
SV
SV-ALnL
4Reverse deviation upper and lower limit:
This alarm output activates when the PV value is in the range of the setting value
SV+ ALnH and the setting value SV - ALnL.
ON
OFF
SV
SV - ALnL SV +ALnH
5Absolute value upper and lower limit:
This alarm output activates when the PV value is higher than the setting value ALnH
or lower than the setting value ALnL.
ON
OFF
ALnL ALnH
6Absolute value upper-limit:
This alarm output activates when the PV value is higher than the setting value ALnH
ON
OFF
A
LnH
7Absolute value lower limit:
This alarm output activates when the PV value is lower than the setting value ALnL
ON
OFF
ALnL
8
Deviation upper and lower limit with standby sequence:
This alarm output activates when the PV value reaches the set point (SV value) and
the reached value is higher than the setting value SV + ALnH or lower than the setting
value SV - ALnL.
ON
OFF
SV
SV - A LnL SV+ALnH
9Deviation upper limit with standby sequence:
This alarm output activates when the PV value reaches the set point (SV value) and
the reached value is higher than the setting value SV+ ALnH.
SV +ALnH
ON
OFF
SV
10 Deviation lower limit with standby sequence:
This alarm output activates when the PV value reaches the set point (SV value) and
the reached value is lower than the setting value SV - ALnL.
SV - ALnL
ON
OFF
SV
11
Hysteresis upper-limit alarm output:
This alarm output activates when the PV value is higher than the setting value
SV + ALnH. This alarm output is OFF when the PV value is lower than the setting
value SV + ALnL.
ON
OFF
SV + ALnL
SV SV + ALnH
12
Hysteresis lower-limit alarm output:
This alarm output activates when the PV value is lower than the setting value
SV- ALnH. This alarm output is OFF when the PV value is higher than the setting
value SV - ALnL.
ON
OFF
SV - ALnH SV
SV - ALnL
13 N/A
Ramp / Soak Program Alarms
14 This alarm activates when the Ramp / Soak program has ended.
15 This alarm activates while the program is in RAMP UP status.
16 This alarm activates while the program is in RAMP DOWN status.
17 This alarm activates while the program is in SOAK status.
18 This alarm activates while the program is in RUN status.
Error Display Infor ation
1
The chart below shows the possible error displays on the Solo temperature controller.
Controller Error Display
Display Position Display Meaning Cause Corrective Action
PV b160
Cr
nitialization
PV = Firmware version
SV = Module type
The controller is in
the initialization
process.
The Solo controller displays this information for a few sec-
onds after power up. f the controller continues
displaying this information, check the input wiring. f the
problem still exists, replace the sensor or the controller.
SV
PV no
Cont No sensor input The input terminals
are open.
Check the input wiring. f the problem still exists, replace the
sensor or the controller.
SV
PV Err
Inpt nput error The controller cannot
read the input value
Check the sensor and the input wiring. f the problem still
exists, replace the sensor or the controller.
SV
PV Err
Prom EEPROM error There is an error with
the EEPROM
Cycle the power to the Solo controller. f the problem still
exists, replace the controller.
SV
PV
Flashing PV PV out of range The PV is out of
range
Check the PV range. The parameters tp- and tp-l
define the range. Refer to section 12-1, 12-2 or 12-3 for
directions on how to access these parameters.
SV
The SL4824 series temperature controller has one alarm output, ALA1. Alarm group ALA1 can be programmed
for one of seventeen different alarm types. To set up the alarm output, press the ;button for three seconds.
Press the 'button repeatedly until the parameter ALA1 appears. Use the .button to choose the set
value for the desired alarm type. Refer to the chart below for alarm type information. Press the ;button to
save the selected value. Press the ;button repeatedly until the controller returns to the main screen.
The alarm output limits are controlled by the parameters Alnand Alnl, where “n” corresponds to the alarm
output group chosen. After setting the alarm type for ALA1, press the 'button repeatedly until the parameter
Alnand/or Alnlappears. Use the .and ,buttons to enter the high and/or low values for alarm
group ALA1. Press the ;button to save each selected value. Press the ;button again to return to the
controller main screen.
ALA1 is a SPST resistive load 3A @ 250 VAC, normally open relay output.
