Soltec Bioclimatic Pergola Agava SL User manual

Bioclimatic Pergola
Agava SL
OUTDOOR LIVING
Installation instructions
The document is valid from 1.12.2020 and replaces all previous editions.

2Installation instructions | Bioclimatic Pergola Agava SL
Prefix
This Installation Instructions manual offers you the know-how on
assembling and mounting Soltec Pergola Agava SL System. Through
reading process you will notice, that this quide is made through
following the basic knowledge presented in Soltec's Training guide.
This manual is focused on the first 14 points from the Training Guide.
1. Acceptance of goods, inspection of documentation, visual inspection of cargo and
confirmation in CMR documentation.
2. Opening of the box and inspection of the components on the basis of packing list
and relevant documentation, preparation of tools and mounting equipment.
3. Marking the location on the floor or wall for mounting the structure and fixing the
brackets.
4. Knowledge of the frame composition for freestanding pergola or pergola with wall
fixation. Joints of corners and posts, fixation of frame to the bracket and frame to the
wall. Checking the inclination of the frame structure according to the instructions.
5. Joining of the electrical cables before the frame assembly and circuit testing.
6. Knowledge of sliding insertion technology, connecting blades to the drive axle/
bar and the setting of end points. Knowledge of mechanical endpoint correction
technology on oval holes.
7. Connection of the blades with/to the LED lights.
8. The option to mount the cover in case of non-standard length of the pergola
(concave or convex shape of tin sheet).
9. The option of mounting fixed roof integration (installation of roof glass or aluminum
sheet).
10. Installation of ZIP roller blind, guides, cassette, end points, electrical cable joints.
11. Installation of sliding panels, guides.
12. Installation of glass panels, guides.
13. Electrical connection of the pergola to the home network, motor self-test and test
drive. Sealing all joints with MERBENIT glue or SIKA 553. Client training using a
pergola and presentation of operating instructions.
14. Regular annual maintenance (inspection of operation, engine reset - self-test,
inspection of seals, + cleaning of water channels, inspection or necessary
replacement of plastic parts, protection of rubber seals, cleaning of the pergola).

3
Installation instructions | Bioclimatic Pergola Agava SL
Index
Configurations
STEP 1 & STEP 2 Check received cargo
STEP 2.1 Read the instructions
STEP 2.2 Tools & Equipment
STEP 2.3 Order Form

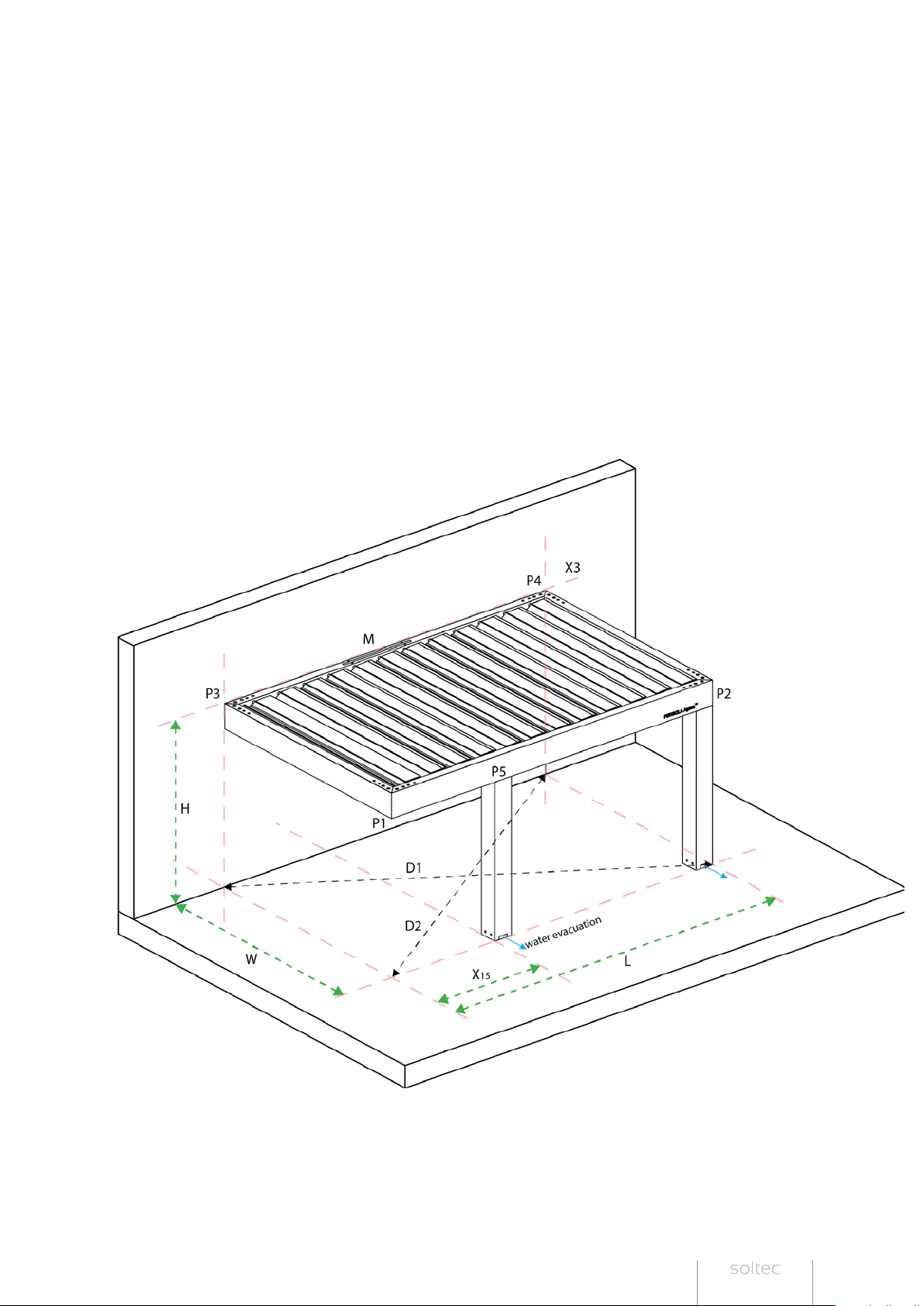

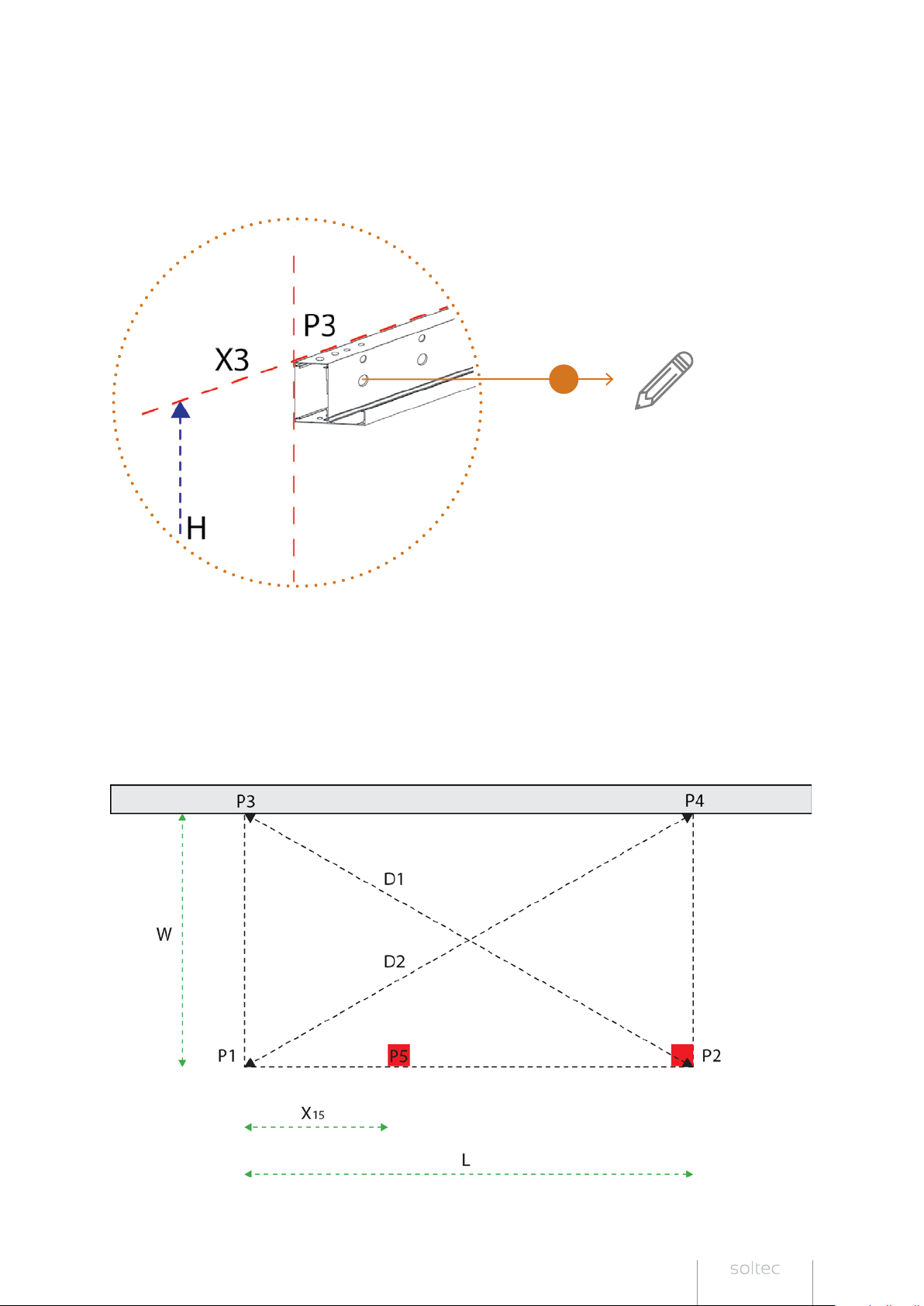

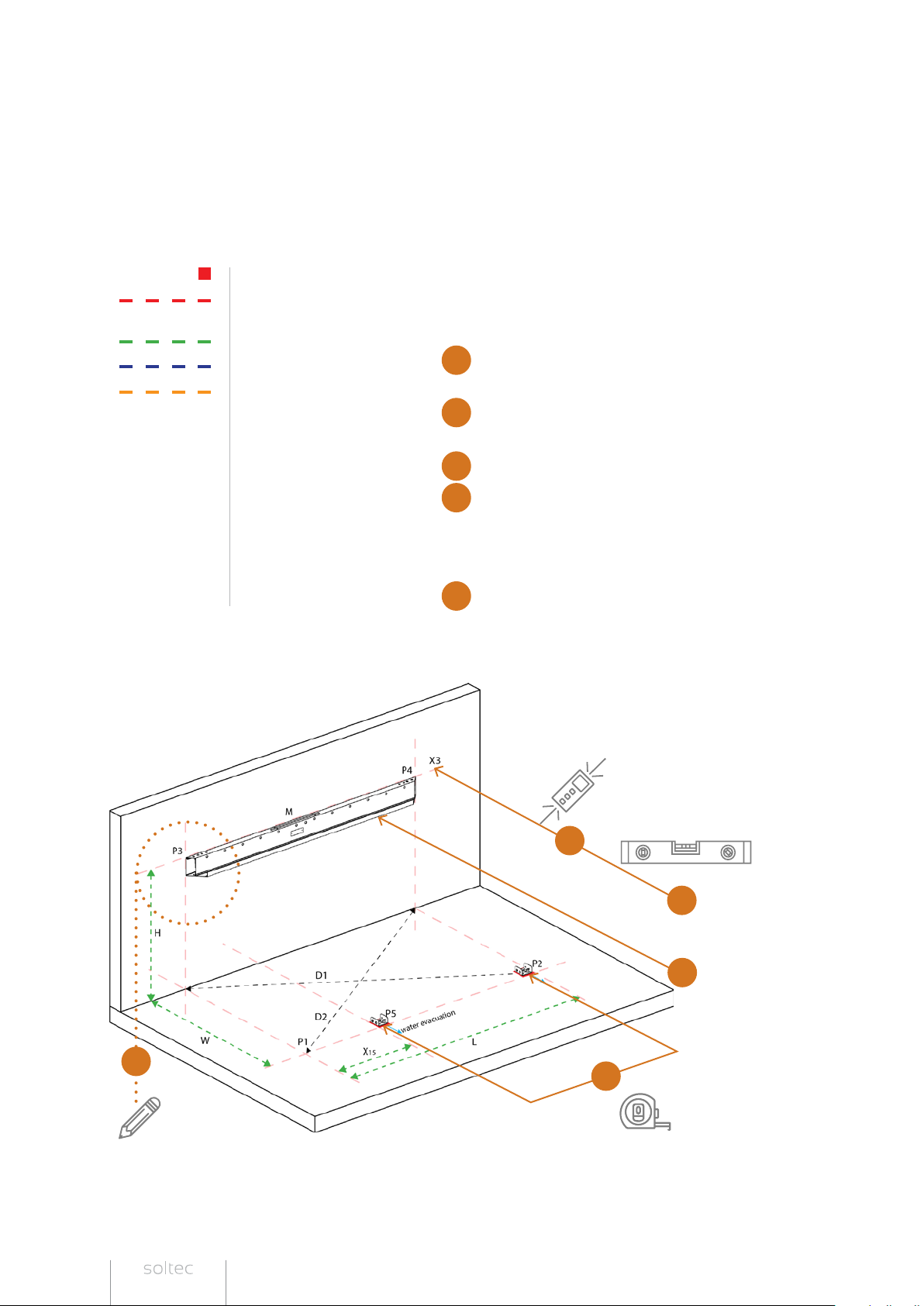

STEP 2.4 Marking the location
STEP 3 Positioning

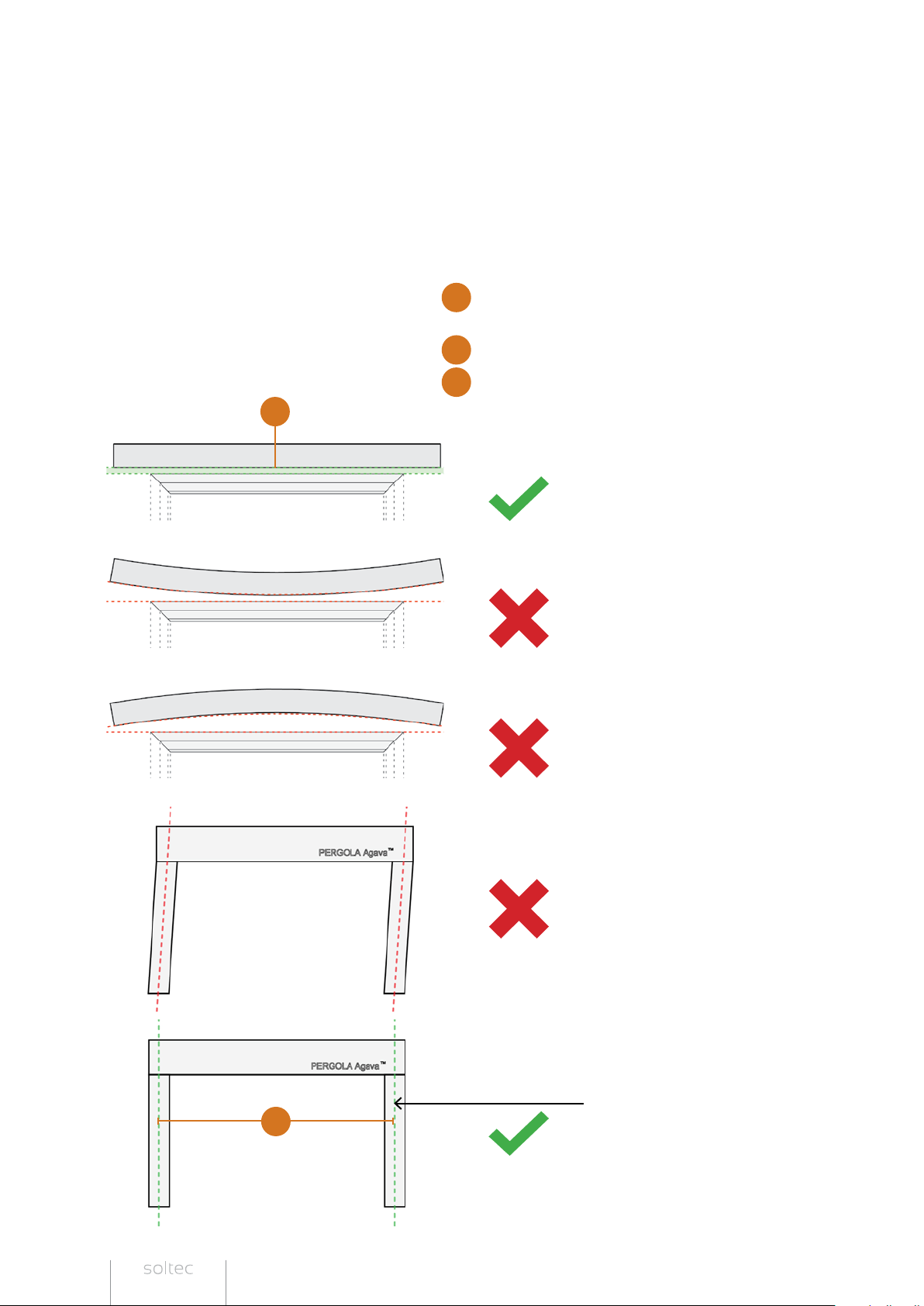

STEP 3.1 Parallelism of wall and profile
STEP 4 The place needed for assembling the installation

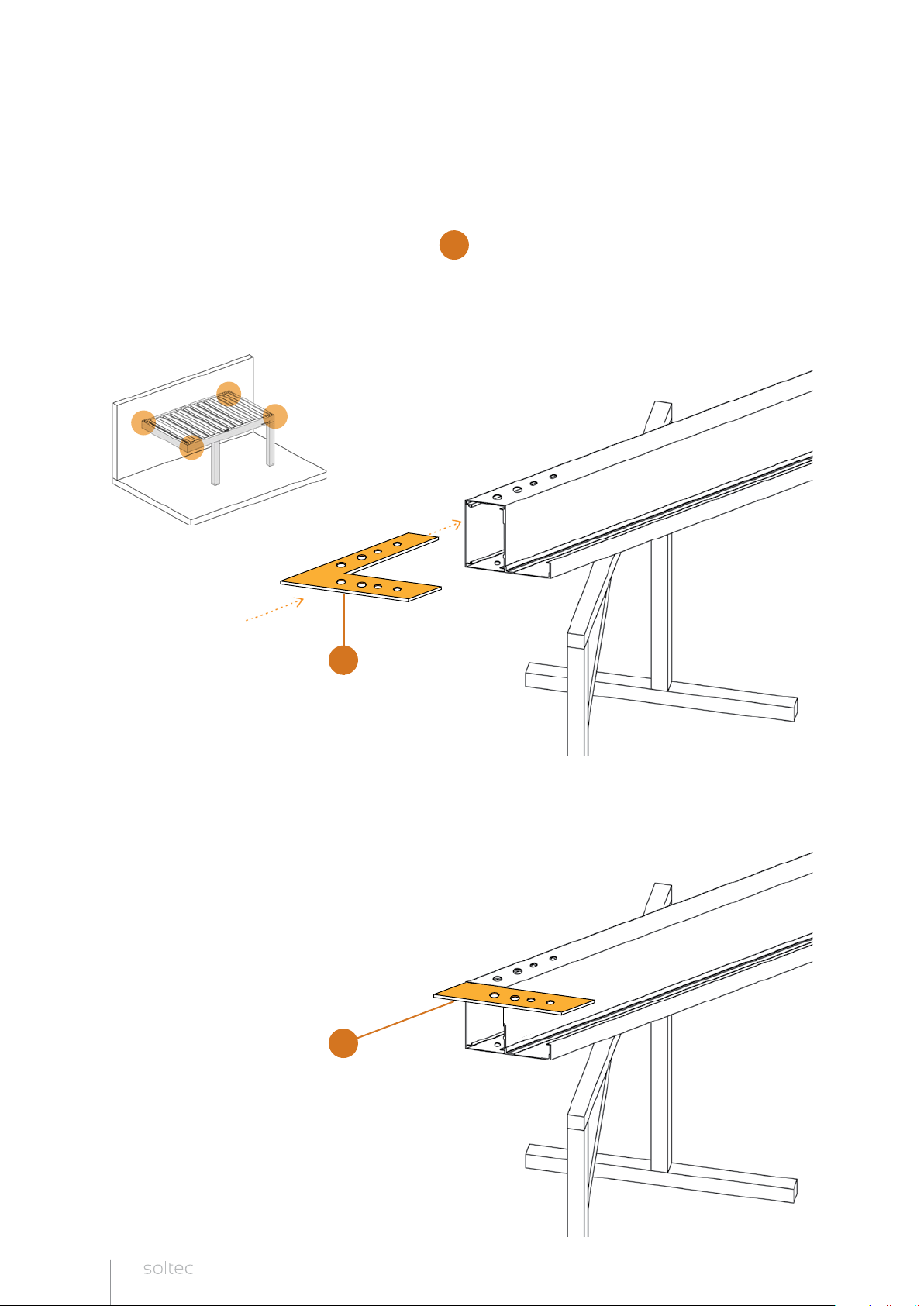

STEP 5 Inserting metal plates into wall mounting frame profile

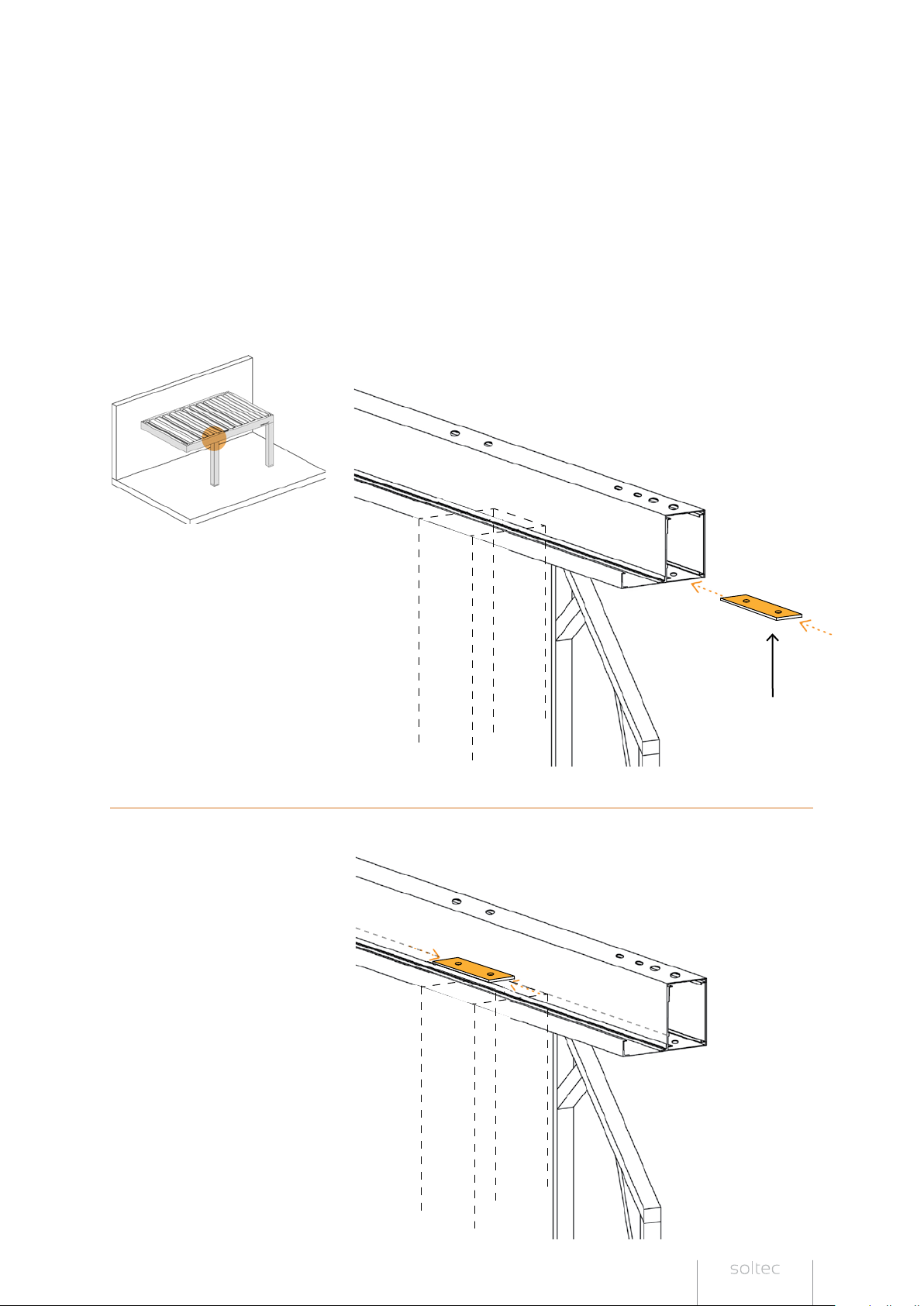

STEP 5.1 Inserting metal plate for supporting post on position P5
STEP 5.2 Screwing and inserting the L - angle upper (AA) into
transverse frame profile
STEP 5.3 Screwing and inserting the L - angle lower, connecting &
with threads (AC) into transverse frame profile
STEP 5.4 Screwing and inserting the L - angle lower (AB) into
transverse frame profile
STEP 5.5 Metal plates, L - angles (AA), (AB), (AC) and screws (A)
are in place
STEP 6 Connection of electrical and signal cables through
the profiles
STEP 6.1 Connecting the cables and sockets
STEP 6.2 Assembling of the frame and testing of cable connections
STEP 7 Screwing a longitudal frame profile and L - angles
STEP 7.1 Screwing a longitudinal frame profile and upper L - angle
STEP 7.2 Screwing a longitudinal frame profile and lower L - angle
(positions P1, P3, P4)
STEP 7.3 Longitudinal frame profile and lower L - angle
(position P2 - with post)

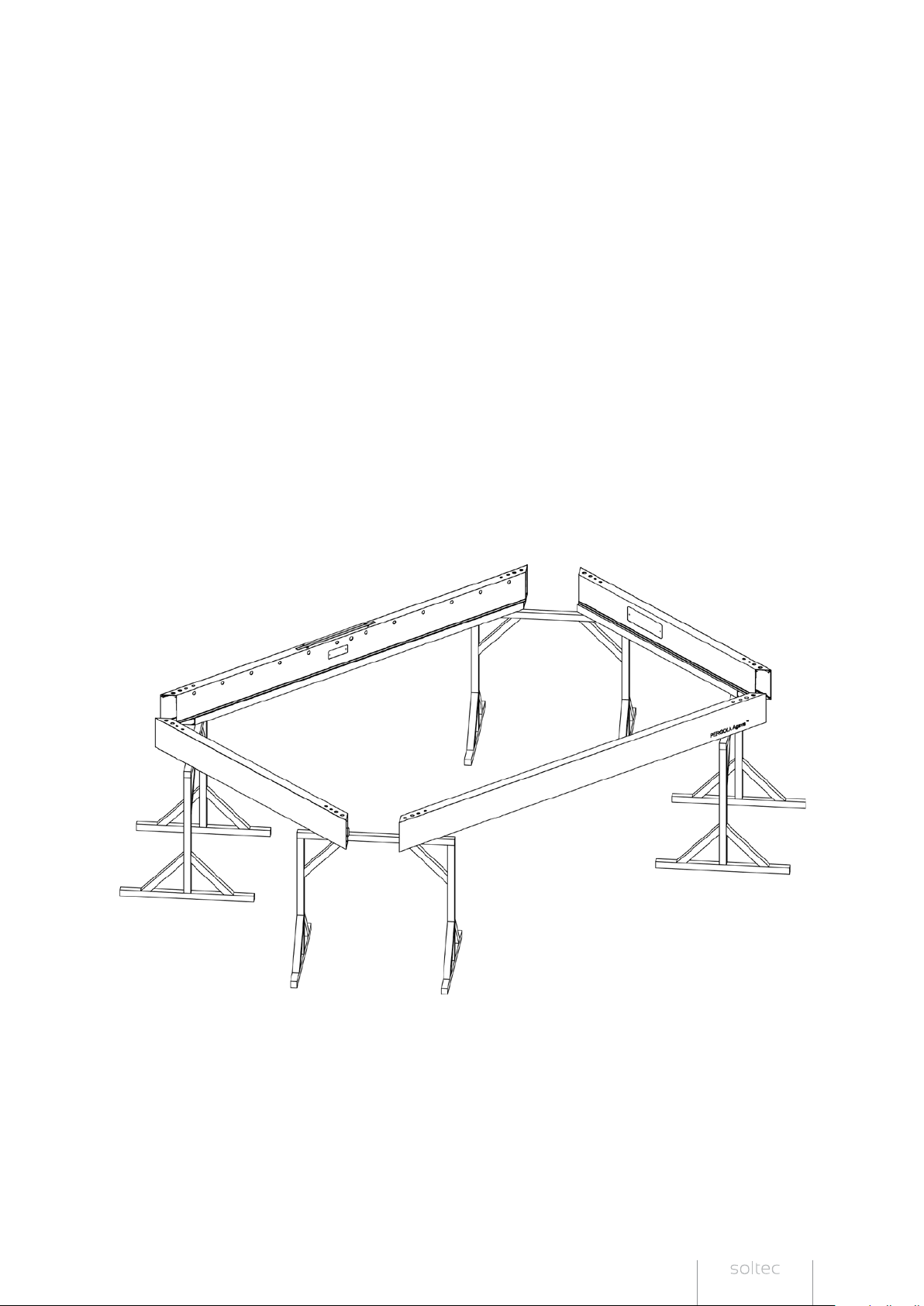

STEP 8 Position of foot support (example type frame)
STEP 8.1 Inclination of the frame
STEP 8.2 Tabel info
5
6
7
8
9
13
14
16
17
18
19
20
21
22
23
24
25
26
28
28
28
29
30
30
31

4Installation instructions | Bioclimatic Pergola Agava SL
Index
STEP 9 Attachment of pedestals
STEP 10 Laying frames on posts
STEP 10.1 Screwing the post on position P2
STEP 10.2 Screwing the post on position P5
STEP 11 Attaching the frame to the wall
STEP 12 Screwing the post and foot support
STEP 13 Assembly of blades
STEP 13.1 Inserting the blades
STEP 13.2 Inserting the blades with connecting wire rope
STEP 13.3 Inclination of blades
STEP 14 Connection of blades to drive bar
STEP 14.1 Adjustment of closing of the blades
STEP 14.2 Self-test - Self learning of limit switches
STEP 14.3 Remote control, settings and management
STEP 14.4 Connecting the sockets and testing integrated LED lights
OPTIONS ZIP roller blind
Rain Sensor
Wind Sensor
Temperature sensor with wiring - Mounting
Sliding panels (glass, aluminium & wooden slats)
ITEM LIST TYPE 2
ATTACHMENTS (Electric plans)
Pergola SL & Motor DC24V
Motor DC24V & LED & ZIP
Motor DC24V & LED
Motor DC24V & LED & ZIP Somfy Motor
Pergola SL & Heater
LIST OF SERVICE INSPECTIONS
CONTACT
32
33
34
35
36
37
38
39
41
42
44
44
45
47
48
49
51
52
54
55
56
60
60
61
62
63
64
65
68

5
Installation instructions | Bioclimatic Pergola Agava SL
Configurations
TYPE 1
Self-standing
TYPE 2
Wall-mounted blades
perpendicular to wall
TYPE 3
Wall-mounted on
two sides blades
perpendicular to wall
TYPE 4
Wall-mounted blades
parallel to wall
TYPE 6
Self-standing
posts off-center
TYPE 7
Wall-mounted blades
perpendicular to wall
TYPE 8
Wall-mounted blades
perpendicular to wall
EXAMPLE TYPE
The TYPE G configuration is used in
Installation instructions to present
all the possible situations in the
process of installation of pergola.
TYPE 5
Wall-mounted blades
parallel to wall

6Installation instructions | Bioclimatic Pergola Agava SL
STEP 1
STEP 2
Check received cargo
Check received cargo
Acceptance of goods, inspection of
documentation, visual inspection of cargo
and confirmation of CMR documentation
• Inspect all documents
• Check for possible cargo damage and
REPORT it in CMR documentation
• SIGN and STAMP the acceptance of
package and parts in CMR documentation
• Make a confirmation of CMR
documentation
Opening the box and inspection of the
components on the basis of packing list
and relevant documentation, preparation
of tools and mounting equipment
• Opening the box
• Check and inspect the components,
using the packing list
Pos.
NO.
PROJECT
Photos
Dimensions /
mm pcs
Check by
warehouse
man
Check by
customer
1 18019
2,498
1
2 18120
1,000
1
3 18110
2,72
2
4 18190
2,84
1
PACKING LIST
Soltec d.o.o., Obrtna ulica 9
SI-8257 Dobova, Slovenia
VAT ID: 48773867
Delivery adress Forwarder
Page:
SUNHOTEL
Sonnenstrasse 333
6020 INNSBRUCK
AUSTRIA
SUNHOTEL
Sonnenstrasse 333
6020 INNSBRUCK
AUSTRIA
1 / 1
NOTE:
receipt
Prepared by: Janez Novak
Packing list No.:
Part / Material
Date of pick up : 07.09.2018
GUIDES
LED LIGHT RGB
LAMELA 28
POST
CMR documentation example
Packing list example

7
Installation instructions | Bioclimatic Pergola Agava SL
STEP 2.1 Read the instructions
Before beginning with installation, you
MUST go through following points
1. The amount of pieces in the received
assembly
2. The quality of the pieces in the received
assembly
3. Installation Manual
4. User Manual
5. Warranty statement
Installation Manual Instructions Manual
to install the product, you MUST read
carefully Pergola Agava Price list,
especially marked OBLIGATORY!
and Pergola Agava Instructions
Manual.
BEFORE YOU START
• Read the suggested documents
• Follow the instructions

8Installation instructions | Bioclimatic Pergola Agava SL

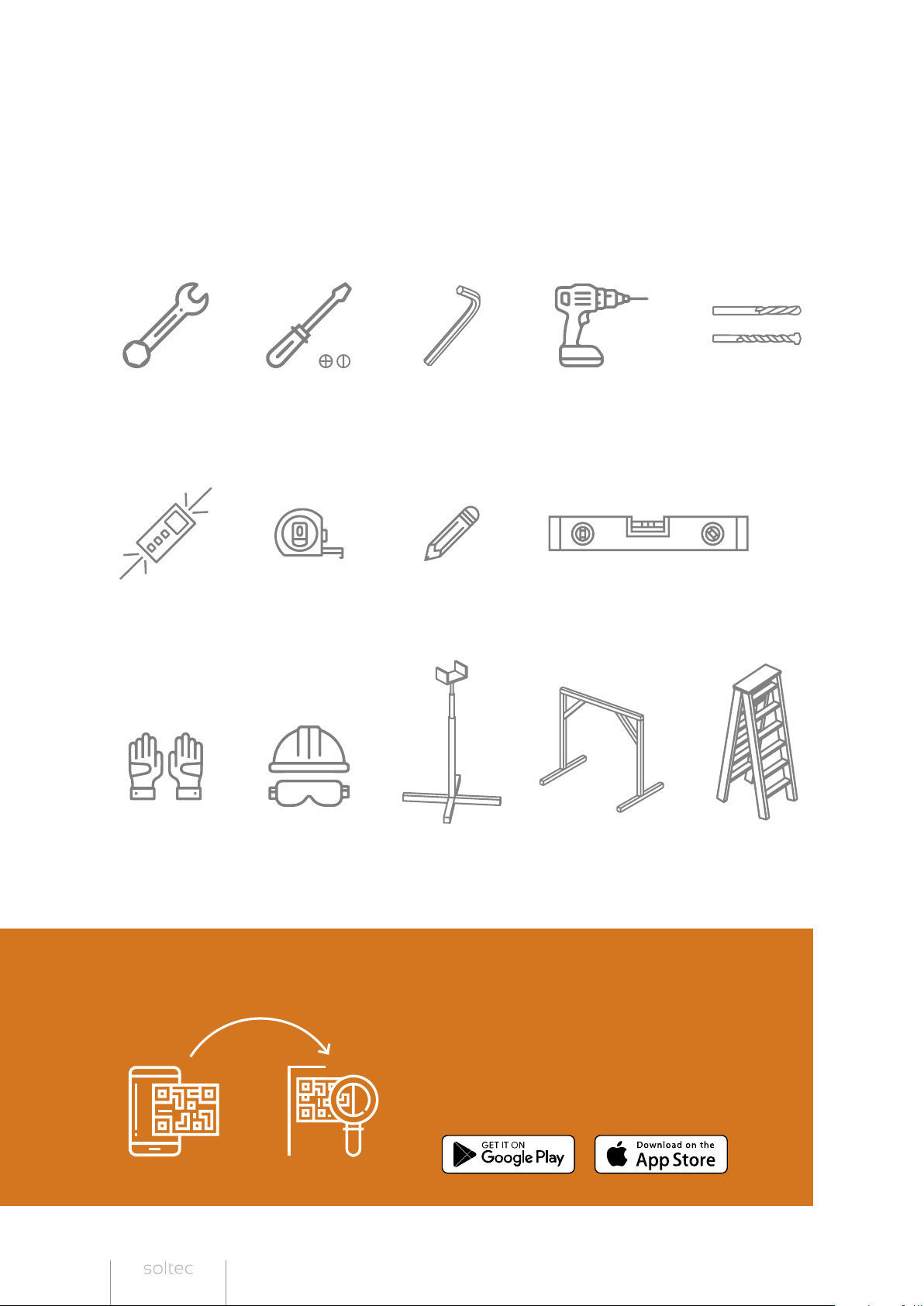

STEP 2.2 Tools & Equipment
Using the right Tools & Equipment for the
job is essential for good installation and for
avoiding potencial injuries.
Hex / Imbus keys
3mm, 4mm, 6mm,
8mm
Screwdriver
Philips & flat
blade
Ring - Fork Key
10mm, 13mm,
17mm
Electric hand drill
machine
Drill bit
Ø10, Ø12
Spirit levelLaser measure
or/and gauge
Hand meter Pencil / Marker
Helmet and
protecting
glasses
Working gloves Lifting Pads Standing Pads Ladder
Watch Soltec videos on Youtube channel:
QR Code Reader Videos & other info
1. Go to Google Play or AppStore
2. Download QR Reader aplication
3. Open the aplication and scan QR Codes in this
document
4. Watch installation instructions videos

9
Installation instructions | Bioclimatic Pergola Agava SL
STEP 2.3 Order Form
With Order Form, the buyer specifies all the
essential specifications of Agava Pergola.
The specific model is precisely defined in
Order Form and this document is the basis of
every Agava Pergola project.
Step 1 / Client information
Client Deliver to (when different) Project
Stamp & signature
With signoff of this Order form the
Client declares, that the Client has
read and accepts the General Terms
and Conditions of Soltec d.o.o., which
are published on www.soltec.si.
Colour
Standard
Non-standard
Subject to additional payment.
STRUCTURE
STRUCTURE
BLADES
BLADES
RAL no.
Finish
Number
RAL no.
Finish
grey
anthracite
RAL 7016
grey
anthracite
RAL 7016
grey
aluminium
RAL 9006
grey
aluminium
RAL 9006
white
traffic
RAL 9016
DB 703
micro-
structure
white
traffic
RAL 9016
DB 703
smooth
Number of poles
Quantity of Pergola
0 poles
1 pole
2 poles
3 poles
4 poles
additional pole:
Step 2 / Product information
Dimensions (specify in mm)Type of pergola
Agava SL 160/28
Agava SL 170/28
Agava SL 170/36
Agava SL 240/36
Agava SL 240/60
Type of installation
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
HEIGHT
WIDTH
LENGTH
Name Name Name
Phone Phone
E-mail E-mail
Address Address Date
Requested date of
delivery (week)
Hight of pergola 3-3.5 m is
possible only with external
foot mounting.
Extra cost of higher poles
and external foot mounting
is 160 €.
Height of pergola
P1
P2
P3
P4

10 Installation instructions | Bioclimatic Pergola Agava SL

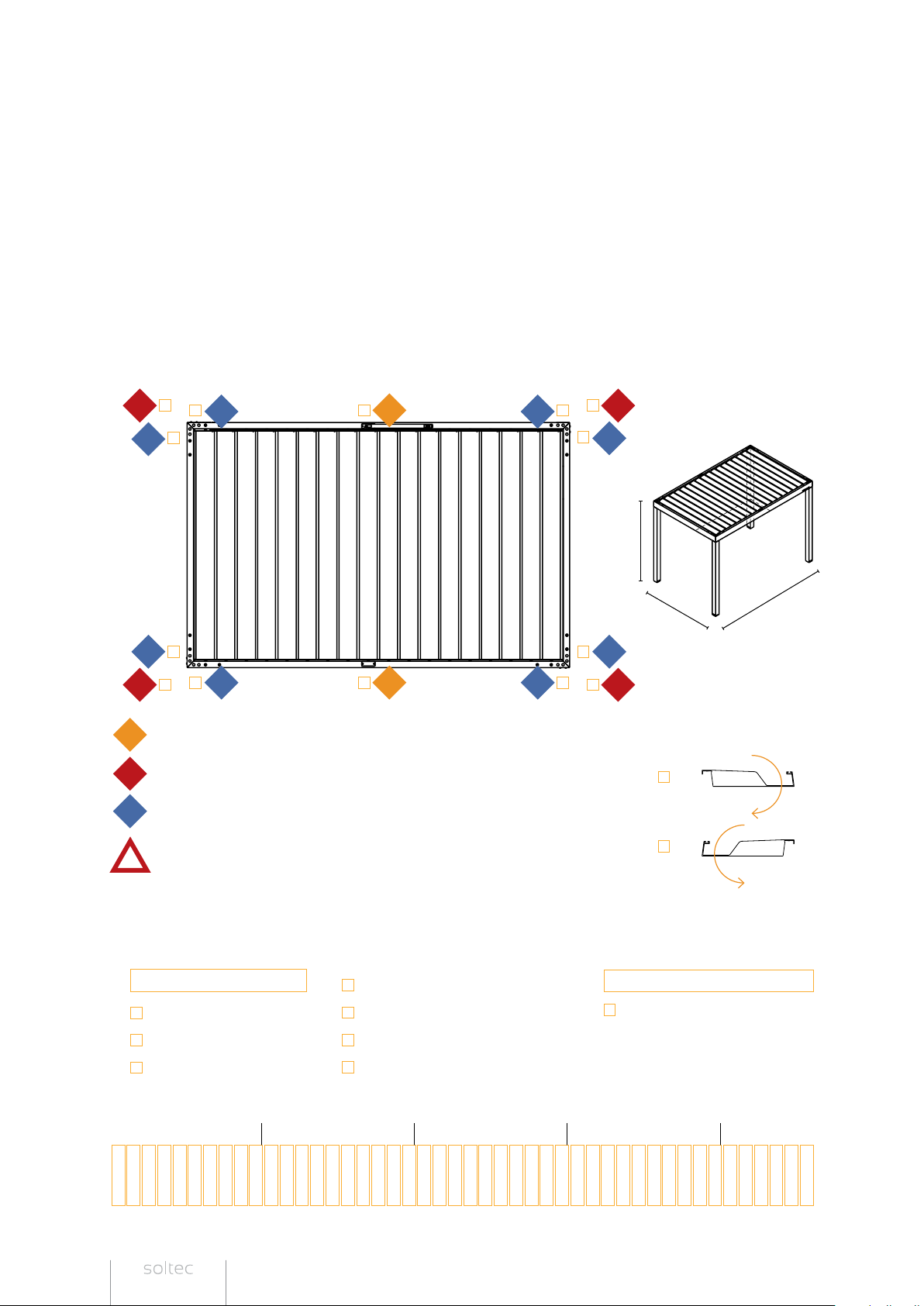

Step 3 / Drawing with marked specifications
Mark motor position, water exit and power supply on top view
HEIGHT
WIDTH
LENGTH
location of motor position
location of water exit
location of power supply
M
P
W
!
· Water exit is possible on same pole as electricity, but only if Type P is
ordered as special option of water evacuation.
· Pergola must have min. 2 water exits!
· Position of cutting is on pole foot.
A
B
3P
1P
4
P
2
P
M
MA2 W
B1 W
A1
W
B2
W
A4 W
B3 W
A3
W
B4
W
Blades opening way
A
B

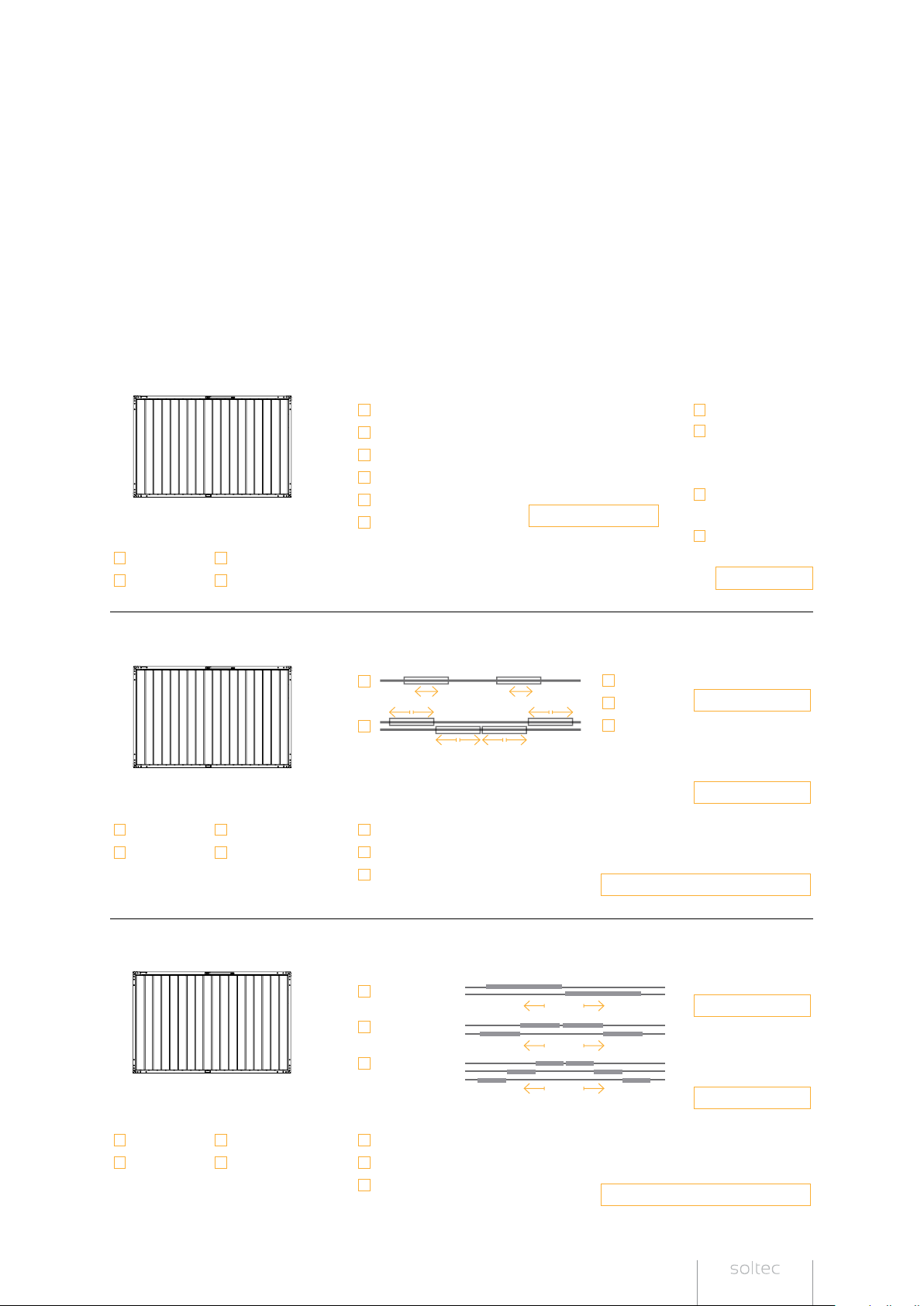

Position of LED lights (mark on drawing)
4638302214 4234261810
length: 1972 mm length: 3798 mm length: 5624 mm length: 7596 mm
4443628201264032241682 4537292113 4133251793 433527191153931231571
LED quantity
LED lights
A) LED lights integrated into the blades B) LED strip lights
RGB
Length of LED (m)
0,5 m lenght
1 m lenght
1,5 m lenght
RGB
Neutral white 3200 - 5000°K
Warm white 2200 - 3200°K
Cold white › 5000°K
Order Form

11
Installation instructions | Bioclimatic Pergola Agava SL
Dimension of
panels (width in
mm)
Number of
panels
Dimension of
panels (width in
mm)
Number of
panels
Step 4 / Options
ZIP blinds
P1 - P2
P3 - P4
P1 - P3
P2 - P4
Position
P1 - P2
P3 - P4
P1 - P3
P2 - P4
Position
P1 - P2
P3 - P4
P1 - P3
P2 - P4
Position
108101 grey-white
108108 grey
108118 grey-black
116101 linen-white
117101 pearl-white
117117 pearl
Fabric Serge
Same as
pergola frame
Different RAL
no.
Colour of guides
standard
Somfy
Motor
P3 P4
P1 P2
Sliding panels
wood
alu
screen
Type
P3 P4
P1 P2
Glass panels
P3 P4
P1 P2
Colour / Standard Colour /
Non-Standard
Subject to additional
payment +10%.
grey anthracite RAL 7016
grey aluminium RAL 9006
white traffic RAL 9016 RAL no.
Colour / Standard Colour /
Non-Standard
Subject to additional
payment +10%.
grey anthracite RAL 7016
grey aluminium RAL 9006
white traffic RAL 9016 RAL no.
Fabric Soltis
+ 10%
Crystal full screen
+ 10%
Crystal window
dim.
Sliding type
2 panels /
2 guides
4 panels /
2 guides
6 panels /
3 guides
Folding type
Order Form

12 Installation instructions | Bioclimatic Pergola Agava SL
Step 5 / Accessories
Rain sensor
Wind sensor
Snow sensor (Rain +
Temperature sensor)
Temperature sensor
Presence sensor
Sensors
Number of speakers
Audio system
Audio system +
Bluetooth
Sound system
Quantity
White
Anthracite
Heater Heliosa
Step 7 / Hand drawing
with marked specifications Step 8 / Additional comments
To be filled by Soltec / manufacturer
Value
Offer number
Shipping
Project reference number
In total
Date
SOLTEC d.o.o. • Obrtna ulica 9 • 8257 Dobova, Slovenia
T+386 (0)7 45 27 126 • E[email protected] • www.soltec.si
Foot mounting
standard (inox) /
internal
optional / external
External foot
mounting protection
galvanization
galvanization +
painting
inox
Wall mounting
standard
optional
P1
P2
P3
P4
Quantity
Teleco / 42-channels
Somfy / 4-channels
Somfy / 1-channel
T-mate APP
Daisy APP
Remote control
Position of holes on
profile for wall fixation
drill the profile
(indicate on drawing)
no drilling (client
ensures power
supply)
Step 6 / Options roof
Covers for non standard lenght
Type A / Convex type
Type B / Concave type
Subject to additional payment 30 € / m1
Fix roof integration
Type C / Glass roof
Type D / Aluminium sheet
Type E / Aluminium sheet
Special water evacuation
Type V
Type H
Type P
Subject to additional payment 150 € / pcs
Order Form

13
Installation instructions | Bioclimatic Pergola Agava SL
STEP 2.4 Marking the location
Marking the location on the floor or wall
for mounting the structure and fixing the
brackets is also the start of mounting
process.
There are practically 8 basic possibilities
of mounting, which can be seen in the
Configurations on page 5.
The Example Type explained in this
Installation Instructions Manual is shown
below.
Example type model is shown with correlating
positions and helping lines.
EXAMPLE TYPE

14 Installation instructions | Bioclimatic Pergola Agava SL
STEP 3 Positioning
Position of the wall mounted frame profile
& foundation position
Before starting to assemble the frame, it is
necessary to determine the position of the
longitudinal frame profile on the wall and
foundation positions:
Use a laser gauge/laser measure to
indicate the X3 line on the wall.
If needed, use a spirit level to mark a
proper 0°.
Lean the profile to the wall.
The positions of the anchor bolt holes
shall be indicated/drawn for mounting
the profile on the wall. Indicate positions
P3 and P4 on the wall with a marker.
Indicate the foundation positions.
D1, D2
X3
P1, P2, P3, P4
P5
post positions
support lines for
positioning
width of profiles
height of profiles
length of profiles
length between
diagonal pergola
corners
support line for
wall profile
corners of frame
construction
support with post,
dislocated from
corner
Mark the
horizontal
profile line (0°)*
Lean the
profile to
the wall
Indicate foundation
positions
Indicate wall
positions
EXAMPLE TYPE
1.
2.
3.
4.
5.
1.
2.
3.
5.
4.
* Follow the instructions from ”Price List 2020”
Use a spirit level

15
Installation instructions | Bioclimatic Pergola Agava SL
Positioning
EXAMPLE TYPE
Top view
Indicate wall
positions
4.

16 Installation instructions | Bioclimatic Pergola Agava SL
STEP 3.1 Parallelism of wall and profile
BEFORE starting to assemble the frame,
check the parallelism between the wall
and the wall profile. If curvedness is too
large, mounting the frame is not possible.
The wall and the wall profile have to
be parallel
Repair the wall if it is not even
The posts have to be parallel and in
90 angle to the wall profile
top view
wall profile
wall profile
wall profile
wall
wall
wall
The wall and the wall
profile have to be
parallel
The posts have to
be parallel
1.
2.
3.
1.
3.

17
Installation instructions | Bioclimatic Pergola Agava SL
STEP 4 The place needed for
assembling the installation
Put four pedestals on a suitable place, big
enough for assembling.
Pedestals MUST be coated to avoid damage
on the profiles.
Remove all unnecesary obstacles.
P1
P5
P3
P4
transverse profile
transverse profile
wall mounting profile
P2

18 Installation instructions | Bioclimatic Pergola Agava SL
STEP 5 Inserting metal plates into
wall mounting frame profile
Metal plates (R) are inserted into the
wall mounting profile
The number of plates depends on the
project (position P3 , P4)
Align plates with anchor bolt axis
P3
P4
(on right side)
wall mounting profile
PHASE 1
Corner P3 and P4
Metal plates (R)
Anchor bolts axis
P3
wall mounting profile
P4
(on right side)
Metal plates (R)
aligned with anchor
bolt axis
PHASE 2
Corner P3 and P4
1.
2.
3.
1.
2.
Anchor bolts axis 2.
3.

19
Installation instructions | Bioclimatic Pergola Agava SL
profile
P5
PHASE 1
P5
PHASE 2
P5
STEP 5.1 Inserting metal plate for
supporting post on position P5
Metal plate (Y) is inserted into the longitudal
profile for supporting post on position P5.
metal plate
(Y)
P2
(on left side)
P5 P1
profile

20 Installation instructions | Bioclimatic Pergola Agava SL
L-angle upper (AA) is
inserted in frame profile
profile
1.
STEP 5.2 Screwing and inserting the
L - angle upper (AA) into
transverse frame profile
L-angle upper (AA) is inserted into all 4
transverse frame profile corners
L - angle upper (AA)
profile
PHASE 1
Corner P1, P3 , P4 and P2
PHASE 2
Corner P1, P3 , P4 and P2
1.
1.
