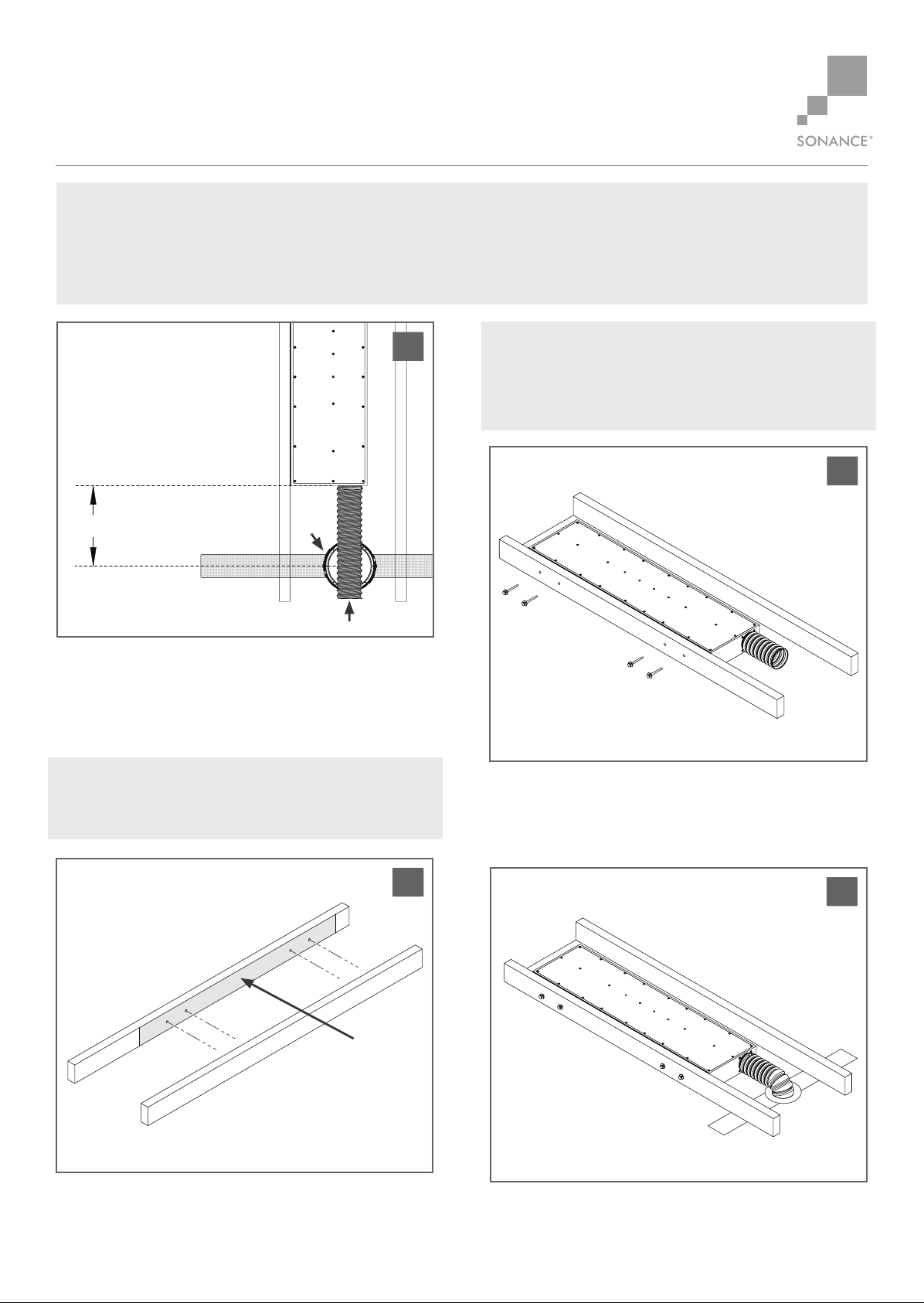

Determine the location of the 3” ex bracket and subwoofer.
Ensure there is adequate space to accommodate the
subwoofer and port tube within the 2 x 4 stud bay or joists,
allowing at least 7-9” from the front edge of the BPS6 TL
to the location of the ex bracket opening. (See Figure 1).
Box Contents
(1) Quickstart Guide
(1) Bandpass Subwoofer with port tube
(1) Cardboard mounting template
MOUNTING SCREWS & WASHERS:
(4) 5/16” x 3” lag screws
(4) 5/16” washers
BPS6 TL QUICKSTART GUIDE FOR USE WITH VISUAL
PERFORMANCE SERIES BANDPASS CONNECTORS
BANDPASS SUBWOOFER THINLINE (VP)
Place the subwoofer mounting template on the side of a
2 x 4 stud or joist and drill four 1/4” (6mm) holes through the
locations shown on the mounting template. (See Figure 2).
Hold the side of the BPS6 TL Subwoofer with the rubber
damping pad up against the side of the 2 x 4 stud and
install the four lag screws and washers to secure the
BPS6 TL Subwoofer in place. (See Figure 3).
2
3
1
7-9” (177-228mm)
BPS6 TL
Port Tube
Flex Bracket
NOTE: IF IT IS NOT POSSIBLE TO LOCATE THE BPS6 TL SUBWOOFER
7-9” AWAY FROM THE FLEX BRACKET OPENING, EXTRA HOSE
MATERIAL (UP TO 3”) MAY BE REMOVED. WHILE IT IS OKAY TO
SHORTEN THE HOSE, NEVER EXTEND THE HOSE LENGTH.
NOTE: DRILLING FROM THE INSIDE OF THE STUD BAY IS
RECOMMENDED TO ENSURE THAT THE HOLE LOCATIONS MATCH
THE SUBWOOFER SCREW LOCATIONS.
NOTE: BE SURE THAT THE SUBWOOFER TEMPLATE IS FLUSH WITH
THE EDGE OF THE STUD OR SLIGHTLY RECESSED.
Attach the 3” ex bracket to the 2 x 4 stud or joists in
the predetermined location. Check that the mounted
distance allows for the port tube to pass through the
bracket with at least 4 ribs of the tube exposed.
(See Figure 4).
4
Figure 1
Figure 2
Figure 3
Figure 4
Template

©2017 Sonance. All rights reserved. Sonance and Visual Performance are registered trademarks of Dana Innovations. Due to continuous product improvement,
all features and specications are subject to change without notice. For the latest Sonance product specication information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA • PHONE: [phone] • FAX: [phone] • Technical Support: [phone] 10.24.17
The BPS6 TL ships with a tether inserted into the end
of the port tube. Use the tether to guide the port tube
into the ex bracket. Loop and pull the tether all the
way until port tube lies rmly on the ex bracket.
Tie the tether into a knot. This process ensures that
other tradespersons won’t infringe on the port tube
assembly area. (See Figure 5).
BPS6 TL QUICKSTART GUIDE FOR USE WITH VISUAL PERFORMANCE SERIES BANDPASS CONNECTORS
Attach the four conductor speaker wire to the input
terminals; positive wires to red terminals and negative
wires to black terminals. Run a signal test using an
amplied program material for at least 60 seconds.
Secure the speaker wire to the zip tie attached to the
subwoofer cabinet to prevent accidental removal.
(See Figure 6).
After drywall and paint is complete, install bandpass
connector (sold separately; Sonance model
VPBPC3R TL SKU# 93334) to the port tube through
the ex bracket.
For Visual Performance bandpass connector
installation details visit www.sonance.com/
in-wall-in-ceiling/bps6-tl
33-7940
LEFT
BPS6TL
RIGHT
MADE IN CHINA
6
Included
zip tie
for wire
5
NOTE: PORT TUBE CONTAINS FOAM PLUG WITH A TETHER, MAKE
SURE PRESSURE LEVELS DON’T EXPEL THE FOAM PLUG AND TETHER.
Tether into ex
bracket loop
Foam
Figure 5
Figure 6
