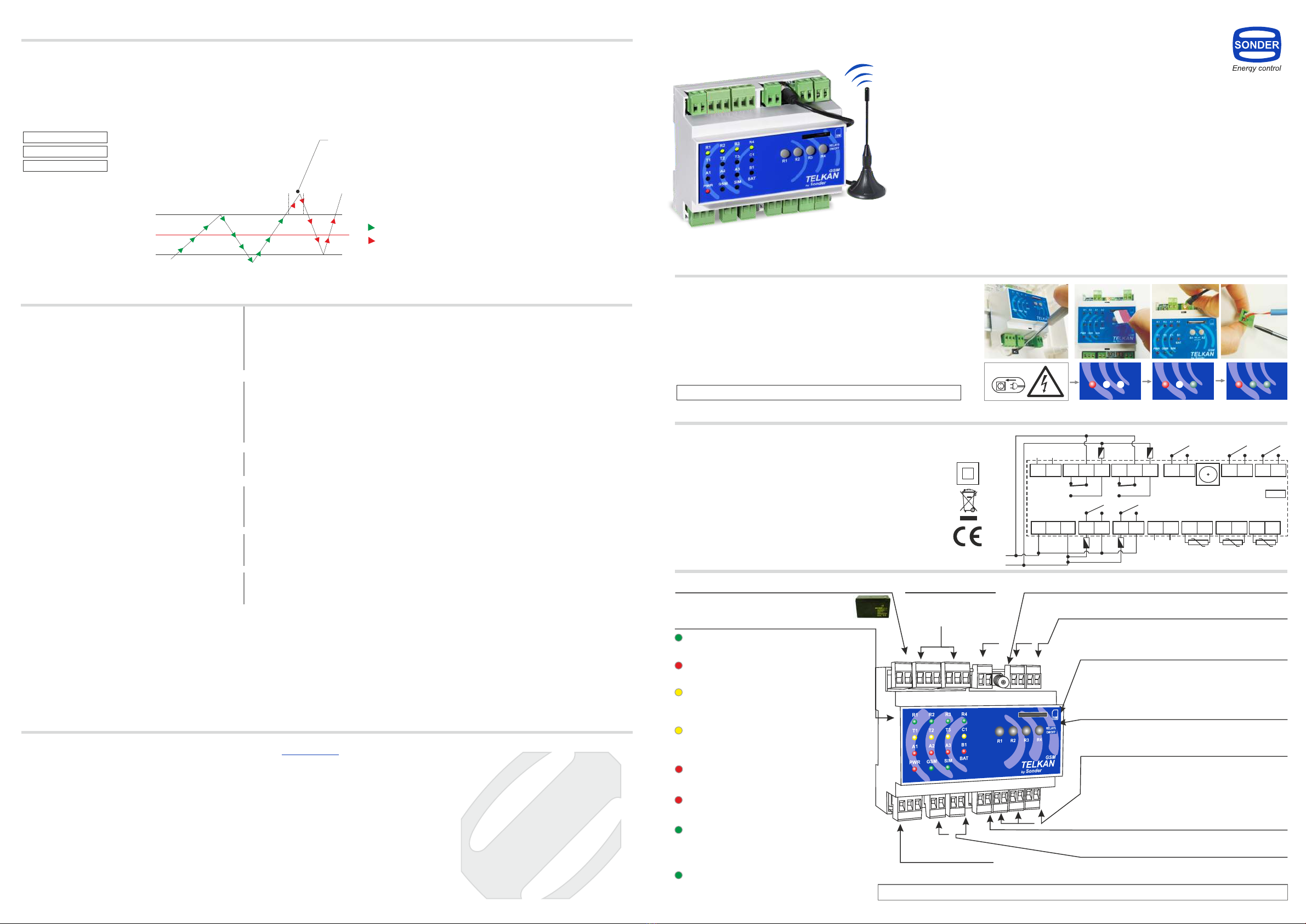

Sonder TELKAN 4 GSM 3G Reference manual

TELKAN 4 GSM 3G Telephonic Control Via GSM Code:19.095
Manual of installation and use
DESCRIPTION
LED´s
SIM card
Input for external battery
External input for a sealed lead battery of 12V and a
capacity of 1.2 to 20Ah.
Input for temperature probes
r1, r2, r3, r4 (Relays)
External antenna connector
Connection for external antenna with magnetic base
Contact closure alarms
When open / close contact for more than 5 seconds generates an alarm
a1, a2, a3 (Alarms)
t1, t2, t3 (Probes)
b1 (Battery)
PWR (Power supply)
GSM (Signal)
SIM (Card)
Input for transducer 4a20mA
Has the same procedure that input for probes.
on Z in value alarm
off Z without value alarm
blinking Z Connection error
c1 (Input 4a20mA)
Before giving the power to the control, remove the SIM card PIN and insert it into the TELKAN
START UP
333
111
- Wiring type: H05VV-F or H05RR-F
- Environment: Temperature Z 0°C to 45°C / Humidity Z 20% to 85%
- Software classe A - Action type 1.B
- Free-voltage contact relay
- Independent dispositive
- According normative: EN 60730 / EN 301511 / EN 301489-1 / EN 301489-7
- Power supply: 230V~ +10% -15% 50/60Hz max. 2VA
- Measures: Rail-DIN box 6 modules (90x105x58 mm)
2 2
- Minimum section for cable of: Relay Z 2,5 mm Power supply Z 1 mm
- Contamination degree: clean environment
TECHNICAL SPECIFICATIONS
Electrical drawing:
444
BAT
PWR GSM SIM
BAT
PWR GSM SIM
BAT
PWR GSM SIM
555
IP20
If the installation was successful should light the LEDs: PWR, SIM and GSM
Buttons ON / OFF
Connect /disconnect the relays manually without sending message.
Application (relays r2, r3)
5A 250V~ SPST. Relays with free voltage-contact (operation as a
switch)
T3
+
-
Battery
B1
5A
R3
C
NO
C
NO
NO NO
R1
NC C
L
230V~
N
SIM
ANTENNA
+-
4a20mA
L
N
Contact Alarms
Temperature Probes PTC2000
C1 T1T2
A1A2
R2
NC C
230V~
16A 16A
1 Input for external battery: When detecting a change of power (battery passes network or vice versa) sends
SMS warning of network failure and SMS of service restoration. (Battery not supplied, code: 7.190)
SIM: Works with prepaid card or contract of any company, it is recommended the prepaid for save money. Before
purchasing the SIM, verify what company has the better coverage in the area. (SIM not included)
4 Relays (2x5A + 2x12A): : You can activate/deactivate manually or by SMS, activate /deactivate timed and query
the status of the relay.
3 Inputs for T Probes: Allows receive warnings of a temperature alarm, the relay can be linked to temperature
alarm and view the history of temperatures for the last 4 hours via SMS. (Probes not supplied, code: 4.343)
1 Input for 4a20mA: Has the same procedure that input for probes.
1 Alarms contact: When open / close contact for more than 5 seconds will generate an alarm.
IP65 Box: Box for surface mounting. (Box not supplied, code: 7.118)
Remote control via GSM that works by sending and receiving SMS (configurable in 2 languages, Spanish /
English). Ability to operate powered 12V ideal photovoltaic installations.
Connection for temperature probe PTC2000 (-40°C ... + 140°C).
When the probe detects that the temperature has crossed the
threshold defined by the user, the controller sends an SMS alarm
only to phone No function has been activated. (F. MEET, can
activate the desired relay).
Cardholder to insert a Mini-SIM that is operational and any
company. Does not work with Mini-SIM card or the phone number
doubled. Do not insert or remove the SIM card with the Sondertel
powered.
2 - Check with a mobile phone the SIM (which has no access PIN code, the credit,
sending and receiving SMS).
1 - Install the control away from contactors, motors ... etc. It may be the case with
some contactor with strong electromagnetic peaks need to install a relay between
the output of TELKAN and the contactor coil.
3 - Insert SIM in TELKAN.
4 - make the rest of connections.
5 - Connect the control to the power supply 230V~
A3
R4
on Z in alarm
off Z Without alarm
on Z relay connected
off Z realy disconnected
on Z in temperature alarm
off Z without temperature alarm
blinking Z Connection error
on Z power supply by battery
off Z power supply by 230V~
on Z powered supply
off Z without power supply
on Z wiht signal GSM
off Z without signal GSM
blinking Z sending dates or
SMS received
on Z inserted and operational
off Z without card SIM
blinking Z the card has PIN
(take out of TELKAN & disabled the PIN)
Cod.:7955 INGVØ ENE19
OPERATING TEMPERATURE ALARM
30°C
31°C
29°C
Temperature
Device is out of alarm
Device is inside the alarm
First off set the temperature for alarm for example 30°C ± 1°C (differential of activation) may also indicate the time that has to remain above or below to consider that is in alarm.
You can define two different values or the same for the delay time (Delay). Factory goes to 0 and alerts at the same time the temperature goes from temp alarm ± 1°C.
Delays are very useful to discriminate when a temperature alarm of a product load in cold rooms where there are short peaks and temperature are controlled.
5 min.
Actives the alarm in case of being more than 5 minutes (time delay) above 31°C
(temperature alarm + differential) and does not disable the alarm until it is below of
29°C over 5 minutes (temperature alarm - differential)
0000 alarm t1 30
delays 5 minutes for activation and deactivation
Temperature for alarm: 30°C + fixed Dif.: ± 1°C
0000 delay t1 5
SMS
For the rest of general conditions visit our web.
- Apparatus modified without the consent of the manufacturer.
deleted or modified.
according to the instructions accompanying the appliance.
- Devices whose deterioration is the result of impact or liquid
Reserved the right to change without prior notice.
or gaseous emanations.
- Devices whose connection or use has not been executed
- Equipment whose serial number has been damaged,
We decline any responsibility for damaged equipment result
of poor handling. Not included in the warranty:
This device has 3 year warranty according to the date of manufacture,
it is limited to replacement of faulty part. Transport not included.
CONDITIONS OF GUARANTEE
SONDER
delay for activation 5 and 10 minutes for deactivation
0000 delay t1 5 10
Example:
Very important:
Device designed for a situation of pollution
clean.
Control device for DIN rail mounting and
connection via fixed pipeline.
When installing control ensure you have good
coverage away from contactors and other
signals that may interfere.
This control is not a safety device, and can not be
used as such, it is the installer responsibility
incorporate adequate protection to every type
of installation (HOMOLOGATED)
Must comply with 2 factors: Temperature + Time Set
IN CASE OF: SMS received
- The TELKAN saves the last 5 phone numbers that have given a correct order and if they make a lost call, the TELKAN sends an SMS of state, but the SMS that an alarm has
occurred only is sent to the numbers set in INFORM function.
• If the control is configured with the function PROMO in off, is deleted.
- If the SMS received by the TELKAN not start with numeric digits and comes from an unknown telephone is interpreted as a message from the phone company:
• If the control is configured with the function PROMO in on, the SMS is forwarding to all phones set in Function Inofrm
- Send an wrong SMS to the TELKAN from a phone that had
previously made valid orders.
- The temperature exceeds the limit set by the user Alarm: T1
T1: 33.5C
A1: off
B1: MAIN
ERROR: invalid language. 0-Castellano, 1-English.
- If a request to change languages includes an invalid number
T1: 26.8C
A1: off
B1: MAIN
- Message received periodically according to set time with
the function Alive activated
pwrd +
on - relay on
off - relay off
inform on - receive alarm
test - status
pass xxxx - change password
Probe set for alarm
Reading probe alarm
Disconnected alarm contact
Main power supply
Temperature read by probe T1
Alarm 1 off
Main power supply
- Make a call to TELKAN from a phone that had previously
made valid orders.
R1: on
R2: off
T1: 26.8C
T2: 35C
A1: off
B1: BATT (11.799V)
Password (set from factory to 0000) + followed by the command:
order - (meaning that order)
SMS Status query:
State relays
Current temperature read by probes
Alarm status
battery connected (value of charge)
Warning! The volatge of
the battery is very low.
BATT (9.112V)
- Message received when the control detects that the
battery power is low.
Warning low battery with charge value
Sonder Regulación, S.A.
Avda. La Llana, 93
08191 RUBÍ
(Barcelona) Spain
www.sonder.es 230V~ +10% -15% 50Hz máx. 2VA
Power supply
Application (relays r1, r2)
12A 250V~ SPDT. Relays
with free voltage-contact
(operation as a switch)

0000 meet r1 c1 When appears a reading alarm (rising or falling setpoint) the relay permanently activated until occurs a manual
forced or SMS.
Input 4a20mA: c1
acces code meet rNo relay c1
È È È
When TELKAN receives the order, it returns an SMS to the sender with confirmation of the new configuration, if you want to override this SMS (saving money card that
manages the TELKAN) must only add an asterisk (*) at the end of each order (not for relay status query and History temperatures).
The programming is done via SMS messages through a mobile phone. It is imperative to introduce exactly the same characters as they are written in the description. Phones
with call in hidden number identification can only send orders and can not receive confirmation messages.
To turns relay ON (*)
acces code rNo relay on
È È 0000 r1 on Turns the relay on and returns a status message to the sender
acces code rNo relay on No minutes
È È È 0000 r2 on 15 Turns the relay on for the number of minutes specified in the message and then switches it OFF. (Adjustable: 1
...64 800 minutes.) This command returns two status messages to the sender: the first to confirming receipt of
the command, and a second message when the relay status changes to OFF.
To turns relay OFF (*)
acces code rNo relé off
È È 0000 r1 off Turns the relay off and returns a message to the sender indicating the new status.
Exemple of SMS
= 1 space
È
Timed relay activation (*)
Log telephone number for receiving SMS (*) To receive SMS alarm must register the phone number with the function inform on
acces code inform on
È È 0000 inform on Save the phone number that sent this order to send SMS alarm to occur. Save up to 4 phone numbers, then
you have to clear before sending a new one.
Timed relay deactivation (*)
Reset all phone numbers in memory for receiving SMS (*)
acces code inform reset
È È
0000 inform reset
Deletes ALL the phone numbers stored in memory for alarm notification via SMS.
USE SMS MESSAGES TO CHANGES SETTINGS
acces code = 0000 (from factory, change by personal code)
acces code rNo relay off No minutes
È È È 0000 r2 off 15 Turns the relay OFF for the number of minutes specified in the message and then switches it ON. (Adjustable: 1
...64800 minutes.) This command returns two status messages to the sender: the first to confirming receipt of
the command,and a second message when the relay status changes to ON.
Change of acces code
acces code pass new code
È È
0000 pass 1234 Changes the access code (from the factory default of 0000) and returns a confirmation message to the sender
Relays behaviors, MEET (*) You can link any of the relays to any of the inputs (sensors, transducers, contact closure alarms, battery)
acces code meet
È0000 meet It returns a message with the status of the function on/off and device is connected as the operation of the relay
acces code meet rNo relay a1
È È È0000 meet r1 a1 When it detects an contacts alarm relay activates permanently until there is a forced manual or by SMS.
acces code meet rNo relay b1
È È È0000 meet r2 b1 When it detects a change in power supply (battery to grid / network battery) activates the relay permanently
until there is a forced manual or by SMS.
Remove phone numbers for receiving SMS (*)
acces code inform off
È È 0000 inform off Delete the phone number you sent the order for receiving sms alarm.
List of number of phones that receive SMS
acces code inform
È
Returns an SMS to the sender reporting phone numbers that will send the SMS at alarm temperature, contacts,
failure of power supply in net
0000 inform
acces code meet rNo relay t1
È È È0000 meet r1 t1 When it detects an temperature alarm (rising or falling humidity) activates the relay permanently until there is a
forced manual or by SMS.
Battery: b1
Relays: r1, r2, r3, r4 Temperature probes: t1, t2, t3
Contact Alarms: a1, a2, a3
SMS estructure
acces code meet rNo relay off
È È È0000 meet r1 off The relay operation is independent. The relay is activated by SMS or manually pressing the front button TELKAN
Operative status (*)
acces code alive No days
È È 0000 alive 1 Sends a test message every number of hours configurated to communicate that status of device is operative (SIM
has money and works correctly). If programmed to 0, the function is off. Range: 0 (off) ... 45 days.
acces code alive
È0000 alive Sends a SMS with the time remaining for the next send of sms alive
Programm the sending of test message without SMS of confirmation
Example of order without return SMS of confirmation (adding * at the end of the SMS order)
0000 alive 1*
acces code alive No days*
È È
IMPORTANT: to receive SMS alarm, alive and other than shipping immediately has to register the phone number on control with the function inform.
(*) It means that this order has the option to override the confirmation message by adding an asterisk at the end of the message
Define a scale of values for c1 (*)
acces code scale c1 initial value final value
È È È È
0000 scale c1 0 1500 Sets the values for the minimum and maximum of the scale for the analog input C1
Units of measure for the scale of c1 (*)
acces code units magnitude
È È 0000 units liters With this SMS you can define what is being measured with the input c1 of 4a20mA. For example:
liters, kg, humidity ...
acces code alarm c1 off
È È È 0000 alarm c1 off Deactivates the alarm function for c1 analog input and returns an SMS to confirm the new status.
acces code avg c1
È È 0000 avg c1 Returns an SMS with the readings of: current, for the past 1 min, 4 mins, 15 mins, 1 hr and 4 hrs
acces code delay c1 minutes minutes
È È È È 0000 delay c1 2 5
Delays on / off reading alarm (default 0, disabled = reported immediately). The same operation as
the previous order.
Alarm reading
acces code scale c1 initial value
È È È È 0000 scale c1 0 1500 2 Sending this message sets the beginning and end of the scale and also set two decimal. In the
example would scale of 0-1500 and shows readings in 0.00 format
final value No decimals to show
È
acces code alarm c1 value for the scale
È È È 0000 alarm c1 100 Activates the alarm function and defines the threshold within the configured scale value and
returns an SMS to confirm the new status. If you also want to alert you when the alarm occurs it is
necessary to send the order to inform on.
Status Query If you missed a call the number on the SIM, SMS returns a test
acces code test
È0000 test Send an SMS to the sender reporting the status of the relay, the time it is connected (if
programmed), status of the GSM signal TELKAN and current temperature.
Version
acces code version
È0000 version Send an SMS to the sender informing the program version, modem signal, voltage for the power
supply (these values depending of battery charge & electric network) & status of PROMO function.
Alarm Settings Query
acces code alarm
ÈReturns a text message informing the sender of the setting, on / off and values of the alarms for
temperature, contacts failure of power supply in net..
Checking recent temperatures & readings
acces code avg t1
È È 0000 avg t1 Returns an SMS with the current temperature and the average temperature for the past 1 min, 4
mins, 15 mins, 1 hr and 4 hrs. If you have already sent a valid command from the same number, you
can obtain the status by phone. The TELKAN hangs up and sends an SMS with the above
temperature data.
0000 alarm
Alarm deactivation (*)
acces code alarm a1 off
È È È 0000 alarm a1 off Deactivates the alarm function and returns an SMS to confirm the new status.
Alarm activation (*)
acces code alarm a1 on
È È È 0000 alarm a1 on Activates the contact alarm function and returns an SMS to confirm the new status. If you also
want to alert you when the alarm occurs it is necessary to send the order to inform on.
Alarm activation/deactivation delay (*)
acces code delay a1 minutes minutes
È È È È 0000 delay a1 2 5
Delays on / off contacts alarm (default 0, disabled = reported immediately). You can set a common
value for activation and deactivation (0000 delay 5) or different in each case, two values of
minutes: 0000 delay 5 10). Range (0 ... 240 minutes).
acces code delay b1 minutes minutes
È È È È 0000 delay b1 2 5 Delays on / off failure of power supply alarm (default 0, disabled = reported immediately). The same
operation as the previous order.
acces code delay t1 minutes minutes
È È È È 0000 delay t1 2 5 Delays on / off temperature alarm (default 0, disabled = reported immediately). The same operation
as the previous order.
acces code delay
È0000 delay Returns an SMS to the sender informing of delays programmed to alarm temperature. for each of
type alarm, temperature, contacts, failure of power supply...
Alarm contact
Alarm failure of power supply
Alarm temperature
acces code alarm b1 off
È È È 0000 alarm b1 off Deactivates the alarm function for failure of power supply and returns an SMS to confirm the new
status.
acces code alarm t1 off
È È È 0000 alarm t1 off Deactivates the alarm function for temperature and returns an SMS to confirm the new status.
acces code alarm b1 on
È È È 0000 alarm b1 on Activates the alarm function for failure of power supply and returns an SMS to confirm the new
status. If you also want to alert you when the alarm occurs it is necessary to send the order to inform
on.
acces code alarm t1 temperaturE °C
È È È 0000 alarm t1 45 Activates the Temperature alarm function, sets the temperature limit to that sent by the user and
returns an SMS to confirm the new status. If you also want to alert you when the alarm occurs it is
necessary to send the order to inform on.
To change SMS language
acces code lang No new language
È È 0000 lang 0 Changes the language setting (default Spanish) to the selected language No: 0=Spanish, 1=English
Exemple of SMS
Receiving messages Commercials (*) from factory setting in on
acces code promo off
È È 0000 promo off Sets the control to delete all commercials messages received
acces code promo on
È È 0000 promo on The control sends at the telephone number registered in function inform, all received messages
that start with text.
