Sony Ericsson Spiro User manual

Sony Ericsson
Spiro™
User guide
This is the Internet version of the User guide. © Print only for private use.

Important information
Please read the Important information leaflet before you
use your mobile phone.
Experience more. Discover
how.
Fill it with pop and let it rock. Share your life in pictures. Or
why not go online for the latest updates? Your new phone is
the key to a wider world. And it's just around the corner.
Get started with this User guide. And join us online to get the
full picture. Music, games, apps, updates, downloads,
support and more. All in one place:
www.sonyericsson.com/spiro
Feedback on the User guide
Do you have any suggestions on how we can improve this
User guide? If so, then email us at
[email protected] .
Please make sure to type the User guide name in the email
subject field. We highly value your feedback!
2
This is the Internet version of the User guide. © Print only for private use.

Getting started
SIM card
The SIM (Subscriber Identity Module) card,
which you get from your network operator,
contains information about your subscription.
Always turn off your phone and detach the
charger and battery (if inserted) before you
insert or remove the SIM card.
PIN
You may need a PIN (Personal Identification Number) to
activate the services and functions in your phone. Your PIN
is supplied by your network operator. Each PIN digit
appears as *, unless it starts with emergency number digits
such as 112 or 911. You can see and call an emergency
number without entering a PIN, if a network is available.
If you enter the wrong PIN three times in a row, the SIM
card is blocked. See SIM card lock on page 33.
3
This is the Internet version of the User guide. © Print only for private use.

To insert the SIM card
1Remove the battery cover.
2Slide the SIM card into its holder with the gold-coloured
contacts facing down.
4
This is the Internet version of the User guide. © Print only for private use.

To insert the battery
1Insert the battery with the label side up and the
connectors facing each other.
2Slide the battery cover into place and lock it.
Turning on the phone
To turn on the phone
1Press and hold down .
2Open the slider and enter your PIN, if requested.
3Select OK.
4Select a language.
5
This is the Internet version of the User guide. © Print only for private use.

5Select Yes to use the setup wizard.
If you make a mistake when you enter your PIN, you
can press to delete numbers from the screen.
Standby
After you have turned on the phone and entered your PIN,
the name of the network operator appears. This view is
called standby. You phone is now ready for use.
To turn off the phone
•Press and hold down .
Before turning off the phone, you must return to
standby.
Memory card
You may have to purchase a memory card separately.
Your phone supports a microSD™ memory card, adding
more storage space to your phone. This type of card can
also be used as a portable memory card with other
compatible devices.
You can move content between a memory card and the
phone memory.
6
This is the Internet version of the User guide. © Print only for private use.

To insert a memory card
•Remove the battery cover and insert the memory card
with the gold-coloured contacts facing down.
To remove a memory card
•Remove the battery cover and slide the memory card to
remove it.
7
This is the Internet version of the User guide. © Print only for private use.

Phone overview
1 Ear speaker
1
2
3
5
6
4
7
8
9
10
2 Screen
3 Connector for charger
and USB cable
4 Selection keys
5 Call key
6 Shortcut key
7 Navigation key,
Walkman™ player
controls, TrackID™*
8 End key, On/off key
9 C key (Clear)
10 Silent key
8
This is the Internet version of the User guide. © Print only for private use.

11
12
13
14
11 Connector for
handsfree
12 Camera lens
13 Volume key
14 Loudspeaker
*The TrackID™ shortcut key may not be available in your
phone.
9
This is the Internet version of the User guide. © Print only for private use.

Screen icons
These icons may appear on the screen.
Icon Description
Missed call
Handsfree connected
Ongoing call
Text message received
Multimedia message received
Predictive text input activated
Phone set to silent
Radio playing
Alarm activated
Bluetooth™ function activated
10
This is the Internet version of the User guide. © Print only for private use.

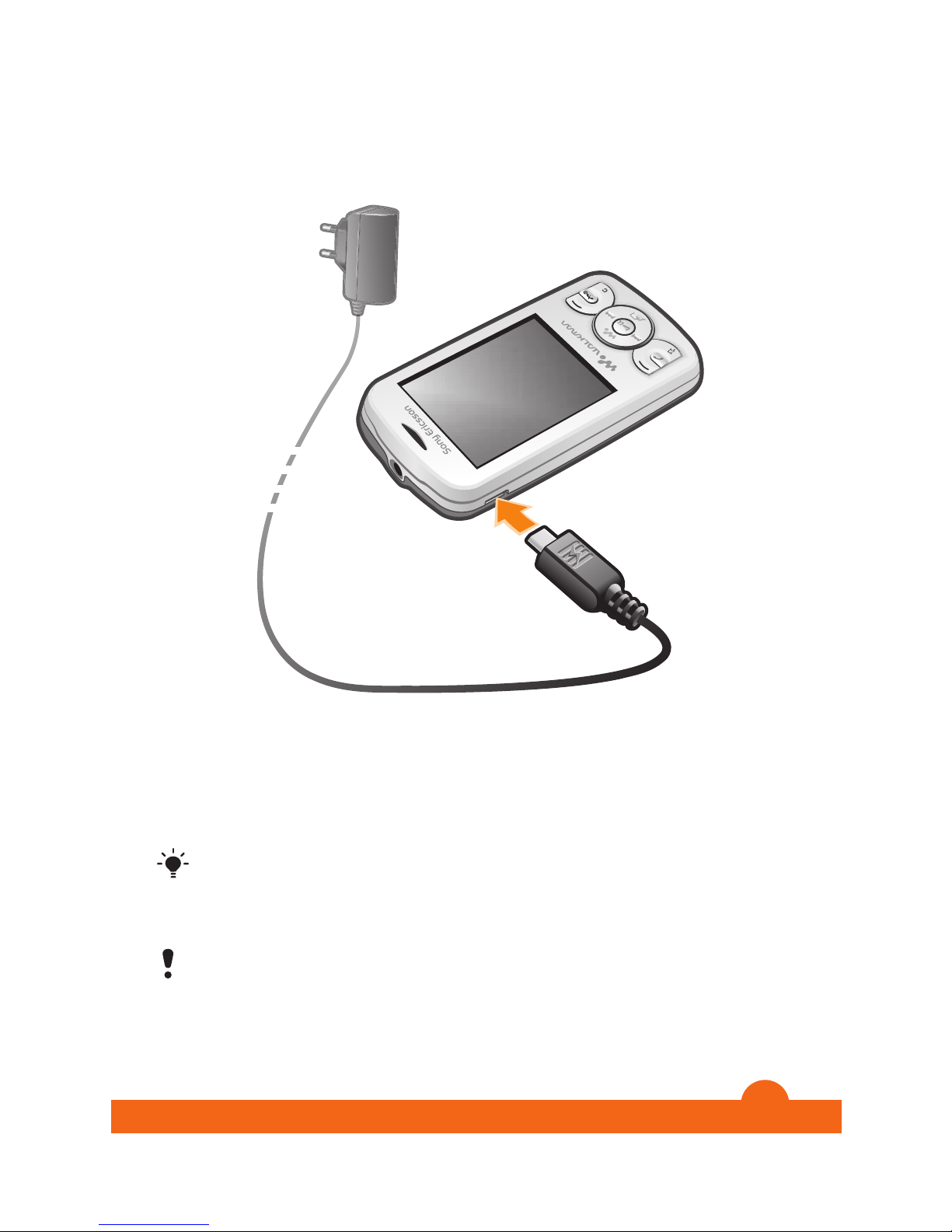

To charge the battery
•Connect the charger to the phone with the power icon on
the charger facing upwards. It takes approximately 2.5
hours to fully charge the battery. You can still use your
phone while it is charging.
The phone battery is partly charged when you buy it.
It may take a few minutes before the battery icon
appears on the screen.
The battery will start to discharge a little after it is fully
charged and then charges again after a certain time.
This is to extend battery life and may result in the
charge status showing a level below 100 percent.
11
This is the Internet version of the User guide. © Print only for private use.

12
This is the Internet version of the User guide. © Print only for private use.
Menu overview
PlayNow™
Camera
Alarms
Calls**
All, Answered, Dialled,
Missed
Internet
Messaging
Write new, Inbox/
Conversations,
Messages, Call
voicemail
Contacts
Organiser
File manager**,
Applications, Torch,
Calendar, Tasks,
Notes, Timer,
Stopwatch, Calculator
Entertainment
Online services*,
PlayNow™, Radio,
Games, TrackID™,
Record sound
Media
WALKMAN
Settings**
General, Sounds &
alerts, Display, Calls,
Connectivity
* Some menus are
operator-, network- and
subscription-dependent.
** You can use the
navigation key to scroll
between tabs in
submenus.

Navigation
The main menus are shown as icons. Some submenus
include tabs.

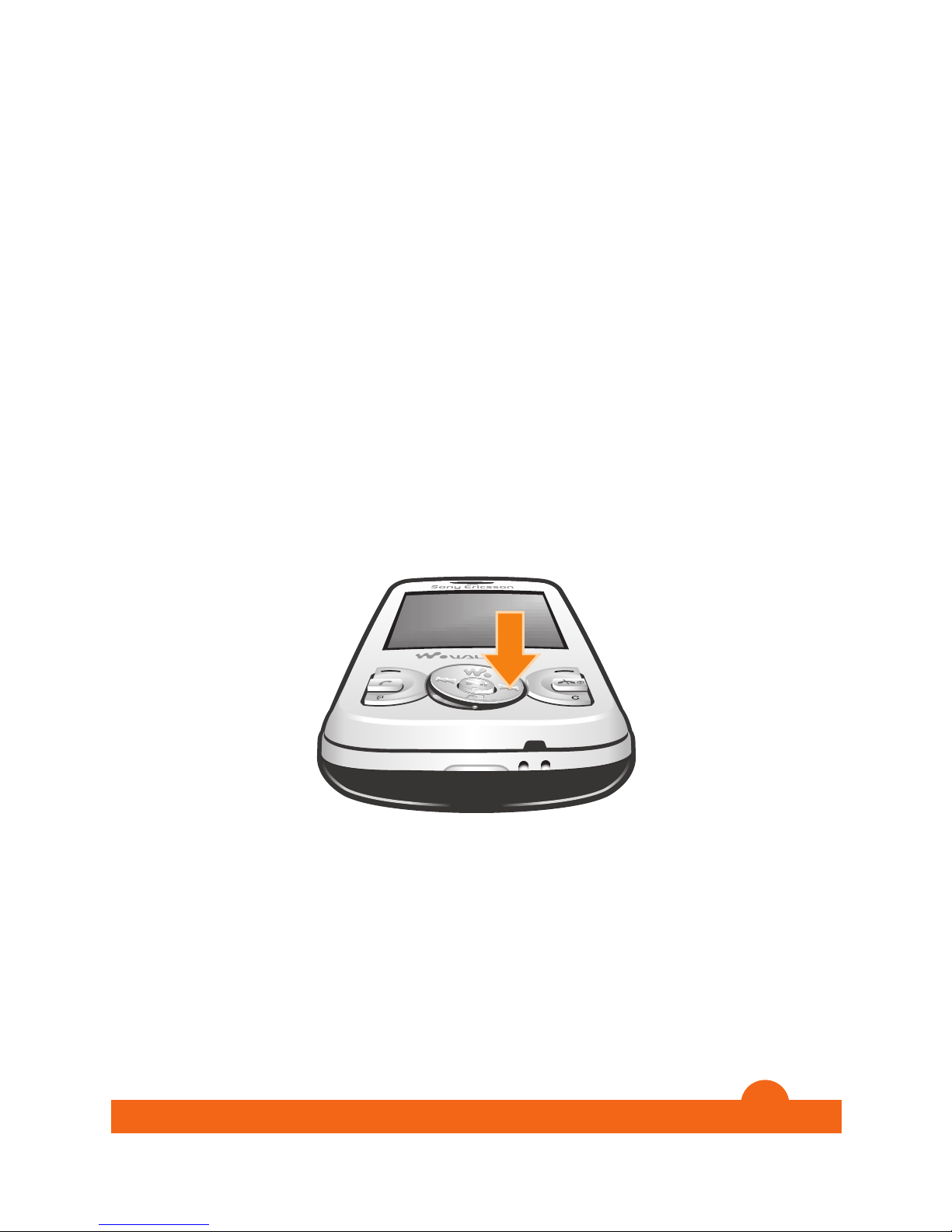

To access the main menu
•When Menu appears on the screen, press the centre
selection key.
•When Menu does not appear on the screen, press the
End key, then press the centre selection key.
To navigate the phone menus
1Press the centre selection key to select Menu.
2Press the navigation key upwards, downwards, left or
right to move through the menus.
To select an item
•Scroll to the item and press the centre selection key
To scroll between tabs
•Press the navigation key left or right .
To go back one step in a menu
•Select Back.
13
This is the Internet version of the User guide. © Print only for private use.

To end a function
•Press .
To return to standby
•Press .
To delete an item
•Scroll to the item and press .
Shortcuts
You can use the navigation key shortcuts from standby or
use the shortcut menu to get quick access to certain
functions.
To use navigation key shortcuts
•Press the navigation key upwards, downwards, left or
right to go directly to a function.
To edit a navigation key shortcut
•Select Menu > Settings > General > Shortcuts.
The WALKMAN shortcut cannot be changed.
To open the shortcut menu
•Press .
To add a shortcut
1Press .
2Scroll to New shortcut and select Add.
To delete or move a shortcut
1Press .
2Scroll to a shortcut and select Options.
3Select an option.
To turn the sound on or off
•Press and hold down .
14
This is the Internet version of the User guide. © Print only for private use.

Entering text
You can use multitap text input or Zi™ text input to enter
text. The Zi text input method uses a built-in dictionary.
By using Zi text input you only have to press each key
once. Continue writing a word even if it appears to be
wrong.
To enter text using Zi text input
1For example, to write the word “Jane”, press , ,
, .
2You now have several options:
•If the word shown is the one you want, press to
accept and add a space. To accept a word without
adding a space, press the navigation key right.
•If the word shown is not the one you want, press the
navigation key upwards or downwards to view
alternative words. To accept a word and add a space,
press .
•To enter full stops and commas, press and press
the navigation key to scroll to the punctuation desired.
To enter text using multitap
•Press – until the character you want appears.
•Press to add a space.
•Press to enter punctuation marks.
To use shortcuts and keys when entering text
•To change the text input method, press and hold down
.
•To change writing language, press and hold down .
•To shift between upper-case letters, lower-case letters,
and numbers, press .
15
This is the Internet version of the User guide. © Print only for private use.

•To delete characters, press .
•To delete a whole word, press and hold down .
•To enter numbers, press and hold down – .
To add a word to the dictionary
1When you enter text using Zi text input, select Options >
Spell word.
2Enter the word using multitap and select Save.
Calling
You must turn on the phone and be within range of a
network.
To make a call
1Enter a phone number (with international country code
and area code, if applicable).
2Press .
You can call numbers from Contacts and from the call
list. See Contacts on page 18, and Call list on
page 17.
To end a call
•Press .
To answer a call
•Press .
To reject a call
•Press .
To change the ear speaker volume during a call
•Press the volume key up or down.
16
This is the Internet version of the User guide. © Print only for private use.

To turn off the ringtone without answering a call
•Press the volume key up or down.
To turn on the loudspeaker during a call
•Select Spkr on.
Do not hold the phone to your ear when using the
loudspeaker. This could damage your hearing.
To make an international call
1Press and hold down until a “+” sign appears.
2Enter the country code, area code (without the first zero)
and phone number.
3Press .
Call list
You can view information about recent calls.
To call a number from the call list
1Press .
2Scroll to a name or a number and press .
To clear the call list
1Press .
2In the All tab, select Options > Delete all.
3To confirm, select Yes.
Emergency calls
Your phone supports international emergency numbers, for
example, 112 or 911. You can normally use these numbers
to make emergency calls in any country, with or without the
SIM card inserted, if you are within range of a network.
17
This is the Internet version of the User guide. © Print only for private use.

To make an emergency call
•Enter 112 (the international emergency number) and
press .
In some countries, other local emergency numbers
may also be promoted. Your network operator may
have saved these numbers on the SIM card.
Contacts
You can save names, phone numbers and personal
information in Contacts. Information can be saved in the
phone memory or on the SIM card.
To add a phone contact
1Select Menu > Contacts.
2Scroll to New contact and select Add.
3Enter the name and select OK.
4Scroll to New number: and select Add.
5Enter the number and select OK.
6Select a number option.
7Scroll between the tabs and add information to the fields.
8Select Save.
To edit a phone contact
1Select Contacts.
2Scroll to a contact and select Options > Edit contact.
3Scroll between the tabs, edit information and select
Save.
18
This is the Internet version of the User guide. © Print only for private use.

Calling contacts
To make a call using Smart search
1Press – to enter a sequence of (at least two)
digits. All entries that match the sequence of digits or
corresponding letters are shown in a list.
2Scroll to a contact or a phone number and press the Call
key.
To turn on or off Smart search
1Select Menu > Settings > Calls > Smart search.
2Select an option.
Messaging
Text messages
You must have a valid service centre number in your phone.
This is supplied by your service provider and saved on the
SIM card. You may have to enter the number yourself.
To write and send a text message
1Select Menu > Messaging > Write new > Message.
2Write the message and select Continue. Select
Contacts look-up or Enter phone number.
3Select a recipient and select Send.
To view a received text message
•When From: Text message received Read now?
appears, select Yes.
To view messages from the Inbox
1Select Menu > Messaging > Inbox.
2Scroll to a message and select View.
19
This is the Internet version of the User guide. © Print only for private use.

Multimedia messages
Multimedia messages can contain text, pictures, sound and
attachments. They are sent using MMS (Multimedia
Messaging Service) to a mobile phone. You need the
correct Internet settings in your phone to use multimedia
messaging. See Internet on page 30.
You must set an MMS profile and the address of your
message server. If no MMS profile or message server
exists, you can receive all the settings from your
network operator or at www.sonyericsson.com/support .
To send a multimedia message
1Select Menu > Messaging > Write new > Message.
2Enter text. To add items to the message, press the
navigation key downwards, then scroll left or right and
select an item.
3To preview the multimedia message before sending it,
select Options > Preview.
4When the message is ready, select Continue.
5Select Contacts look-up and select a recipient.
6Select Send.
You can only send multimedia messages if both the
sending and receiving phones have subscriptions that
support MMS.
Conversations
You can choose whether to view your messages in
Conversations or the Inbox. A messaging conversation
shows all messaging communication between you and one
of your contacts.
20
This is the Internet version of the User guide. © Print only for private use.
