Sony BKM-FW50 User manual

2006 Sony Corporation
Operating Instructions
BKM-FW50
Streaming Receiver
Adaptor
2-891-424-02 (1)

2
Using the BKM-FW50 Streaming Receiver Adaptor
■When not connected to a network
Playback still image or video files from a memory card
Preparations
Take pictures with a
digital camera
Copy still image/video
files from your
computer 1
Memory Stick Duo 2
CF card
1“Local Play”
page 16
■When connected to a network
Playback still image or video files downloaded from a network
Preparations Web/HTTP server 3
View on a Flat Panel Display
To set up 1“Streaming Play”
page 14
Upload still image/
video files
Download still
image/video files
from the Web/
HTTP server
Network
flow of data
Save/playback from a CF card
To set up 1“Store Local”
page 14
To set up 1“Local Play”
page 16
1 Memory card reader/writer required. 2 CF slot adaptor required. 3 Apache and IIS (Internet Information Server) are
the only supported servers for downloading and playing back still image and video files.

3
Table of Contents
Precautions............................................... 4
About This Manual ................................... 4
Names and Functions of Parts and
Controls ................................................. 5
Installation ................................................ 6
Playback of Still Images or Video From a
CF Card .................................................. 7
Compatible media and file formats .............. 7
Inserting a CF card ....................................... 7
Using slide show playback .......................... 8
Preparations for Using the Network
Functions ............................................... 9
Assigning a fixed IP address to
the BKM-FW50 ................................ 9
Automatically obtaining an IP address ...... 10
Computer Operation .............................. 11
Controlling the display............................... 11
Setting items on respective screens............ 11
Troubleshooting ..................................... 28
List of Error Codes .................................... 30
Other ....................................................... 33
Scheduling playback by time table ............ 33
Specifications ......................................... 34

4Precautions / About This Manual
Precautions
•The software specifications of this unit
are subject to change for improvements
without notice.
•Screens shown by application software
may differ slightly from the illustrations
shown in this manual.
•For safety, connect the port of this unit
only to a network where there is no
danger of excessive voltage or voltage
surges.
•The steps described in this manual are
guaranteed only for use under the
following environment conditions.
Operating system:
Microsoft Windows XP
Browser:
Microsoft Internet Explorer 6.0 or
later
•The following may result in damage to
data or damage to the CF (CompactFlash)
card or Microdrive:
– Ejecting a CF card while it is being
accessed
– Placing a Microdrive near a strong
magnet
•The Microdrive is a compact hard disk
drive. Because it is storage medium
utilizing a rotating disk, it is more
susceptible to shocks and impact when
compared to flash memory devices such
as the Memory Stick and the CF card.
•To ensure security on the network, setting
a user name and password is
recommended. For information on how to
make these settings, see the section
“Setup screen” (page 25).
• Because the unit reaches high
temperatures when placed near the
display and used for a long period of
time, be careful when removing it from
the display.
About This Manual
This manual describes use and operation of
the BKM-FW50 as installed in a Flat Panel
Display of the FWD series and connected
to a network.
For information on regular operation of the
display, consult the operating instructions of
the FWD series product.
................................................................................................................................................................
•Microsoft and Windows are registered trademarks of Microsoft Corporation in the United
States of America and/or other countries.
•CompactFlash and CF card are trademarks of SanDisk USA.
•Microdrive is a registered trademark of Hitachi Global Storage Technologies.
•Memory Stick and Memory Stick Duo are trademarks of Sony Corporation.
•All other product names, company names, etc. mentioned in this manual are trademarks or
registered trademarks of their respective owners.

5
Names and Functions of Parts and Controls
Names and Functions of Parts and Controls
4
1
1USB port
The port will be used for expanded
functions to be introduced in future.
2Memory card slot cover fastening
screw
3Network connector (10BASE-T/
100BASE-TX)
Serves to connect the unit to a network,
using a 10BASE-T/100BASE-TX LAN
cable.
4Memory card slot cover
5Access indicator
Lights green when a CF card is being
accessed by the unit.
Before inserting a CF card, make sure to
read “Precautions” on page 4.
6Memory card slot
Accepts a CF card or a Microdrive.
7RESET button
When this button is pressed and held for
more than 3 seconds, all settings of the unit
revert to the default condition.
When performing the reset operation, make
sure the display on the unit is set to
standby.
8Eject button
Press this button to remove a CF card from
the memory card slot.
23
5786

6
Installation
Before installation
• Turn off power to the display and all
other equipment connected to the display.
For the display, proceed as follows: press
1to put the display into standby mode
and then disconnect the power cord from
the AC outlet.
•While carrying out the installation, the
display must be firmly secured.
Install the BKM-FW50 inside the display
as follows.
1If an optional adaptor is installed,
loosen its fastening screws (top and
bottom) by turning counterclockwise
with a flatblade screwdriver and then
carefully pull out the adaptor from
the display.
2Insert the BKM-FW50 into the
display with correct orientation.
Make sure that the adaptor is firmly
seated in the internal connector of the
display. Then tighten the fastening
screws (top and bottom) with a flatblade
screwdriver and perform the necessary
connections.
Caution
Do not touch the connector section
Never touch the connector section inside
the display. Otherwise there is a risk of
accidents or damage.
Installation
INPUT 2
L
R
AUDIO
OUT
VIDEO S VIDEO
INOUTINOUTRL
AUDIO IN
VIDEO INPUT ADAPTOR
AUDIO RGB / COMPONENT
1
2
1
When option slot is at
left of display *
*The location of the option slot differs
according to the model. On models with
multiple option slots, use a slot that
supports video/communication functions
(VIDEO/COM port). Consult the
documentation of the FWD series product
for more information.
INPUT 2
L
R
AUDIO
OUT
AUDIO RGB / COMPONENT
1
2
2

7
Playback of Still
Images or Video
From a CF Card
The BKM-FW50 is equipped with a
memory card slot that accepts
CompactFlash cards (not supplied). If you
insert a CF card that contains images shot
with a digital still camera into the slot of
the BKM-FW50, the images can be viewed
on the display in a slide show format.
You can make various settings for playback
of still images or video. For information on
how to make these settings, see the section
“Computer Operation” (page 11).
Compatible media and file
formats
Media: CF (CompactFlash) card,
Microdrive
File format: JPEG format, MPEG2
format etc. (For details, see
page 13.)
Recommended resolutions:
1360 ×768, 1280 ×768,
1024 ×768
Maximum resolution*:
2592 ×1944
Minimum resolution:
640 ×480
* The higher the resolution, the longer images
take to display.
Notes
•The following may result in damage to
data or damage to the CF card or
Microdrive:
– Ejecting a CF card while it is being
accessed
– Placing a Microdrive near a strong
magnet
• A CF card, COMPACTVAULT or a
Microdrive can be used as storage media
for the BKM-FW50.
CF card
Buffalo: RCF-G256MB (256 MB)
RCF-G512MB (512 MB)
RCF-X64MY (64 MB)
RCF-X256MY (256 MB)
RCF-X512MY (512 MB)
SanDisk: SDCFB 64M (64 MB)
SDCFB 512M (512 MB)
SDCFH 512MB (512 MB)
SDCFH 2GB (2 GB)
Hagiwara Sys-Com:
HPC-CF64V (64 MB)
HPC-CF512V (512 MB)
HPC-CF512ZP (512 MB)
COMPACTVAULT
Sony: RHMD5G (5 GB)
Microdrive
Hitachi: HMS360402D5CF00 (2 GB)
HMS360604D5CF00 (4 GB)
•Compatibility with CF cards and
Microdrives has been confirmed but is
not guaranteed for all CF cards and
Microdrives.
Inserting a CF card
1Remove the memory card slot cover
fastening screw with a Phillips
screwdriver.
2Open the memory card slot cover and
insert the CF card into the memory
card slot.
Note
Take care to insert the CF card with correct
orientation, as shown in the illustration.
Playback of Still Images or Video From a CF Card

8
3Replace the memory card slot cover
and tighten the fastening screw with a
Phillips screwdriver.
Using slide show playback
When a CF card which contains still images
taken with a digital still camera is inserted
into the BKM-FW50, JPEG format still
image files will be automatically detected,
and the images will be shown on the
display as a slide show. (The input signal
for the display must be set to OPTION 1
RGB at this time. For details, consult the
operating instructions of the display.)
In addition, the BKM-FW50 is set to
automatically display any still image or
video slide show saved on the CF card, as
the factory default.
Note
When inserting a Memory Stick Duo into
the BKM-FW50, insert it into a
commercially available Memory Stick Duo
to CF adaptor first.
Detailed control of playback
method
When the display is connected to a network
via the BKM-FW50, any still image or
video file stored on the CF card can be
shown on the display. For information on
settings and operation in this case, see the
section “Computer Operation” (page 11).
Removing the CF card
Note
When the access indicator is lit, images are
being stored or read. Never eject a CF card
or turn the power off during this time.
Doing so may result in damage to data or
the CF card itself.
1Remove the memory card slot cover
fastening screw with a Phillips
screwdriver.
2Press the eject button to remove the
CF card.
3Replace the memory card slot cover
and tighten the fastening screw with a
Phillips screwdriver.
Playback of Still Images or Video From a CF Card
Insert the CF card completely into the slot,
aliging the label with the arrow facing as
shown.

9
Preparations for
Using the Network
Functions
The BKM-FW50 can be connected to a
network with 10BASE-T/100BASE-TX
LAN cable.
When connected to a LAN, the IP
addresses of the BKM-FW50 can be set
using one of the following two methods.
Consult your network administrator
regarding details about IP address selection.
•Assigning a fixed IP address to the
BKM-FW50
Normally this method should be used.
•Automatically obtaining an IP
address
If the network to which the BKM-FW50
is connected has a DHCP server, you can
have the DHCP server automatically
assign an IP address. Note that in this
case the IP address will change every
time the display in which the BKM-
FW50 is installed is turned on.
Assigning a fixed IP address
to the BKM-FW50
Note that a separate IP address is necessary
for the display control function and for the
still image/video playback function.
Regarding details of IP address selection,
consult your network administrator.
Setting an IP address for the
display control function
First, assign an IP address to the display
control function, using the following
procedure. The IP address assigned in this
way is used for calling the display control
function of the BKM-FW50 from a
computer on the network. Also consult the
operating instructions of the display.
1Connect the BKM-FW50 installed in
the display to the network, using
suitable LAN cable.
2Turn power to the display on and
wait for about 30 seconds.
3Press the MENU button on the
display to bring up the main menu.
4Use the M/mbuttons to select
“INITIAL SETUP/INFORMATION”
and press the ENTER button. The
“INITIAL SETUP/INFORMATION”
menu appears.
5Use the M/mbuttons to select “IP
Address Setup” and press the ENTER
button.
6Use the M/mbuttons to select
“Manual” and press the ENTER
button.
7Enter the necessary items.
1) Use the M/mbuttons to select the
item to enter manually and press
the ENTER button. A cursor
appears in the leftmost field of the
selected item.
2) Use the M/mbuttons or the
numeric buttons on the remote
control to enter a three-digit
number (0 - 255). When you
press the ENTER button or the
,button, the cursor moves to
the next field on the right. Enter a
number in the same way.
3) When all four fields of an item
have been set, pressing the
ENTER button or the ,button
confirms the entry for that item.
4) Make settings for the other items
in the same way.
8Use the M/mbuttons to select
“Execute” and press the ENTER
button.
Next, assign an IP address to the still
image/video playback function.
Setting an IP address for the still
image/video playback function
1Start the browser of the computer
(Internet Explorer 6.0 or later).
Preparations for Using the Network Functions

10
2Enter the IP address that was
assigned to the display control
function into the address field, in the
format “http://xxx.xxx.xxx.xxx”.
Then press the Enter key on the
keyboard.
When a user name and password
have been set, the “Network
Password” screen appears. Enter the
user name and password that were
set, and then proceed to the next step.
3Click the “Setup” tab.
The “Setup” screen appears. This
screen lets you set up the Network
Password. The factory default
settings are as follows:
Name: root
Password: fw50ad
4Click the “Network” button.
5Under “Internet Protocol (TCP/IP)”,
click “Specify an IP address”. Then
enter the IP address for the still
image/video playback function in the
input fields.
6Click “Apply”.
Automatically obtaining an IP
address
If you set up the display as described
below, an IP address can be assigned
automatically by a DHCP server on the
network.
1Connect the BKM-FW50 installed in
the display to the network, using
suitable LAN cable.
2Turn power to the display on and
wait for about 30 seconds.
3Press the MENU button on the
display to bring up the main menu.
Preparations for Using the Network Functions
4Use the M/mbuttons to select
“INITIAL SETUP/INFORMATION”
and press the ENTER button. The
“INITIAL SETUP/INFORMATION”
menu appears.
5Use the M/mbuttons to select “IP
Address Setup” and press the ENTER
button.
6Use the M/mbuttons to select
“DHCP” and press the ENTER
button.
7Use the M/mbuttons to select
“Execute” and press the ENTER
button.
Note
The IP address may not be obtained
correctly, depending on the router being
used. Confirm the specifications and
operations of the router before use.
Checking the automatically
assigned IP address
When an IP address has been automatically
assigned, you can call up the display
control screen of the BKM-FW50 as
follows and check which IP address has
been assigned. The IP address changes each
time power to the display is turned on.
Therefore you must check the IP address as
described here every time after turning
power to the display off and on again.
1Press the MENU button on the
display to bring up the main menu.
2Use the M/mbuttons to select
“INITIAL SETUP/INFORMATION”
and press the ENTER button. The
“INITIAL SETUP/INFORMATION”
menu appears.
3Use the M/mbuttons to select
“INFORMATION” and press the
ENTER button.
4Check the IP address that is displayed
in the “IP address” field.

11
Computer Operation
Controlling the display
You can make various display settings on
the screen of the computer.
Make sure that the BKM-FW50 is properly
installed in the display, and that the BKM-
FW50, computer, and router or hub are
properly connected with network cable.
Then turn on power to the display, the
computer, and the router or hub.
There are five display screens, divided by
function: “Information” screen,
“Configure” screen, “Control” screen,
“Player” screen, and “Setup” screen.
For details on button functions, consult the
operating instructions of the FWD series
product.
1Start the browser of the computer
(Internet Explorer 6.0 or later).
2 Enter the IP address that was assigned
to the display control function into the
address field, in the format “http://
xxx.xxx.xxx.xxx”. Then press the
Enter key on the keyboard.
When a user name and password
have been set, the “Network
Password” screen appears. Enter the
user name and password that were
set, and then proceed to the next step.
3Click the function tab at the top of the
screen and select the desired screen.
Setting items on respective
screens
Information screen
This screen shows the model name, serial
number and other display information, as
well as the power status and the input
signal selection.
The screen is for information only. There
are no items that can be set.
This screen also displays error information.
Computer Operation

12
For details on error information, see “List
of Error Codes” (page 30).
Clear (Delete)
Lets you delete error information displayed
in the Player Error History.
Note
Up to 30 errors appear in the Player Error
History in the order that they occurred. As
new errors occur after this maximum is
reached, old error information is deleted,
starting with the oldest.
Configure screen
Timer
Lets you make settings for the timer
function.
Click “Apply” when done.
Screen Saver
Lets you make settings for the screen saver
function.
Click “Apply” when done.
Picture and Picture
Lets you make settings for the Picture and
Picture function.
Click “Apply” when done.
Notes
•For details on these functions, consult the
operating instructions of the FWD series
product. Not all functions are supported
by all display models.
•Before setting the “Timer” function,
make sure to configure the time setting
on the Setup screen (page 25).
Control screen
POWER
Switches the display on or off.
INPUT
Lets you select the input signal.
PICTURE MODE
Lets you select the picture mode.
ASPECT
Lets you switch the aspect ratio of the
image.
CLOSED CAPTION
Lets you control the display of subtitles on
the screen.
Volume +/– buttons
Adjust the display volume.
Contrast +/– buttons
Adjust the screen contrast.
Computer Operation

13
Brightness +/– buttons
Adjust the screen brightness.
Chroma +/– buttons
Adjust the color intensity.
Phase +/– buttons
Adjust the color balance.
Reset button
Resets the settings from “Contrast” to
“Phase” to their factory default values.
Notes
•For details on each function, refer also to
the operating instructions for the display
(FWD series).
•Depending on the display model, some
functions on this screen may not be
available. In addition, some functions
may be disabled with some PICTURE
MODE settings.
•When no signal is input, adjustments may
not be possible with the functions on this
screen.
Player screen
This screen lets you make settings for still
image and video playback and operate the
PC Presentation function of the BKM-
FW50.
Supported file formats
The following formats are supported for
still image/video playback.
File type File format Extension
Still JPEG format jpg, jpe, jpeg
image GIF format gif
PNG format png
BMP format bmp
Video* MPEG2 PS format mpg, m2v,
(Up to 15 Mbps; mpeg
480i/480p/576p
recommended)
Audio MP3 format mp3
* Format of audio in video files:
• Linear PCM
• MPEG-1 Audio Layer-2 (MP2)
• MPEG-1 Audio Layer-3 (MP3)
Prohibited characters for file names
The following characters cannot be used for
file names on this unit. File name data that
includes these characters cannot be read:
\ : / * ? " < > | # { } % & ~ ' , ;
About folder sublevels
This unit supports a maximum number of
32 folder sublevels.
Supported servers
The following Web/HTTP server formats
are supported:
•Apache
•IIS
The server software must be installed
beforehand. For details, consult the
respective operating instructions of each
server software.
Computer Operation

14
Streaming Play

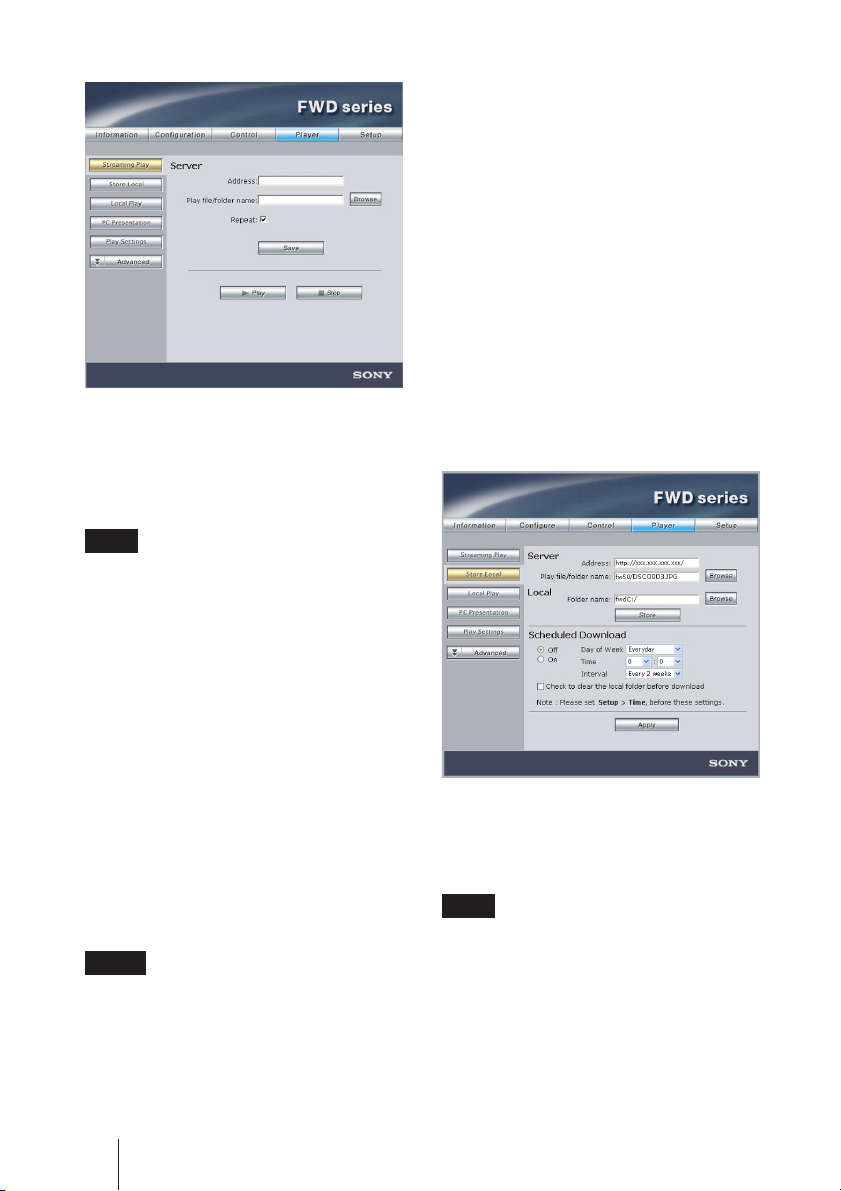

This screen lets you make settings for
display and playback of still image and
video files stored on a Web/HTTP server.
A maximum of 1,000 files can be
downloaded with Store Local. Each file can
be no larger than 2 GB in size.
Note
A maximum of 1,000 files are playable
with Streaming Play. Each file can be no
larger than 2 GB in size.
Server Address
Enter the address of the Web/HTTP server
where the still image or video files are
stored. When entering the IP address of the
server, enter it in the format, “http://
xxx.xxx.xxx.xxx” (“xxx” represents a
figure no more than three digits).
Play file/folder name
Specifies the location of the still image or
video files on the Web/HTTP server
specified in the “Server Address” field. You
can either enter the location in the text box or
click the “Browse” button and select the file
or folder location on the screen that appears.
Notes
• If an “index.html” file is stored in the
folder, other files and folders contained in
the folder are not displayed.
•Only the still images and videos in the
specified folder are played. Still images
and videos saved in any subfolders are
not played.
•Files are played in ASCII code order.
Naming files in alphabetical or numerical
order is recommended.
Repeat
Select this check box if the still images or
video files are to be played back repeatedly.
Save
Saves the settings made on this screen.
Play
Starts playback of the selected file or of the
still image/video files in the folder
specified in “Play file/folder name”.
Stop
Stops still image/video playback that was
initiated by clicking the “Play” button.
Store Local
This screen lets you download still image/
video playback files stored on the Web/
HTTP server and save them on a CF card
(not supplied) inserted in the memory card
slot of the BKM-FW50.
Note
A maximum of 1,000 files can be
downloaded with Store Local. Each file can
be no larger than 2 GB in size.
Server Address
Enter the IP address of the Web/HTTP
server.
Computer Operation

15
Play file/folder name
Specifies the location of the still image or
video files on the Web/HTTP server
specified in the “Server Address” field.
You can either enter the location in the text
box or click the “Browse” button and select
the file or folder location on the screen that
appears.
Note
If an “index.html” file is stored in the
folder, other files and folders contained in
the folder are not displayed.
Folder name
Specifies the save location on the CF card
inserted in the memory card slot. You can
either enter the location in the text box or
click the “Browse” button and select the
file or folder location on the screen that
appears.
Delete
Deletes a file or folder saved on the
memory card inserted in the unit.
New Folder
Creates a new folder on the memory
card inserted in the unit.
Store
Starts downloading the still image or video
file or the contents of the folder specified in
“Play file/folder name”.
Scheduled Download
This function lets you periodically
download still image or video files from a
Web/HTTP server to an inserted memory
card. You can select the day of the week,
the time, and the interval.
Check to clear the local folder before
download
When you select this check box, all files in
the folder on the CF card (specified in
“Folder name”) are deleted before
downloading starts from the Web/HTTP
server. When this check box is not selected,
any files on the CF card with the same
name as content downloaded from the
Web/HTTP server will be overwritten.
Notes
•Before setting the “Scheduled Download”
function, make sure to configure the time
setting on the Setup screen (page 25).
• When setting the start time for the
scheduled download function, select a
time when the display will be turned off.
If the display is already on when
download begins, displaying the image
on the screen takes priority over the
download. In such a case, a file may not
be downloaded properly.
• When setting the start time for download,
take the on/off timer setting on the
display into consideration, as well as
Time Table Play settings (page 23).
• Do not turn the display off while a file is
in the process of being downloaded.
Doing so may cause the file to be
downloaded improperly.
• When there is no space left on the CF
card, an error will occur in the Scheduled
Download function, and automatic
downloading of new content will stop.
Computer Operation

16
Local Play
This screen lets you make settings for
display and playback of still image and
video files stored on a CF card inserted in
the memory card slot of the BKM-FW50.
Note
A maximum of 1,000 files are playable
with Local Play. Each file can be no larger
than 2 GB in size.
Play file/folder name
Specifies the location of the still image or
video files on the CF card. You can either
enter the location in the text box or click
the “Browse” button and select the file or
folder location on the screen that appears.
When a folder is specified, the still images
and videos saved in any subfolders are also
played.
Computer Operation
Rename
Renames a file or folder saved on the
memory card inserted in the unit.
Delete
Deletes a file or folder saved on the
memory card inserted in the unit.
Note
Files are played in ASCII code order.
Naming files in alphabetical or numerical
order is recommended.
Repeat
Select this check box if the still images or
video files are to be played back repeatedly.
Save
Saves the settings made on this screen.
Play
Starts playback of the selected file or of the
still image/video files in the folder
specified in “Play file/folder name”.
Stop
Stops still image/video playback that was
initiated by clicking the “Play” button.
PC Presentation
This screen lets you start and stop the PC
Presentation function of the BKM-FW50.
By showing the contents of the computer
desktop on the display, the PC Presentation
function allows using the display as an
external monitor for the computer.

17
Note
To enable use of the PC Presentation
function, UltraVNC must be installed on
the computer.
UltraVNC is free software licensed under
GNU GPL.
Connect PC
Select this to enable the PC Presentation
function of the BKM-FW50. The following
items also need to be set.
IP Address:
Enter the IP address of the computer.
Enter the IP address in the following
format: “xxx.xxx.xxx.xxx” (“xxx”
represents a figure no more than three
digits)
Password:
Enter the password that was set during
the installation of UltraVNC.
PC Resolution:
Select the screen resolution of the
connected computer.
If the resolution selected here differs
from the computer’s actual resolution,
the screen will not display at the proper
size. Select a resolution so the screen
size matches the display.
Connect
Starts the PC Presentation function. When
you click this button, the desktop screen of
the computer at the specified IP address
appears on the display.
Disconnect
Select this to disable the PC Presentation
function.
Play Settings
This screen lets you make settings for the
slide show function and for automatic
display and playback of still image and
video files.
Auto Play
This setting specifies whether still image/
video file playback should start
automatically when the display in which
the BKM-FW50 is installed is turned on. In
combination with the ON timer of the
display, this also allows automatic playback
at a scheduled time.
To enable the function, select the “On”
setting. From the “Contents” drop-down
list, select “Streaming” (automatic playback
of still image/video files stored on a
computer on the network), “Local”
(automatic playback of still image/video
files stored on a CF card inserted in the
BKM-FW50), or “Play List” (playback of
still image/video files in accordance with a
previously created play list). “On” is
selected as the factory default.
Check to cancel auto play when
“Scheduled Download” overlaps
When you are using the Scheduled
Download function (page 15) under Store
Local on the Player screen, specify whether
to give priority to data downloads with the
Scheduled Download function or to Auto
Play (automatic playback of still image or
video files).
Computer Operation

18
When you select this check box, priority is
given to data downloads with the Scheduled
Download function. If the specified time for
Auto Play falls during a download,
automatic playback for that day is canceled.
When this check box is not selected, Auto
Play will begin after data finishes
downloading.
Slide Show
The following items can be set for the slide
show function.
Interval:
Specifies the time interval until
switching to the next still image or
video.
Background Music:
Lets you specify background music to
be played during the slide show. Only
music files (or folders containing music
files) stored on a CF card inserted in the
BKM-FW50 can be used for this
function. Only the music files in the
specified folder are played. (Music files
saved in any subfolders are not played.)
The background music used for time
table playback can be set the from the
time table editing screen (page 24).
Notes
When a folder has been specified, pay
careful attention to the following points.
•Amaximum of 1,000 music files are
playable. Each file can be no larger
than 2 GB in size.
•Files are played in ASCII code order.
Naming files in alphabetical or
numerical order is recommended.
You can either enter the file name in the
text box, or enter the folder name, click
the “Browse” button, and specify the
file in the screen that appears.
Rename
Renames a file or folder saved on the
memory card inserted in the unit.
Delete
Deletes a file or folder saved on the
memory card inserted in the unit.
Check to use background music
during video playback (video audio
will be muted):
When this check box is selected,
Background Music playback will be
available while any video files
contained in the slide show are played
back, but audio included in the video
files will be muted.
Check to display still pictures in High
Resolution Mode:
When this check box is selected, still
images are displayed at high resolution
(WXGA or XGA). If the folder
includes both video files and still
images, the screen turns off for several
seconds to switch resolution when
changing from a still image to a video
(and vice versa).
The following aspect ratios can be
selected for the input images.
16:9 (WXGA):View 16:9 images in
full screen display.
4:3 (XGA):View 4:3 images on 4:3
normal screen.
AUTO:Automatically detects
the aspect ratio.
Computer Operation

19
Make selections based on the aspect
ratios of the images you wish to view.
When viewing still image files, we
recommend making the aspect ratios of
each file the same.
Notes
•When playing files with mixed aspect
ratios, black bars may appear on
either side of the display, or the
image may be stretched lengthwise.
•Still images with aspect ratios other
than 16:9 or 4:3 can also be
displayed, but black bars may appear
at the top, bottom, and either side of
the display, or the image may be
stretched lengthwise.
•When the RGB mode on the display
is set to DTV mode, the unit
automatically enters over scan mode,
and any text on the outer edges of an
image will be cut off. For the FWD-
40LX1/32LX1R/50PX2, set the over
scan mode to OFF.
Computer Operation
Standard Resolution Mode
(Default Values): 480p
Input still image
Black bar
Display
Standard resolution
The input still image is converted to
standard resolution, and is enlarged
according to the aspect ratio of the display.
Display
Display: Full mode
The input still image is displayed in
the original aspect ratio.
Display
Display: Full mode

20
High Resolution Mode: 16:9
(WXGA) High resolution mode: 4:3 (XGA)
Computer Operation
Input still image
Display
Display: Full mode
The input still image is displayed in
the original aspect ratio.
Display
Display
Display: Full mode
The input still image is displayed in
the original aspect ratio.
Display
Display
The input still image is stretched
lengthwise but fills the entire screen.
Display: Normal mode
Input still image
Black bar
