Sony TAM-100 User manual

Canadian Model

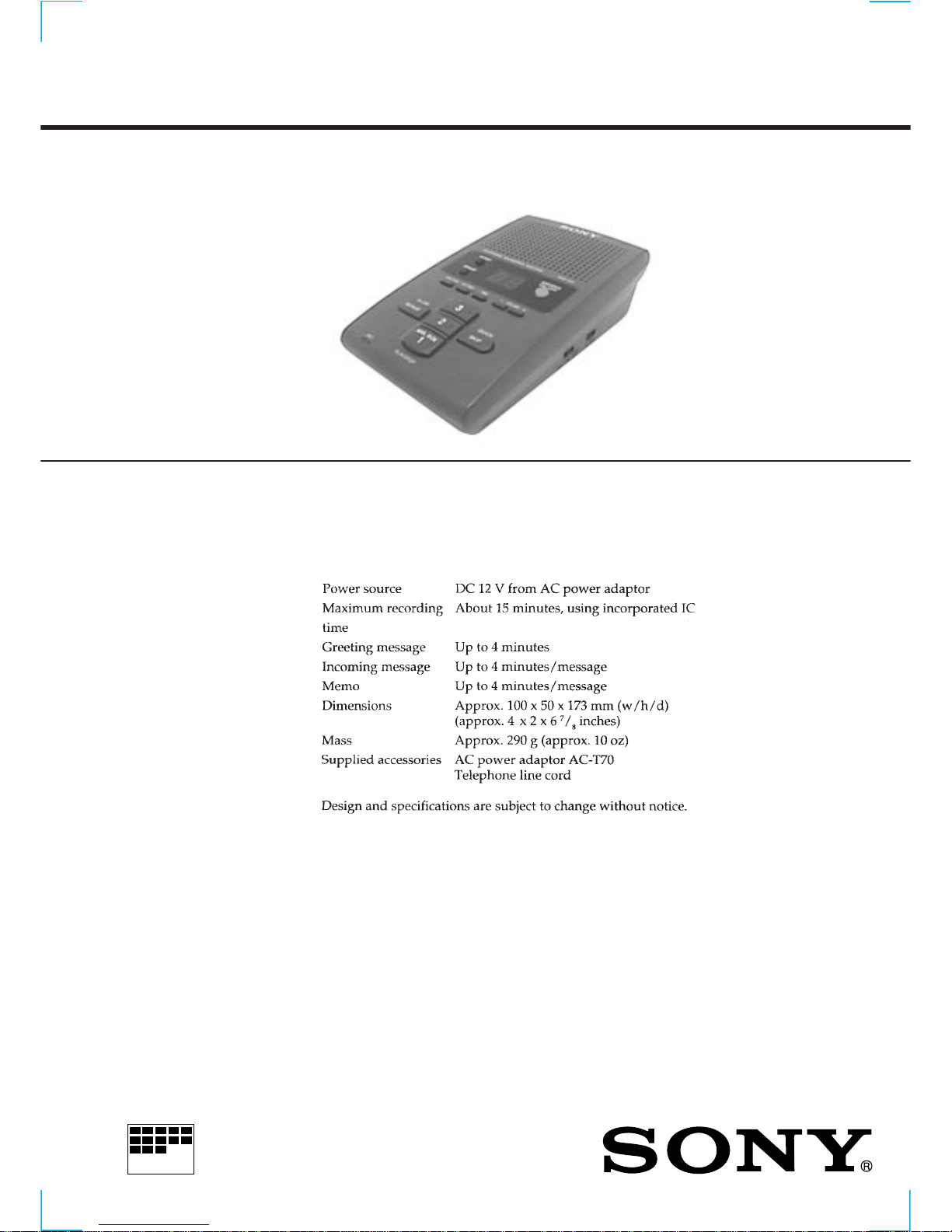

SPECIFICATIONS
TAM-100
TELEPHONE ANSWERING MACHINE
MICROFILM
SERVICE MANUAL

– 2 –
TABLE OF CONTENTS
1. GENERAL
2. DIAGRAMS ................................................................. 5
2-1. Block Diagram ................................................................ 5
2-2. Printed Wiring Board –KEY Section– .......................... 7
2-3. Printed Wiring Board –MAIN Section– ........................ 9
2-4. Schematic Diagram ......................................................... 11
3. EXPLODED VIEW................................................... 13
4. ELECTRICAL PARTS LIST ............................... 15
SECTION 1

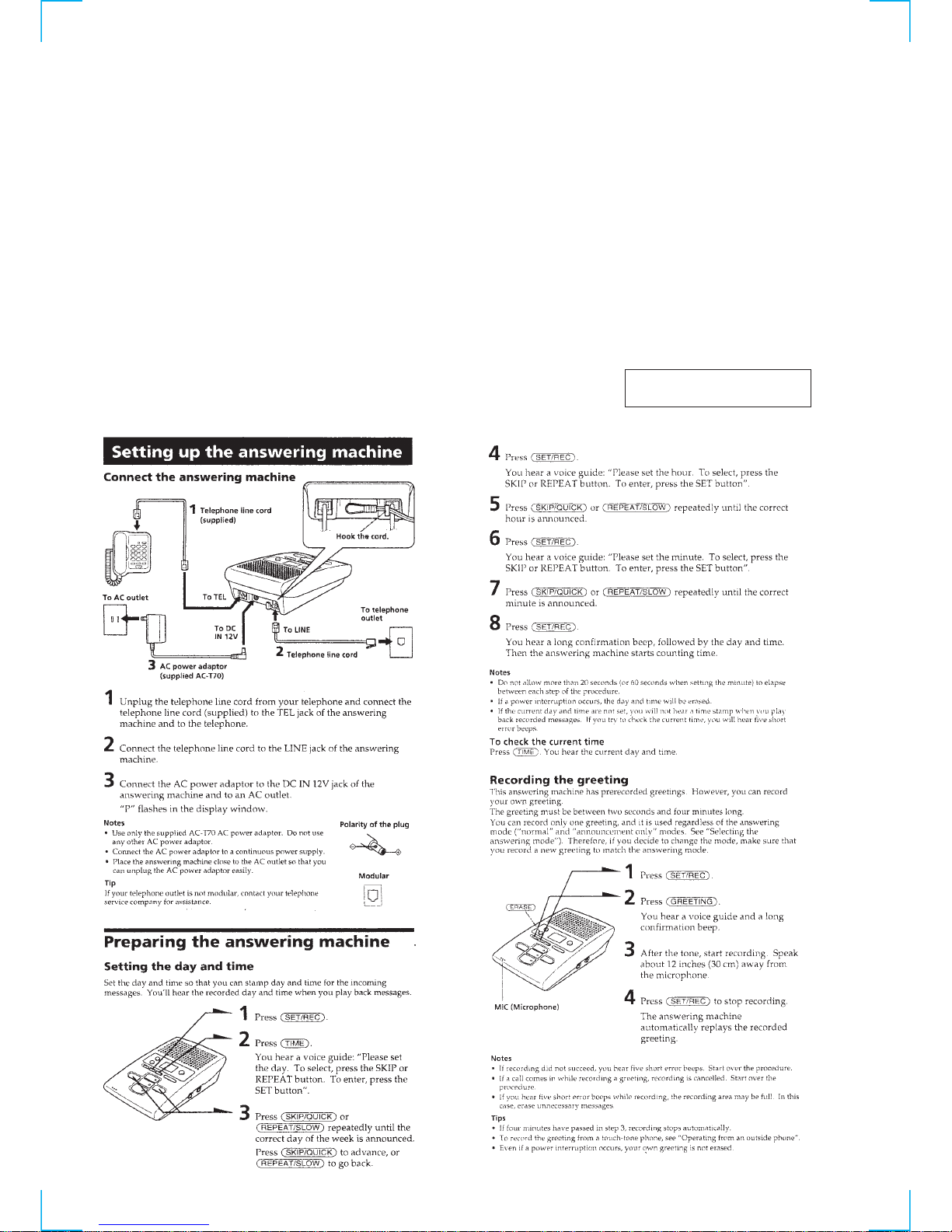

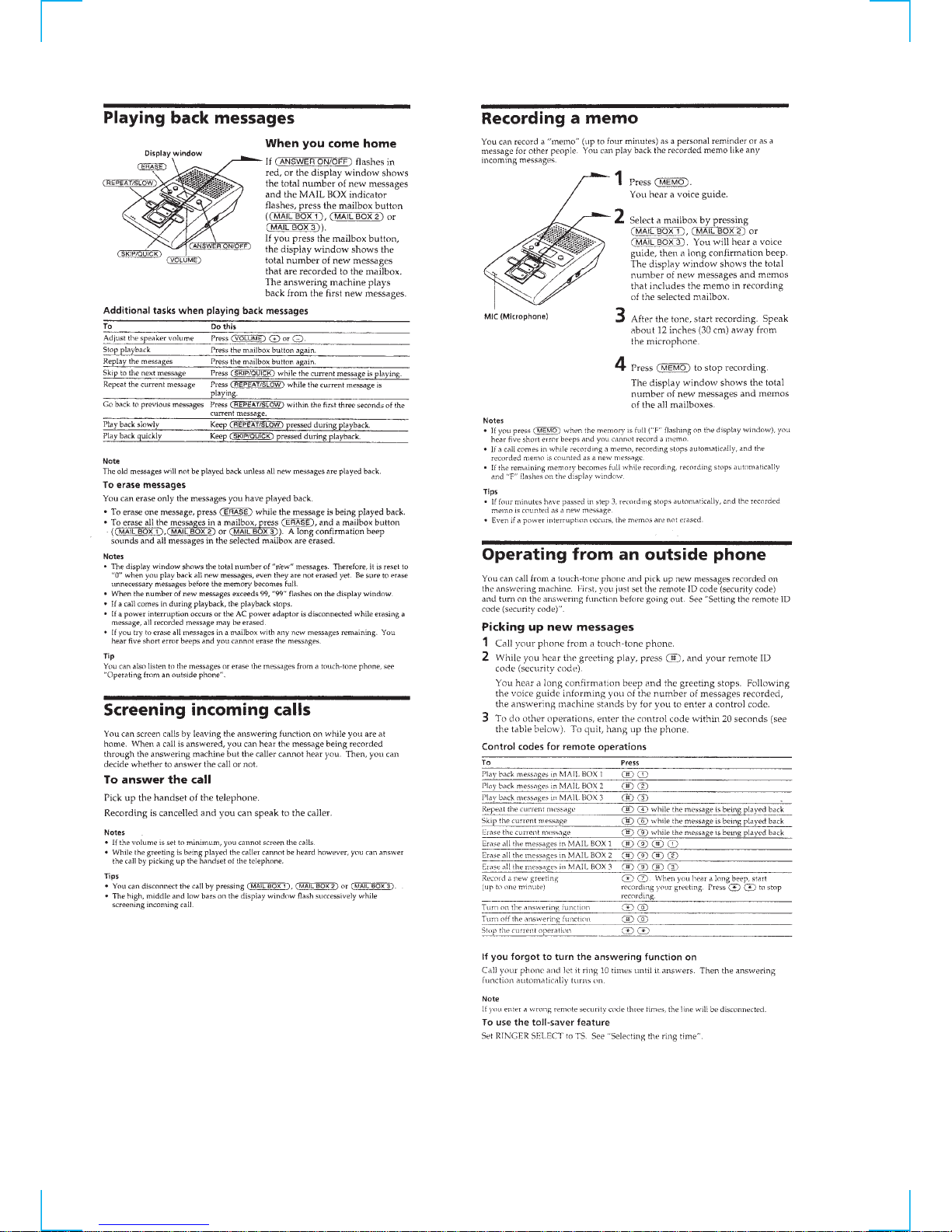

GENERAL This section is extracted from
instruction manual.

– 3 –

– 4 –

– 5 –
2-1. BLOCK DIAGRAM
TAM-100
SECTION 2
DIAGRAMS
W
BTI -
TI +
VREF
PD2
PD0
PB2
A8/PJ0
PD3
A9/PJ1
A7/PK3
A6/PK2
PB3
A4/PK0
A5/PK1
U1
DSP
PD1
SPOI +
A14/P12
A12/P10
PB1
PB0
PA0
PA2
PA3
PA4
PB7
PB4
A3/PM3
A0/PM0
WE
CAST
PC3-0
RAS
OE
IORQ
MREQ
PEI
PEO
RD
WR
59
80
22
24
•
55
•
56
48
46
45
44
49
52
•
33
36
3
10
•
61
64
•
69
•
70
CS
SK
D1
D0
4
5
6
7
U2
FLASH MEMORY
ANSWER ON/OFF
MAIL BOX1-3
LED INDICATOR
LED1-4
7 SEGMENT LED
LED5
88
TIME
SET/REC
GREETING
REPEAT
PUSH BUTTON KEY
MEMO
MAIL BOX
3
MAIL BOX
2
MAIL BOX
1
ERASE
SKIP
ANSWER
ON/OFF
VOL +
VOL –
5
1
4
3
BIAS
U80
SPEAKER AMP
SPEAKER
SP901
OFF
ON
ANN
ONLY
2
5
TS
AUDIBLE
INDICATOR
SW1
RINGER
SELECT
SW2
SPEECH
NETWORK
Q120, 121
LINE SW
Q110, 111
BRANCH
DET
Q112, 113
VOICE DET
Q70
+5V REG
U90 21
JP90
DC JACK
DC IN 12V
PH100
RINGER DET
+B
RINGER DET
ZD100, 101
D104
1
2
R
G
JP100
1
2
R
G
JP101
MODULER
JACK
TEL
MODULER
JACK
LINE
D100-103
M2C
MUTE
+
–
T70
ECM
MIC
76
77
78
58
60
54
28
57
27
29
30
53
32
31
+5V
+
+
–

– 6 –

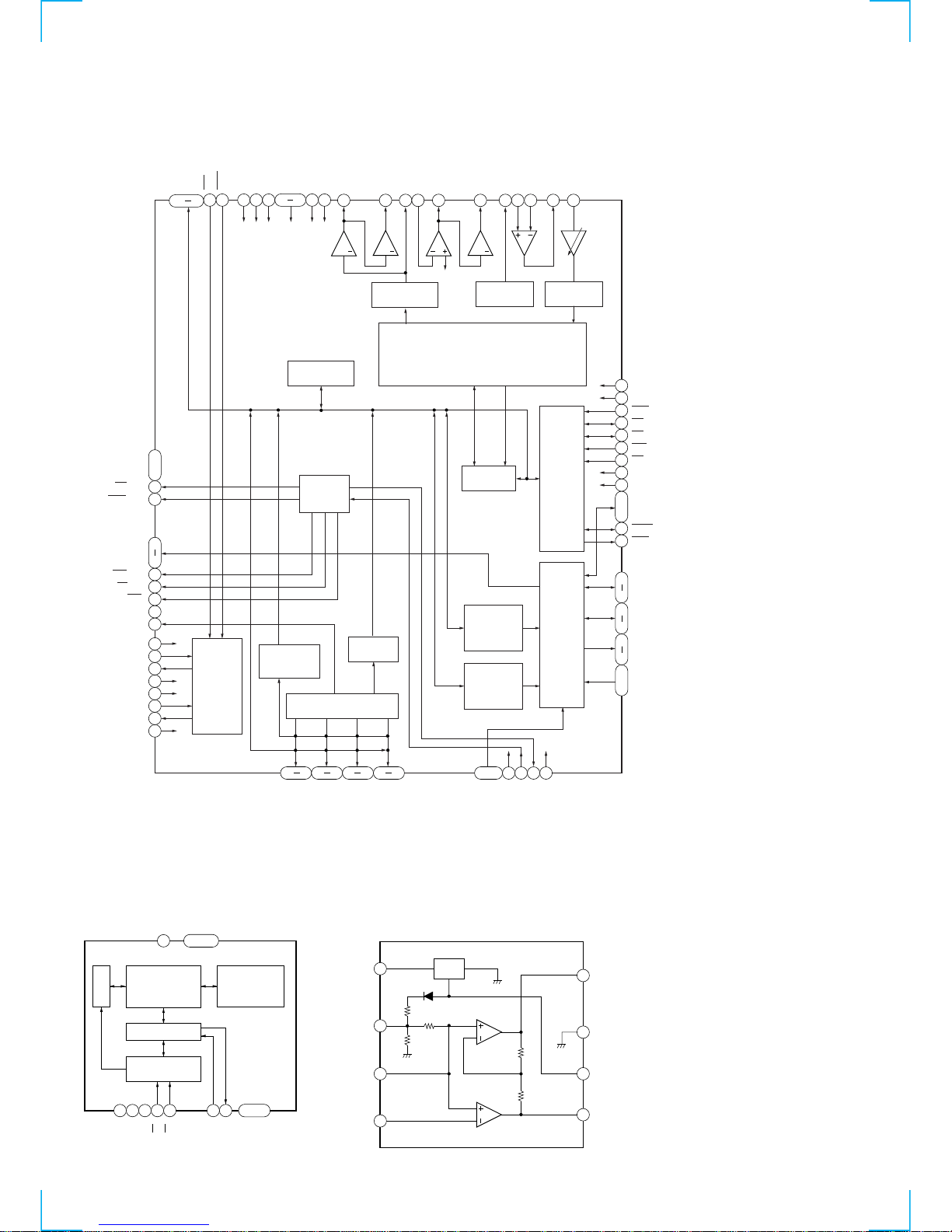

• IC Block Diagrams
U1 TC88512AF-043
U80 NJM2113M-TE2
U2 TC58A04F
5
6
7
8
2
3
4
1BIAS
125k
50k
50k
4k
4k
#B
#A
V02
GND
V+
V01
CHIP–DIS
V REF
+VIN
–VIN
4M BIT
MEMORY
CELL ARRAY
CHARGE PUMP/
CONTROL GATE
DRIVE
INTERFACE/
CONTROL LOGIC
DATA LATCH
12345 67
28
DECODER
VSS
NC NC
CS SK
DI
DO
NC
VCC
8 – 14
NC
27 – 15
RIN
INT
12
9
10
11
13
3
4
14
15
16
17
18
19
20
21
81828384
85869091929394 7677787980
1
2
.
64
63
.
44
43
.
5
8
33 3622 24 29 3225 28
ADDRESS DECODER
CLOCK
GENERATOR
+
PLL
MEMORY
INTERFACE
37, 38 39 40 41 42
61
62
65
66
67
68
69
70
71
72
73
7475
48
45
56
49
60
57
I/O
CONTROL
8 BIT
CPU
11
89 87
100 95
A-D
CONVERTER
VRFF
GENERATOR
D-A
CONVERTER
DPS
• VOICE COMPRESSION/DECOMPRESSION
• DTMF DETECTION
• FULL DUPLEX HANDS FREE AND SO ON
1
HOST
SERIAL
INTERFACE
MEMORY
SERIAL
INTERFACE
CLOCK COUNTER
CPU PROGRAM
ROM
CPU RAM
DSP
INTERFACE
D7-D0
STBY
RST
MODE0-3 MODE0-3 AVDD1, 2 AVSS1, 2
TI+
SPO1- SPO2+ SPO2- DAO SPI1 SPO1+ VREF TI- TO ADI DVSS1-4 DVDD1-4
PA (3:0)
PD (3:0)
PE (1:0)
PB (7:0)
DVSS1-4
DVDD1-4
PA (7:4)
IORQ/PH3
MREQ/PH2
NM1
RD/PH1
WR/PH0
WAIT
AVDD1, 2
AVSS1, 2
A3-0/PM(3:0)
A11-8/PJ(3:0)
A7-4/PK(3:0)
ROUT
DVSS1-4
DVDD1-4
PA (7:4)
A
15-12/PI(3:0)
PC (3:0)
PVSS
MCE
OE/PF1
WE/PF0
RAS/PF3
CAS1/PF2
DVSS1-4
DVDD1-4
A 16
XIN
XOUT
PLLI
PVDD
PLLO
A15-12/PI(3:0)

– 7 – – 8 –
TAM-100
THIS NOTE IS COMMON FOR PRINTED WIRING
BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this,the necessary note is printed in each
block.)
For schematic diagrams.
Note:
• All capacitors are in µF unless otherwise noted. pF: µµF
50 WV or less are not indicated except for electrolytics
and tantalums.
• All resistors are in Ωand 1/4W or less unless otherwise
specified.
•¢: internal component.
•C: panel designation.
•U: B+ Line.
• Voltage and waveforms are dc with respect to ground
under no-signal conditions.
no mark :Addto DC12V andfedwith regulateddcpower
supply from external power voltage jack.
∗: Impossible to measure
• Indication of transistor

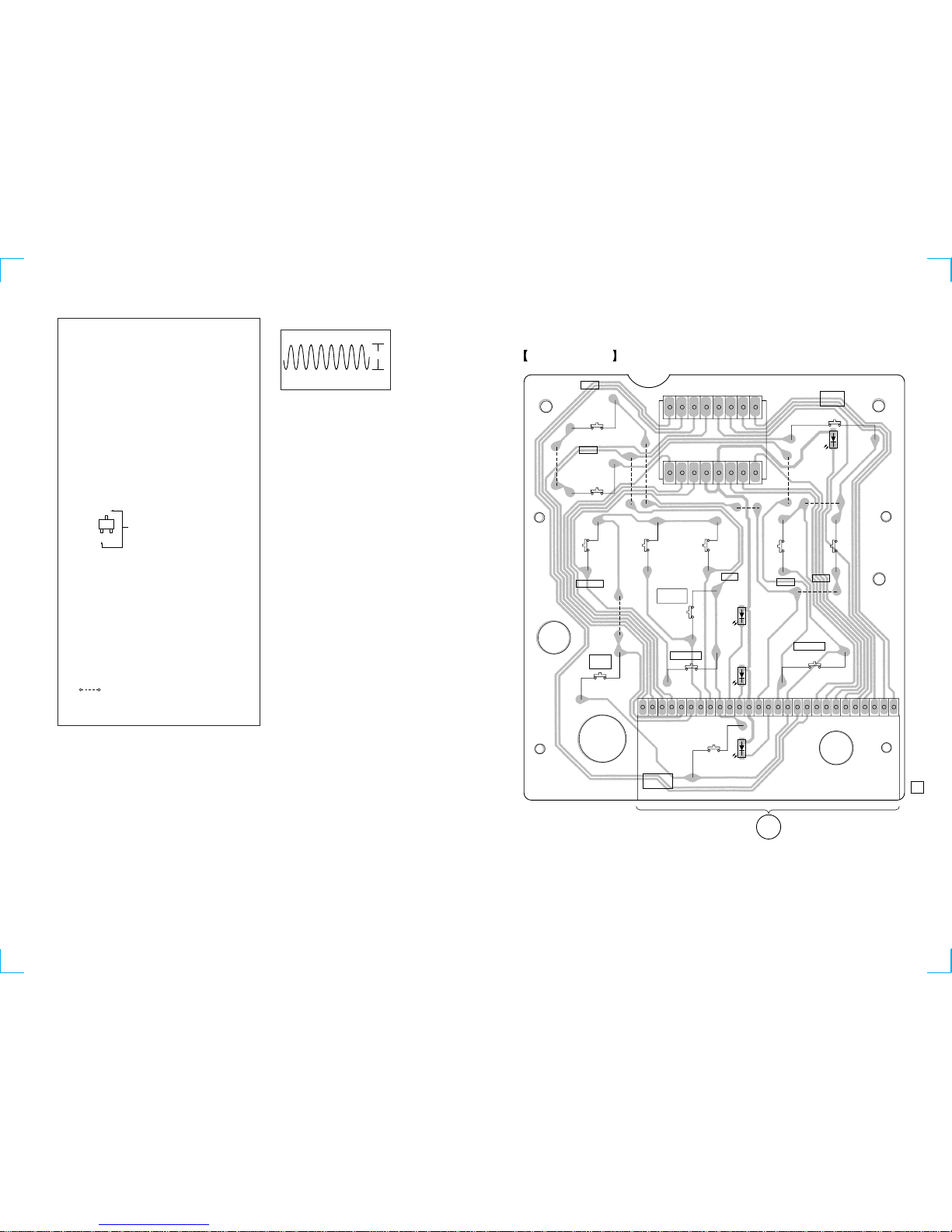

2-2. PRINTEDWIRING BOARD — KEY SECTION —
• Waveform
1
U1 !§ (XOUT)
5.6Vp-p
4MHz
• Voltages aretakenwith aVOM(Inputimpedance 10 MΩ).
Voltage variations may be noteddue tonormal production tol-
erances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noteddue tonormal production tol-
erances.
• Circled numbers refer to waveforms.
• Signal path.
F: AUDIO
• Abbreviation
CND : Canadian model
For printed wiring boards.
Note:
•: carbon pattern
•X: parts extracted from the component side.
•¢: internal component.
•b: Pattern from the side which enables seeing.
Q
C
These are omitted
EB
TIME VOL+
VOL-
ERASE
GREETING
SET/REC
MAIL BOX3
SLOW/
REPEAT
MAIL BOX1
PLAY/STOP
QUICK/SKIP
LED5
16 9
18
ANSWER
ON/OFF
271
MEMO
MAIL BOX2
W1
AK
LED1
MAIN BOARD
A
(Page 8)
09
1-673-413-
11
KEY BOARD
AK
LED4
AK
LED3
AK
LED2

– 9 – – 10 –
TAM-100

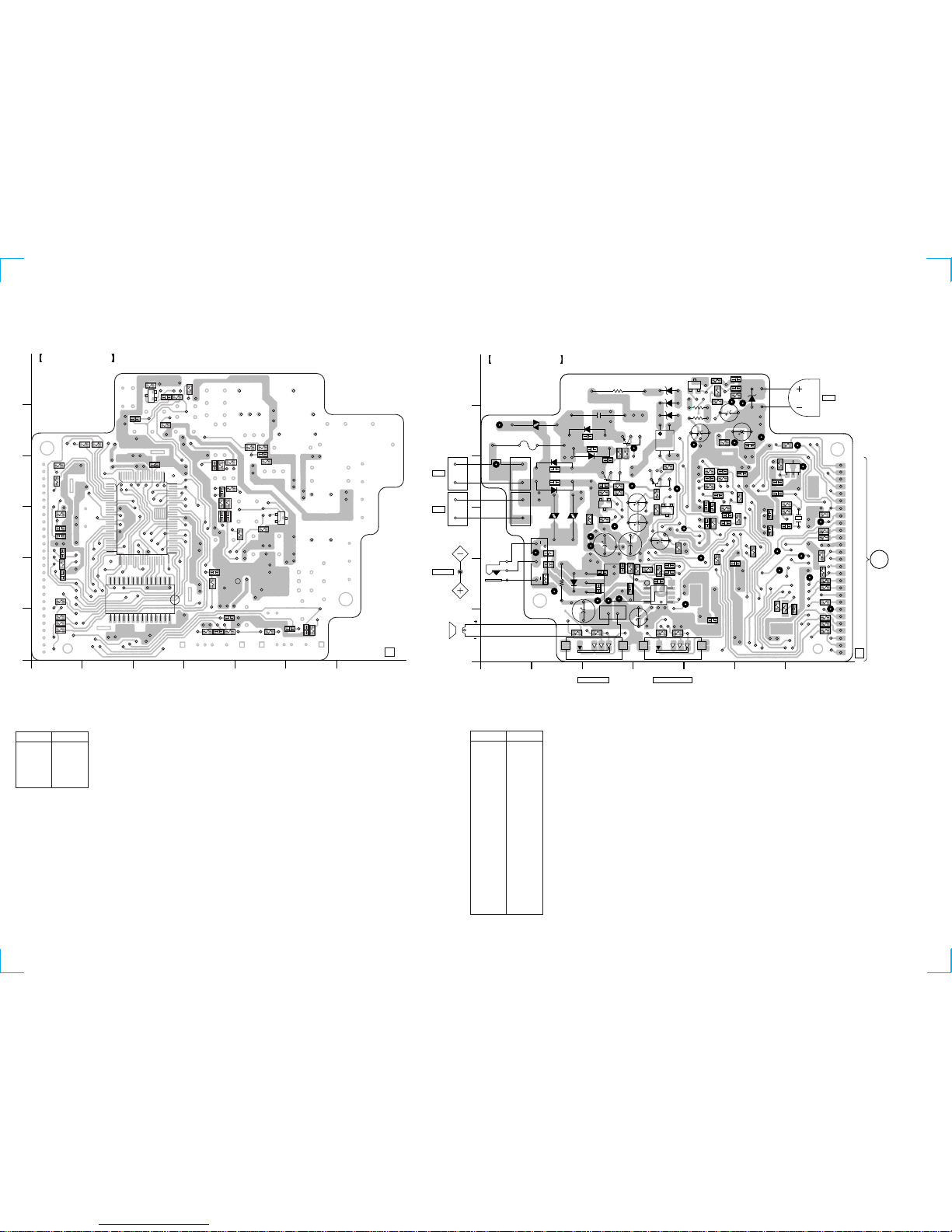

2-3. PRINTEDWIRING BOARD — MAIN SECTION —
Ref. No. Location
D91 B-2
D92 B-2
D100 E-3
D101 D-2
D102 E-3
D103 D-2
Q70 F-5
Q110 D-3
Q111 E-3
Q113 D-3
Q120 D-4
Q121 C-4
U3 D-7
U80 B-4
U90 B-3
ZD70 F-6
ZD100 F-4
ZD101 E-4
ZD104 E-4
• Semiconductor
Location
Ref.No. Location
Q71 A-3
Q112 D-5
U1 D-3
U2 E-3
• Semiconductor
Location
(SIDE A)
1-673-412-
11
R6R7
C71 R71
R76
R73
C58
R121
C121
R122
R113
C110
R119
R126
R130
C125 R129
R131
C126
R118
Q112
R22
C11
R23
C10
C13
R24
R25
C12
R88
C88
R9
R8
C17
C16
C14 R17 C15
R38
R34
R36
R37
31
30 51
180
100
50
81
15
14
28
1
U2
MAIN BOARD
1
F
E
D
C
B
A
234567
09
Q71
R29
C73
R112
E
ECM
U1
C123
R77
E
R124
TP101
TP100
TP113
R117
R115
Q110
E
C111 R114 TP110
Q121
TP102
TP112
TP82
TP84
TP83
TP80
C86
C81
C80
R125
R128
R101
R70
C72
C70
R75
R74
R72R72
R5
TP50
R53 C59
R54
C57
R50
R55
C51
C130
R83
C20
C60
R56
C54
R51
C2
R1
R3
C6
C7
C8
R16R15 R28
R26
TP7
R27
R10 R4
R32
R33
R11
R35
R13
R12
R39
C18
R30
C84
C50
1
A
B
C
D
E
F
234567
09
MAIN BOARD (SIDE B)
1-673-412-
11
R110
C91 C83
C82
R82
R85
R81
R80
C90
R21R20 R18
R19
R120
R52
C55
R2
C9
C1
C19
C74
R116
Q113
Q70
U80
85
41
R111
TP111
TP92TP93
TP90
TP91
TP2
TP6
TP1
TP120
TP4
TP3
TP5
TP71
TP72
TP70
TP73
U3
YEL
BLK
ECM
T70 T70
ECM
MIC
C53
C56
ZD70
R123
ZD101
ZD104
ZD100
PH100
3
2
4
1
C100
R100
F100
Z100
D100
D102
250V. 500mA
LINE
TEL
RED
GRN
GRN
RED
JP100
JP101
MODULER
JACK
MODULER
JACK
JP100
JP101
E
Q111
Q120
C112
C113
C101
C120C92
X1
151015202527 W1
R84
D91
SW2
RINGER SELECT
TS˜5˜2
SW1
AUDIBLE INDICATOR
ANN ONLY˜ON˜OFF
12
SPEAKER
WHT
BRN
SP901
JP90
DC JACK
DC IN 12V
DC
JP90
0B
SW1
SW2
MAIN BOARD
A
(Page 8)
C85
U90
C93
L2
L1
L3
C104
C102
D101
C103
C105
D103
TP8
E
C106
Z102 Z101
C5

– 11 – – 12 –

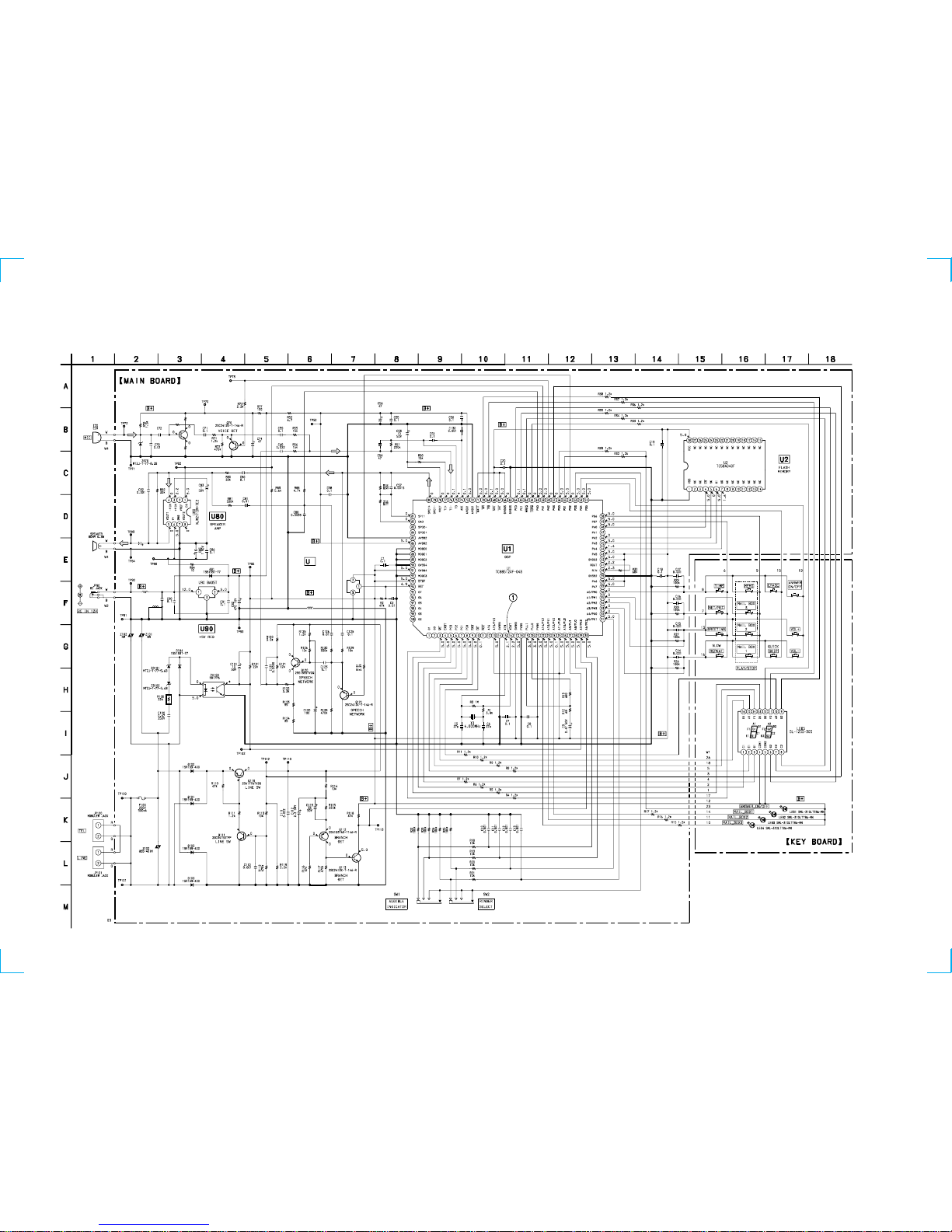

2-4. SCHEMATIC DIAGRAM
• Refer to page 6 for IC Block Diagrams.
• Refer to page 7 forWaveforms and Note.
TAM-100
SP901
1W
25V
10V
10V
2 ˜5 ˜TSOFF ˜ON ˜ANN ONLY
7 SEGMENT
LED
C84
220 10V
L1 10uH C93
0.1
L2 10uH L3 10uH
U3
XC61AN4602PR
R74
2.2k
R75
470k
R76
220
Q71
2SC2412KR
0.1
MIC
AMP
26.7
26.7
4MHz
4.9
5.0
3
RESET

SECTION 4
ELECTRICAL PARTS LIST
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
• SEMICONDUCTORS
In each case, u: µ , for example:
uA...: µ A..., uPA...: µ PA..., uPB...: µ PB...,
uPC...: µ PC..., uPD...: µ PD...
• CAPACITORS
uF : µ F
• COILS
uH : µ H
• Abbreviation
CND : Canadian model
• Due to standardization, replacements in the parts list
may be different from the parts specified in the
diagrams or the components used on the set.
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• RESISTORS
All resistors are in ohms
METAL: Metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F : nonflammable
Note:
When indicating parts by reference
number, please include the board
name.
MAINKEY
– 13 – – 14 –

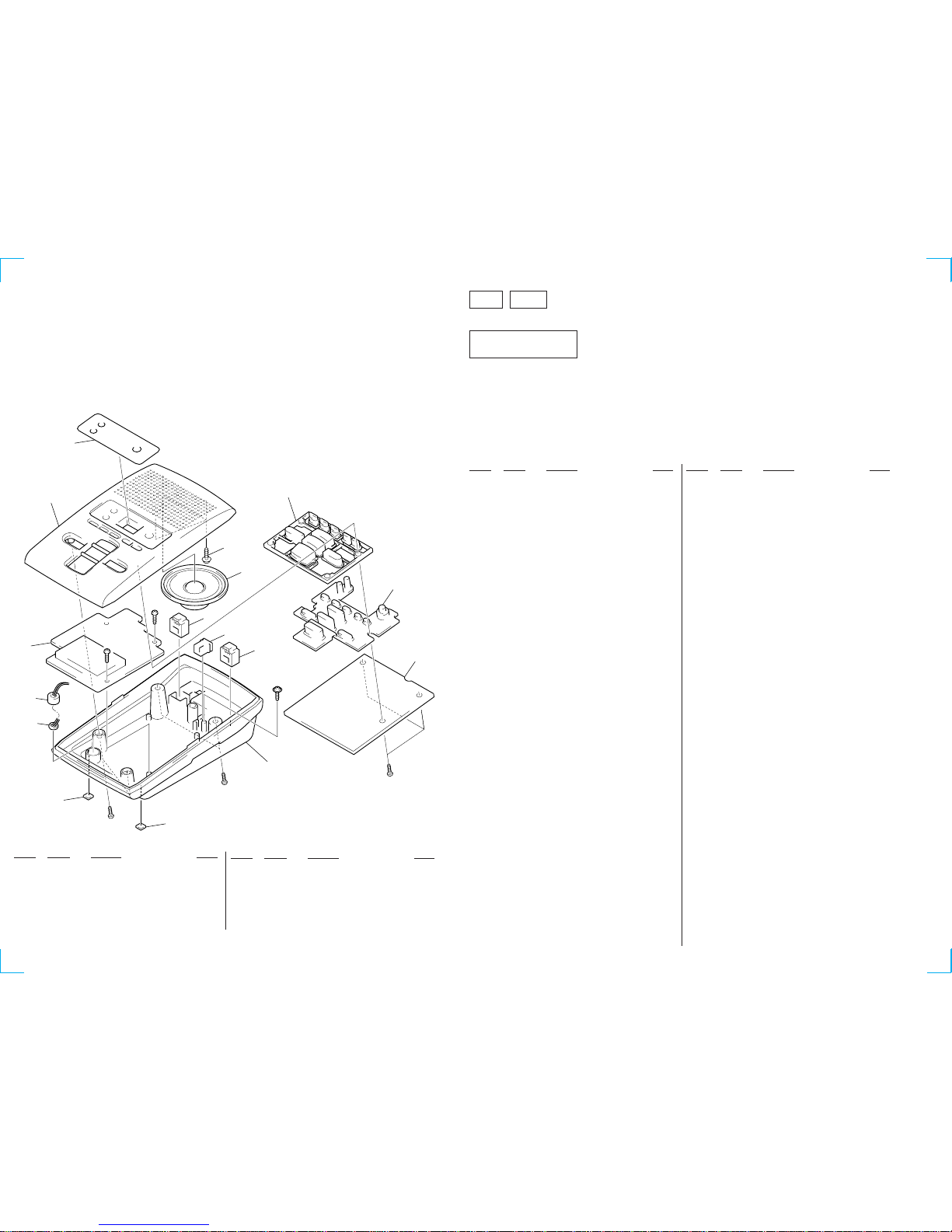

SECTION 3
EXPLODED VIEW
NOTE:
• -XX, -X mean standardized parts, so they may have
some difference from the original one.
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
• Color Indication of Appearance Parts Example:
KNOB, BALANCE (WHITE) . . . . (RED)
ÂÂ
Parts color Cabinets color
• The mechanical parts with no reference number in
the exploded views are not supplied.
• Hardware (# mark) list and accessories and pack-
ing materials are given in the last of this parts list.
• Abbreviation
CND : Canadian model
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
9 3-037-472-01 SCREW (3X5), SPECIAL
10 3-625-138-01 CAP, MICROPHONE
JP90 1-766-366-11 JACK, DC
JP100 1-793-136-11 JACK, MODULAR (2C) 6P (TEL)
JP101 1-793-136-11 JACK, MODULAR (2C) 6P (LINE)
SP901 1-504-748-21 SPEAKER (6.6CM)
T70 1-542-368-11 MICROPHONE, ELECTRET CONDENSER
1 3-034-197-01 FOOT, RUBBER
2 3-034-193-01 CABINET (LOWER)
*3 A-3672-702-A MAIN BOARD, COMPLETE
*4 1-673-413-11 KEY BOARD
5 1-771-695-11 SWITCH, RUBBER KEY
6 3-034-194-01 BUTTON
7 3-034-192-01 CABINET (UPPER)
8 3-034-196-01 WINDOW (LED)
#1
#3
#3
#2
PJ101
JP100
JP90
SP901
#2
#2
9
T70
10
1
3
8
1
2
4
5
6
7
*1-673-413-11 KEY BOARD
*********
< DIODE >
LED1 8-719-072-22 DIODE SML-310LTT86-MN (ANSWER ON/OFF)
LED2 8-719-072-22 DIODE SML-310LTT86-MN (MAIL BOX 1)
LED3 8-719-072-22 DIODE SML-310LTT86-MN (MAIL BOX 2)
LED4 8-719-072-22 DIODE SML-310LTT86-MN (MAIL BOX 3)
LED5 8-719-074-88 DIODE SL-1255-305
**************************************************************
*A-3672-702-A MAIN BOARD, COMPLETE
********************
< CAPACITOR >
C1 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C2 1-163-021-11 CERAMIC CHIP 0.01uF 16V
C5 1-163-237-11 CERAMIC CHIP 27PF 5% 50V
C6 1-163-237-11 CERAMIC CHIP 27PF 5% 50V
C7 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C8 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C9 1-164-326-11 CERAMIC CHIP 0.47uF 20% 50V
C10 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C11 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C12 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C13 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C14 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C15 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C16 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C17 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C18 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C19 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C20 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C50 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C51 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C53 1-126-964-11 ELECT 10uF 20% 50V
C54 1-163-243-11 CERAMIC CHIP 47PF 5% 50V
C55 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C56 1-104-657-11 ELECT 47uF 20% 10V
C57 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V
C58 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C59 1-163-038-00 CERAMIC CHIP 0.1uF 16V
C60 1-163-037-11 CERAMIC CHIP 0.022uF 25V
C70 1-163-021-11 CERAMIC CHIP 0.01uF 10% 25V
C71 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C72 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C74 1-104-657-11 ELECT 47uF 20% 10V
C80 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C81 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C82 1-163-009-11 CERAMIC CHIP 0.001u 10% 50V
C83 1-164-346-11 ELECT 1uF 20% 50V
C84 1-126-934-11 ELECT 220uF 20% 16V
C85 1-126-935-11 ELECT 470uF 20% 16V
C86 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C88 1-163-015-11 CERAMIC CHIP 0.0033uF 10% 50V
C90 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C91 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C92 1-126-925-11 ELECT 470uF 20% 10V
C93 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C100 1-136-193-11 FILM 0.47uF 5% 250V
C101 1-104-657-11 ELECT 47uF 20% 10V
C106 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V
C110 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
C111 1-163-033-00 CERAMIC CHIP 0.022uF 50V
C112 1-126-961-11 ELECT 2.2uF 20% 50V
C113 1-126-966-11 ELECT 33uF 20% 50V
C120 1-104-665-11 ELECT 100uF 20% 25V
C121 1-163-015-11 CERAMIC CHIP 0.0033uF 10% 50V
C123 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V
C125 1-163-038-00 CERAMIC CHIP 0.1uF 25V
C126 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V
C130 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V
< DIODE >
D91 8-719-991-33 DIODE 1SS133T-77
D100 8-719-970-02 DIODE 1SR139-400
D101 8-719-970-02 DIODE 1SR139-400
D102 8-719-970-02 DIODE 1SR139-400
D103 8-719-970-02 DIODE 1SR139-400
D104 8-719-991-33 DIODE 1SS133T-77
< FUSE >
F100 1-533-713-11 FUSE (250V/500mA)
< INDUCTOR >
L1 1-412-058-21 INDUCTOR, CHIP 10uH
L2 1-412-058-21 INDUCTOR, CHIP 10uH
L3 1-412-058-21 INDUCTOR, CHIP 10uH

– 15 –
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
< PHOTO INTERUPTER >
PH100 8-749-015-01 PHOTO COUPLER 5817P6
< TRANSISTOR >
Q70 8-729-901-81 TRANSISTOR 2SC2412K
Q71 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R
Q110 8-729-045-65 TRANSISTOR 2SA1776TV2Q
Q111 8-729-045-48 TRANSISTOR 2SC3415STPP
Q112 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R
Q113 8-729-901-81 TRANSISTOR 2SC2412K
Q120 8-729-032-94 TRANSISTOR 2SD1859TV2Q
Q121 8-729-901-81 TRANSISTOR 2SC2412K
< RESISTOR >
R1 1-216-063-00 RES,CHIP 3.9K 5% 1/10W
R2 1-216-089-00 RES,CHIP 47K 5% 1/10W
R3 1-216-121-00 RES,CHIP 1M 5% 1/10W
R4 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R5 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R6 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R7 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R8 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R9 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R10 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R11 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R12 1-216-170-00 RES,CHIP 68 5% 1/8W
R13 1-216-045-00 METAL CHIP 680 5% 1/10W
R15 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R16 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R17 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R18 1-216-073-00 METAL CHIP 10K 5% 1/10W
R19 1-216-073-00 METAL CHIP 10K 5% 1/10W
R20 1-216-073-00 METAL CHIP 10K 5% 1/10W
R21 1-216-073-00 METAL CHIP 10K 5% 1/10W
R22 1-216-097-00 RES,CHIP 100K 5% 1/10W
R23 1-216-097-00 RES,CHIP 100K 5% 1/10W
R24 1-216-097-00 RES,CHIP 100K 5% 1/10W
R25 1-216-097-00 RES,CHIP 100K 5% 1/10W
R26 1-216-097-00 RES,CHIP 100K 5% 1/10W
R27 1-216-097-00 RES,CHIP 100K 5% 1/10W
R28 1-216-097-00 RES,CHIP 100K 5% 1/10W
R29 1-216-097-00 RES,CHIP 100K 5% 1/10W
R30 1-216-093-11 RES,CHIP 68K 5% 1/10W
R32 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R33 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R34 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R35 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R36 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R37 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R38 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R39 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R50 1-216-077-00 METAL CHIP 15K 5% 1/10W
R51 1-216-105-00 METAL CHIP 220K 5% 1/10W
R52 1-216-308-00 METAL CHIP 4.7 5% 1/10W
R53 1-216-085-00 METAL CHIP 33K 5% 1/10W
R54 1-216-073-00 METAL CHIP 10K 5% 1/10W
R55 1-216-077-00 METAL CHIP 15K 5% 1/10W
R56 1-216-077-00 METAL CHIP 15K 5% 1/10W
R70 1-216-053-00 METAL CHIP 1.5K 5% 1/10W
R71 1-216-051-00 RES,CHIP 1.2K 5% 1/10W
R72 1-216-113-00 METAL CHIP 470K 5% 1/10W
R73 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R74 1-216-057-00 RES,CHIP 2.2K 5% 1/10W
R75 1-216-113-00 RES,CHIP 470K 5% 1/10W
R76 1-216-033-00 RES,CHIP 220 5% 1/10W
R77 1-216-025-00 RES,CHIP 100 5% 1/10W
R80 1-216-073-00 RES,CHIP 10K 5% 1/10W
R81 1-216-109-11 METAL CHIP 330K 5% 1/10W
R82 1-216-085-00 METAL CHIP 33K 5% 1/10W
R83 1-216-067-00 METAL CHIP 5.6K 5% 1/10W
R84 1-249-393-11 CARBON 10 5% 1/4W
R85 1-216-097-00 RES,CHIP 100K 5% 1/10W
R88 1-216-065-00 RES,CHIP 4.7K 5% 1/10W
R100 1-215-877-11 METAL OXIDE 22K 5% 1W F
R101 1-216-069-11 METAL CHIP 6.8K 5% 1/10W
R110 1-216-089-00 RES,CHIP 47K 5% 1/10W
R111 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R112 1-216-113-00 METAL CHIP 470K 5% 1/10W
R113 1-216-073-00 METAL CHIP 10K 5% 1/10W
R114 1-216-073-00 METAL CHIP 10K 5% 1/10W
R115 1-216-105-00 RES,CHIP 220K 5% 1/10W
R116 1-216-089-00 RES,CHIP 47K 5% 1/10W
R117 1-216-113-00 METAL CHIP 470K 5% 1/10W
R118 1-216-089-00 RES,CHIP 47K 5% 1/10W
R119 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
R120 1-216-063-00 RES,CHIP 3.9K 5% 1/10W
R121 1-216-075-00 METAL CHIP 12K 5% 1/10W
R122 1-216-061-00 METAL CHIP 3.3K 5% 1/10W
R123 1-260-082-11 CARBON 39 5% 1/2W
R124 1-260-082-11 CARBON 39 5% 1/2W
R125 1-216-051-00 METAL CHIP 1.2K 5% 1/10W
R126 1-216-075-00 METAL CHIP 12K 5% 1/10W
R128 1-216-113-00 METAL CHIP 470K 5% 1/10W
R129 1-216-073-00 METAL CHIP 10K 5% 1/10W
R130 1-216-109-00 METAL CHIP 330K 5% 1/10W
R131 1-216-057-00 METAL CHIP 2.2K 5% 1/10W
< SWITCH >
SW1 1-692-207-21 SWITCH, SLIDE (AUDIBLE INDICATOR)
SW2 1-692-207-21 SWITCH, SLIDE (RINGER SELECT)
< IC >
U1 8-759-589-79 IC TC88512AF-043
U2 8-759-489-92 IC TC58A040F
U3 8-759-596-96 IC XC61AN4602PR
U80 8-759-291-01 IC NJM2113M-TE2
U90 8-759-450-47 IC BA05T
< VIBRATOR >
X1 1-579-734-11 VIBRATOR, CRYSTAL (4.000MHz)
< GAP >
Z100 1-533-751-11 GAP, DISCHARGE
MAIN

– 16 –
Sony Corporation
Personal & Mobile Communication Company
9-926-514-31 99D0902042-1
Printed in Japan © 1999. 4
Published by Quality Assurance Dept.
TAM-100
Ref. No. Part No. Description Remark
< DIODE >
ZD70 8-719-923-56 DIODE MTZJ-T-77-8.2B
ZD100 8-719-923-38 DIODE MTZJ-T-77-5.6B
ZD101 8-719-923-38 DIODE MTZJ-T-77-5.6B
**************************************************************
MISCELLANEOUS
*************
5 1-771-695-11 SWITCH, RUBBER KEY
JP90 1-766-366-11 JACK, DC (DC IN 12V)
JP100 1-793-136-11 JACK, MODULAR (2C) 6P (TEL)
JP101 1-793-136-11 JACK, MODULAR (2C) 6P (LINE)
T70 1-542-368-11 MICROPHONE, ELECTRET CONDENSER
SP901 1-504-748-21 SPEAKER (6.6CM)
**************************************************************
*************
HARDWARE LIST
*************
#1 7-685-132-19 SCREW +PTPWH 2.6X5 (TYPE2)
#2 7-685-133-19 SCREW +BTP 2.6X6 TYPE2 N-S
#3 7-685-547-11 SCREW +BTP 3X10 TYPE2 N-S
**************************************************************
PARTSFORINS TALLATION AND CONNECTIONS
**************************************
51 1-418-458-11 ADAPTOR, AC (AC-T70)
52 1-696-454-11 CORD (WITH MODULAR PLUG)(LINE)
53 3-866-411-21 MANUAL, INSTRUCTION (ENGLISH,FRENCH)
54 3-866-418-21 GUIDE, QUICK START (ENGLISH,FRENCH)
51
52
53
54
MAIN
