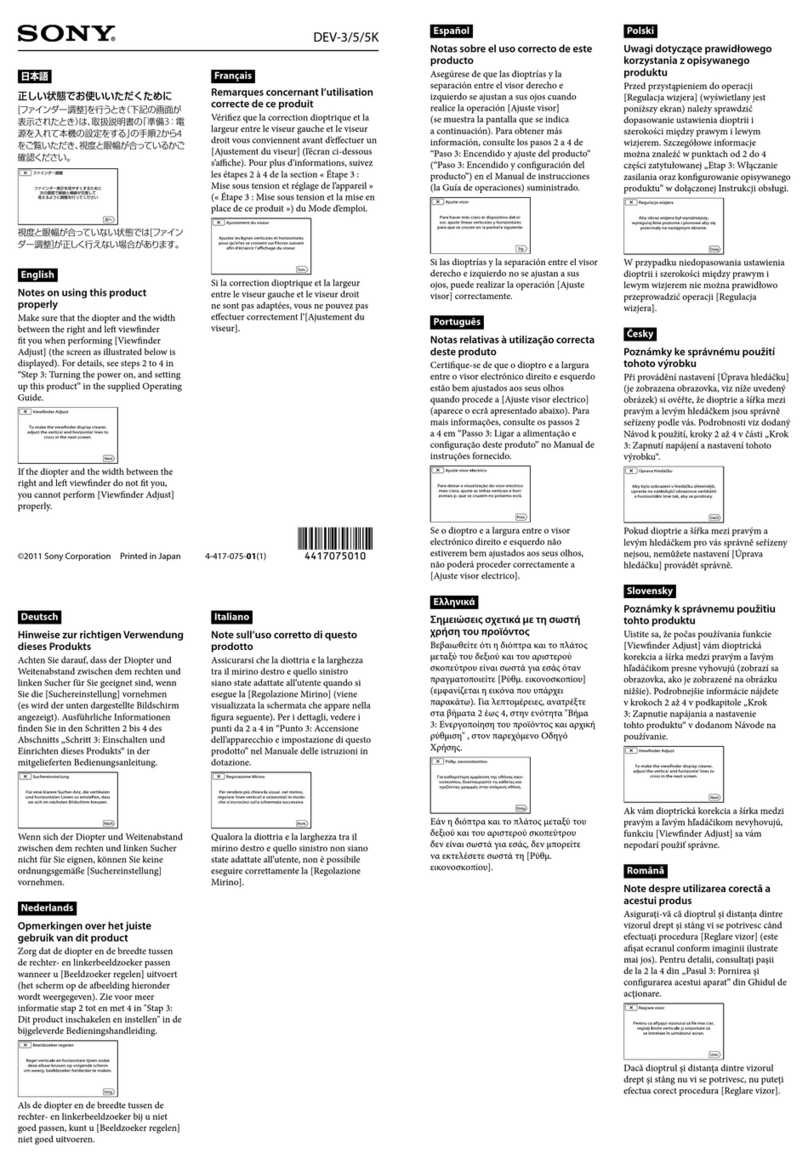

Sony Dev-3 digital recording binoculars User manual

Easy to find, Never lose the subject.

1920x1080 Full HD 60i recording

and 7.1 MP still image capture

Geotagging with built-in GPS

receiver

Capturing 1920 x 1080 resolution lets you record your

memories in exceptional Full High Definition quality.

Capable of 60i recording and playback via HDMI® on

a compatible HDTV (cable sold separately) provides

stunning clarity and incredible detail of your memories.

At the same time, you can also capture up to 7.1MP still

images so you never miss that decisive moment2

A built-in GPS receiver makes the DEV-5 an ideal

choice for travelers. The receiver gives you the ability

to view your current location on the viewfinder LCD

map display, as well as “tag” your shooting locations.

Tagged videos and still images can be reviewed and

played back once downloaded to your PC using the

supplied PMB (Picture Motion Browser) software3

Up to 20x Seamless Zoom in 3D

mode with AutoFocus

Enjoy high magnification of up to 20x total zoom in 3D

mode with the DEV-5 (or up to 10x optical zoom with the

DEV-3). Both models offer seamless zoom from 0.9x to

maximum magnification so users will find it easy to frame

their subjects. With Autofocus, the subject will remain

sharp in view through zooming unlike conventional

zooming binoculars. And, unlike conventional

binoculars, the DEV-3 and DVE-5 also focus on subjects

as close as 0.39" (1cm) when recording in 2D, and as

close as 31.5" (80cm) when recording in 3D.

Optical SteadyShot™ image

stabilization w/ Active Mode

Optical SteadyShot™ image stabilization with Active

Mode compensates for greater degrees of camera

shake to deliver stunningly smooth images, whether

you’re simply observing through these unique binoculars

or shooting in Full HD 3D or 2D video. Now you can

capture life smoothly as it happens while walking and

zooming in from wide to telephoto and back.

Ergonomic and Functional

Design

These binoculars have been designed for the

end-user in mind, with a grip block for optimized

comfortable, fatigue-free viewing and shooting,

dual record buttons and a manual dial for focus

control. With the ability to view your subject and

instantaneously record video and/or still photos

with the same device you will lighten your load.

Long recording capability and

Battery Display

Enjoy your surroundings with ease of mind knowing

that, with your supplied NP-FV70 rechargeable

battery pack, you can capture up to 2 hours and

35 minutes of 2D recording on a single charge4

Remaining battery time is displayed in minutes on

viewfinder LCD, so you’ll always be able to keep

track of how much recording time is left.

Dual Back-illuminated “Exmor R”

CMOS sensors for superb

low-light video

Experience stunning low-light sensitivity with

improved image clarity and drastically reduced

grain with Sony’s back-illuminated “Exmor R”

CMOS sensor. Designed for compact cameras

and camcorders, the “Exmor R” sensor relocates

the photo diodes above the support circuitry,

maximizing the light gathering area per pixel

so you can shoot with better results in lower

lighting conditions.

Sony introduces the world’s first pair of digital recording binoculars

capable of capturing full AVCHD™ (1920x1080) video in 2D or 3D. Both

the DEV-5 and the DEV-3 have incredible 10x optical zoom for viewing

or capturing video in 2D and 3D with the DEV-5 incorporating extended

digital zoom up to 20x so you can get up close and personal without

disturbing your subject. These are the only pair of binoculars that offer

autofocus while zooming, allowing you to frame a shot and never miss

memorable moments. Each model boasts Optical SteadyShot™ image

stabilization, which reduces blur for crisp sharp images whether you’re

just observing or when capturing stunning video. These binoculars will

change the way you see and remember life.

Digital Recording Binoculars

The world’s first1 digital binoculars with HD video recording capability

Share the thrill of discovery

NEW

DEV-5 DEV-3

DEV-5

DEV-3 specifications.

Imaging Sensor

Imaging Sensor 2x 1/4" (4.5mm) back-illuminated “Exmor R” CMOS Sensor

Pixel Gross Approx. 4200K pixels(2D) / 2x Approx. 4200K pixels(3D)

Recording

Media Type No internal memory

Memory Stick PRO Duo ™ (Mark 2)

Memory Stick PRO-HG Duo™

SD/SDHC/SDXC Memory Card(Class 4 or Higher)

Still Image Mode 3D Still Image: Not available/2D Still Image:JPEG

Still Image Max Effective

7.1 megapixels

Still Image Size(Photo

Mode)

7.1 megapixels (4:3) (3072x2304)

5.3 megapixels (16:9) (3072x1728)

1.9 megapixels (4:3) (1600x1200)

307K pixels (4:3) (640x480)

Video Format 2D HD: MPEG-4 AVC/H.264 AVCHD format Ver.2.0 compatible

3D HD: MPEG-4 MVC/H.264 AVCHD format Ver.2.0 compatible

Video Mode

(Resolution)

2D HD: 1920x1080/60p, (PS), 1920x1080/60i, (FX,FH),

1440x1080/60i, (HQ,LP)

3D HD: 2x 1920x1080/60i

Movie Recording Rate

(Average Bit

Rate/VBR)

2D HD

PS: Approx. 28Mbps/FX: Approx. 24Mbps/FH: Approx.

17Mbps/

HQ: Approx. 9Mbps/LP: Approx. 5Mbps

3D HD

3D: Approx. 28Mbps

Recording and

Playback Times

(32GB Memory

Card), sold separately

(2ch)

2D HD PS: Approx. 2h30m

2D HD FX: Approx. 3h00m

2D HD FH: Approx. 4h05m

2D HD HQ: Approx. 7h20m

2D HD LP: Approx. 12h50m

3D HD

3D: Approx. 2h30m

Audio Format Dolby Digital® 2ch Stereo

Microphone/Speaker Built-in Microphone / Monaural

Optics/Lens *Resolution is reduced at zoomed magnifications.

Lens Type G Lens

Aperture F1.8 - F3.4

Magnification (DEV-5)

(Movie Mode)

x0.9 - x10(2D:Digital zoom is OFF) / x0.9 - x20(2D:Digital

zoom is ON) / x0.5 - x5.4(3D)

Magnification (DEV-5)

(Photo Mode)*

x0.5 - x20 (16:9) / x0.3 - x15 (4:3)

Magnification (DEV-3)

(Movie Mode)

x0.9 - x10(2D) / x0.5 - x5.4(3D)

Magnification (DEV-3)

(Photo Mode)*

x0.5 - x10 (16:9) / x0.39 - x7.5 (4:3)

Minimum Focus

Distance

Movie Mode

2D: Approx. 0.39" (Wide) / Approx. 31.5" (Tele)

3D: Approx. 31.5" (Wide) / Approx. 24.6' (Tele)

Photo Mode

Approx. 0.39" (Wide) / Approx. 31.5" (Tele) / Approx. 9.84"

(Tele Macro)

Viewfinder

Type 2x 0.45 inch(1.1cm) Wide (16:9)

1,226,880 dots (852x3[RGB]x480)

Diopter Adjustment Yes (-3.5 - +3.5)

Eye relief 14.3mm

Apparent field of view

(diagonal dimension)

35.6°(16:9)

Interpupillary distance

adjust

2.16" - 2.95"

Brightness Control Yes (5 steps)

Exposure System

Minimum Illumination Standard:11 lux (1/60 Shutter Speed:60i)

Convenience Features

Multiple Language

Display

Japanese, English, Simplified English, Traditional Chinese,

Simplified Chinese, French, Italian, German, Spanish,

Dutch, Russian, Romanian, Portugese, Greek, Arabic,

Persian, Thai, Brazilian Portugese, Canadian French,

Latin American Spanish, Korean, Turkish, Polish, Czech,

Hungarian, Indonesian, Malay

Advanced Features

Image Stabilization Optical SteadyShot™ image stabilization w/ Active mode

(Wide to Tele(2D) / wide(3D))

Interface

Memory Card Slot Memory Stick PRO Duo™ and SD/SDHC/SDXC compatible

STD Output Composite Video Out(A/V connecting cable(supplied))

Component Video Out(Component A/V cable(sold

separately))

S Video Out(A/V connectiong cable with S Video

(sold separately))

HD Output HDMI Out(mini), sold separately

Component Video Out(Component A/V cable(sold

separately))

3D HD Output HDMI Out(mini), sold separately

USB Port(s) TypeA, mini-AB/USB2.0 Hi-speed (mass-storage/MTP)

Headphone Jack Stereo Minijack

Microphone Input Stereo Minijack

DC IN Yes

A/V Remote Terminal Video/S Video/Audio/Component Out/Remote

Weights and Measurements

Dimensions (WxHxD)

(Body only including

protrusion)

Approx. 8.63 x 6.10 x 3.47 in.

(219 x 155 x 88 mm)

Dimensions (WxHxD)

(Lens cover,Large

Eyecup and protrusion)

Approx. 10.63 x 6.54 x 4.73 in.

(270 x 166 x 120 mm)

Weight (Body only) Approx. 2.65 lb 42.3 oz (1.2 kg)

Weight (Including

Battery, Lens Cover,

Large Eyecup and

Memory Stick PRO Duo)

Approx. 2.87 lb 45.9 oz (1.3 kg)

(NP-FV70 as supplied battery)

Approx. 3.09 lb 49.4 oz (1.4 kg)

(NP-FV100 as sold separately)

Power

Battery Type InfoLITHIUM® with AccuPower™ Meter System (V Series)

Power Consumption in

recording

2D HD: 4.2W (FX)

3D HD: 4.8W

Power Requirements 6.8V (battery pack); 8.4V (AC Adaptor)

Recording time(2D)5Approx. 3h05m NP-FV70

Approx. 6h10m NP-FV100

Recording time(3D)5Approx. 2h40m NP-FV70

Approx. 5h20m NP-FV100

Playback time(2D)5Approx. 4h50m NP-FV70

Approx. 9h40m NP-FV100

Playback time(3D)5Approx. 4h20m NP-FV70

Approx. 8h35m NP-FV100

*With Fully charged Battery

In the Box

Main Supplied Accessory

(DEV-5)

Rechargeable Battery Pack(NP-FV70) (1)

AC adaptor/Charger AC-L200C(D) (1)

Power Cord (1)

Large Eyecup (2)

Lens Cover (1)

Finder Cap (1)

Neck Strap (1)

Carrying Case (1)

A/V Connecting Cable (1)

USB Cable (1)

CD-ROM(Video Camera Application Software) (1)

Operating Guide (1)

Main Supplied Accessory

(DEV-3)

Rechargeable Battery Pack(NP-FV70) (1)

AC adaptor/Charger AC-L200C(D) (1)

Power Cord (1)

Neck Strap (1)

A/V Connecting Cable (1)

USB Cable (1)

CD-ROM(Video Camera Application Software) (1)

Operating Guide (1)

1. Based on AVCHD recording capability at the time of announcement (August 19 2011). 2. Still image size may be lower resolution when captured in movie mode. 3. Files compatible with iMovie® ‘09

or later on Mac. Software not compatible with Mac OS® X. 4. Actual performance varies based on settings, environmental conditions, and usage. Battery capacity decreases over time and use. 5. Actual

performance varies based on settings, environmental conditions, and usage. Battery capacity decreases over time and use.
