Sony DEV-30 User manual

DEV-30/50/50V_L3 Sony Corporation
SERVICE MANUAL
Revision History
LEVEL 3
Check the SERVICE NOTE (LEVEL 2) before the service.
Ver. Date History Contents S.M. Rev.
issued
1.0 2013.05 Official Release — —
983473611.pdf
The components identified
by mark 0or dotted line with
mark 0are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
2013E08-1
© 2013.05
Published by Sony Techno Create Corporation9-834-736-11
DIGITAL RECORDING BINOCULARS
Ver. 1.0 2013.05 US Model
Canadian Model
AEP Model
Chinese Model
Japanese Model
Tourist Model
DEV-30/50/50V
Photo: DEV-50V

DEV-30/50/50V_L3
– 2 –
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK OR DOTTED LINE WITH
MARK ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST
ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPO-
NENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS
SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY
SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REM-
PLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT
LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES
SUPPLÉMENTS PUBLIÉS PAR SONY.
Caution
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.
Caution
電池の交換は，正しく行わないと破裂する恐れがあります。
電池を交換する場合には必ず同じ型名の電池又は同等品と
交換してください。
使用済み電池は，取扱指示に従って処分してください。
CHEMICALS
Some chemicals used for servicing are highly volatile.
Their evaporation caused by improper management affects your health
and environment, and wastes resources.
Manage the chemicals carefully as follows.
• Store chemicals sealed in a specific place to prevent from exposure
to high temperature or direct sunlight.
• Avoid dividing chemicals into excessive numbers of small containers
to reduce natural evaporation.
• Keep containers sealed to avoid natural evaporation when chemicals
are not in use.
• Avoid using chemicals as much as possible. When using chemicals,
divide only required amount to a small plate from the container and
use up it.
PLASTIC PARTS
Be careful to the following points for plastic parts used in this unit.
• Use a piece of cleaning paper or cleaning cloth for cleaning plastic
parts. Avoid using chemicals.
Even if you have to use chemicals to clean heavy dirt, don’t use paint
thinner, ketone, nor alcohol.
• Insert the specific screws vertically to the part when installing a
plastic part.
Be careful not to tighten screws too much.
UNLEADED SOLDER
This unit uses unleaded solder.
Boards requiring use of unleaded solder are printed with the lead free
mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with the
lead free mark due to their particular size.)
: LEAD FREE MARK
Be careful to the following points to solder or unsolder.
• Set the soldering iron tip temperature to 350 °C approximately.
If cannot control temperature, solder/unsolder at high temperature
for a short time.
Caution: The printed pattern (copper foil) may peel away if the
heated tip is applied for too long, so be careful!
Unleaded solder is more viscous (sticky, less prone to
flow) than ordinary solder so use caution not to let solder
bridges occur such as on IC pins, etc.
• Be sure to control soldering iron tips used for unleaded solder and
those for leaded solder so they are managed separately. Mixing un-
leaded solder and leaded solder will cause detachment phenomenon.
SAFETY CHECK-OUT
After correcting the original service problem, perform the following
safety checks before releasing the set to the customer.
1. Check the area of your repair for unsoldered or poorly-soldered
connections. Check the entire board surface for solder splashes and
bridges.
2. Check the interboard wiring to ensure that no wires are “pinched”
or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors,
that were installed during a previous repair. Point them out to the
customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs of
deterioration. Point them out to the customer and recommend their
replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
• Keep the temperature of the soldering iron around 350 °C during
repairing.
• Do not touch the soldering iron on the same conductor of the circuit
board (within 3 times).
• Be careful not to apply force on the conductor when soldering or
unsoldering.
各種薬品の取り扱いについて
現在使用されている薬品の中には揮発性の高い薬品もありま
す。
それらを不用意に取り扱い蒸発させてしまうと，環境や健康へ
影響を与えたり，資源の無駄使いになります。
各種薬品は，下記の点に注意して取り扱ってください。
・ 保管場所を定め，高温になったり直射日光の当たらない場
所に密閉して保管してください。
・ 小分け（ハンドラップ等）する数は必要最小限に留め，容器
による自然蒸発を防いでください。
・ 作業に使用しない時は，必ずキャップ等をして自然蒸発を
防いでください。
・ 薬品を使用する回数を極力少なくし，使用する場合は使用
する量だけ容器より出して受け皿に残さないようにしてく
ださい。
樹脂系部品の取り扱いについて
本機に使用されている樹脂系の部品は，下記の点に注意して取
り扱ってください。
・ 清掃には薬品を使用せず，清掃紙や清掃布を使用してくだ
さい。
 やむを得ず汚れがひどくて薬品を使用する場合は，シン
ナー，ケトン，エーテルは使用しないでください。
・ 各部品の取り付けには指定されたねじを使用し，部品に対
して垂直に取り付けてください。
 また，ねじを締め付ける時は，無理な力を加えないでくだ
さい。
1. 注意事項をお守りください。
 サービスのとき特に注意を要する個所については，キャビ
ネット，シャーシ，部品などにラベルや捺印で注意事項を
表示しています。これらの注意書き及び取扱説明書等の注
意事項を必ずお守りください。
2. 指定部品のご使用を
 セットの部品は難燃性や耐電圧など安全上の特性を持った
ものとなっています。従って交換部品は，使用されていた
ものと同じ特性の部品を使用してください。特に回路図，
部品表に印で指定されている安全上重要な部品は必ず指
定のものをご使用ください。
3. 部品の取付けや配線の引きまわしはもとどおりに
 安全上，チューブやテープなどの絶縁材料を使用したり，
プリント基板から浮かして取付けた部品があります。
 また内部配線は引きまわしやクランパによって発熱部品や
高圧部品に接近しないよう配慮されていますので，これら
は必ずもとどおりにしてください。
4. サービス後は安全点検を
 サービスのために取外したネジ，部品，配線がもとどおり
になっているか，またサービスした個所の周辺を劣化させ
てしまったところがないかなどを点検し，安全性が確保さ
れていることを確認してください。
5. チップ部品交換時の注意
 ・ 取り外した部品は再使用しないでください。
 ・ タンタルコンデンサのマイナス側は熱に弱いため交換時
は注意してください。
6. フレキシブルプリント基板の取扱いについて
 ・ こて先温度を350℃に設定して行ってください。
 ・ 同一パターンに何度もこて先を当てないでください。
  （3回以内）
 ・ パターンに力が加わらないよう注意してください。
サービス，点検時には次のことにご注意ください。
無鉛半田について
本機には無鉛半田が使用されています。
無鉛半田を使用している基板には，無鉛（LeadFree）を意味する
レッドフリーマークがプリントされています。
（注意：基板サイズによっては，無鉛半田を使用していてもレッ
ドフリーマークがプリントされていないものがありま
す）
：レッドフリーマーク
無鉛半田は，下記の点に注意して使用してください。
・ 半田こてのこて先温度は約350℃に設定してください。
 温度調節が無理な場合は，高温短時間で作業を行ってくだ
さい。
 注意：半田こてを長く当てすぎると，基板のパターン（銅
箔）がはがれてしまうことがありますので，注意して
ください。また，従来の半田よりも粘性が強いため，
IC端子などが半田ブリッジしないように注意してく
ださい。
・ 半田こてのこて先は，必ず無鉛半田用と有鉛半田用に分け
て管理してください。
 無鉛半田と有鉛半田が混在すると剥離現象が発生してしま
います。
– ENGLISH – – JAPANESE –

DEV-30/50/50V_L3
2-1
(ENGLISH)
NOTE:
• -XX, -X mean standardized parts, so they may have some dif-
ferences from the original one.
• Items marked “*” are not stocked since they are seldom required
for routine service. Some delay should be anticipated when
ordering these items.
• The mechanical parts with no reference number in the exploded
views are not supplied.
• Due to standardization, replacements in the parts list may be
different from the parts specified in the diagrams or the com-
ponents used on the set.
• CAPACITORS:
uF: μF
• COILS
uH: μH
• RESISTORS
All resistors are in ohms.
METAL: metal-film resistor
METAL OXIDE: Metal Oxide-film resistor
F: nonflammable
• SEMICONDUCTORS
In each case, u: μ, for example:
uA...: μA... , uPA... , μPA... ,
uPB... , μPB... , μPC... , μPC... ,
uPD..., μPD...
(JAPANESE)
【使用上の注意】
• ここに記載されている部品は,補修用部品であるため,回路図
及びセットに付いている部品と異なる場合があります。
• -XX,-Xは標準化部品のため,セットに付いている部品と異な
る場合があります。
• *印の部品は常備在庫しておりません。
• コンデンサの単位でuFはμFを示します。
• 抵抗の単位Ωは省略してあります。
 金 被：金属被膜抵抗。
 サンキン：酸化金属被膜抵抗。
• インダクタの単位でuHはμHを示します。
• 半導体の名称でuA...,uPA...,uPB...,uPC...,uPD...等はそれぞれ
μA...,μPA...,μPB...,μPC...,μPD...を示します。
2. REPAIR PARTS LIST
The components identified by mark 0or
dotted line with mark 0are critical for safety.
Replace only with part number specified.
Les composants identifiés par une marque
0sont critiques pour la sécurité.
Ne les remplacer que par une pièce portant
le numéro spécifié.
図面番号で部品を指定するときは基板名
又はブロックを併せて指定してください。
お願い
0印の部品，または0印付の点線で囲ま
れた部品は，安全性を維持するために，
重要な部品です。
従って交換時は，必ず指定の部品を使用
してください。
When indicating parts by reference
number,please include the board name.
A-1945-867-A CABINET (TOP) BLOCK ASSY
(Not supplied) KY-1005 BOARD, COMPLETE
(Not supplied) JY-1001 BOARD, COMPLETE
(Not supplied) ZM-1001 BOARD, COMPLETE
***********************
(All mounted parts, KY-1005 COMPLETE BOARD, JY-1001 COMPLETE BOARD and
ZM-1001 COMPLETE BOARD are not supplied, but they are included in CABINET
(TOP) BLOCK ASSY.)
A-1851-196-A CM-123 BOARD, COMPLETE (MAIN)
A-1851-196-A CM-123 BOARD, COMPLETE (SUB)
****************************
(All mount parts are not supplied, but they are included in CM-123 COMPLETE BOARD
(MAIN/SUB).)
1-887-911-11 FP-2134 FLEXIBLE BOARD
*********************
1-887-912-11 FP-2135 FLEXIBLE BOARD
*********************
1-887-914-11 FP-2137 FLEXIBLE BOARD (MAIN)
1-887-914-11 FP-2137 FLEXIBLE BOARD (SUB)
*********************
1-887-915-11 FP-2138 FLEXIBLE BOARD
*********************
1-887-918-11 FP-2141 FLEXIBLE BOARD
*********************
1-887-982-11 FP-2147 FLEXIBLE BOARD
*********************
A-1938-584-A GP405 ASSY
(Not supplied) GP-1009 BOARD, COMPLETE
***********************
(All mounted parts and GP-1009 COMPLETE BOARD are not supplied, but they are
included in GP405 ASSY.)
A-1949-930-A JKR BLOCK ASSY
(Not supplied) JK-1005 BOARD, COMPLETE
***********************
(All mounted parts and JK-1005 COMPLETE BOARD are not supplied, but they are
included in JKR BLOCK ASSY.)
Ref. No. Part No. Description
A-1945-742-A LD-1009 BOARD, COMPLETE
***********************
(IC7701 and SE7701 are not supplied, but they are included in LD-1009 COMPLETE
BOARD.)
< CAPACITOR >
C7701 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C7702 1-114-411-21 CERAMIC CHIP 0.33uF 10% 6.3V
C7703 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C7704 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
*C7705 1-118-407-11 CERAMIC CHIP 470PF 10% 50V
C7706 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C7707 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C7708 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C7709 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
CN5001 1-842-897-11 CONNECTOR, FPC (ZIF) 45P
*CN5002 1-821-503-11 CONNECTOR, FPC (ZIF) 39P
CN5003 1-816-654-61 FFC/FPC CONNECTOR (LIF) 6P
< IC >
IC7701 (Not supplied) IC NJM3232MG2 (TE2)
< RESISTOR >
*R7701 1-250-523-11 METAL CHIP 15K 1% 1/16W
R7702 1-218-979-11 METAL CHIP 150K 5% 1/16W
R7703 1-218-965-11 METAL CHIP 10K 5% 1/16W
R7704 1-218-969-11 METAL CHIP 22K 5% 1/16W
R7705 1-218-969-11 METAL CHIP 22K 5% 1/16W
< SENSOR >
SE7701 (Not supplied) SENSOR, ANGULAR VELOCITY
A-1945-753-A LD-1010 BOARD, COMPLETE
***********************
< CONNECTOR >
CN5101 1-842-897-11 CONNECTOR, FPC (ZIF) 45P
*CN5102 1-821-503-11 CONNECTOR, FPC (ZIF) 39P
CN5104 1-778-506-21 PIN, CONNECTOR (PC BOARD) 2P
A-1945-991-A MS-1012 BOARD, COMPLETE (SERVICE)
********************************
(BT8001 is not included in MS-1012 COMPLETE BOARD (SERVICE).)
< BATTERY>
BT8001 1-756-134-15 BATTERY, LITHIUM (SECONDARY)
< BATTERY HOLDER >
BH8001 1-251-928-21 SOCKET, BATTERY
< CAPACITOR >
C7501 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C7502 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C7503 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
Ref. No. Part No. Description
Note 1: Be sure to read “Precautions for Replacement of Imager”
on page 6-1 when changing the Imager.
2-2. ELECTRICAL PARTS LIST
KY-1005 JY-1001 ZM-1001 CM-123 FP-2134 FP-2135 FP-2137 FP-2138 FP-2141 FP-2147 GP-1009 JK-1005 LD-1009 LD-1010 MS-1012
Note 2: Replace the battery holder (BH8001) together when
replacing the lithium storage battery (BT8001) on the MS-
1012 board.
(The battery holder removed once cannot be usedagain.)
When mounting these parts, mount new battery holder
first and attach new lithium storage battery next.
Note 1: イメージャの交換時は，6-1ページの"イメージャ交換時の
注意"を必ずお読みください。
Note 2:MS-1012基板のリチウム蓄電池 (BT8001)を交換する
場合はバッテリホルダ (BH8001)も同時に新品に交換し
てください。
 (一度使用したバッテリホルダは再使用できません。)
 部品取り付けの際は、先にバッテリホルダを取り付けて
からリチウム蓄電池を装着してください。
注意
電池の交換は、正しく行わないと破裂する恐れがあります。
電池を交換する場合には必ず同じ型名の電池又は同等品と交換し
てください。
使用済み電池は、取扱指示に従って処分してください。
Caution
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of used batteries according to the instructions.

DEV-30/50/50V_L3
2-2
C7504 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C7507 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C7508 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C7509 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C7510 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C7511 1-114-411-21 CERAMIC CHIP 0.33uF 10% 6.3V
C7512 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C7513 1-114-411-21 CERAMIC CHIP 0.33uF 10% 6.3V
C7514 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C7515 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C7516 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C7517 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C8001 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C8002 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
< CONNECTOR >
CN8001 1-843-088-23 CARD CONNECTOR
CN8003 1-842-897-11 CONNECTOR, FPC (ZIF) 45P
< DIODE >
D8001 6-502-193-01 DIODE SML-D12V8WT86SN
< IC >
IC7501 6-707-333-01 IC NJM3230SE7
< RESISTOR >
R7505 1-218-969-11 METAL CHIP 22K 5% 1/16W
R7506 1-218-969-11 METAL CHIP 22K 5% 1/16W
R7508 1-218-965-11 METAL CHIP 10K 5% 1/16W
R7509 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R7510 1-218-976-11 METAL CHIP 82K 5% 1/16W
R7511 1-218-976-11 METAL CHIP 82K 5% 1/16W
R7512 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R7513 1-218-965-11 METAL CHIP 10K 5% 1/16W
R7514 1-218-969-11 METAL CHIP 22K 5% 1/16W
R7515 1-218-969-11 METAL CHIP 22K 5% 1/16W
R8012 1-218-941-81 METAL CHIP 100 5% 1/16W
R8017 1-218-935-11 METAL CHIP 33 5% 1/16W
R8048 1-218-941-81 METAL CHIP 100 5% 1/16W
R8049 1-218-941-81 METAL CHIP 100 5% 1/16W
R8050 1-218-941-81 METAL CHIP 100 5% 1/16W
R8051 1-218-941-81 METAL CHIP 100 5% 1/16W
R8052 1-218-953-11 METAL CHIP 1K 5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB8005 1-234-372-11 RES, NETWORK 100 (1005X4)
< SENSOR >
*SE7501 1-491-955-11 SENSOR, ANGULAR VELOCITY (PITCH/YAW)
A-1945-758-A US-1001 BOARD, COMPLETE
***********************
< CONNECTOR >
CN9001 1-816-654-61 FFC/FPC CONNECTOR (LIF) 6P
Ref. No. Part No. Description
CN9002 1-822-265-21 CONNECTOR, USB (MINI AB)
A-1945-990-A VC-1016 BOARD, COMPLETE (SERVICE)
********************************
(CN1016, IC1301, IC1601, IC3106, IC3107, IC3108, IC3109, IC3110, IC4304, IC4801,
R4361 and R4815 are not supplied, but they are included in VC-1016 COMPLETE
BOARD (SERVICE).)
< CAPACITOR >
C1001 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C1002 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C1005 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C1006 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1007 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1008 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C1009 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C1010 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C1012 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C1013 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1014 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
C1021 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C1022 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C1301 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1302 1-116-732-11 CERAMIC CHIP 2.2uF 20% 6.3V
C1303 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1304 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1305 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1306 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1307 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1308 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1309 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1310 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1313 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1314 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1315 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1316 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1317 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C1319 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
C1320 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1321 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1322 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1323 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1325 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C1327 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
C1338 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1339 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1344 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C1345 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1407 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C1410 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1411 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1412 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1421 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1423 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1424 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1428 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1431 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1434 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1435 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1437 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1438 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1448 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1449 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C1501 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
C1504 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1505 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C1506 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
C1507 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C1508 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
*C1509 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
C1510 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1511 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1512 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1513 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C1514 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1515 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1516 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1518 1-118-399-11 CERAMIC CHIP 0.0022uF 10% 50V
C1519 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C1521 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1523 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1524 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
C1526 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1527 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1529 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1601 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1602 1-116-732-11 CERAMIC CHIP 2.2uF 20% 6.3V
C1603 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1604 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1606 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1607 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1610 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1613 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1614 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1615 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C1619 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
C1620 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1621 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1622 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1625 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C1627 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
C1629 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1723 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1724 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1728 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1731 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1737 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C1801 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
C1804 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1805 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C1806 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
C1807 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C1808 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
*C1809 1-116-714-11 CERAMIC CHIP 22uF 20% 6.3V
C1810 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1811 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C1812 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1813 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C1814 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1815 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1816 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1818 1-118-399-11 CERAMIC CHIP 0.0022uF 10% 50V
C1819 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C1821 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1823 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1824 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
C1826 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1827 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C1829 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C2301 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C2302 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C2303 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C2304 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C2306 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C2307 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C2309 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C2310 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
*C2311 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
*C2312 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C2314 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C2315 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C2316 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C2317 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
*C2318 1-118-407-11 CERAMIC CHIP 470PF 10% 50V
C2319 1-118-395-11 CERAMIC CHIP 0.0047uF 10% 50V
C2321 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C2322 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C2323 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C2324 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C2325 1-116-729-11 CERAMIC CHIP 2.2uF 20% 10V
C2326 1-116-729-11 CERAMIC CHIP 2.2uF 20% 10V
C2327 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C2328 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3001 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C3003 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3101 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3102 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3103 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3104 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3105 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3106 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3107 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3108 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3109 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3110 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3303 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3304 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3501 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C3502 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C3503 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3504 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3601 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C3602 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3603 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
Ref. No. Part No. Description Ref. No. Part No. Description Ref. No. Part No. Description
MS-1012 US-1001 VC-1016

DEV-30/50/50V_L3
2-3
C3604 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C3605 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C3607 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3608 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3609 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3610 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3611 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3612 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3613 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3614 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3615 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3616 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3617 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3618 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3619 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3620 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3621 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3622 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3701 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C3702 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C3703 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C3704 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C3706 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3707 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3708 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3709 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3710 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3711 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3712 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3713 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3714 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3715 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3716 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3717 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3718 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3902 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
C3903 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
C3906 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
C3907 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3908 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3909 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3910 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3911 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3912 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3913 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3914 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3915 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C3916 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4301 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C4302 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C4303 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C4304 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C4305 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C4306 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C4308 1-112-300-91 CERAMIC CHIP 4.7uF 10% 10V
C4309 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C4310 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4311 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C4312 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
Ref. No. Part No. Description
C4313 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C4314 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C4315 1-116-720-11 CERAMIC CHIP 10uF 20% 6.3V
C4316 1-116-717-11 CERAMIC CHIP 10uF 20% 10V
C4317 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4318 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C4319 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C4320 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4321 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4322 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4323 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C4324 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C4325 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
*C4326 1-118-035-11 CERAMIC CHIP 0.1uF 10% 25V
C4327 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C4328 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C4329 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C4330 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C4331 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4332 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C4333 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C4334 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C4349 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4350 1-116-737-11 CERAMIC CHIP 1uF 20% 10V
C4357 1-116-744-11 CERAMIC CHIP 0.22uF 10% 10V
C4358 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C4359 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4360 1-100-591-91 CERAMIC CHIP 1uF 10% 25V
C4362 1-164-874-11 CERAMIC CHIP 100PF 5% 50V
C4363 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C4364 1-116-734-11 CERAMIC CHIP 1uF 20% 16V
C4365 1-116-724-11 CERAMIC CHIP 4.7uF 20% 6.3V
C4366 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C4367 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C4368 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C4369 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C4370 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C4371 1-164-856-81 CERAMIC CHIP 18PF 5% 50V
C4801 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V
C4802 1-117-748-81 CERAMIC CHIP 10PF 0.1PF 16V
C4803 1-164-852-11 CERAMIC CHIP 12PF 5% 50V
C4804 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4805 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4806 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4808 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4809 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C4810 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C4811 1-100-567-81 CERAMIC CHIP 0.01uF 10% 25V
C5205 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5206 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5207 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C5208 1-116-744-11 CERAMIC CHIP 0.22uF 10% 10V
C5209 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5211 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5212 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5213 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5214 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5219 1-100-415-91 CERAMIC CHIP 0.47uF 10% 6.3V
C5221 1-100-415-91 CERAMIC CHIP 0.47uF 10% 6.3V
C5224 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C5302 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5306 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5307 1-118-403-11 CERAMIC CHIP 0.001uF 10% 50V
C5308 1-116-744-11 CERAMIC CHIP 0.22uF 10% 10V
C5309 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5311 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5312 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5313 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5314 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5315 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C5504 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5506 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5507 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5525 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C5526 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C5527 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C5528 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C5529 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C5530 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C5531 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C5532 1-118-388-11 CERAMIC CHIP 0.047uF 10% 25V
C5537 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
C5702 1-118-417-11 CERAMIC CHIP 0.1uF 10% 16V
C5705 1-116-713-11 CERAMIC CHIP 22uF 20% 10V
< CONNECTOR >
*CN1001 1-819-781-61 CONNECTOR, FPC (ZIF) 45P
*CN1002 1-816-646-51 FFC/CONNECTOR, FPC (LIF) 16P
CN1003 1-779-327-51 CONNECTOR, FFC/FPC 6P
CN1005 1-779-330-51 CONNECTOR, FFC/FPC 12P
CN1006 1-819-934-61 CONNECTOR, FPC (ZIF) 39P
*CN1007 1-816-645-51 FFC/CONNECTOR, FPC (LIF) 14P
CN1008 1-691-550-11 PIN, CONNECTOR (1.5MM) (SMD) 3P
*CN1009 1-816-655-51 FFC/CONNECTOR, FPC (LIF) 8P
CN1010 1-819-934-61 CONNECTOR, FPC (ZIF) 39P
CN1011 1-842-897-11 CONNECTOR, FPC (ZIF) 45P
CN1012 1-816-647-61 FFC/CONNECTOR, FPC (LIF) 18P
CN1013 1-843-066-11 CONNECTOR, HDMI
CN1014 1-842-897-11 CONNECTOR, FPC (ZIF) 45P
CN1015 1-842-897-11 CONNECTOR, FPC (ZIF) 45P
CN1016 (Not supplied) SOCKET, USB CONNECTOR
CN1017 1-779-327-51 CONNECTOR, FFC/FPC 6P
CN1018 1-842-897-11 CONNECTOR, FPC (ZIF) 45P
< DIODE >
D1401 6-503-126-01 DIODE DA2S10100K8
D1402 6-503-126-01 DIODE DA2S10100K8
*D3503 6-502-988-01 DIODE RB480Y-40T2R
D4301 6-503-126-01 DIODE DA2S10100K8
*D4304 6-503-185-01 DIODE DSR520, H3SONYF
*D4305 6-502-988-01 DIODE RB480Y-40T2R
< FUSE >
F001 1-523-134-31 FUSE (2A/50V)
F002 1-523-133-31 FUSE (1.4A/50V)
< FERRITE BEAD >
FB1001 1-400-331-11 FERRITE, EMI (SMD) (1005)
FB1002 1-400-331-11 FERRITE, EMI (SMD) (1005)
FB1003 1-400-331-11 FERRITE, EMI (SMD) (1005)
FB1301 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
FB1302 1-469-580-21 INDUCTOR, FERRITE BEAD (1005)
*FB1303 1-481-250-11 INDUCTOR, FERRITE BEAD (1005)
FB1401 1-500-975-21 FERRITE, EMI (SMD)
FB1501 1-481-912-21 EMI FERRITE (SMD) (1005)
FB1801 1-481-912-21 EMI FERRITE (SMD) (1005)
*FB3101 1-481-250-11 INDUCTOR, FERRITE BEAD (1005)
*FB3601 1-481-250-11 INDUCTOR, FERRITE BEAD (1005)
*FB3701 1-481-250-11 INDUCTOR, FERRITE BEAD (1005)
< IC >
IC1002 6-716-783-01 IC BD11600NUX-E2
*IC1003 6-714-833-01 IC TPS2553DBVR-1
IC1301 (Not supplied) IC AVY2G2G05EINZ
IC1302 6-716-878-01 IC AK8153AU-L
IC1303 6-705-881-01 IC HD74ALVC1G125VSE-E
IC1601 (Not supplied) IC AVY2G2G05EINZ
*IC2302 6-719-361-01 IC MM3416A28URE
*IC2303 6-719-793-01 IC AK4695ECB-L
IC3001 6-718-186-01 IC CS48L10-CWZR
*IC3101 6-720-644-01 IC TC74VCX16245 (EL, F)
IC3102 6-718-044-01 IC TC7WG74FK, RSOYF
*IC3103 6-720-644-01 IC TC74VCX16245 (EL, F)
*IC3104 6-720-644-01 IC TC74VCX16245 (EL, F)
*IC3105 6-720-644-01 IC TC74VCX16245 (EL, F)
IC3106 (Not supplied) IC SN74AUC1G00DBVR
IC3107 (Not supplied) IC SN74AUC1G00DBVR
IC3108 (Not supplied) IC SN74AUC1G74DCTR
IC3109 (Not supplied) IC SN74AUC74RGYR
IC3110 (Not supplied) IC SN74AUC74RGYR
*IC3301 6-712-050-01 IC SN65LVDS301ZQER
*IC3302 6-712-050-01 IC SN65LVDS301ZQER
IC3501 6-717-013-01 IC MN864716
IC3601 6-717-012-01 IC ADV7611BSWZ-P-RL
IC3602 6-705-881-01 IC HD74ALVC1G125VSE-E
IC3603 6-714-136-01 IC TC7SG125FU
IC3701 6-717-012-01 IC ADV7611BSWZ-P-RL
IC3901 6-717-067-01 IC MB8AA4360
IC4301 6-717-389-01 IC BD8330AGU-E2
IC4302 6-716-945-01 IC BD8331GU-E2
IC4304 (Not supplied) IC BD2224G-BZTR
IC4306 6-717-819-01 IC R1200N003A-TR-FE
IC4307 6-716-993-01 IC MM1836A33NRE
IC4801 (Not supplied) IC MB95005ABGL-G-137-ERE1
*IC5201 6-808-503-01 IC BU24130GU-E2
*IC5202 6-719-361-01 IC MM3416A28URE
*IC5301 6-808-503-01 IC BU24130GU-E2
IC5501 6-716-760-01 IC R2J30503LG
*IC5701 6-708-230-01 IC BD6876AGLV-E2
< COIL >
L4301 1-460-355-11 INDUCTOR 4.7uH
L4302 1-460-370-11 INDUCTOR 10uH
L4303 1-460-370-11 INDUCTOR 10uH
Ref. No. Part No. Description Ref. No. Part No. Description Ref. No. Part No. Description
VC-1016

DEV-30/50/50V_L3
2-4E
L4304 1-460-370-11 INDUCTOR 10uH
L4305 1-460-370-11 INDUCTOR 10uH
*L4306 1-457-858-11 INDUCTOR 4.7uH
L4307 1-460-370-11 INDUCTOR 10uH
< LINE FILTER >
*LF1001 1-460-629-11 COMMOM MODE CHOKE COIL
*LF3505 1-460-416-11 COMMON MODE CHOKE COIL
*LF3506 1-460-416-11 COMMON MODE CHOKE COIL
< TRANSISTOR >
*Q1001 6-552-344-01 TRANSISTOR DRA3143T0L
*Q1002 6-552-344-01 TRANSISTOR DRA3143T0L
*Q1301 6-552-700-01 TRANSISTOR SSM3K15AMFV, L3SF
Q3301 6-551-631-01 TRANSISTOR RN1104MFV (TL3S
Q3501 8-729-055-01 TRANSISTOR RN4984FE
Q3601 6-552-845-01 TRANSISTOR SSM3K121TU, LSOYF
Q3602 6-552-845-01 TRANSISTOR SSM3K121TU, LSOYF
Q4301 6-553-038-01 TRANSISTOR DRA3115T0L
Q4303 6-552-838-01 TRANSISTOR TPC6604
*Q4304 6-552-354-01 TRANSISTOR DRC3144E0L
Q4305 6-552-761-01 TRANSISTOR TPCP8305, LSONYF
*Q4308 6-552-354-01 TRANSISTOR DRC3144E0L
Q4309 6-552-874-01 TRANSISTOR RW1C025ZPT2CR
*Q4310 6-552-399-01 TRANSISTOR DSA300100L
Q4311 8-729-053-52 TRANSISTOR HN1C01FE
Q4801 8-729-055-01 TRANSISTOR RN4984FE
Q4802 8-729-055-01 TRANSISTOR RN4984FE
*Q5501 6-552-700-01 TRANSISTOR SSM3K15AMFV, L3SF
< RESISTOR >
R1007 1-218-945-11 METAL CHIP 220 5% 1/16W
R1014 1-250-525-11 METAL CHIP 18K 1% 1/16W
R1015 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1016 1-218-969-11 METAL CHIP 22K 5% 1/16W
R1020 1-218-977-11 METAL CHIP 100K 5% 1/16W
*R1305 1-250-469-11 METAL CHIP 82 1% 1/16W
*R1315 1-250-477-11 METAL CHIP 180 1% 1/16W
R1321 1-250-515-11 METAL CHIP 6.8K 1% 1/16W
R1331 1-250-481-11 METAL CHIP 270 1% 1/16W
R1332 1-218-970-11 METAL CHIP 27K 5% 1/16W
R1372 1-208-859-81 METAL CHIP 68 0.5% 1/16W
R1374 1-218-938-11 METAL CHIP 56 5% 1/16W
R1389 1-208-859-81 METAL CHIP 68 0.5% 1/16W
R1409 1-218-942-11 METAL CHIP 120 5% 1/16W
R1410 1-218-941-81 METAL CHIP 100 5% 1/16W
R1412 1-218-941-81 METAL CHIP 100 5% 1/16W
R1440 1-218-940-11 METAL CHIP 82 5% 1/16W
R1451 1-218-977-11 METAL CHIP 100K 5% 1/16W
R1452 1-218-977-11 METAL CHIP 100K 5% 1/16W
R1515 1-208-668-11 METAL CHIP 240 0.5% 1/16W
*R1615 1-250-477-11 METAL CHIP 180 1% 1/16W
R1621 1-250-515-11 METAL CHIP 6.8K 1% 1/16W
R1731 1-218-965-11 METAL CHIP 10K 5% 1/16W
R1815 1-208-668-11 METAL CHIP 240 0.5% 1/16W
R2301 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R2302 1-218-957-11 METAL CHIP 2.2K 5% 1/16W
R2303 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
Ref. No. Part No. Description
R2304 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R2305 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R2306 1-208-667-11 METAL CHIP 220 0.5% 1/16W
R2307 1-208-667-11 METAL CHIP 220 0.5% 1/16W
R2308 1-208-691-11 METAL CHIP 2.2K 0.5% 1/16W
R2311 1-218-981-91 METAL CHIP 220K 5% 1/16W
R2314 1-218-934-11 METAL CHIP 27 5% 1/16W
R2315 1-218-934-11 METAL CHIP 27 5% 1/16W
R2316 1-218-969-11 METAL CHIP 22K 5% 1/16W
R2317 1-218-969-11 METAL CHIP 22K 5% 1/16W
R3006 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R3106 1-218-945-11 METAL CHIP 220 5% 1/16W
R3111 1-218-990-81 SHORT CHIP 0
R3113 1-218-990-81 SHORT CHIP 0
R3307 1-218-973-11 METAL CHIP 47K 5% 1/16W
R3509 1-218-963-11 METAL CHIP 6.8K 5% 1/16W
R3510 1-250-488-11 METAL CHIP 510 1% 1/16W
R3511 1-218-956-11 METAL CHIP 1.8K 5% 1/16W
R3512 1-218-956-11 METAL CHIP 1.8K 5% 1/16W
R3605 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3608 1-218-953-11 METAL CHIP 1K 5% 1/16W
R3609 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3611 1-208-859-81 METAL CHIP 68 0.5% 1/16W
R3704 1-218-953-11 METAL CHIP 1K 5% 1/16W
R3705 1-218-965-11 METAL CHIP 10K 5% 1/16W
R3707 1-208-859-81 METAL CHIP 68 0.5% 1/16W
R4302 1-218-941-81 METAL CHIP 100 5% 1/16W
R4303 1-250-535-11 METAL CHIP 47K 1% 1/16W
R4334 1-218-965-11 METAL CHIP 10K 5% 1/16W
R4343 1-216-796-11 METAL CHIP 8.2 5% 1/10W
R4344 1-218-953-11 METAL CHIP 1K 5% 1/16W
R4345 1-218-961-11 METAL CHIP 4.7K 5% 1/16W
R4350 1-216-809-11 METAL CHIP 100 5% 1/10W
R4353 1-218-989-11 METAL CHIP 1M 5% 1/16W
R4354 1-218-965-11 METAL CHIP 10K 5% 1/16W
*R4355 1-250-529-11 METAL CHIP 27K 1% 1/16W
*R4356 1-250-549-11 METAL CHIP 180K 1% 1/16W
R4357 1-250-525-11 METAL CHIP 18K 1% 1/16W
R4359 1-250-519-11 METAL CHIP 10K 1% 1/16W
R4360 1-250-533-11 METAL CHIP 39K 1% 1/16W
R4361 (Not supplied) METAL CHIP 1.2K 1% 1/16W
R4362 1-250-519-11 METAL CHIP 10K 1% 1/16W
R4802 1-245-604-11 METAL CHIP 10M 5% 1/16W
R4803 1-208-893-11 METAL CHIP 1.8K 0.5% 1/16W
R4807 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W
R4808 1-218-973-11 METAL CHIP 47K 5% 1/16W
R4810 1-218-949-11 METAL CHIP 470 5% 1/16W
R4811 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R4812 1-218-973-11 METAL CHIP 47K 5% 1/16W
R4813 1-218-967-11 METAL CHIP 15K 5% 1/16W
*R4814 1-250-559-11 METAL CHIP 470K 1% 1/16W
R4815 (Not supplied) METAL CHIP 1M 1% 1/16W
R4816 1-218-967-11 METAL CHIP 15K 5% 1/16W
R4817 1-250-535-11 METAL CHIP 47K 1% 1/16W
*R4818 1-250-543-11 METAL CHIP 100K 1% 1/16W
R4819 1-218-959-11 METAL CHIP 3.3K 5% 1/16W
R4830 1-218-977-11 METAL CHIP 100K 5% 1/16W
R5209 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R5210 1-208-943-11 METAL CHIP 220K 0.5% 1/16W
R5211 1-208-671-11 METAL CHIP 330 0.5% 1/16W
R5212 1-208-941-11 METAL CHIP 180K 0.5% 1/16W
R5215 1-208-909-11 METAL CHIP 8.2K 0.5% 1/16W
R5217 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R5307 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W
R5308 1-208-943-11 METAL CHIP 220K 0.5% 1/16W
R5309 1-208-671-11 METAL CHIP 330 0.5% 1/16W
R5310 1-208-941-11 METAL CHIP 180K 0.5% 1/16W
R5313 1-208-909-11 METAL CHIP 8.2K 0.5% 1/16W
R5315 1-208-911-11 METAL CHIP 10K 0.5% 1/16W
R5507 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R5509 1-208-711-11 METAL CHIP 15K 0.5% 1/16W
R5510 1-208-895-81 METAL CHIP 2.2K 0.5% 1/16W
R5518 1-208-871-81 METAL CHIP 220 0.5% 1/16W
< COMPOSITION CIRCUIT BLOCK >
RB1001 1-234-372-11 RES, NETWORK 100 (1005X4)
RB1304 1-234-380-21 RES, NETWORK 47K (1005X4)
RB1402 1-234-702-11 RES, NETWORK 68 (1005X4)
RB1403 1-234-372-11 RES, NETWORK 100 (1005X4)
RB1414 1-234-378-21 RES, NETWORK 10K (1005X4)
RB1416 1-234-377-21 RES, NETWORK 4.7K (1005X4)
*RB1417 1-234-384-11 RES, NETWORK 1M (1005X4)
RB1418 1-234-380-21 RES, NETWORK 47K (1005X4)
RB1602 1-234-380-21 RES, NETWORK 47K (1005X4)
RB1701 1-234-377-21 RES, NETWORK 4.7K (1005X4)
RB1702 1-234-380-21 RES, NETWORK 47K (1005X4)
RB3001 1-234-380-21 RES, NETWORK 47K (1005X4)
RB3501 1-234-378-21 RES, NETWORK 10K (1005X4)
RB4801 1-234-378-21 RES, NETWORK 10K (1005X4)
RB4802 1-234-377-21 RES, NETWORK 4.7K (1005X4)
< THERMISTOR >
TH4301 1-805-194-21 THERMISTOR, NTC (SMD)
< VIBRATOR >
X1302 1-814-219-31 QUARTZ CRYSTAL OSCILLATOR (60MHz)
X3601 1-814-515-11 QUARTZ CRYSTAL OSCILLATOR (28.636363MHz)
X4801 1-781-525-11 VIBRATOR, CRYSTAL (32.768kHz)
A-1952-570-A VF BLOCK ASSY (SERVICE)
(Not supplied) RS-1003 BOARD, COMPLETE
(Not supplied) RS-1004 BOARD, COMPLETE
(Not supplied) SS-1001 BOARD, COMPLETE
(Not supplied) VF-1006 BOARD, COMPLETE
(Not supplied) VF-1007 BOARD, COMPLETE
(Not supplied) FP-2133 FLEXIBLE BOARD, COMPLETE
(Not supplied) FP-2136 FLEXIBLE BOARD
(Not supplied) FP-2146 FLEXIBLE BOARD
*******************************************
(All mounted parts, RS-1003 COMPLETE BOARD, RS-1004 COMPLETE BOARD,
SS-1001 COMPLETE BOARD, VF-1006 COMPLETE BOARD, VF-1007 COMPLETE
BOARD, FP-2133 FLEXIBLE BOARD, FP-2136 FLEXIBLE BOARD and FP-2146
FLEXIBLE BOARD are not supplied, but they are included in VF BLOCK ASSY
(SERVICE).)
Ref. No. Part No. Description Ref. No. Part No. Description
VC-1016 RS-1003 RS-1004 SS-1001 VF-1006 VF-1007 FP-2133 FP-2136 FP-2146

DEV-30/50/50V_L3
4-1
4. BLOCK DIAGRAMS
4-1. OVERALL BLOCK DIAGRAM (1/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
FP-2134
FLEXIBLE
BOARD
VC-1016 BOARD (1/3)
BUFFER
(2/21)
IC1303 CLK_CMOS_IN
CLK_CMOS_IN_S
CLK_SYS_IN
CLK_SYS_IN
XFLASH_RST
CN1011
42
CLOCK
GENERATOR
(2/21)
IC1302
CPU (MAIN),
CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(2/21 - 4/21)
IC1301
(1/3)
CPU (SUB),
CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(5/21 - 7/21)
IC1601
(1/3)
1
4
3
AD30
AF2
AD30
W1
W1
W2
W2
AE10
CN1014
18, 19
35
44
42
34
IRIS
(SHUTTER)
IRIS
(SHUTTER)
XFLASH_RST_S
XFLASH_RST_S
CLK_CMOS_IN_IMG_S
IC_1601_SENSSI/SENSSO_S
IC_1601_SENSSCK_S
IC_1601_SENSXCS_S
SENS_HD_S
SENS_VD_S
SUBL_CLKINP/CLKINN_S
36, 37
39
40
X1302
60MHz
AF2
D1
2D/3D
SWITCH
(10/21)
IC3104
IC3103
IC3101
IC3105
SDIO_SPDIF_IN_IC_3001
SDIO_SPDIF_IN_IC_3001
DAO_D1
EN_D
EN_S
2D/3D
SELECT
(10/21)
IC3102
HD/VD CONTROL
(10/21)
IC3106 - IC3110
EVF_XVD_L
EVF_PS
EVF_XVD_S
EVF_CLK_S
EVF_XHD_S
EVF_CLK_L
EVF_XHD_L
EVF_CLK
EVF_CLK
EVF_XHD_L
EVF_XVD_L
EVF_CLK_R
EVF_XHD_R
EVF_XVD_R
AUDIO_R_I/O
EVF_R_0 - 7_R
EVF_G_0 - 7_R
EVF_B_0 - 7_R
EVF_SEL1
EVF_B_0 - 7_L
EVF_G_0 - 7_L
EVF_R_0 - 7_L
EVF_B_0 - 7_S
EVF_G_0 - 7_S
EVF_R_0 - 7_S
EVF SERIAL
INTERFACE
TRANSMITTER
(L)
(11/21)
IC3301
Q3301 H2
H1
EVF_CLK
± _L
AV_SOAV_SI/SO/SCK
AV_SO, AV_SCK
AV_SCK
XCS_EVF_L
XCS_EVF_L/R,
VCAL_L/R, EYE_DET
VCAL_L
XBB_RST
CN1006
EVF_D0 ± - D2 ± _L
EVF_B_0 - 7_L
EVF_G_0 - 7_L
EVF_R_0 - 7_L
EVF_B_0 - 7_L
EVF_G_0 - 7_L
EVF_R_0 - 7_L
EVF SERIAL
INTERFACE
TRANSMITTER
(R)
(11/21)
IC3302
AUDIO
PROCESSOR
(8/21)
IC2303
AUDIO
DSP
(9/21)
IC3001
H2
H1
EVF_CLK
± _R
EVF_D0 ± - D2 ± _R
XBB_RST
AV_SO
AV_SCK
VCAL_R
XBB_RST
I2C_SDA
I2C_SCK
EYE_DET
CN1010
XCS_EVF_R
Rin0 - 7
CN6502
CLK ±
D0± - D2±
MISO_SDA
XCS_IC_3001
XSYS_RSTXSYS_RST
B3
XSYS_RST
AV_SO
AV_SCK
VF-1007 BOARD
JK-1005 BOARD
LD-1009 BOARD (1/2)
FP-2136
FLEXIBLE
BOARD
(R)
FP-2137 FLEXIBLE
BOARD (MAIN) (1/2)
FP-2137 FLEXIBLE
BOARD (SUB) (1/2)
EVF SERIAL
INTERFACE
RECEIVER
IC6501
LEVEL
SHIFT
IC6502
EVF UNIT
(R)
OVERALL (2/3)
(PAGE 4-2)
2
OVERALL (2/3)
(PAGE 4-2)
9
OVERALL (2/3)
(PAGE 4-2)
4
OVERALL (3/3)
(PAGE 3-3)
1
OVERALL (3/3)
(PAGE 3-3) 3
AK28
18, 19
35
6,7,9,10,12,13,15,16,21, 22,24,25,27,28,30,31
6,7,9,10,12,13,15,16,21, 22,24,25,27,28,30,31
44
42
34
XFLASH_RST
CLK_CMOS_IN_IMG
IC_1301_SENSSI/SENSSO
IC_1301_SENSSCK
IC_1301_SENSXCS
SENS_HD
SENS_VD
SUBL_CLKINP/CLKINN
SUBL_DINP/DINN2 - 9
SUBL_DINP/DINN2 - 9_S
36, 37
39
40
27, 28
11
15,16,18,19,21,22,24,25, 30,31,33,34,36,37,39,40
2
4
12
9, 10
7
6
AK28
AC29
AC30
AC29
AC30
OPTICAL UNIT
(MAIN) (1/2)
OPTICAL UNIT
(SUB) (1/2)
CLK_CMOS_IN_GEN
CMOS
IMAGER
CP001
CN6702
DOAP - DOHP,
DOAM - DOHM
XVS
SDI,SDO
INCK
XCLR
CM-123 BOARD (MAIN)
XHS
DCKP, DCKM
XCE
SCK
F2
K2
G3
G1
FP-2135
FLEXIBLE
BOARD
FP-2147
FLEXIBLE
BOARD
27, 28
11
15,16,18,19,21,22,24,25, 30,31,33,34,36,37,39,40
2
4
12
9, 10
7
6
CMOS
IMAGER
CP001
CN6702
DOAP - DOHP,
DOAM - DOHM
XVS
SDI,SDO
INCK
XCLR
CM-123 BOARD (SUB)
XHS
DCKP, DCKM
XCE
SCK
F2
K2
G3
G1
42 - 49
Gin0 - 7
34 - 41
Bin0 - 7
XHD
XVD
MCLK
24 - 31
52
51
53
XBB_SO
XBB_SCK
XCS_EVF
18
19
20
XCLR
VCAL 50
13
6, 7, 12,
13, 15, 16
9, 10
24
23
25
28
21
Rin0 - 7
CN6003
CN6002
CN6001
CN6501
CLK ±
D0± - D2±
VF-1006 BOARD
FP-2136
FLEXIBLE
BOARD
(L)
FP-2133 FLEXIBLE BOARD
EVF SERIAL
INTERFACE
RECEIVER
IC6001
LEVEL
SHIFT
IC6002
EYEPIECE
SENSOR
SE001
EVF UNIT
(L)
42 - 49
Gin0 - 7
34 - 41
Bin0 - 7
XHD
XVD
MCLK
24 - 31
52
51
53
XBB_SO
XBB_SCK
XCS_EVF
18
19
20
XCLR
VCAL
I2C_SDA
50
13
2
I2C_SCK 3
EYE_DET
SDA_EYE_SENS
SCL_EYE_SENS
EYE_SENS_OUT
5
6, 7, 12,
13, 15, 16
9, 10
24
23
25
28
21
34
33
36
24, 25, 27, 28, 33,34
30, 31
16
17
15
12
19
6
7
4
24, 25, 27, 28, 33,34
30, 31
16
17
15
12
19
BCK_OUT, LRCK_OUT,
MCK_INOUT
MIC_JACK_IN,
HP_JACK_IN
BEEP_PWM_P, SDO,
BCK_OUT, LRCK_OUT,
MCK_INOUT,
XCS_IC_2303, DAO_D1,
XCS_IC_3001
BCK_OUT, LRCK_OUT,
MCK_INOUT
SDO
XCS_IC_2303
AV_SI
BEEP_PWM_P
AUDIO_L_I/O
SP_-
CN1018
(1/2)
SP_+
SP_-
SP_+
INT_MIC_R
CN1015
(1/2)
CN1005 CN7901
4
INT_MIC_L
INT_MIC_R
INT_MIC_L
2
CN5001 (1/2)
42
44
4
6
2
1
LD-1010 BOARD (1/2)
CN5101
(1/2) CN5104
CN5003
HP_R_OUT 10
HP_L_OUT 8
HP_JACK_IN 12
EXT_MIC_R
AV_SI
AV_SO, AV_SCK
2
EXT_MIC_L 4
MIC_JACK_IN 6
3
5
1
11
9
7
2, 34, 5
43, 4441, 42
MIC PLUG
DETECT
Q7901
MICROPHONE
UNIT
MIC901
SP901
(SPEAKER)
HP_R_OUT
HP_L_OUT
HP_JACK_IN
EXT_MIC_R
EXT_MIC_L
MIC_JACK_IN
(HEADPHONE)
J7902
PLUG IN POWER
J7901
AE16
08
E7
B3
CN0102 CN1009
ANT901
GP-1009 BOARD
XGPS_RSTXGPS_RST
XGPS_RST
8
GPS_UART_TXD,
GPS_UART_RXD,
GPS_UART_RTS,
GPS_UART_CTS
GPS_UART_TXD,
GPS_UART_RXD,
GPS_UART_RTS,
GPS_UART_CTS
SCK0/TX0_1,
SIN0/RX0_1,
SO0/RTS_1,
XSCS0/CTS_1
X9301
16.368MHz
RF AMP
(1/2)
IC9302
FE MODULE
(1/2)
CP9301
GPS
RECEIVER
(1/2)
IC9303
1 - 4
1
5 - 8

DEV-30/50/50V_L3
4-2
4-2. OVERALL BLOCK DIAGRAM (2/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
SD_XSDCD
XMS_ACC_LED
SD_SDWP
MSX_INS_HIZ
TE0_XSDCD
TE0_SDWP
MSX_INS_HIZ
TE0_XSDCD
MSX_INS_HIZ
SD_DAT_0 - SD_DAT_3,
SD_CMD, SD_CLK
MSX_BIO_0 - MSX_BIO3,
MSX_BS, MSX_CLK
CN8001 CN8003
MEMORY
STICK
PRO DUO
SD
CN1001
CN1016
MS-1012 BOARD FP-2138
FLEXIBLE
BOARD
FP-2146
FLEXIBLE
BOARD
US-1001 BOARD
ZM-1001 BOARD KY-1005 BOARD JY-1001 BOARD
VC-1016 BOARD (2/3)
D8001
(ACCESS)
D1402
D1401
17,19,20,
22,23,32
13,14,16,
30,40,44
43
28
41
11
14,23,24, 26,27,29
2,6,16, 30,32,33
3
18
2 44
5 41
7 39
5
35 XMS_ACC_LED
CN1013
CEC
HPD
17, 18
1
HDMI_TXCP/TXCN
I2C_SDA/SCK
I2C_SCK
I2C_SDA
I2C_SDA/SCK
I2C_SDA/SCK
HDMI_JACK_INHDMI_JACK_IN
CEC_INOUT
XSYS_RST
XSYS_RST
RX_XTAL_IN
RX_XTAL_IN
XSYS_RST
XSYS_RST
HDMI
RECEIVER
(MAIN)
(13/21)
IC3601
HDMI
MIXING
(15/21)
IC3901
BUFFER
(13/21)
PITCH/YAW
SENSOR
(1/2)
SE7501 PITCH_AD
YAW_AD
CRESET_P
PITCH_AD_GYRO
YAW_AD_GYRO
GYRO_VREF
USB_DP, USB_DM
USB_ID
COMPO_VIDEO
DEBUG_UART0_RXD
USB_DP_S, USB_DM_S
USB_ID_S
USB_DP_S, USB_DM_S
USB_ID_S
PITCH_AD
YAW_AD
CRESET_P
IC3602
LEVEL SHIFT
(13/21)
LEVEL
SHIFT
Q3501
IC3603
PITCH/YAW
SENSOR AMP
(1/2)
IC7501
4
56
V4
2
58
47
46
P15
U14
W8
U9
HDMI_TX0SOP/N - TX2SOP/N
HDMI_Y0-Y7_RX
HDMI_C0-C7_RX
HDMI_HSYNC_RX
HDMI_VSYNC_RX
HDMI_VCK_RX
HDMI_DE_RX
B15
A15
HDMI_Y0 - Y7_IC_3901
HDMI_C0 - C7_IC_3901
HDMI_HSYNC_IC_3901
HDMI_VSYNC_IC_3901
HDMI_VCK_IC_3901
HDMI_DE_IC_3901
HDMI_AMRX
HDMI_AMRX
HDMI_TXCP/TXCN_S
I2C_SDA/SCK_S
FSP_INTA0,
FSP_INTA1,
SCLK_A0,
ABT_A1
SDA, SCL
TMDS_DATA0-2 ± _TX,
TMDS_CLOCK
± _TX
XSYS_RST_S
HDMI
RECEIVER
(SUB)
(14/21)
IC3701
56
58
47
46
HDMI_TX0SOP/N - TX2SOP/N_S
HDMI_Y0-Y7_RX_S
HDMI_C0-C7_RX_S
HDMI_HSYNC_RX_S
HDMI_VSYNC_RX_S
HDMI_VCK_RX_S
HDMI_DE_RX_S
IC_5501_IC_5201_CLK_IC_3901
IC_5501_IC_5201_CLK_IC_3901
AV_SCK
FSP_XCS_2_S, FSP_XWE_S,
FSP_XOE_S, FSP_XADV_S
XCS_IC_3901
SYS_V
INT_TO_A0
INT_TO_A1
SYS_V_S
FSP_AD_0-15_S
FSP_ADDR_20
FSP_XCS_2, FSP_XWE,
FSP_XOE, FSP_XADV
FSP_AD_0-15
X3601
28.636363MHz
HDMI
TRANSMITTER
(12/21)
IC3501
A3
D1
C3
LEVEL
SHIFT
Q1301
15
HDMI
OUT
3, 5, 6, 8, 9, 11, 12, 14
2ND_SS
XSYS_RST_S
IC_1301_1_SI,
IC_1301_1_SO,
IC_1301_1_SCK,
XCS_IC_1301_1
CPU (MAIN),
CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(2/21 - 4/21)
IC1301
(2/3)
CPU (SUB),
CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(5/21 - 7/21)
IC1601
(2/3)
OVERALL (3/3)
(PAGE 4-3)
5
OVERALL (3/3)
(PAGE 4-3)
8
OVERALL (1/3)
(PAGE 4-1)
9
OVERALL (1/3)
(PAGE 4-1)
4
TE0_DAT_0 - 3, TE0_CMD, TE0_CLK
MSX_BIO_0 - 3, MSX_BS, MSX_CLK
AV_SO
AV_SI
OVERALL (3/3)
(PAGE 4-3)
6
OVERALL (3/3)
(PAGE 4-3)
7
OVERALL (1/3)
(PAGE 4-1)
2
RX_XTAL_IN
4
2, 3
13
9
AD_JACK_IN
10
15
8
7
CN1017
5
3, 4
CN8201 CN8101 CN8601 CN8102CN8202
452ND_SS
6
KEY_AD0
33KEY_AD0
8
32ND_SS 4
5
KEY_AD0
2
KEY_AD2
22
KEY_AD2
9
XTALLY_LED
77
XTALLY_LED
4
XCHARGE_LED
59
XCHARGE_LED
2
XPOWER_TACT_SW S8201 - S8203
RV8201
D8202
(PHOTO)
D8203
(CAM)
CONTROL
SWITCHES
15 KEY_AD1
12
ZOOM_VR_AD
13
XPHOTO_LED
9
XCAM_LED
8
2ND_SS
CN1002
4
KEY_AD0 3
KEY_AD2 2
XTALLY_LED 7
XCHARGE_LED
5
XPOWER_TACT_SW
XPOWER_TACT_SW
XPOWER_TACT_SW
15
KEY_AD1 12
ZOOM_VR_AD 13
XPHOTO_LED 9
XCAM_LED 8
CN9001
2
3, 4
CN9002
4
2, 3
XRESET_REQ
UART_TX/LANC_SIG
XRESET_REQ
UART_TX/LANC_SIG
(USB)
MULTI
S8101, S8102
CONTROL
SWITCHES
S8601
MULTI
SELECTOR
D8102
(RECORDING)
RS-1003 BOARD
RS-1004 BOARD
SS-1001 BOARD
CN8402 CN8401
SS
KEY_AD3
5
CN8301
SS 1
2
6
DIAL_A/B
SS
SS, DIAL_A/B, KEY_AD0 - 3,
2ND_SS, XTALLY_LED,
ZOOM_VR_AD,
XPHOTO_LED
KEY_AD3
DIAL_A/B
S8401
ROTARY
ENCODER
START/STOP
START/STOP
SS
MANUAL
S8501
3, 4
CN1003
2
5
3, 4
AUDIO_R_I/O
AUDIO_L_I/O
11
12
14
26
24
1, 3, 6, 15,
21, 23
7,8,10,
11,16,17
D8101
CHG
ZOOM

DEV-30/50/50V_L3
4-3
4-3. OVERALL BLOCK DIAGRAM (3/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
VC-1016 BOARD (3/3)
IRIS MOTOR
DRIVE
(MAIN)
(18/21)
IRIS
DRIVE IC5201
STEADYSHOT
PROCESSOR
(20/21)
IC5501
CN1015
(2/2)CN5002
CN5001
(2/2)
I_DRIVE±,
I_BIAS±, I_HALL±
37 - 40 ZOOM_A/B/XA/XB
ZM_SENSE1A
IC_5201_SI/SO/SCK,
XCS_IC_5201
IC_5201_SI/SO/SCK,
XCS_IC_5201
FOCUS_A/B/XA/XB FC_DIR_A/B, FC_ENB
FC_SENS
LENS_TEMP_AD
TZ_HALL_TEMP
ZM_SENSE1A, FC_SEMS,
LENS_TEMP_AD,
TZ_HALL_TEMP
PITCH±
PITCH_HALL±/BIAS-
YAW±
YAW_HALL±/BIAS-
11 - 14, 28, 29
11 - 14, 28, 29
ZOOM
DRIVE
FOCUS
DRIVE
IC_5201_VD
XIC_5201_RST
IC_5201_VD
XIC_5201_RST
IC_5501_IC_5201_CLK_M
IC_5501_IC_5201_CLK_M
23, 24
42
33 - 36
43
LENS TEMP
SENSOR 10
OIS TEMP
SENSOR
OPTICAL IMAGE
STABILIZER
OPTICAL UNIT
(MAIN) (2/2)
PITCH/YAW
DRIVE
21
15 - 17
18 - 20
25, 26
6 - 9
17, 18, 32 - 35
22, 23
4
10 - 13
3
36
25
29 - 31
26 - 28
20, 21
5 - 8
25, 26, 28 - 31
10, 11
35
1 - 4
38
33
15
21 - 23
17 - 19
12, 13
8
6
38
40
IRIS_DRIVE±,
IRIS_BIAS±, IRIS_HALL±
ZOOM_A/B/XA/XB
Z_PI_C
FOCUS_A/B/XA/XB
F_PI_C
L_TEMP_OUT
T_TEMP_OUT
PITCH±
PITCH_HALL±/BIAS-
YAW±
YAW_HALL±/BIAS-
CN1018
(2/2)
I_DRIVE±_S,
I_BIAS±_S, I_HALL±_S
37 - 40 ZOOM_A/B/XA/XB_S
ZM_SENSE1A_S
FOCUS_A/B/XA/XB_S
PITCH±_S,
PITCH_HALL±/BIAS-_S,
YAW±_S, YAW_HALL±_S
FC_SENS_S
FC_SENS_S, ZM_SENSE1A_S,
LENS_TEMP_AD_S,
TZ_HALL_TEMP_S
LENS_TEMP_AD_S
TZ_HALL_TEMP_S
PITCH±_S
PITCH_HALL±/BIAS-_S
YAW±_S
YAW_HALL±/BIAS-_S
YAW_BIAS-_S
42
33 - 36
43
10
21
15 - 17
18 - 20
25, 26
23, 24
D5
IC_5201_VD
IC_5501_SO/SI/SCK
IC_5501_INT_REQ,
IC_5501_2_EXPOSE,
IC_5501_P_LIMIT,
XCS_IC_5501
IC_5501_INT_REQ,
IC_5501_2_EXPOSE,
IC_5501_P_LIMIT,
XCS_IC_5501
CAM_V
IC_5501_SO/SI/SCK
CAM_V
CRESET_P
YAW_AD
ZM_DIR_A/B, ZM_ENB
ZM_DIR_A/B, ZM_ENB
ZM_DIR_A/B_S, ZM_ENB_S
FC_DIR_A/B_S, FC_ENB_S
PITCH_AD
E3
C7
AB17
AE9
P25
AH2
B7
A8
B8
C8
IRIS MOTOR
DRIVE
(SUB)
(19/21)
IC5301
ZOOM/FOCUS
MOTOR DRIVE
(21/21)
IC5701
IC_5301_VD_S
XIC_5301_RST_S
IC_5301_SI/SO/SCK_S,
XCS_IC_5301_S,
IC_5501_IC_5301_CLK_S
D5
C7
XIC_5501_CPU_RST
F5 XSYS_RST
IC_5501_IC_5201_CLK_IC_3901
PU_THERM
IC_5501_IC_5201_CLK_M
XIC_5501_CPU_RST
XSYS_RST
XSYS_RST
XSYS_RST
XFLASH_RST
XFLASH_RST_S
FR_SI, FR_SO,
FR_SCK,
XCS_FRONT
XRESET_REQ
XRESET_REQ
D1
AB17
AE9
CPU (MAIN),
CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(2/21 - 4/21)
IC1301
(3/3)
CPU (SUB),
CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(5/21 - 7/21)
IC1601
(3/3)
ROLL_AD, VST_C_CHARGE
CAM_V
ROLL_AD
VST_C_CHARGE
ROLL_AD
VST_C_CHARGE
ROLL
SENSOR AMP
(2/2)
ROLL
SENSOR
(2/2)
IC7701
SE7701
CURRENT
LIMIT
Q5501
AH2
XSYS_RST_S
XSYS_RST
TH4301
XSYS_RST_S
XRESET_REQ_S
FRONT CONTROL,
LANC INTERFACE
BATTERY DETECT
(17/21)
IC4801
OVERALL (2/3)
(PAGE 4-2)
6
OVERALL (1/3)
(PAGE 4-1)
1
OVERALL (1/3)
(PAGE 4-1)
3
OVERALL (2/3)
(PAGE 4-2)
8
OVERALL (2/3)
(PAGE 4-2)
5
FR_EVER_SI,
FR_EVER_SO,
FR_EVER_SCK,
XCS_DD,
XCS_IC_4302
FR_EVER_SI,
FR_EVER_SO,
FR_EVER_SCK,
XCS_DD
FR_EVER_SO,
FR_EVER_SCK,
XCS_IC_4302
LANC_IN/OUT
LANC_IN/OUT
L3
E5
L2
LANC_SIG
LANC_SIG
FR_XRESET
X4801
32.768kHz
XCAM_LED
XCHARGE_LED OVERALL (2/3)
(PAGE 4-2)
7
DEBUG_UART0_TXD
SEL_UART_LANC
UART_TX/LANC_SIG
XPOWER_TACT_SW
DC/DC
CONVERTER,
LANC DRIVER
(16/21)
IC4302
DC/DC
CONVERTER
(16/21)
IC4301
K2
FR_XRESET
TE0_XSDCD
MSX_INS_HIZ
08
FP-2137
FLEXIBLE
BOARD (2/2)
(MAIN)
LD-1009 BOARD (2/2)
IRIS
DRIVE
CN5102
CN5101
(2/2)
ZOOM
DRIVE
FOCUS
DRIVE
LENS TEMP
SENSOR
OIS TEMP
SENSOR
OPTICAL IMAGE
STABILIZER
OPTICAL UNIT
(SUB) (2/2)
PITCH/YAW
DRIVE
6 - 9
17, 18, 32 - 35
22, 23
4
10 - 13
3
36
25
29 - 31
26 - 28
20, 21
5 - 8
25, 26, 28 - 31
10, 11
35
1 - 4
38
33
15
21 - 23
17 - 19
12, 13
IRIS_DRIVE±,
IRIS_BIAS±, IRIS_HALL±
ZOOM_A/B/XA/XB
Z_PI_C
FOCUS_A/B/XA/XB
F_PI_C
L_TEMP_OUT
T_TEMP_OUT
PITCH±
PITCH_HALL±/BIAS-
YAW±
YAW_HALL±/BIAS-
FP-2137
FLEXIBLE
BOARD (2/2)
(SUB)
LD-1010 BOARD (2/2)
LANC/UART SELECT
(1/21)
IC1002

DEV-30/50/50V_L3
4-4
4-4. POWER BLOCK DIAGRAM (1/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
VC-1016 BOARD (1/2)
CORE_UNREG,
I/O_UNREG
MT_UNREG
BATT_SIG
F0001
F0002
PVDD1aE1 LX1a D1
LX1b D2
FB1 D3
PVDD1bE2
L4301
PVDD2C8 LX2 B8
FB2 C5
LDO1_SOURCE A6
LDO1_OUT A5
LDO1_ENB D6
L4302
CH1_OUT
CH2_OUT
PVDD5aH5 LX5a H4
LX5b G4
FB5 E3
PVDD5bG5
AVDDB7
PVDD_CPH2
VTR_UNREGE6
LANC_DC D6
XLANC_PWR_ON
C4
XLANC_ON
LANC_DC
LANC_DC
XLANC_PWR_ON
XLANC_ON C2
UNREG_IN
E4
VCH
F4
ACV_UNREG
F1
PUI_BATT_XEXT
C7
BATT_UNREG
BATT_SIG
BATT_UNREG
BATT_LI_3V
DD_ON DD_ON
VREG_5.0V VREG_5.0V
F5
VREG_5.0V F3
LDO1_ON C1
DD_ON D2
L4305 CH5_OUT
A_1.125V
A_1.125V_SENSE
HDMI_5.0V
MSX_3.3V
MSX_3.3V
D_3.3V
MS_PWR_ON
MS_PWR_ON
EVER_3.0V
EVER_3.0V
VOUT
VOUT
PVDD6aD8 LX6a E8
LX6b E7
FB6 D5
PVDD6bD7
L4306 CH6_OUT
PVDD4H6 LX4 H7
FB4 E4
L4304 CH4_OUT
PVDD3aA1 LX3a A2
LX3b B2
FB3 C4
PVDD3bB1
L4303 CH3_OUT
HB_1.8V
HB_1.2V
A_VID_1.1V,
D_VID_1.1V,
A_VID_1.1V_S,
D_VID_1.1V_S
A_1.8V, D_1.8V
A_2.8V, D_2.8V
A_3.3V, D_3.3V,
D_3.3V_SP
LDO2_ON
LDO1_ON
LDO2_SOURCE B4
LDO2_OUT A4
LDO2_ENB E5
DC/DC CONVERTER
(16/21)
IC4301
Vin5 Vout 4
Cont1
3.3V REG
(16/21)
10V REG
IC4307
VIN3Lx4
VOUT 2
CE
1
DC/DC CONVERTER
(16/21)
IC4306 Q4310, Q4311
XPUIO_BATT_SIG
A4
FRONT CONTROL, LANC INTERFACE,
BATTERY DETECT
(17/21)
IC4801
AI_BATT_SENS
J5
BATT_UNREG
I_BATT_IN
A7
BATT_IN
BATT_SIG
O_LOAD_ON_FR2 E3
XI_POWER_OFF_S K7 XPWR_OFF_S SEL_UART_LANC
XI_POWER_OFF E10
XPWR_OFF
XPUI_LANC_PWR_ON
C1
XLANC_PWR_ON
BATT/XEXT_CN
O_LDO1.8_ON C4 LDO2_ON
O_LDO1.2_ON D3 LDO1_ON
O_SYS_DD_ON F2 DD_ON
XO_LANC_IC_ONH2
XLANC_ON
DC/DC CONVERTER, LANC DRIVER
(16/21)
IC4302
EVER3 F6
VuC F5
PVDD_LDO1 B1
LDO1_OUT A1
LDO1_FB B2
LDO2_ON A5
LDO2_OUT A3
PVDD_LDO2 A4
LOAD_IN B6
LOAD_OUT A6
LOAD_ON B5
ACV_UNREG
AI_ACV_SENSL6
ACV_UNREG
ACV_ONE2
ACV_ON
BATT_OND1
BATT_ON
BATT_UNREGE1
BATT_UNREG
O_INIT_CHARGE F10
INIT_CHARGE_ON
EYE_SENS_3.3VI/O_UNREG
I/O_UNREG
D_1.8V
D_1.8V
LOAD_ON_FR2
EVF SERIAL INTERFACE
TRANSMITTER (R)
(11/21)
IC3302
EVF SERIAL INTERFACE
TRANSMITTER (L)
(11/21)
IC3301
A_1.2V, D_1.2V
HDMI_5.0V
MT_5.0V,
J_5.0V
POWER (2/3)
(PAGE 4-5)
B
POWER (3/3)
(PAGE 4-6)
E
POWER (3/3)
(PAGE 4-6)
F
POWER (2/3)
(PAGE 4-5)
C
POWER (2/3)
(PAGE 4-5)
D
POWER (2/3)
(PAGE 4-5)
A
XPUI_POWER_TACT A3 XPOWER_TACT_SW
XPOWER_TACT_SW
08
Q4303, Q4304
BATTERY
CHARGE
SWITCH
Q4305
ACV/BATT
SELECT SWITCH
D4301
ACV_UNREG_CN
INIT_CHARGE_ON
CN1008
CN1007
2
3
1
BATT/XEXT_CN
BATT_ON
ACV_ON
DC IN
J901
BT901
1 - 69 - 14
8
SBATT_SIG
BATTERY
TERMINAL
BATT_UNREG_CN
ACV_UNREG ACV
DETECT
Q4301
DC JACK
DETECT
Q4801
B+ SWITCH
Q4308, Q4309
VDD4VOUT3
CE1
2.8V REG
(8/21)
IC2302
2D-4D-7
1D-
2S9
LANC/UART SELECT
(1/21)
IC1002
AUDIO
PROCESSOR
(8/21)
IC2303
AUDIO
DSP
(9/21)
IC3001
A_3.3V
D_3.3V_SP
D_2.8V
D_1.8V
D_1.2V
D_1.2V
D_2.8V
D_2.8V
CN1006
9, 10 21, 22
CN1010
9, 10 21, 2236, 37
38
D_1.8V
1, 2
EYE_SENS_3.3V
D_2.8V
D_2.8V
D_2.8V
D_1.8V
D_2.8V
36, 37
EVF_12.5V
38
EVF_10V
13
DDEN_L
13
DDEN_R
EVF_12.5V
EVF_10V
19 HDMI OUT
HDMI_5.0V
CN1013
MULTI
POWER (3/3)
(PAGE 4-6)
H
POWER (3/3)
(PAGE 4-6)
I
CN1011
2
1
3
CN1014
2
1
3
D_1.2V
A_3.3V
POWER (3/3)
(PAGE 4-6)
G
CN1009
2
D_3.3V
I/O_1.8V
POWER (3/3)
(PAGE 4-6)
J
CN1016
15
6
1
D_2.8V/LANC_DC
USB_VBUS
D_1.2V
A_3.3VD_3.3V, A_3.3V
I/O_1.8V_S
L4307 D4304
D4305
FP-2141
FLEXIBLE
BOARD
CN1002
10
D_2.8V
EVER_3.0V
XPOWER_TACT_SW
6
15
GPS Model

DEV-30/50/50V_L3
4-5
4-5. POWER BLOCK DIAGRAM (2/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
VC-1016 BOARD (2/2)
FRC_RTG_IN1 AF10
GPIO_SB__2 V24
GPIO_SB__2 V24
SD_VCC
SD_VCCD_3.3V
SD_PWR_ON VIN1 VOUT 5
EN3
GPIO_S__6 P24
AS_PWM0A H14
GPIO_S__10 M26
USB_VBUS AJ20
VBUS_EN AE21
GPIO_S__2 R25
B+ SWITCH
(16/21)
IC4304
PITCH/YAW
SENSOR AMP
(1/2)
IC7501
PITCH/YAW
SENSOR
(1/2)
SE7501
IC1301
CPU (MAIN),
CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(2/21-4/21)
D_2.8V
A_1.125V
D_1.8V
A_3.3V
D_3.3V
A_1.8V
D_VID_1.1V
A_VID_1.1V
HB_1.2V
HB_1.8V
A_2.8V
FB1501
POWER (1/3)
(PAGE 4-4)
B
POWER (1/3)
(PAGE 4-4)
D
POWER (1/3)
(PAGE 4-4)
A
POWER (1/3)
(PAGE 4-4)
C
MS_PWR_ON
XPWR_OFF
D_1.2V
GPIO_S__10 M26
RXA_5V64
USB_VBUS AJ20
IC1601
CPU (SUB),
CAMERA DSP,
AV SIGNAL PROCESS,
LENS CONTROL,
MODE CONTROL,
HDMI PROCESS
(5/21-7/21)
D_2.8V
A_1.125V
D_1.8V
A_3.3V
D_3.3V
A_1.8V
D_VID_1.1V_S
A_VID_1.1V_S
HB_1.2V
HB_1.8V
A_2.8V
FB1801
USB_VBUS_S
XPWR_OFF_S
D_1.2V
A_1.2V
D_1.8V
D_2.8V
D_3.3V
D_1.2V
08
A_1.125V
MSX_3.3V
HB_1.8V
HB_1.2V
A_VID_1.1V,
D_VID_1.1V,
A_VID_1.1V_S,
D_VID_1.1V_S
A_1.8V, D_1.8V
A_2.8V, D_2.8V
A_3.3V, D_3.3V,
D_3.3V_SP
A_1.2V, D_1.2V
EVER_3.0V
HDMI_5.0V
VREG_5.0V
MT_5.0V,
J_5.0V
HDMI MIXING
(15/21)
IC3901
A_1.2V
A_1.8V
A_1.8V
D_1.8V
A_1.8V_HDMI_RX
D_1.8V_HDMI_RX
LOAD_SW2
HDMI TRANSMITTER
(12/21)
B+
SWITCH
Q3601, Q3602
HDMI POWER
ON/OFF
Q4802
IC3501
A_3.3V
D_3.3V
HDMI_5.0V
HDMI RECEIVER
(MAIN)
(13/21)
IC3601
RXA_5V64
BUFFER
(13/21)
IC3602
LEVEL SHIFT
(13/21)
IC3603
HDMI RECEIVER
(SUB)
(14/21)
IC3701
D_1.8V
2D/3D SWITCH
(10/21)
IC3101
LED DRIVE
Q1001 CN1015
2D/3D SWITCH
(10/21)
IC3103
2D/3D SWITCH
(10/21)
IC3104
2D/3D SWITCH
(10/21)
IC3105
2D/3D SELECT
(10/21)
IC3102
D_2.8V
CN8003
SD_VCC
MSX_3.3V
D8001
(ACCESS)
MS-1012 BOARDFP-2138
FLEXIBLE
BOARD
US-1001 BOARD
19
10
12
D_2.8V
MR_A_2.8V MR_A_2.8V
BATT_LI_3V
CN1001 CN8001
MSX_3.3V
8, 920, 21
36
12
38
D_2.8V D_2.8V_LD
SD_VCC
XZM_RST_LED
XZM_RST_LED_S
44
MR_A_2.8V 31
CN1017
USB_VBUS_S 2
LED DRIVE
Q1002 CN1018
D_2.8VD_2.8V D_2.8V_LD 44
MR_A_2.8V 31
BUFFER
(2/21)
IC1303
CLOCK
GENERATOR
(2/21)
IC1302
LOAD_ON_FR2
MEMORY
STICK
PRO DUO
SD
STEADYSHOT
PROCESSOR
(20/21)
IC5501
MR_A_2.8V
MR_A_2.8V
A_3.3V VDD4 VOUT 3
D_1.2V
D_1.8V D_1.8V
CE
1
2.8V REG
(18/21)
IC5202
D_2.8V
MT_5.0V
D_1.2V
D_2.8V
MT_5.0V
D_2.8V
MT_5.0V
MR_A_2.8V
D_1.8V
D_2.8V
D_2.8V
MT_5.0V
MT_5.0V
IRIS MOTOR
DRIVE (MAIN)
(18/21)
IC5201
IRIS MOTOR
DRIVE (SUB)
(19/21)
IC5301
ZOOM/FOCUS
MOTOR DRIVE
(21/21)
IC5701
J_5.0V IN
1OUT6
CURRENT LIMITER
(1/21)
IC1003
X_FAULT
4
EN3
USB_VBUS
VBUS_XOVR_CUR
VBUS_EN
USB_VBUS
SEL_UART_LANC
BT8001
LITHIUM
BATTERY
(USB)
CN9002
POWER (3/3)
(PAGE 4-6)
K
POWER (3/3)
(PAGE 4-6)
L
37, 3825, 26
8
34
USB_VBUS
51
CN9001
HD/VD CONTROL
(10/21)
IC3110
HD/VD CONTROL
(10/21)
IC3109
HD/VD CONTROL
(10/21)
IC3108
HD/VD CONTROL
(10/21)
IC3107
HD/VD CONTROL
(10/21)
IC3106

DEV-30/50/50V_L3
4-6E
4-6. POWER BLOCK DIAGRAM (3/3) ( ) : Number in parenthesis ( ) indicates the division number of schematic diagram where the component is located.
CN6003
CN6001
CN6002
DS_Hi
VDD2
VDD3
VDD4
VDD1
TON
SEL_IN
VF-1006 BOARDFP-2136
FLEXIBLE
BOARD (L)
FP-2137
FLEXIBLE
BOARD (MAIN)
FP-2131 FLEXIBLE
BOARD
3, 418, 1930, 3138, 39
1
216
20
3, 59
4, 58
5, 57
2, 60
15, 33,
54
22
23
DDEN 16
EYE_SENS_VCC/VIO
4
EYE_SENS_LEDA
12.5V
10V
OLED_2.8V
D_1.8V
EYE_SENS_3.3V EYE_SENS_LEDA
EYE_SENS_VCC/VIO
EVF_12.5V
EVF_10V
D_2.8V
D_1.8V
EYE_SENS_3.3V
EVF UNIT
(L)
CN5002
YAW_BIAS+
PITCH_BIAS+
Z_PI_A
D_2.8V_LD
MR_A_2.8V
D_2.8V_LD
MR_A_2.8V
LD-1009 BOARD
34
37
2
CN5001
15
F_PI_A OPTICAL
UNIT
(MAIN)
ROLL SENSOR
AMP
(2/2)
IC7701
ROLL SENSOR
(2/2)
SE7701
EVF SERIAL
INTERFACE
RECEIVER
IC6001
EYEPIECE
SENSOR
SE001
2.8V
DETECT
Q6001
27 DDENDDEN_L
CN6502
CN6501
DS_Hi
VDD2
VDD3
VDD4
VDD1
TON
SEL_IN
VF-1007 BOARDFP-2136
FLEXIBLE
BOARD (R)
3, 418, 1930, 31
2
3, 59
4, 58
5, 57
2, 60
15, 33,
54
22
23
DDEN 16
12.5V
10V
OLED_2.8V
D_1.8V
EVF_12.5V
EVF_10V
D_2.8V
D_1.8V
EVF UNIT
(R)
2.8V REG
IC6703 CMOS
IMAGER
CP001
EVF SERIAL
INTERFACE
RECEIVER
IC6501
27 DDENDDEN_L
CN6702
CM-123 BOARD (MAIN)FP-2134
FLEXIBLE
BOARD
CAM_1.2V
I/O_1.8V
A_2.8V
CMOS_A_3.3V
OUT
CE
IN
1
34
2.8V REG
IC9301
D8102
(RECORDING)
D8203
(CAM)
D8202
(PHOTO)
GPS RECEIVER
(1/2)
IC9303
GP-1009 BOARD
KY-1005 BOARD
VDD_3.1V
D_2.8V
CN8101
EVER_3.0V
VOUT VIN 1
ON_OFF 3
4
TX1/I2CC/GIO14 G2
44
43
45
D_1.2V
I/O_1.8V
A_3.3V
2.8V REG
IC6703 CMOS
IMAGER
CP001
CN6702
CM-123 BOARD (SUB)FP-2135
FLEXIBLE
BOARD
CAM_1.2V
I/O_1.8V
A_2.8V
CMOS_A_3.3V
OUT
CE
IN
1
34
44
43
45
08
D_1.2V
I/O_1.8V
A_3.3V
POWER (1/3)
(PAGE 4-4)
E
POWER (1/3)
(PAGE 4-4)
F
POWER (1/3)
(PAGE 4-4)
H
POWER (1/3)
(PAGE 4-4)
IFP-2137
FLEXIBLE
BOARD (SUB)
16
20
CN5102
YAW_BIAS+
PITCH_BIAS+
Z_PI_A
D_2.8V_LD
MR_A_2.8V
D_2.8V_LD
MR_A_2.8V
LD-1010 BOARD
34
37
2
CN5101
15
F_PI_A OPTICAL
UNIT
(SUB)
FP-2147
FLEXIBLE
BOARD
D_3.1V
CN0102
7FE MODULE
(1/2)
CP9301
RF AMP
(1/2)
IC9302
POWER (2/3)
(PAGE 4-5)
K
POWER (2/3)
(PAGE 4-5)
L
POWER (1/3)
(PAGE 4-4)
G
POWER (1/3)
(PAGE 4-4)
J5
3
ZM-1001 BOARD
D_2.8V
CN8201
EVER_3.0V
D_2.8V
EVER_3.0V
10
XPOWER_TACT_SW
15
6
CN8202
6
8D8101
CHG
S8203
POWER
LEVEL SHIFT
IC6002
10E - 40E
A4, H4,
J4, T4
2.8V
DETECT
Q6501
LEVEL SHIFT
IC6502
10E - 40E
A4, H4,
J4, T4

DEV-30/50/50V_L3
5-1
5. FRAME SCHEMATIC DIAGRAMS
5-1. FRAME SCHEMATIC DIAGRAM (1/2)
1
244
45
145
CN6702
1
1
1
244
45
45
45
CN6702
VC-1016 BOARD
(SIDE A)
JK-1005 BOARD
RS-1003 BOARD
(SIDE B)
RS-1003 BOARD
(SIDE A)
US-1001 BOARD
VC-1016 BOARD
(SIDE B)
FP-2134
FLEXIBLE BOARD
FP-2135
FLEXIBLE
BOARD
FP-2137
FLEXIBLE BOARD
(MAIN)
FP-2141
FLEXIBLE BOARD
FP-2137
FLEXIBLE
BOARD
(SUB)
1
2
5
6
1
211 12
2
139
38 2
139
38
2
1
44
45
1
45
1
45
1
45
2
1
44
45
2
1
44
45
1
2
5
6
2
1
13 44
45
145
145
114
114
CN1003
CN1005
CN1006
CN1007 CN1008
CN1010
CN1011
CN1014
CN1015
CN1017
CN1018
18
23 22
21 20
18 2
19 1
1819
5
16
17
1
18
CN1002 CN1009 CN1012
(FOR CHECK)
CN1013
CN1016
1
6 7
8
9
5
CN9001
CN8401
16
61
6
1
6
1
CN8402
S8401
J7901
J7902
121
CN7901
CM-123
BOARD (MAIN)
(SIDE B)
CM-123
BOARD (MAIN)
(SIDE A)
CP001
(Not supplied)
CM-123
BOARD (SUB)
(SIDE B)
CM-123
BOARD (SUB)
(SIDE A)
CP001
(Not supplied)
2
45 1
45 1
451
44
CN1001
6
1
15
11
1
1
8
1
8
8
8
16
FP-2138
FLEXIBLE
BOARD
MS-1012 BOARD
(SIDE A)
MS-1012 BOARD
(SIDE B)
129 26 30
2728
CN8001
2
1
44
45
47 46
CN8003
SE7501
PITCH/YAW
SS-1001 BOARD
(SIDE B)
SS-1001 BOARD
(SIDE A)
RS-1004 BOARD
1
2
5
6
CN8301
TB8501 TB8502
S8501
GP-1009 BOARD
CN0102
FP-2147 FLEXIBLE BOARD
FP-2146 FLEXIBLE BOARD
LITHIUM
BATTERY
BT8001
FP-2136
FLEXIBLE
BOARD (L)
(Page 5-2)
A
FP-2136
FLEXIBLE
BOARD (R)
(Page 5-2)
BZM-1001
BOARD
(SIDE B)
(Page 5-2)
E
(USB)
CN9002
LD-1009
BOARD
(Page 5-2) C
LD-1010
BOARD
(Page 5-2)
D
S
BT901
BATTERY
TERMINAL
(HEADPHONE)
PLUG IN POWER
Flexible Flat Cable (FFC-1040)
Flexible Flat Cable (FFC-1045)
Flexible Flat Cable (FFC-1041) Flexible Flat Cable (FFC-1038)
START/STOP
MANUAL
MANUAL
CPC
MULTI HDMI
OUT
IC4801
(Not supplied)
IC4304
(Not supplied)
IC1601
(Not supplied)
IC1301
(Not supplied)
J901
DC IN

DEV-30/50/50V_L3
5-2E

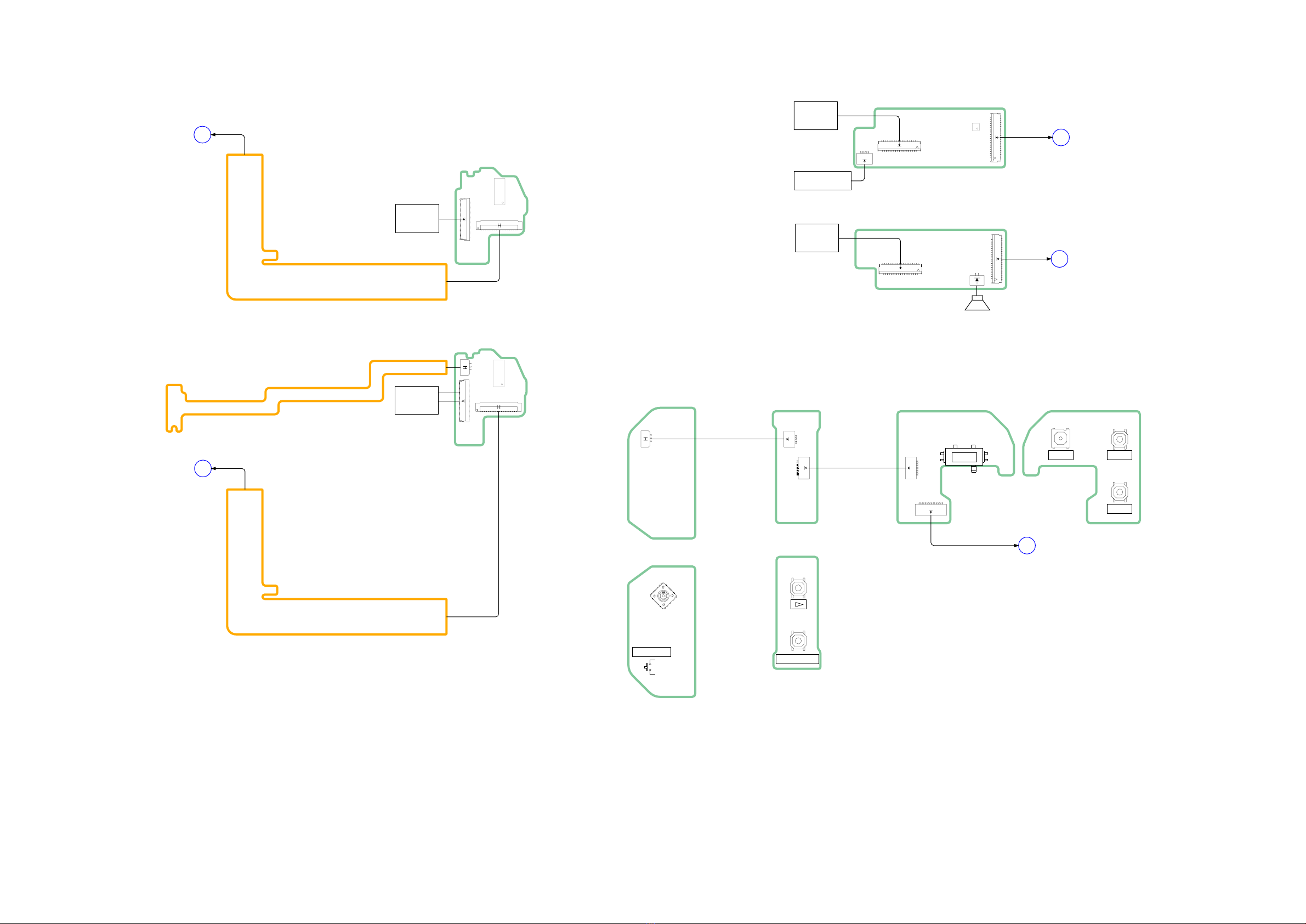

5-2. FRAME SCHEMATIC DIAGRAM (2/2)
LD-1010 BOARD
LD-1009 BOARD
2
1
44
45
2
1
39
38
2
1
CN5101
CN5102 CN5104
2
1
44
45 47
46
2
1
40
41
39
38
16
CN5001
CN5002
MIC901
KY-1005 BOARD
(SIDE A)
JY-1001 BOARD
(SIDE A)
JY-1001 BOARD
(SIDE B) KY-1005 BOARD
(SIDE B)
CN8102
10
61
1
CN8101
S8101
S8102
1
25
6
CN8601
S8601
(MULTI SELECTOR)
VF-1006 BOARD
VF-1007 BOARD
FP-2136 FLEXIBLE BOARD (L)
FP-2133 FLEXIBLE BOARD
FP-2136 FLEXIBLE BOARD (R)
1
1
25
6
6
1
2
60
61
CN6002
CN6003
2
139
38
CN6001
1
139
139
1
39
1
39
2
60
61
CN6502
2
139
38
CN6501
ZM-1001 BOARD
(SIDE A)
ZM-1001 BOARD
(SIDE B)
10 1
CN8202
RV8201
ZOOM
118
CN8201
S8201 S8202
S8203
Flexible Flat Cable (FFC-1038)
Flexible Flat Cable (FFC-1039)
Flexible Flat Cable (FFC-1041)
PHOTO MODE
POWER
FINDER 2D/3D
START/STOP
VC-1016
BOARD
(SIDE A)
(Page 5-1)
A
VC-1016
BOARD
(SIDE A)
(Page 5-1)
B
FP-2137
FLEXIBLE BOARD
(MAIN)
(Page 5-1)
C
FP-2137
FLEXIBLE BOARD
(SUB)
(Page 5-1)
D
EVF UNIT
(L)
EVF UNIT
(R)
VC-1016
BOARD
(SIDE B)
(Page 5-1)
E
MICROPHONE
UNIT
OPTICAL
UNIT
(MAIN)
OPTICAL
UNIT
(SUB)
SP901
(SPEAKER)
IC6502
(Not supplied)
IC6002
(Not supplied)
IC7701
(Not supplied)

DEV-30/50/50V_L3
6-1
回路図ノート
・ ケミコン，タンタルを除くコンデンサで，耐圧50V以下の
ものはその耐圧を省略。単位はすべてμF（pはpF）。
・ チップ抵抗で指示のないものは，1/10W以下。
 kΩ＝1000Ω，MΩ＝1000kΩ
・ チップ部品交換時の注意
 取り外した部品は再使用せず，未使用の部品をご使用く
ださい。
 タンタルコンデンサのマイナス側は熱に弱いため注意し
てください。
・ チップ部品には下記のように表示したものがあります。
 例 C541 L452
  22U 10UH
  TA A 2520
  種類 外形寸法（mm）
  ケースサイズ
・ 抵抗，コンデンサ，ICなど定数にXXがあるものは，使用
していない事を示しています。このため，使用していな
い回路が記載されている事があります。
・ ★印のある部品は，機種などにより異なりますので機能
別マウント一覧表を参照してください。
・ 可変抵抗と半固定抵抗で，B特性の表示を省略。
・ 信号名表記について，下記のような場合があります。
 XEDIT → EDIT PB/XREC → PB/REC
・ は不燃性抵抗。
・ はヒューズ抵抗。
・ はパネル表示名称。
・ はB＋ライン。
・ はB−ライン。
・ はBライン（＋，−）の入出力方向を示す。
・ は調整名称。
6. SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS
THIS NOTE IS COMMON FOR SCHEMATIC DIAGRAMS AND PRINTED WIRING BOARDS
(In addition to this, the necessary note is printed in each block)
– ENGLISH –
21
3
21
3
21
3
345
21
123
654
EB
C
31
5
2
46
123
654
31
5
2
46
123
54
43
12
312
45
534
12
14
23
46
2
5
31
12
43
14
23
For Schematic Diagrams
• All capacitors are in μF unless otherwise noted. pF : μ
μF. 50 V or less are not indicated except for electrolytics
and tantalums.
• Chip resistors are 1/10 W unless otherwise noted.
kΩ=1000 Ω, MΩ=1000 kΩ.
• Caution when replacing chip parts.
New parts must be attached after removal of chip.
Be careful not to heat the minus side of tantalum
capacitor, Because it is damaged by the heat.
• Some chip part will be indicated as follows.
Example C541 L452
22U 10UH
TA A 2520
Kinds of capacitor External dimensions (mm)
Case size
• Constants of resistors, capacitors, ICs and etc with XX
indicate that they are not used.
In such cases, the unused circuits may be indicated.
• Parts with ★differ according to the model/destination.
Refer to the mount table for each function.
• All variable and adjustable resistors have characteristic
curve B, unless otherwise noted.
• Signal name
XEDIT → EDIT PB/XREC →PB/REC
•: non flammable resistor
• : fusible resistor
• : panel designation
• : B+ Line
• : B– Line
• : IN/OUT direction of (+, –) B LINE.
• : adjustment for repair.
The components identified by mark 0
or dotted line with mark 0are critical
for safety.
Replace only with part number specified.
Les composants identifiés par une
marque 0sont critiques pour la sécurité.
Ne les remplacer que par une pièce
portant le numéro spécifié.
When indicating parts by reference
number, please include the board name.
For Printed Wiring Boards
• : Uses unleaded solder.
•: Circuit board
: Flexible board
Pattern from the side which enables seeing.
: pattern of the rear side
(The other layers’ patterns are not indicated)
• Through hole is omitted.
• There are a few cases that the part printed on diagram
isn’t mounted in this model.
• : panel designation
• Chip parts.
Transistor Diode
回路図，プリント図共通ノート
（他に必要なノートは各セクションに記載しています）
プリント図ノート
・ ：無鉛半田を使用しています。
・ ：基板
 ：フレキシブル配線板
 見ている面側のパターン。
 ：裏側のパターン
 （他のパターンについては表示されていません）
・ スルーホールは省略。
・ プリント図には，本機で使用していない部品が記載さ
れている場合があります。
・ はパネル表示名称。
• Chipparts.
 Transistor Diode
21
3
21
3
21
3
345
21
123
654
EB
C
31
5
2
46
123
654
31
5
2
46
123
54
43
12
312
45
534
12
14
23
46
2
5
31
12
43
14
23
0印の部品，または0印付の点線で囲まれた部品は，
安全性を維持するために，重要な部品です。
従って交換時は，必ず指定の部品を使用してください。
図面番号で部品を指定するときは基板名又はブロック
を併せて指定してください。
お願い
– JAPANESE –
Precautions for Replacement of Imager
•If the imager has been replaced, carry out all the adjustments
for the camera section.
•As the imager may be damaged by static electricity
from its structure, handle it carefully like for the MOS IC.
In addition, ensure that the receiver is not covered with dusts nor
exposed to strong light.
イメージャ交換時の注意
・ イメージャを交換した場合は，カメラ部の全調整を行って
 ください。
・ イメージャは構造上，静電気により破壊される恐れがあるため，
 MOSICと同様に注意して取り扱ってください。
 また，受光部にはゴミの付着，および強い光がはいることのない
 ように注意してください。

DEV-30/50/50V_L3
6-2
6-1. SCHEMATIC DIAGRAMS
FP-2134
FLEXIBLE
LND4002
(PAGE 6-4)
XCLR
XVS
XHS
XVS
XHS
XCLR
Note: All mounted parts are not supplied, but they are
included in CM-123 COMPLETE BOARD.
123456789
A
B
C
D
E
F
A
B
C
D
E
F
08
CM-123 BOARD (MAIN)
CMOS IMAGER
XX MARK: NO MOUNT
C6729
1u
C6728
1u
C6706
0.1u C6714
0.1u
C6707
1u C6712
0.001u
C6713
2.2u
C6703
1u
C6719
1u
C6718
0.1u
C6701
0.1u
C6710
1u
C6711
0.1u
C6715
4.7u
C6717
0.1u
C6716
0.1u
C6708
1u
C6709
0.1u
I/O_1.8V
CMOS_A_3.3V
CAM_1.2V
REG_GND
REG_GND
REG_GND
A_2.8V
DOAP
DOBP
DOCM
DOBM
DOAM
A_2.8V
DCKP
DOFM
DCKM
DOHP
DOFP
DOGP
DOGM
DODP
DODM
DOHM
DOEP
DOEM
DOCP
R6741
XX
R6704
XX
R6707
47k
R6706
XX
R6703
XX
R6705
XX
R6701
XX
R6767
XX
R6702
XX CP001
IMX116CHL-13
A9
VDDHDA
A8
VSSHDA
A4
VDDHCP
A3
VSSHCP
M1
NC(4)
B5
VDDHCM1
M7
NC(6)
B9
VDDHCM2
M8
NC(6)
A7
VSSHPX
B6
VSSHPX
A5
VDDHPX
L10
NC(7)
L11
NC(7)
M10
NC(7)
C4
VDDSUB
M11
NC(7)
F2
XCLR
G1
XVS
G3
XHS
G2
XCE
F3
SCK
F1
SDI
E1
SDO
K2
INCK
M9
NC(6)
A1
NC(1)
K10
DOAM
K11
DOAP
J10
DOBM
J11
DOBP
H10
DOCM
H11
DOCP
G10
DODM
G11
DODP
F10
DOEM
F11
DOEP
E10
DOFM
E11
DOFP
D10
DOGM
D11
DOGP
C10
DOHM
C11
DOHP
A2
NC(1)
B1
NC(1)
B2
NC(1)
G9
DCKM
H9
DCKP
D3
NC(2)
E2
NC(3)
E3
NC(3)
L1
TSCANEN
L2
TENABLE
M2
TOUT
M6
NC(5)
A10
ASMON1
B10
ASMON2
A11
NC(8)
B11
NC(8)
A6
VLOADLM
M5
NC(5)
B7
VBGR
B8
VEXRES
C5
NC(9)
C6
NC(9)
B4
VRLS
B3
VRLT
C7
NC(9)
M4
NC(5)
K1
VDDLPL
K3
VSSLPL
M3
NC(5)
C1
VDDLSC
J1
VDDLSC
C2
VSSLSC
J2
VSSLSC
C9
VDDLSC
L9
VDDLSC
E9
VSSLSC
K9
VSSLSC
L7
VDDMLV
K7
VSSMLV
L6
NC(5)
L5
NC(5)
L4
NC(5)
L3
NC(5)
K6
NC(5)
K5
NC(5)
K4
NC(5)
H2
VDDMIO
C3
VSSLCB
J3
VSSLCB
C8
VSSLCB
K8
VSSLCB
D1
VDDLCN1
H1
VDDLCN1
D2
VSSLCN
H3
VSSLCN
F9
VSSLCN
J9
VSSLCN
D9
VDDLCN2
L8
VDDLCN2
C6743
0.001u
DOGP
DODP
DCKP
DOBP
DCKM
DODM
DOAM
DOEM
DOEP
DOBM
DOCP
DOCM
DOFP
DOFM
DOGM
DOAP
SDO
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
CMOS_A_3.3V
REG_GND
I/O_1.8V
SCK
REG_GND
REG_GND
REG_GND
REG_GND
CAM_1.2V
REG_GND
REG_GND
SDI
REG_GND
INCK
XCE
REG_GND
R6728 XX
LF6719
XX
2
1
34
LF6717
XX
2
1
34
LF6718
XX
2
1
34
LF6712
XX
2
1
34
LF6714
XX
2
1
34
LF6715
XX
2
1
34
LF6713
XX
2
1
34
LF6716
XX
2
1
34
CN6702 45P
1 REG_GND
2 CLK_CMOS_IN
3 REG_GND
4 XFLASH_RST
5 REG_GND
6 SENSXCE
7SENSSCK
8REG_GND
9 SENSSO
10 SENSSI
11 SENS_HD
12 SENS_VD
13 REG_GND
14 REG_GND
15 SUBL_DINN9
16 SUBL_DINP9
17 REG_GND
18 SUBL_DINN8
19 SUBL_DINP8
20 REG_GND
21 SUBL_DINN7
22 SUBL_DINP7
23 REG_GND
24 SUBL_DINN6
25 SUBL_DINP6
26 REG_GND
27 SENSE_CLK_M
28 SENSE_CLK_P
29 REG_GND
30 SUBL_DINN5
31 SUBL_DINP5
32 REG_GND
33 SUBL_DINN4
34 SUBL_DINP4
35 REG_GND
36 SUBL_DINN3
37 SUBL_DINP3
38 REG_GND
39 SUBL_DINN2
40 SUBL_DINP2
41 REG_GND
42 REG_GND
43 I/O_1.8V
44 CAM_1.2V
45 CMOS_A_3.3V
REG_GND
DOHP
DOHM
LF6720
XX
2
1
34
SCK
SDI
SDO
XCE
CL008
R6708 1k
C6745
XX
INCK
CL009
CL010
CL007
R6709 XX
REG_GND
CL006
C6746
0.1u
C6747
1u
C6749
4.7u
C6750
4.7u
C6751
4.7u
C6752
4.7u
MM3404A28URE
IC6703
1
CE
2
GND
OUT
3
IN
4
R6729
XX
C6753 XX
CMOS IMAGER
2.8V REG

DEV-30/50/50V_L3
6-3
FP-2135
FLEXIBLE
LND4002
(PAGE 6-4)
XCLR
XVS
XHS
XVS
XHS
XCLR
Note: All mounted parts are not supplied, but they are
included in CM-123 COMPLETE BOARD.
123456789
A
B
C
D
E
F
A
B
C
D
E
F
08
CM-123 BOARD (SUB)
CMOS IMAGER
XX MARK: NO MOUNT
C6729
1u
C6728
1u
C6706
0.1u C6714
0.1u
C6707
1u C6712
0.001u
C6713
2.2u
C6703
1u
C6719
1u
C6718
0.1u
C6701
0.1u
C6710
1u
C6711
0.1u
C6715
4.7u
C6717
0.1u
C6716
0.1u
C6708
1u
C6709
0.1u
I/O_1.8V
CMOS_A_3.3V
CAM_1.2V
REG_GND
REG_GND
REG_GND
A_2.8V
DOAP
DOBP
DOCM
DOBM
DOAM
A_2.8V
DCKP
DOFM
DCKM
DOHP
DOFP
DOGP
DOGM
DODP
DODM
DOHM
DOEP
DOEM
DOCP
R6741
XX
R6704
XX
R6707
47k
R6706
XX
R6703
XX
R6705
XX
R6701
XX
R6767
XX
R6702
XX CP001
IMX116CHL-13
A9
VDDHDA
A8
VSSHDA
A4
VDDHCP
A3
VSSHCP
M1
NC(4)
B5
VDDHCM1
M7
NC(6)
B9
VDDHCM2
M8
NC(6)
A7
VSSHPX
B6
VSSHPX
A5
VDDHPX
L10
NC(7)
L11
NC(7)
M10
NC(7)
C4
VDDSUB
M11
NC(7)
F2
XCLR
G1
XVS
G3
XHS
G2
XCE
F3
SCK
F1
SDI
E1
SDO
K2
INCK
M9
NC(6)
A1
NC(1)
K10
DOAM
K11
DOAP
J10
DOBM
J11
DOBP
H10
DOCM
H11
DOCP
G10
DODM
G11
DODP
F10
DOEM
F11
DOEP
E10
DOFM
E11
DOFP
D10
DOGM
D11
DOGP
C10
DOHM
C11
DOHP
A2
NC(1)
B1
NC(1)
B2
NC(1)
G9
DCKM
H9
DCKP
D3
NC(2)
E2
NC(3)
E3
NC(3)
L1
TSCANEN
L2
TENABLE
M2
TOUT
M6
NC(5)
A10
ASMON1
B10
ASMON2
A11
NC(8)
B11
NC(8)
A6
VLOADLM
M5
NC(5)
B7
VBGR
B8
VEXRES
C5
NC(9)
C6
NC(9)
B4
VRLS
B3
VRLT
C7
NC(9)
M4
NC(5)
K1
VDDLPL
K3
VSSLPL
M3
NC(5)
C1
VDDLSC
J1
VDDLSC
C2
VSSLSC
J2
VSSLSC
C9
VDDLSC
L9
VDDLSC
E9
VSSLSC
K9
VSSLSC
L7
VDDMLV
K7
VSSMLV
L6
NC(5)
L5
NC(5)
L4
NC(5)
L3
NC(5)
K6
NC(5)
K5
NC(5)
K4
NC(5)
H2
VDDMIO
C3
VSSLCB
J3
VSSLCB
C8
VSSLCB
K8
VSSLCB
D1
VDDLCN1
H1
VDDLCN1
D2
VSSLCN
H3
VSSLCN
F9
VSSLCN
J9
VSSLCN
D9
VDDLCN2
L8
VDDLCN2
C6743
0.001u
DOGP
DODP
DCKP
DOBP
DCKM
DODM
DOAM
DOEM
DOEP
DOBM
DOCP
DOCM
DOFP
DOFM
DOGM
DOAP
SDO
REG_GND
REG_GND
REG_GND
REG_GND
REG_GND
CMOS_A_3.3V
REG_GND
I/O_1.8V
SCK
REG_GND
REG_GND
REG_GND
REG_GND
CAM_1.2V
REG_GND
REG_GND
SDI
REG_GND
INCK
XCE
REG_GND
R6728 XX
LF6719
XX
2
1
34
LF6717
XX
2
1
34
LF6718
XX
2
1
34
LF6712
XX
2
1
34
LF6714
XX
2
1
34
LF6715
XX
2
1
34
LF6713
XX
2
1
34
LF6716
XX
2
1
34
CN6702 45P
1 REG_GND
2 CLK_CMOS_IN
3 REG_GND
4 XFLASH_RST
5 REG_GND
6 SENSXCE
7SENSSCK
8REG_GND
9 SENSSO
10 SENSSI
11 SENS_HD
12 SENS_VD
13 REG_GND
14 REG_GND
15 SUBL_DINN9
16 SUBL_DINP9
17 REG_GND
18 SUBL_DINN8
19 SUBL_DINP8
20 REG_GND
21 SUBL_DINN7
22 SUBL_DINP7
23 REG_GND
24 SUBL_DINN6
25 SUBL_DINP6
26 REG_GND
27 SENSE_CLK_M
28 SENSE_CLK_P
29 REG_GND
30 SUBL_DINN5
31 SUBL_DINP5
32 REG_GND
33 SUBL_DINN4
34 SUBL_DINP4
35 REG_GND
36 SUBL_DINN3
37 SUBL_DINP3
38 REG_GND
39 SUBL_DINN2
40 SUBL_DINP2
41 REG_GND
42 REG_GND
43 I/O_1.8V
44 CAM_1.2V
45 CMOS_A_3.3V
REG_GND
DOHP
DOHM
LF6720
XX
2
1
34
SCK
SDI
SDO
XCE
CL008
R6708 1k
C6745
XX
INCK
CL009
CL010
CL007
R6709 XX
REG_GND
CL006
C6746
0.1u
C6747
1u
C6749
4.7u
C6750
4.7u
C6751
4.7u
C6752
4.7u
MM3404A28URE
IC6703
1
CE
2
GND
OUT
3
IN
4
R6729
XX
C6753 XX
CMOS IMAGER
2.8V REG

DEV-30/50/50V_L3
6-4
VC-1016
(1/21)
CN1011
(PAGE 6-9)
CM-123
(MAIN)
CN6702
(PAGE 6-2)
12 3 4
A
B
C
D
E
F
A
B
C
D
E
F
08
FP-2134 FLEXIBLE BOARD
CM (MAIN)-VC CONNECTION
(PRINTED WIRING BOARD is omitted.)
LND4001
45P
1
CMOS_A_3.3V
2
D_1.2V
3
I/O_1.8V
4
REG_GND
5
REG_GND
6
DOAP
7
DOAM
8
REG_GND
9
DOBP
10
DOBM
11
REG_GND
12
DOCP
13
DOCM
14
REG_GND
15
DODP
16
DODM
17
REG_GND
18
DCKP
19
DCKM
20
REG_GND
21
DOEP
22
DOEM
23
REG_GND
24
DOFP
25
DOFM
26
REG_GND
27
DOGP
28
DOGM
29
REG_GND
30
DOHP
31
DOHM
32
REG_GND
33
REG_GND
34
XVS
35
XHS
36
SDO
37
SDI
38
REG_GND
39
SCK
40
XCE
41
REG_GND
42
XCLR
43
REG_GND
44
INCK_FPC
45
REG_GND
LND4002 45P
1REG_GND
2CLK_CMOS_IN
3REG_GND
4XFLASH_RST
5REG_GND
6SENSXCE
7SENSSCK
8REG_GND
9SENSSO
10 SENSSI
11 SENS_HD
12 SENS_VD
13 REG_GND
14 REG_GND
15 SUBL_DINN9
16 SUBL_DINP9
17 REG_GND
18 SUBL_DINN8
19 SUBL_DINP8
20 REG_GND
21 SUBL_DINN7
22 SUBL_DINP7
23 REG_GND
24 SUBL_DINN6
25 SUBL_DINP6
26 REG_GND
27 SENSE_CLK_M
28 SENSE_CLK_P
29 REG_GND
30 SUBL_DINN5
31 SUBL_DINP5
32 REG_GND
33 SUBL_DINN4
34 SUBL_DINP4
35 REG_GND
36 SUBL_DINN3
37 SUBL_DINP3
38 REG_GND
39 SUBL_DINN2
40 SUBL_DINP2
41 REG_GND
42 REG_GND
43 I/O_1.8V
44 CAM_1.2V
45 CMOS_A_3.3V
VC-1016
(1/21)
CN1014
(PAGE 6-9)
CM-123
(SUB)
CN6702
(PAGE 6-3)
12 3 4
A
B
C
D
E
F
A
B
C
D
E
F
08
FP-2135 FLEXIBLE BOARD
CM (SUB)-VC CONNECTION
(PRINTED WIRING BOARD is omitted.)
LND400145P
1
CMOS_A_3.3V
2
D_1.2V
3
I/O_1.8V
4
REG_GND
5
REG_GND
6
DOAP
7
DOAM
8
REG_GND
9
DOBP
10
DOBM
11
REG_GND
12
DOCP
13
DOCM
14
REG_GND
15
DODP
16
DODM
17
REG_GND
18
DCKP
19
DCKM
20
REG_GND
21
DOEP
22
DOEM
23
REG_GND
24
DOFP
25
DOFM
26
REG_GND
27
DOGP
28
DOGM
29
REG_GND
30
DOHP
31
DOHM
32
REG_GND
33
REG_GND
34
XVS
35
XHS
36
SDO
37
SDI
38
REG_GND
39
SCK
40
XCE
41
REG_GND
42
XCLR
43
REG_GND
44
INCK_FPC
45
REG_GND
LND4002 45P
1REG_GND
2CLK_CMOS_IN
3REG_GND
4XFLASH_RST
5REG_GND
6SENSXCE
7SENSSCK
8REG_GND
9SENSSO
10 SENSSI
11 SENS_HD
12 SENS_VD
13 REG_GND
14 REG_GND
15 SUBL_DINN9
16 SUBL_DINP9
17 REG_GND
18 SUBL_DINN8
19 SUBL_DINP8
20 REG_GND
21 SUBL_DINN7
22 SUBL_DINP7
23 REG_GND
24 SUBL_DINN6
25 SUBL_DINP6
26 REG_GND
27 SENSE_CLK_M
28 SENSE_CLK_P
29 REG_GND
30 SUBL_DINN5
31 SUBL_DINP5
32 REG_GND
33 SUBL_DINN4
34 SUBL_DINP4
35 REG_GND
36 SUBL_DINN3
37 SUBL_DINP3
38 REG_GND
39 SUBL_DINN2
40 SUBL_DINP2
41 REG_GND
42 REG_GND
43 I/O_1.8V
44 CAM_1.2V
45 CMOS_A_3.3V

DEV-30/50/50V_L3
6-5
FP-2137
FLEXIBLE
(MAIN)
LND4002
(PAGE 6-8)
Note: MIC901 is not included in LD-1009 COMPLETE BOARD.
Note: OPTICAL UNIT is replaced as block,
so that PRINTED WIRING BOARD
and SCHEMATIC DIAGRAM are omitted.
123456789
A
B
C
D
E
F
A
B
C
D
E
F
08
LD-1009 BOARD (1/2)
LENS BLOCK (MAIN)
XX MARK: NO MOUNT
CN50036P
1
NC
2
NC
3
AUDIO_GND
4
INT_MIC_R
5
AUDIO_GND
6
INT_MIC_L
AUDIO_GND
INT_MIC_R
INT_MIC_L
INT_MIC_L
INT_MIC_R
REG_GND
VST_C_CHARGE
ROLL_AD
AUDIO_GND
C5001
XX
C5002
XX
MR_A_2.8V
D_2.8V_LD
MR_A_2.8V
D_2.8V_LD
FOCUS_XA
FOCUS_B
FOCUS_A
FOCUS_XB
ZOOM_A
ZOOM_XA
ZOOM_B
ZOOM_XB
PITCH-
PITCH+
YAW-
YAW+
YAW_HALL-
YAW_BIAS-
YAW_HALL+
PITCH_HALL-
PITCH_BIAS-
PITCH_HALL+
IRIS_DRIVE+
IRIS_DRIVE-
IRIS_BIAS+
IRIS_HALL+
IRIS_BIAS-
IRIS_HALL-
T_TEMP_OUT
L_TEMP_OUT
Z_PI_C
F_PI_C
T_TEMP_OUT
YAW+
YAW-
PITCH+
PITCH-
ZOOM_XB
ZOOM_B
ZOOM_A
ZOOM_XA
FOCUS_XB
FOCUS_B
FOCUS_A
FOCUS_XA
YAW_HALL-
YAW_BIAS-
YAW_HALL+
PITCH_HALL-
PITCH_BIAS-
PITCH_HALL+
IRIS_DRIVE+
IRIS_DRIVE-
IRIS_BIAS+
IRIS_HALL+
IRIS_BIAS-
IRIS_HALL-
L_TEMP_OUT
Z_PI_C
F_PI_C
REG_GND
C5003
XX
CN5001
45P
1
REG_GND
2
D_2.8V_LD
3
F_PI_C
4
Z_PI_C
5
REG_GND
6
ZOOM_XB
7
ZOOM_B
8
ZOOM_XA
9
ZOOM_A
10
FOCUS_B
11
FOCUS_XB
12
FOCUS_XA
13
FOCUS_A
14
REG_GND
15
MR_A_2.8V
16
REG_GND
17
IRIS_DRIVE-
18
IRIS_DRIVE+
19
REG_GND
20
YAW+
21
YAW-
22
PITCH+
23
PITCH-
24
REG_GND
25
T_TEMP_OUT
26
YAW_HALL-
27
YAW_HALL+
28
YAW_BIAS-
29
PITCH_BIAS-
30
PITCH_HALL-
31
PITCH_HALL+
32
IRIS_BIAS+
33
IRIS_BIAS-
34
IRIS_HALL+
35
IRIS_HALL-
36
L_TEMP_OUT
37
F_PI_K_E
38
VST_C_CHARGE
39
PU_THERM
40
ROLL_AD
41
AUDIO_GND
42
INT_MIC_R
43
AUDIO_GND
44
INT_MIC_L
45
47 46
AUDIO_GND
CN5002 39P
1 FOCUS_XA
2 FOCUS_B
3 FOCUS_A
4 FOCUS_XB
5 ZOOM_A
6 ZOOM_XA
7 ZOOM_B
8 ZOOM_XB
9 REG_GND
10 PITCH-
11 PITCH+
12 YAW-
13 YAW+
14 T_TEMP_GND
15 T_TEMP_OUT
16 YAW_BIAS+
17 YAW_HALL-
18 YAW_BIAS-
19 YAW_HALL+
20 PITCH_BIAS+
21 PITCH_HALL-
22 PITCH_BIAS-
23 PITCH_HALL+
24 REG_GND
25 IRIS_DRIVE+
26 IRIS_DRIVE-
27 REG_GND
28 IRIS_BIAS+
29 IRIS_HALL+
30 IRIS_BIAS-
31 IRIS_HALL-
32 L_TEMP_GND
33 L_TEMP_OUT
34 Z_PI_A
35 Z_PI_C
36 Z_PI_K_E
37 F_PI_A
38 F_PI_C
39
40 41
F_PI_K_E
MICROPHONE
UNIT
MIC901
OPTICAL
UNIT
(MAIN)

DEV-30/50/50V_L3
6-6
Note: IC7701 and SE7701 are not supplied,
but they are included in LD-1009 COMPLETE BOARD.
12 3 4
A
B
C
D
E
F
A
B
C
D
E
F
08
LD-1009 BOARD (2/2)
ROLL SENSOR
XX MARK: NO MOUNT
R7706
XX
MR_A_2.8V
R7702
150k
R7703 10k
R7701
15k
R7705
22k
R7704
22k
C7702
0.33u
REG_GND
ROLL_AD
VST_C_CHARGE
C7709
0.1u
C7701
0.1u
C7703
0.1u
C7708
0.1u
C7705
470p
C7706
0.047u
C7707
0.047u
C7704
22u
SE7701
ROLL SENSOR
1
LPF
2
OUT
3
V1
4
VCC
6
Vref
5
GND
IC7701
NJM3232MG2 (TE2)
ROLL SENSOR AMP
1
GND
2
VCC
3
NC
4
CRST
5
OUT
6
AM
7
VREF
8
NC
9
NC
10
HO
11
HI
12
NC
13
NC
14
LO
15
LIA
16
LIB
COM771
VC-1016
(1/21)
CN1001
(PAGE 6-9)
MS-1012
(2/2)
CN8003
(PAGE 6-31)
12 3 4
A
B
C
D
E
F
A
B
C
D
E
F
08
FP-2138 FLEXIBLE BOARD
VC-MS CONNECTION
(PRINTED WIRING BOARD is omitted.)
LND4001
45P
1
REG_GND
2
SD_DAT_1
3
SD_SDWP
4
REG_GND
5
SD_XSDCD
6
SD_DAT_0
7
REG_GND
8
MSX_3.3V
9
MSX_3.3V
10
REG_GND
11
FR_XRESET
12
BATT_LI_3
13
REG_GND
14
MSX_CLK
15
REG_GND
16
SD_CLK
17
REG_GND
18
MSX_INS_HIS
19
REG_GND
20
SD_VCC
21
SD_VCC
22
REG_GND
23
MSX_BIO2
24
MSX_BIO0
25
REG_GND
26
MSX_BIO1
27
MSX_BIO3
28
REG_GND
29
MSX_BS
30
SD_CMD
31
REG_GND
32
SD_DAT_3
33
SD_DAT_2
34
REG_GND
35
XMS_ACC_LED
36
D_2.8V
37
REG_GND
38
MR_A_2.8V
39
CRESET_P
40
GY_GND
41
YAW_AD
42
GY_GND
43
GY_GND
44
PITCH_AD
45
GY_GND
LND4002 45P
1GY_GND
2PITCH_AD
3GY_GND
4GY_GND
5YAW_AD
6GY_GND
7CRESET_P
8MR_A_2.8V
9REG_GND
10 D_2.8V
11 XMS_ACC_LED
12 REG_GND
13 SD_DAT_2
14 SD_DAT_3
15 REG_GND
16 SD_CMD
17 MSX_BS
18 REG_GND
19 MSX_BIO_3
20 MSX_BIO_1
21 REG_GND
22 MSX_BIO_0
23 MSX_BIO_2
24 REG_GND
25 SD_VCC
26 SD_VCC
27 REG_GND
28 MSX_INS_HIZ
29 REG_GND
30 SD_CLK
31 REG_GND
32 MSX_CLK
33 REG_GND
34 BATT_LI_3V
35 FR_XRESET
36 REG_GND
37 MSX_3.3V
38 MSX_3.3V
39 REG_GND
40 SD_DAT_0
41 SD_XSDCD
42 REG_GND
43 SD_SDWP
44 SD_DAT_1
45 REG_GND
