SERVICE NOTE
SPECIFICATIONS
REPAIR PARTS LIST
DISASSEMBLY ADJUSTMENTS
SERVICE MANUAL
Link
Link
Revision History
Revision History
How to use
Acrobat Reader
How to use
Acrobat Reader
Sony EMCS Co.
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
Ver 1.1 2007.02
LENS FOR DSLR CAMERA
2007B0800-1
© 2007.02
Published by Kohda TEC9-876-948-12
US Model
Canadian Model
AEP Model
Chinese Model
SAL75300
(4.5-5.6/75-300) (75-300mm F4.5-5.6)
• About the Lens Test Projector

— 2 —
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
SPECIFICATIONS
• This lens is equipped with a distance encoder. The distance encoder allows more accurate measurement (ADI) by using a flash for ADI.
• Depending on the lens mechanism, the focal length may change with any change of the shooting distance. The focal length assumes the lens is focused
at infinity.
Equivalent 35mm-format focal length *1(mm)
112.5-450
*1The value for equivalent 35mm-format focal length is based on Digital Single Lens Reflex Cameras equipped with an APS-C sized image sensor.
Lens groups elements
10-13
Angle of view 1*1
32°-8°10’
Angle of view 2*1
21°-5°20’
*2The value of angle of view 1 is based on 35mm-format cameras, and that of angle of view 2 is based on Digital Single Lens Reflex Cameras
equipped with an APS-C sized image sensor.
Minimum focus (m (feet)) *3
1.5 (4.9)
*3Minimum focus is the shortest distance from the image sensor to the subject.
Maximum magnification (××
××
×)
0.25
Minimum f-stop
f/32-38
Filter diameter (mm)
55
Dimensions (maximum diameter ××
××
×height) (mm (in.))
Approx. 71 ×122 (2 13/16 ×4 13/16)
Mass (g (oz.))
Approx. 460 (16 1/4)
Included items
Lens (1), Front lens cap (1), Rear lens cap (1), Lens hood (1), Set of printed documentation
Designs and specifications are subject to change without notice.

—3 —
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
TABLE OF CONTENTS
Section Title Page
1. SERVICE NOTE
1-1. Chemicals ······································································· 1-1
1-2. Exterior Parts ·································································· 1-1
1-3. Unleaded Solder ····························································· 1-1
1-4. Safety Check-out ···························································· 1-2
1-5. Troubleshooting ····························································· 1-3
2. DISASSEMBLY
2-1. Disassembly ··································································· 2-2
3. REPAIR PARTS LIST
3-1. Exploded Views ······························································ 3-1
3-2. Supplied Accessories ······················································ 3-7
4. ADJUSTMENTS
4-1. Preparations ···································································· 4-1
4-2. Aperture Diameter Check/Adjustment ··························· 4-4
4-3. Projective Resolving Power Check ································4-9
4-4. Flange Back (f’F) Check/Adjustment ·························· 4-12
4-5. Focus-shift Check/Adjustment ····································· 4-16
4-6. Lens ROM Check ························································· 4-18
4-7. Zoom Brush Position Check/Adjustment and
Pattern Check ······························································· 4-19
4-8. Focus Brush Position Check/Adjustment and
Pattern Check ······························································· 4-22
4-9. Error Code List ····························································· 4-25

1-1
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
1. SERVICE NOTE
1-1. Chemicals
Some chemicals used for servicing are highly volatile.
Their evaporation caused by improper management affects your health and environment, and wastes resources.
Manage the chemicals carefully as follows.
•Store chemicals sealed in a specific place to prevent from exposure to high temperature or direct sunlight.
•Avoid dividing chemicals into excessive numbers of small containers to reduce natural evaporation.
•Keep containers sealed to avoid natural evaporation when chemicals are not in use.
•Avoid using chemicals as much as possible. When using chemicals, divide only required amount to a small plate from the container and
use up it.
1-2. Exterior Parts
Be careful to the following points for exterior parts used in this unit.
•Use a piece of cleaning paper or cleaning cloth for cleaning exterior parts. Avoid using chemicals.
Even if you have to use chemicals to clean heavy dirt, don’t use paint thinner, ketone, nor alcohol.
•Insert the specific screws vertically to the part when installing a exterior part.
Be careful not to tighten screws too much.
1-3. Unleaded Solder
This unit uses unleaded solder.
Boards requiring use of unleaded solder are printed with the lead free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.)
: LEAD FREE MARK
Be careful to the following points to solder or unsolder.
•Set the soldering iron tip temperature to 350 °C approximately.
If cannot control temperature, solder/unsolder at high temperature for a short time.
Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful!
Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•Be sure to control soldering iron tips used for unleaded solder and those for leaded solder so they are managed separately. Mixing
unleaded solder and leaded solder will cause detachment phenomenon.

1-2
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
1-4. SAFETY CHECK-OUT
After correcting the original service problem, perform the following safety checks before releasing the set to the customer.
1. Check the area of your repair for unsoldered or poorly-soldered connections. Check the entire board surface for solder splashes and
bridges.
2. Check the interboard wiring to ensure that no wires are “pinched”or contact high-wattage resistors.
3. Look for unauthorized replacement parts, particularly transistors, that were installed during a previous repair. Point them out to the
customer and recommend their replacement.
4. Look for parts which, through functioning, show obvious signs of deterioration. Point them out to the customer and recommend their
replacement.
5. Check the B+ voltage to see it is at the values specified.
6. Flexible Circuit Board Repairing
•Keep the temperature of the soldering iron around 270 °C during repairing.
•Do not touch the soldering iron on the same conductor of the circuit board (within 3 times).
•Be careful not to apply force on the conductor when soldering or unsoldering.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0OR DOTTED LINEWITH
MARK 0ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS
LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE
COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS
APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS
PUBLISHED BY SONY.
ATTENTION AU COMPOSANT AYANT RAPPORT
À LA SÉCURITÉ!
LES COMPOSANTS IDENTIFÉS PAR UNE MARQUE 0SUR LES
DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT
CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE
REMPLACER CES COMPOSANTS QUE PAR DES PIÈSES SONY
DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU
DANS LES SUPPÉMENTS PUBLIÉS PAR SONY.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.

1-3
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
1-5. TROUBLESHOOTING
1-5-1. Aperture Trouble
NG
Check operation of
the preset ring assembly.
Replace the defective part.
Check operation of the
presset ring assembly, and
replace the defective part.
Perform the aperture
diameter adjustment.
(See page 4-7.)
Perform the aperture
diameter check.
(See page 4-4.)
NG
Check operation
of the 3rd lens set
and iris control block.
OK OK
OK
Function NG F No. NG
Aperture trouble
Replace the defective part.
NG
NGNG
END
OK
Perform the aperture
diameter check.
(See page 4-4.)
Ver 1.1 2007.02

1-4
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
1-5-2. Zoom Trouble
NG
OK
OK
OK
OK
Function NG Position NG
Check the position
and deformation
at the tip of the
encoder brush (zoom).
Adjust the position, or replace
the encoder brush (zoom).
Check pattern of the
main flexible set.
Clean the pattern of the
main flexible set.
Zoom trouble
Replace the main
flexible set.
Perform the
zoom brush position
check/adjustment.
(See page 4-19.)
NG
NG
NG
NG
END
OK
Disassembly and check
the zoom relation parts.
Replace the defective part
or apply the grease.
Check the operation
again.

1-5
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
Check the operation
again.
Replace the defective part
or apply the grease.
OK
NG
OK
OK
OK
OK
Function NG Position NG
Focus trouble
Replace the defective part
or apply the grease.
Check the coupler
and gear set.
Check the fixed mount
and focus barrel.
NGNG
NG
NG
NG
END
OK
Check the position
and deformation
at the tip of the
encoder brush (focus).
Adjust the position, or replace
the encoder brush (focus).
Check pattern
of the focus flexible.
Clean the pattern of the
focus flexible.
Replace the main
flexible set.
Perform the
focus brush position
check/adjustment.
(See page 4-22.)
1-5-3. Focus Trouble

2-1
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
Cut and remove the part of gilt
which comes off at the point.
(Be careful or some
pieces of gilt may be left inside)
2. DISASSEMBLY
NOTE FOR REPAIR
• Make sure that the flat cable and flexible board are not cracked of bent at the terminal.
Do not insert the cable insufficiently nor crookedly.
• When remove a connector, dont’ pull at wire of connector. It is possible that a wire is snapped.
• When installing a connector, dont’ press down at wire of connector.
It is possible that a wire is snapped.
• Do not apply excessive load to the gilded flexible board.

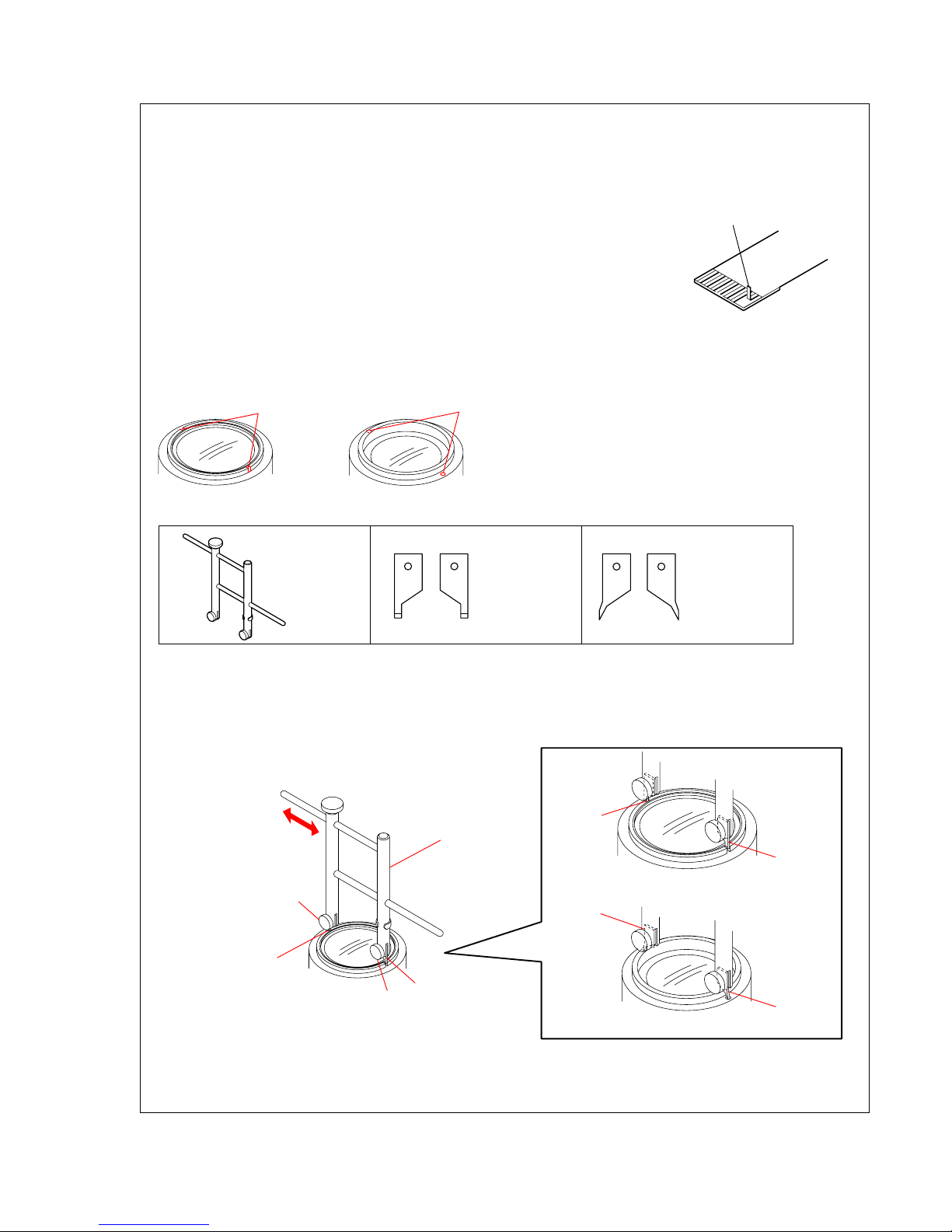

UNIVERSAL WRENCH
In case of the following notches or holes are located in the lens block, etc during disassembling/
assembling the lens, Use the universal wrench.
How to Use
Attach the chip-A or chip-B to the universal wrench.
For the notches: chip-A
For the holes: chip-B
Match the universal wrench to the holes or notches of the lens block, etc.
When top of tip does not reach holes or notches because the fixed screw becomes obstructive,
replace the fixed screw to below.
+B 3X5 7-682-546-09
Notches Holes
Universal wrench
J-6082-609-A
Chip-A for
universal wrench:
J-6082-609-1
Chip-B for
universal wrench:
J-6082-609-2
Ver 1.1 2007.02
Notches
Chip-A
Chip-A
Chip-B
Chip-B
Chip
Fixed screw
Fixed screw
Chip
Match the universal wrench
to the width of holes or notches.
Universal wrench
Holes

2-2
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
2-1. DISASSEMBLY
2-1-1. BAYONET MOUNT SET AND ZOOM BARREL BLOCK
A
B
C
A
B
C
D
D
3Bayonet
4Back
2Light Interception
Tube Set
1Connect Board
5Zoom Barrel Retainer 6Connecting Plate
7Zoom Barrel
HELP01
HELP02
HELP03
HELP04

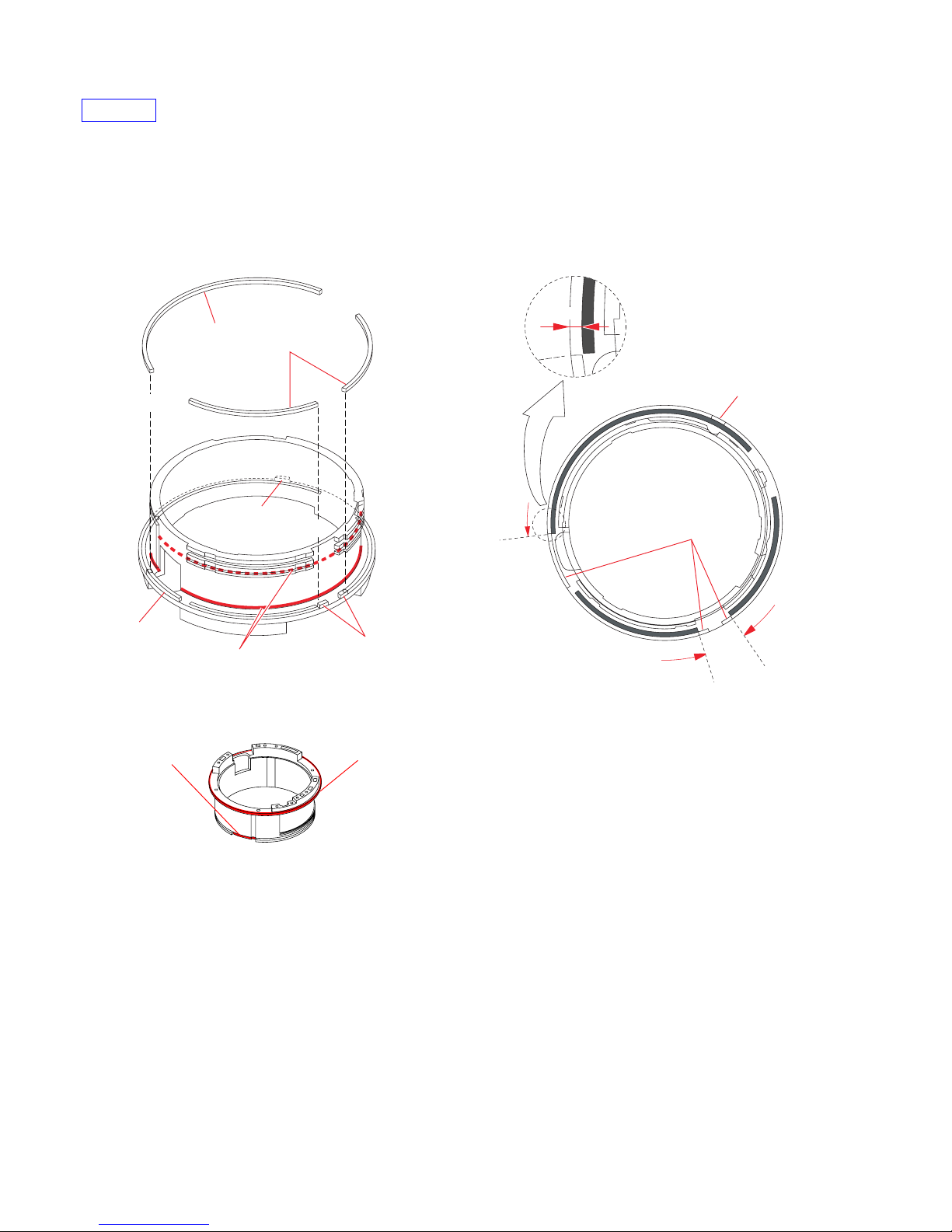

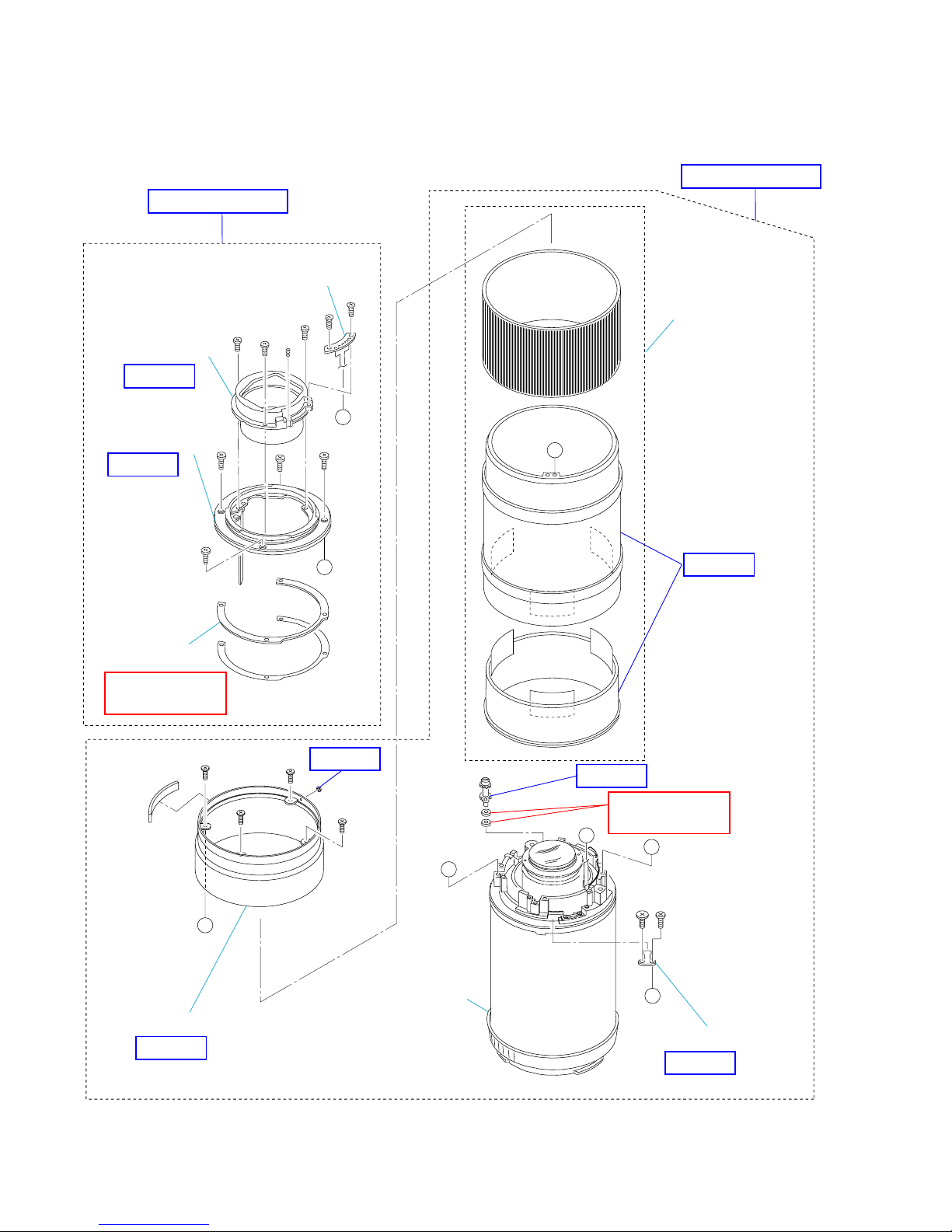

EXPLODED VIEW
HELP05
HELP03
HELP06
EXPLODED VIEW
FLANGE BACK
ADJUSTMENT
FLANGE BACK
ADJUSTMENT
(See Page 2-3.)
Mount Set
Washer
Block

2-3
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
2-1-2. 2ND LENS SET AND FOCUS BARREL BLOCK
2Focus Stopper
4Focus Barrel Block
1Gear Set
7Light Interception
Plate Set
5Guide Roller
62nd Lens Group
Set
8Inner Tube Block
HELP09
HELP10
HELP11
HELP08
HELP07
EXPLODED VIEW
3Encoder Brush
(See Page 2-4.)
Adjusting
Washer
FOCUS BRUSH POSITION
ADJUSTMENT
FOCUS-SHIFT
ADJUSTMENT

2-4
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
2-1-3. INNER TUBE BLOCK
A
D
2Guide Pin
3Helicoid Barrel
1Encoder Brush
44th Lens Set
5Fixed Mount
6Main Flexible Set
7Guide
83rd Lens Set
9Cam Tube
Set
HELP12
HELP13
HELP14
HELP14
HELP16
HELP17
HELP15

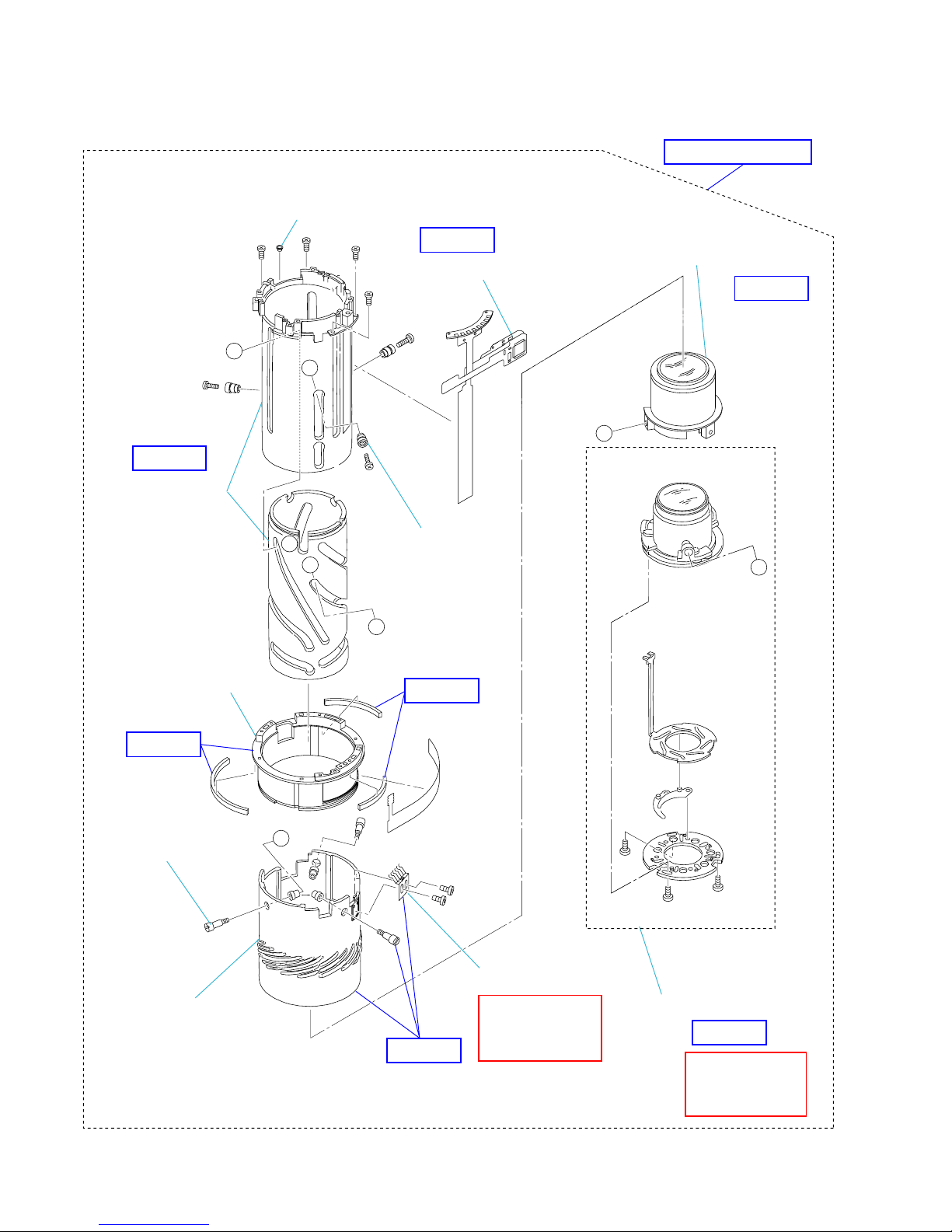

EXPLODED VIEW
Roller
Press fit
C
C
A
D
B
APERTURE
DIAMETER
ADJUSTMENT
ZOOM BRUSH
POSITION
ADJUSTMENT
B

HELP
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
HELP

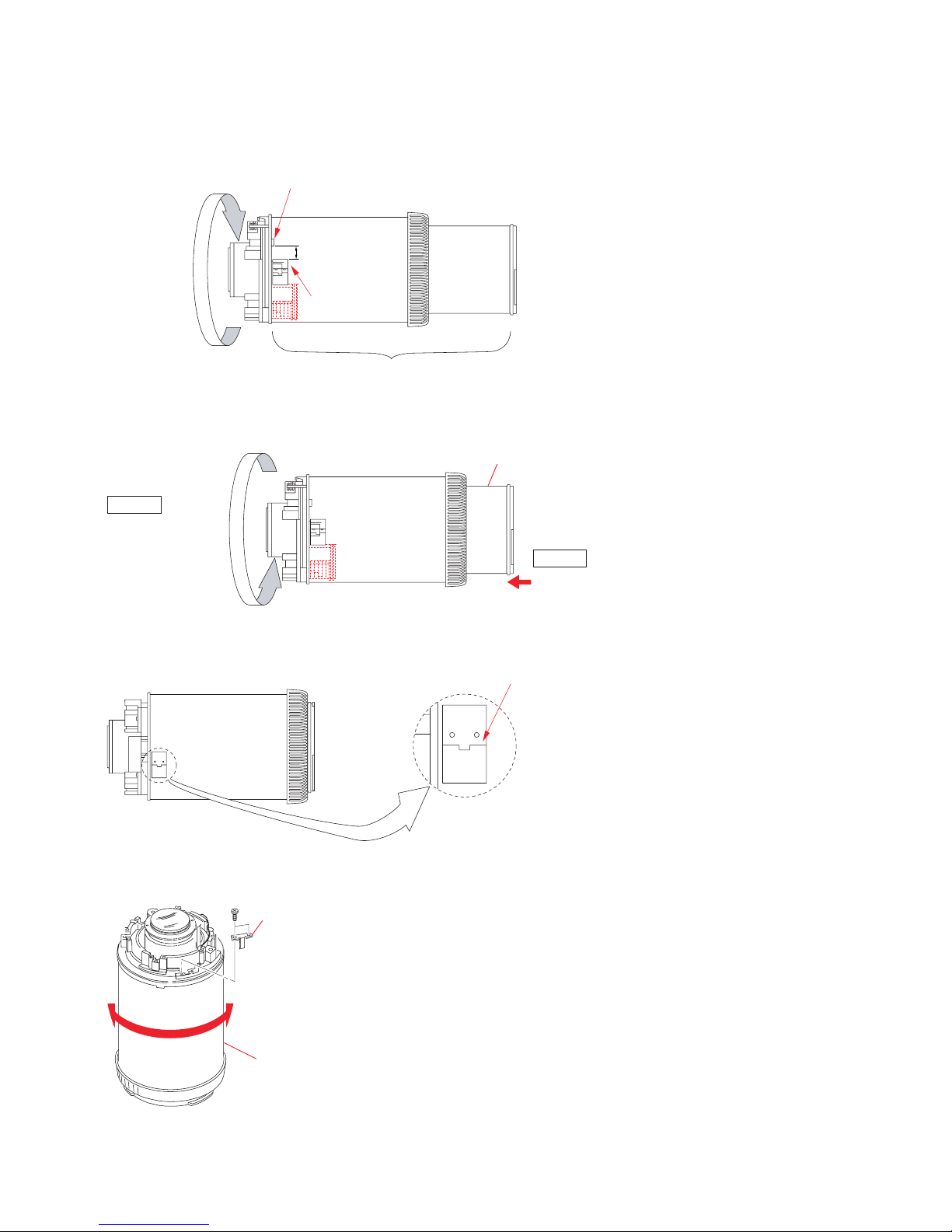

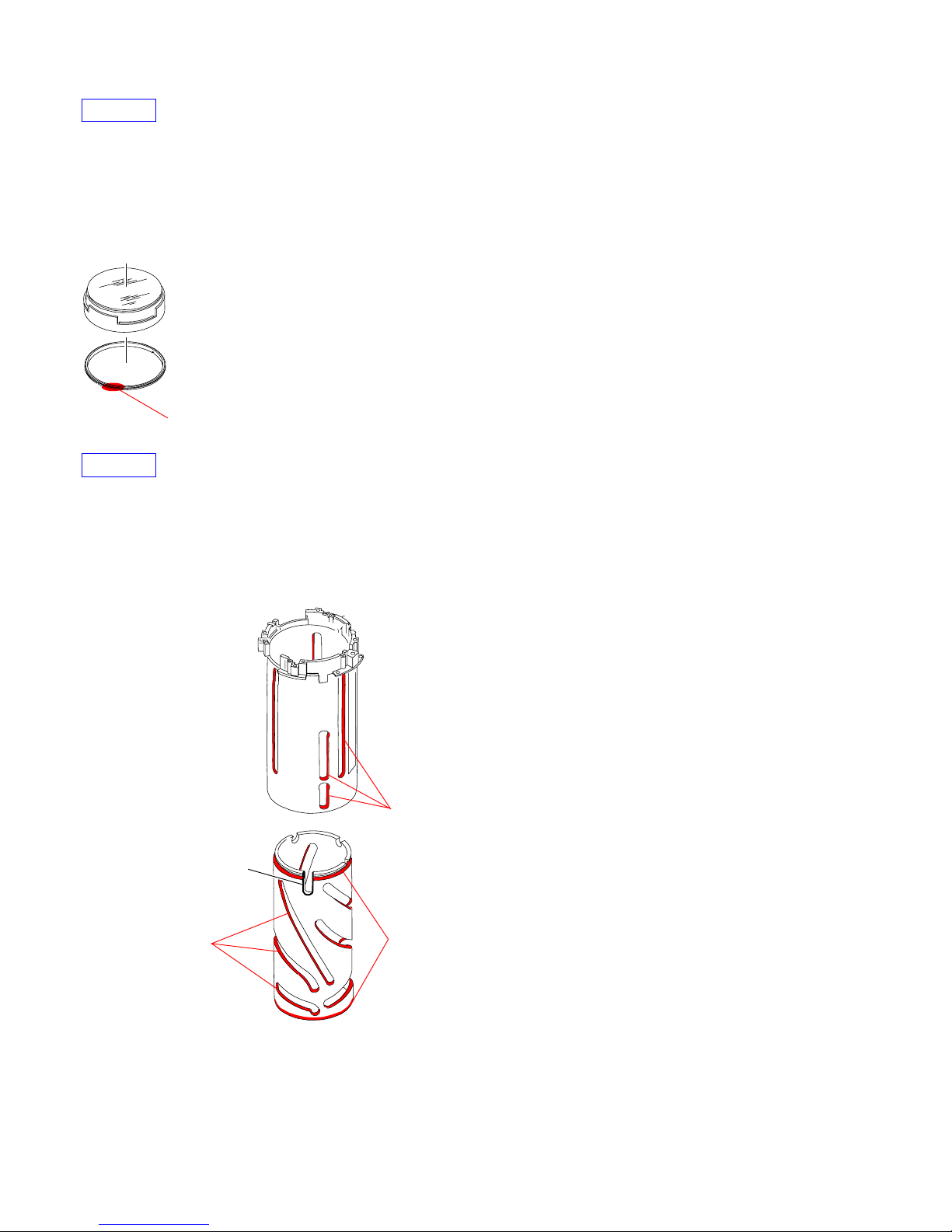

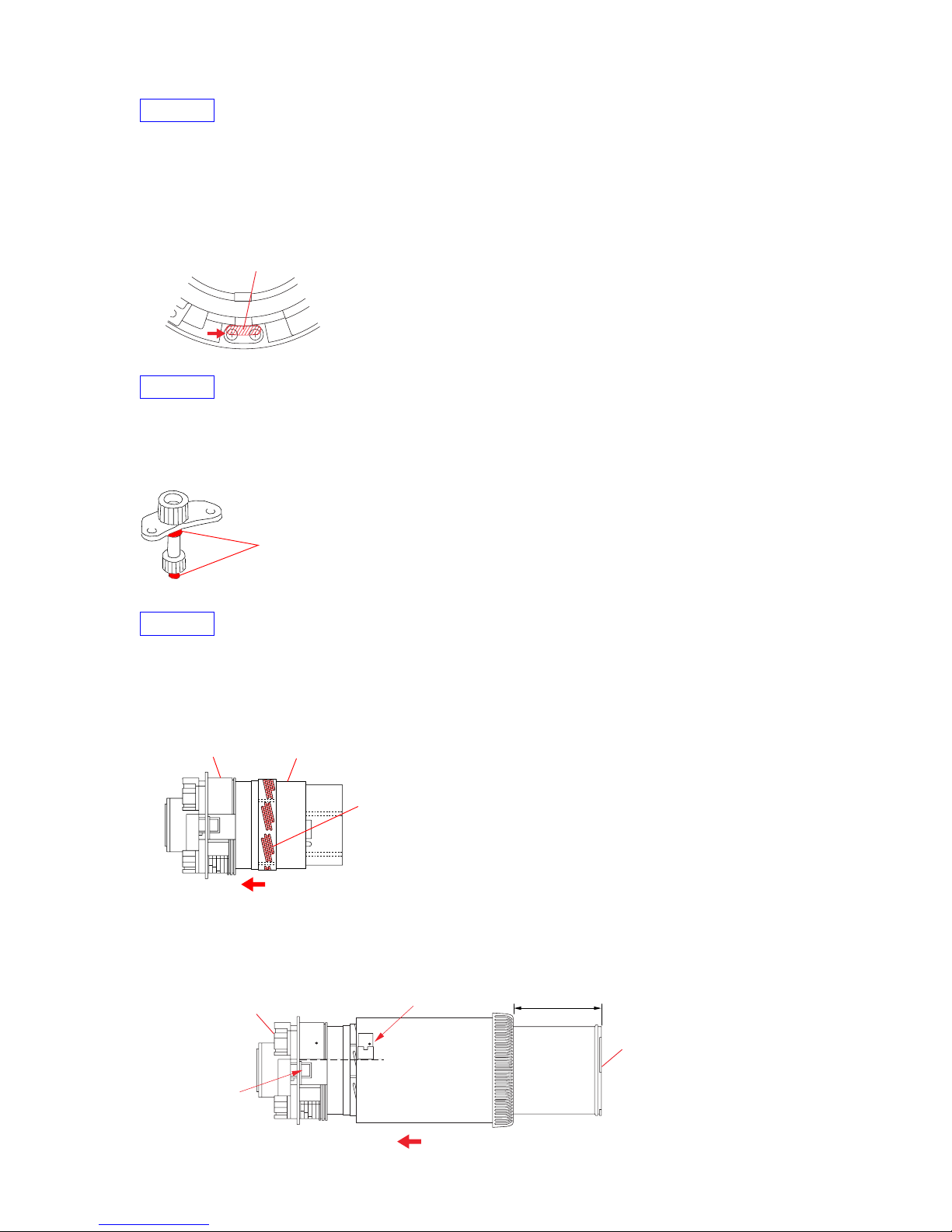

Note for assembling and grease applying positions are shown.
HELP01
Adhesive bond (B-40): J-6082-614-A
Apply the adhesive bond (B-40) to the three screws fixing the light interception tube set.
HELP02
Grease (G-85): J-6082-626-A
Anti-diffusion agent (A-20): J-6082-611-A
Adhesive bond (LOCTITE 460) (Note)
Note: Use adhesive bond (LOCTITE 460) or an equivalent article.
Don’t use what becomes white after drying like a quick-drying glue.
1. Apply the grease (G-85) and anti-diffusion agent (A-20) to the instruction part of the bayonet mount set.
2. Attach and fix the flexible board to the bayonet mount set as shown in the figure.
3. Apply the adhesive bond (LOCTITE 460) to the screw fixing the bayonet mount set.
Apply the adhesive bond (B-40) (3 areas)
Light Interception Tube Set
Apply the adhesive
bond (LOCTITE 460)
Apply the grease (G-85)
Reference line
Apply the anti-diffusion agent
(A-20) (All circumference)

HELP
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
HELP03
Anti-diffusion agent (A-20): J-6082-611-A
Adhesive bond (LOCTITE 460) (Note)
Note: Use adhesive bond (LOCTITE 460) or an equivalent article.
Don’t use what becomes white after drying like a quick-drying glue.
1. Apply the anti-diffusion agent (A-20) to the instruction part of the zoom barrel retainer.
2. Apply the adhesive bond (LOCTITE 460) to the mount index.
HELP04
Grease (G-55): J-6082-623-A
Anti-diffusion agent (A-20): J-6082-611-A
Adhesive bond (B-10): J-6082-612-A
1. Apply the grease (G-55) and anti-diffusion agent (A-20) to the instruction part of the zoom barrel.
2. Apply the adhesive bond (B-10) to the instruction part of the support ring, and attach it to the zoom barrel.
HELP05
Grease (G-85): J-6082-626-A
Apply the grease (G-85) to the instruction part of the coupler.
Apply the adhesive bond (B-10)
Apply the grease (G-55)
(All circumference)
Apply the anti-diffusion
agent (A-20)
(All circumference)
Apply the grease (G-85)
5 mm
5 mm
Apply the adhesive bond (LOCTITE 460)
Apply the anti-diffusion agent (A-20)
(All circumference)

HELP
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
HELP06
Adhesive bond (B-10): J-6082-612-A
1. Insert the connecting plate to the groove (longest groove) of the cam tube set.
2. Fill in the gap in the direction of the arrow, and fix the connecting plate with the two screws.
3. Apply the adhesive bond (B-10) to the two screws fixed the connecting plate.
HELP07
Grease (G-85): J-6082-626-A
Apply the grease (G-85) to the shaft of the gear set.
HELP08
Grease (G-15): J-6082-619-A
1. Apply the grease (G-15) to the instruction part of the helicoid barrel.
2. Set the helicoid barrel to the Wide-end position as shown in the figure.
3. Fit the focus barrel to the inner tube block, and install the focus barrel to the inner tube block until it stops at the inner tube block.
Note: Do not set the front barrel to the Tele-end position.
It comes off from the focus barrel.
Apply the adhesive bond (B-10)
Apply the grease (G-85) (Shaft)
2684
1604
Apply the grease (G-15)
(All shaded areas)
Fixed Mount
Set to Wide-end
Helicoid Barrel
2684
2684
1604
1604
Install until it stops.
Inner Tube Block
Area for attaching
gear set
Area for attaching brush
Focus Barrel
Focus Barrel Block
50 mm
Front Barrel
Hold at approx. 50 mm position
from focus barrel.

HELP
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
4. Hold the focus barrel block and turn the inner tube block to the position of figure in the direction of the arrow. (The turning is approx.
260 degree, so that the projection goes over about 5 mm from the area for attaching brush.)
Note: It may stop halfway around the flexible, focus, but keep turning.
5. Insert the front barrel to the inner tube block until it stops.
6. With front barrel fitted, turn the inner tube block in the direction of the arrow to engage to helicoid.
7. When the helicoid stops turning, check that the FPC number is seen from the area for attaching brush.
If you cannot see the number, reassemble again from the step 3.
8. Attach the focus stopper.
9. Turn the focus barrel to the both directions (infinity ↔ close), and check that the helicoid moves smoothly.
2684
1604
Hold the focus barrel block.
Area for attaching
brush
Projection
Turn the inner
tube block.
Approx. 5 mm
2684
1604
Install until it stops and hold the position.
Front Barrel
Turn the inner
tube block in the
reverse direction.
2nd step
1st step
2684
1604
2684
1604
FPC number at the
position of helicoid-end
Area for attaching brush
Focus Stopper
Focus Barrel

HELP
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
HELP09
Anti-diffusion agent (A-20): J-6082-611-A
Apply the anti-diffusion agent (A-20) to the instruction part of the 2nd lens lens set and light shield plate assembly.
HELP10
Grease (G-15): J-6082-619-A
Anti-diffusion agent (A-20): J-6082-611-A
1. Attach the friction sheet-A and friction tape-B as shown in the figure.
2. Apply the grease (G-15) to the instruction part of the focus barrel.
3. Apply the anti-diffusion agent (A-20) to the instruction part of the front barrel
4. Insert the front barrel to the focus barrel as shown in the figure.
Apply the anti-diffusion
agent (A-20)
(All circumference)
Apply the anti-diffusion
agent (A-20)
(Affix side)
Click projection
for attaching hood
Longest projection
Focus Barrel Block
Focus Barrel Front Barrel
Guide groove attached
longest projection
Apply the anti-diffusion agent (A-20)
(All circumference)
Apply the anti-diffusion agent (A-20)
(All circumference: 6 mm wide)
Apply the grease (G-15)
(All circumference: 2 mm wide)
Apply the grease (G-15)
(Gear portion)
Friction
Sheet-A
Friction Tape-B 2 mm
15 mm

HELP
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
HELP11
Adhesive bond (B-10): J-6082-612A
Universal Wrench: J-6082-609-A
Chip-A for Universal Wrench: J-6082-609-1
Chip-B for Universal Wrench: J-6082-609-2
After the focus-shift adjustment is completed, apply the adhesive bond (B-10) as shown in the figure, it tightens with a universal wrench.
HELP12
Grease (G-85): J-6082-626-A
Grease (G-114): J-6082-630-A
1. Apply the grease (G-85, G-114) to the instruction part of the cam tube set.
2. Assemble the cam tube set as shown in the figure.
Apply the adhesive bond (B-10) (10 mm wide)
Longest cut portion
Apply the grease (G-85) (All circumference)
Apply the grease (G-85) (All sliders)
Apply the grease
(G-114) (All sliders)

HELP
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
Fold forward
Fold forward
Reference line
Apply the anti-diffusion agent (A-20)
Attach to interior
HELP13
Anti-diffusion agent (A-20): J-6082-611-A
1. Insert the main flexible set to the slot of the cam tube set, and attach it as shown in the figure.
2. Apply the anti-diffusion agent (A-20) to the instruction part of the cam tube set.

HELP
SAL75300 (4.5-5.6/75-300) (75-300mm F4.5-5.6)
HELP14
Anti-diffusion agent (A-20): J-6082-611-A
Grease (G-15): J-6082-619-A
Grease (G-55): J-6082-623-A
1. Apply the anti-diffusion agent (A-20) to the instruction part of the fixed mount.
2. Attach the friction tape-C and D with reference to projection of the fixed mount as shown in the figure.
3. Apply the grease (G-15, G-55) to the instruction part of the fixed mount.
Apply the anti-diffusion agent (A-20)
Reference line
Projection
Projection
Projections
Projection
Projections
Reference line
Reference line
Reference line
Reference line
Reference line
Friction Tape-C
Friction Tape-D
Approx.
1 mm
Apply the grease (G-55)
(All circumference)
Apply the grease (G-15)
(All round of groove)
