Sony XR-CA330 Installation/Connection User manual

Operating Instructions
2002 Sony Corporation
US
FM/AM Cassette
Car Stereo
For installation and connections, see the supplied installation/connections
manual.
En ce qui concerne l’installation et les connexions, consulter le manuel
d’installation/connexions fourni.
Owner’s Record
The model and serial numbers are located on the bottom of the unit.
Record the serial number in the space provided below.
Refer to these numbers whenever you call upon your Sony dealer regarding this
product.
Model No. XR-CA330/CA333 Serial No.
3-236-832-12 (1)
Mode d’emploi FR
XR-CA330
XR-CA333
Downloaded from: https://www.usersmanualguide.com/

2
Welcome !
Thank you for purchasing this Sony Cassette
Player.
In addition to the cassette playback and radio
operations, you can expand your system by
connecting an optional CD/MD unit*1.
When you operate this unit or a connected
optional CD unit with the CD TEXT function,
the CD TEXT information will appear in the
display when you play a CD TEXT disc*2.
*1You can connect a CD changer, an MD changer,
a CD player, or an MD player.
*2A CD TEXT disc is an audio CD that includes
informat ion such as t he disc name, art ist name,
and track names.
This inf ormation is recorded on the disc.

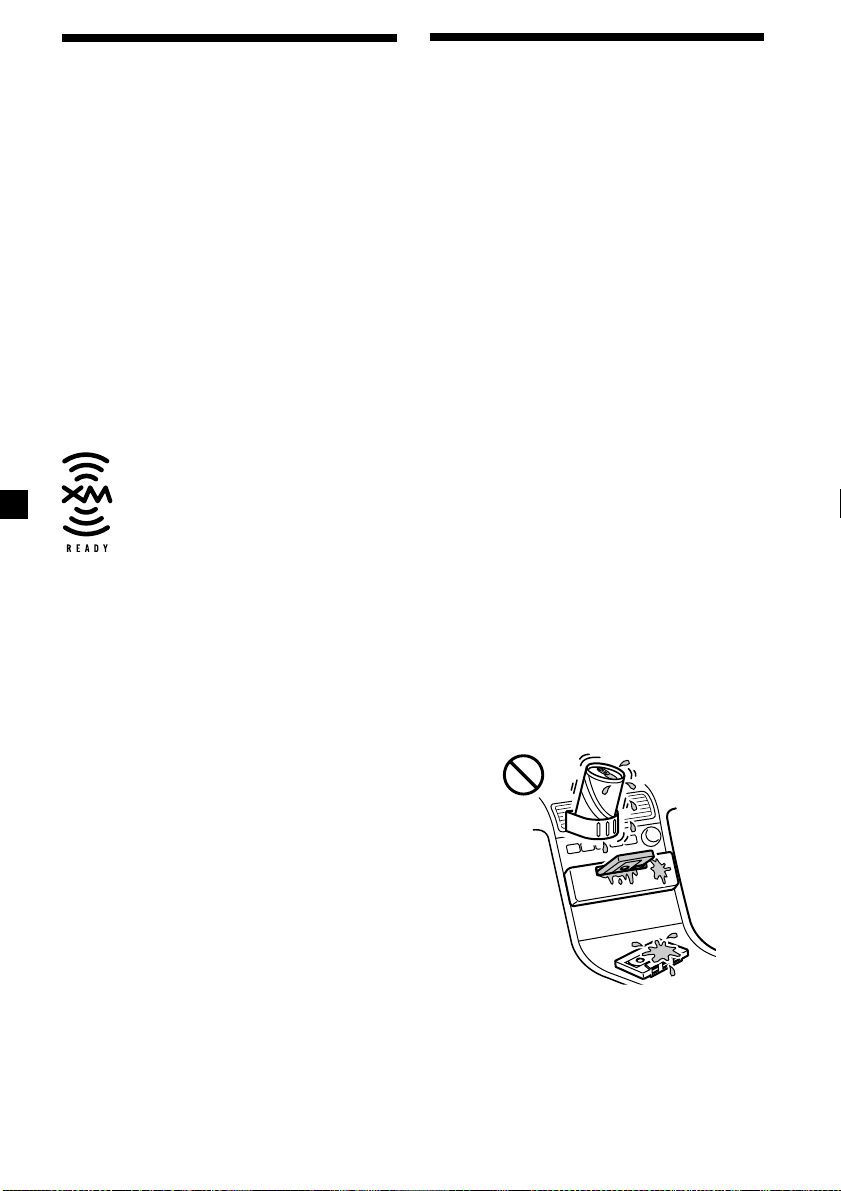

The “XM Ready” logo indicates that this
product will control a Sony XM tuner module
(sold separately).
Please see your nearest authorized Sony dealer
for details on the XM tuner module.
For instructions on XM tuner operation, please
refer to the XM tuner module’s included
instruction manual.
Warning
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced radio/
TV technician for help.
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Downloaded from: https://www.usersmanualguide.com/

3
Not es on Casset t es
Cassette care
•Do not touch the tape surface of a cassette, as
any dirt or dust will contaminate the heads.
•Keep cassettes away from equipment with
built-in magnets such as speakers and
amplifiers, as erasure or distortion on the
recorded tape could occur.
•Do not expose cassettes to direct sunlight,
extremely cold temperatures, or moisture.
•Slack in the tape may cause the tape to be
caught in the machine. Before you insert the
tape, use a pencil or similar object to turn the
reel and take up any slack.
•Distorted cassettes and loose labels can cause
problems when inserting or ejecting tapes.
Remove or replace loose labels.
•The sound may become distorted while
playing the cassette. The cassette player head
should be cleaned after each 50 hours of use.
Cassettes longer than 90 minutes
The use of cassettes longer than 90 minutes is
not recommended except for long continuous
play. The tape used for these cassettes is very
thin and tends to stretch easily. Frequent
playing and stopping of these tapes may cause
them to become entangled in the cassette deck
mechanism.
Slack
Precautions
•If your car was parked in direct sunlight
resulting in a considerable rise in
temperature inside the car, allow the unit to
cool off before operating it.
•If no power is being supplied to the unit,
check the connections first. If everything is in
order, check the fuse.
•If no sound comes from the speakers of a
two-speaker system, set the fader control to
the center position.
•When a tape is played back for a long period,
the cassette may become warm because of
the built-in power amplifier. However, this is
not a sign of malfunction.
If you have any questions or problems
concerning your unit that are not covered in
this manual, please consult your nearest Sony
dealer.
To m aintain high qualit y sound
If you have drink holders near your audio
equipment, be careful not to splash juice or
other soft drinks onto the car audio. Sugary
residues on this unit or cassette tapes may
contaminate the playback heads, reduce the
sound quality, or prevent sound reproduction
altogether.
Cassette cleaning kits cannot remove sugar
from the tape heads.
Downloaded from: https://www.usersmanualguide.com/

4
Table of Content s
This Unit Only With Opt ional Equipm ent
Location of controls ................................................. 5
Get ting Start ed
Resetting the unit ................................................ 6
Detaching the front panel .................................. 6
Setting the clock .................................................. 7
Casset t e Player
Listening to a tape ............................................... 7
Radio reception during fast-forwarding or
rewinding of a tape
— Automatic Tuner Activation (ATA) ....... 8
Radio
Memorizing stations automatically
— Best Tuning Memory (BTM) ................... 8
Memorizing only the desired stations ............. 9
Receiving the memorized stations .................... 9
Other Functions
Adjusting the sound characteristics ............... 10
Attenuating the sound ..................................... 10
Changing the sound and display settings ..... 10
Boosting the bass sound
— D-bass ....................................................... 11
Selecting the sound position
— “My Best sound Position” ..................... 11
CD/M D Unit
Playing a CD or MD ......................................... 12
Playing tracks repeatedly
— Repeat Play .............................................. 13
Playing tracks in random order
— Shuffle Play .............................................. 13
Addit ional Inform at ion
Maintenance ....................................................... 14
Dismounting the unit ....................................... 15
Specifications ..................................................... 16
Troubleshooting guide ..................................... 17
Downloaded from: https://www.usersmanualguide.com/

5
Location of controls
Refer to the pages listed for details.
1Volume +/– button 7
2MODE button
During radio reception:
BAND select 8, 9
During CD/MD playback:
CD/MD unit select 12
3SOURCE (TUNER/CD/MD) button
8, 9, 12
4SEL (select) button 7, 10, 11, 12
5Z(eject) button 7, 8, 9, 12
6Display window
7m/M(fast winding)/DIR (tape
transport direction change) buttons 7, 8
8MBP (My Best sound Position) button
11
9D-BASS button 11
q; SEEK/AMS +/– button 9, 13
Seek 9
Automatic Music Sensor 13
Manual search 13
qa RELEASE (front panel release) button
6, 14
qs ATT (attenuate) button 10
qd SENS button 9
qf RESET button (located on the front side
of the unit behind the front panel) 6
qg Number buttons 8, 9, 10, 12, 13
During radio reception:
Preset number select 9
During tape playback:
(6) ATA 8
During CD/MD playback:
(1) DISC – 13
(2) DISC + 13
(3) REP 13
(4) SHUF 13
qh BTM button 8
qj DSPL (display mode change) button
7, 12
qk OFF button*6
*Warning when installing in a car
without ACC (accessory) position on
the ignition key switch
Be sure to press (OFF) on the unit for two
seconds to turn off the clock display after
turning off the engine.
When you press (OFF) momentarily, the
clock display does not turn off and this
causes battery wear.
XR-CA330/CA333
RELEASE
DIR
654321 BTM DSPLAT T
SEEK
AMS
SENS
SEL
MODE
SRC
SOURCE
D-BASS
OFF
MBP
D
DISC REP SHUF ATA
Downloaded from: https://www.usersmanualguide.com/

66
At t aching the f ront panel
Attach part Aof the front panel to part Bof
the unit as illustrated and push the left side
into position until it clicks.
Notes
• Be sure not t o at tach t he f ront panel upside
down.
• Do not press the front panel too hard against the
unit when at taching it .
• Do not press too hard or put excessive pressure
on the display w indow of the front panel.
• Do not expose the front panel to direct sunlight
or heat sources such as hot air ducts, and do not
leave it in a humid place. Never leave it on t he
dashboard of a car parked in direct sunlight or
where t here may be a considerable rise in
temperat ure.
Caut ion alarm
If you turn the car ignition off without
removing the front panel, the caution alarm
will beep for a few seconds.
If you connect an optional power amplifier and
do not use the built-in amplifier, the beep
sound will be deactivated.
Gett ing Start ed
Resett ing the unit
Before operating the unit for the first time or
after replacing the car battery, you must reset
the unit.
Remove the front panel and press the RESET
button with a pointed object, such as a ball-
point pen.
Note
Pressing t he RESET butt on w ill erase t he clock
set ting and some memorized f unctions.
Det aching the front panel
You can detach the front panel of this unit to
protect the unit from being stolen.
1Press (OFF).
2Press (RELEASE), then slide the front
panel a little to the left, and pull it off
tow ards you.
Notes
• Be sure not to drop t he panel w hen detaching it
from t he unit.
•If you det ach the panel w hile t he unit is still
turned on, t he pow er w ill turn of f automat ically
to prevent t he speakers from being damaged.
•When carrying t he front panel w ith you, use the
supplied front panel case.
RESET button
(OFF)
(RELEASE)
A
B
Downloaded from: https://www.usersmanualguide.com/

77
Cassette Player
List ening t o a t ape
Insert a cassette.
Playback starts automatically.
The side facing up is played.
The side facing dow n is played.
Tip
To change t he t ape‘s playback direct ion, press m
and M.
To stop playback and eject the
casset t e
Press Z.
Fast -w inding the tape
During playback, press mor M.
*The indicat or will f lash w hile fast -winding t he
tape.
To start playback during fast-forwarding or
rewinding, press the other fast-winding button
partially until the locked button is released.
To rew ind
m
M
Direction
indicator*
FWD
REV
To advance
M
m
Setting the clock
The clock uses a 12-hour digital indication.
Example: To set the clock to 10:08
1Press (DSPL) for tw o seconds.
The hour indication flashes.
1Press either side of the volume button
to set the hour.
2Press (SEL).
The minute indication flashes.
3Press either side of the volume button
to set the minute.
2Press (DSPL).
The clock starts.
After the clock setting is complete, the
display returns to normal playback mode.
to go forw ard
to go back
to go forw ard
to go back
Downloaded from: https://www.usersmanualguide.com/

88
Radio
M emorizing stat ions
automat ically
— Best Tuning M emory (BTM )
The unit selects the stations with the strongest
signals and memorizes them in the order of
their frequencies. You can store up to 6 stations
on each band (FM1, FM2, FM3, AM1, and
AM2).
Caut ion
When tuning in stations while driving, use
Best Tuning Memory to prevent accidents.
1Press (SOURCE) repeatedly to select the
tuner.
In case of tape playback, press Zto eject the
tape.
Each time you press (SOURCE), the source
changes as follows:
BTUNER BCD*BM D*
*If the corresponding opt ional equipment is
not connected, this it em w ill not appear.
2Press (MODE) repeatedly to select the
band.
Each time you press (MODE), the band
changes as follows:
BFM 1 BFM 2 BFM 3
AM 2 bAM 1 b
3Press (BTM) for tw o seconds.
The unit stores stations in the order of their
frequencies on the number buttons.
A beep sounds when the setting is stored.
Notes
• The unit does not st ore st ations wit h w eak
signals. If only a f ew st at ions can be received,
some number butt ons w ill retain t heir former
set ting.
• When a number is indicat ed in t he display, the
unit st art s storing stat ions f rom t he one current ly
displayed.
Radio recept ion during
fast -forw arding or
rew inding of a t ape
— Automatic Tuner Activation (ATA)
When fast-forwarding or rewinding with the
mor Mbutton, the tuner will turn on
automatically.
During playback, press (6) (ATA)
repeatedly until “ATA-ON” in the display
appears.
ATA-ON yATA-OFF
ATA mode starts.
To return to normal playback mode, select
“ATA-OFF.”
654321
DISC REP SHUF ATA
Downloaded from: https://www.usersmanualguide.com/

99
M emorizing only the
desired st ations
You can preset up to 18 FM stations (6 each for
FM1, 2, and 3) and up to 12 AM stations (6
each for AM1 and 2) in the order of your
choice.
1Press (SOURCE) repeatedly to select the
tuner.
In case of tape playback, press Zto eject the
tape.
2Press (MODE) repeatedly to select the
band.
3Press either side of (SEEK/AMS) to tune
in the station that you w ant to store on
the number button.
4Press the desired number button ((1) to
(6)) until “M EM ” appears.
The number button indication appears in
the display.
Note
If you try to store anot her st ation on t he same
number but ton, t he previously st ored st ation w ill
be erased.
Receiving t he memorized
stations
1Press (SOURCE) repeatedly to select the
tuner.
In case of tape playback, press Zto eject the
tape.
2Press (MODE) repeatedly to select the
band.
3Press the number button ((1) to (6)) on
w hich the desired station is stored.
If you cannot t une in a preset
st ation
— Automat ic tuning/ Local Seek M ode
Automatic tuning:
Press either side of (SEEK/AMS) to search
for the station.
Scanning stops when the unit receives a
station. Press either side of (SEEK/AMS)
repeatedly until the desired station is
received.
Local Seek M ode:
If the automatic tuning stops too
frequently, press (SENS) repeatedly until
“LOCAL-ON” appears.
“LCL” indicator is displayed.
Only the stations with relatively strong
signals will be tuned in.
Tip
If you know the f requency of the st ation you w ant
to list en t o, press either side of (SEEK/AMS) unt il
the desired f requency appears (manual t uning).
If FM stereo recept ion is poor
— M onaural M ode
During radio reception, press (SENS)
repeatedly until “M ONO-ON” appears.
“M ONO” indicator is displayed.
The sound improves, but becomes
monaural (“ST” disappears).
To return to normal mode, select “MONO-
OFF.”
Downloaded from: https://www.usersmanualguide.com/

10
Changing the sound and
display sett ings
The following items can be set:
•A.SCRL (Auto Scroll)*(page 12).
•M.DSPL (Motion Display)
– the demonstration mode which appears
when the tape is ejected and no source is
selected (e.g., tuner is turned off).
•BEEP – to turn the beep sound on or off.
1Press (SEL).
2Press the preset number button to select
the desired item.
Number buttons
(3): A.SCRL*
(4): M .DSPL
(6): BEEP
*When no CD or MD is playing, t his it em will
not appear.
3Press the preset number button
repeatedly to select the desired setting
(Example: ON or OFF).
Other Functions
Adjust ing the sound
characteristics
You can adjust the bass, treble, balance, and
fader.
You can store the bass and treble levels
independently for each source.
1Select the item you w ant to adjust by
pressing (SEL) repeatedly.
Each time you press (SEL), the item
changes as follows:
BAS (bass) tTRE (treble) t
BAL (left-right) tFAD (front-rear)
2Adjust the selected item by pressing
either side of the volume button.
Adjust within three seconds after selecting
the item.
At tenuat ing the sound
Press (ATT).
After “ATT-ON” momentarily flashes, the
“ATT” indication appears in the display.
To restore the previous volume level, press
(ATT) again.
“ATT-OFF” flashes momentarily.
Downloaded from: https://www.usersmanualguide.com/

11
GB
0dB
D.BASS-3
D.BASS-2
D.BASS-1 D.BASS-3
D.BASS-2
D.BASS-1
Boosting the bass sound
—D-bass
You can enjoy a clear and powerful bass
sound. The D-bass function boosts the low
frequency signal and high frequency signal
with a sharper curve than conventional bass
boost.
You can hear the bass line more clearly even
while the vocal volume remains the same. You
can emphasize and adjust the bass sound
easily with the D-BASS button.
Adjusting the bass curve
Press (D-BASS) repeatedly to select the
desired bass curve.
As the D-BASS number increases so does
the effect.
D.BASS-1 tD.BASS-2 tD.BASS-3 t
D.BASS-OFF
Note
The bass sound may dist ort at same volume. If t he
bass sound dist ort s, select less ef fective bass curve.
Level
Frequency (Hz)
Selecting t he sound
position — “M y Best sound Position”
When you drive without passengers, you can
enjoy comfortable sound environment by “My
Best sound Position.”
“My Best sound Position” has two presets,
which adjusts the sound level of balance and
fader. You can select one very easily with MBP
button.
Press (MBP) repeatedly until the desired
listening position.
Mode of “My Best sound Position” will be
shown in the display in order of the table.
After one second, the display goes back to
the normal playback mode.
If you want to adjust the sound level of
balance and fader more precisely, you can
do it in (SEL) button. (See “Adjusting the
sound characteristics” on page 10.)
Display
w indow
M BP-A
M BP-B
M BP-OFF
Right
– 4dB
0
0
Left
0
– 4dB
0
Front
0
0
0
Rear
– 4dB
– 4dB
0
Balance Level Fader Level
Downloaded from: https://www.usersmanualguide.com/

12
Autom atically scrolling a disc name
— Auto Scroll
If the disc name, artist name, or track name on
a CD TEXT disc or MD exceeds 8 characters
and the Auto Scroll function is on, information
automatically scrolls across the display as
follows:
• The disc name appears when the disc has
changed (if the disc name is selected).
• The t rack name appears w hen the t rack has
changed (if the t rack name is select ed).
If you press (DSPL) to change the display
item, the disc or track name of the CD TEXT or
MD disc is scrolled automatically whether you
set the function on or off.
1During playback, press (SEL).
2Press (3) repeatedly to select
“A.SCRL-ON.”
To cancel Auto Scroll, select “A.SCRL-OFF.”
Note
For some discs w it h very many characters, the
follow ing cases may happen:
— Some of the charact ers are not displayed.
— Aut o Scroll does not work.
Wit h Optional Equipment
CD/M D Unit
This unit can control external CD/MD units.
If you connect an optional CD unit with the
CD TEXT function, the CD TEXT information
will appear in the display when you play a CD
TEXT disc.
Playing a CD or M D
1Press (SOURCE) repeatedly to select CD
or M D.
In case of tape playback, press Zto eject the
tape.
2Press (MODE) until the desired unit
appears.
CD/MD playback starts.
When a CD/MD unit is connected, all the
tracks play from the beginning.
Tip
With t he optional M G M emory St ick Syst em-up
Player M GS-X1 connected t o this unit , press
(SOURCE) to select “ M D,” then press (MODE) t o
select t he unit number of t he M D (MD1 or M D2,
etc.).
Changing t he display it em
Each time you press (DSPL) during CD, CD
TEXT, or MD playback, the item changes as
follows:
V
Elapsed playback time
V
Disc name*1/ Art ist name*2
V
Track name*3
V
Clock
*1If you have not labelled the disc or if there is no
disc name prerecorded on t he M D, “ NO NAM E”
appears in t he display.
*2If you play a CD TEXT disc, t he art ist name
appears in t he display aft er t he disc name. (Only
for CD TEXT discs wit h t he artist name.)
*3If the track name of a CD TEXT disc or MD is not
prerecorded, “ NO NAM E” appears in t he
display.
Downloaded from: https://www.usersmanualguide.com/

13
GB
Locating a specific t rack
— Automat ic M usic Sensor (AM S)
During playback, press either side of
(SEEK/AMS) momentarily for each track
you w ant to skip.
Locating a specif ic point in a t rack
—M anual Search
During playback, press and hold either
side of (SEEK/AMS). Release w hen you
have found the desired point.
Sw it ching t o other discs
During playback, press (1) (DISC –) or
(2) (DISC +) button.
The desired disc in the current unit begins
playback.
(1) (DISC –): For preceding discs
(2) (DISC +): For succeeding discs
To locate succeeding tracks
To locate preceding tracks
To search forw ard
To search backw ard
Disc number
Track number
SEEK
AMS
SEEK
AMS
Playing tracks repeatedly
— Repeat Play
You can select:
•REP-1 – to repeat a track.
•REP-2 – to repeat a disc.
During playback, press (3) (REP)
repeatedly until the desired setting
appears.
BREP-1 BREP-2
REP-OFF b
Repeat Play starts.
To return to normal playback mode, select
“REP-OFF.”
Playing tracks in random
order —Shuffle Play
You can select:
•SHUF-1 – to play the tracks on the current
disc in random order.
•SHUF-2 – to play the tracks in the current
unit in random order.
•SHUF-ALL – to play all the tracks in all the
units in random order.
During playback, press (4) (SHUF)
repeatedly until the desired setting
appears.
BSHUF-1 BSHUF-2
SHUF-OFF bSHUF-ALL*b
Shuffle Play starts.
*“ SHUF-ALL” is only available when you
connect tw o or more optional CD/M D units.
To return to normal playback mode, select
“SHUF-OFF.”
Downloaded from: https://www.usersmanualguide.com/

14
Fuse (10 A)
Additional
Informat ion
M aintenance
Fuse replacement
When replacing the fuse, be sure to use one
matching the amperage rating stated on the
original fuse. If the fuse blows, check the
power connection and replace the fuse. If the
fuse blows again after replacement, there may
be an internal malfunction. In such a case,
consult your nearest Sony dealer.
Warning
Never use a fuse with an amperage rating
exceeding the one supplied with the unit as
this could damage the unit.
Cleaning t he connectors
The unit may not function properly if the
connectors between the unit and the front
panel are not clean. In order to prevent this,
open the front panel by pressing (RELEASE),
then detach it and clean the connectors with a
cotton swab dipped in alcohol. Do not apply
too much force. Otherwise, the connectors may
be damaged.
M ain unit
Back of the front panel
Notes
•For saf et y, t urn of f t he engine before cleaning
the connectors and remove t he key f rom the
ignit ion sw itch.
•Never touch t he connectors direct ly w ith your
fingers or any metal device.
Downloaded from: https://www.usersmanualguide.com/

15
Dismount ing t he unit
1
2
3
4
Release key (supplied)
Downloaded from: https://www.usersmanualguide.com/

16
Specificat ions
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
22 watts per channel minimum continuous average power into 4
ohms, 4 channels driven from 20 Hz to 20 kHz with no more than
5 % total harmonic distortion.
Other specif ications
Casset t e player sect ion
Tape track 4-track 2-channel stereo
Wow and flutter 0.13 % (WRMS)
Frequency response 30 – 15,000 Hz
Signal-to-noise ratio 55 dB
Tuner sect ion
FM
Tuning range FM tuning interval:
87.5 – 107.9 MHz
(at 200 kHz step)
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz
Usable sensitivity 11 dBf
Selectivity 75 dB at 400 kHz
Signal-to-noise ratio 62 dB (stereo),
68 dB (mono)
Harmonic distortion at 1 kHz
0.7 % (stereo),
0.5 % (mono)
Separation 33 dB at 1 kHz
Frequency response 30 – 15,000 Hz
AM
Tuning range AM tuning interval:
530 – 1,710 kHz
(at 10 kHz step)
Antenna terminal External antenna connector
Intermediate frequency 10.7 MHz/450 kHz
Sensitivity 30 µV
Pow er am plifier sect ion
Outputs Speaker outputs
(sure seal connectors)
Speaker impedance 4 – 8 ohms
Maximum power output 45 W ×4 (at 4 ohms)
General
Outputs Audio output
Power antenna relay
control lead
Power amplifier control
lead
Tone controls Bass ±10 dB at 20 Hz
Treble ±10 dB at 20 kHz
Power requirements 12 V DC car battery
(negative ground)
Dimensions Approx. 178 ×50 ×178 mm
(7 1/8×2 ×7 1/8in.)
(w/h/d)
Mounting dimensions Approx. 182 ×53 ×161 mm
(7 1/4×2 1/8×6 3/8in.)
(w/h/d)
Mass Approx. 1.2 kg (2 lb 10 oz.)
Supplied accessories Parts for installation and
connections (1 set)
Front panel case (1)
Optional accessories BUS cable (supplied with
an RCA pin cord)
RC-61 (1 m), RC-62 (2 m)
Optional equipment CD changer (10 discs)
CDX-656
CD changer (6 discs)
CDX-T69
MD changer (6 discs)
MDX-66XLP
Source selector
XA-C30
MG-MS System-up Player
MGS-X1
Design and specif ications are subject t o change
wit hout notice.
Downloaded from: https://www.usersmanualguide.com/

17
Troubleshooting guide
The following checklist will help you remedy the problems you may encounter with your unit.
Before going through the checklist below, check the connections and operating procedures.
General
Tape playback
Problem
The sound is distorted.
Cause/Solution
The tape head is contaminated.
tClean the head with a commercially available dry-type
cleaning cassette.
Radio recept ion
Problem
Preset tuning is not possible.
Automatic tuning is not
possible.
The stations cannot be
received.
The sound is hampered by
noises.
The “ST” indication flashes.
Cause/Solution
• Store the correct frequency in the memory.
• The broadcast signal is too weak.
•The broadcast signal is too weak.
tUse manual tuning.
•The local seek mode is set to ON.
tSet the local seek mode to OFF (page 9).
Connect an power antenna control lead (blue) or accessory
power supply lead (red) to the power supply lead of a car’s
antenna booster. (When your car has built-in FM/AM antenna
in the rear/side glass only.)
•Tune in the frequency accurately.
•The broadcast signal is too weak.
tSet to MONO mode (page 9).
Problem
No sound.
The contents of the memory
have been erased.
Indications do not appear
in the display.
Cause/Solution
•Cancel the ATT function (page 10).
•Set the fader control to the centre position for two-speaker
systems.
•Adjust the volume with (+).
• The power cord or battery has been disconnected.
• The RESET button was pressed.
tStore again into the memory.
Remove the front panel and clean the connectors. See
“Cleaning the connectors” (page 14) for details.
Problem
The sound skips.
Cause/Solution
A dirty or defective disc.
CD/M D playback
Downloaded from: https://www.usersmanualguide.com/

18
Error displays (w hen an optional CD/M D unit is connected)
The following indications will flash for about five seconds, and an alarm sound will be heard.
*1When an error occurs during playback of a CD or M D, t he disc number of the CD or M D does not appear
in the display.
*2The disc number of the disc causing t he error appears in t he display.
If the above-mentioned solutions do not help improve the situation, consult your nearest Sony
dealer.
Solut ion
Insert the disc magazine in the CD/
MD unit.
Insert discs in the CD/MD unit.
Clean or insert the CD correctly.
Insert another MD.
Insert another CD/MD.
Play an MD with tracks recorded on
it.
Press the reset button of the unit.
Close the lid or insert the MDs
properly.
Wait until the temperature goes
down below 50°C (122°F).
Display
NO MAG
NO DISC
ERROR
BLANK
RESET
NOT READY
HI TEMP
Cause
The disc magazine is not inserted in
the CD/MD unit.
No disc is inserted in the CD/MD unit.
A CD is dirty or inserted upside
down.*2
An MD does not play because of some
problem.*2
A CD/MD cannot play because of
some problem.
No tracks have been recorded on an
MD.*2
The CD/MD unit cannot be operated
because of some problem.
The lid of the MD unit is open or MDs
are not inserted properly.
The ambient temperature is more than
50°C (122°F).
*1
*1
Downloaded from: https://www.usersmanualguide.com/

19
Downloaded from: https://www.usersmanualguide.com/

2
Félicit at ions !
Nous vous remercions pour l’achat de ce
lecteur de cassette Sony.
En plus de la lecture de cassettes et de l’écoute
d’émissions de radio, vous pouvez étendre les
possibilités de votre système en raccordant une
unité CD/MD disponible en option*1.
Lorsque vous faites fonctionner cet appareil ou
une unité CD en option raccordée et dotée de
la fonction CD TEXT, les informations CD
TEXT apparaissent dans la fenêtre d’affichage
pendant la lecture d’un disque CD TEXT*2.
*1Vous pouvez également connecter un changeur
CD, un changeur M D, un lect eur CD ou un
lecteur M D.
*2Un disque CD TEXT qui est un disque audio
contient des informat ions telles que le tit re du
disque, le nom de l’art ist e et le titre des plages.
Ces inf ormations sont enregistrées sur le disque.
Le logo "XM Ready" indique que ce produit
commande un tuner XM Sony (vendu
séparément).
Consultez votre revendeur agréé Sony le plus
proche pour obtenir plus d'informations sur le
tuner XM.
Pour en savoir plus sur le fonctionnement du
tuner XM, reportez-vous au manuel utilisateur
fourni avec le tuner XM.
Précautions
• Si votre voiture est parquée en plein soleil et
si la température à l’intérieur de l’habitacle a
considérablement augmenté, laissez refroidir
l’appareil avant de l’utiliser.
• Si l’appareil n’est pas alimenté, vérifiez
d’abord les connexions. Si tout est en ordre,
vérifiez le fusible.
• Si aucun son n’est diffusé par les haut-
parleurs d’un système à deux haut-parleurs,
réglez la commande de balance de volume
avant-arrière sur la position centrale.
• Si la cassette est reproduite pendant une
longue durée, il se peut qu’elle s’échauffe en
raison de la proximité de l’amplificateur de
puissance intégré. Il ne s’agit cependant pas
d’un dysfonctionnement.
Si vous avez des questions ou des problèmes
concernant le fonctionnement de cet appareil
qui ne sont pas abordés dans le présent mode
d’emploi, consultez votre revendeur Sony.
Pour préserver la qualité sonore
Si les porte-gobelets se trouvent à proximité de
votre installation audio, veillez à ce qu’aucune
éclaboussure de jus de fruit ou de boisson
rafraîchissante ne soit projetée sur votre
autoradio. Des résidus de sucre sur cet
appareil ou sur la bande magnétique d’une
cassette risquent d’encrasser les têtes de
lecture, entraînant ainsi une altération de la
qualité sonore ou empêchant carrément la
reproduction sonore.
Les cassettes de nettoyage ne permettent pas
d’éliminer les résidus de sucre sur les têtes de
lecture.
Downloaded from: https://www.usersmanualguide.com/
