Sony WM-DDIII User manual

WM-Dul
SERVICE MANUAL
HEADPHONES jacks (stereo minijacks)-
REW ► ► (rewind) button'
<*4 FF (fast forward) button
<4 PLAY button
■ STOP button
Dolby noise reduction manufactured under license from
Dolby Laboratories Licensing Corporation.
"DOLBY” and the double-D symbol □□ are trademarks of
Dolby Laboratories Licensing Corporation.
Refer t MDR-15L Service Manual issued previously
for informati n of headphones supplied with this set.
AEP Model
VOLUME control
BATTERY indicator
DOLBY NR switch
-TAPE selector
PHOTO: BLACK TYPE
SPECIFICATIONS
Similar Mechanism Set
WM-DD
Tape Transport Mechanism Type
DD-tOO
Tape track
4-track 2-channel stereo
Fast winding time
Approx. 2 min. with Sony Cassette C-60
Frequency response
40-15,000 Hz
Wow and flutter
±0.13% (DIN)
0.08% WRMS (NAB)
Power output
Headphones:
20mW + 20mW {at 10% harmonic distortion)
load impedance 32 ohms
at DC operation
Outputs
Two HEADPHONES jacks (stereo minijacks)
load impedance 8-300 ohms
Power requirements
3 V DC, two R6 (size AA) batteries
DC IN 3 V jack accepts:
EBP-500 battery case (optional) for use on
two R20 (size D) batteries
AC-D2M AC power adaptor (optional) for use
on 220 V AC, 50 Hz
DCC-70 or DCC-127A car battery cord (optional) for use with 12 V
car battery
(For connection with the DCC-127A, the optional PC-200 DC plug
adaptor is required.)
Battery life
Batteries
Continuous playback hours
Sony batteries SUM-3 (NS)
Approx. 4
Sony alkaline batteries AM3
Approx. 9
For maximum performance we recommend the use of alkaline
batteries.
Dimensions
Approx. 79.7x110x32.8mm (w/h/d)
(3V 4 x 4 %x 1 s / 16 inches)
incl. projecting parts and controls
Weight
Approx. 290 g (10.3 oz) incl. batteries,
not incl. other accessories
Note: If a car battery cord or an AC power adaptor not manufactured by Sony
is used, a fuse must be installed in the battery cord or the AC power
adaptor and the polarity of the plug must be as illustrated.
FEATURES
• Disc Drive system assures accurate and stable tape trans¬
port, greatly reducing wow and flutter.
• Dolby NR system reduces tape hiss noise.
• Tape selector for optimum playback with standard tapes
as well as high-performance tapes.
• Two HEADPHONES jacks allow two persons to listen to
tape playback together.
STEREO CASSETTE PLAYER

WM-DD1

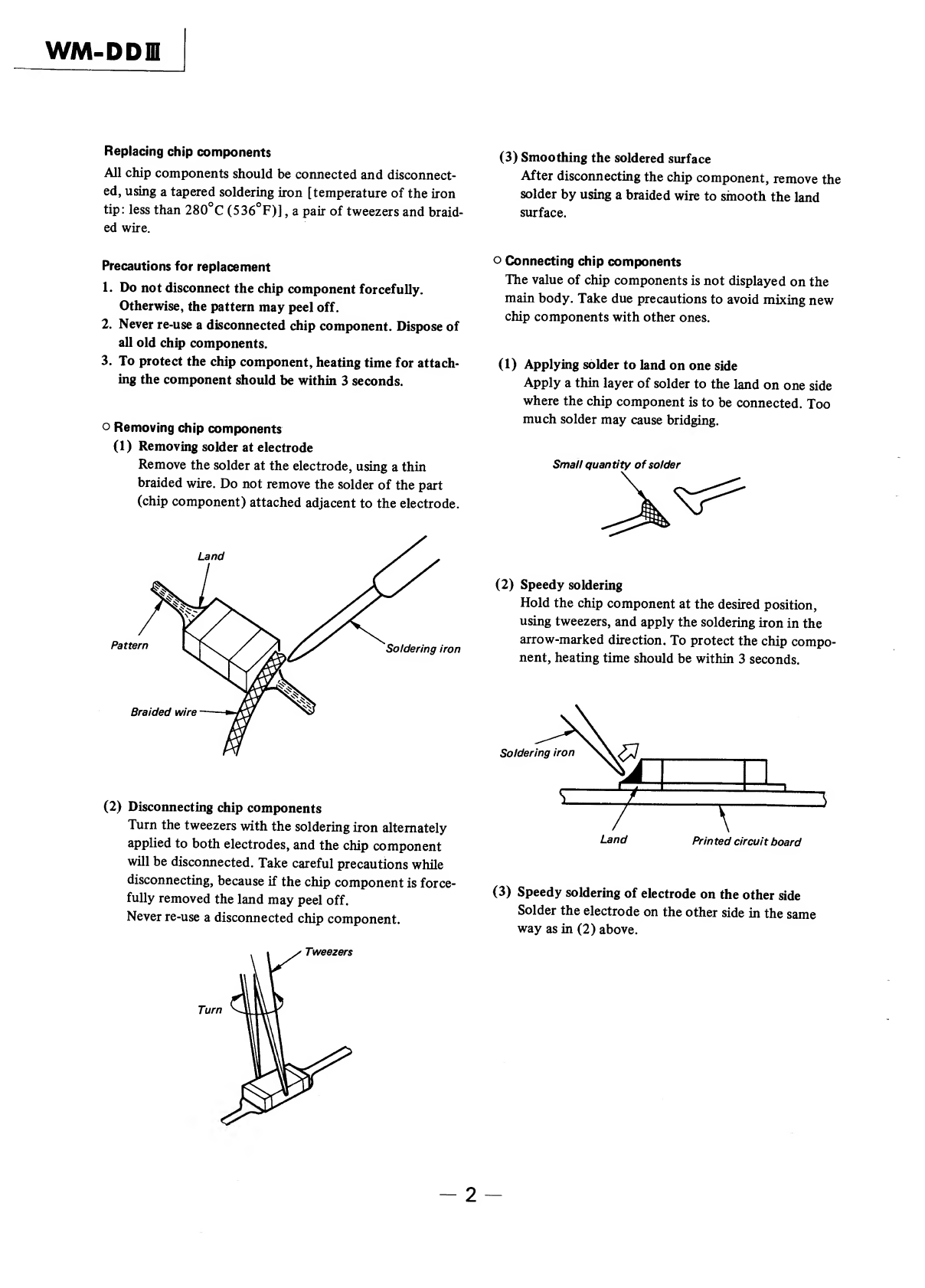

Replacing chip components
All chip components should be connected and disconnect¬
ed, using a tapered soldering iron [temperature of the iron
tip: less than 280°C (536°F)], a pair of tweezers and braid¬
ed wire.
Precautions for replacement
1. Do not disconnect the chip component forcefully.
Otherwise, the pattern may peel off.
2. Never re-use a disconnected chip component. Dispose of
all old chip components.
3. To protect the chip component, heating time for attach¬
ing the component should be within 3 seconds.
o Removing chip components
(1) R emoving solder at electrode
Remove the solder at the electrode, using a thin
braided wire. Do not remove the solder of the part
(chip component) attached adjacent to the electrode.
(2) D i sconnecting chip components
Turn the tweezers with the soldering iron alternately
applied to both electrodes, and the chip component
will be disconnected. Take careful precautions while
disconnecting, because if the chip component is force¬
fully removed the land may peel off.
Never re-use a disconnected chip component.
(3) S moothing the soldered surface
After disconnecting the chip component, remove the
solder by using a braided wire to smooth the land
surface.
o Connecting chip components
The value of chip components is not displayed on the
main body. Take due precautions to avoid mixing new
chip components with other ones.
(1) A pplying solder to land on one side
Apply a thin layer of solder to the land on one side
where the chip component is to be connected. Too
much solder may cause bridging.
Small quart tity of solder
(2) S peedy soldering
Hold the chip component at the desired position,
using tweezers, and apply the soldering iron in the
arrow-marked direction. To protect the chip compo¬
nent, heating time should be within 3 seconds.
(3) S p eedy soldering of electrode on the other side
Solder the electrode on the other side in the same
way as in (2) above.
- 2 -

SECTION 1
MECHANICAL OPELATION
MECHANICAL OPERATION in this set is the same
as that of model WM-DD, so refer to WM-DD service
manual previously issued for MECHANICAL OPERA¬
TION.
SECTION 2
DISASSEMBLY
Note: Follow the disassembly procedure in the numerical order given.
WM-DDIK WM-DDI
Cassette Panel
Q Remove cassette panel.
Main B ard
Motor
precision screw
P 1.4 x 1.8l TYPE 3
- 3 -
- 4 -

WM-DDH
PRECAUTION
SECTION 3
ADJUSTMENTS
1. Clean the following parts with a denatured-
alcohol-moistened swab:
playback head pinch roller
capstan
2. Demagnetize the playback head with a head
demagnetizer.
3. Do not use a magnetized screwdriver for the
adjustments.
4. After the adjustments, apply suitable locking
compound to the parts adjusted.
5. The adjustments should be performed with the
rated power supply voltage unless otherwise
noted.
3-1. MECHANICAL ADJUSTMENT
Torque Measurement
Perform with 2.5 V DC power.
Torque
meter
Meter reading
FWD
CQ-102C
22 - 46 g*cm
(0.3 - 0.63 oz*inch)
FF, REW
CQ-201B
More than 65 g»cm
(More than 9.04 oz*inch)
Back
Tension
CQ-102C
1 - 3.5 g-cm
(0.01 - 0.05 oz«inch)
Tape Pull¬
ing Force
CQ-403
More than 80g*cm
(More than 11.12 oz*inch)
Pinch Roller Pressure Adjustment
— Playback Mode —
1. P u l l the spring scale in the direction shown by
the arrow.
2. S l o w l y return the pinch roller and read the
spring scale just when the pinch roller starts
rotating. q
XoX
Specification:
170±20g (5.3 ~6.7 oz)
o
Head Height Adjustment
1. Prepare an adjustment cassette as shown below.
C-120
tape cassette
portions.
2. In playback mode and viewing from the front,
adjust the head heights to eliminate tape curl
and tape twist at portions shown by the arrow.
playback head
n
r m
3-578-138-01 (t= 0.1)
3-578-138-11 ft = 0.2)
Sh im, head h eigh t ad jus tmen t
3. I f necessary, adjust the height of the tape-guide
by turning the adjustment screw.
adjustment screw
4. A p p l y locking compound on adjustment screw.
5

WM-DDH
1. Motor section installation
2. Wow & flutter and motor position
1. Adjust with the adjustment screw so that rotor
thrust play is within 0.1mm. (When confirming
play, press motor down so that the motor
pulley and rotor rubber section do not touch.)
2. Wow & flutter adjustment
Setting:
Power supply voltage: 2.5V
Tape: Adjust by using end portion of tape.
VOLUME control: mechanical mid
TAPE SELECT switch: NORM
DOLBY NR switch: OFF
Procedure:
0 Mode: playback
test tape wow & flutter
WS-48A meter
(3kh
iz, OdB)
32SI
- 1 — 1
L^J
set
J 1_
-o
-°
Vj
\
HEADPHONES
Turn the adjustment screw so that the wow
and flutter meter reads minimum (less than
0.12% W-RMS).
( 2 ) At 2V power supply voltage, confirm normal
FWD operation.
Q) When ® and Q) are not satisfied, repeat adjust¬
ment again starting with “Motor Section
Installation”.
Press down
6

WM
2-2. ELECTRICAL ADJUSTMENTS
Tape Speed Adjustment
Setting:
VOLUME control: mechanical mid
TAPE SELECT switch: NORM
DOLBY NR switch: OFF
Procedure:
Mode: playback
test tape
WS-48A
(3 kHz, OdB)
digital frequency
counter
\J HEADPHONES
1. Open the solder bridge shown below.
2. Turn RV601 so that frequency reading be¬
comes in 3090 Hz ± 10 Hz. (at the ending part
of the test tape)
3. Resolder the adjustment patterns opened in
step 2 above. Now frequency reading should be¬
comes in 3000 Hz ± 9 Hz.
Specification:
Digital frequency counter
3000 Hz ± 9 Hz
Adjustment Location:
— main board —
Adjustment
patterns
I O 1 ^ tc>rO
X60I M
mm lu
UL—C-— i—
7 1 T
Playback Head Azimuth Adjustment
Setting:
VOLUME control: mechanical mid
TAPE SELECT switch: NORM
DOLBY NR switch: OFF
Procedure:
1. M o d e : playback
test tape
P-4-A WO u
UD/
32n
LJ
L_ I 1—
set 1 i % |
— —K _Lj-i
-
U HEADPHONES
2. T urn the adjustment screw for the maximum
output levels. If these levels do not match, turn
the adjustment screw until both of output
levels match together within 1 dB.
Screw
position
3. P hase Check
Mode: playback
test tape
P-4-A063
(6.3kHz, —WdB)
L-CH R‘CH
peak peak
32SI oscilloscope
HEADPHONES
Screen pattern
0 @ ®
in phase 45° 90° 13 5° 18(f
good
wrong
8

SECTION 4
DIAGRAMS
3-1. MOUNTING DIAGRAM
I I 1 1 l I 3 I .. 4 I 5 1 6
12.1*11 1 ^3 ~T _ 14
isIn- 2 ®l
[MAIN BOARD]
(SIDE A)/
17 ; ~18 1 ~ 19 T 20
~r\ r 22
Semiconductor Lead Layouts
MSM58141RS BA3304F
NJM2063AM
Jill TA7688F
K I CX20084
2SA812
2SC1623
2SB624-BV4
2SD596
2SB798
C
[MAIN BOARD]
(SIDE B}j
[MAW BOARD]
SIDE A) I ✓
[MAIN BOARD]
FG 90 [ [
FG COIL
koft ^ I Veapth j
b I
ON S302
_J_J00LB]_NR
OFF
SR506D
I
RD7.5M-B1
Semiconductor Location
Ref. N .
Descripti n
R f. No.
Description
D301
D-18 Q302
K-13
D302
J-15
Q303
0-10
D303
Q-10 Q304
P-10
D701
P-5 Q305
N-11
Q601
R-6
IC301
M-17
Q602
N-9
IC302
0-14
Q701
P-5
IC303
L-12
Q702
U-5
IC601
Q-7 Q703
Q-5
IC602
N-6
<3Hr-0
M90I
MNR- 1600A
MOTOR
4-'.- />*h
“i ^ >4
- : parts extracted from the component side.
- : parts extracted from the conductor side.
: part mounted on the conductor side.
: Through hole.
?: component-side pattern.
[RY BATTERY
i IZE "AA"
{ EC DESIGNATION R6)

WM-DDH WM-DD1
i
8 9
10
11
12
13
14
15
3-2. SCHEMATIC DIAGRAM
B
H
N te:
All capacitors are in juF unless otherwise noted. pF: ppF
50WV or less are not indicated except for electrolytics
and tantalums.
All resistors are in n and i/«W or less unless otherwise
specified.
nmi mu Mi'infr : L-CH signal path
— : R-CH signal path
11
MNR-160IA
MOTOR FG COIL
' : B+ bus.
I : adjustment for repair.
Power voltage is 3 V and fed with regulated dc power
supply from
Voltage variations may be noted due to norma! produc¬
tion tolerances.
Waveforms are taken to ground in PLAY mode by using
oscilloscope.
Voltage variations may be noted due to normal produc¬
tion tolerances.
Switches:
Ref. No.
Switch
Positi n
S301
TAPE
NORM
S302
DOLBY NR
OFF
S901
POWER
ON
Touching the pin No. 11 of IC601 with the tester probe
causes an extra vibration inside the 1C, which will be
heard from the phones as a high-pitched sound.
If the pin No. 11 of IC601 is touched with the tester
probe, the voltage there will increase, and after about 1
second it will get higher than 0.8V, so that the motor
M901 will stop.
- 1 2 -

1C BLOCK DIAGRAMS
IC301 BA3304F
IC302 NJM2063AM
1C
303 TA7688F
TIME
CONSTANT
2
feH-W-H
[-^-W-H^TiME
CONSTANT
I
WM-DDI
IC601 CX20084
IC602 MSM58141RS
6ND 4/5 SELECT
3 -

WM-DDD I
SECTION 5
EXPLODED VIEWS AND PARTS LIST
REVISED
NOTE:
•The mechanical parts with no reference
number in the exploded views are not
supplied.
•The construction parts of an assembled
part are indicated with a collation
number in the remark column.
* Color Indication of Appearance Parts
Example: (RED) . KNOB, BALANCE
t (WHITE)
t
Parts' Color
No. Part No.
Description Remarks
No. Part No.
Description Remarks
1
X-3310-950-1 (SILVER)...PANEL ASSY, CONTROL
15
3-578-232-00
(SILVER)...ORNAMENT, ADJUSTMENT HOLE
X-3310-951-1 (BLACK)....PANEL ASSY, CONTROL
3-578-232-11
(RED).ORNAMENT, ADJUSTMENT HOLE
X-3310-952-1 (RED).PANEL ASSY, CONTROL
3-578-232-21
(BLACK)....ORNAMENT, ADJUSTMENT HOLE
2 3-704-246-31
(SILVER).SCREW (PI.4X2.5)
16
X—3310—953—1
(SILVER)...PANEL ASSY, CASSETTE
3-704-246-32
(BLACK,RED)...SCREW (PI.4X2.5)
X-3310-954-1
(BLACK)....PANEL ASSY, CASSETTE
X-3310-955-1
(RED).PANEL ASSY, CASSETTE
3
3-310-947-00 SPRING, COMPRESSION
4
3-310-983-02
BUTTON, LOCK 17
3-578-101-00
PLATE, ORNAMENTAL
18
*3-701-999-00
LABEL, SERIAL NUMBER
HP* -5" 3
324 435 01
(SILVER,RED) ...LABEL, TH—not supplied—
20
3-578-236-00
SPRING (BATTERY)
.3-324-435-11
(BLACK).LABEL, D(_, not supplied-
21
3-578-115-00 LID, BATTERY CASE
6
*3-324-430-01 (SILVER).LABEL, MODEL NUMBER
22
*3-324-415-01 CUSHION
*3-324-430-11
(BLACK,RED)...LABEL, MODEL NUMBER
23
3-578-114-00 PANEL, CHASSIS
24
7-627-850-58
SCREW, PRECISION +P 1.4X3.5
7
3-307-831-00 SCREW, PANEL
25
3-324-431-01
KNOB, VOL
8
3-335-797-21 SCREW (Ml.4X3), TOOTHED LOCK
9
3-831-441-11 CUSHION (B) 26
3-310-979-01
BUTTON, SELECTION, TAPE
10
9-911-838-XX
CUSHION, METER
27
3-310-978-01
BUTTON, SELECTION, NR (DOLBY)
901
A-3216-178-A PC BOARD ASSY, MAIN
11 9-911-816-01
CLOTH, DRAWER, BATTERY
12
3-831-441-XX
SPACER
13 3-703-710-01
STICKER, SONY SYMBOL (12)
14 3-578-109-00
CONTACT
- 1 4 -

WM-DDI
5-2.
68
- 5 0
No. Part No. Description Remarks
65 3-545-588-00 SPRING, TENSION
66 X—3310—935—1 COVER ASSY, ERASE HEAD
67 3-578-128-00 SPRING, COMPRESSION
68 7-627-551-28 SCREW, PRECISION +P 1.4X2.5
69 X-3310-908-0 HOLDER ASSY
70 X-3310-910-0 CHASSIS ASSY
71 7-627-850-48 +P 1.4X1.6
72 7-671-112-01 STEEL, BALL (2m/m)
73 3-578-127-00 SPRING, COMPRESSION
74 7-627-851-27 SCREW, PRECISION +P 1.4X5
75 3-578-138-01 SEAM (t=0.1)
76 3-578-138-11 SEAM (t=0.2)
HP901 1-543-423-11 HEAD, MAGNETIC (PLAYBACK)
No.
Part No.
Description Remarks
50
3-578-158-00 GEAR, S
51
3-578-123-00 SPRING, COMPRESSION
52
3-310-958-00
WASHER
53
X—3 578—126—0 CLAW ASSY, REEL
54
X-3578-115-0 CLAW ASSY, REEL
55
*X-3578-105-0
CHASSIS ASSY, HEAD
56
3-578-254-00
RING, RETAINING, E1.2
57
3-578-181-00
SPRING, HEAD
58
3-310-971-01
HOOK, SPRING
59
7-627-553-37 SCREW, PRECISION +P 2X3
60
7-627-554-17
SCREW, PRECISION +P 2X3.5
61
7-627-553-98 SCREW, PRECISION +P 2X8
62
3-578-146-00
SPRING
63
X-3578-137-0 PINCH ROLLER ASSY
64
3-578-220-00
SPRING, TENSION
15

WM-DDO
132
No.
Part No.
Description Remarks No. Part No.
Description
101 *X-3310-909-0 CHASSIS ASSY, SUB
135
3-310-959-00
SPRING, TENSION
102
7-627-451-87
SCREW, PRECISION +K 1.4X2.2
137
X-3578-142-0
LEVER (A) ASSY, DRIVING
103 X-3310-907-0
STATOR ASSY
138
3-578-199-00
SPRING, COMPRESSION
139
3-578-265-00
WASHER
104
3-701-438-01
WASHER
105
X-3310-905-0 ROTOR ASSY
140
3-310-992-01
WASHER (t=0.13)
106
7-627-850-79
SCREW, PRECISION +P 1.4X1.8 TYPE3
3-310-992-11
WASHER (t=0.1)
3-310-992-21
WASHER (t=0.Q8)
107
3-310-930-00 PLATE, THRUST 141 3-578-162-00 GEAR, REW
108
3-547-625-00
SCREW, THRUST ADJUST
142
3-578-221-00 SPRING, COMPRESSION
109
3-310-939-00
RUBBER, VIBRATION PROOF
143
3-578-267-00 SCREW (+P1.4X1.6), PRECISION
110
3-310-938-00
PLATE, SHIELD
144
*3-578-149-00 SHAFT, LEVER (A) , SHUT-OFF
112
7-624-102-04
STOP RING 1.5, TYPE -E
145 3-578-157-00 LEVER (B), SHUT-OFF
113 3-310-993-01
SPRING, COMPRESSION
146 3-578-214-00
SHAFT, GEAR, SHUT-OFF
114
3-310-948-00
SPRING, TENSION
147 3-578-126-00 SPRING, TENSION
115 7-627-851-17 SCREW, PRECISION +P 1.4X4.5
148
3-305-509-00
LEVER (A), SHUTT-OFF
116
3-310-921-00
SPRING, COMPRESSION
149 3-578-178-00
GEAR, SHUT-OFF
118
X-3310-932-1
MOTOR BRAKET
150 3-578-151-00 SHAFT, GEAR, FWD
119
3-578-154-00 LEVER, DETECTION
151
X-3310-948-1
BUTTON ASSY, STOP
120 3-578-124-00
SPRING, COMPRESSION
152
3-578-121-00
SPRING, COMPRESSION
121
3-578-244-01
GEAR, FF
153 X-3578-114-0
PLATE ASSY, LOCK
123 3-310-914-00
GEAR, FWD
154 3-310-935-00 LEVER, SWITCH
125
3-578-249-00 SPRING, COMPRESSION (FWD BUTTON)
155 3-561-627-00
SPRING, TENSION
126
X-3310-949-1 BUTTON ASSY, PLAY
156 3-578-277-00 SPRING, TENSION
127
3-310-916-00 PLATE (B), HYSTERESIS
158 *3-578-196-00
HOOK, SPRING
128
3-310-920-00
PLATE (C), HYSTERESIS
159
X-3310-947-1
BUTTON ASSY, F.R
129 3-310-915-11
GEAR (B), DRIVING
160 3-578-278-00 SPRING, COMPRESSION
130
3-578-276-11
WASHER (10)
163
3-578-183-00
LEVER, RETURN, S
131
3-578-224-00 WASHER (1.2 t=0.25)
164 7-627-850-18
SCREW, PRECISION +P 1.4X2.5
132 3-578-130-00
SPRING
167 X—3310—936—1 BRACKET ASSY, PANEL
133
X-3578-121-0
LEVER ASSY, FWD
M901
X—3310—922—1
MOTOR
134 3-578-224-11
WASHER (1.2 t=0.188)
S901
1-553-226-00 SWITCH, LEAF (POWER)
- 1 6 -
Remarks

SECTION 6
ELECTRICAL PARTS LIST
WM-DDin
NOTE:
• Items marked " * " are not stocked since
they are seldom required for routine
service. Some delay should be antici¬
pated when ordering these items.
• If there are two or more same circuits in a
set such as a stereophonic machine, only
typical circuit parts may be indicated and
capacitors and resistors in other same
circuits may be omitted.
CAPACITORS:
MF:pF, PF-:ppF.
RESISTORS
• All resistors are in ohms.
• F : nonflammable
COILS
• MMH : mH, UH : pH
SEMICONDUCTORS
In each case, U : p, for example:
UA—: pA..., UPA...: pPA..., UPC...: pPC,
UPD_: pPD...
ELECTRICAL PARTS
ELECTRICAL PARTS
Ref.No.
Part No.
Description
Ref.No.
Part No.
Description
901
A-3216-178-A
PC BOARD ASSY, MAIN
C316
1-124-434-00
ELECT 220MF
20%
4V
C317
1-135-091-00 TANTAL. CHIP IMF
10%
16V
Cl 01
1-163-141-00 CERAMIC
CHIP
0.001MF
10%
50Y
C318
1-163-117-00
CERAMIC CHIP 100PF
10%
50V
C102
1-135-104-00
TANTAL.
CHIP 10MF
20% 4V
C103
1-163-016-00 CERAMIC CHIP
0.0039MF
10% 50V
C319
1-163-117-00
CERAMIC CHIP 100PF
10%
50V
C320
1-163-117-00
CERAMIC CHIP 100PF
10%
50V
C104
1-135-103-00 TANTAL.
CHIP
3.3MF
20%
4V
C321
1-163-117-00 CERAMIC CHIP 100PF
10% 50V
C105
1-163-035-00
CERAMIC
CHIP
0.047MF
10% 25V
C106
1-135-087-21
TANTAL.
CHIP
0.68MF
10% 20V
C601
1-163-097-00
CERAMIC CHIP 15PF
5%
50V
C602
1-163-097-00
CERAMIC CHIP 15PF
5% 50V
C107
1-163-017-00
CERAMIC
CHIP
0.0047MF
5%
50V
C603
1-163-105-00
CERAMIC CHIP 33PF
5%
50V
C108
1-163-034-00 CERAMIC
CHIP
0.033MF 5%
25V
C109
1-163-019-00 CERAMIC
CHIP
0.0068MF
10%
BOV
C604
1-163-038-00
CERAMIC CHIP 0.1MF
25V
C605
1-163-023-00
CERAMIC CHIP 0.015MF
10%
BOV
C110
1-124-436-00
ELECT
3.3MF
20% 25 V
C606
1-163-012-00
CERAMIC CHIP 0.0018MF
10% 50V
cm
1-162-638-11 CERAMIC
CHIP
IMF
16V
Cl 12
1-163-141-00
CERAMIC
CHIP
0.001MF
10% 50 V
C607
1-130-483-00
MYLAR 0.01MF
5% 50V
C608 1-124-435-00
ELECT 10MF
20% 6.3V
C113
1-163-081-00 CERAMIC CHIP
0.22MF
25V
C609
1-163-021-00
CERAMIC CHIP 0.01MF
5%
BOV
Cl 14
1-124-434-00 ELECT
220MF
20%
4V
Cl 15
1-163-141-00 CERAMIC
CHIP
0.001MF
10% BOV
C610 1-135-091-00
TANTAL. CHIP IMF
10% 16V
C611
1-163-810-00 CERAMIC CHIP 0.03MF
10%
25V
C201
1-163-141-00 CERAMIC
CHIP
0.001MF
10%
BOV C612
1-163-021-00
CERAMIC CHIP 0.01MF
5% BOV
C202
1-135-104-00
TANTAL. CHIP
10MF
20%
4V
C203
1-163-016-00 CERAMIC
CHIP
0.0039MF 10%
50 V
C613
1-163-021-00 CERAMIC CHIP 0.01MF
5% 50V
C614
1-130-489-00 MYLAR 0.033MF
5% BOV
C204
1-135-103-00 TANTAL. CHIP
3.3MF
20% 4V
C615
1-135-070-00 TANTAL. CHIP 0.1MF
20%
35V
C205
1-163-035-00 CERAMIC
CHIP
0.047MF
10%
25 V
C206
1-135-087-21
TANTAL.
CHIP
0.68MF
10% 20V
C616 1-163-035-00
CERAMIC CHIP 0.047MF
10%
25V
C701
1-124-462-00
ELECT 10MF
20%
16V
C207
1-163-017-00
CERAMIC CHIP
0.0047MF 5%
50V C702
1-124-461-11
ELECT 4.7MF
20% 16V
C208
1-163-034-00
CERAMIC
CHIP
0.033MF
5%
25V
C209
1-163-019-00
CERAMIC
CHIP
0.0068MF
10%
50 V C703
1-135-104-00 TANTAL. CHIP 10MF
20%
4V
C704 1-163-081-00 CERAMIC CHIP 0.22MF
25V
C210
1-124-436-00
ELECT
3.3MF
20%
25V
C705
1-163-117-00 CERAMIC CHIP 100PF
10% 50V
C211
1-162-638-11
CERAMIC
CHIP
IMF
16V
C212
1-163-141-00
CERAMIC
CHIP 0.001MF
10% 50V
CNJ301 1-507-723-00 JACK, EXTENTION POWER
C213
1-163-081-00
CERAMIC
CHIP 0.22MF
25 V
D301
8-719-104-37 LED SR506D
C214
1-124-434-00
ELECT
220MF
20%
4V
D302 8-719-100-05 DIODE 1S2837
C215
1-163-141-00
CERAMIC
CHIP
0.001MF
10%
50V
D303
8-719-100-05
DIODE 1S2837
D701 8-719-106-22
DIODE RD7.5M-B1
C301
1-124-431-00 ELECT
33MF
20%
4V
C302
1-124-434-00 ELECT
220MF
20% 4V
HP901
1-543-423-11
HEAD, MAGNETIC (PLAYBACK)
C303
1-163-038-00
CERAMIC
CHIP
0.1MF
25V
IC301 8-759-910-18 IC BA3304F
C304
1-124-432-00
ELECT
47MF
20% 4V
IC302
8-759-701-07 IC NJM2063AM
C305
1-124-435-00 ELECT
10MF
20%
6.3V
IC303
8-759-200-95
IC TA7688F
C306
1-163-021-00
CERAMIC
CHIP
0.01MF
5%
50V
IC601
8-759-909-45
IC CX20084
C307
1-135-103-00 TANTAL. CHIP
3.3MF
20%
4V
IC602
8-759-958-14
IC MSM58141RS
C308
1-124-430-00 ELECT
22MF
20%
4V
C309
1-124-431-00 ELECT
33MF
20%
4V
J 301
1-507-727-00 JACK 2P (PHONES)
C310
1-135-103-00
TANTAL.
CHIP
3.3MF
20%
4V L701
1-410-209-51 INDUCTOR CHIP 27UH
C311
1-163-141-00
CERAMIC
CHIP
0.001MF
10%
50V
C312
1-163-141-00 CERAMIC
CHIP
0.001MF
10%
BOV M901 X—3310—922—1 MOTOR
C313
1-163-038-00 CERAMIC CHIP
0. IMF
25V Q302
8-729-903-10
TRANSISTOR FMW1
C314
1-135-103-00 TANTAL.
CHIP 3.3MF
20% 4V
Q303
8-729-106-44
TRANSISTOR 2SB624-BV4
C315
1-124-434-00 ELECT
220MF
20%
4V
Q304
8-729-903-10
TRANSISTOR FMW1
17

WM-DD1
Ref.No.
Q305
Q601
Q602
Q701
Q702
Q703
R101
R102
R103
R104
R105
R106
R107
R108
R109
R110
Rill
R112
R113
R114
R115
R201
R202
R203
R204
R205
R206
R207
R208
R209
R210
R211
R212
R213
R214
R215
R301
R302
R303
R304
R305
R306
R307
R308
R309
R310
R311
R312
R313
R601
R602
R603
R604
R605
9 - 952 - 670-11
(Including 9
ELECTRICAL PARTS
ELECTRICAL PARTS
Part No.
Description
Ref.No. Part No. Description
8-729-100-76
TRANSISTOR
2SA812
R606 1-216-058-00
METAL CHIP 2.4K 5%
1/10W
8-729-101-07 TRANSISTOR
2SB798
R607 1-216-093-00
METAL CHIP 68K
5% 1/10W
8-729-100-66
TRANSISTOR 2SC1623 R608 1-216-092-00
METAL CHIP 62K 5%
1/10W
8-729-100-66
TRANSISTOR 2SC1623
R609 1-216-101-00
METAL CHIP 150K
5% 1/10W
8-729-159-64
TRANSISTOR 2SD596
R610 1-216-097-00
METAL CHIP 100K
5 % 1/10W
8-729-100-66
TRANSISTOR
2SC1623
R611 1-216-061-00
METAL CHIP 3.3K S%
1/10W
1-216-089-00
METAL CHIP 47K S%
1/10W R612 1-216-105-00
METAL CHIP 220K
5%
1/10W
1-216-101-00
METAL CHIP
150K 5 %
1/10W R613 1-216-097-00
METAL CHIP 100K
5%
1/10W
1-216-117-00
METAL CHIP 680K 5 %
1/10W
R614 1-216-073-00
METAL CHIP 10K
S%
1/10W
1-216-085-00
METAL CHIP 33K
5% 1/10W
R701 1-216-061-00
METAL CHIP 3.3K
5%
1/10W
1-216-748-11 METAL CHIP
39K
5%
1/10W
R702 1-216-041-00
METAL CHIP 470
5%
1/10W
1-216-089-00
METAL CHIP
47K 5%
1/10W
R703 1-216-113-00
METAL CHIP 470K
5%
1/10W
R704 1-216-065-00
METAL CHIP 4.7K
5%
1/10W
1-216-112-00
METAL CHIP
430K
5%
1/10W
1-216-061-00
METAL CHIP
3.3K 5 %
1/10W
RV101 1-237-299-11
RES, ADJ , METAL GLAZE 2.
,2K (PB LEVEL)
1-216-089-00
METAL CHIP
47K
5% 1/10W
RV201 1-237-299-11
RES, ADJ, METAL GLAZE 2.
,2K (PB LEVEL)
RV301 1-230-485-11
RES, VAR, CARBON 10K/10K
; (VOLUME)
1-216-067-00
METAL CHIP
5.6K
5 %
1/10W
RV601 1-237-301-11
RES, ADJ, METAL GLAZE 22K (SPEED)
1-216-053-00
METAL CHIP
1.5K
S%
1/10W
1-216-306-11
METAL CHIP 3.9 5 %
1/10W S301 1-553-280-00
SWITCH, SLIDE (NOR/METAL Cr02)
S302 1-554-585-00
SWITCH, SLIOE (M-N)(DOLBY NR)
1-216-053-00
METAL CHIP 1.5K 5%
1/10W
S901 1-553-226-00
SWITCH, LEAF (POWER)
1-216-037-00
METAL CHIP 330 5%
1/10W
1-216-089-00
METAL CHIP.
47K
5%
1/10W
T701 1-447-697-00
TRANSFORMER, DC-DC
CONVERTOR
1-216-089-00
METAL CHIP
47K 5%
1/10W
X601 1-567-260-11
VIBRATOR, CRYSTAL i
(27.77kHz)
1-216-101-00
METAL CHIP
150K S%
1/10W
1-216-117-00
METAL CHIP
680K
5%
1/10W
1-216-085-00
METAL CHIP
33K 5%
1/10W
1-216-748-11
METAL CHIP
39K 5%
1/10W
1-216-089-00
METAL CHIP
47K 5%
1/10W
1-216-112-00
METAL CHIP
430K
5%
1/10W
ACCESSORY & PACKING MATERIAL
1-216-061-00
METAL CHIP
3.3K
5%
1/10W
1-216-089-00
METAL CHIP 47K 5%
1/10W
Part No. Description
1-216-067-00
METAL CHIP
5.6K 5%
1/10W
3-318-523-01 SPACER
1-216-053-00
METAL CHIP
1.5K 5 %
1/10W
3-318-524-01 CUSHION
1-216-306-11
METAL CHIP 3.9 5%
1/10W
3-324-436-01 INDIVIDUAL CARTON
1-216-053-00
METAL CHIP
1.5K 5 %
1/10W
3-324-439-01 CASE, CARRYING
1-216-037-00
METAL CHIP
330 5 %
1/10W
3-570-631-61 BAG
, POLYETHYLENE
1-216-089-00
METAL CHIP 47K 5%
1/10W
3-703-895-01 LABEL, COLOR (BLACK)
1-216-049-00
METAL CHIP IK 5%
1/10W
3-703-905-01 LABEL, COLOR (RED)
1-216-097-00 METAL CHIP
100K 5%
1/10W
3-703-906-01 LABEL, COLOR (SILVER)
1-216-081-00
METAL CHIP
22K
5% 1/10W
3-704-016-01 LABEL, COLOR (BLACK)
1-216-097-00 METAL CHIP 100K
B%
1/10W
3-704-026-01 LABEL, COLOR (RED)
1-216-061-00
METAL CHIP
3.3K
5%'
1/10W
3-704-027-01 LABEL, COLOR (SILVER)
1-216-089-00
METAL CHIP 47K
5%
1/10W
3-765-927-11 MANUAL, INSTRUCTION
1-216-081-00
METAL CHIP 22K
5% 1/10W
3-765-927-41 MANUAL, INSTRUCTION
1-216-037-00
METAL CHIP 330
5 %
1/10W
1-216-089-00
METAL CHIP 47K
5%
1/10W
8-951-092-90 MDR-
-15L SET
1-216-129-00
METAL CHIP
2.2M 5%
1/10W
1-216-037-00
METAL CHIP
330 S%
1/10W
1-216-056-00
METAL CHIP 2K
5%
1/10W
1-216-001-00
METAL CHIP
10
5%
1/10W
1-216-073-00
METAL CHI? .
10K 5 %
1/10W
1-216-057-00
METAL CHIP <
' 2.2K'
5%
1/10W
1-216-097-00
METAL CHIP
10 OK 5%
1/10W
1-216-121-00
METAL CHIP
1M
5%
1/10W
1-216-121-00
METAL CHIP
1M
5%
1/10W
952 - 670 - 91 )
Sony Corporation
Audio Group
- 1 8 -
English
87 E0648-1
Printed in Japan
©1987.5
