Sony WCH20 User manual

User guide
Wireless Charging Dock
WCH20

Contents
Introduction...................................................................................3
Function overview.............................................................................3
Hardware overview........................................................................... 3
Using your charging dock.............................................................4
Getting started..................................................................................4
Charging............................................................................................4
Legal information..........................................................................6
Sony WCH20..................................................................................... 6
Declaration of Conformity for WCH20.............................................. 7
2

Introduction
Function overview
Your Wireless Charging Dock is designed for fast, wireless charging of:
•Xperia XZ2
It can be used in portrait or landscape orientation.
Hardware overview
1 Stand slot - landscape orientation
2 Wireless charging area
3 Stand slot - portrait orientation
4 Tab
5 Stand
6Notification light
•White light: Device is charging
•Red flashes: Charging error
7 Charger/USB Type-C™ cable port
3
This is an internet version of this publication. © Print only for private use.

Using your charging dock
Getting started
Attach the stand to your charging dock in portrait or landscape orientation.

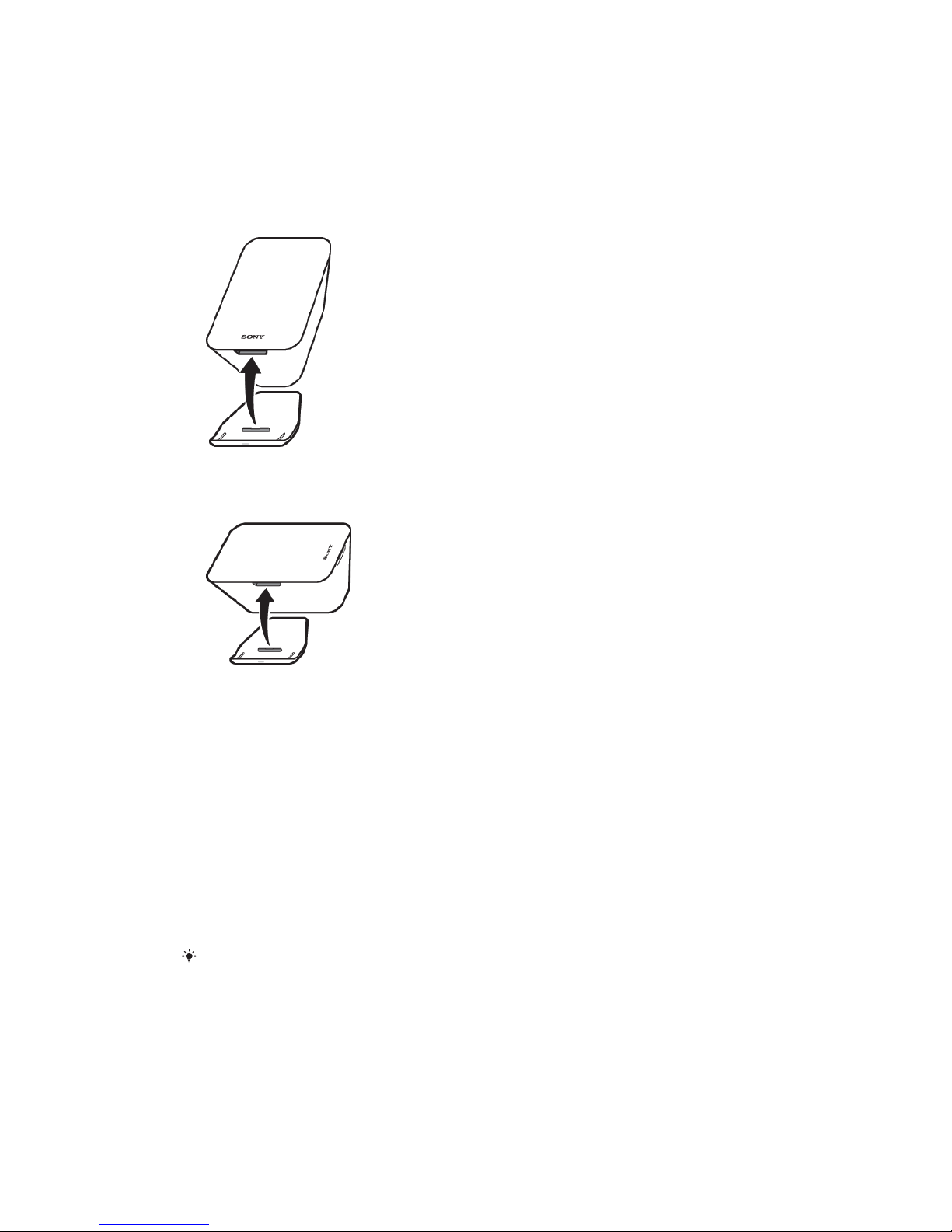

To attach the stand in portrait orientation
•Insert the tab into the stand slot, as shown in the illustration.
To attach the stand in landscape orientation
•Insert the tab into the stand slot, as shown in the illustration.
Charging
You must connect the charging dock to a power source for wireless charging to
work. Make sure to remove any phone covers before using the wireless charging.
To prevent overheating or damage:
•Do not put any foreign materials, such as metal objects or magnets, between the
phone and charging dock. This can interfere with charging, cause overheating or
damage the devices.
•Do not put any magnetic strip or IC chip cards on the charging dock as they may
be demagnetized or broken.
•Do not cover the charging dock with any material or cloth. This could interfere with
the interior fan.
•Do not let dust collect on the charging dock, keep the surface clean.
Due to the magnet in the charging dock, the phone's compass will not work while the
phone is on the charging dock.
4
This is an internet version of this publication. © Print only for private use.

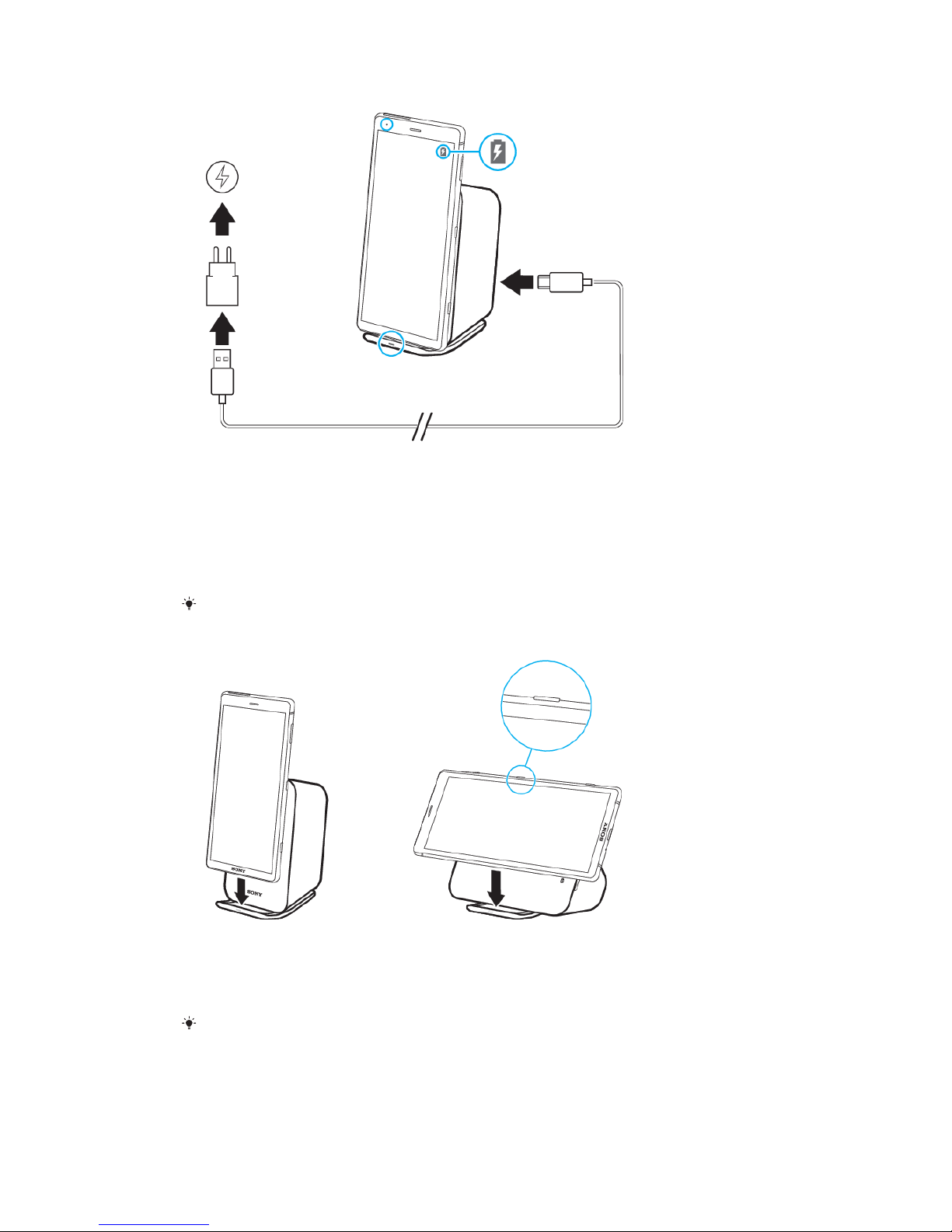

To charge a phone
1Connect one end of the USB Type-C cable to the charger.
2Connect the other end of the cable to the USB Type-C port on your charging
dock.
3Place the phone on the charging dock so the wireless charging areas touch.
Make sure to centre the phone on the wireless charging area for optimal
charging time.
4When charging begins, the notification lights on the phone and charging
dock illuminate. The phone’s charging icon appears on-screen.
The compatible charger is the UCH12.
To position a phone on the charging dock
•Place the phone on the charging dock so that both devices are in the same
orientation.
•If charging in landscape orientation, the phone's power key must be opposite from
the charging dock stand, as shown in the illustration. If the phone's power key is
touching the stand, it is incorrectly positioned and charging will not work.
If charging does not start, try moving the phone slightly to the right or left.
5
This is an internet version of this publication. © Print only for private use.
