Meet the DVD authority on medical image recording.

Sony’s DVO-1000MD Medical DVD Recorder
Building on Sony’s proven track record in product design and innovation,
Sony introduces a medical DVD recorder unlike any other – the DVO-
1000MD model designed specifically for medical videorecording.
Combining user-friendly operation with highly intelligent DVORECOVERY™
and DVOFAST™features, this recorder is the DVD authority you’ll want to
put to work in your imaging lab or operating room.
DVORECOVERY Feature – Built-in for reliable video recovery
Abuilt-in 80 Gig hard drive enables the DVO-1000MD model to record
video simultaneously on the hard drive and on the DVD+RW disc. The
DVORECOVERY feature allows you to recapture video from the hard drive
in the event of unexpected power failure or if you forgot to print the images
before you shut down your printer. In addition, if you need to make a refer-
ral copy, you can simply duplicate a video session from the hard drive. With
the DVORECOVERY feature on your side, your video is kept safe and intact.
DVOFAST Feature – Faster work speed for faster workflow
To help keep the workflow moving, the recorder’s unique DVOFAST fea-
turemakes it possible to eject the DVD in less than two minutes after
recording, requiring no disc finalization. Compared to the industry standard
5to 15 minute wait time, this less than two-minute turn-around is a dramat-
ic time saver for imaging technicians.
Advanced sounds and images for medical applications
Capturing images with the utmost picture clarity is an essential criteria of
medical image recording. To achieve that high level image quality, the
DVO-1000MD recorder employs MPEG-2 video compression, and for excel-
lent sound reproduction, records audio signals in the Dolby®Digital Stereo
format.
9:03 AM
Dr Green’s medical technician per-
forms an endoscopy, which is record-
ed on the DVO-1000MD Medical
DVD Recorder
9:15 AM
Next endoscopy patient arrives (no
need to wait for DVD finalization of
previous recording)
12:30 PM
Dr. Green performs a surgery, which
is recorded on the DVD-1000MD
1:00 PM
Electrical storm causes power failure
in the O.R. The emergency generator
powers up – but no video is lost
because it was recorded to the
DVO’s built-in harddrive.
4:00 PM
Dr. Green reviews the surgical video
and using the CANOPUS®editing
software package, prepares the pres-
entation to colleagues and interns.
9:00 PM
Dr.Green plays back and reviews
the video presentation at home on
his consumer DVD player.
ADay in the Life of DVO...
Put it to work in your imaging lab or operating room

The many interfaces of DVO
The DVO-1000MD recorder is equipped with a wide range of interfaces
including analog composite, S-Video and analog audio I/Os, and an
audio monitor output. An i.LINK®(DV) input is also provided to achieve
high quality digital video recording with minimal signal degradation.
What mode are you in?
The DVO-1000MD recorder provides ample recording time – up to three hours on a single disc.
Three recording modes are available, depending on the picture quality and recording duration
required: • HQ Mode*: 60 minutes • SP Mode: 120 minutes • LP Mode: 180 minutes
*In HQ Mode, CBR (Constant Bit Rate) encoding is used
DVD+RW Media Format
The DVO-1000MD model adopts the DVD+RW format, which is approved by the DICOM Media
Interchange Committee, and is an established DVD format offering re-write capability on affordable
DVD+RW media. This feature provides playback compatibility with many DVD players, including
standard consumer models.
Find it fast
For the ultimate convenience, the DVO recorder offers +/- 3 times playback from the front panel.
Using an optional wired remote control (SVRM-100A), +/-10 times normal speed playback is avail-
able with an easy-to-use Jog/Shuttle operation. An additional +/- 30 times normal speed playback
is possible when the recorder is connected to medical equipment via RS232C protocol, which Sony
provides at no additional charge to software developers.
Multiple playback modes make the DVO recorder ideal in a teach-
ing application when video clips need to be viewed repeatedly.
The recorder offers:
•Repeat between two desired points
•Repeat of the chapter currently being played back
•Repeat of the title currently being played back
Index recording allows you to set “indexes” to images of interest
by pressing the pause button during recording or enable automatic
indexing with pre-determined intervals. With this feature, information
can be quickly accessed by title or chapter.
Legacy remote controls supported: The DVO recorder utilizes all remotes that werecompatible with
the SVO-9500MD S-VHS medical grade recorder. SVRM-100A and FS-20 models are fully supported.
Patient Data Recording: Using an optional keyboardconnected to the RS232C port, patient data up
to 2KB per title can be recorded on the DVD+RW disk.
Speed and reliability at work
Put the DVO-1000MD medical
DVD recorder to work in your
imaging center or operating room.
Go to www.sony.com/medical or
call 1-800-535-7669.And discover
the speed and reliability you’ve
been missing in a medical DVD
recorder.

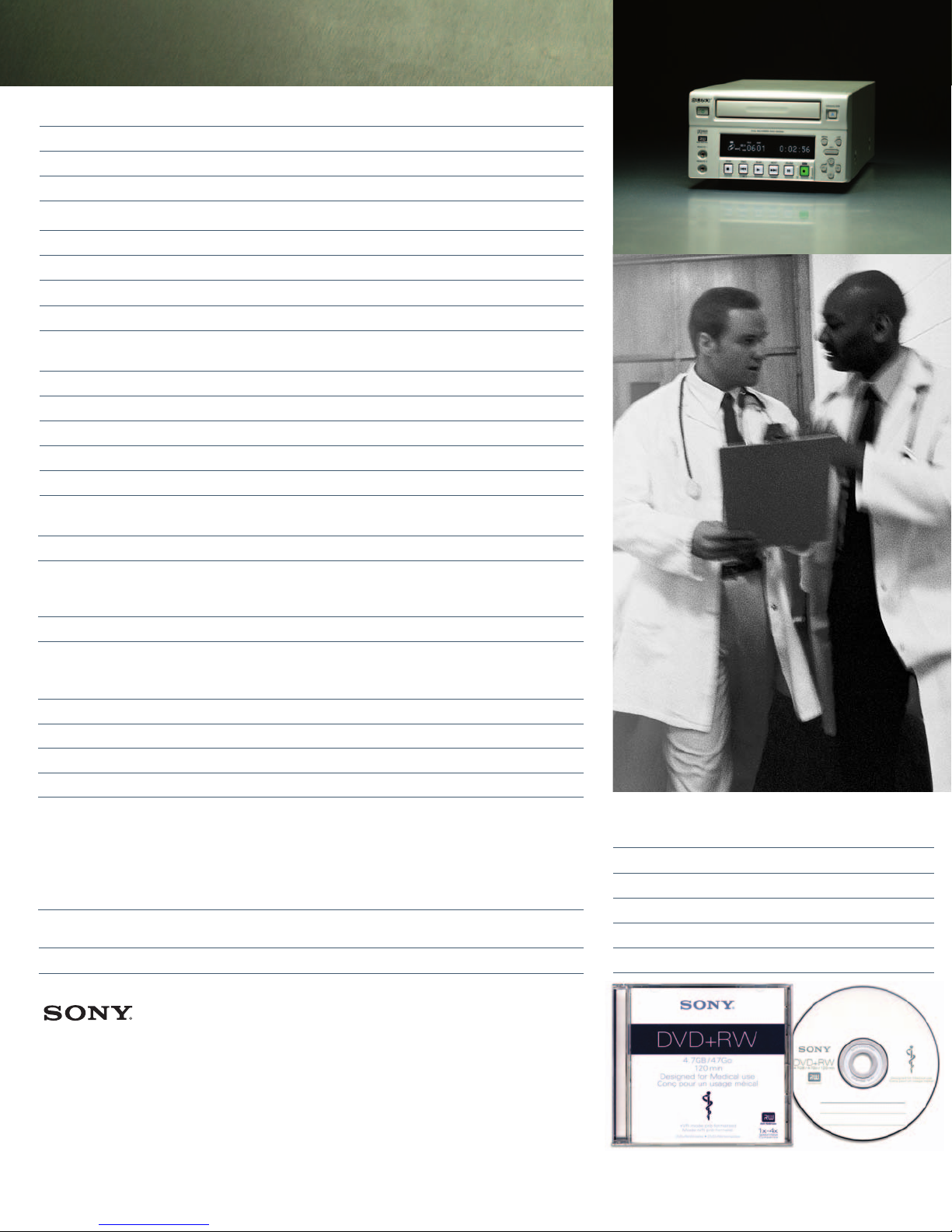

Speed and Reliability areBuilt-in
LMD-2140MD

Power Requirements AC 100 V to 240 V, 50/60 Hz
Power Consumption 35 W
Operating Temperature +5 to +40°C
Storage Temperature -20 to +60°C
Operating Humidity 20 to 80%
Dimensions 8 3/8 x 5 x 15 inches (212 x 128.5 x 382 cm)
Mass 13 lb 4 oz (6 kg)
Recording System DVD Recording, NTSC/PAL Switchable
Recording Format Video: MPEG-2 compression
Audio: Dolby Digital format
Recordable Media DVD+RW (2.4x and 4x speed)
Recording Time HQ Mode: 60 minutes
SP Mode 120 minutes
LP Mode 180 minutes
Medical Standards EN60601-1, EN60601-1-2, UL60601-1, CSA C22.2 No.60601.1
General
Input/Output
DSRM-10 Remote Control Unit
SVRM-100A Remote Control Unit
FS-20 Foot Switch
VMC-IL4615B/IL4435B i.LINK cable (6-pin to 4-pin)
VMC-IL6615B/IL6635B i.LINK cable (6-pin to 6-pin)
Optional Accessories
DVO-1000MD
Sony Electronics Inc.
1Sony Drive
Park Ridge, NJ 07656
*i.LINK is a Sony trademark used only to designate that a product is equipped with an IEEE1394 connector.Some products with an
i.LINK connector may not communicate with each other.Please refer to the documentation that comes with any device having an
i.LINK connector for information on compatibility, operating conditions, and proper connection.
©2005 Sony Electronics Inc. All rights reserved. Reproduction in whole or in part without written permission is prohibited. Features
and specifications aresubject to change without notice. Non-metric weights and measurements areapproximate. Sony is a trademark
of Sony. All other trademarks areproperties of their respective owners. CAUTION: Federal (USA) law restricts this device to sale by
or on the order of a physician or other appropriately licensed medical professional. CAUTION: See product labeling for indications,
contraindications, warnings, cautions, and directions for use.
Analog Composite Input BNC x2, with loop-through, unbalanced, 1.0 Vp-p, 75 Ω
S-Video Input: 4-pin DIN x2, with loop-through
Y: 1 Vp-p, 75 Ω,unbalanced
C: 0.286 Vp-p (NTSC)/0.3 Vp-p (PAL), 75 Ω,unbalanced
Analog Composite Output BNC x1, 1±0.2 Vp-p, 75 Ω,unbalanced
S-Video Output 4-pin DIN x1
Y:1.0 Vp-p, 75 Ω,unbalanced
C: 0.286 Vp-p (NTSC)/0.3 Vp-p (PAL), 75 Ω,unbalanced
Analog Audio Input RCA Pin x2 (L/R), 2 Vrms (full bit), input impedance 47 kΩ
Analog Audio Output RCA Pin x2 (L/R), 2 Vrms (full bit), load impedance 47 kΩ
Monitor Audio Output Monitor RCA Pin x1, 2 Vrms (full bit), load impedance 47 kΩ
i.LINK (DV IN) i.LINK 6-pin x1, IEEE1394
Remote Control RS-232C x1, D-sub 9-pin
Remote1 x1, stereo mini jack (for connection with the
optional SVRM-100A/DSRM-10 controllers)
Remote2 x1, stereo mini jack (for connection with the
optional FS-20 foot switch)
USB 2.2 x1 (Full Speed)
Supplied Accessories
Operations manual, Protocol manual
