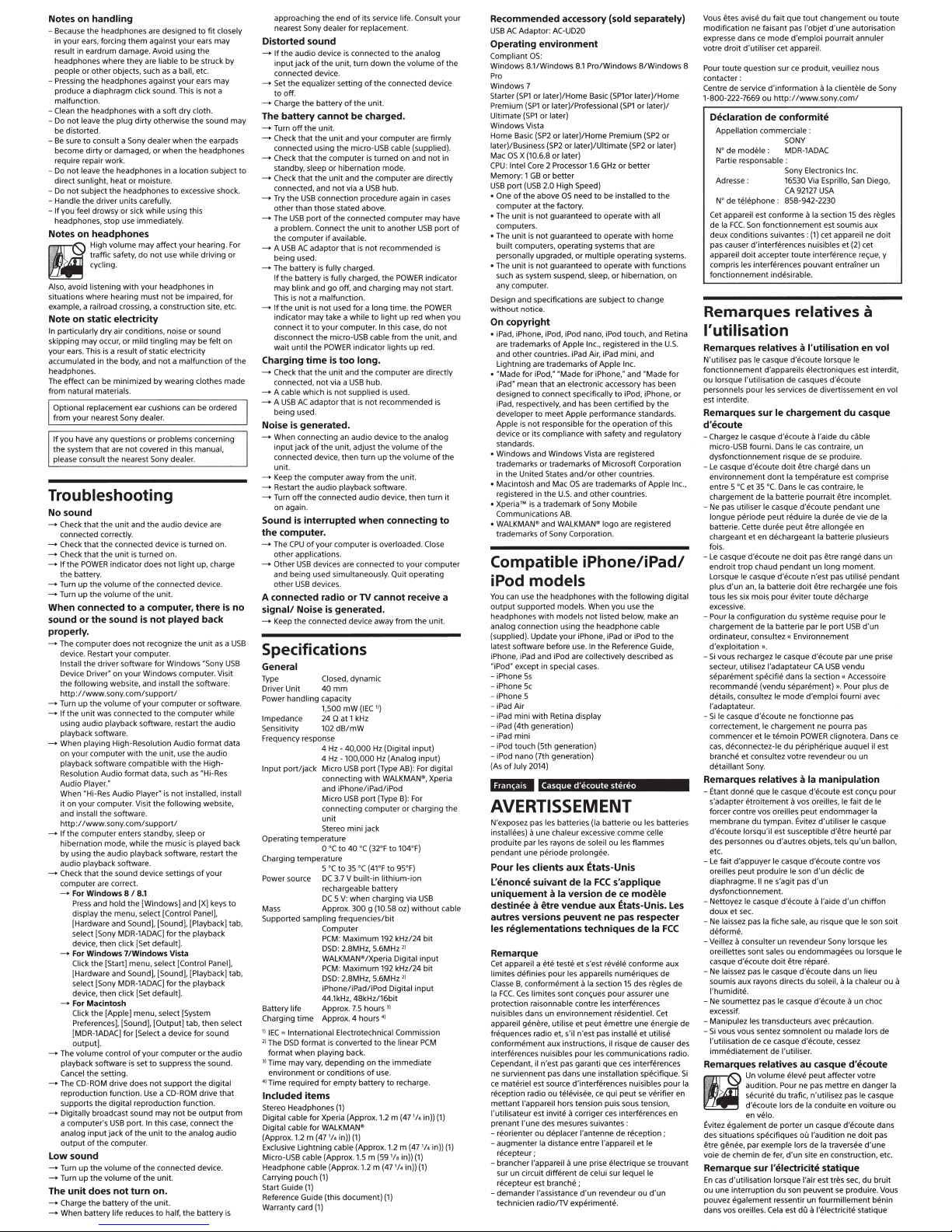

Notes on handling
-
Because
the headphones
are
designed to
fit
closely
in your ears, forcing
them
against your ears
may
result in eardrum
damage
. Avoid using
the
headphones where they are liable
to
be struck by
people or other objects,
such
as
a ball,
etc.
-
Pressing
the headphones against your
ear
smay
produce a diaphragm click sound. This is
not
a
malfunction.
-Clean
the headphones with a soft dry cloth.
-Do
not
leave
the
plug
dirty
otherwise
the
sound may
be distorted.
-
Be
sure
to consult a
Sony
dealer when the earpads
become
dirty
or
damaged, or
when
the
headphones
require repair work.
-
Do
not
lea
vethe headphones
in
a location subject to
direct sunlight, heat or moisture.
-
Do
not subject the headphones to
excessive
shock.
-Handle
the
driver units carefully.
-
If
you feel drowsy or sick while using this
headphones. stop use immediately.
Notes on headphones
g High volume may affect
your
hearing.
For
traffic safety,
do
not
use while driving or
cycling.
Also. avoid listening
with
your headphones in
situations where hearing must not be impaired,
for
example, a railroad crossing, a construction site. etc.
Note
on
static electricity
In particularly dry air conditions. noise or sound
skipping
may
occur, or
mild
tingling may be felt on
your
ears. This is a result
of
static electricity
accumulated in
the
body
, and
not
a malfunction
of
the
headphones.
The effect can be minimized
by
wearing clothes made
from natural materials.
Optional replacement ear cushions can be ordered
from
your
nearest Sony dealer.
If
you have any questions or problems concerning
the
system
that
are
not
covered in this manual.
please consult the nearest Sony dealer.
Troubleshooting
No sound
-Check
that
the
unit
and the audio device are
connected correctly.
-Check
that
the connected device
is
turned on.
-Check
that
the
unit
is
turned on.
-If
the
POWER
indicator does
not
light up, charge
the
battery.
-Turn
up
the
volume
of
the
connected device.
-Turn
up
the
volume
of
the
unit
.
When connected
to
a computer, there is
no
sound
or
the
sound is
not
played back
properly.
-The
computer
does not recognize
the
unit
as
a
USB
device. Restart your
computer
.
Install the driver software for Windows
~sony
USB
Device
Driver~
on your Windows computer. Visit
the
following website, a
nd
install
the
software.
http:
I
/www.sony.com/support/
-Turn up
the
volume
of
your
computer or software.
-
If
the
unit
was connected to
the
computer while
using audio playback software, restart
the
audio
playback software.
-When
playing High-Resolution Audio
format
data
on your computer
with
the
unit
,use
the
audio
playback software compatible
with
the
High-
Resolution Audio
format
data, such
as
·Hi-
Res
Audio
Player.
~
When •Hi-
Res
Audio Player"
is
not installed, install
it
on
your computer. Visit
the
following website,
and install
the
software.
http:/
/www.sony.com/support
/
-If
the
computer enters standby, sleep or
hibernation mode, while
the
music
is
played back
by using
the
audio playback software, restart the
audio playback software.
-Check
that
the sound device settings
of
your
computer are correct.
-For
Windows
8 I 8.1
Press
and hold
the
[Windows] and [X] keys to
display
the
menu, select [Control Panel],
(Hardware and Sound], (Soundj,(Piaybackj tab,
select [Sony
MDR
-
1ADAC
] for
the
playback
device, then click (Set default].
-For
Windows
7
/Windows
Vista
Click
the
(Start] menu, select [Control Panel),
(Hardware and Soundj.(Soundj,(Piaybackj
tab
,
select (Sony MDR-1ADACj for the playback
device, then click [Set default].
-For
Macintosh
Click
the
[Apple] menu, select [System
Preferences],(Sound], [Output] tab, then select
[MDR-1ADAC)
for
[Select a device for sound
output].
-The
volume control
of
your
computer
or
the
audio
playback software
is
set
to
suppress
the
sound.
Cancel the setting.
-The
CD-ROM drive does not
support
the
digital
reproduction function. Use a
CD
-
ROM
drive
that
supports
the
digital reproduction function.
-Digitally broadcast sound may
not
be
output
from
a computer's
USB
port. In this case, connect
the
analog
input
jack
of
the
unit
to
the
analog audio
output
of
the
computer
.
Low sound
-Turn
up
the
volume
of
the
connected device.
-Turn up
the
volume
of
the
unit.
The
unit
does
not
turn
on.
-Charge
the
battery
of
the
unit.
-When battery life reduces
to
half,
the
battery is
approaching
the
end
of
its service life. Consult your
nearest Sony dealer
for
replacement.
Distorted sound
-
If
the
audio device
is
connected
to
the
analog
input
jack
of
the
unit
, turn
down
the volume
of
the
connected device.
-Set
the
equalizer setting
of
the
connected device
to off.
-Charge
the
battery
of
the
unit.
The batterycannot be charged.
-Turn
off
the
unit.
-Check
that
the
unit
and your
computer
are firmly
connected using
the
micro-USB cable (supplied).
-Check
that
the computer
is
turned on and
not
in
standby, sleep
or
hibernation mode.
-Check
that
the
unit
and
the
computer
are directly
connected, and not via a
USB
hub.
-Try
the
USB
connection procedure again in cases
other than those stated above.
-The
USB
port
of
the
connected
computer
may have
a
problem
. Connect the
unit
to another
USB
port
of
the
computer
if
available.
- A
USB
AC
adaptor
that
is not recommended
is
being used.
-The battery is fully charged.
If
the
batteryis fully charged,
the
POWER
indicator
may blink and
go
off, and charging may
not
start.
This
is
not a malfunction.
-
If
the
unit
is
not
used
for
a
long
time,
the
POWER
indicator may take a while
to
light
up
red
when
you
connect it
to
your
computer
.
In
this case,
do
not
disconnect
the
micro-USB cable from
the
unit
, and
wait until
the
POWER
indicator lights up red.
Charging
time
is
too
long.
-Check
that
the
unit
and
the
computer
are directly
connected,
not
via a
USB
hub.
- A cable which
is
not supplied is used.
- A
USB
AC
adaptor
that
is
not recommended
is
being used.
Noise
is
generated.
-When connecting an audio device
to
the
analog
input
jack
of
the
unit
, adjust
the
v
olume
of
the
connected device, then
turn
up
the
volume
of
the
unit.
-Keep
the
computer away
from
the unit.
-Restart
the
audio playback software.
-Turn
off
the
connected audio
de
vice, then
turn
it
on again.
Sound is interrupted when connecting
to
the computer.
-The
CPU
of
your computer is overloaded. Close
other
applications.
-Other
USB
devices are connected
to
your computer
and being used simultaneously. Quit operating
other
USB
device
s.
A connected radio
or
TV
cannot receive a
signal/ Noise is generated.
-Keep
the
connected device away
from
the
unit.
Specifications
General
Type Closed, dynamic
Driver Unit
40
mm
Power handling capacity
1,500
mW
(IEC
'')
Impedance 24
Qat
1kHz
Sensitivity
102
dB/mW
Frequency response
4
Hz
-40,000
Hz
(Digital
input)
4
Hz
-100,
000
Hz (Analog input)
Input
port/jack
Micro
USB
port
(Type
AB
):
For
digital
connecting with WALKMAN
•,
Xperia
and iPhone/iPad/iPod
Micro
USB
port
(Type
B):
For
connecting computer or charging
the
unit
Stereo mini jack
Operating temperature
o -
cto
40
-c
(32
°F
to
104-F)
Charging temperature
s -c to 35 -c
(4n
togs
-
F)
Power source
DC
3.7
V built-in
lithium-ion
rechargeable battery
DC
5
V:
when
charging via
USB
Mass Approx. 300 g (10.58 oz)
without
cable
Supported sampling frequencies/bit
Computer
PCM
: Maximum
192
kHz/24
bit
DSD:
2.8MHz, S.6MHz 2l
WALKMAN*/Xperia Digital
input
PCM
: Maximum
192
kHz/24 bit
DSD:
2.8MHz, 5.6MHz 21
iPhone/iPad/iPod Digital
input
44
.
1kHz
, 48kHzl16bit
Battery life Approx.7.5 hours 3l
Charging
time
Approx.4 hours 4l
1l
IEC
=International Electrotechnical Commission
2lThe
DSD
format
is
converted to
the
linear
PCM
format
when
playing back.
3l Time may vary, depending
on
the
immediate
environment or conditions
of
use.
4lTime required
for
empty
battery
to
recharge.
Included items
Stereo Headphones
(1)
Digital cable
for
Xperia (Approx.1.2 m
(47
1
/4
in))
(1)
Digital cable for WALKMAN*
(Approx.
1.2
m
(47
'
I•
in))
(1)
Exclusive
lightning
cable (Approx.
1.2
m
(47
1
/4
in))
(1)
Micro-
USB
cable (Approx.
1.5
m (59
'I•
in))
(1)
Headphone cable (Approx.1.2 m
(47
'I•in))
(1)
Carrying pouch
(1)
Start Guide
(1)
Reference Guide (this document)
(1)
Warranty card
(1)
Recommended accessory (sold separately)
USB
AC
Adaptor: AC-UD20
Operating environment
Compliant
OS
:
Windows 8.
1/Windows
8.1
Pro/Windows
8/Windows
8
Pro
Windows 7
Starter
(SP1
or later)/Home Basic
(SP1or
later)/Home
Premium
(SP1
or later)/Professional
(SP1
or
later)/
Ultimate
(SP1
or later)
Windows Vista
Home Basic
(SP2
or
later)/Home Premium
(SP2
or
later)/Business
(SP2
or
later)/Uitimate
(SP2
or
later)
Mac
OS
X(10.6.8 or later)
CPU
: Intel
Core
2 Processor1.6
GHz
or
better
Memory: 1
GB
or
better
USB
port
(USB
2.0 High Speed)
• One
of
the
above
OS
need
to
be installed
to
the
computer
at
the
factory.
• The
unit
is
not
guaranteed
to
operate
with
all
computers.
• The
unit
is
not
guaranteed
to
operate
with
home
built
computers, operating systems
that
are
personally upgraded,
or
multiple
operating systems.
• The
unit
is
not
guaranteed
to
operate
with
functions
such
as
system suspend, sleep,
or
hibernation,
on
any computer.
Design and specifications are subject
to
change
without
notice.
On copyright
• iPad, iPhone, iPod, iPod nano, iPod touch, and Retina
are trademarks
of
Apple Inc., registered in
the
U.S
.
and other countries. iPad Air, iPad mini, and
lightning
are trademarks
of
Apple Inc.
• "Made
for
iPod: ·Made
for
iPhone/ and
~
Made
for
iPad· mean
that
an electronic accessory has been
designed
to
connect specifically to iPod, iPhone,or
iPad, respectively, and has been certified by
the
developer
to
meet Apple performance standards.
Apple is
not
responsible for
the
operation
of
this
device or its compliance
with
safety and regulatory
standards.
• Windows and Windows Vista are registered
trademarks or trademarks
of
Microsoft Corporation
in
the
United States and/
or
other countries.
• Macintosh and Mac
OS
are trademarks
of
Apple Inc.,
registered in
the
U.S.
and other countries.
• Xperia
n.~
is
a trademark
of
Sony Mobile
Communications
AB.
• WALKMAN• and
WALK
MAN®
logo
are registered
trademarks
of
Sony Corporation.
Compatible
iPhone/iPad/
iPod
models
You
can use
the
headphones
with
the
following digital
output
supported models. When you use
the
headphones
with
models not listed below, make an
analog connection using
the
headphonecable
(supplied). Update
your
iPhone, iPad
or
iPod
to
the
latest software before use.ln
the
Reference Guide,
iPhone, iPad and iPod are collectively described
as
~
iPod
~
except in special cases.
-iPhone Ss
-iPhone
Sc
-iPhone 5
-iPad Air
-iPad mini
with
Retina display
-iPad (4th generation)
-iPad mini
-iPod touch (5th generation)
-iPod nano(7th generation)
(As
of
July 2014)
Casque
d'ecoute
stereo
1111!1'1

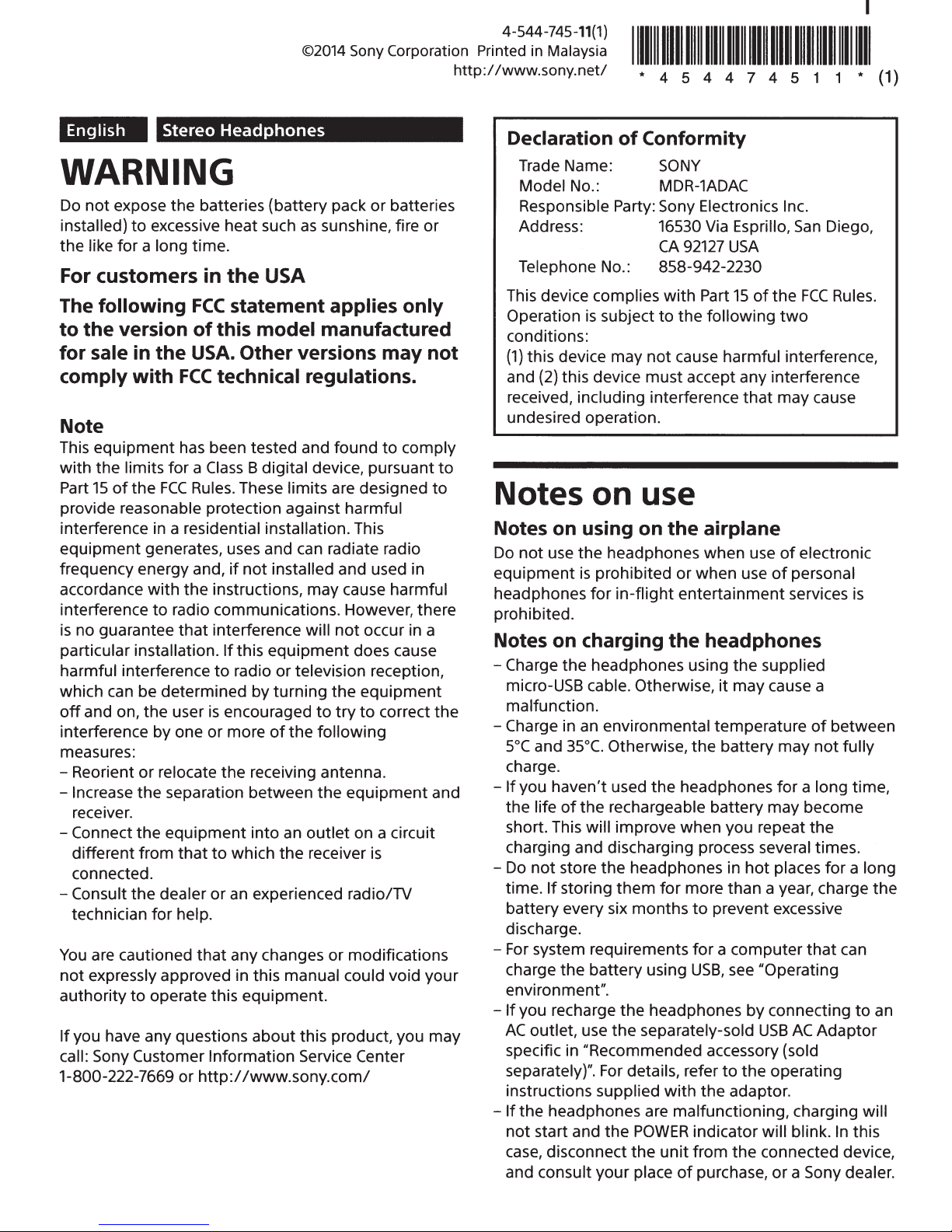

AVERTISSEMENT
N'exposez pas les batteries
(Ia
batterie ou les batteries
instaiiE!es) a
une
chaleur excessive comme celle
produite par les rayons
de
soleil ou les flammes
pendant
une pE!riode prolongee.
Pour les clients
aux
Etats-Unis
L'enonce suivantde
Ia
FCC
s'applique
uniquement
ala
version de
ce
modele
destinee a etrevendue aux Etats-Unis.
Les
autres versions peuvent ne pas respecter
les reglementations techniques deIa
FCC
Remarque
Cet
appareil aete teste
et
s'est revete conforme aux
limites dE!finies pour les appareils numE!riques
de
Classe B, conformement a
Ia
section
15
des regtes de
Ia
FCC.
Ces
limites sont cont;ues
pour
assurer une
protection raisonnable contre les interferences
nuisibles dans un environnement residentiel.
Cet
appareil genere, utilise
et
peut
emettre
une
energie
de
frequences radio et, s'il n'est pas installe
et
utilise
conformement aux instructions, il risque
de
causer des
interferences nuisibles pour les communications radio.
Cependant, il n'est pas garanti que ces interferences
ne surviennent pas dans
une
installation spE!cifique.
Si
ce
materiel est source d'interfE!rences nuisibles
pour
Ia
reception radio ou teiE!visee, ce qui
peut
se verifier en
me
ttant
l'appareil hors tension puis sous tension,
l'utilisateur est invite a corriger
ces
interferences en
prenant l'une des mesures suivantes:
-reorienter ou deplacer l'antenne
de
reception ;
-augmenter
Ia
distance entre l'appareil
et
te
recepteur;
-brancher l'appareil aune prise E!lectrique
se
trouvant
sur un circuit diffE!rent de celui sur
lequelle
recepteur est
branche;
-demander
!'assistance
d'un
revendeur ou
d'un
technicien
radio/lV
experimente.
Vous etes
avisE!
du fait que
tout
changement ou toute
modification ne faisant pas I'objet d'une autorisation
expresse dans
ce
mode
d'emploi pourrait annuler
votre droit d'utiliser cet appareil.
Pour toute question sur ce
produit
,veuillez nous
contacter :
Centre
de
service d'information a
Ia
clientele de Sony
1-800-222-7669 ou
http
:/
/www
.sony.com/
Declaration
de
conformite
Appellation commerciale:
SONY
W de modele :
MDR-1ADAC
Partie
re
s
ponsable:
Sony Electronics Inc.
Adresse : 16530 Via Esprillo,
San
Diego,
CA
92127
USA
Node telephone : 858-942-2230
Cet
appareil est conforme a
Ia
section
15
des regles
de
Ia
FCC.
Son fonc
tionnement
est soumis aux
deux conditions suivantes :
(1)
cet appareil ne
doit
pas causer d'interfE!rences nuisibles
et
(2)
cet
appareil
doit
accepter
toute
interference ret;ue, y
compris les interferences pouvant entrainer un
fonctionnement indesirable.
Remarques relatives a
!'utilisation
Remarques relatives
al'utilisation
en vol
N'utilisez pas le casque d'ecoute lorsque le
fonctionnement
d'appareils €1ectroniques est interdit,
ou
lorsque I'utilisation
de
casques d'ecoute
personnels pour les services de
di
vertissement en vol
est interdite.
Remarques sur lechargement
du
casque
d'ecoute
-Chargez le casque d'€coute a I'aide
du
cable
micro-USB fourni. Dans le cas contraire, un
dysfonctionnement risque
de
se
produire.
-
le
ca
sque d'ecoute
do
it etre charge dans un
environnement
dont
Ia
temperature est comprise
entre 5ocet 35 o
c.
Dans le
cas
contraire, le
chargement
de
Ia
batterie pourrait etre incomplet.
-
Ne
pas utiliser le casque d'ecoute pendant
une
longue
periode
peut
reduire
Ia
duree de vie de
Ia
batterie. Cette duree
peut
etre allongee en
chargeant
et
en dechargeant
Ia
batterie plusieurs
fois.
-
le
casque d'E!coute ne
doit
pas etre range dans un
endroit
trap
chaud
pendant
un long
moment.
lorsque
le casque d'ecoute n'est pas utilise pendant
plus
d'un
an,
Ia
batterie
do
it etre
re
chargee une fois
taus les six mois
pour
eviter toute decharge
excessive.
-Pour
Ia
configuration du systeme requise pour le
chargement
de
Ia
batterie par le
port
USB
d'un
ordinateur, consultez « Environnement
d'exploitation
))
.
-
Si
vous rechargez le
ca
sque d'E!coute par une prise
secteur, utilisez l'adaptateur
CA
USB
vendu
separement specifie dans
Ia
section« Accessoire
recommande (vendu separement) ». Pour plus de
details, consultez le
mode
d'emploi fourni avec
l'adaptateur.
-
Si
le casque d'ecoute ne fonctionne pas
correctement.le chargement ne pourra pas
commencer
et
le tE!moin
POWER
clignotera. Dans
ce
cas. deconnectez-le
du
peripherique auquel il est
branche
et
consultez votre revendeur ou un
dE!taillant Sony.
Remarques relatives a
Ia
manipulation
-Etant
donne
que le casque d'E!coute est
con~u
pour
s'adapter etroitement
avos
oreille
s,
le fait
dele
forcer centre vos oreilles
peut
endommager
Ia
membrane
du
tympan.Evitez d'utiliser le casque
d'ecoute lorsqu'il est susceptible d'etre heurte par
des personnes ou d'autres objets, tels
qu'un
ballon,
etc.
-
Le
fait d'appuyer le casque d'E!coute centre vos
oreilles
peut
produire le son
d'un
dE!clic
de
diaphragme.ll
ne s'agit pas
d'un
dysfonctionnement.
-Nettoyez le casque d'ecoute aI'aide d'
un
chiffon
doux
et
sec.
-Ne laissez pas
Ia
fiche sale, au risque que le son soit
delorme
.
-Veillez aconsulter un revendeur Sony lorsque les
oreillettes sont sales
ou
endommagees ou lorsque le
casque
d'tkoute
do
it etre repare.
-Ne laissez pas le casque
d'e
coute dans un lieu
soumis aux rayons directs du soleiI,a
Ia
chaleur ou a
l'
humidite
.
-Ne soumettez pas le casque d'ecoute a un choc
excessif.
-Manipulez les transducteurs avec precaution.
-
Si
vous vous sentez somnolent ou malade lors de
I'utilisation de ce casque d'E!coute, cessez
immE!diatement de l'utiliser.
Remarques relatives au casque d'ecoute
EUn
volume
eteve
peut
affecter votre
audition
. Pour ne pas mettre en danger
Ia
secunte
du
trafic, n'ut1llsez pas le casque
d'tkoute
lors de
Ia
conduite en voiture ou
en vela.
Evitez egalement de porter un casque d'ecoute dans
des situations specifiques
oU
I'audition ne
doit
pas
etre genee, par exemple Iars de
Ia
traversE!e
d'une
voie
de
chemin
de
fer, d'un site en construction, etc.
Remarque sur l'electricitestatique
En
cas
d'utilisation lorsque I'air est tres sec, du bruit
ou
une interruption
duson
peuvent
se
produire.Vous
pouvez egalement ressentir un
fourmillement
bE!nin
dans vos oreilles.
Cela
est
dO
a l'electricite statique
