SERVICE MANUAL
Published by Sony Techno Create Corporation
Sony Corporation
Audio&Video Business Group
BDV-E800W
BD/DVD HOME THEATRE SYSTEM
9-889-590-01
2009G05-1
© 2009.07
AEP Model
Australian Model
Chinese Model
Saudi Arabia Model
Singapore Model
Taiwan Model
Ver. 1.0 2009.07
• BDV-E800W is composed of following models.
As service manuals are issued for each component model, please
refer to them.
SPECIFICATIONS
COMPONENT MODEL NAME
BDV-E800W
BD/DVD receiver HCD-E800W
Front speaker SS-TSB91
Center speaker SS-CTB91
Surround speaker SS-TSB91
Subwoofer SS-WSB91
Surround amplifier TA-SA100WR
Wireless transceiver (AEP model) EZW-RT10A
Wireless transceiver (Except AEP model) EZW-RT10
DIGITAL MEDIA PORT adapter (Australian model) TDM-iP20
General (BDV-E800W)
Power requirements Taiwan model: 120 V AC , 50/60Hz
Other models: 220 V - 240 V AC, 50/60Hz
Power consumption On: 120 W
Standby: 0.3 W
(at the Power Saving mode)
Output voltage/current DC 5 V/700 mA
(DIGITAL MEDIA PORT)
LAN (100) 100BASE-TX Terminal
EXT External memory slot
(For connecting the external memory)
DC output: 5 V 500 mA Max
Dimensions (approx.) 430 mm × 93 mm × 400 mm (w/h/d) incl.
projecting parts
430 mm × 93 mm × 430 mm (w/h/d)
(incl. Wireless transceiver)
Mass (approx.) 5.4 kg
Wireless transceiver (EZW-RT10/EZWRT10A*)
Communication system S-AIR Specification version 1.0
Frequency band 2.4000 GHz - 2.4835 GHz
Modulation method DSSS
Power requirements DC 3.3 V, 350 mA
Dimensions (approx.) 50 mm × 13 mm × 60 mm (w/h/d)
Mass (approx.) 24 g
* European models only.
General (TDM-iP20: Australian model)
Power requirements: DC IN: 5 V, 0.6 A
(via DIGITAL MEDIA PORT)
Dimensions: Approx. φ80 ×22(h) mm
Mass: Approx. 132 g (including cable)
Cable length: Approx. 1 m
Supplied items: TDM-iP20 (1)/Operating Instructions (1)
Design and specifications are subject to change without notice.
Unpacking
• Front speakers (2)
• Surround speakers (2)
• Center speaker (1)
• Subwoofer (1)
• FM wire antenna (aerial) (1)
• Speaker cords (2, green/purple)
• Video cord (1)
• Remote commander (remote) (1)
• R6 (size AA) batteries (2)
• Calibration mic (1)
• Foot pads (1 set)
• Bases (4)
• Screws (with washer) (12)
• Surround amplifer (1)
• Speaker cord cover (1)
• Speaker cord holder (1)
• Wireless transceivers (2)
• Operating Instructions
• Speaker Instruction Guide
• Quick Setup Guide
• Software Licence Information
• Wireless Product Safety Information (For European models)
• DIGITAL MEDIA PORT adapter (TDM-iP20) (1)
(For Australian model)
• Operating Instructions for DIGITAL MEDIA PORT adapter (TDM-iP20)
(For Australian model)
• HDMI cable (1) (For Singapore, Indoneseian, Malaysia, Hong Kong, and
Philippines models)
Note: As for EZW-RT10A and TDM-iP20, the part number has been described to
this service manual.
SYSSET
2020/08/0711:50:48(GMT+09:00)

BDV-E800W
2
• Abbreviation
AUS : Australian model
CH : Chinese model
EA : Saudi Arabia model
SP1 : Singapore, Indonesian, Malaysia, Hong Kong, and
Philippines models

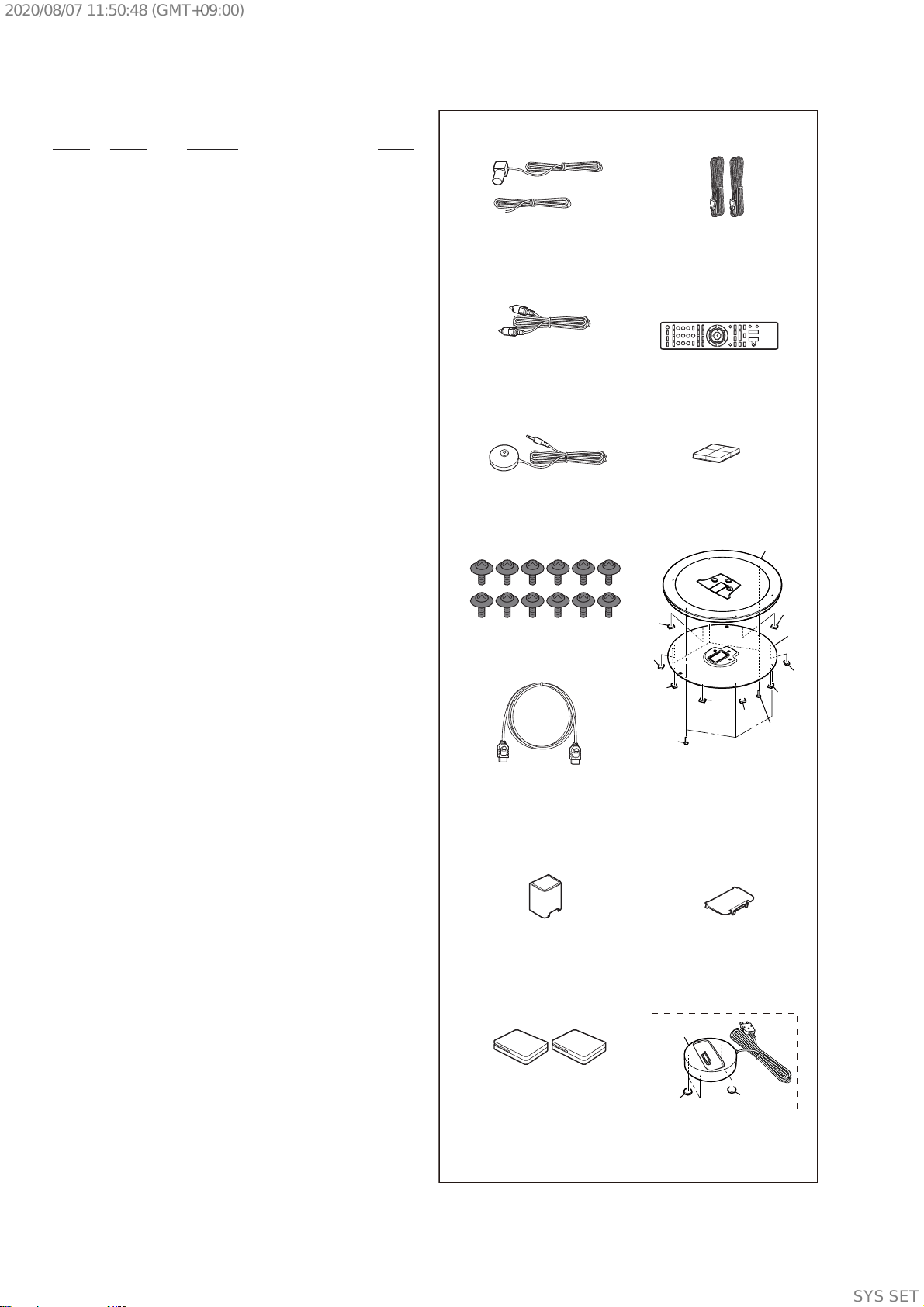

ACCESSORIES
4-127-366-21 MANUAL, INSTRUCTION (ENGLISH)
(for TDM-iP20) (AUS)
4-147-230-11 MANUAL, INSTRUCTION (ENGLISH) (AEP, AUS)
4-147-230-21 MANUAL, INSTRUCTION (FRENCH) (AEP)
4-147-230-31 MANUAL, INSTRUCTION (GERMAN) (AEP)
4-147-230-41 MANUAL, INSTRUCTION (ITALIAN) (AEP)
4-147-230-51 MANUAL, INSTRUCTION (DUTCH) (AEP)
4-147-230-61 MANUAL, INSTRUCTION (SPANISH) (AEP)
4-147-230-71 MANUAL, INSTRUCTION (POLISH) (AEP)
4-147-230-81 MANUAL, INSTRUCTION (SWEDISH) (AEP)
4-147-231-11 MANUAL, INSTRUCTION
(DANISH, FINNISH, PORTUGUESE) (AEP)
4-147-231-21 MANUAL, INSTRUCTION (GREEK) (AEP)
4-147-231-31 MANUAL, INSTRUCTION (CZECH, HUNGARIAN)
(AEP)
4-147-231-41 MANUAL, INSTRUCTION (TURKISH) (AEP)
4-147-231-51 MANUAL, INSTRUCTION (SLOVAKIAN) (AEP)
4-147-232-11 MANUAL, INSTRUCTION (ENGLISH) (EA, SP1)
4-147-232-21 MANUAL, INSTRUCTION (FRENCH) (EA)
4-147-232-31 MANUAL, INSTRUCTION
(TRADITIONAL CHINESE) (SP1)
4-147-232-41 MANUAL, INSTRUCTION (ARABIC) (EA)
4-147-232-51 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE)
(CH)
4-147-232-61 MANUAL, INSTRUCTION
(TRADITIONAL CHINESE) (TW)
1 1-754-060-21 ANTENNA (FM) (FM wire antenna (aerial))
2 1-836-405-71 CORD (WITH CONNECTOR) (SPEAKER)
(Speaker cords: 2, green/purple)
3 1-833-579-11 CORD, CONNECTION (Video cord)
4 1-487-360-11 COMMANDER, STANDARD (RM-ADP035)
(Remote commander (remote))
5 1-542-774-21 MEASUREMENT MIC (MONO)
(Calibration mic: ECM-AC2)
6 2-639-385-01 FOOT (Foot pads: 4 pieces, 1 set)
7 2-580-608-01 SCREW, +PSW M5X16
(Screw (with washer): 1 piece)
8 4-140-080-01 STAND BASE
9 4-140-084-01 STAND WEIGHT
10 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
11 4-251-067-11 PACKING (AL FRONT)
12 1-835-855-11 CORD WITH CONNECTOR (HDMI CABLE)
(SP1, TW)
13 3-277-783-01 COVER (CORD) (Speaker cord cover)
(for TA-SA100WR)
14 3-277-784-01 BOTTOM COVER (CORD) (Speaker cord holder)
(for TA-SA100WR)
15 A-1663-609-A EZW-RT10A (Wireless transceiver: 1 piece) (AEP)
15 A-1730-971-A EZW-RT10 (Wireless transceiver: 1 piece)
(EA, SP1)
15 A-1730-972-A EZW-RT10 (Wireless transceiver: 1 piece) (CH)
15 A-1730-973-A EZW-RT10 (Wireless transceiver: 1 piece) (AUS)
15 A-1730-974-A EZW-RT10 (Wireless transceiver: 1 piece) (TW)
16 A-1609-467-A OVERALL ASSY (TDM-iP20) (AUS)
17 3-277-581-01 FOOT (1 piece) (for TDM-iP20) (AUS)
Ref. No. Part No. Description Remark
FM wire antenna (aerial)
u1
Video cord
u1
Remote commander (remote)
u1
Calibration mic
u1
Foot pads
u1
Speaker cords
(2, green/purple)
Bases
u4
or
8
9
10
10
11
11
11
11
11
11
11
11
17
not supplied
17
7
12
34
56
12
Wireless transceivers
u2
DIGITAL MEDIA PORT adapter
(TDM-iP20)
(For Australian model)
u1
Speaker cord cover
u1
13 14
15 16
Speaker cord holder
u1
HDMI cable
(For Singapore, Indonesian,
Malaysia, Hong Kong,
Philippines and Taiwan models)
u1
Screws (with washer)
u12
SYSSET
2020/08/0711:50:48(GMT+09:00)

BDV-E800W
3
MEMO
SYSSET
2020/08/0711:50:48(GMT+09:00)

BDV-E800W
REVISION HISTORY
Checking the version allows you to jump to the revised page.
Also, clicking the version at the top of the revised page allows you to jump to the next revised page.
Ver. Date Description of Revision
1.0 2009.07 New
